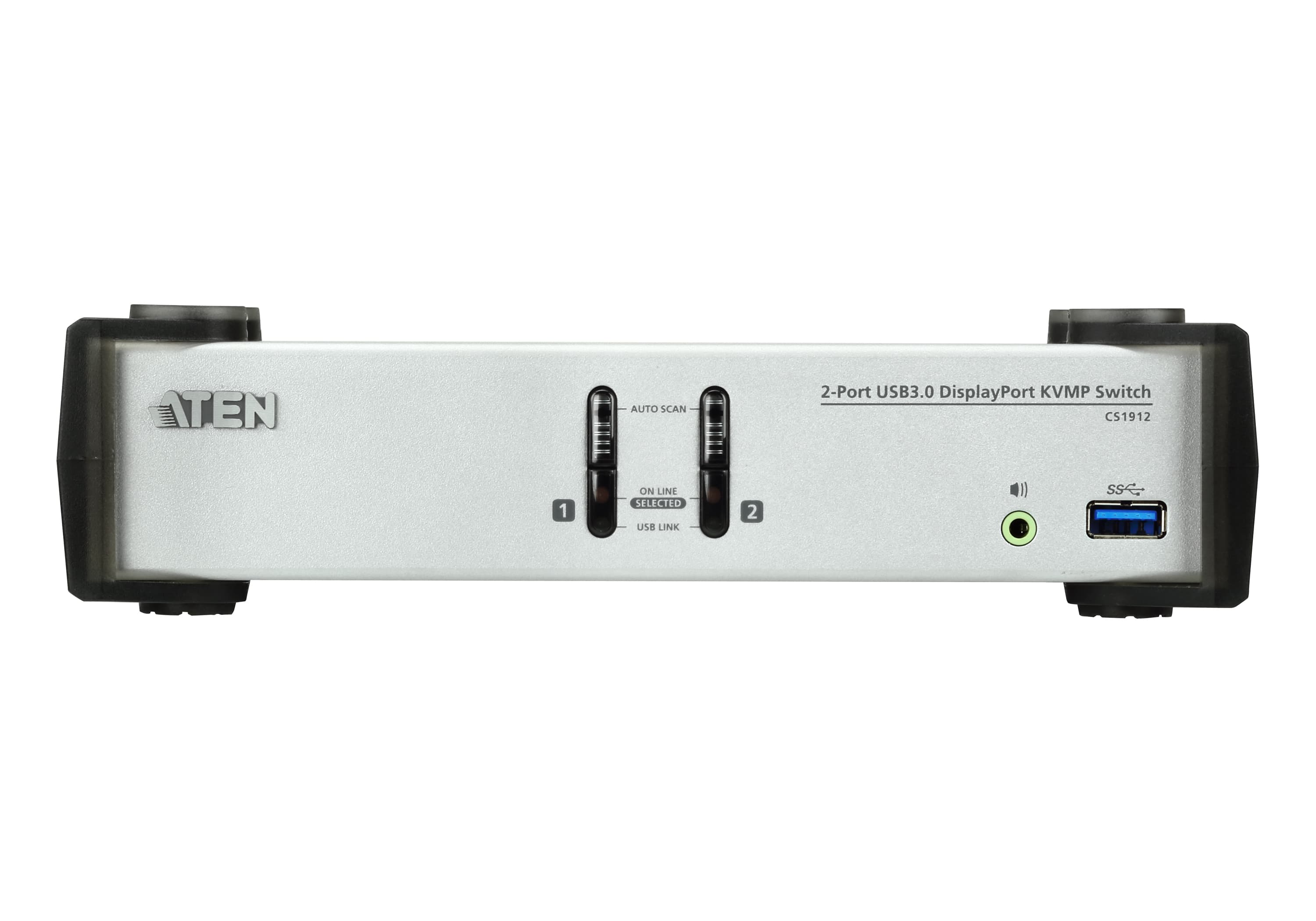

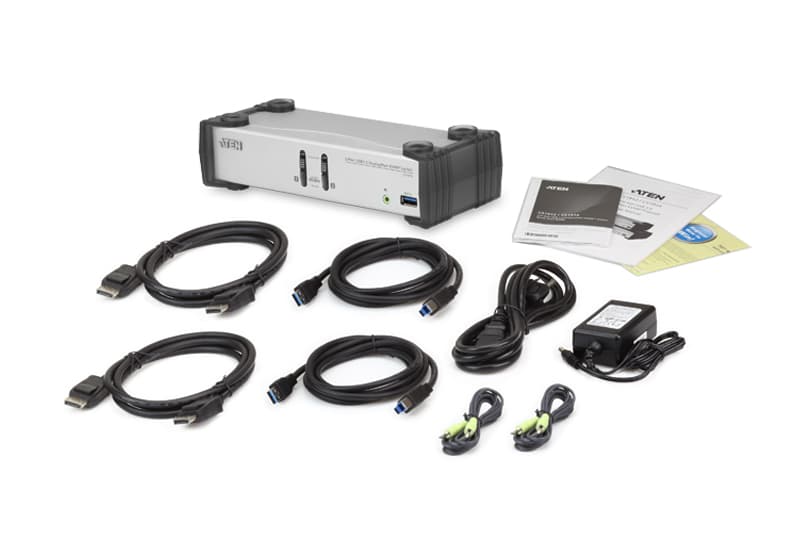

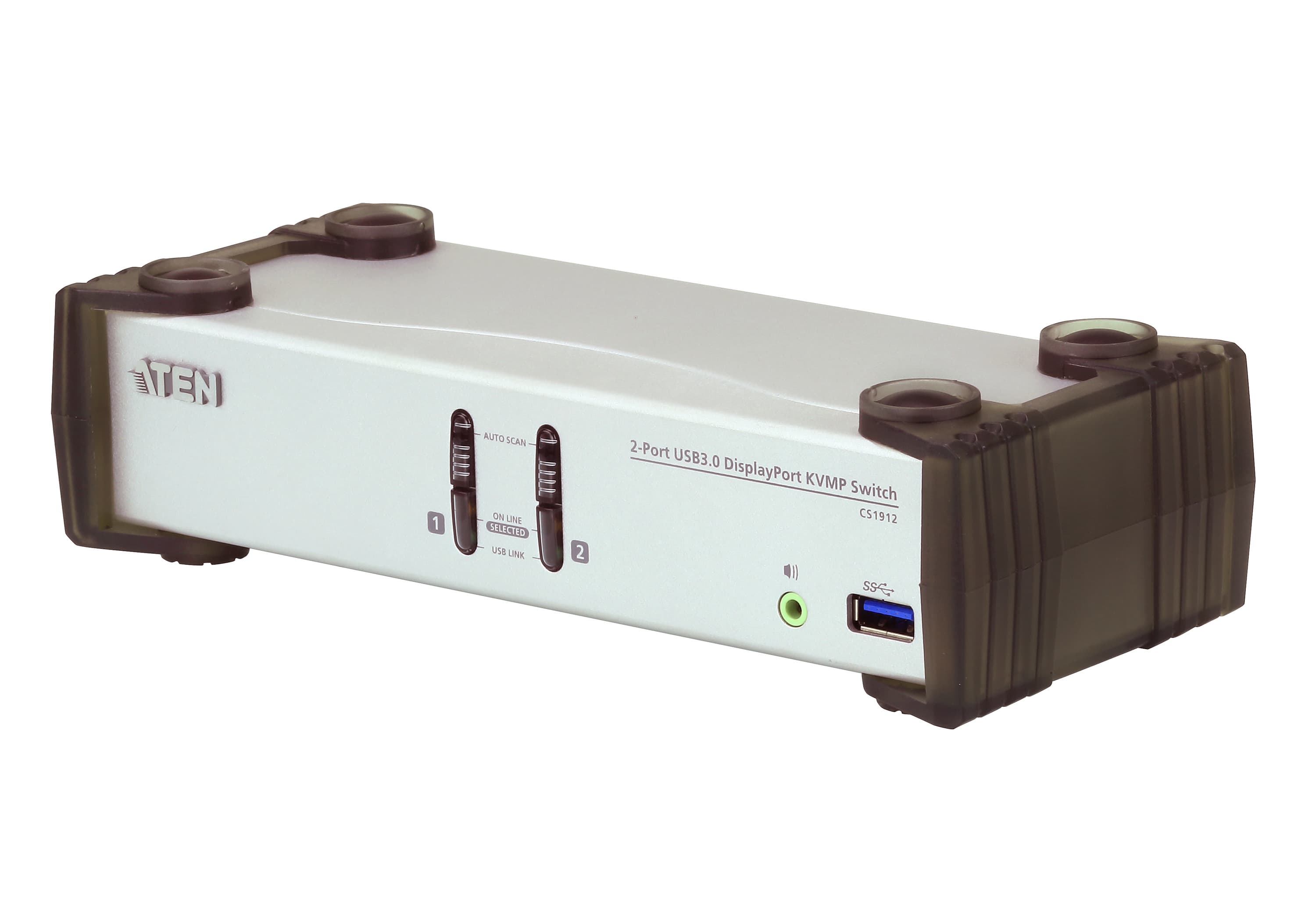

2-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included)

Name: 2-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1912

CS1912

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

DisplayPort switch where one USB console controls 2 computers and shares 2 USB peripherals, with a USB 3.1 Gen 1 hub and 2.1-channel surround audio; cables included.

Features

2-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio

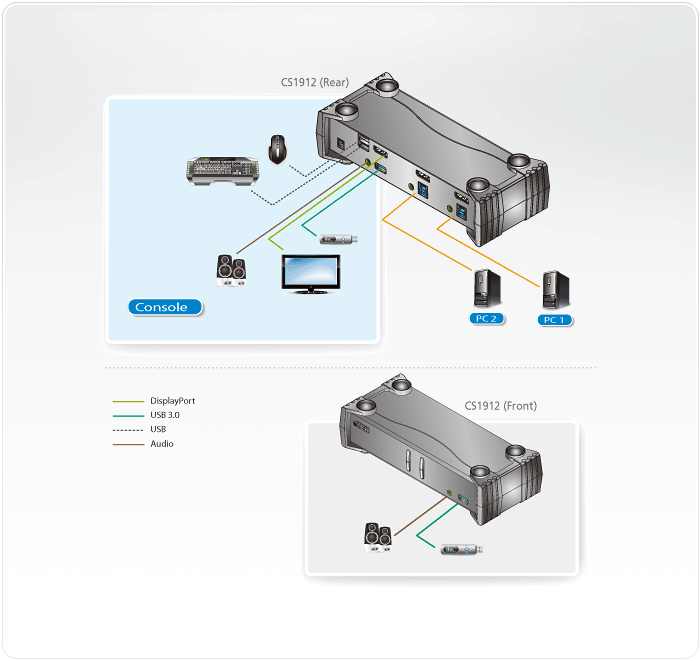

One USB console controls 2 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse1
Independent switching of KVM, USB, and Audio focus
Superior video quality – up to 3840 x 2160 @ 30 Hz
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
DisplayPort 1.1 compliant, HDCP compliant2
Supports HD audio through DisplayPort3
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection – if a computer is powered off, the CS1912 automatically switches to the next powered-on computer
DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
Hot pluggable – add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac, and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation5
Auto Scan Mode for monitoring all computers
Firmware upgradable

Specifications

Computer Connections: 2
Port Selection: Hotkey, Pushbutton, Mouse

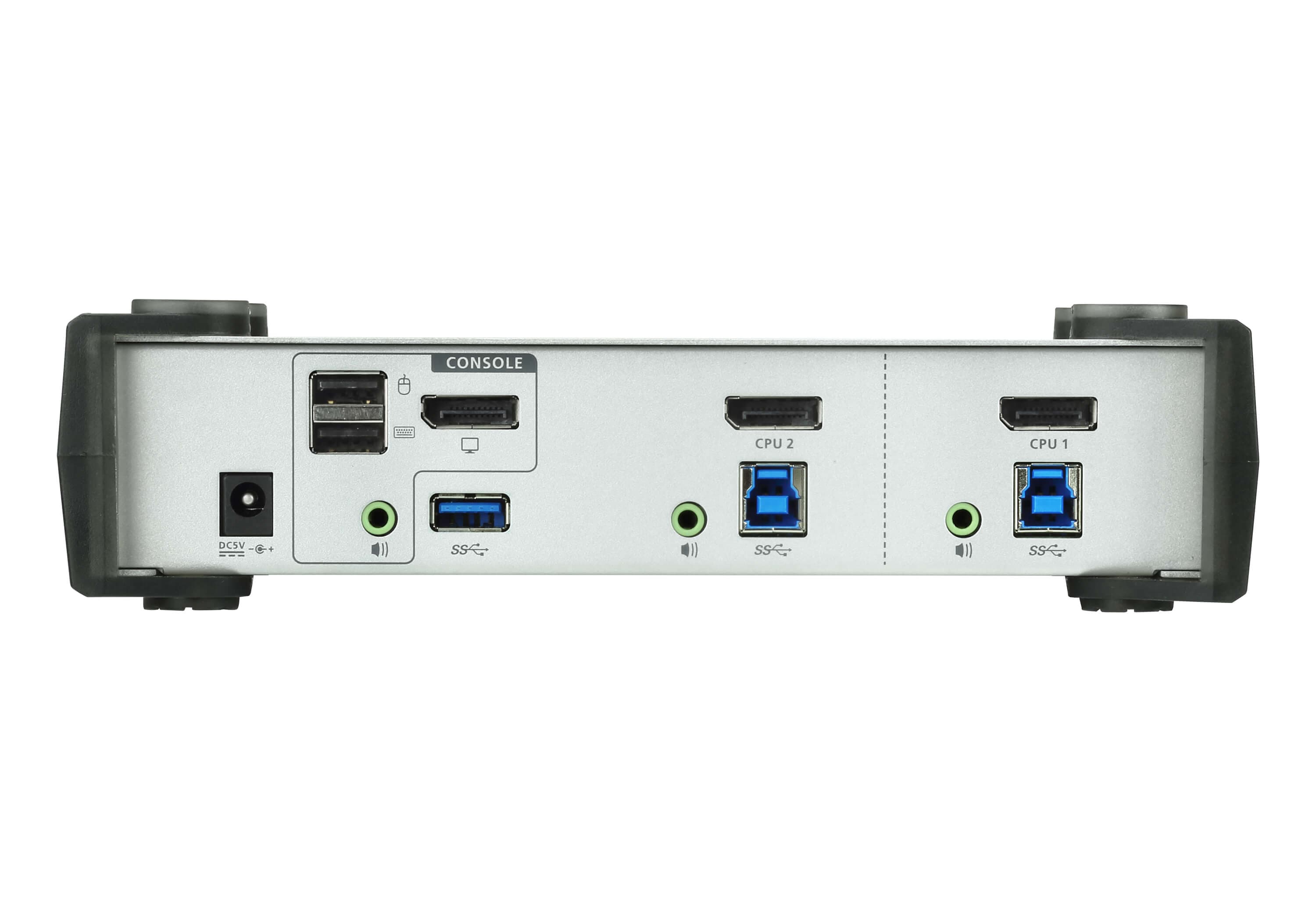

Connectors

Console Ports: 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports: 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green)
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)

Switches

Selected: 2 x Pushbutton

LEDs

On Line /Selected: 2 (Orange)
USB Link: 2 (Green)

Emulation

Keyboard / Mouse: USB
Video: 3840 x 2160 @ 30Hz
Scan Interval: 1-99 Seconds (Default: 5 sec.)
Power Consumption: DC5V:2.00W:52BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal, Plastic
Weight: 0.73 kg ( 1.61 lb )
Dimensions (L x W x H): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
