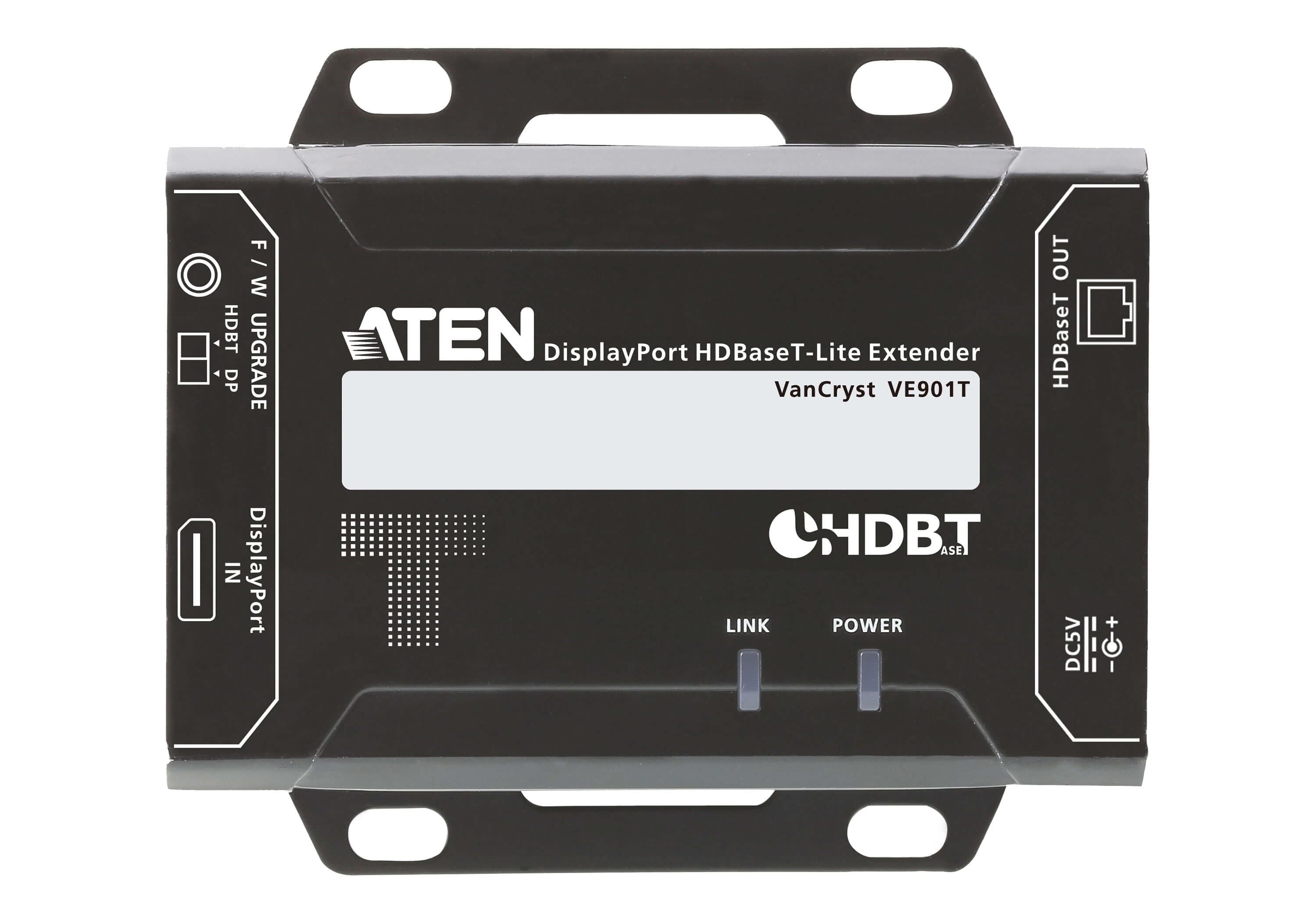

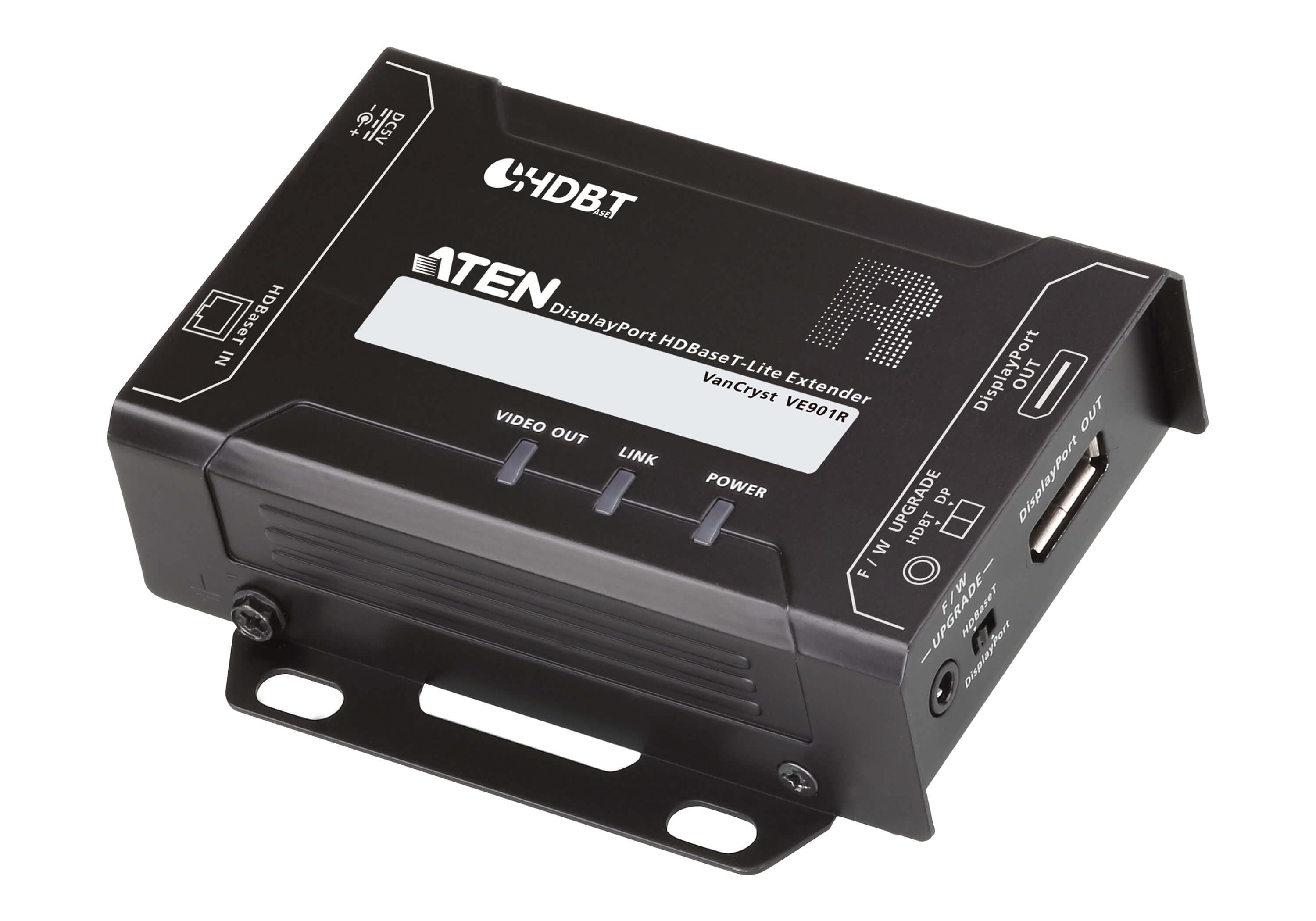

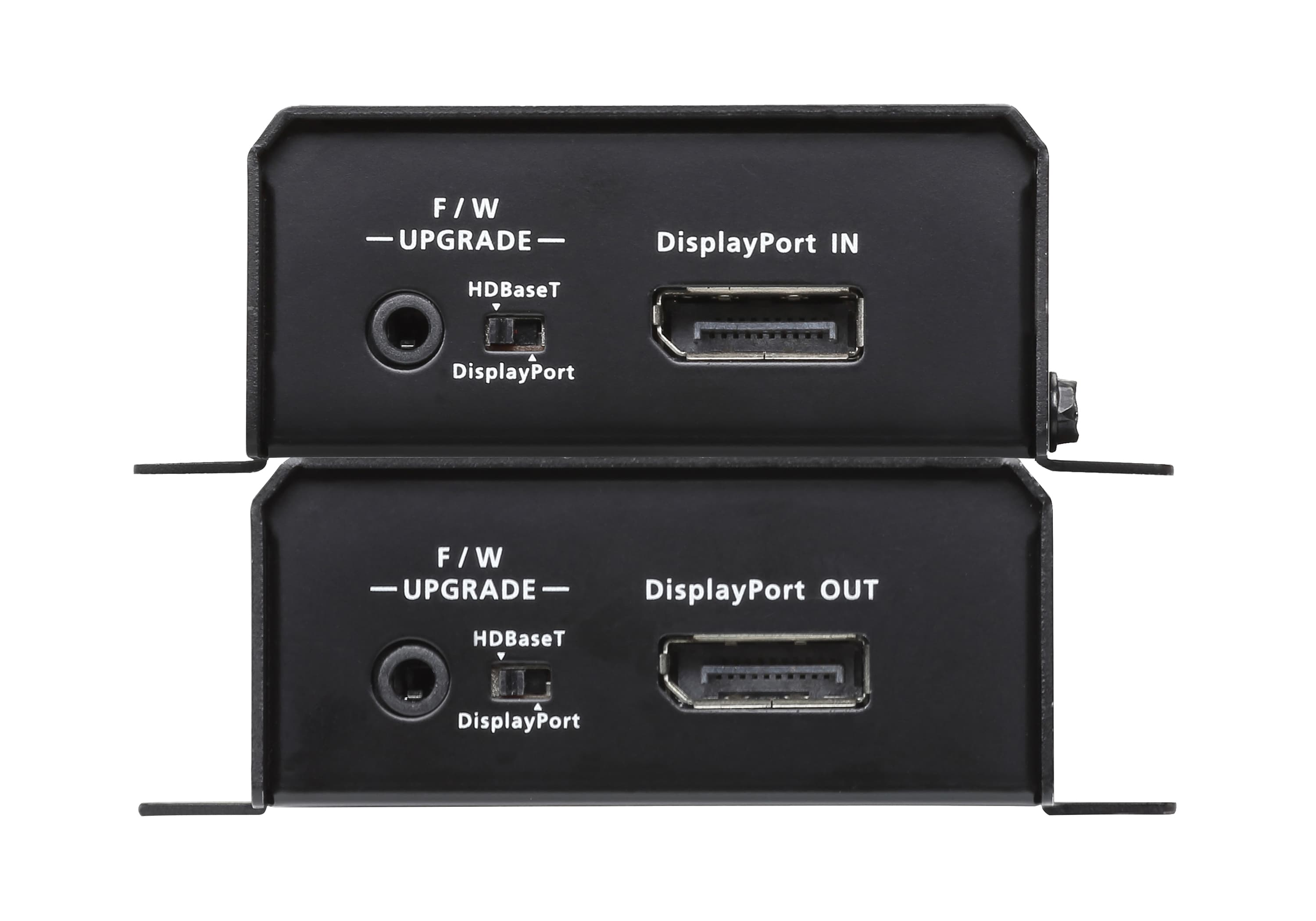

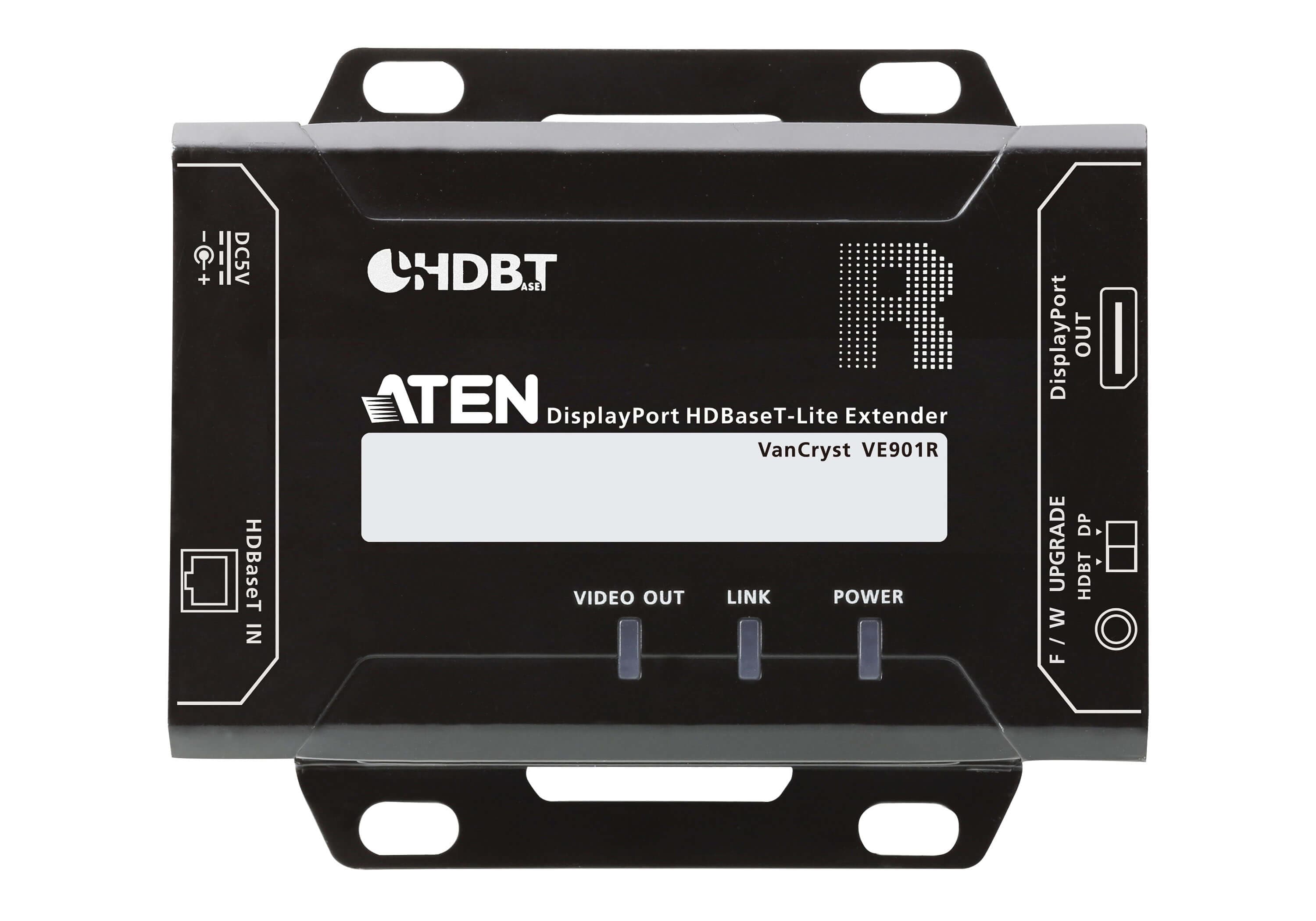

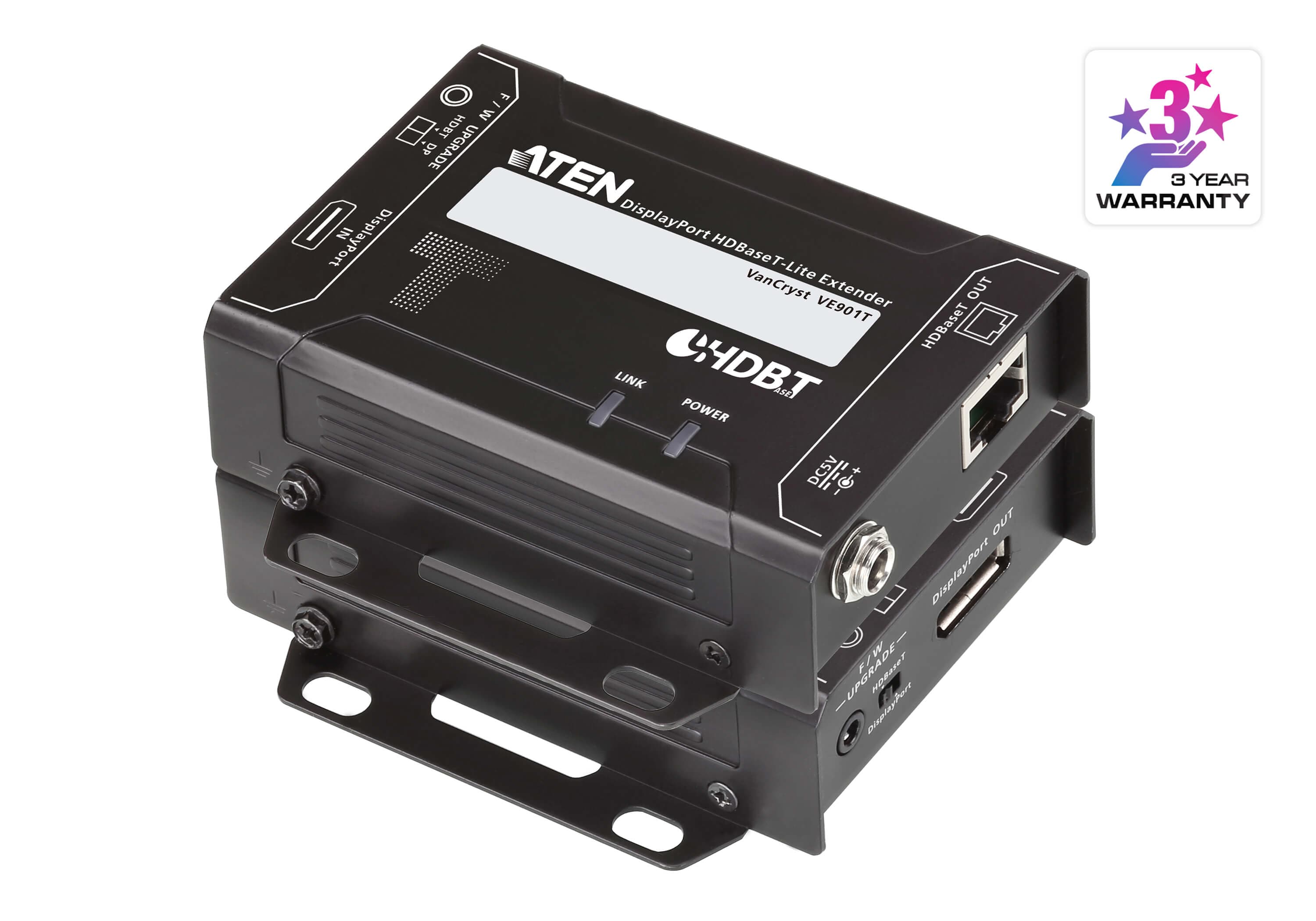

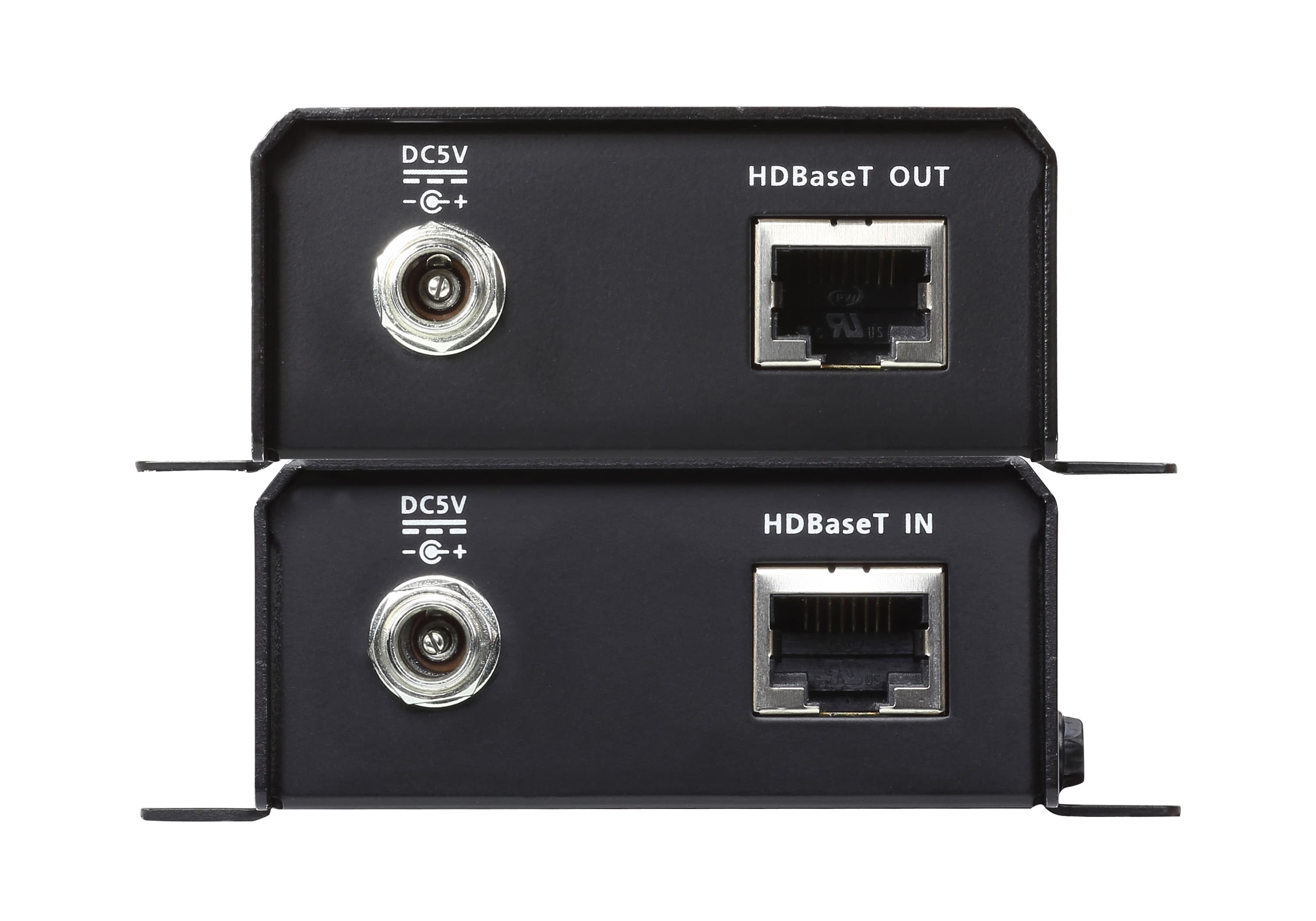

DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m) (HDBaseT Class B)
VE901
Удължител HDBaseT-Lite за DisplayPort по един Cat кабел — 4K до 40 m по Cat 6a (35 m по Cat 5e/6), 1080p до 70 m. Технологията Anti-Jamming ограничава смущенията при преноса.
Характеристики

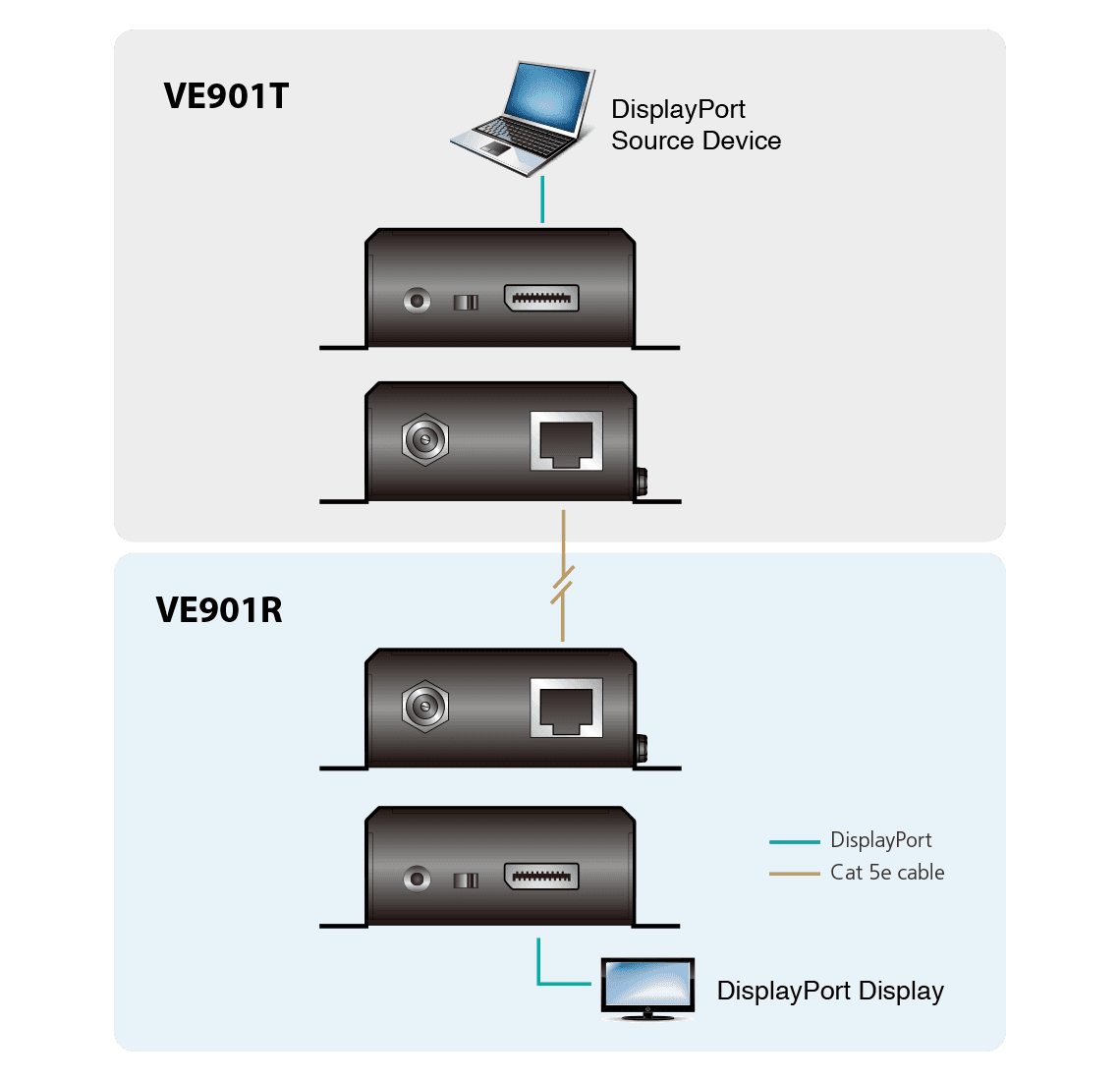

- HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
- DisplayPort v1.1*; HDCP 1.4 compliant
- Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Featuring 3.3V / 500mA power output for powering auxiliary devices
- Plug-and-play
- Rack-Mountable *Note: DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x DisplayPort Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 1.5 m

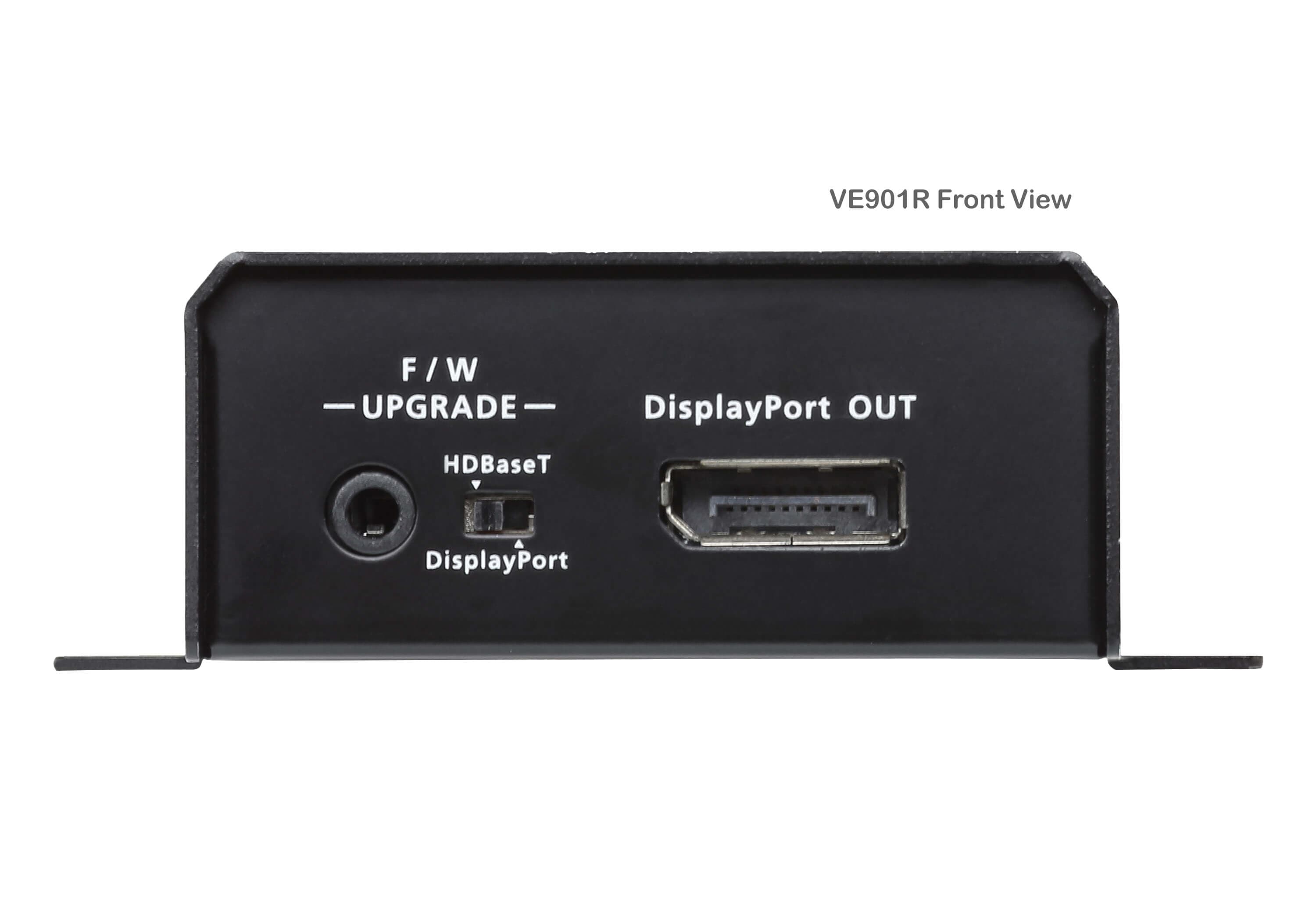

Видео изход
- Интерфейси
- 1 x DisplayPort Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 297 MHz
- Макс. пикселна честота
- 297 MHz
- Съответствие
- DisplayPort (Deep Color, 4K) HDCP Compatible
- Съответствие
- DisplayPort (Deep Color, 4K) HDCP Compatible
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. резолюция / разстояние
- Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Аудио
- Вход
- N/A
- Вход
- 1 x DisplayPort Female (Black)
- Изход
- 1 x DisplayPort Female (Black)
- Изход
- N/A

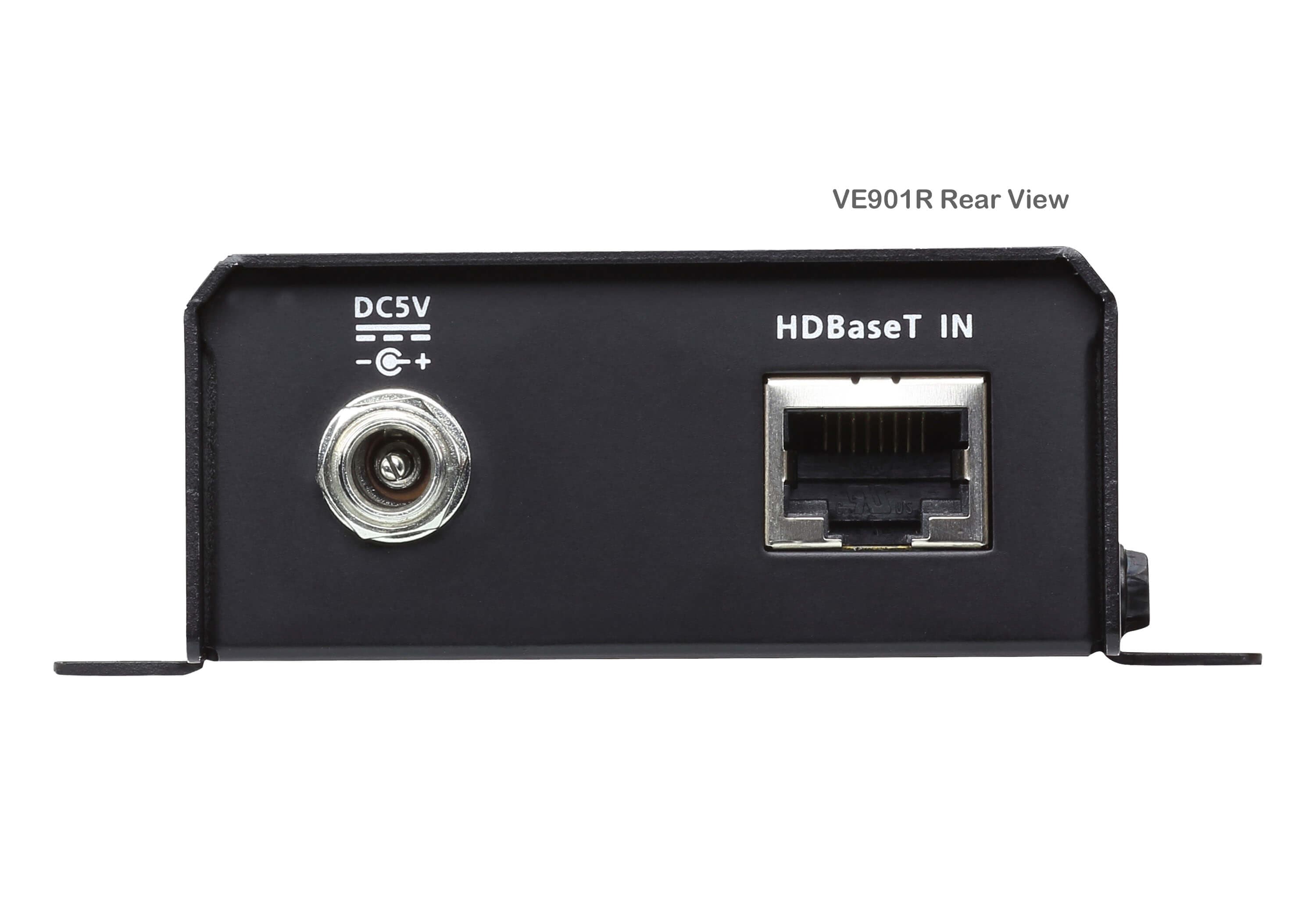

Конектори
- Захранване
- 1 x DC Jack (Black) with locking
- Захранване
- 1 x DC Jack (Black) with locking
- Консумация
- DC5V:5.72W:27BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:2.84W:13BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.27 kg ( 0.59 lb )
- Тегло
- 0.24 kg ( 0.53 lb )
- Размери (Д x Ш x В) със скоба
- 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)
- Размери (Д x Ш x В) със скоба
- 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
- Размери (Д x Ш x В) без скоба
- 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
