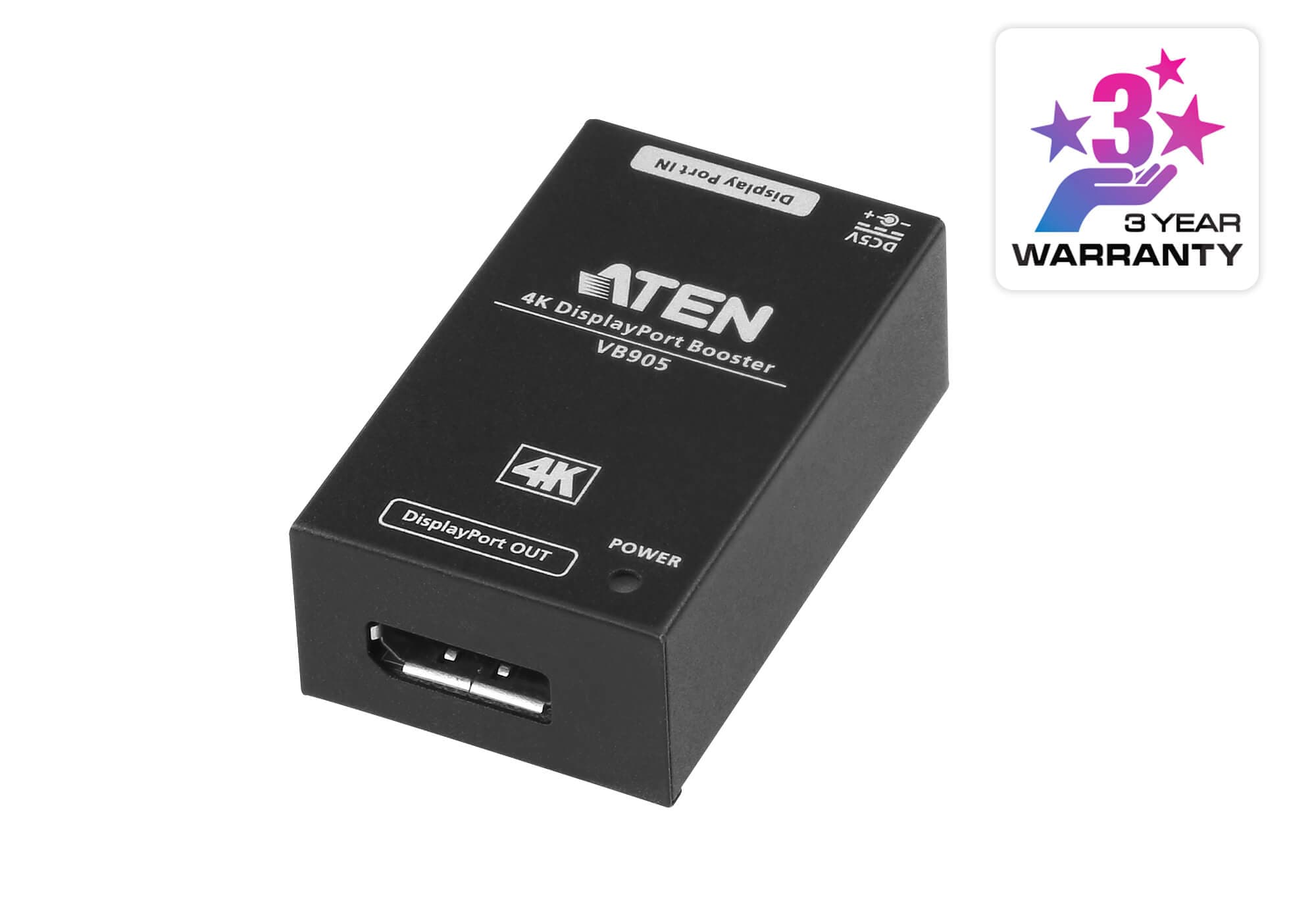

Бустер за DisplayPort сигнал, който удължава True 4K 4096 x 2160 @ 60 Hz (4:4:4) до 5 m. Съвместим с DisplayPort 1.2a и HDCP 2.2; поддържа HDR.
Характеристики

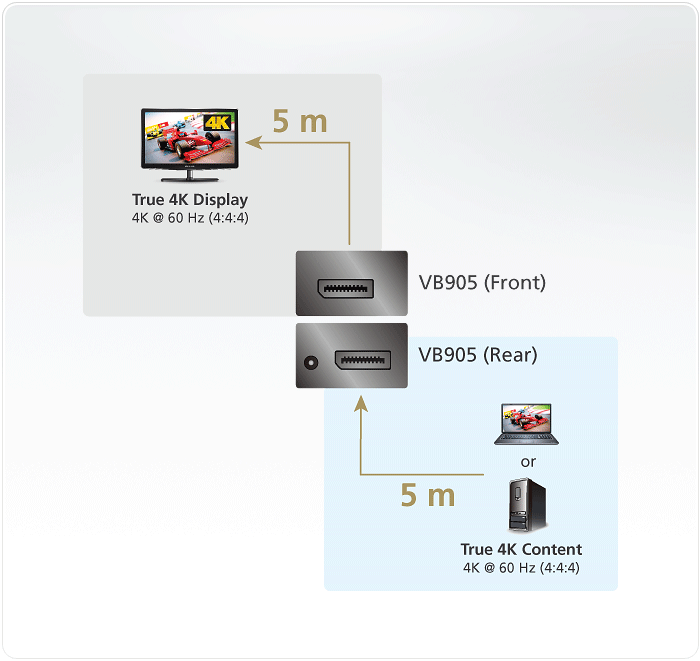

- Extends True 4K signal transmission up to 5 m
- Compliant with DisplayPort 1.2a and HDCP 2.2
- Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
- Supports HDR
- Cascade 3 levels to extend True 4K signal up to 20 m
- A single unit can be powered from the source device
- Plug-and-play
- Rack mountable Note: Longer transmission distance is possible with lower data rates. If you want to remain high quality transmission, please use higher quality cable.
Видео вход
- Интерфейси

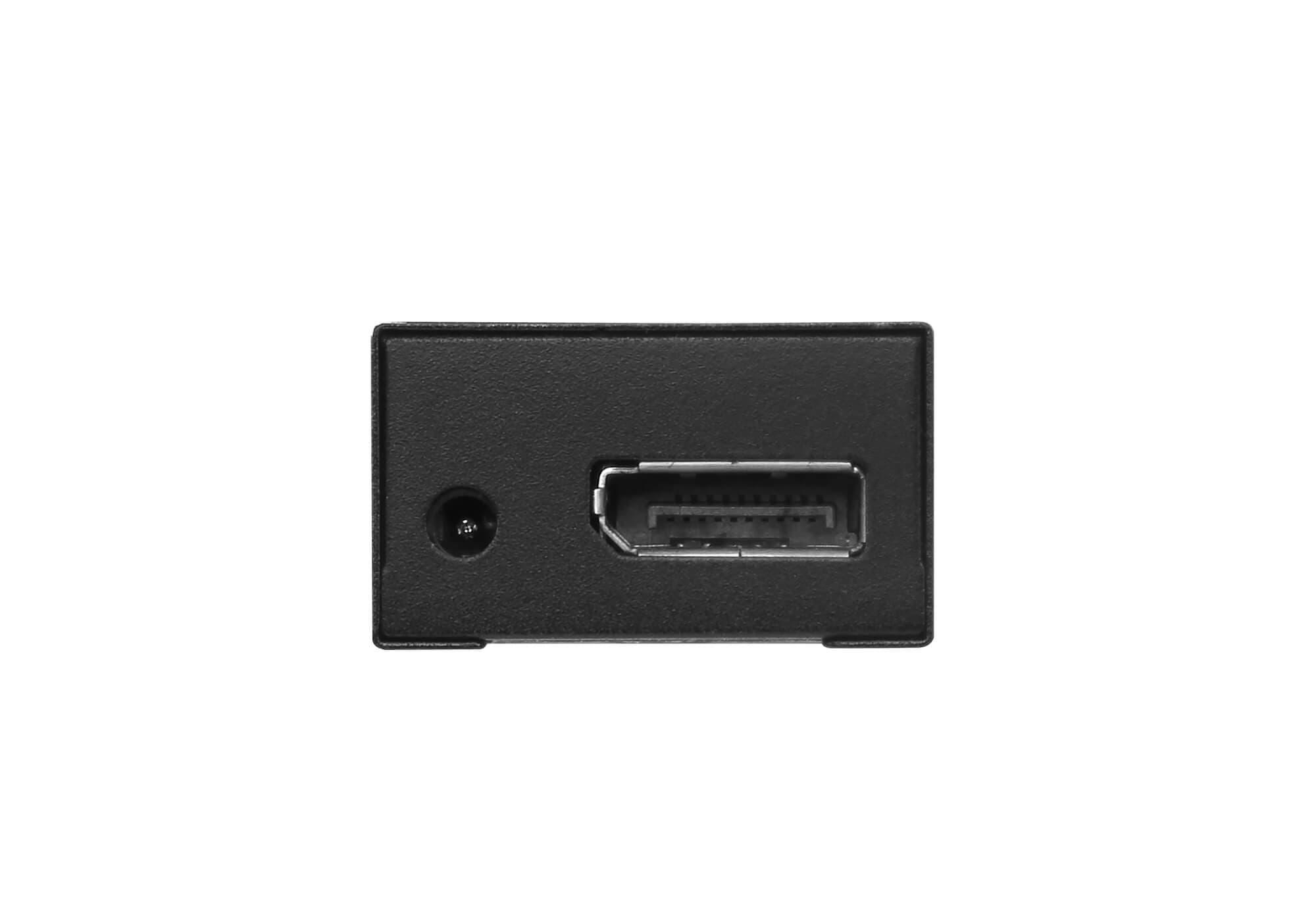

- 1 x DisplayPort Female (20-pin)
- Макс. разстояние
- Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Видео изход
- Интерфейси

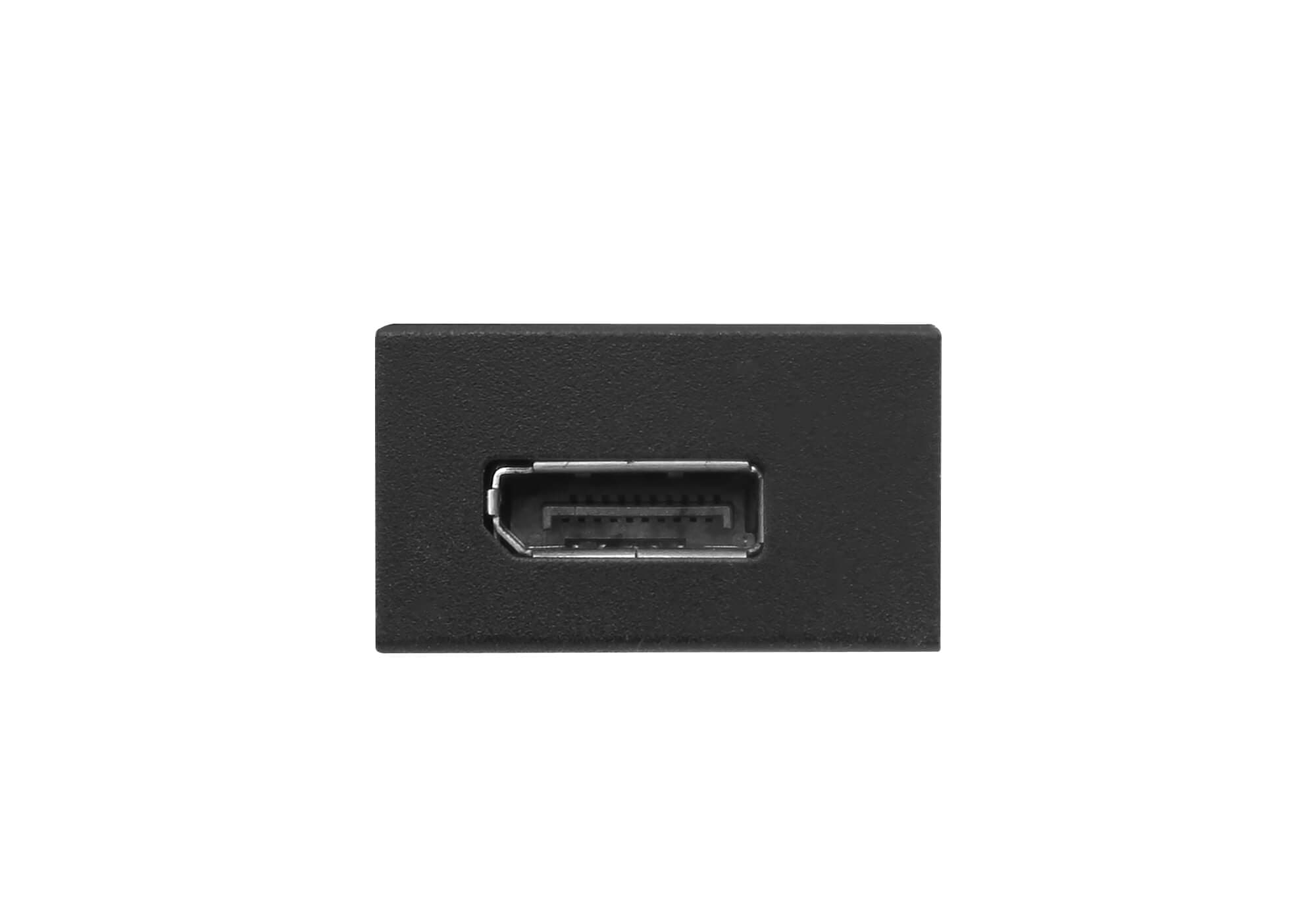

- 1 x DisplayPort Female (20-pin)
- Макс. разстояние
- Up to 4Kx2K@60Hz (4:4:4) / 5m 1080p@60Hz / 5m
Видео
- Макс. скорост на данните
- 21.6 Gpbs (5.4 Gbps Per Lane)
- Съответствие
- DP1.2a HDCP 2.2
- Макс. резолюция
- 4096 x 2160@60Hz (4:4:4)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:0.937W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.05 kg ( 0.11 lb )
- Размери (Д x Ш x В)
- 5.84 x 3.53 x 2.06 cm (2.3 x 1.39 x 0.81 in.)
- Брой в кашон
- 10 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
