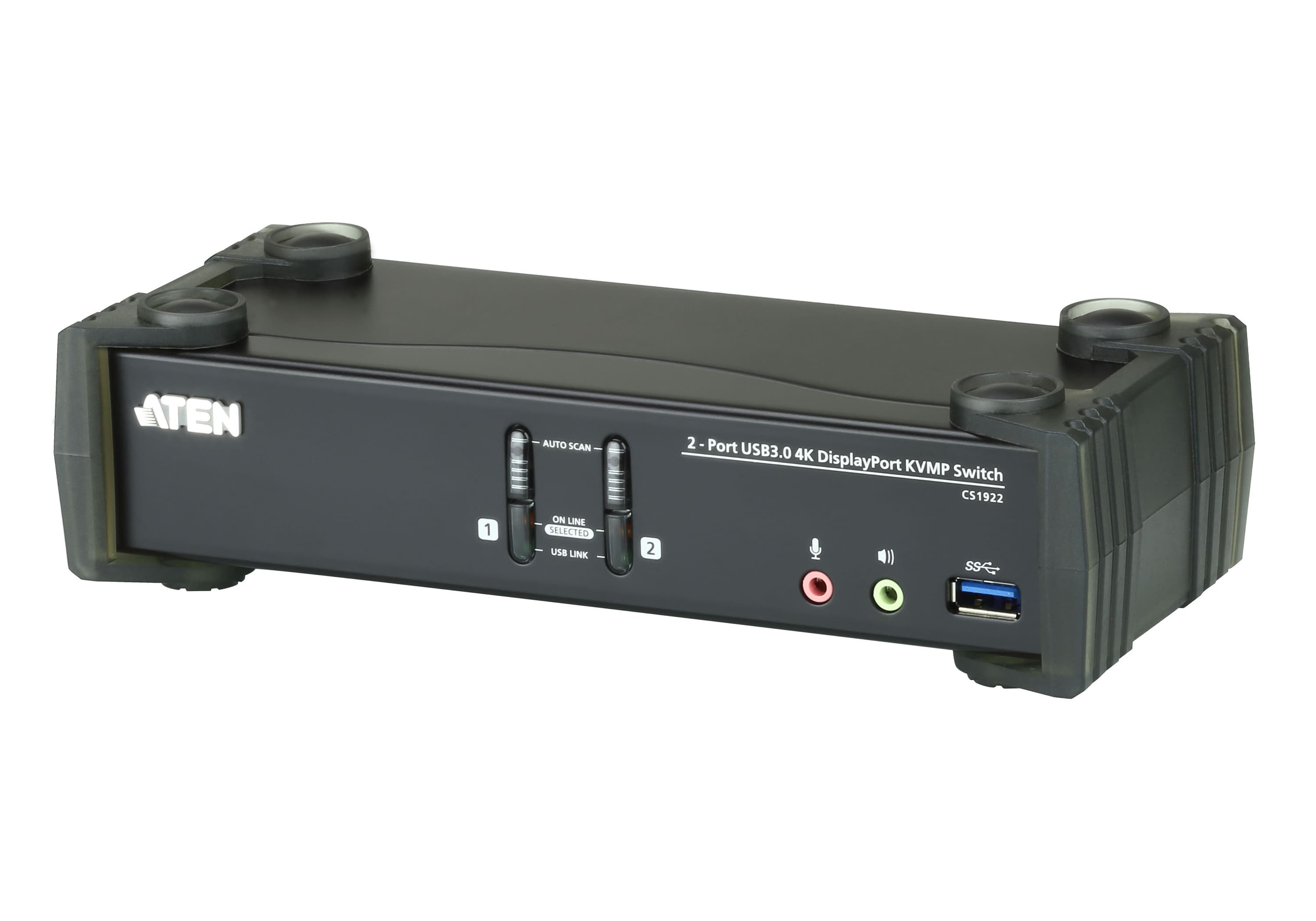

2-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)

Name: 2-Port USB 3.0 4K DisplayPort KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1922

CS1922

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

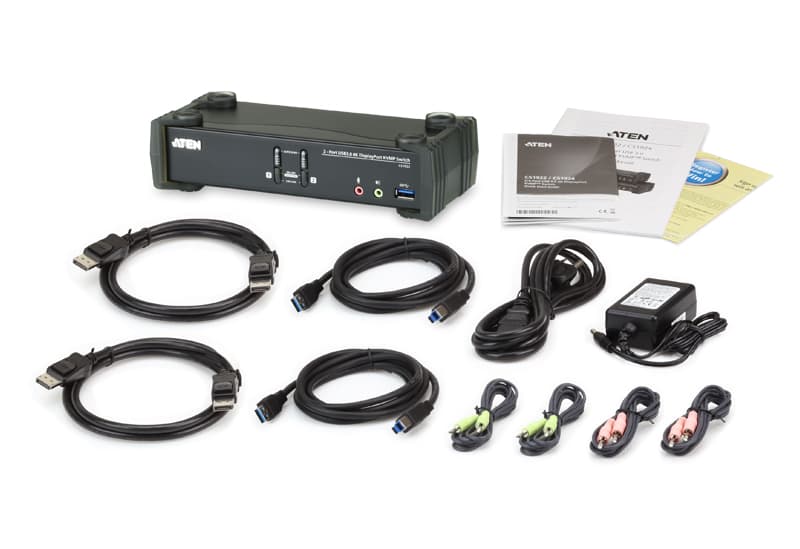

KVM превключвател за 2 компютъра с 4K DisplayPort, USB 3.1 Gen 1 hub и 2.1-канално аудио; споделя две USB периферии. Независимо превключване на KVM, USB и аудио; кабелите са в комплекта.

Характеристики

2-port DisplayPort KVMP™ Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
One USB console controls 2 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse1
Independent switching of KVM, USB, and Audio focus
Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2 compliant, HDCP compliant2
Supports HD audio through DisplayPort3
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection – if a computer is powered off, the CS1922 automatically switches to the next powered-on computer
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector4
DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter5
Hot pluggable – add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboard
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation6
Auto Scan Mode for monitoring all computers
Firmware upgradeable Note: 1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 3. HD audio through DisplayPort cannot be switched independently. 4. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant. 5. DisplayPort Dual – Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. 6. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

Спецификация

Връзки към компютри: 2
Избор на порт: Hotkey, Pushbutton, Mouse

Конектори

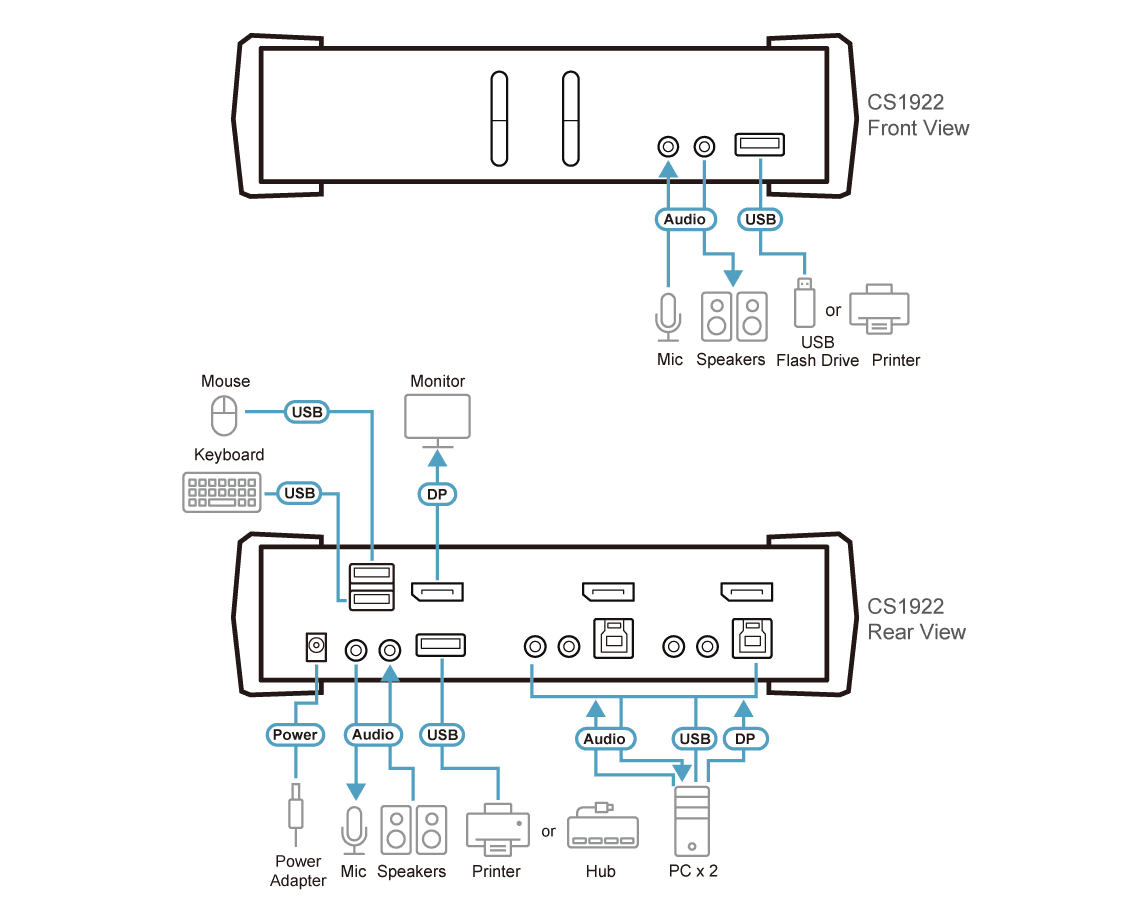

Конзолни портове: 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

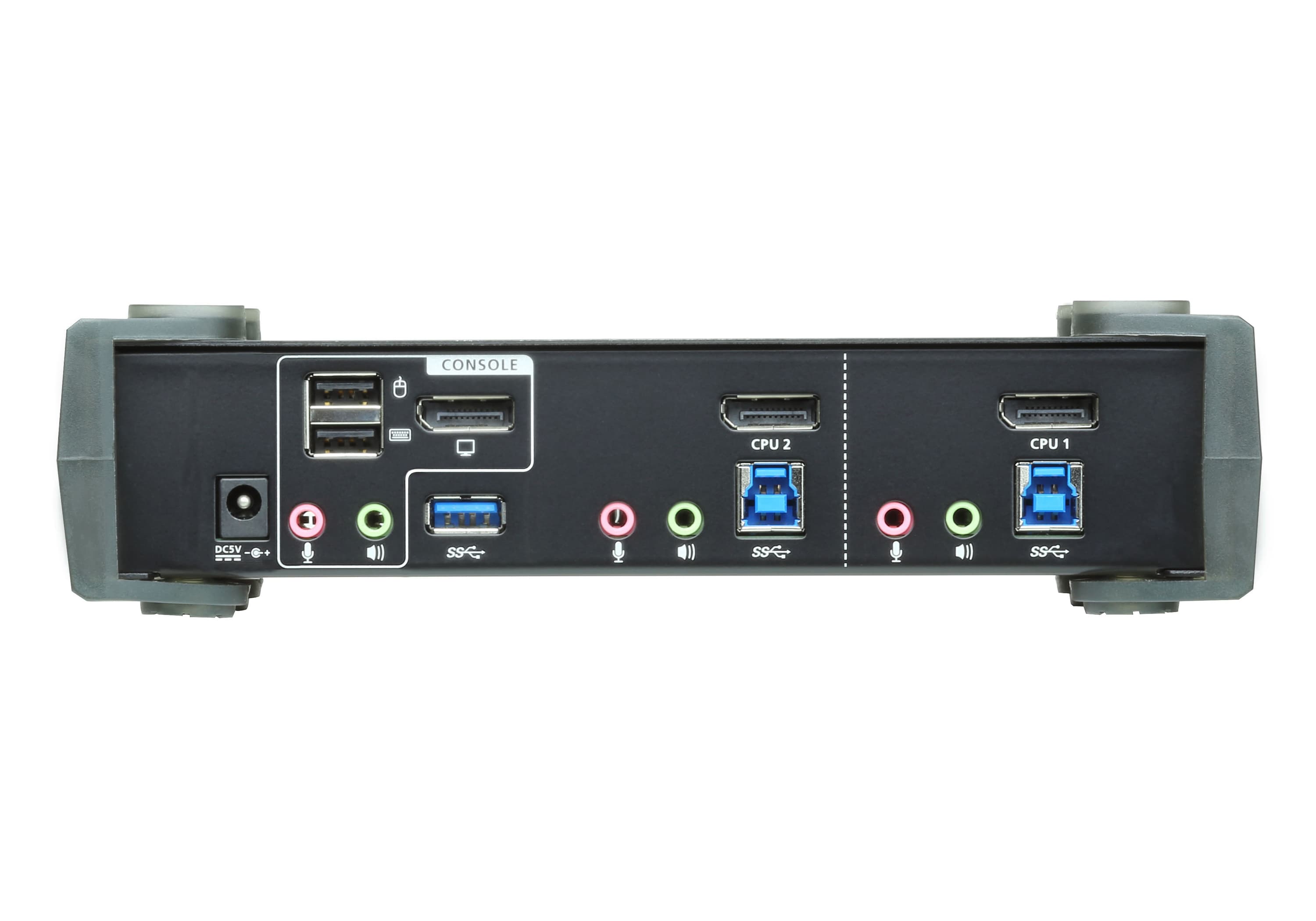

KVM портове (компютри): 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Захранване: 1 x DC Jack
USB хъб: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)

Бутони и превключватели

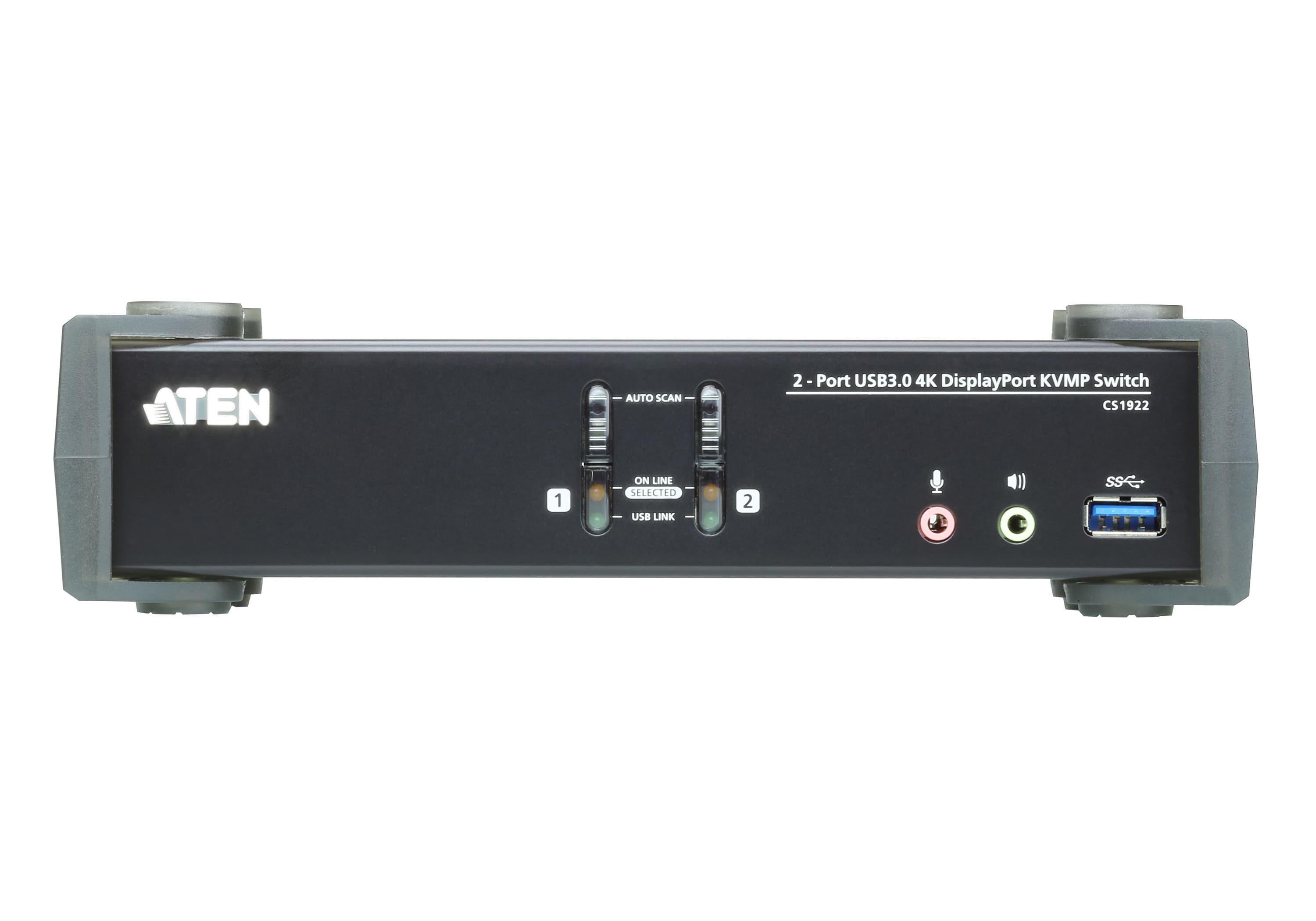

Избран: 2 x Pushbutton

Индикатори

Онлайн / избран: 2 (Orange)
USB връзка: 2 (Green)

Емулация

Клавиатура / мишка: USB
Видео: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Интервал на сканиране: 1-99 Seconds (Default: 5 sec.)
Консумация: DC5V:2.00W:52BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-50°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal, Plastic
Тегло: 0.73 kg ( 1.61 lb )
Размери (Д x Ш x В): 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
