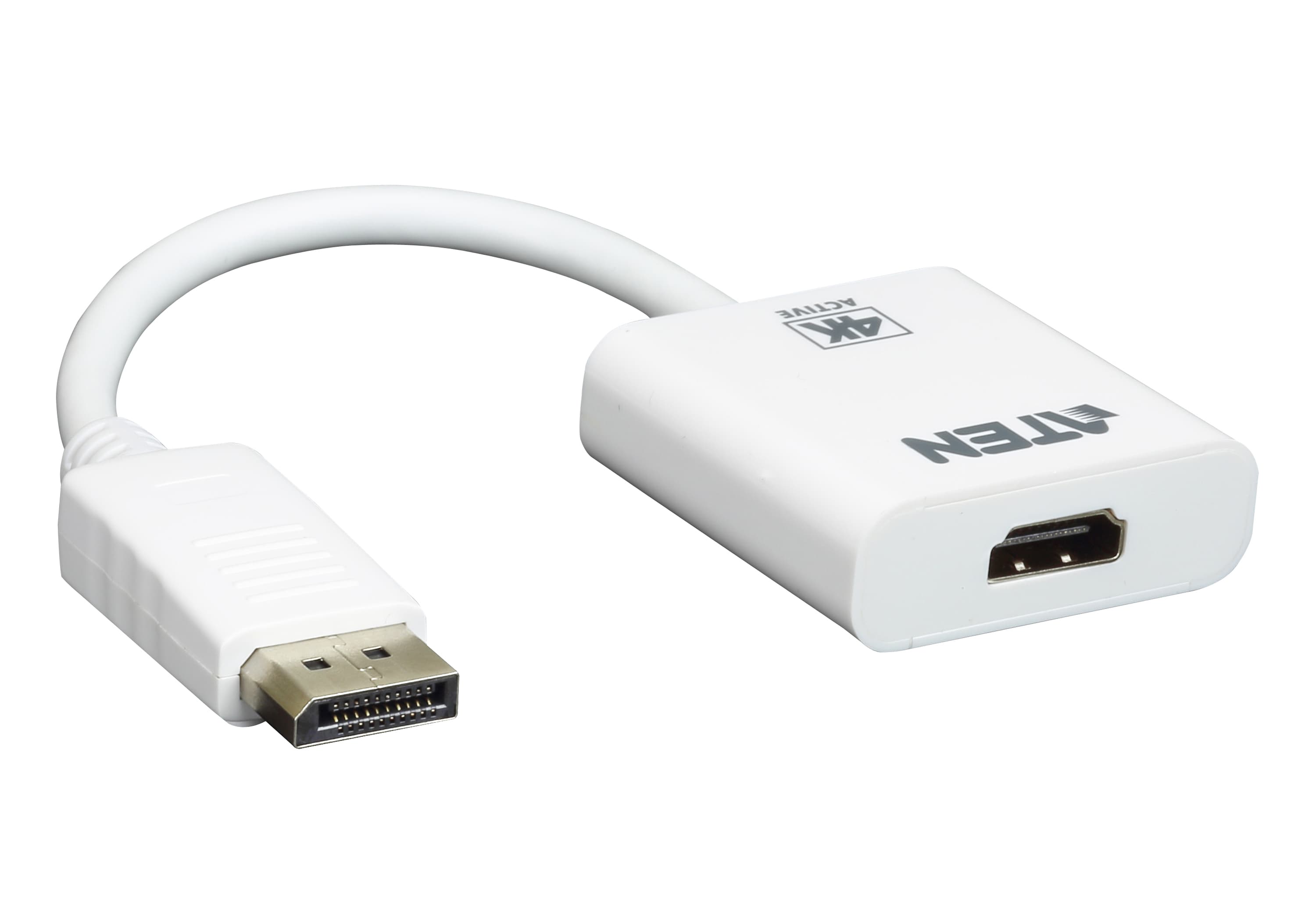

Активен адаптер, който преобразува DisplayPort сигнал в HDMI при резолюция до 3840x2160@30Hz. Работи и с източници без поддръжка на DP++, включително в многомониторни конфигурации AMD Eyefinity.
Характеристики

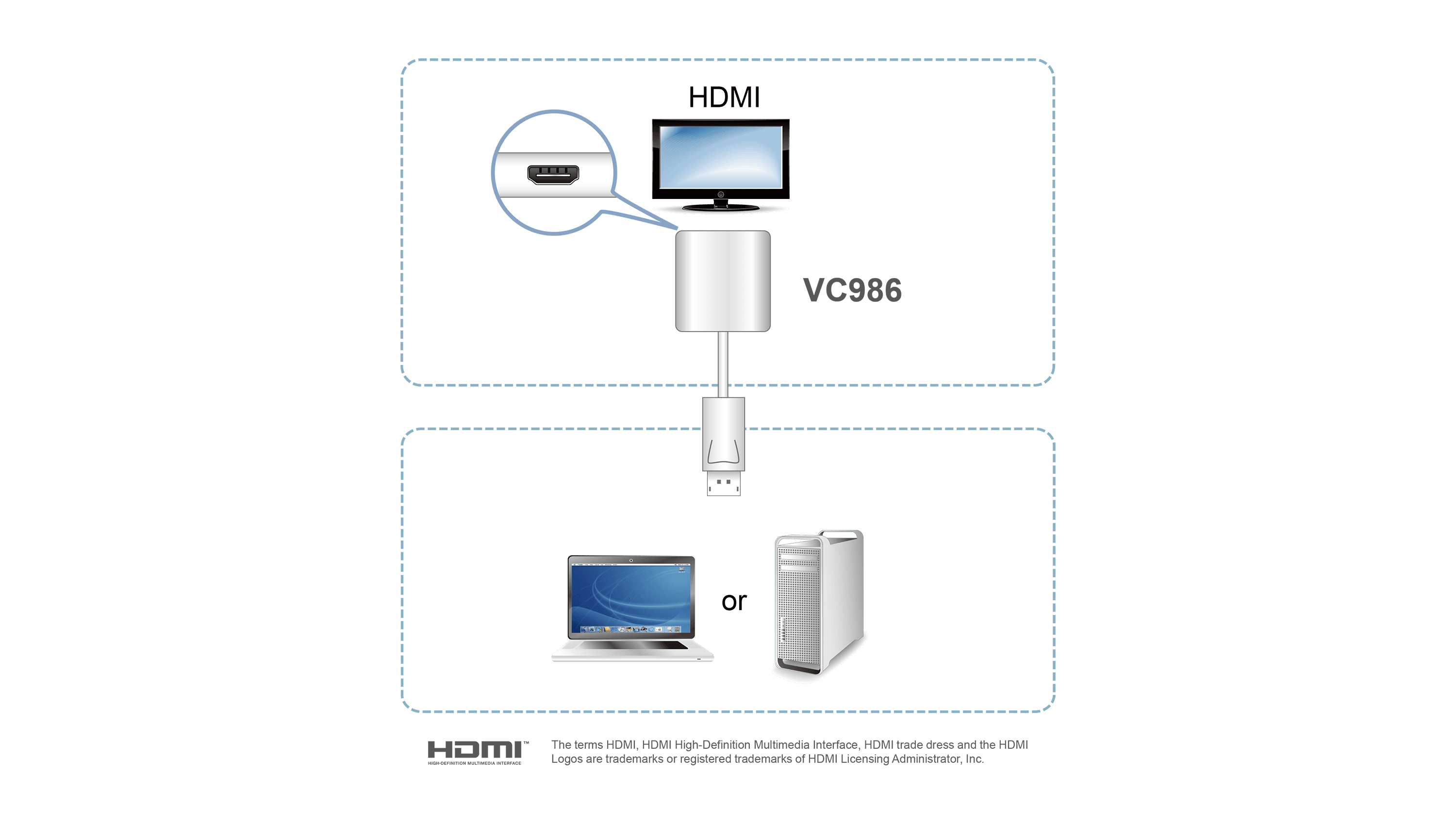

- Converts DisplayPort signals to HDMI output
- Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD

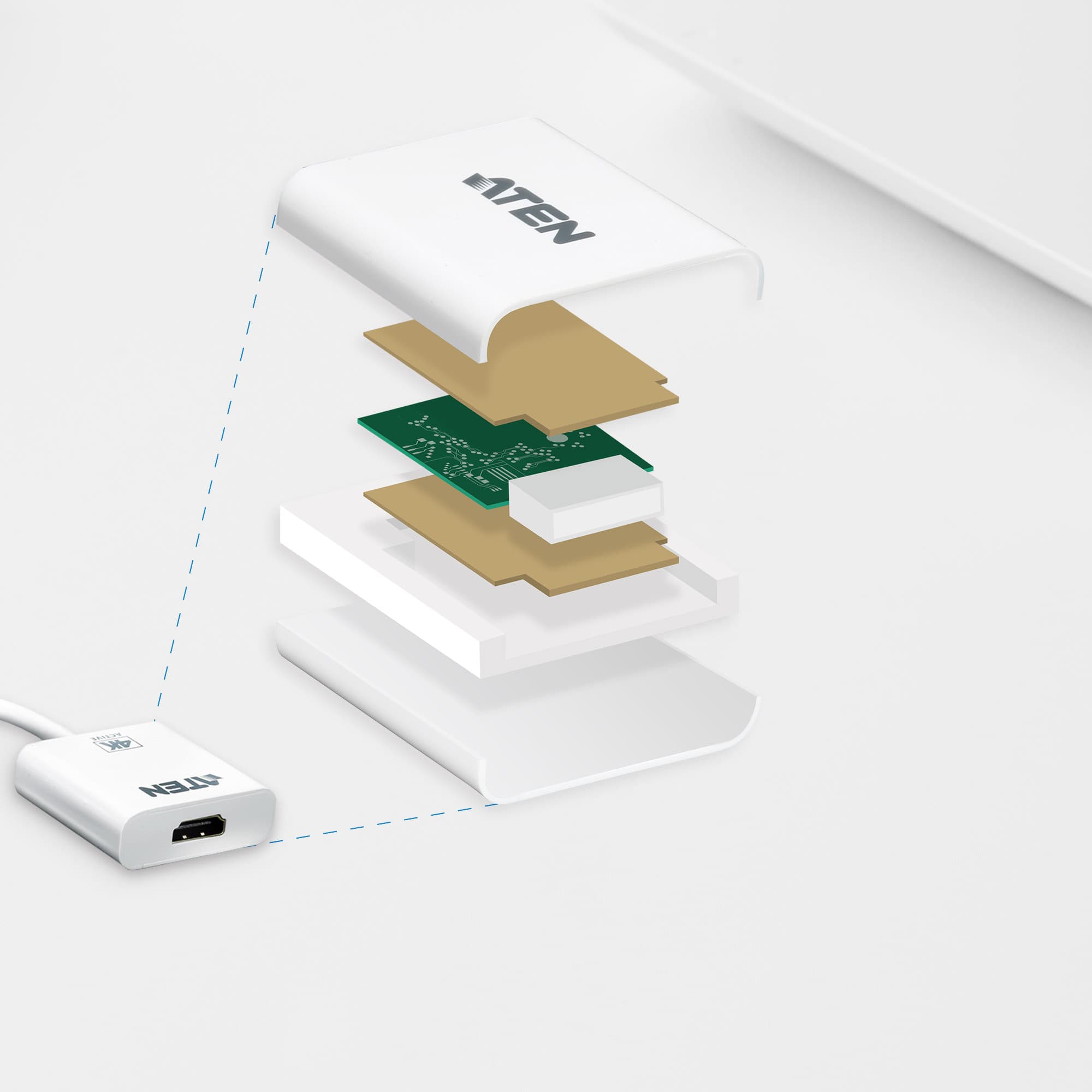

- Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
- Supports AMD Eyefinity™ Technology (multi-screen setups)
- Audio supported
- No software or driver installation required
Видео вход
- Интерфейси
- 1 x DisplayPort Male (White)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
Видео
- Макс. пикселна честота
- 297 MHz
- Макс. резолюция
- 3840x2160@30Hz, 1920 x 1200@60Hz.
- Съответствие
- DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
Аудио
- Изход
- 1 x HDMI Type A Female (Black)
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20–60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.04 kg ( 0.09 lb )
- Размери (Д x Ш x В)
- 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.)
- Брой в кашон
- 40 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
