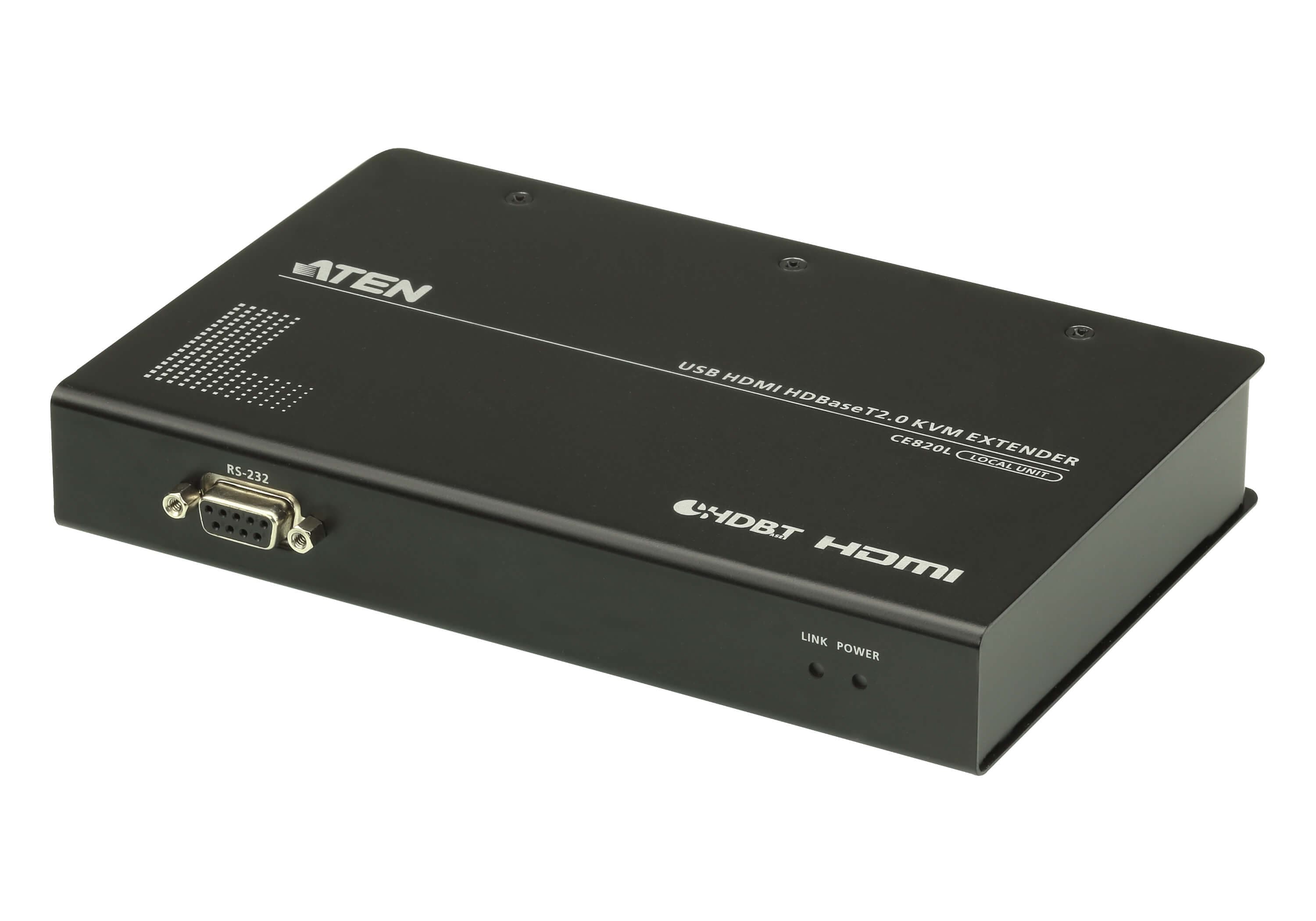

USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) (4K@100)

Name: USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) (4K@100)
Brand: ATEN
SKU: CE820L

CE820L

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Локален (предавателен) модул на HDMI KVM удължител — изпраща видео, аудио, USB, RS-232 и Ethernet по един Cat 6/6a кабел чрез HDBaseT 2.0, до 4K на 100 m. Съвместим с HDCP 2.2.

Характеристики

Supports HDBaseT™ 2.0 technology • Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions • Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
Long distance with superior video quality • HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a) • HDBaseT™ Long-Reach mode up to 1080P @ 150 m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
Supports individual 2-channel stereo audio and USB 2.0 full speed ports
Supports PC wakeup function via single pushbutton
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) Note: 1. The CE820-AT supports Ethernet function, and the CE820-ATA does not.

Конектори

Конзолни портове: N/A

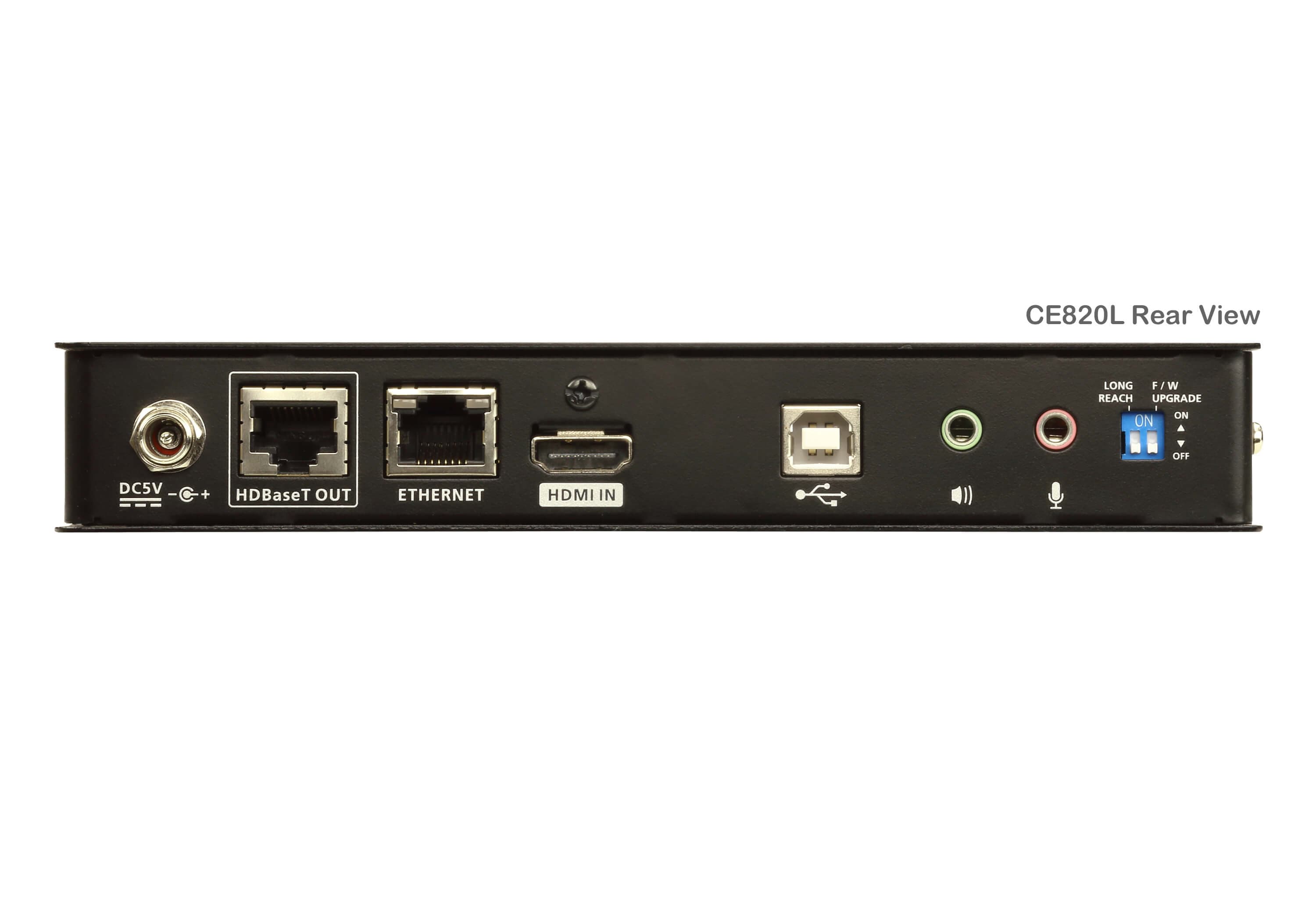

KVM портове: 1 x HDMI Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) Note: The RJ-45 ports is functional for device supporting the Ethernet port

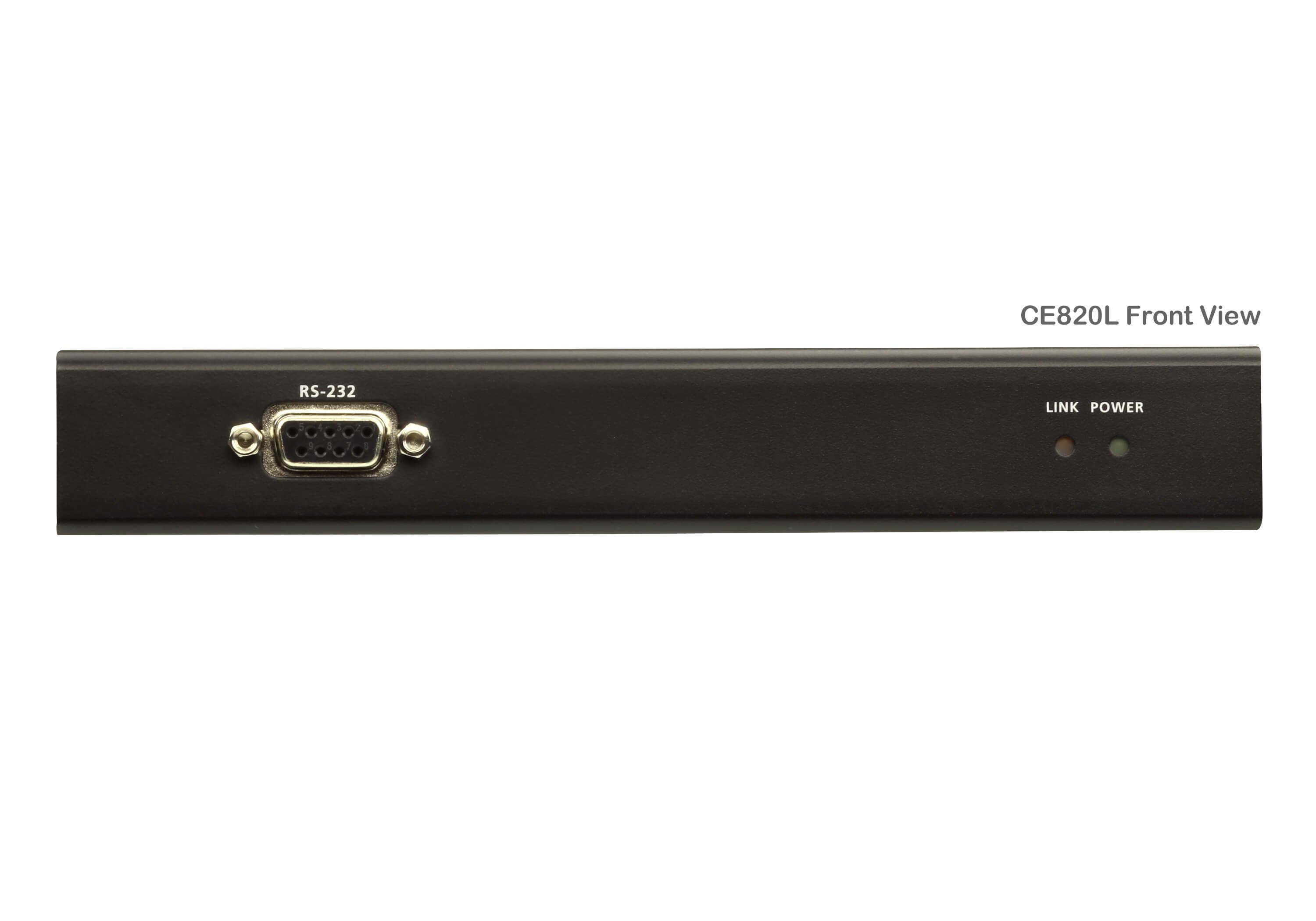

RS-232: 1 x DB-9 Female (Black)
Захранване: 1 x DC Jack with locking
Между устройства: 1 x RJ-45 Female (Black)

Индикатори

Захранване: 1 (Green)
Връзка: 1 (Orange)
Видео изход: N/A

Бутони и превключватели

Превключвател Long Reach: 1 x Slide Switch
Обновяване на фърмуера: 1 x Slide Switch

Бутони

Бутон за събуждане: N/A
Видео: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Консумация: DC5V:2.87W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0–40°C
Температура на съхранение: -20–60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.63 kg ( 1.39 lb )
Размери (Д x Ш x В): 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.)
Забележка: The CE820L-AT supports Ethernet function and the CE820L-ATA does not.
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
