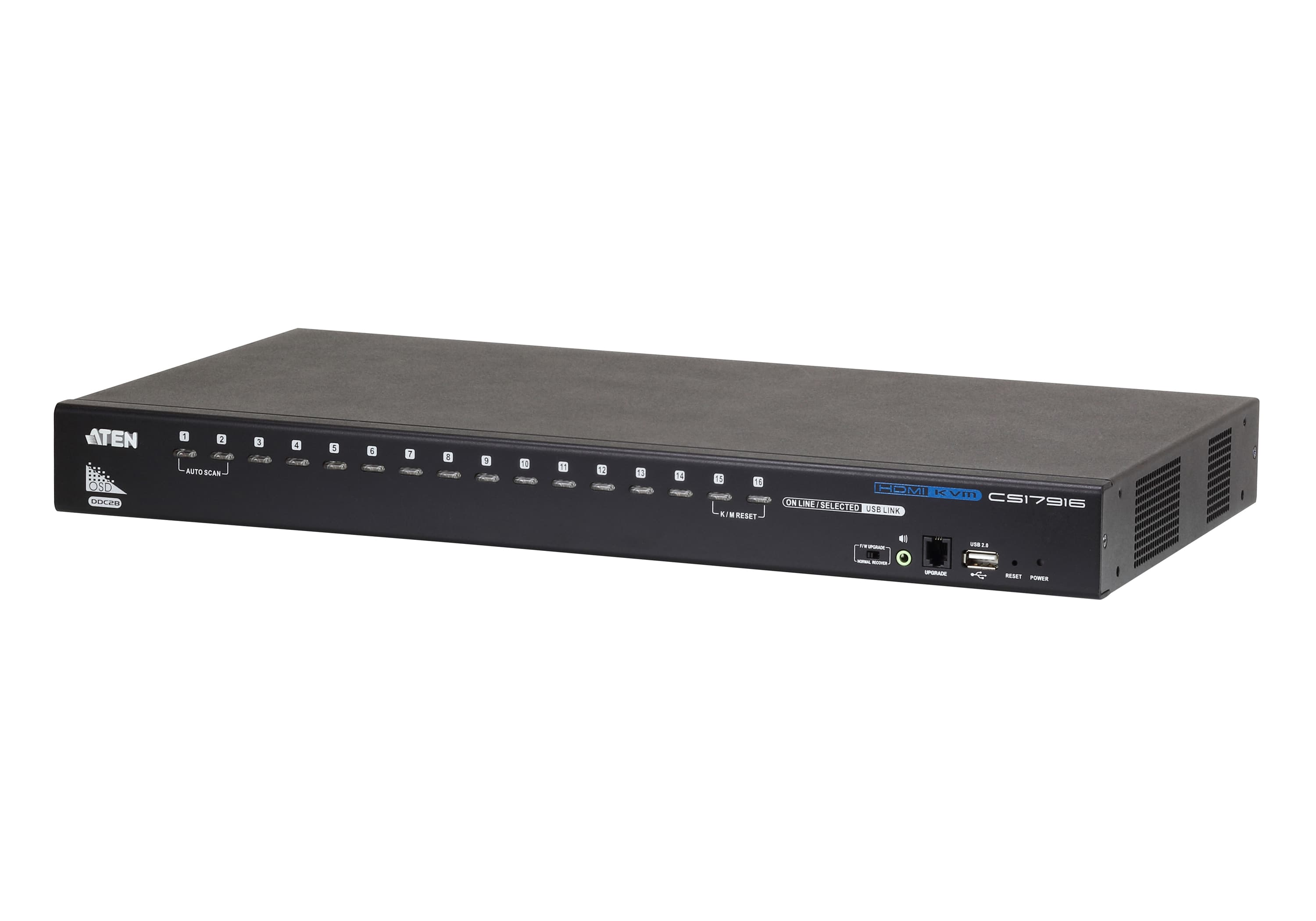

KVM превключвател, който събира управлението на 16 HDMI компютъра в една USB конзола с аудио. С каскадиране до две нива обхваща до 256 компютъра.
Характеристики
- One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to two levels–control up to 256 computers1
- Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in2
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
- Firmware upgradable
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3
- Supports widescreen resolutions
- Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
- Console audio ports on front panel for easy access
- Auto Scan Mode for monitoring all computers
- HDCP compatible
- Multiplatform support–Windows, Linux, Mac, Sun4
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation5
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
- Supports hot-plugging Note: 1. CS17916 cascade to CS17916 only. 2. The USB 2.0 hub cannot be accessed through the switch by computers on the second or third level of a cascaded installation. 3. CS17916 supports the resolution up to 1920 x 1080 @ 60 Hz. The resolution of the connected source should be 1920 x 1080 @ 60 Hz or lower in order to avoid compatibility issues. 4. For PC compatible computers. Mac and Sun computers must be compatible with USB connections. 5. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.

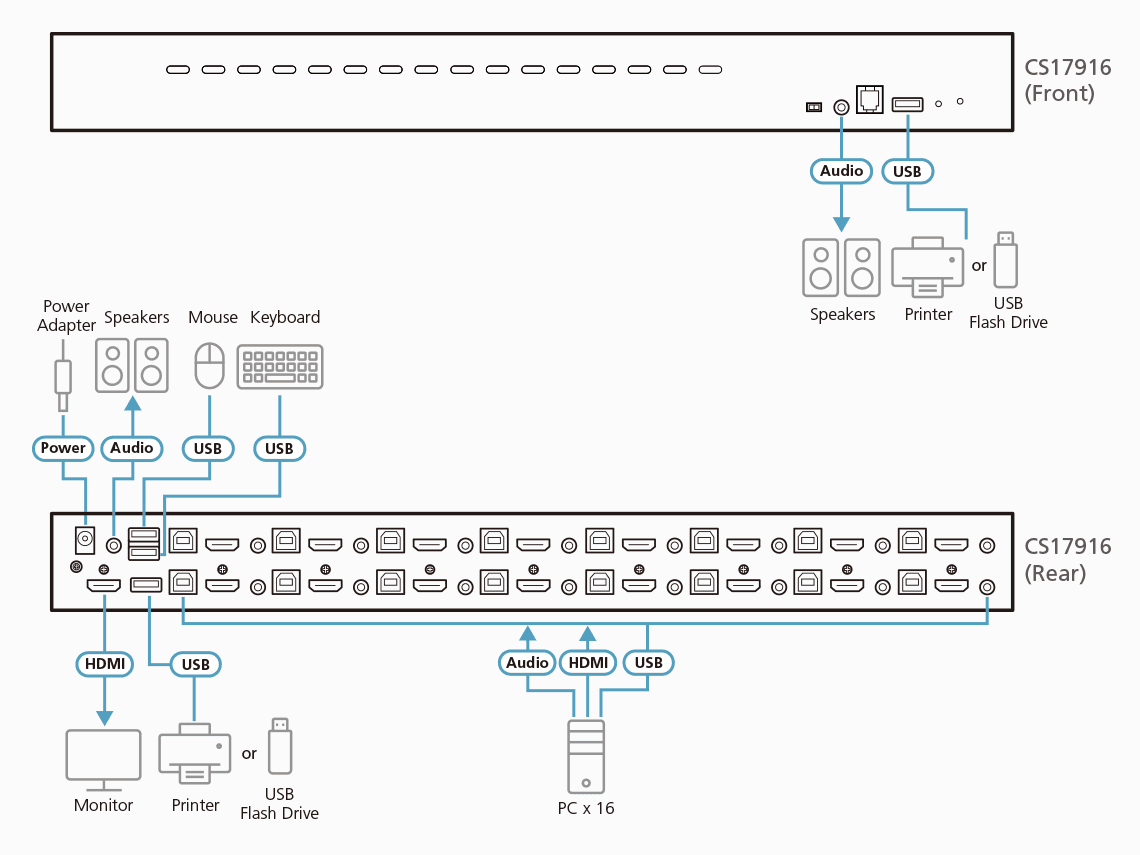

Връзки към компютри
- Директно
- 16
- Максимум
- 256 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton

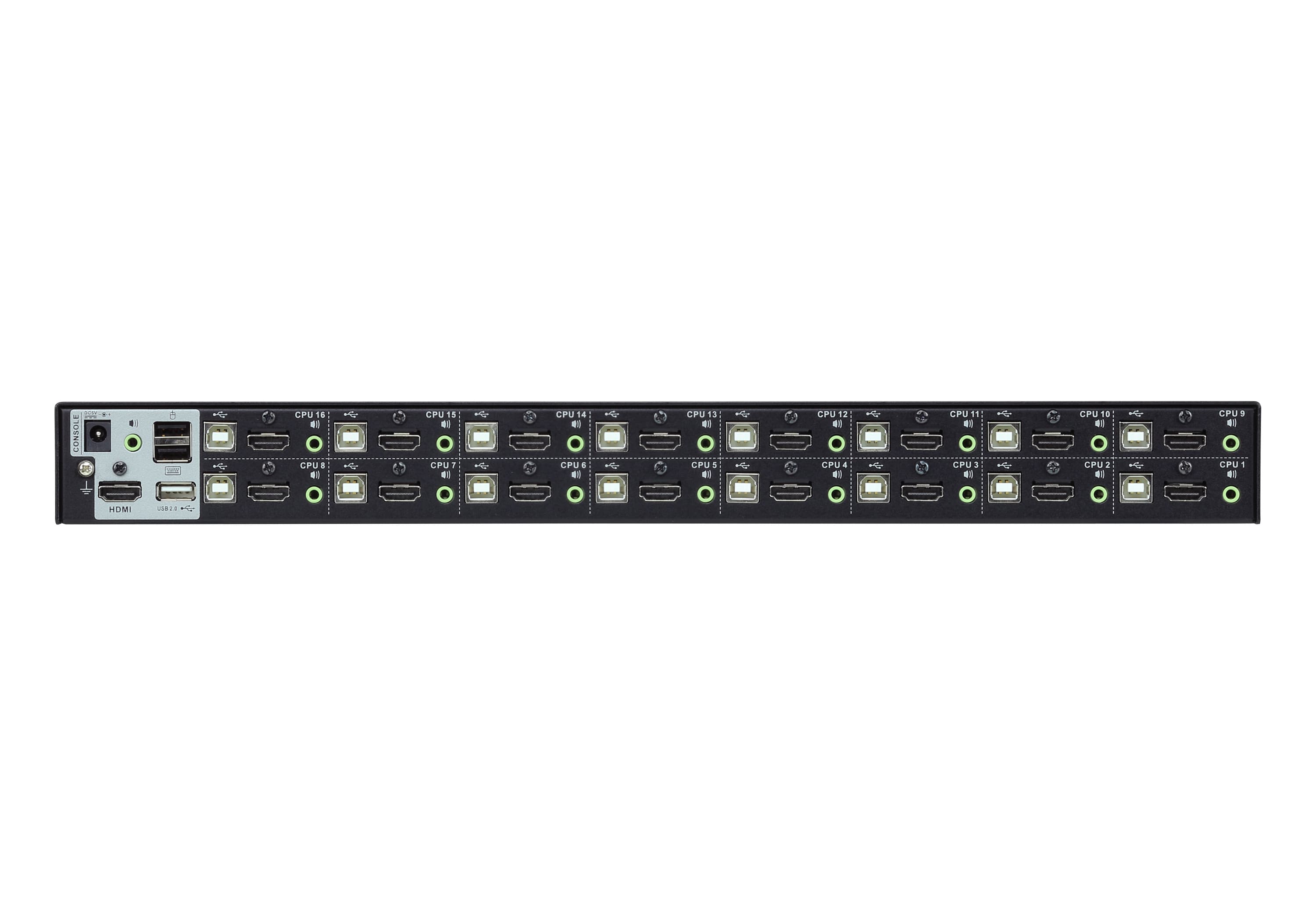

Конектори
- Конзолни портове
- 1 x HDMI Female 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
- KVM портове
- 16 x HDMI Female 16 x USB Type B Female 16 x 3.5mm Audio Jack Female (Green)
- Обновяване на фърмуера
- 1 x RJ11 Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (1 x front panel, 1 x rear panel)

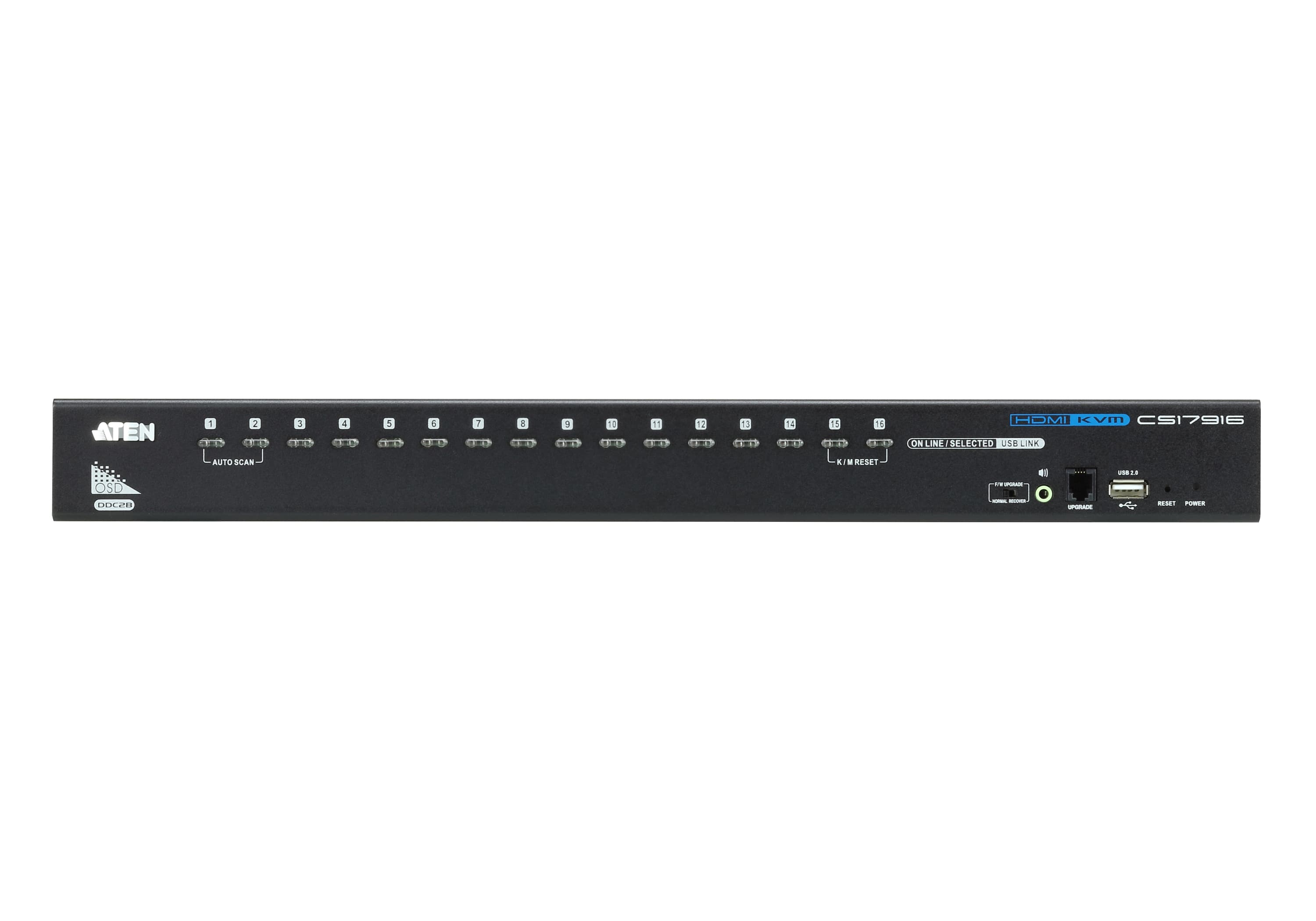

Бутони и превключватели
- Избор на порт
- 16 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
Индикатори
- USB връзка
- 16 (Green)
- Захранване
- 1 (Dark Green)
- Онлайн / избран
- 16 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
- Интервал на сканиране
- 1 – 255 seconds (default: 5 sec.)
- Консумация
- DC5V:9.18W:69BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- -20 – 60°C
- Влажност
- 0 – 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.86 kg ( 8.5 lb )
- Размери (Д x Ш x В)
- 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
