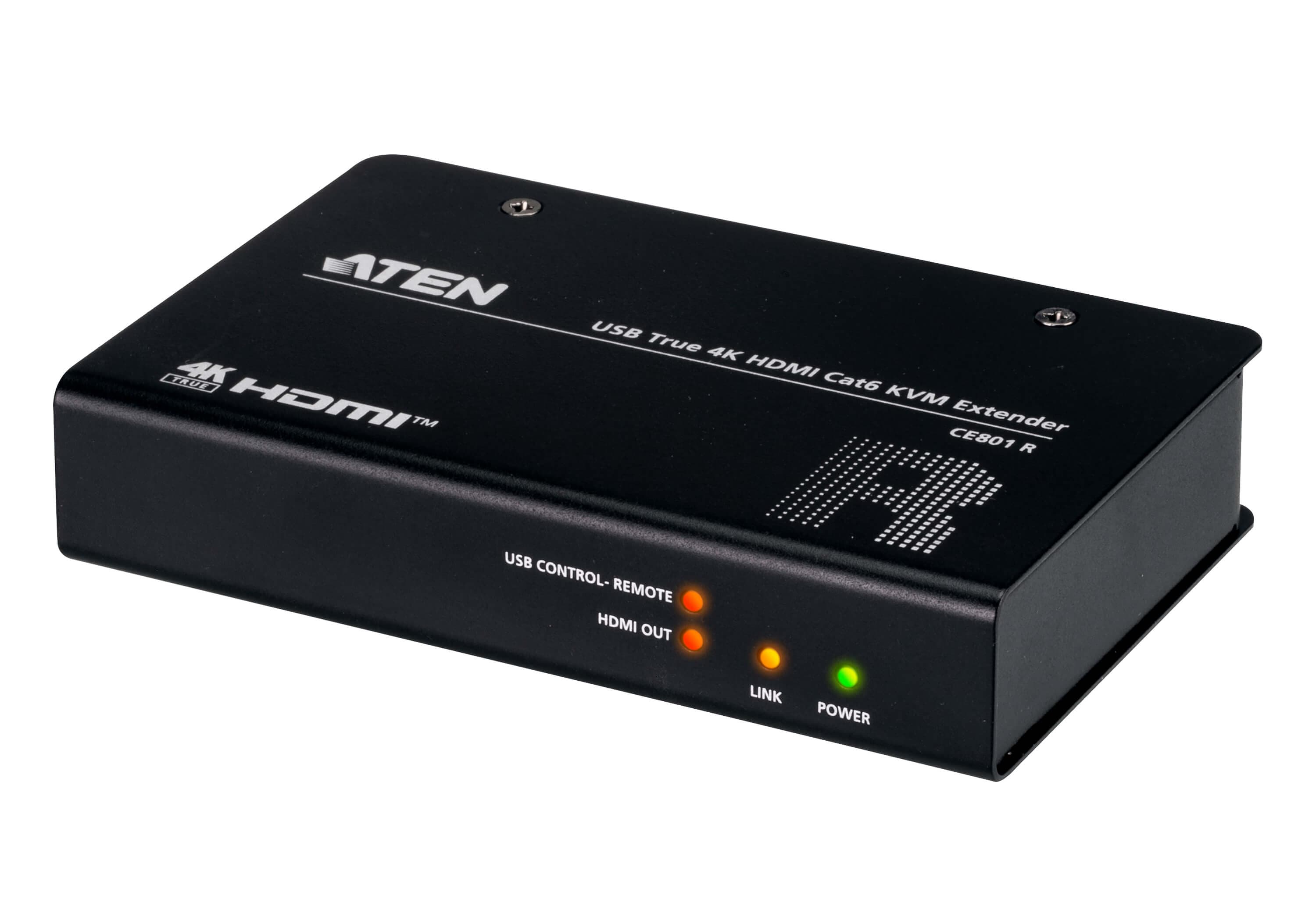

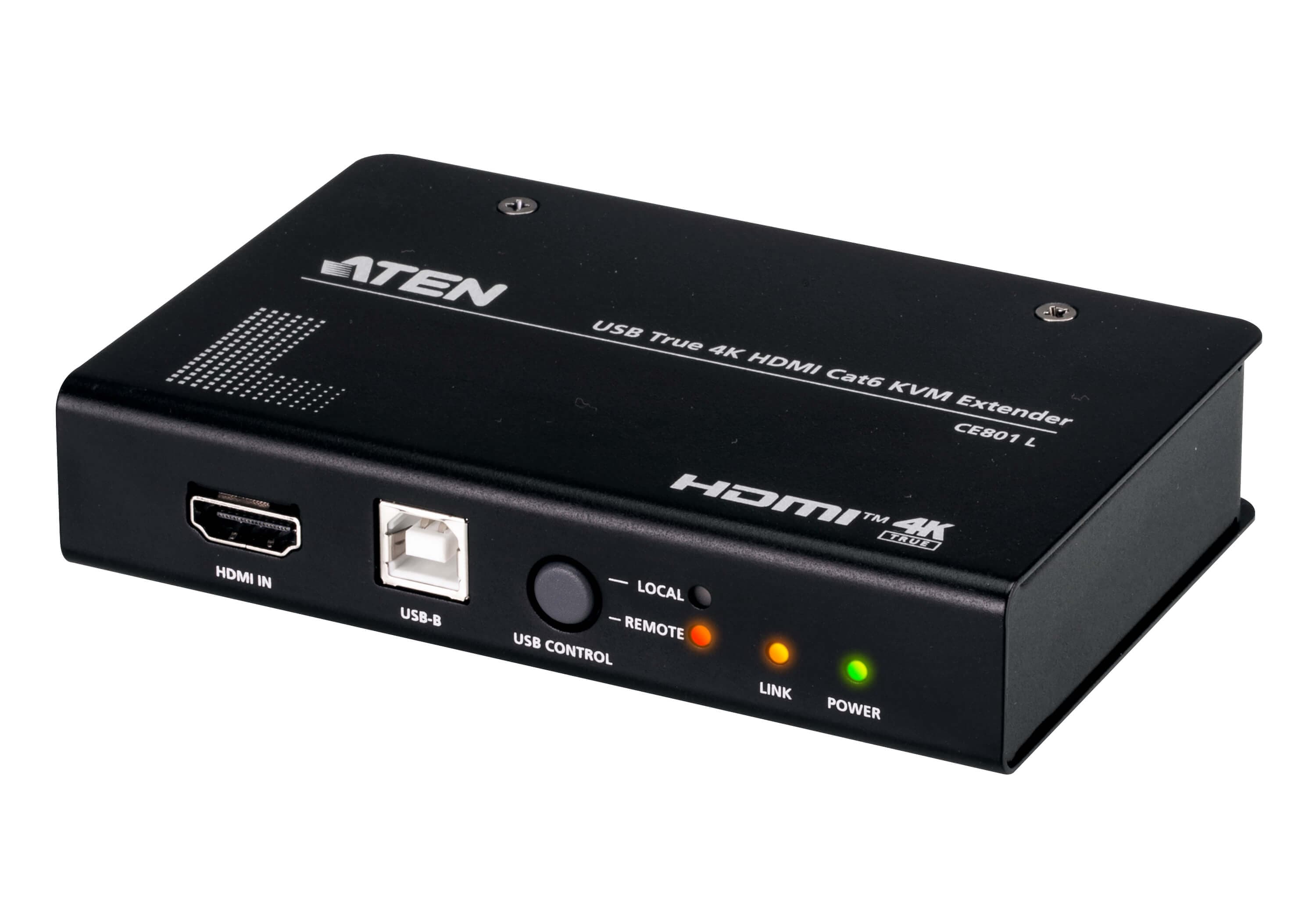

USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)

Name: USB True 4K HDMI Cat 6 KVM Extender (4K @ 70 m / FHD @ 100 m)
Brand: ATEN
SKU: CE801

CE801

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

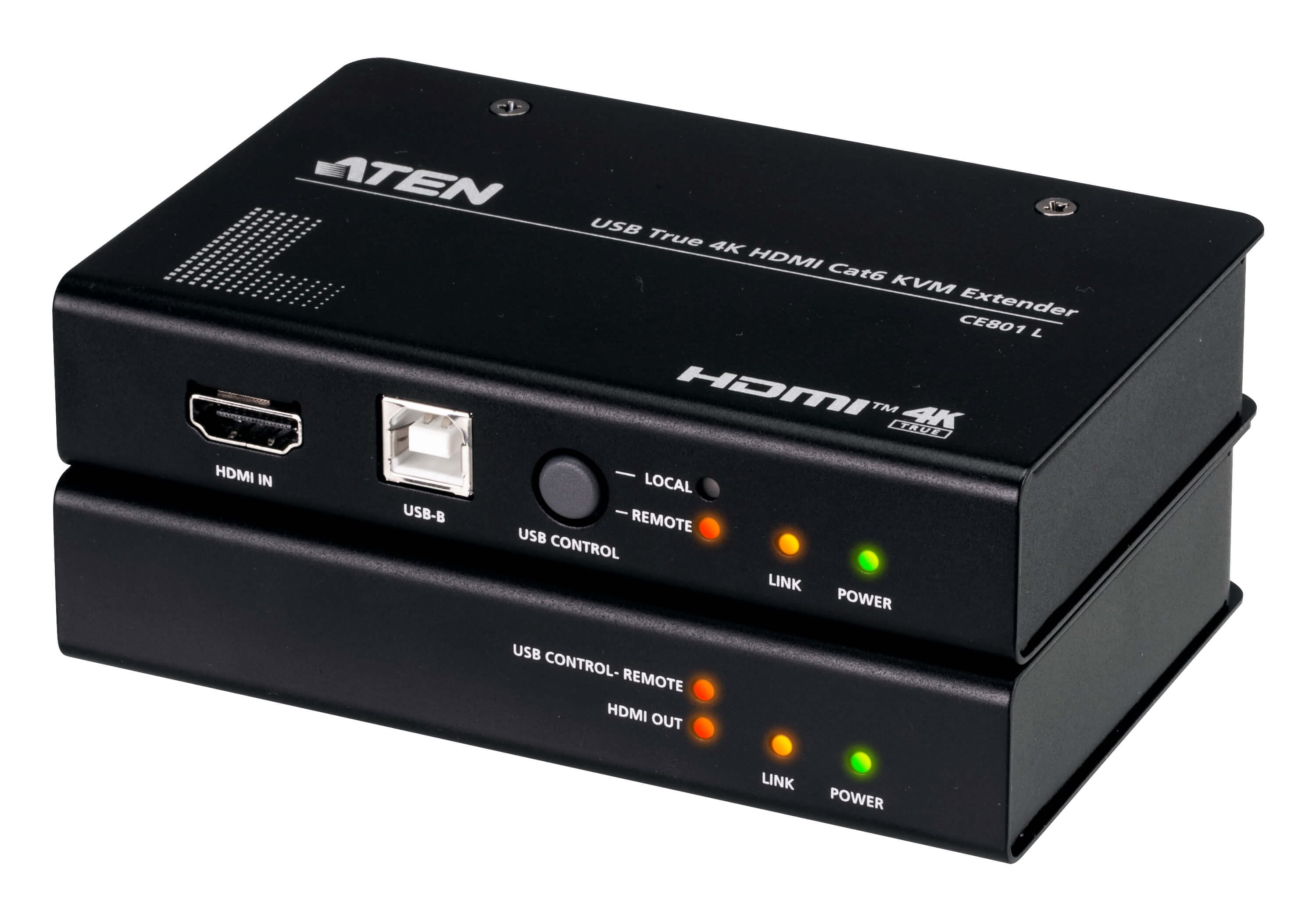

KVM удължител по Cat 6 — пренася 4K@60 HDMI, USB клавиатура/мишка, аудио и RS-232 до 70 m, а в Long Reach режим — 1080p до 100 m. Управление и от двете конзоли — локална и отдалечена.

Характеристики

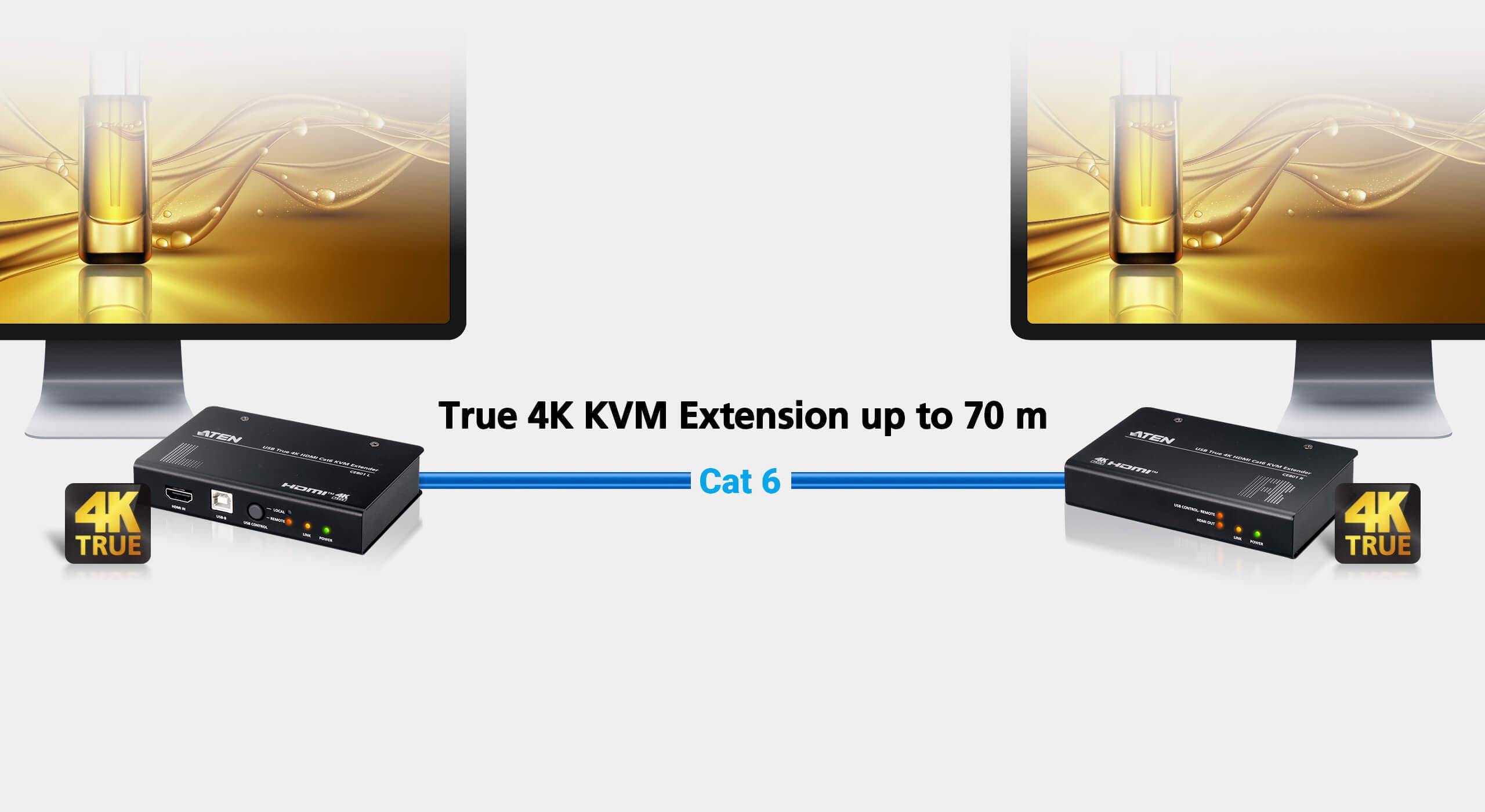

Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable*
Long reach mode – 1080p extension up to 100 m
Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance

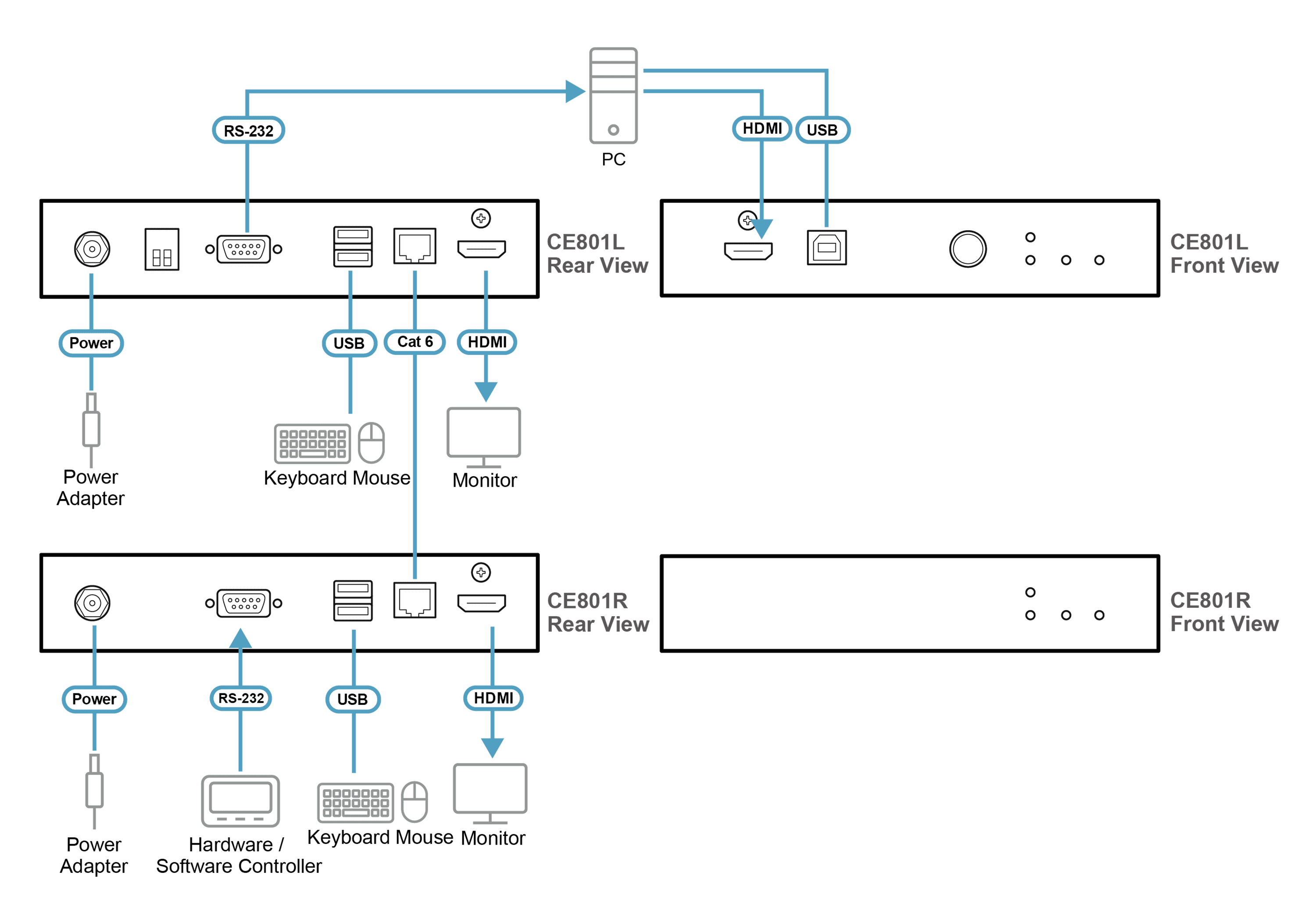

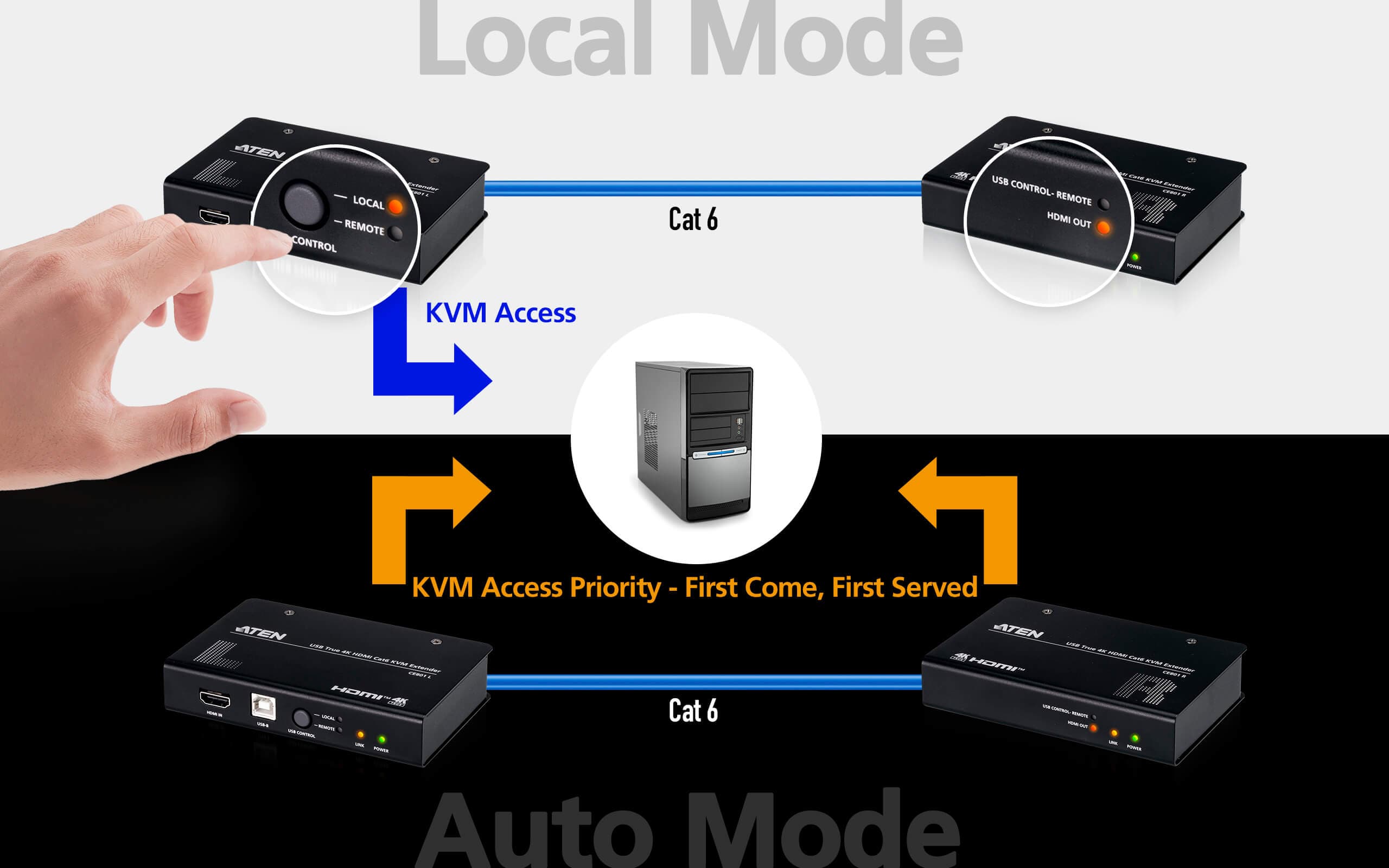

Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton
Supports HDR 10 for enhanced video quality
Supports wide screen format
Supports digital audio formats such as 7.1ch Dolby and DTS audio
Plug-and-play with no software or driver required
Built-in 8KV/15KV ESD protection
Rack-mountable
DC Jack with screw-lock ensures stable and secure connection * To ensure stable operation and adequate protection against electromagnetic interference (EMI), shielded twisted-pair (STP) cables shall be used, and the unit shall be properly grounded.

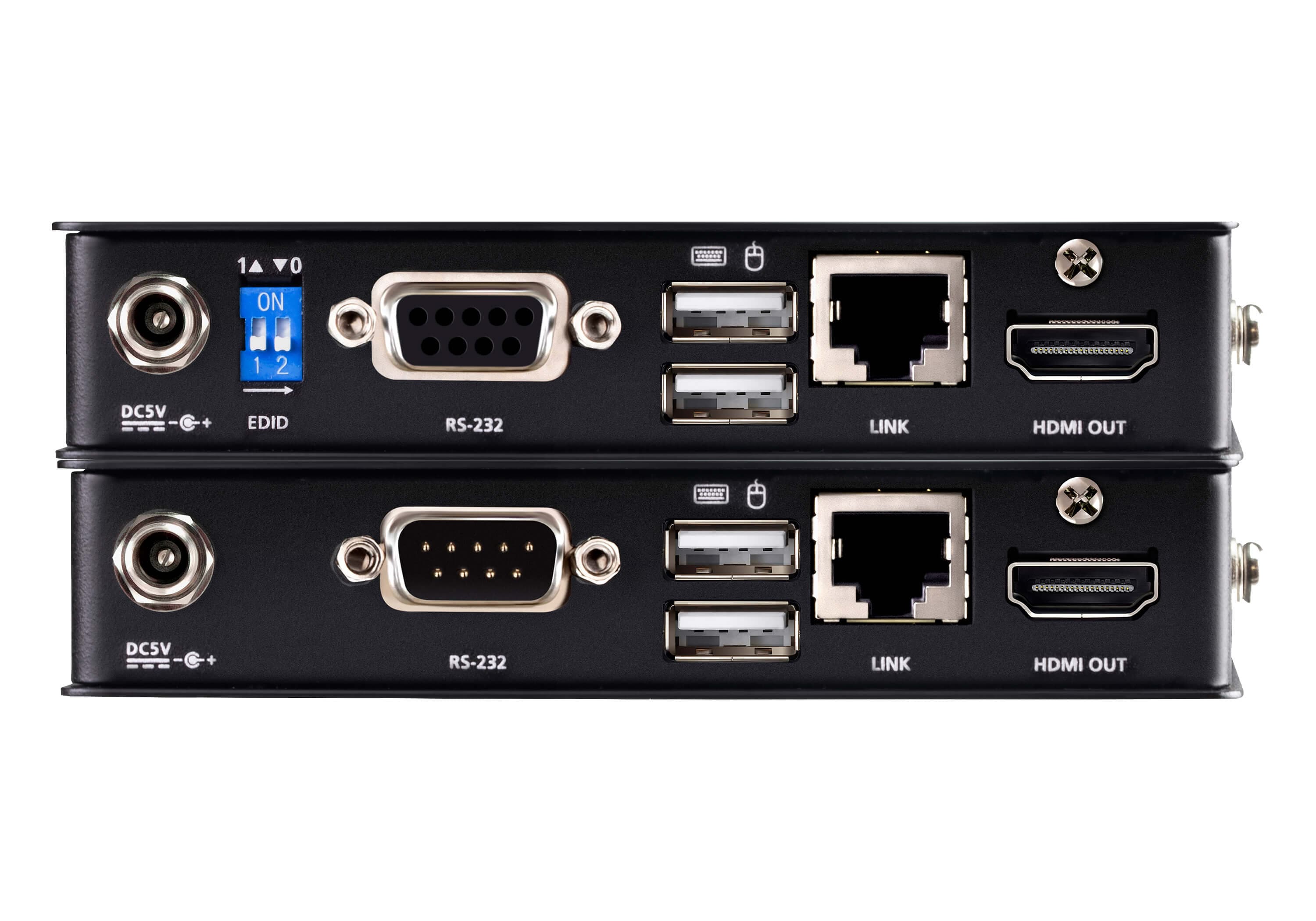

Конектори

Конзолни портове: 1 x HDMI Female (Black) 2 x USB Type A Female (White)* * For Keyboard & Mouse only
Конзолни портове: 1 x HDMI Female (Black) 2 x USB Type A Female (White)* * For Keyboard & Mouse only
KVM портове: 1 x HDMI (Female, Black) 1 x USB Type B (Female, White)
KVM портове: N/A
RS-232: 1 x DB-9 Female (Black)
RS-232: 1 x DB-9 Male (Black)
Захранване: 1 x DC Jack with locking
Захранване: 1 x DC Jack with locking
Между устройства: 1 x RJ-45 Female (Black)
Между устройства: 1 x RJ-45 Female (Black)

Видео

Съответствие: HDMI (4K/60Hz); 4K HDR HDCP2.3 Compatible
Съответствие: HDMI (4K/60Hz); 4K HDR HDCP2.3 Compatible
Макс. резолюция: 3840 x 2160 @ 60Hz (4:4:4)
Макс. резолюция: 3840 x 2160 @ 60Hz (4:4:4)
Макс. резолюция / разстояние: 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6A cable) 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable with Long reach mode enabled ) * For stable operation, STP cables shall be used, and the unit shall be properly grounded.
Макс. резолюция / разстояние: 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable) 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6A cable with Long reach mode enabled ) * For stable operation, STP cables shall be used, and the unit shall be properly grounded.

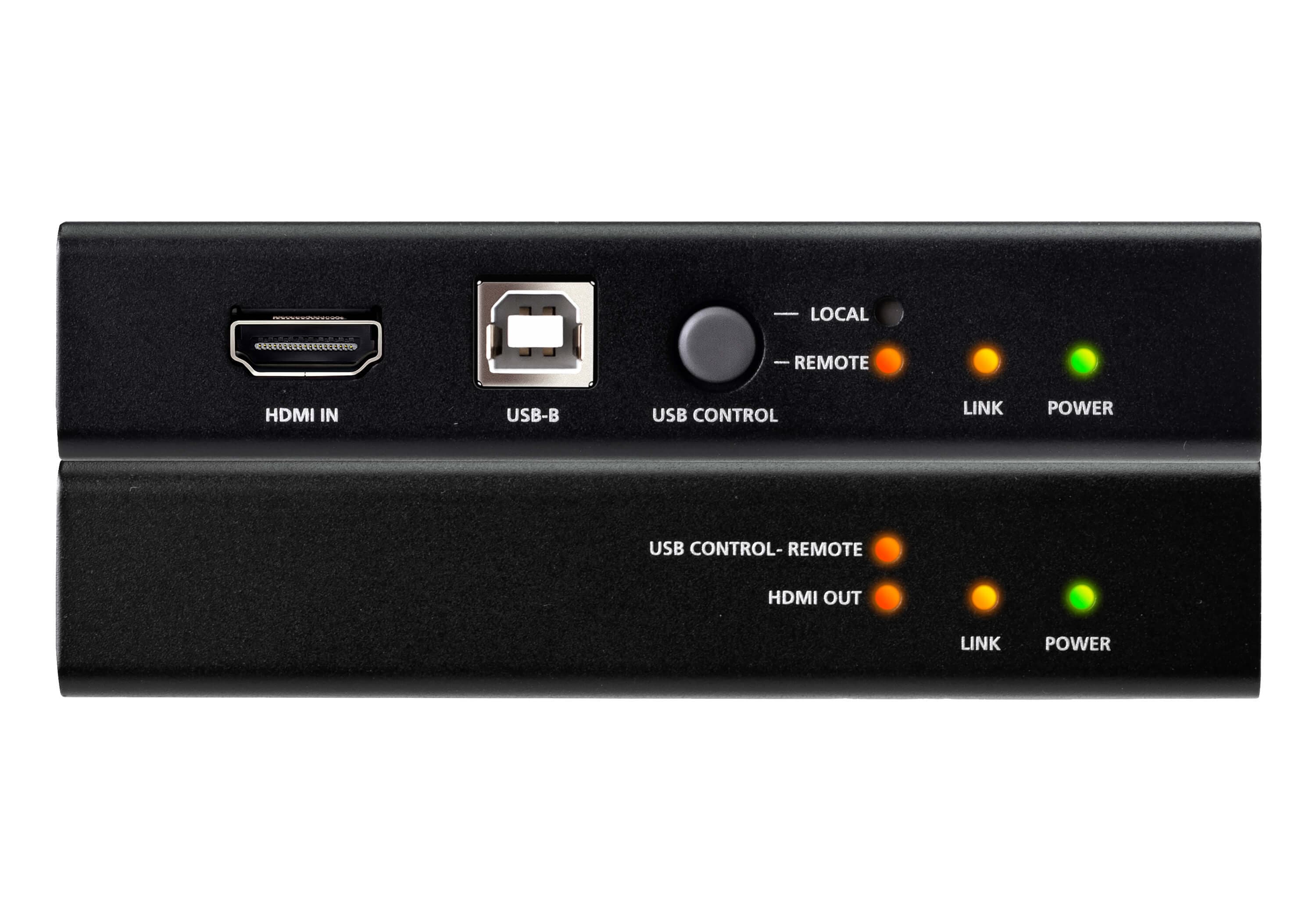

Индикатори

Захранване: 1 (Green)
Захранване: 1 (Green)
Връзка: 1 (Orange)
Връзка: 1 (Orange)
Видео: N/A
Видео: 1 (Orange)
Състояние на конзолата: 2 (Orange)
Състояние на конзолата: 1 (Orange)

Бутони и превключватели

DIP превключвател: 1 x 2 pin
DIP превключвател: N/A

Бутони

Избор на работен режим: 1 x Pushbutton
Избор на работен режим: N/A
Консумация: DC5V:2.59W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:1.88W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40˚C
Работна температура: 0-40˚C
Температура на съхранение: -20-60˚C
Температура на съхранение: -20-60˚C
Влажност: 0-80% RH, Non-condensing
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Корпус: Metal
Тегло: 0.32 kg ( 0.7 lb )
Тегло: 0.31 kg ( 0.68 lb )
Размери (Д x Ш x В): 12.80 x 8.21 x 2.50 cm (5.04 x 3.23 x 0.98 in.)
Размери (Д x Ш x В): 12.80 x 8.15 x 2.50 cm (5.04 x 3.21 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Отдалечен HDMI изход: 640 x 480 @ 60/67/72/75 Hz
Отдалечен HDMI изход: 1600 x 1200 @ 60 Hz
640 x 480 60 Hz (4:3): 1680 x 1050 @ 60 Hz
480p 60 Hz (4:3)/(16:9): 1920 x 1080 @ 60 Hz
576p 50 Hz (4:3)/(16:9): 720p 50/60 Hz
800 x 600 @ 56/60/72/75 Hz: 1080i 50/60 Hz
1024 x 768 @ 60/70/75 Hz: 1080p 24/25/30/50/60 Hz
1280 x 800 @ 60 Hz: 1080p 60 Hz
1280 x 1024 @ 60/75 Hz: 3840 x 2160p 24/25/30 Hz
1400 x 1050 @ 60 Hz: 3840 x 2160p 50/60 Hz 4:2:0
1440 x 900 @ 60 Hz
