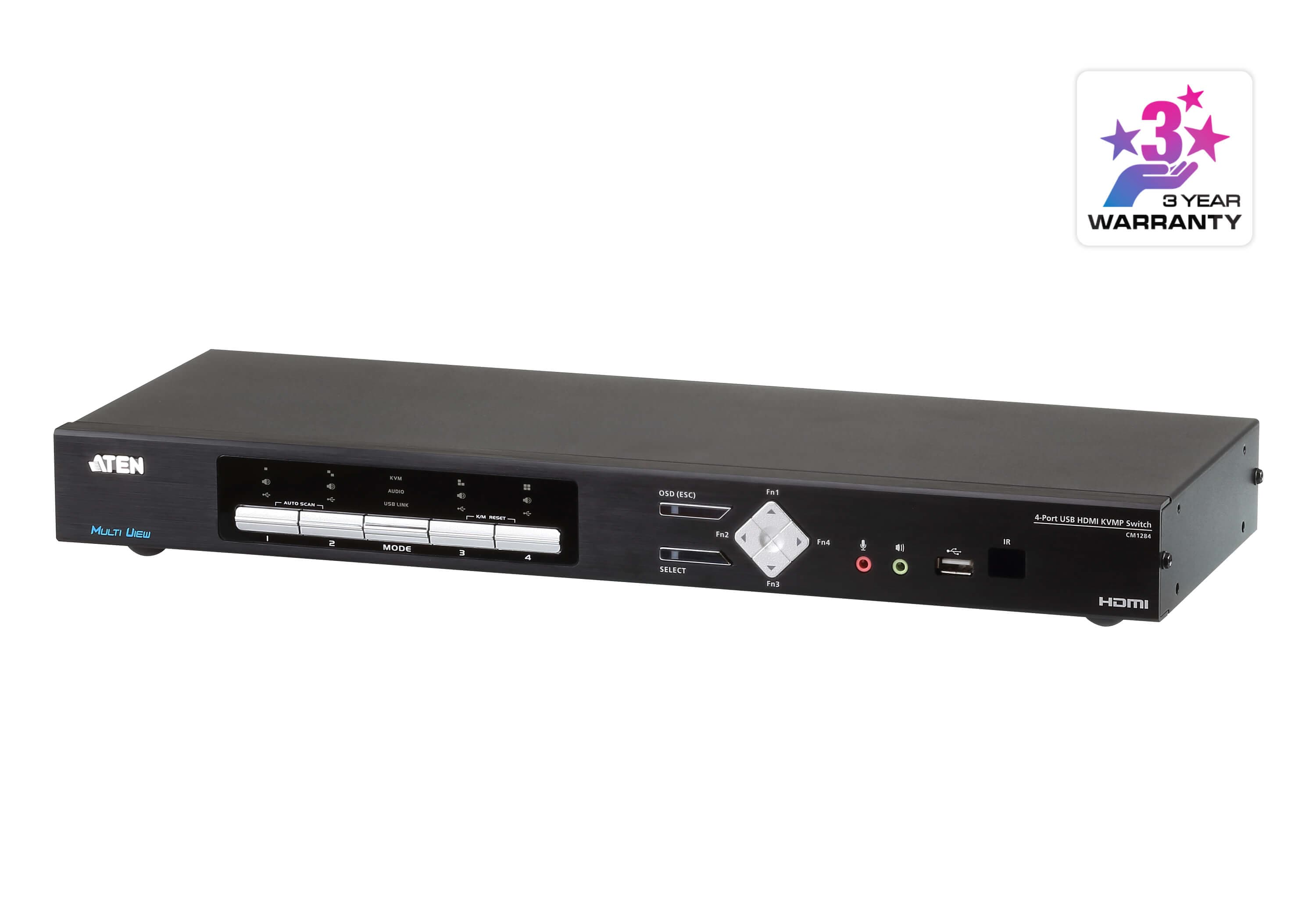

4-Port USB 4K HDMI Multi-View KVMP™ Switch
CM1284

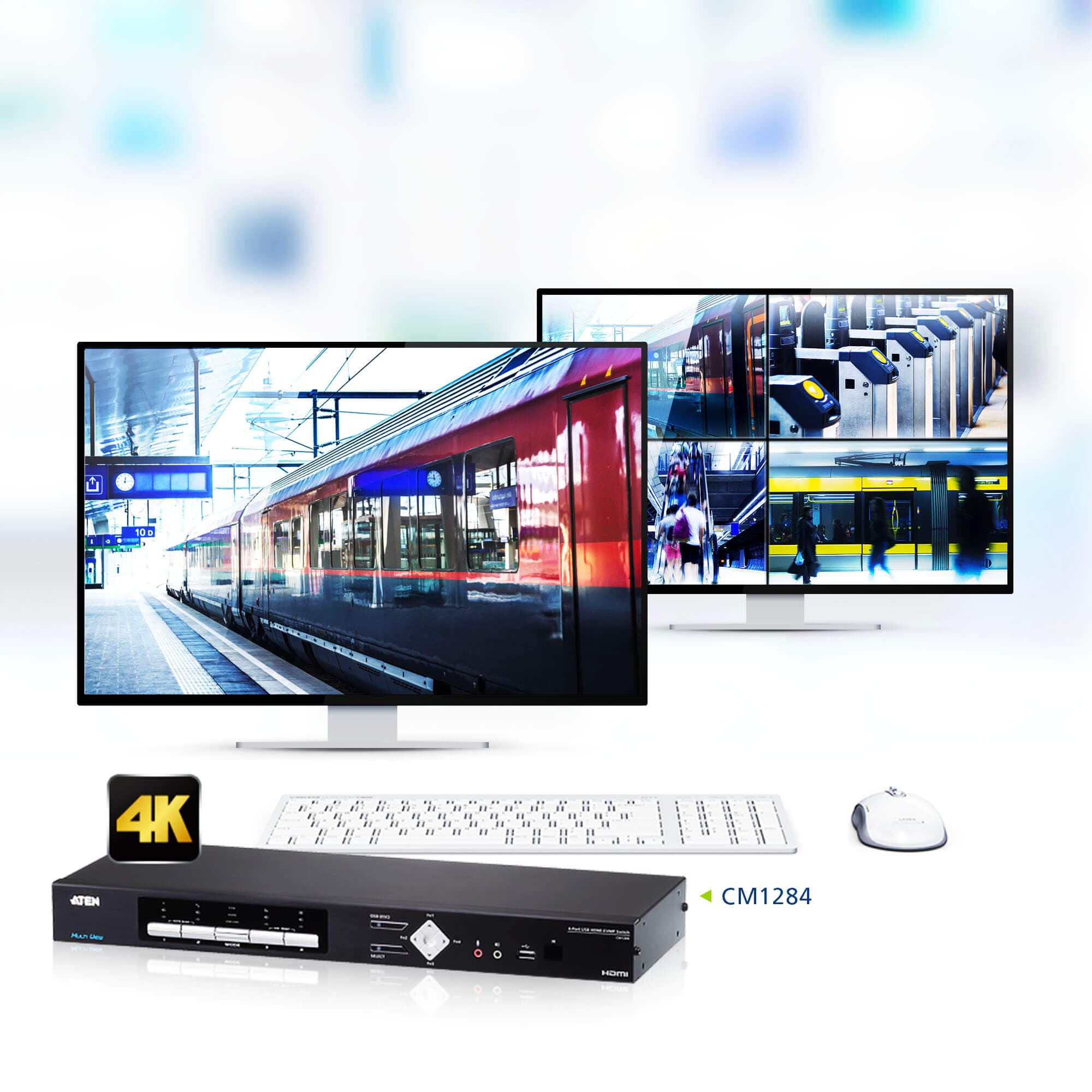

KVM превключвател с multi-view режим: показва до 4 HDMI компютъра едновременно на един 4K екран (Quad View, Picture in Picture), с отделен втори изход за цял екран. Управление с бутони, OSD или IR дистанционно.
Характеристики
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Features dual output on console side – a multi-view output and a full screen output
- Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs
- System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection
- Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2
- Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
- Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands1
- Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
- Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus
- Supports Extended Desktops Boundless Switching2
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
- EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
- DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console
- Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
- HDCP 1.4 compliant
- Console keyboard emulation / bypass feature that support most multimedia keyboards
- Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
- Independent switching for USB peripheral port, audio function and KVM switch focus
- Power on detection
- Auto Scan feature
- Firmware upgradable via computer’s USB port
- Full bass response provides a rich experience for 2.1 channel audio
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- Hot-pluggable
- Supports keyboard combinations via emulation (for Sun / Mac)3 Note: 1. Mouse port switching is only workable under the mouse emulation mode and applicable to 3-key USB wheel mouse only. 2. This function is only supported by Multi-View KVMP™ Switch using firmware version v2.3.222 or later. 3. PC keyboard combinations emulate Mac keyboard. Mac keyboard only works with their computers.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse Wheel, Mouse Cursor, RS-232 Commands

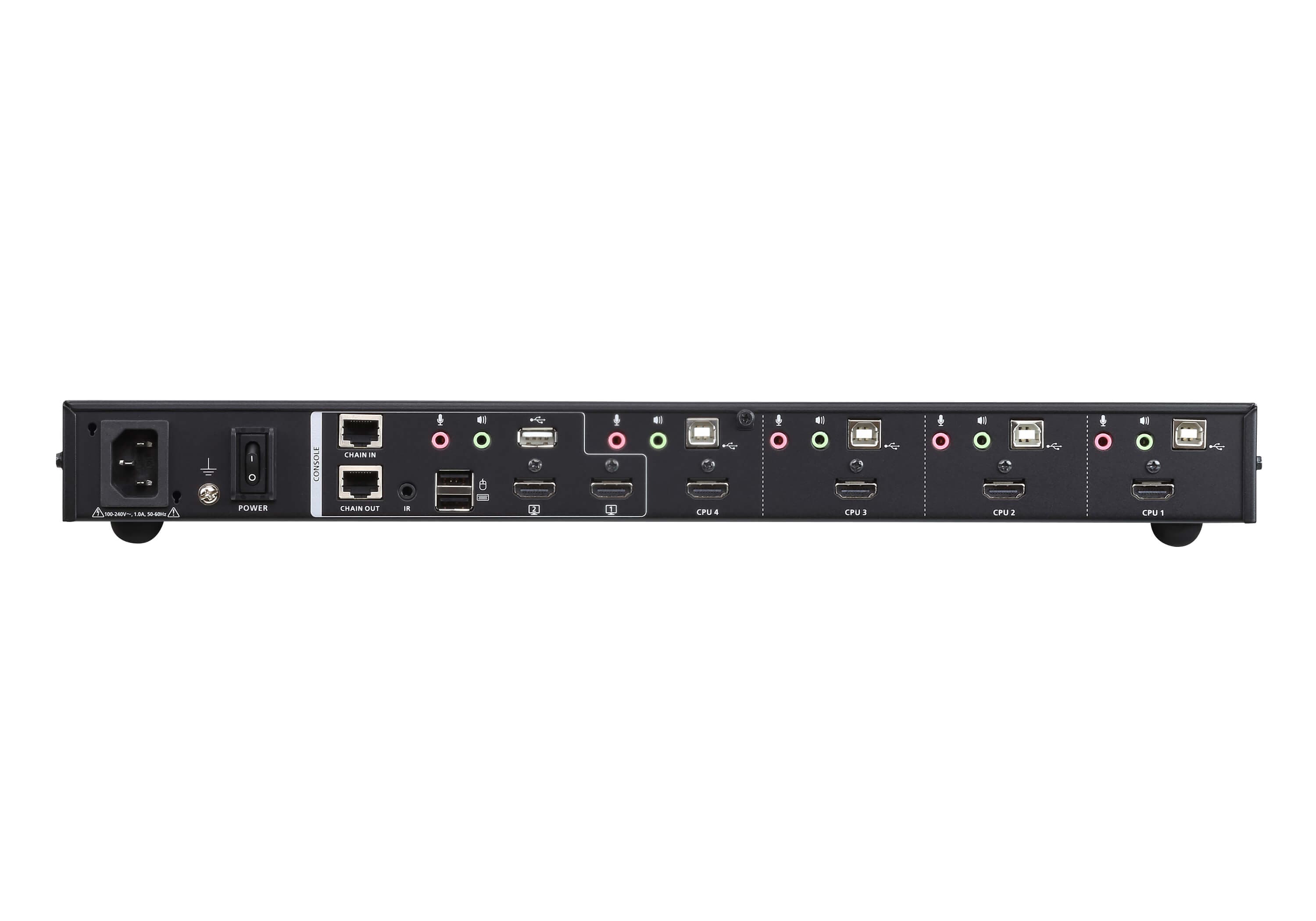

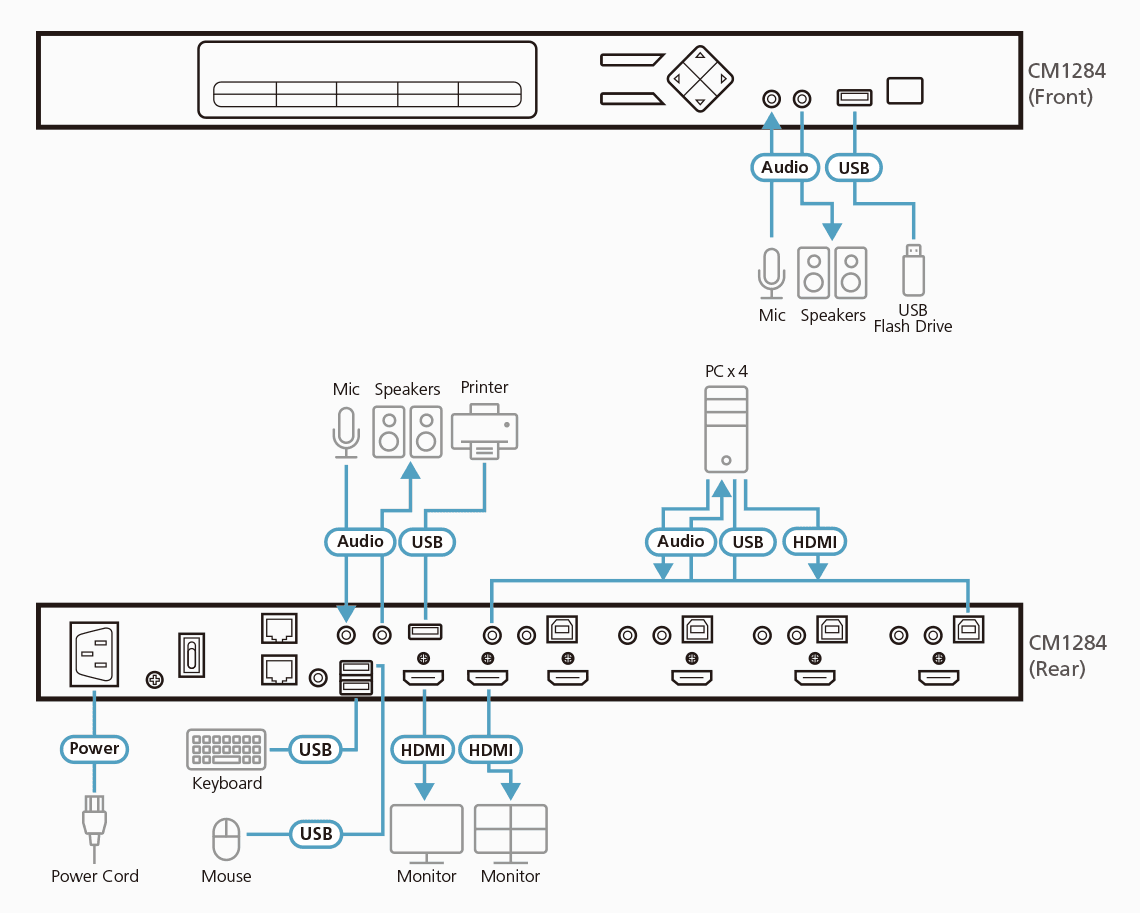

Конектори
- Конзолни портове
- 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 2 x RJ-45
- KVM портове (компютри)
- 4 x USB Type B Female (White) 4 x HDMI Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
- Захранване
- 1 x IEC320 Jack
- USB хъб
- 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)

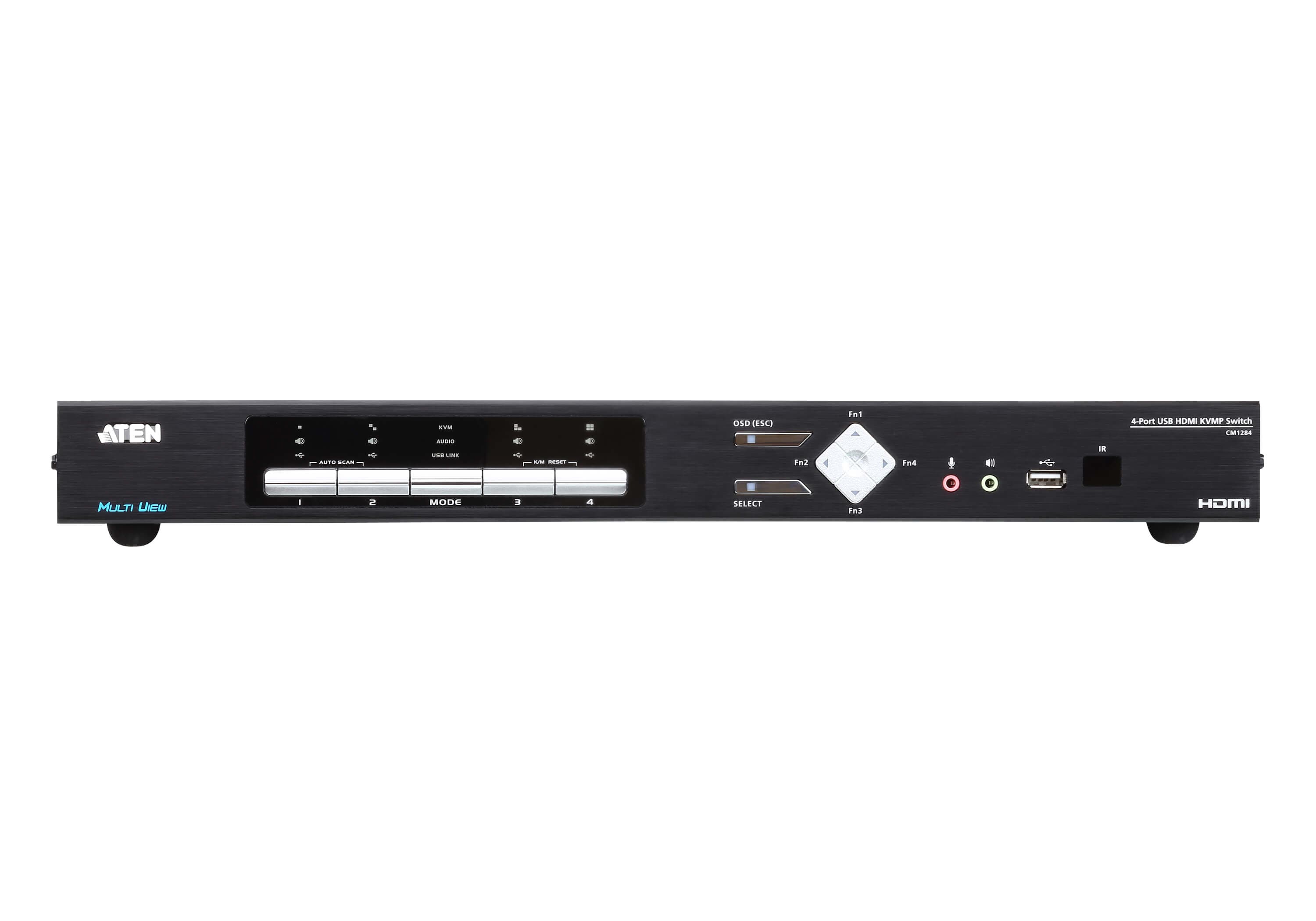

Бутони и превключватели
- Избран
- 11 x Pushbuttons
Индикатори
- KVM
- 4 (Orange)
- Аудио
- 4 (Green)
- USB
- 4 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 4096 x 2160 @ 30 Hz
- Интервал на сканиране
- 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
- Макс. входна мощност
- 100-240 VAC; 50/60 Hz; 1A
- Консумация
- AC110V:16.0W:101BTU/h AC220V:14.8W:95BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -10-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.46 kg ( 5.42 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.40 x 4.40 cm (17.21 x 6.46 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
