1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen FHD LCD KVM over IP Switch

Name: 1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen FHD LCD KVM over IP Switch
Brand: ATEN
SKU: CL3716I

CL3716I

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

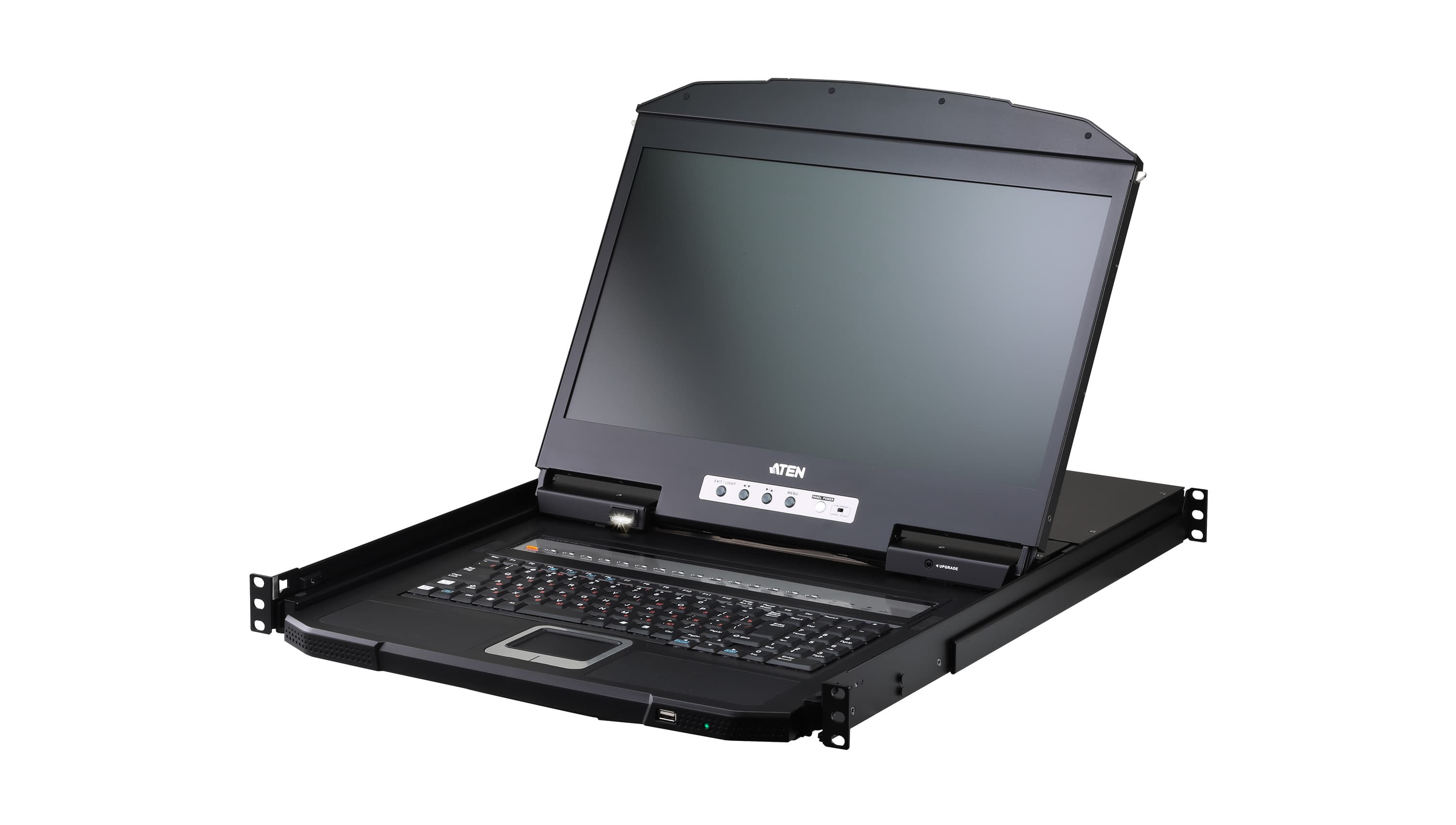

KVM over IP превключвател с вградена LCD конзола с 18.5-инчов Full HD екран, в 1U корпус с една релса. Управлява 16 сървъра локално и отдалечено — за контролни зали и центрове за данни.

Характеристики

Space Utility Optimization
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use
Reliability and Operational Versatility
Superior video quality – up to 1920 x 1080 @ 60 Hz
External console port – enables management of connected computers from an external console (monitor, USB keyboard, and USB mouse)
Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
IP-based LCD KVM switch enabling shared local console access and remote access, allowing monitoring and control of multiple computers via a standard web browser over the network
Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
Three-level password security – only authorized users can view and control computers
Auto Scan mode – enables continuous monitoring of user-selected computers
Panel Array Mode™ enables simultaneous monitoring of multiple servers on a single screen, with each server’s video output displayed in an individual panel and configurable panel layouts for flexible viewing
Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
Installation Flexibility
Standard rack mount kit included
Optional rack mount kits available including easy installation options*
No software required
Firmware upgradable via LAN port
Supports hot-plugging Note: Contact your ATEN dealer for product information. More information about "Easy Rack Mounting"...

Спецификация

Функция: CL3716iNW

Връзки към компютри

Директно: 16
Максимум: 16
Избор на порт: OSD, Hotkey, Pushbutton

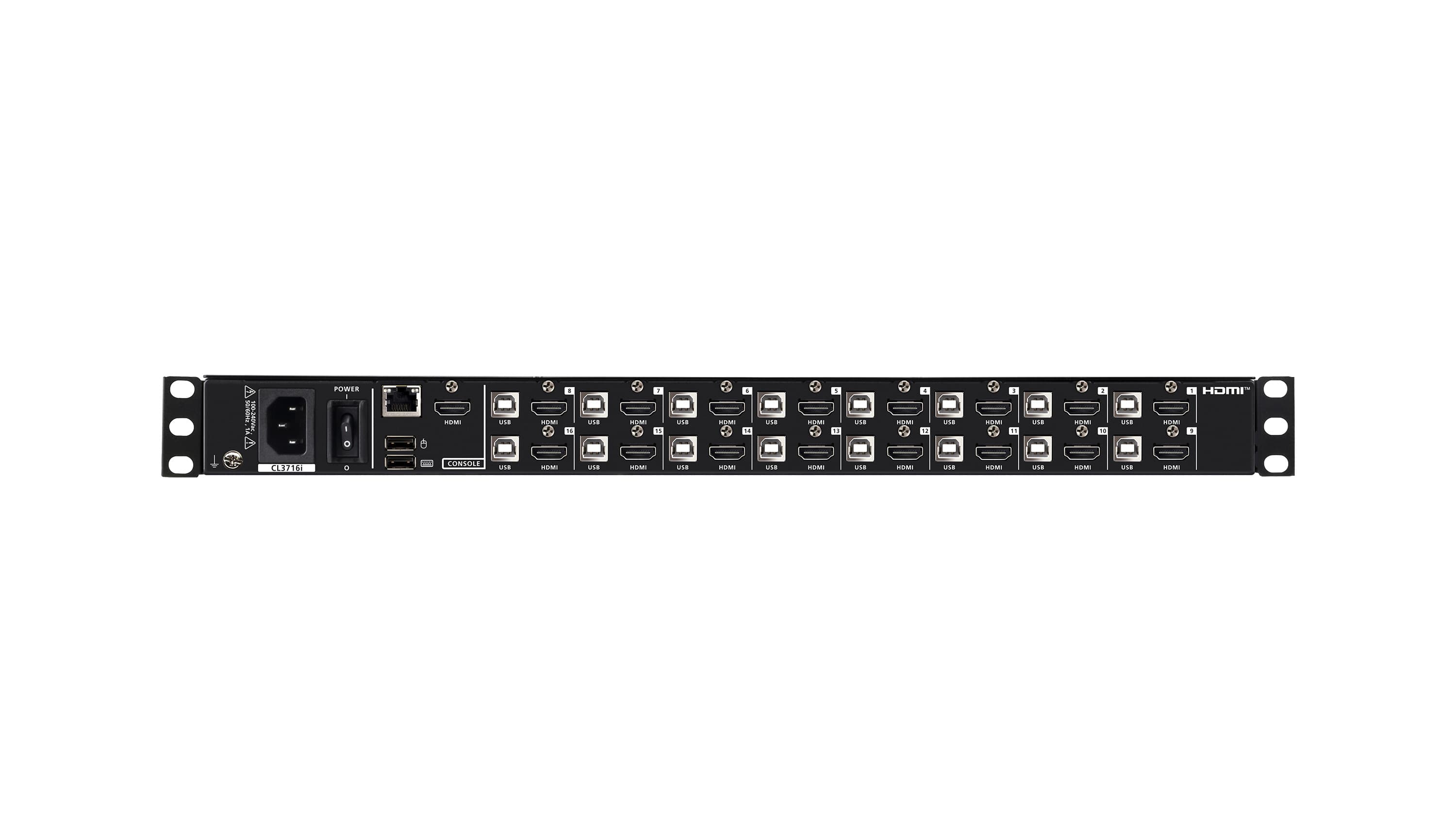

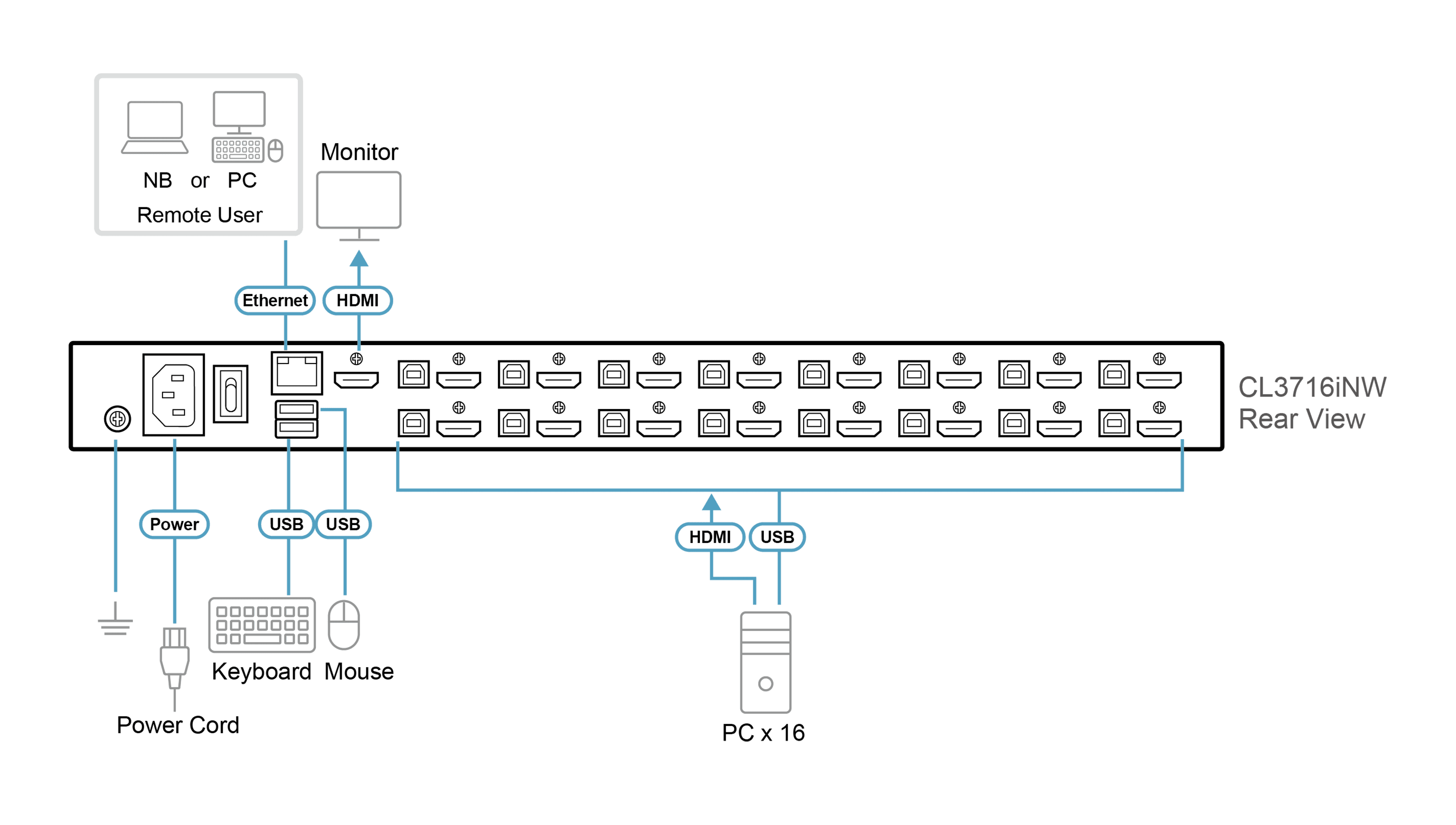

Конектори

KVM портове: 16 x HDMI Female 16 x USB Type B Female
Захранване: 1 x IEC 60320/C14
Външен порт за мишка: 1 x USB Type A Female (Front)
Външни конзолни портове: 1 x HDMI Female 2 x USB Type A Female
LAN портове: 1 x RJ-45 Female

Бутони и превключватели

Избор на порт: 16 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Захранване: 1 x Rocker Switch
Управление на дисплея: 4 x Pushbutton
Захранване на дисплея: 1 x LED Pushbutton

Индикатори

Онлайн: 16 (Orange)
Избран: 16 (Green)
Захранване: 1 x KVM Console (Dark Green) 1 x LCD (Orange)
Заключване: 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
LED осветление: 1 x LED Illumination Light

Панел

LCD модул: 18.5" TFT-LCD
Резолюция: 1920 x 1080 @ 60 Hz
Време за реакция: 20 ms
Зрителен ъгъл: 178° (H), 178° (V)
Стъпка на пикселите: 0.213 mm x 0.213 mm
Поддържани цветове: 16.77M colors
Контраст: 1000 : 1
Яркост: 350 cd/m²

Видео

Отдалечено: 1920 x 1200 @60 Hz
Входна видео резолюция: up to 1920 × 1200 @ 60 Hz
Втора конзола: 1920 x 1200 @ 60 Hz
Интервал на сканиране: 1-255 seconds

Емулация

Клавиатура / мишка: USB
Макс. входна мощност: 100–240 VAC, 50/60 Hz, 1 A
Консумация: AC110V:42.1W:204BTU/h AC220V:41.7W:202BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20-60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal + Plastic
Тип релси: Single Rail
Тегло: 10.96 kg ( 24.14 lb )
Размери (Д x Ш x В): 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.)
Размери на корпуса (Д x Ш x В): 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.)
Забележка: Body Dimensions exclude I/O ports, handles, and mounting brackets.
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
