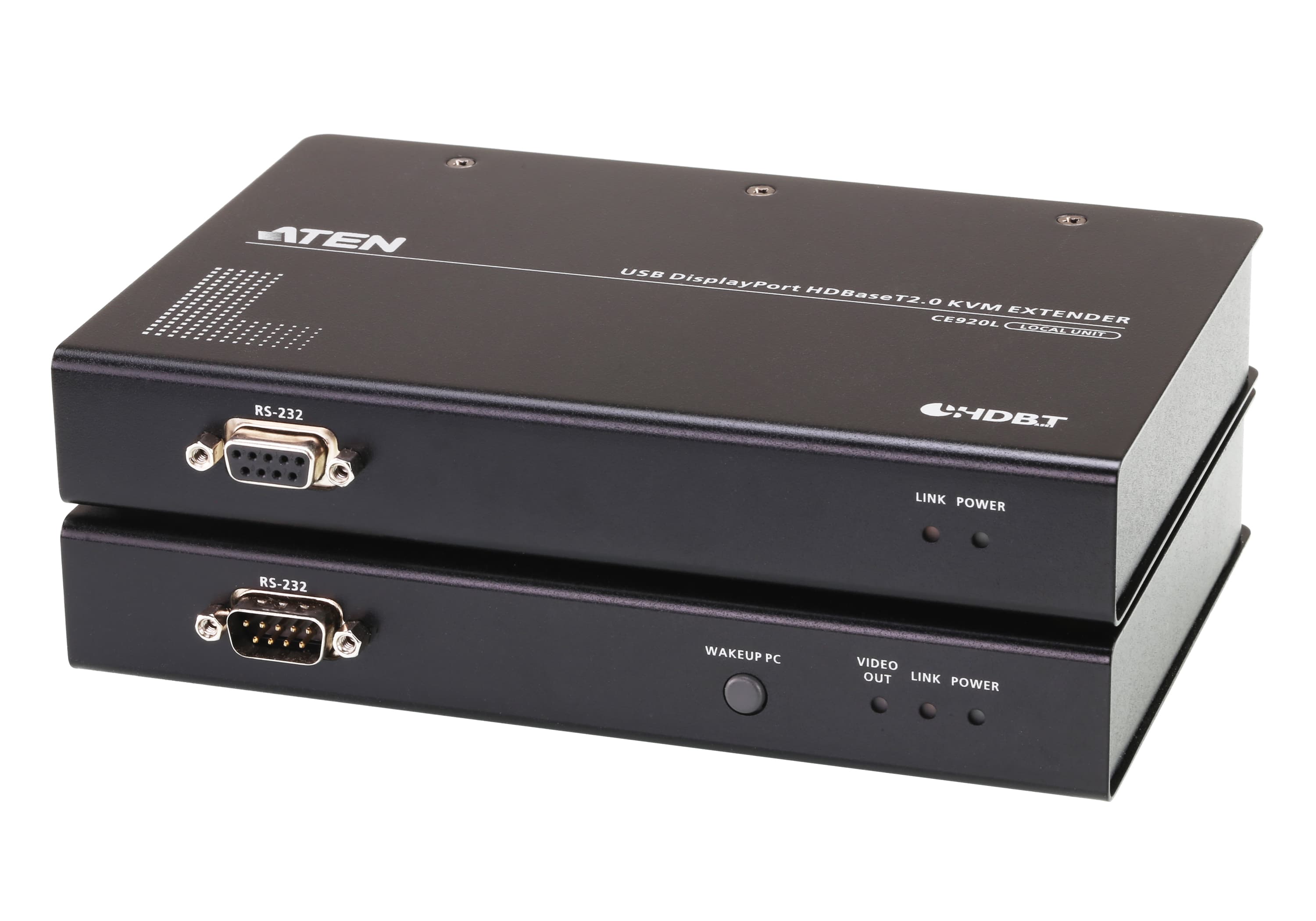

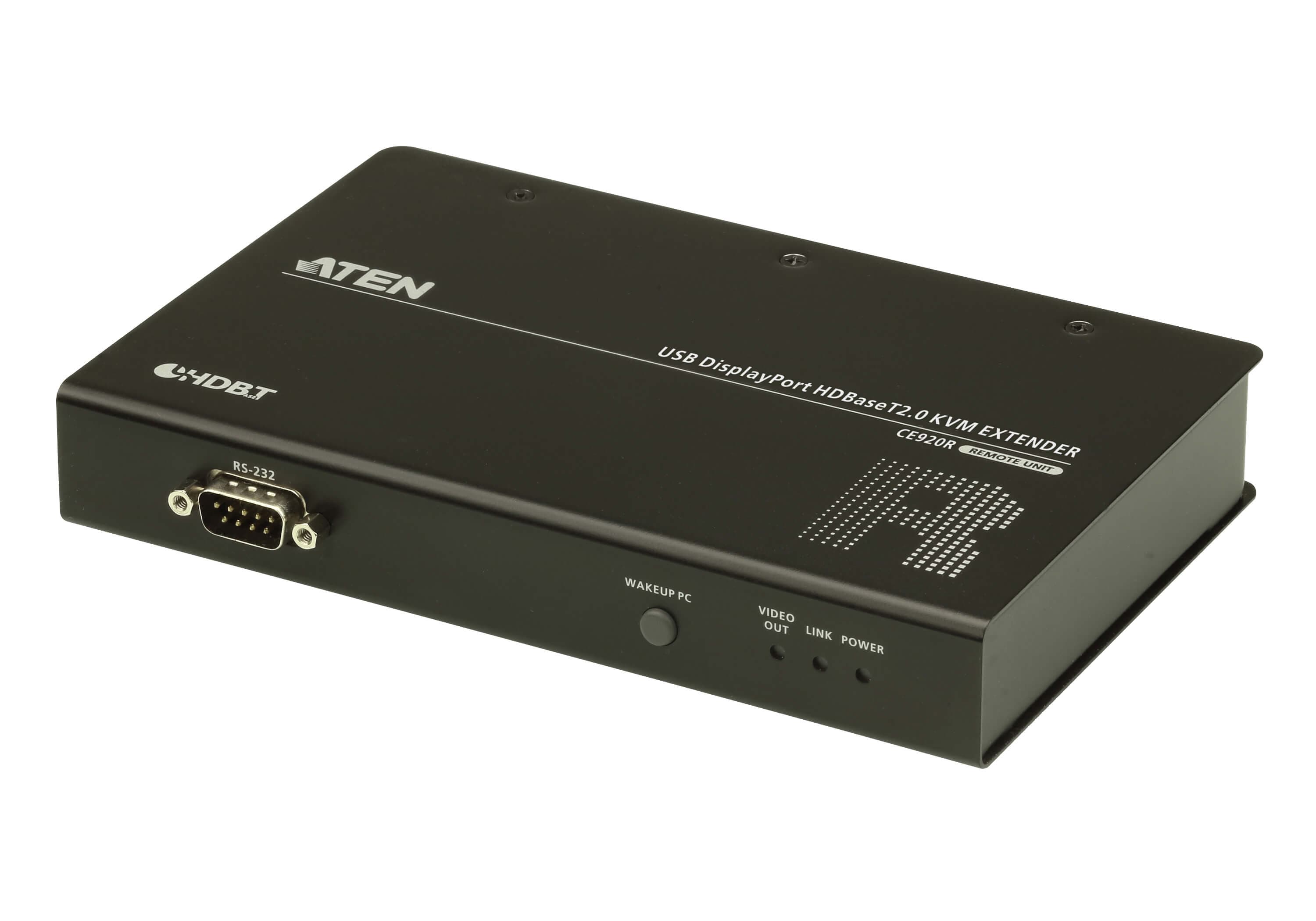

USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)
CE920

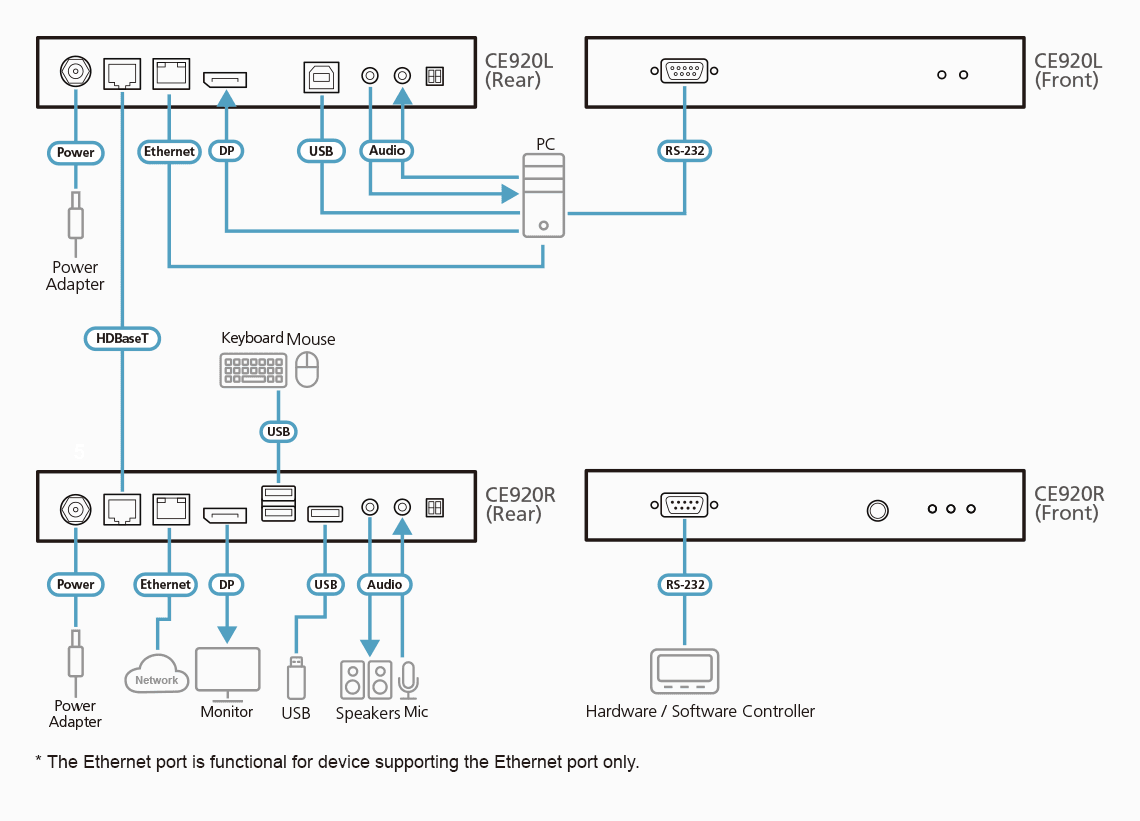

Удължава DisplayPort видео, аудио, USB, RS-232 и Ethernet по един Cat 6/6a кабел чрез HDBaseT 2.0 — до 4K при 100 m в стандартен режим. За работни места, отдалечени от машините в сървърното помещение.
Характеристики
- Supports HDBaseT™ 2.0 technology - Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions - Status detection and LED indication for HDBaseT™ signal transmission on remote unit
- EDID Buffer for smooth power-up and the highest quality display
- Long distance with superior video quality - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910) - HDBaseT™ Long-Reach mode up to 1080P @ 150m
- Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
- HDCP Compatible
- Supports individual 2-channel stereo audio for high-quality audio applications
- Supports PC wakeup function via single pushbutton through RS-232 channel2
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

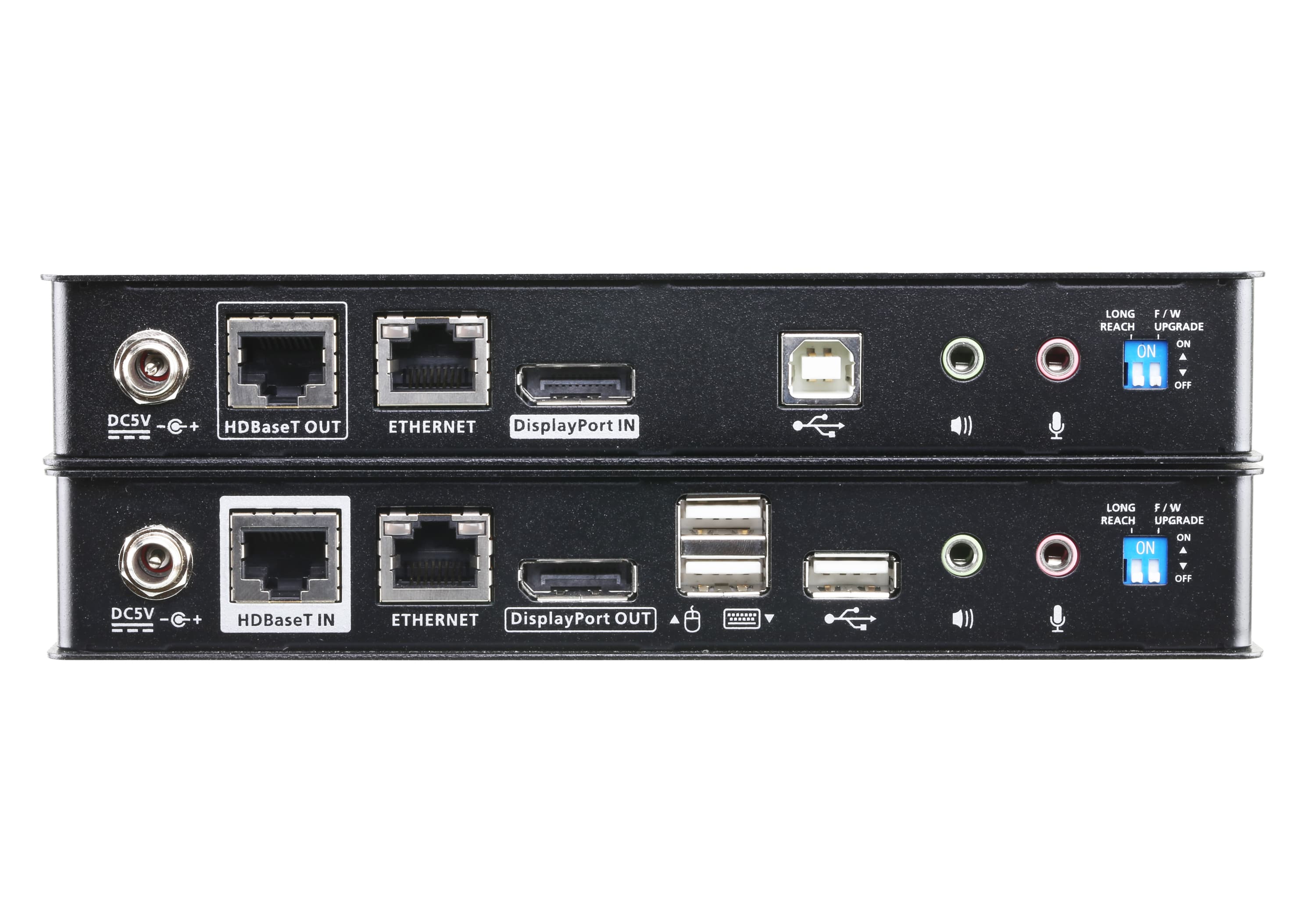

Конектори
- Конзолни портове
- N/A

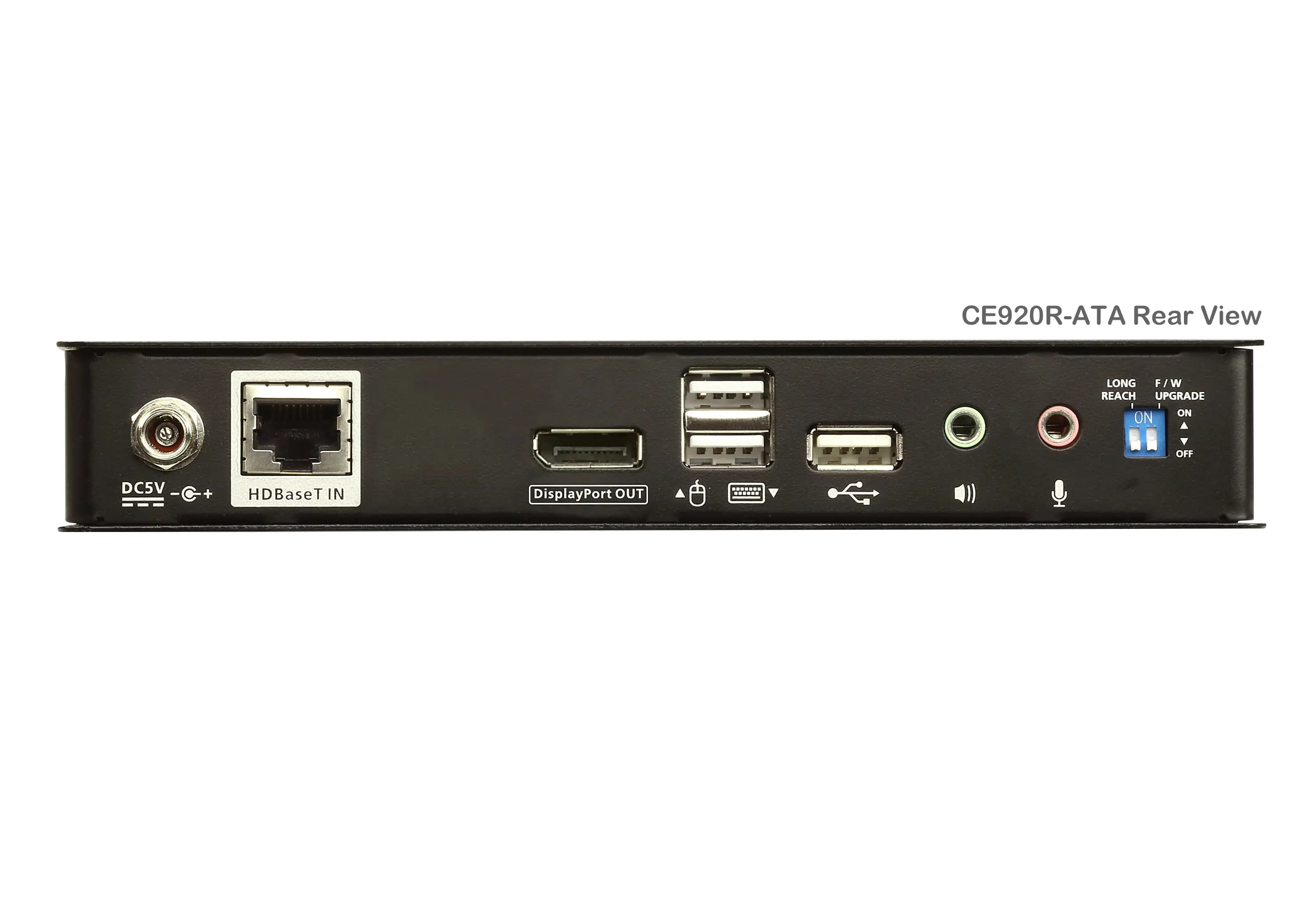

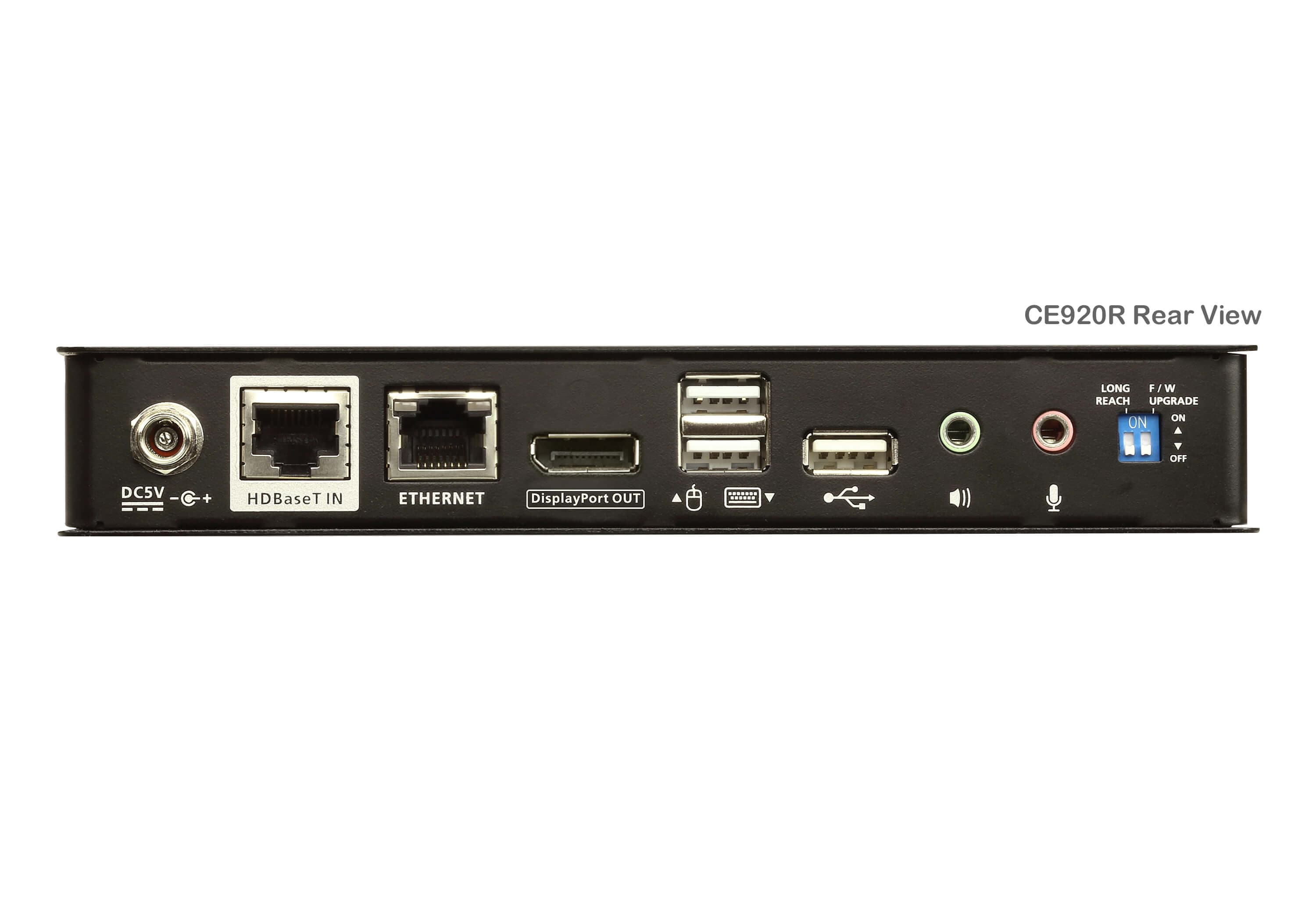

- Конзолни портове
- 1 x DisplayPort Female (Black) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) Note: The RJ-45 ports is functional for device supporting the Ethernet port

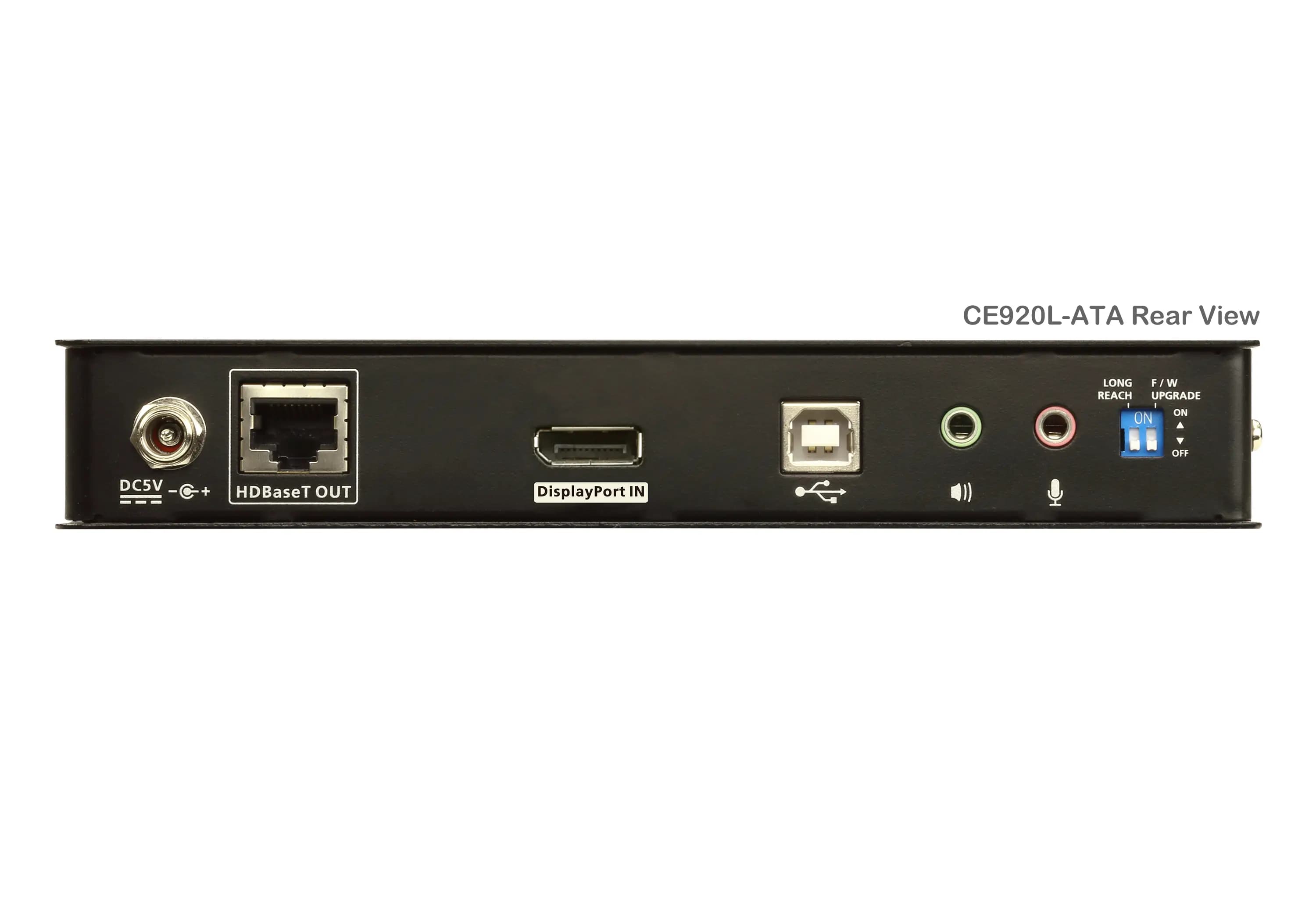

- KVM портове
- 1 x DisplayPort Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) Note: The RJ-45 ports is functional for device supporting the Ethernet port
- KVM портове
- N/A
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack with locking
- Захранване
- 1 x DC Jack with locking
- Между устройства
- 1 x RJ-45 Female (Black)
- Между устройства
- 1 x RJ-45 Female (Black)

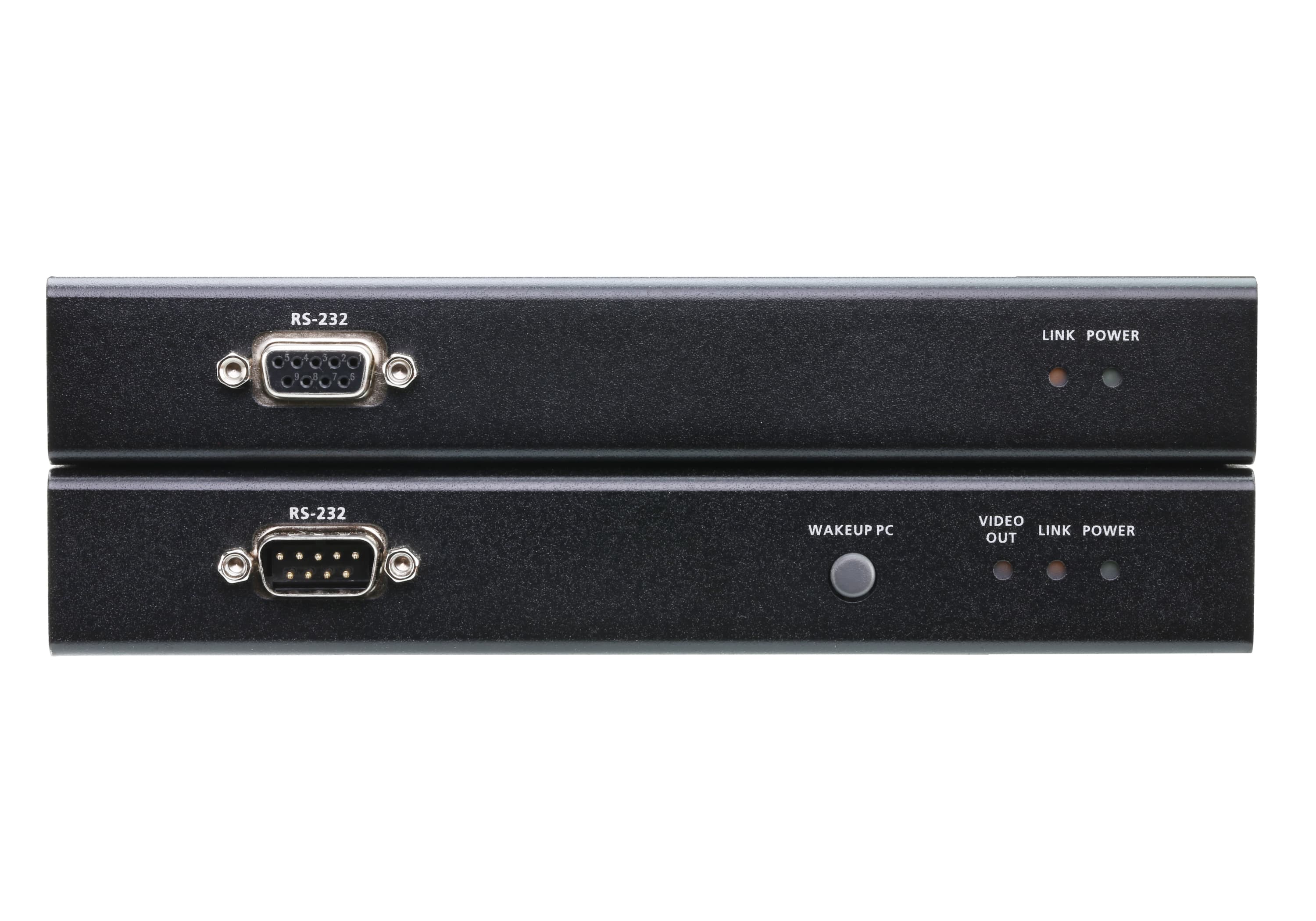

Индикатори
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Връзка
- 1 (Orange)
- Връзка
- 1 (Orange)
- Видео изход
- N/A
- Видео изход
- 1 (Orange)
Бутони и превключватели
- Превключвател Long Reach
- 1 x Slide Switch
- Превключвател Long Reach
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch

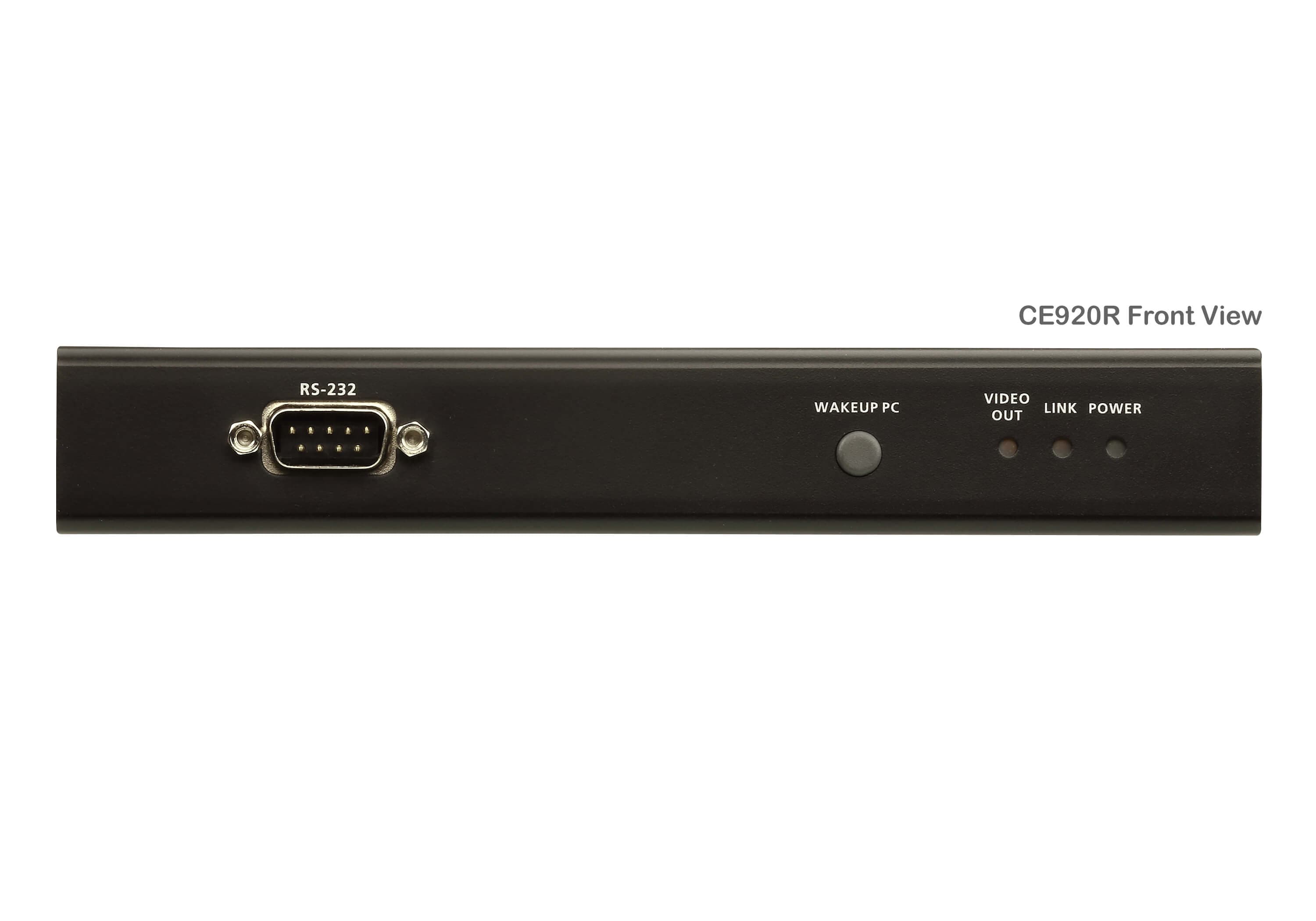

Бутони
- Бутон за събуждане
- N/A
- Бутон за събуждане
- 1 x Push button
- Видео
- Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Видео
- Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Консумация
- DC5V:3.99W:19BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:6.74W:47BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.63 kg ( 1.39 lb )
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В)
- 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.)
- Размери (Д x Ш x В)
- 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.)
- Забележка
- DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. The CE920-AT supports Ethernet function and the CE920-ATA does not.
- Забележка
- DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. The CE920-AT supports Ethernet function and the CE920-ATA does not.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
