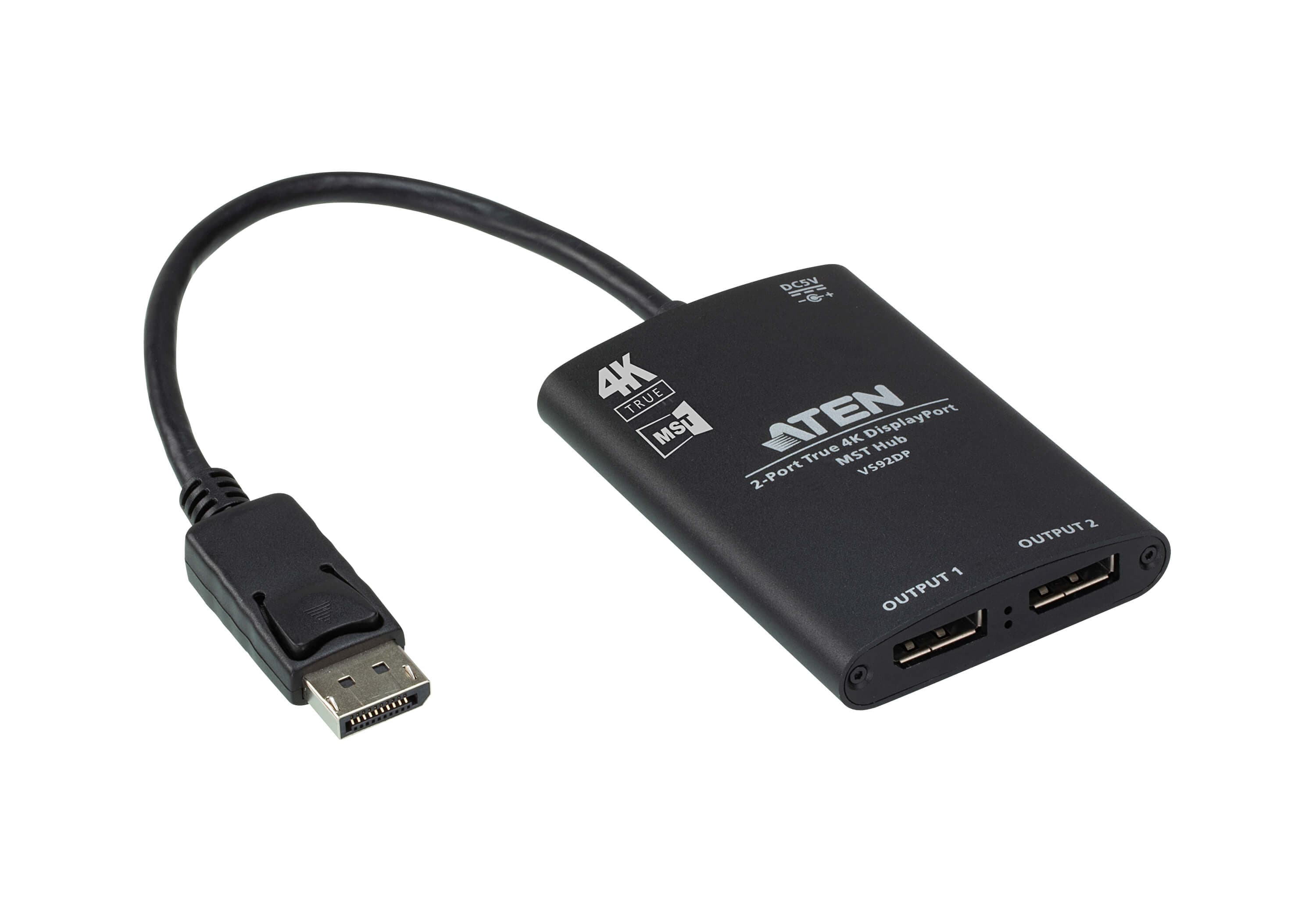

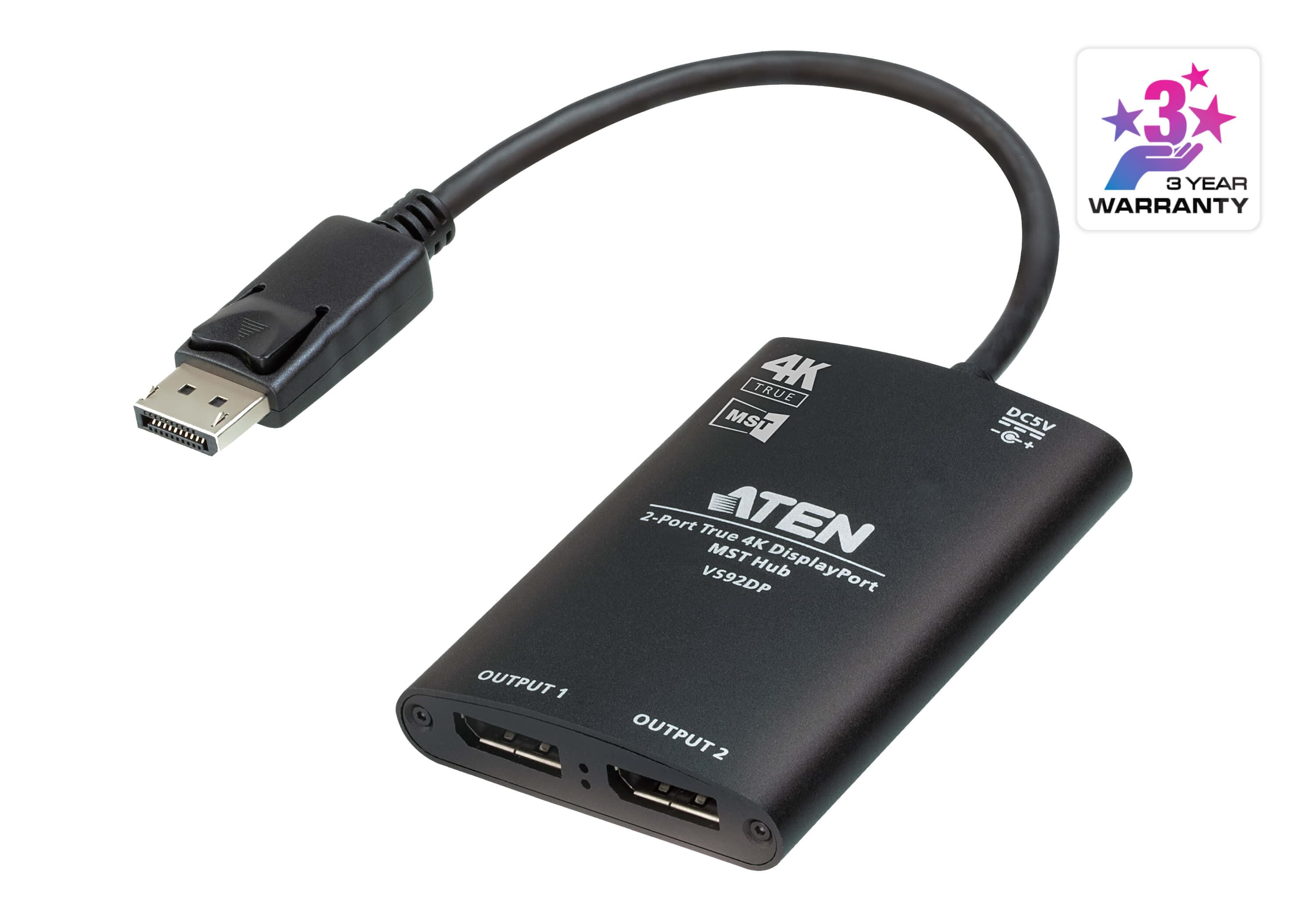

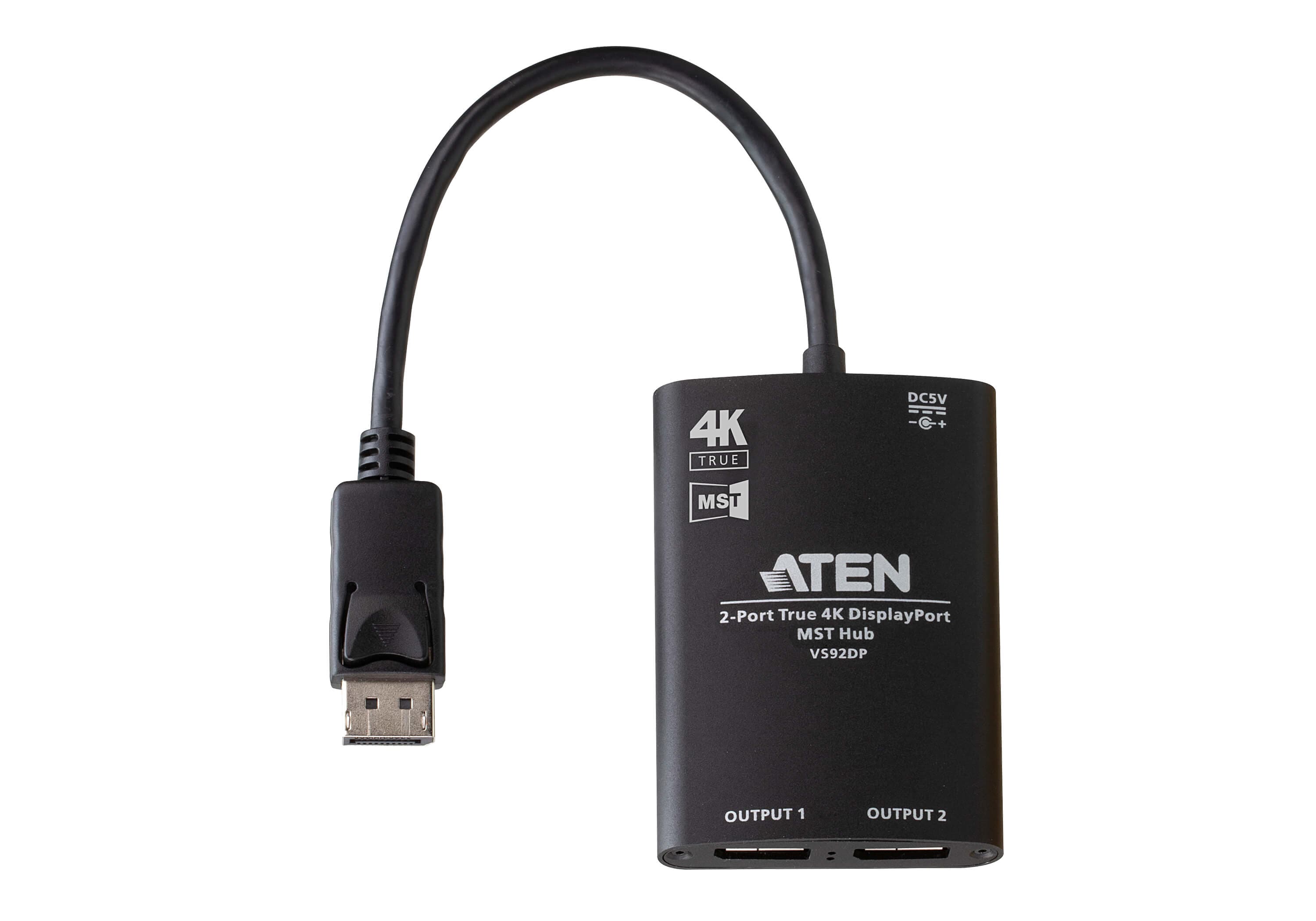

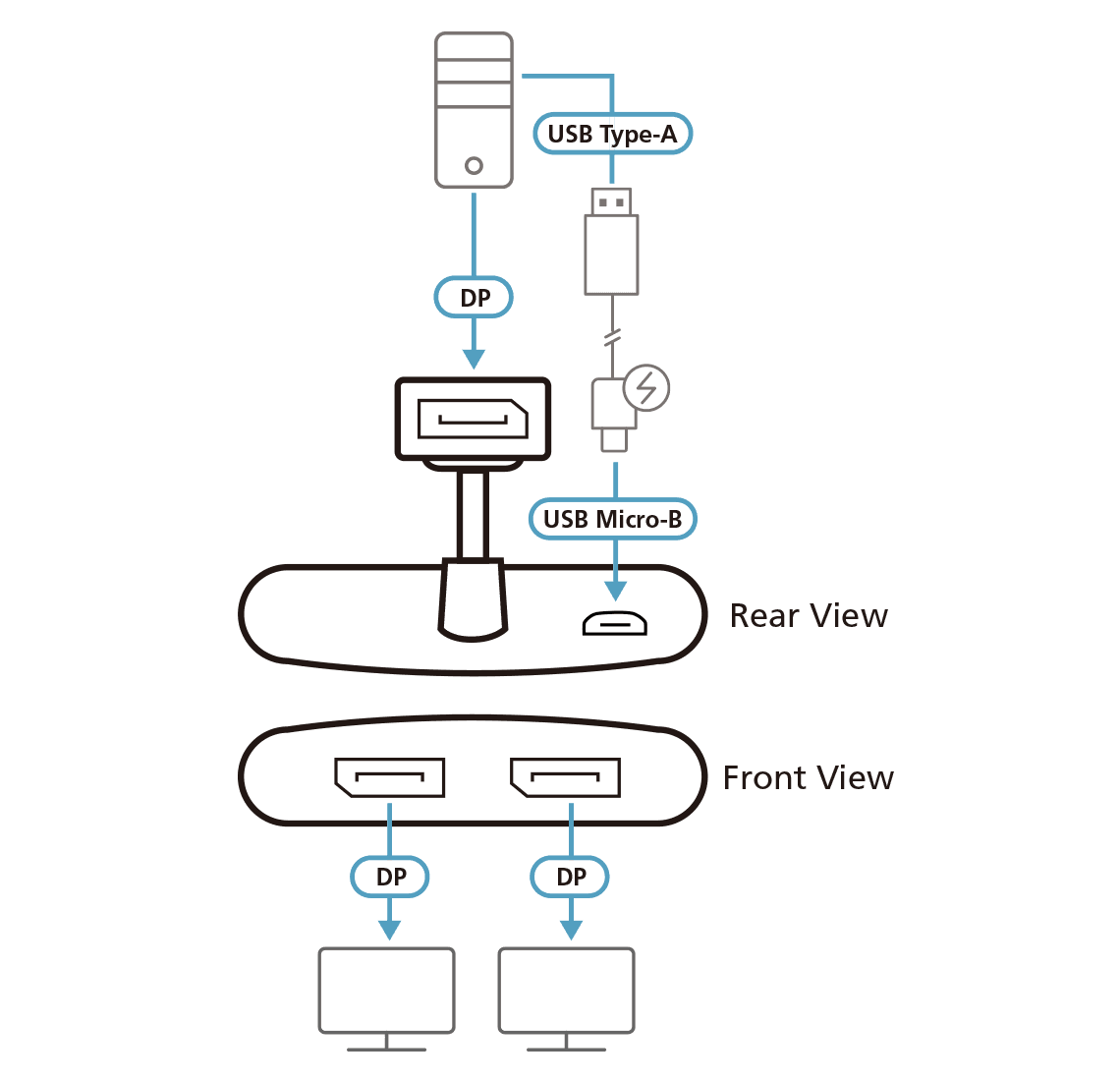

MST хъб, който разпределя един DisplayPort източник към два дисплея едновременно в режим SST или MST. При двоен изход поддържа до 3840x2160@30Hz (4:4:4); DisplayPort 1.2, HDCP 1.3.
Характеристики

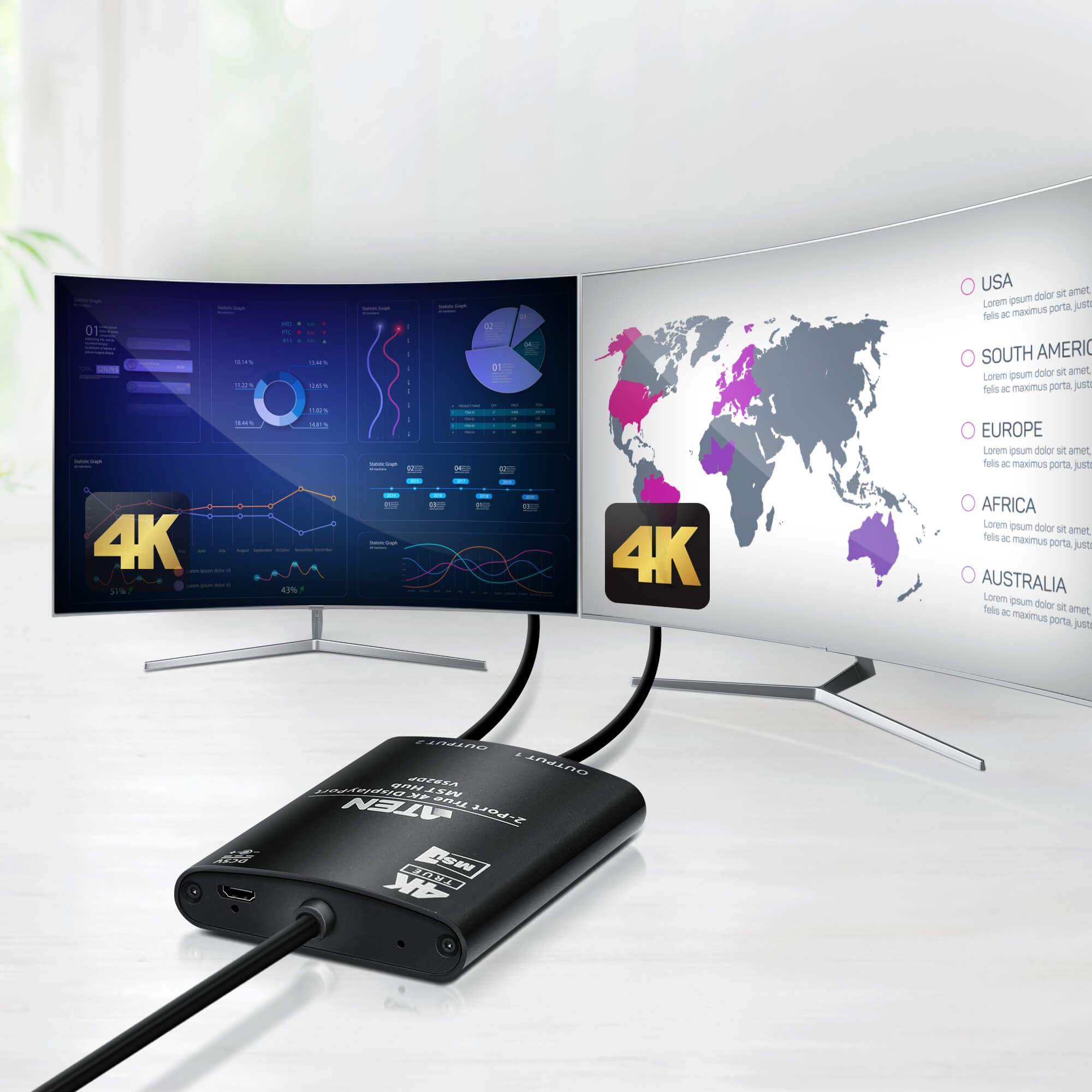

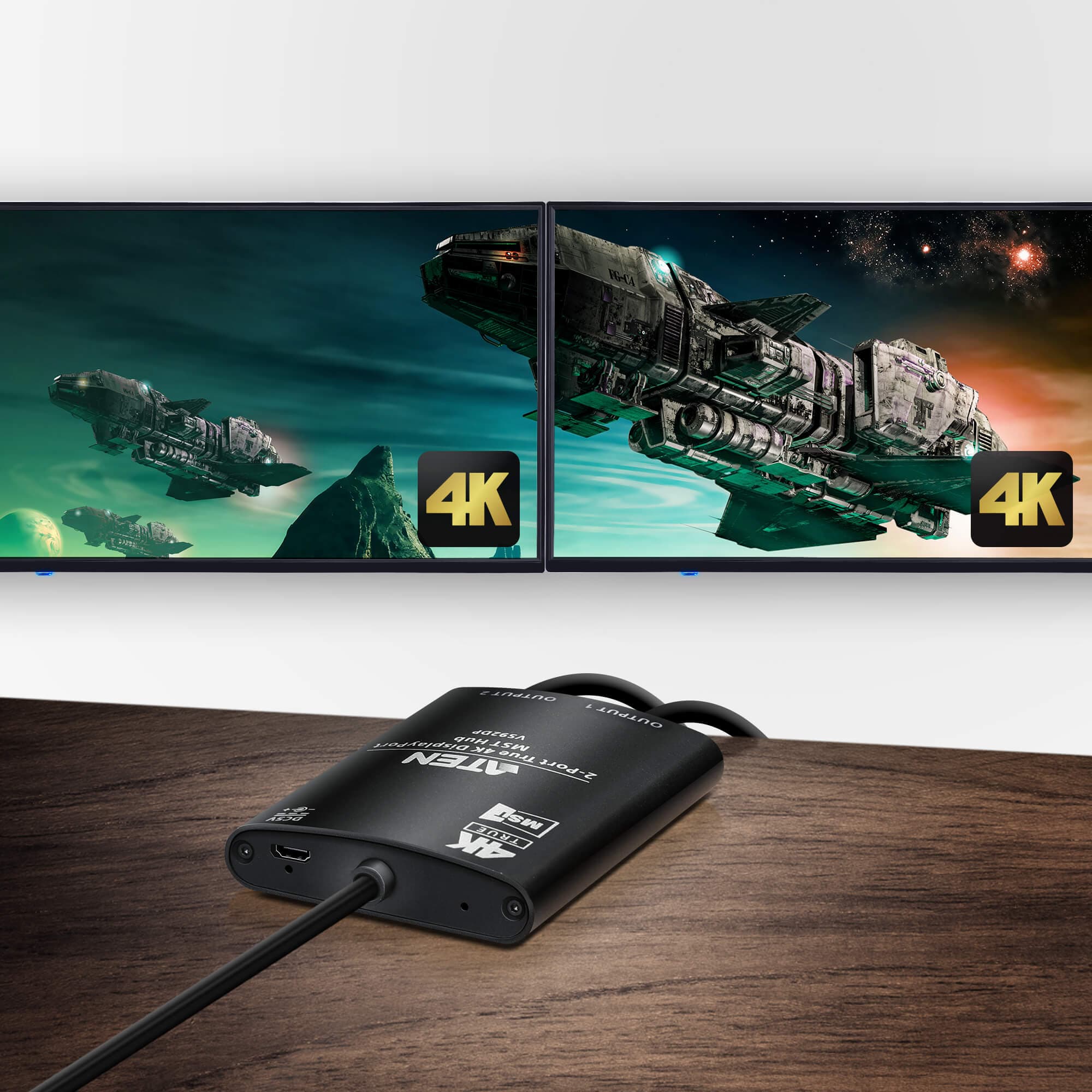

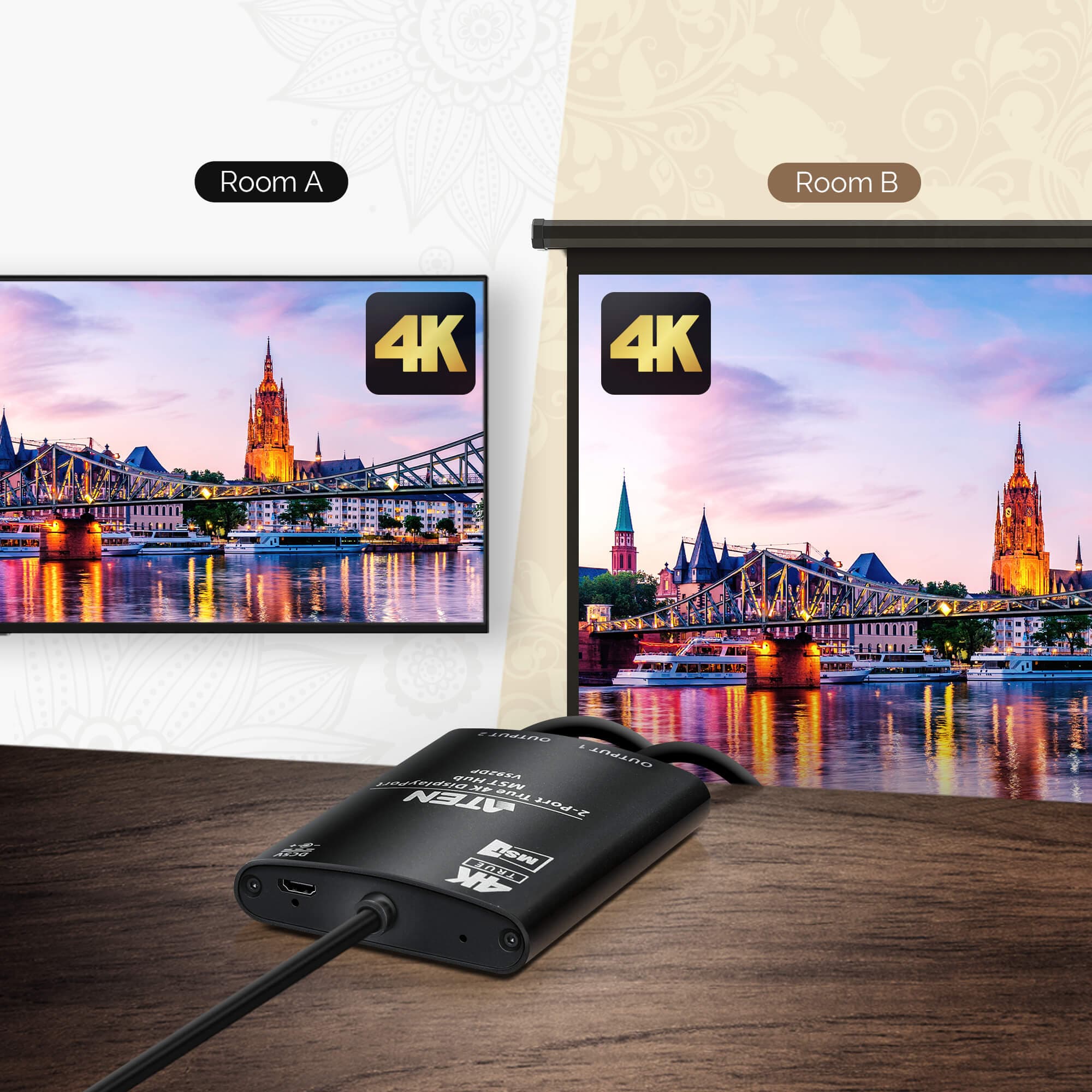

- Distributes one True 4K source to two DisplayPort displays at the same time
- Allows for Single Stream Transport (SST) or Multi-Stream Transport (MST) Mode
- Supports 4K resolution for dual output – up to 3840 x 2160@30Hz (4:4:4)
- DisplayPort 1.2; HDCP 1.3 compliant
- Provides Dolby TrueHD and DTS-HD Master 7.1 Audio channel

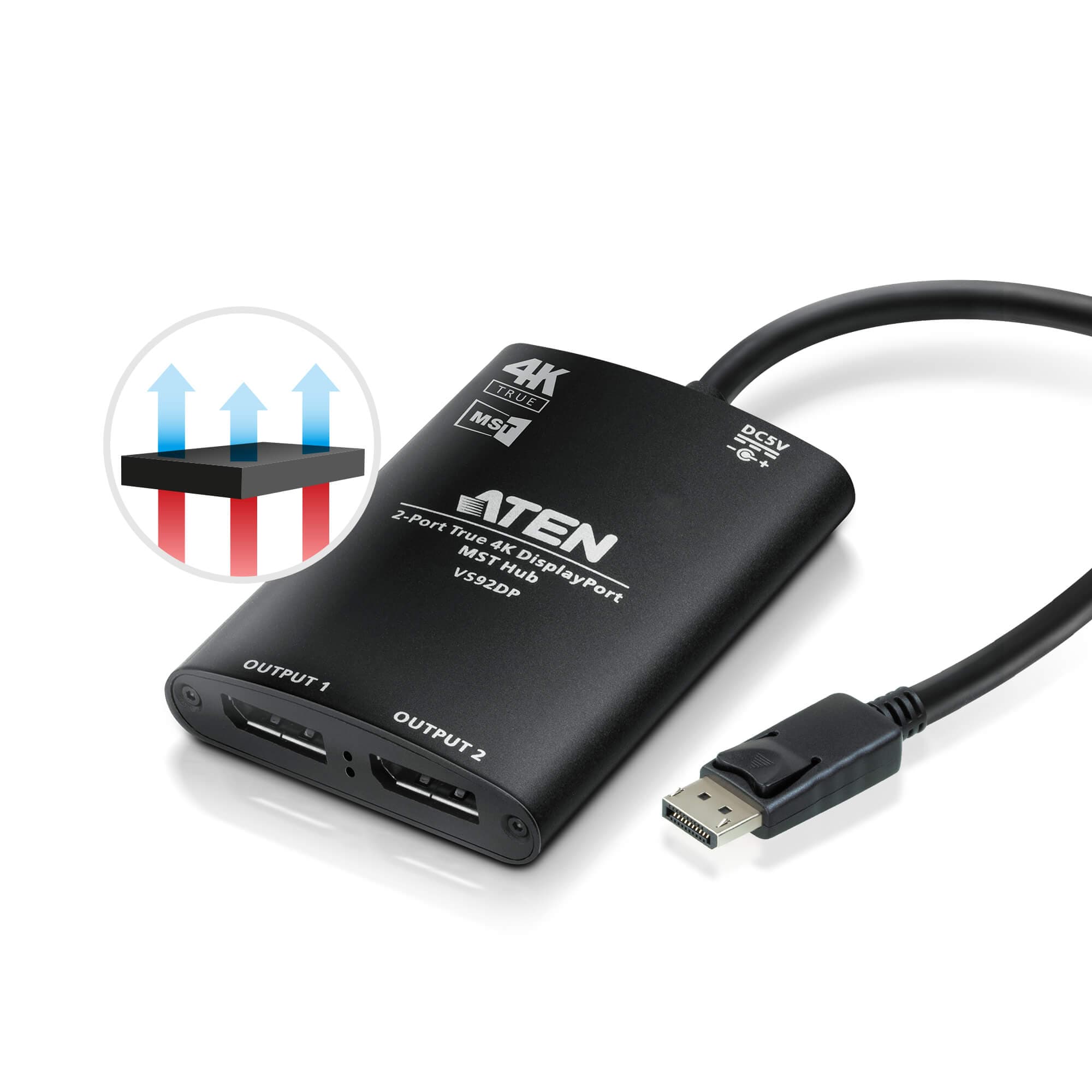

- High quality and durable aluminum enclosure
Индикатори
- Състояние
- DisplayPort Output x 2 (Blue) Power Input x 1 (Blue)
Видео вход
- Интерфейси
- 1 x DisplayPort Male (Black)
- Макс. разстояние
- 15cm
Видео изход
- Интерфейси
- 2 x DisplayPort Female (Black)
- Макс. разстояние
- Max 3m at 3840x2160@60Hz (4:4:4) - Single output Max 3m at 3840x2160@30Hz (4:4:4) - Dual output (MST/SST mode)
Видео
- Макс. скорост на данните
- 21.6Gbps (5.4Gbps per lane)
- Съответствие
- DisplayPort 1.2 / HDCP 1.3
- Макс. резолюция
- Up to 3840x2160@60Hz (4:4:4, 8 bits)
- Консумация
- 2WATT(MAX)BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Конектори
- USB порт
- USB Type Micro B x 1 (Firmware upgrade & power source)
Работна среда
- Работна температура
- 0-40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal (aluminum)
- Тегло
- 0.09 kg ( 0.2 lb )

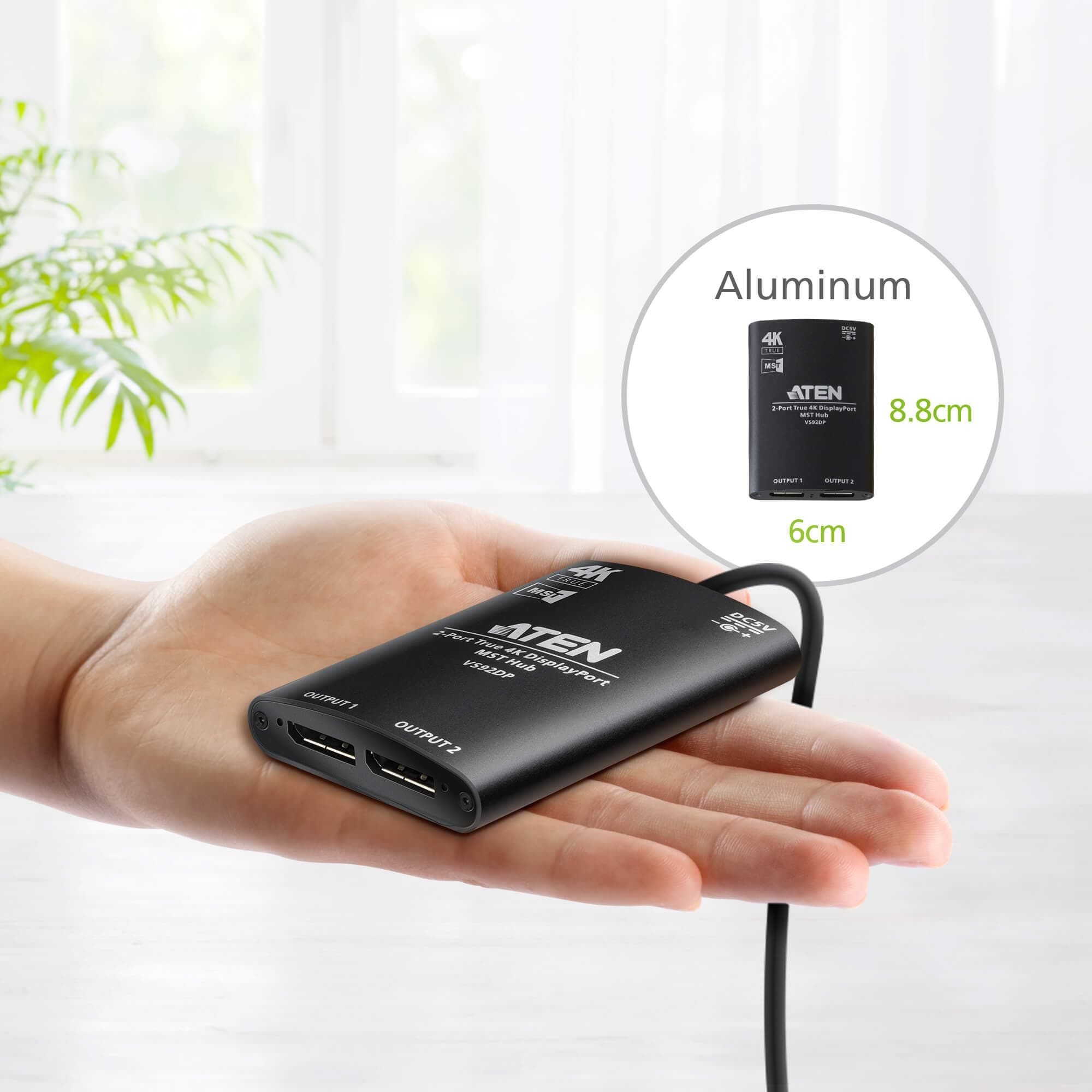

- Размери (Д x Ш x В)
- 8.80 x 6.00 x 15.00 cm (3.46 x 2.36 x 5.91 in.)
- Брой в кашон
- 10 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
