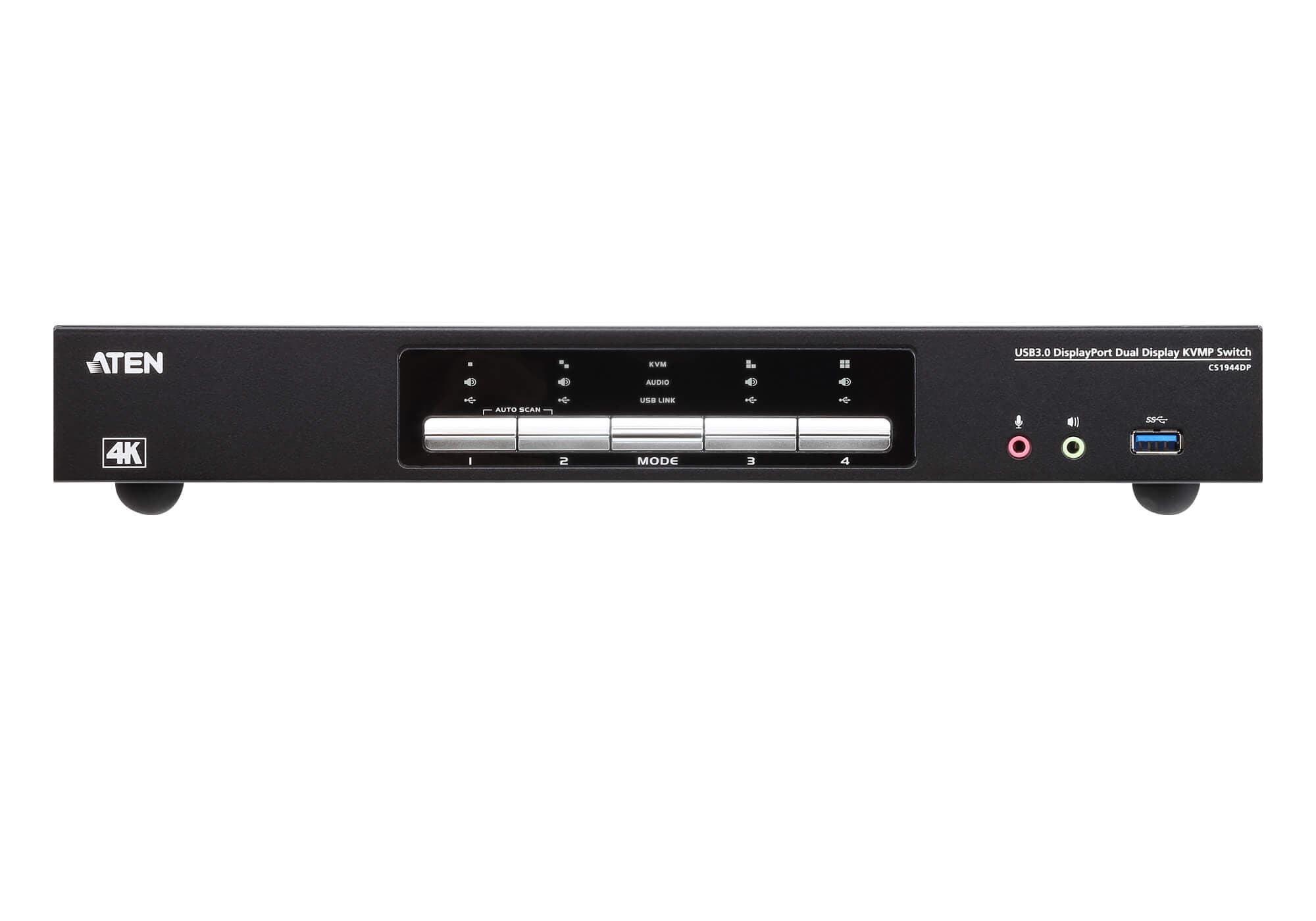

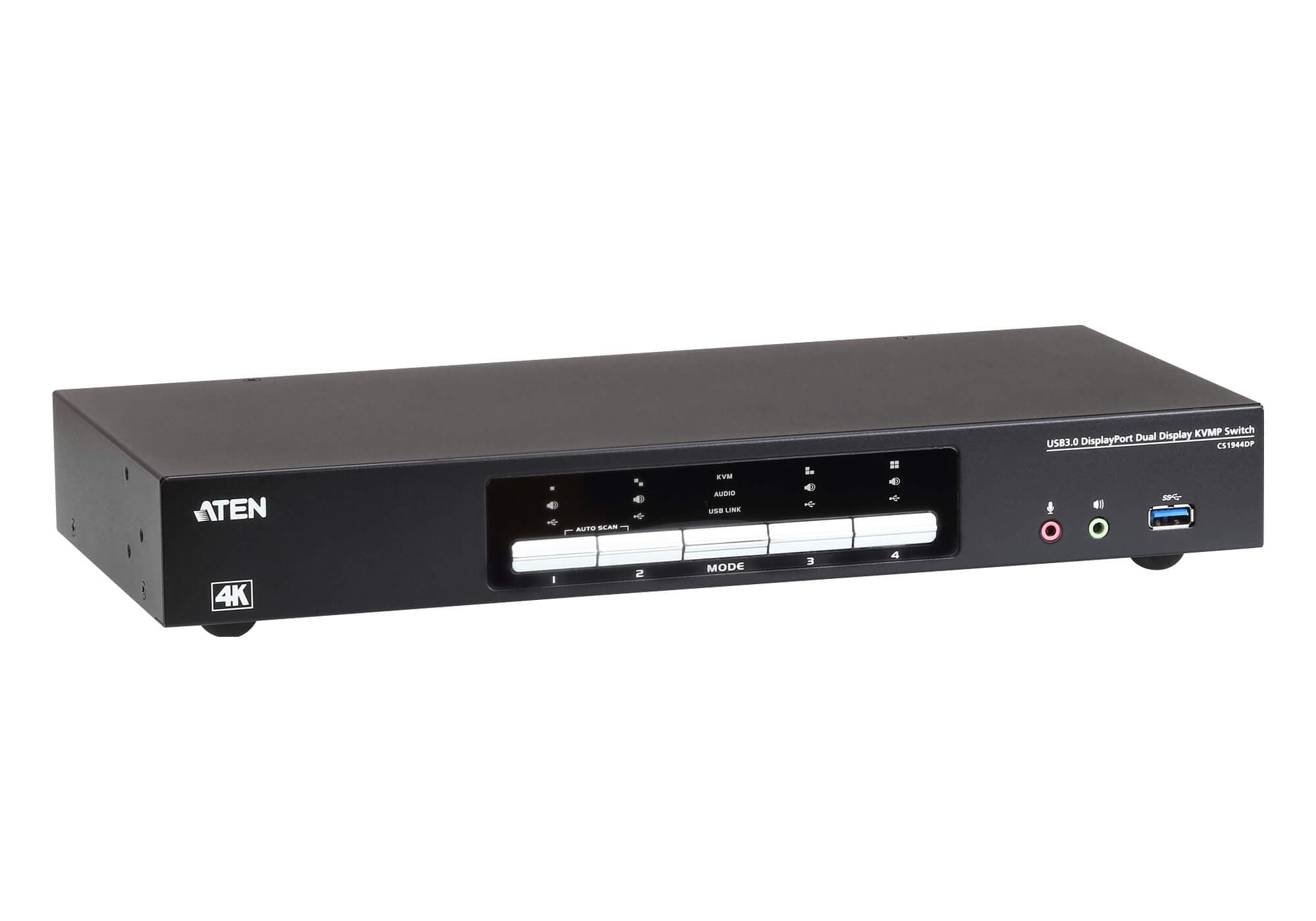

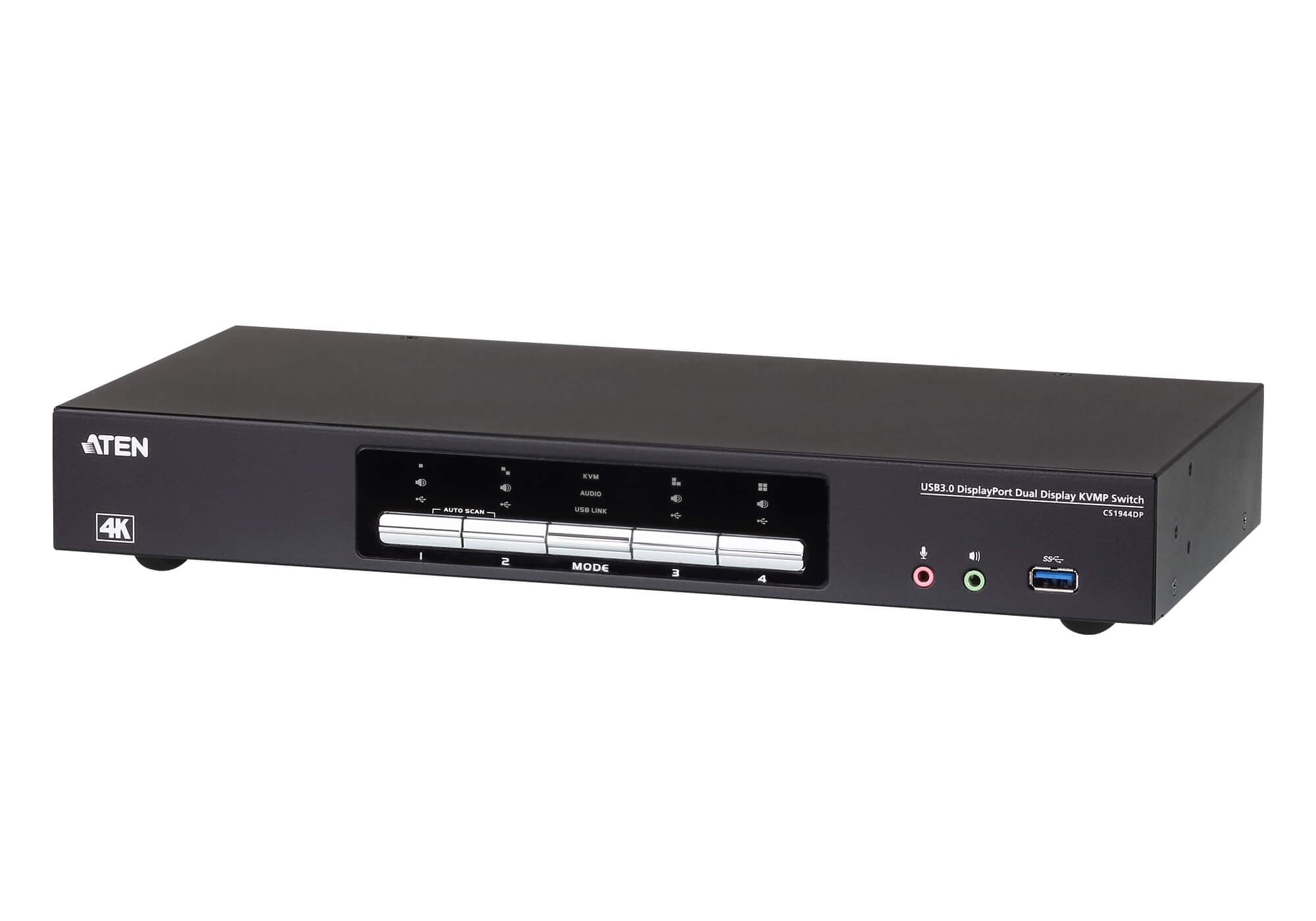

4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
CS1944DP
KVM превключвател за 4 компютъра с DisplayPort и два монитора на работното място (Dual Display), до 4K 4096x2160@60Hz; споделя две USB периферии. Два свързани превключвателя поддържат Quad Display.
Характеристики
- One USB keyboard and mouse controls four DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)1
- Supports MST (Multi-Stream Transport)2
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- DisplayPort 1.2 compliant; HDCP compliant3
- Supports HD audio4
- Power on detection
- Firmware upgradable Note: 1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. 2. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant 3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue 4. HD audio through DisplayPort cannot be switched independently
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton, Mouse, RS-232 Commands

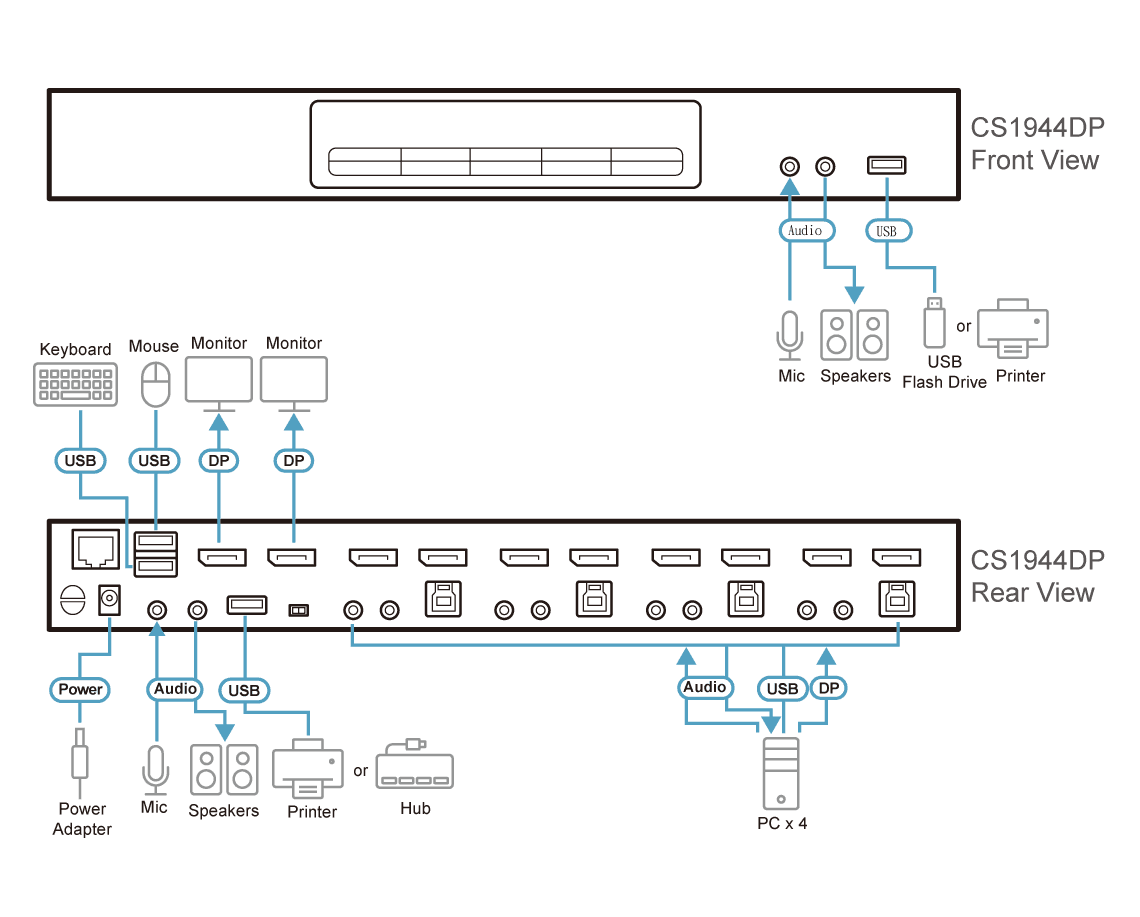

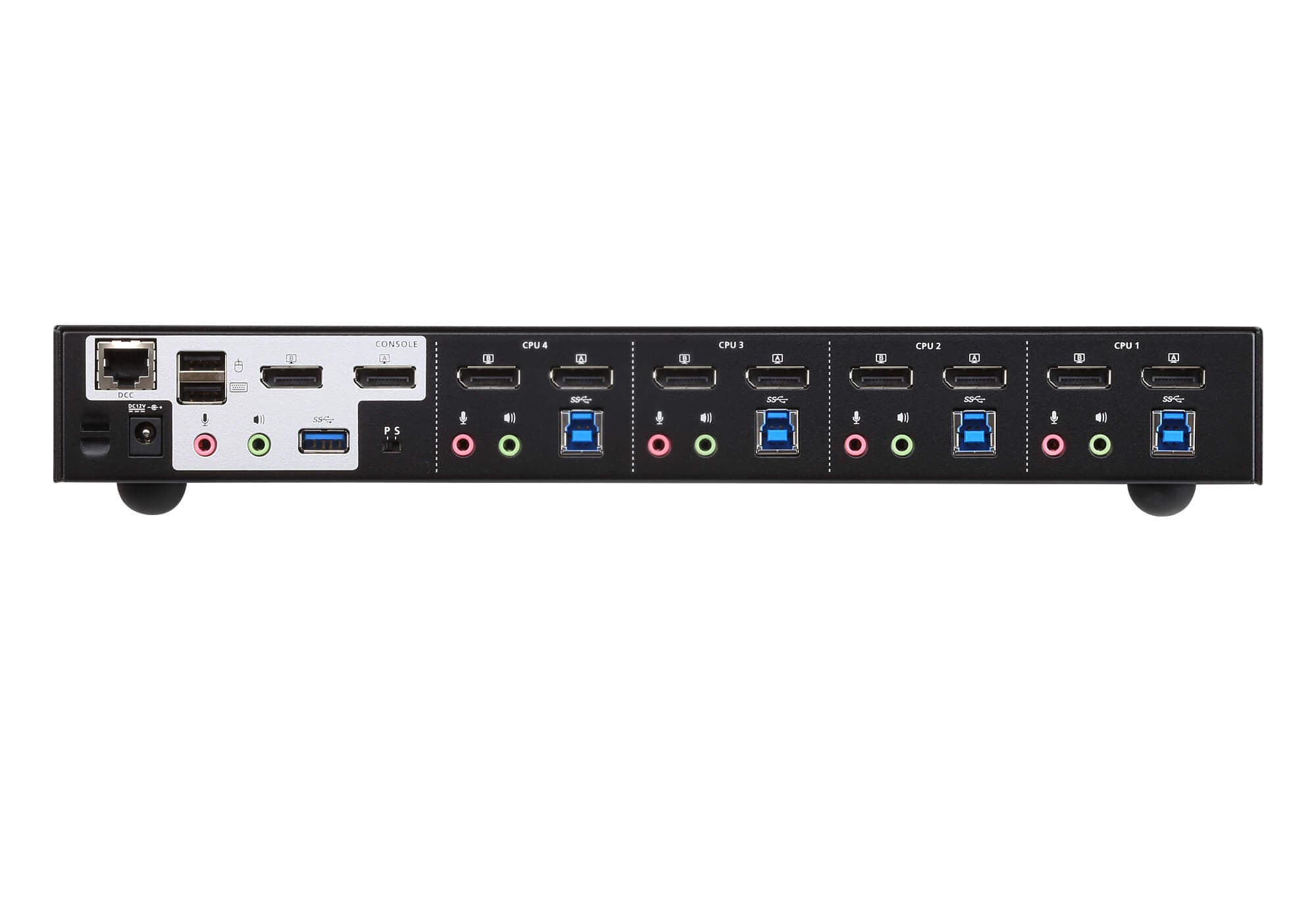

Конектори
- Конзолни портове
- 2 x USB Type A Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
- KVM портове (компютри)
- 4 x USB3.1 Gen1 Type B Female (Blue) 8 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
- Daisy Chain портове
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Индикатори
- KVM
- 5 (Orange)
- Аудио
- 5 (Green)
- USB връзка
- 5 (Green)
Бутони и превключватели
- Избран
- 5 x Pushbutton
- Избор на станция
- 1 x Slide Switch
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Интервал на сканиране
- 1-99 seconds (default: 5 seconds)
- Консумация
- DC12V:6.125W:85BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.51 kg ( 3.33 lb )
- Размери (Д x Ш x В)
- 33.50 x 15.66 x 4.40 cm (13.19 x 6.17 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
