4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch

Name: 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
Brand: ATEN
SKU: CS1944DP

CS1944DP

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

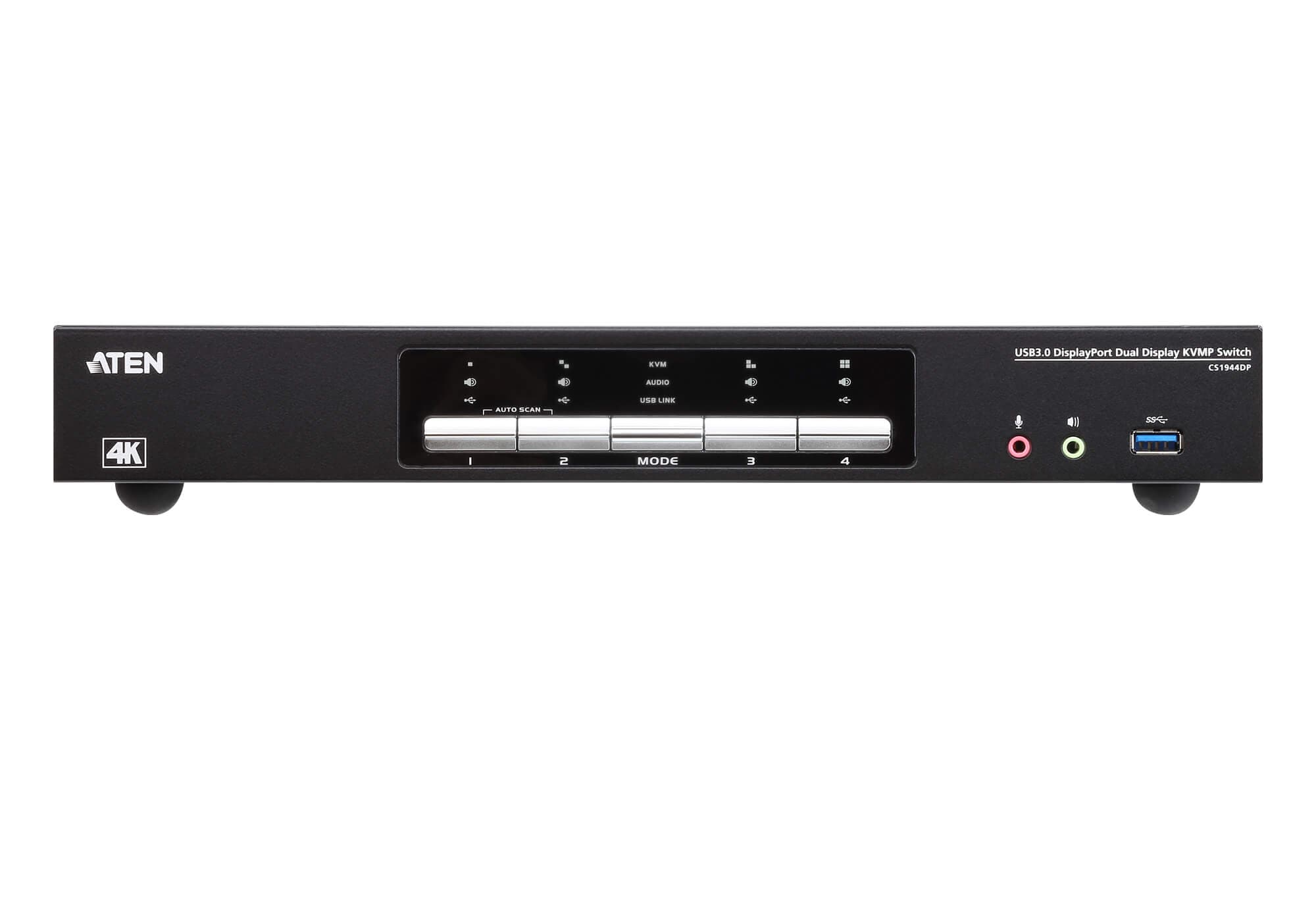

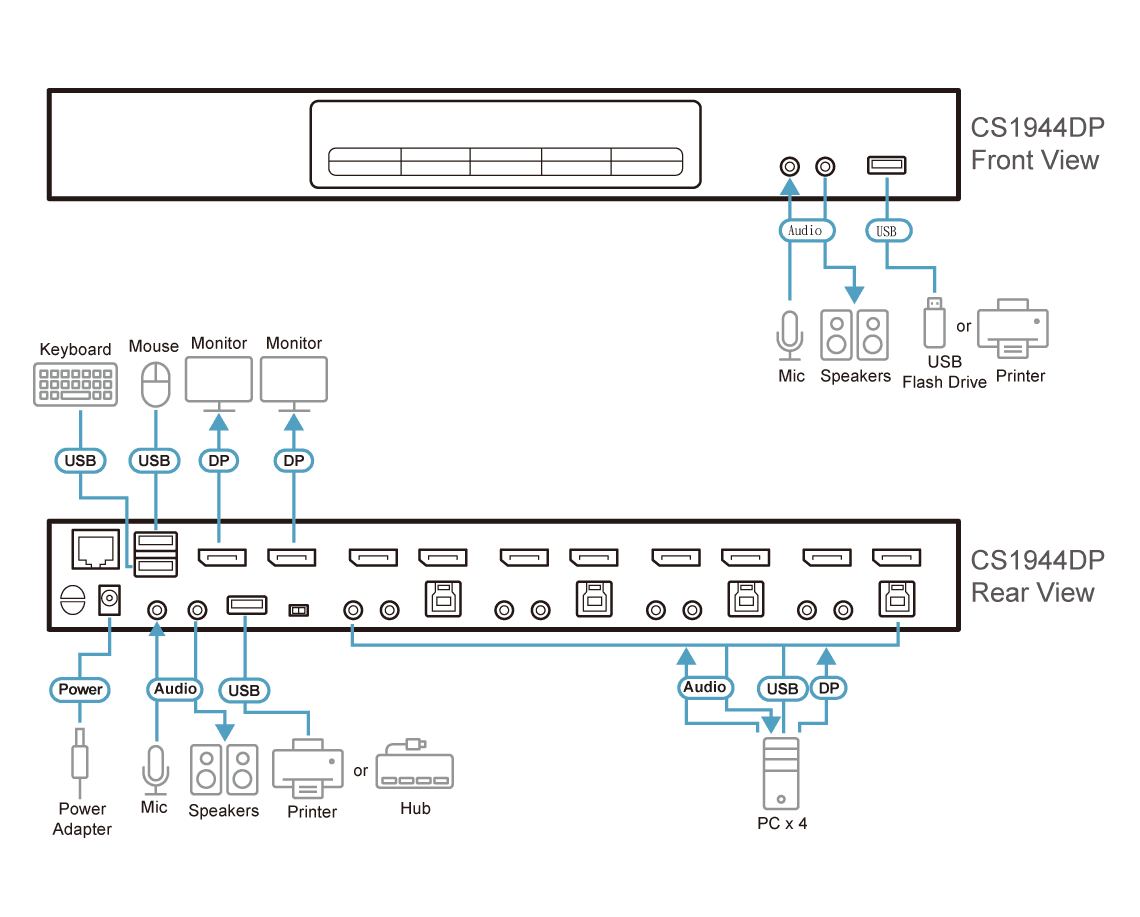

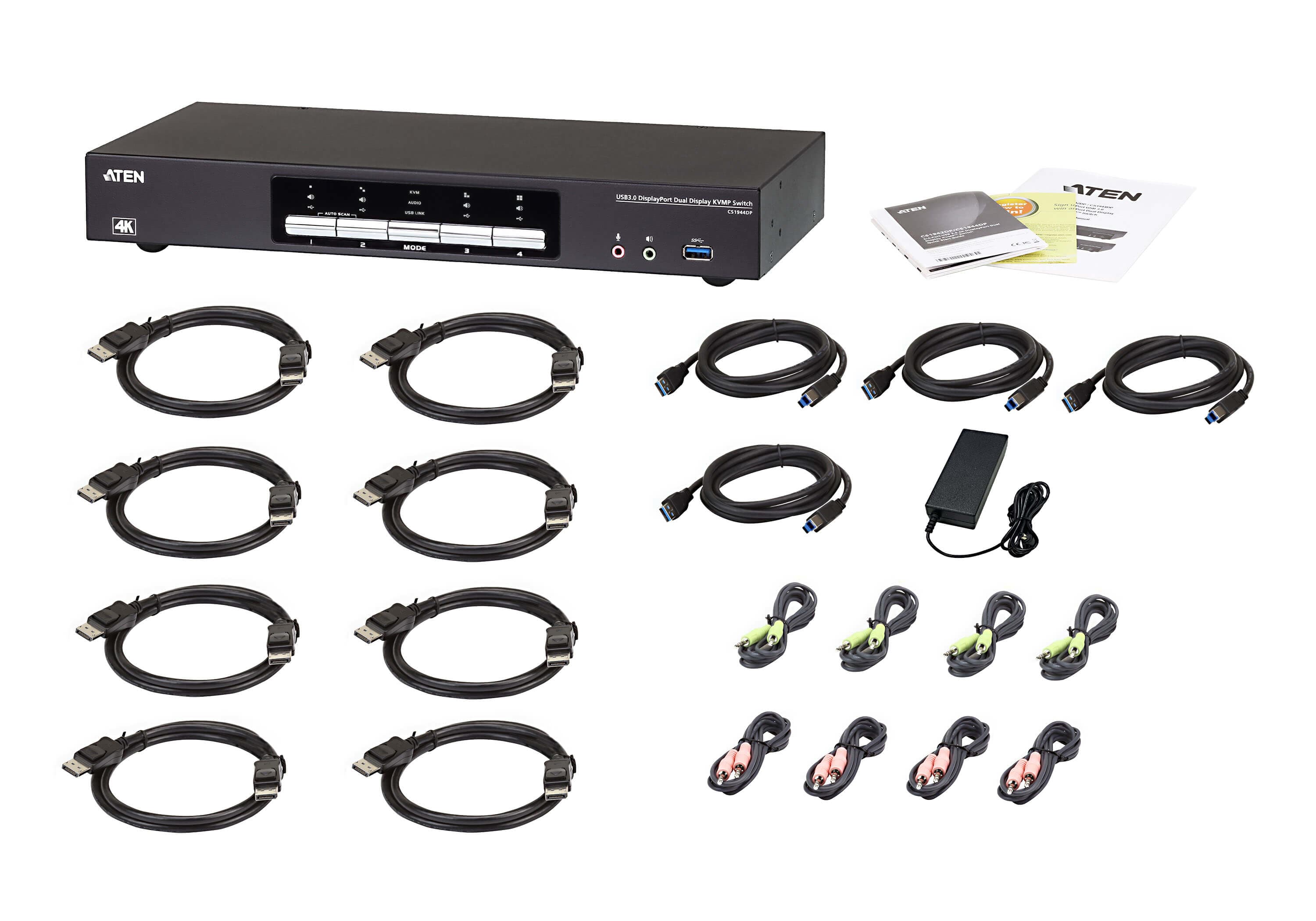

Dual-display DisplayPort switch where one keyboard and mouse control 4 computers at up to 4096 x 2160 @ 60 Hz; connecting two units enables quad display.

Features

One USB keyboard and mouse controls four DisplayPort computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports DisplayPort Dual-Mode technology (DP++)1
Supports MST (Multi-Stream Transport)2
Supports Console keyboard emulation / bypass feature
Supports Console mouse emulation / bypass feature
Independent switching of KVM, USB, and Audio
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
DisplayPort 1.2 compliant; HDCP compliant3
Supports HD audio4
Power on detection
Firmware upgradable Note: 1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. 2. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant 3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue 4. HD audio through DisplayPort cannot be switched independently

Specifications

Computer Connections: 4
Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands

Connectors

Console Ports: 2 x USB Type A Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

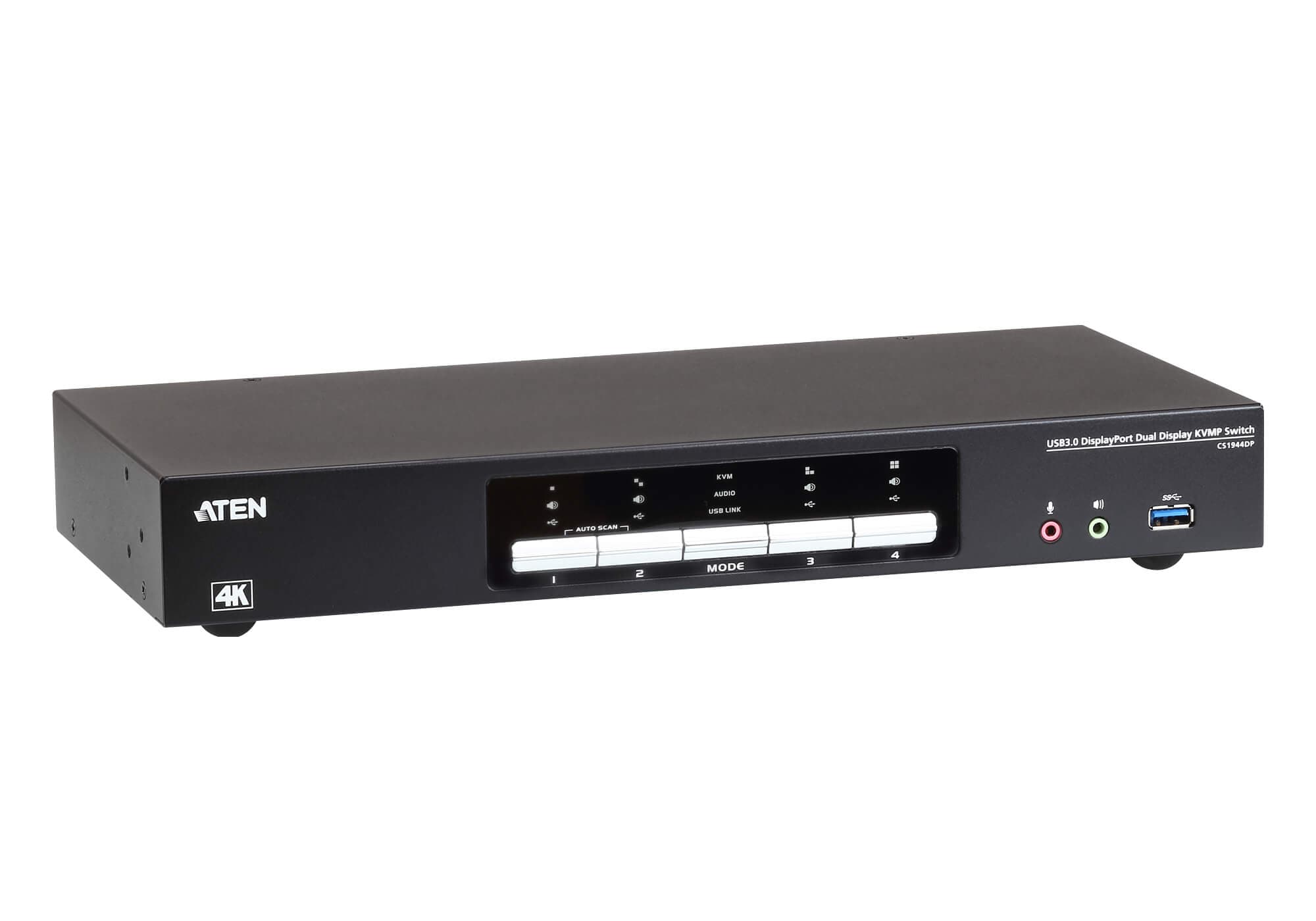

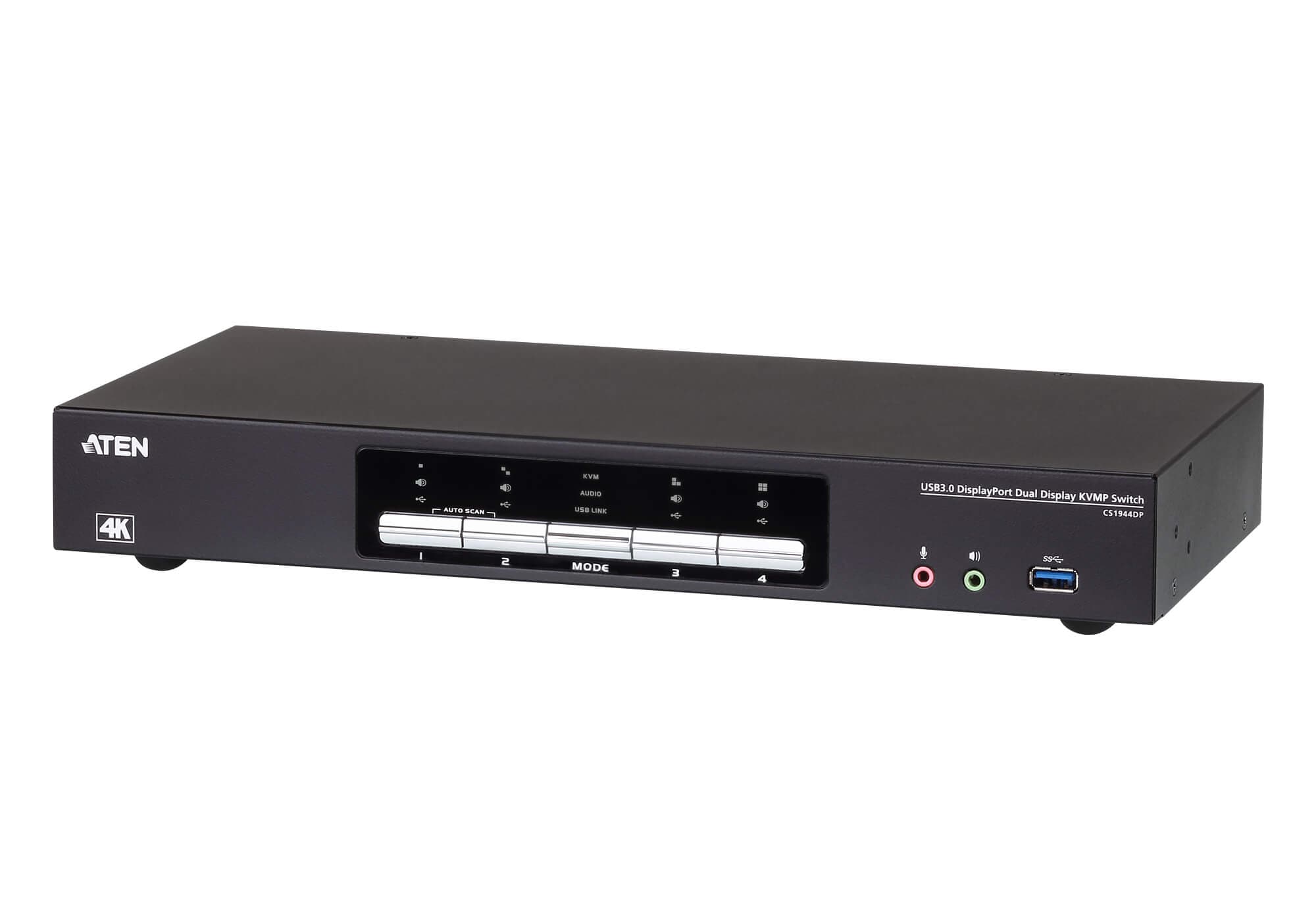

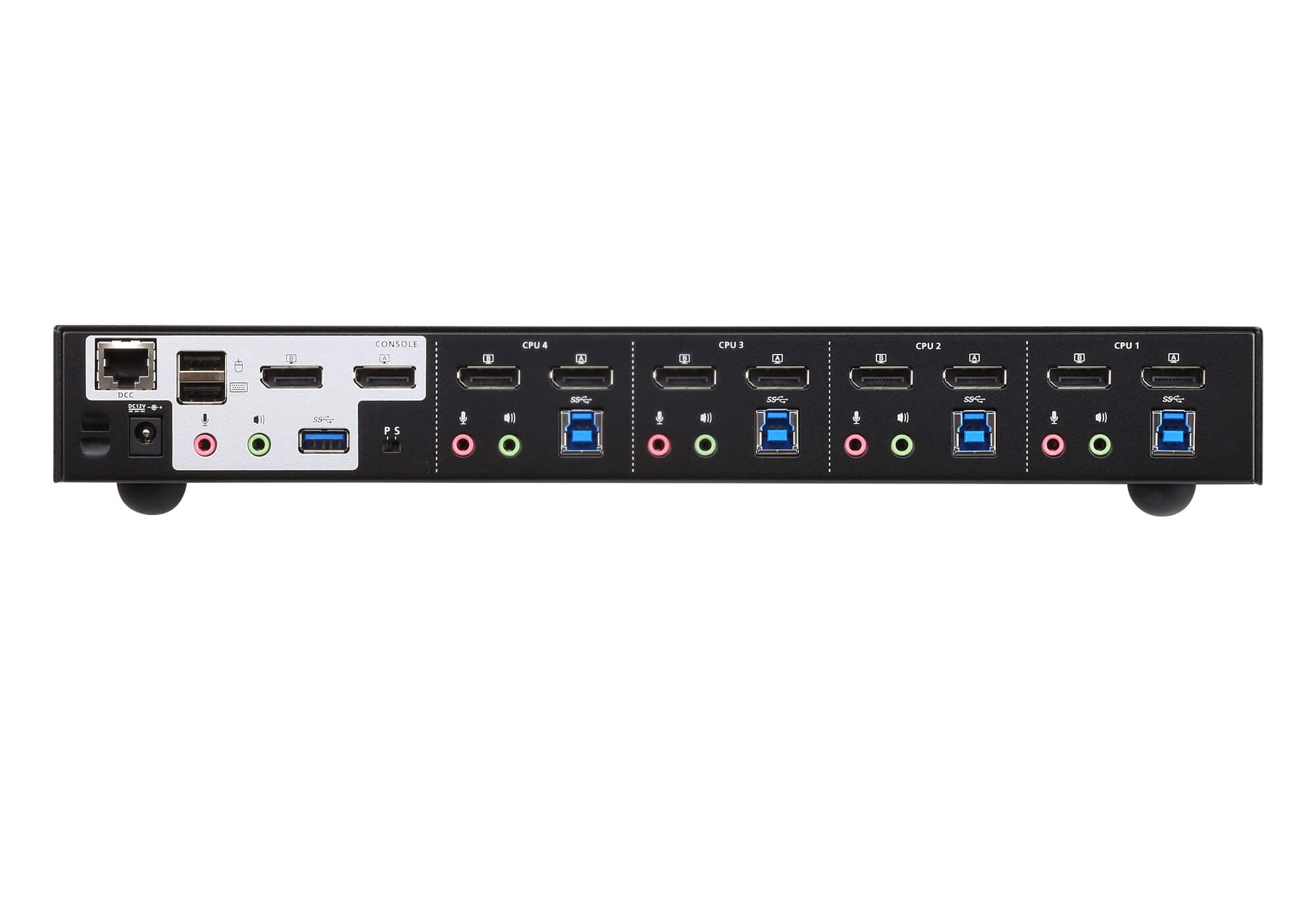

KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue) 8 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports: 1 x RJ-45 Female
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

LEDs

KVM: 5 (Orange)
Audio: 5 (Green)
USB Link: 5 (Green)

Switches

Selected: 5 x Pushbutton
Station Selection: 1 x Slide Switch

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval: 1-99 seconds (default: 5 seconds)
Power Consumption: DC12V:6.125W:85BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0–50°C
Storage Temperature: -20–60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal
Weight: 1.51 kg ( 3.33 lb )
Dimensions (L x W x H): 33.50 x 15.66 x 4.40 cm (13.19 x 6.17 x 1.73 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
