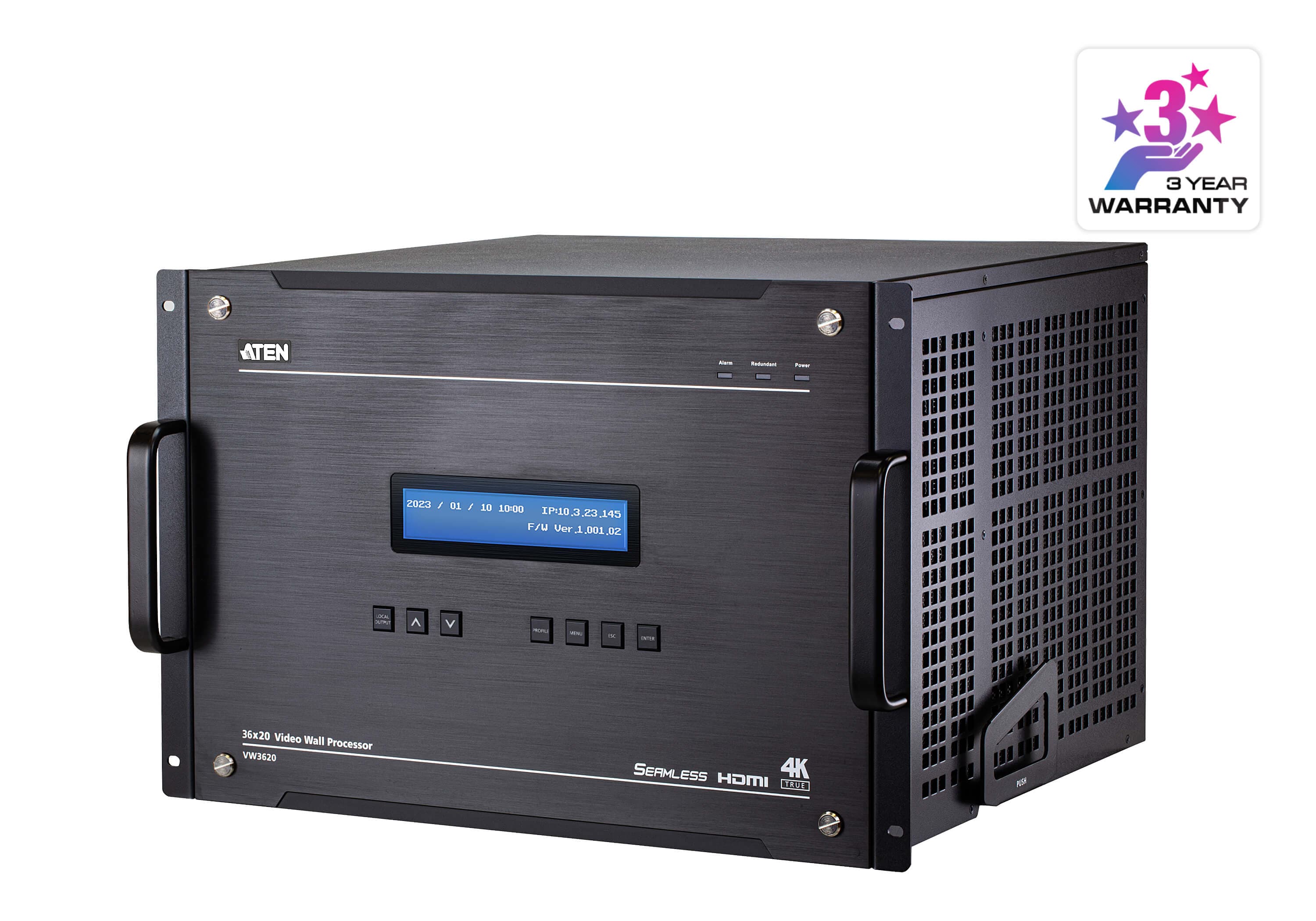

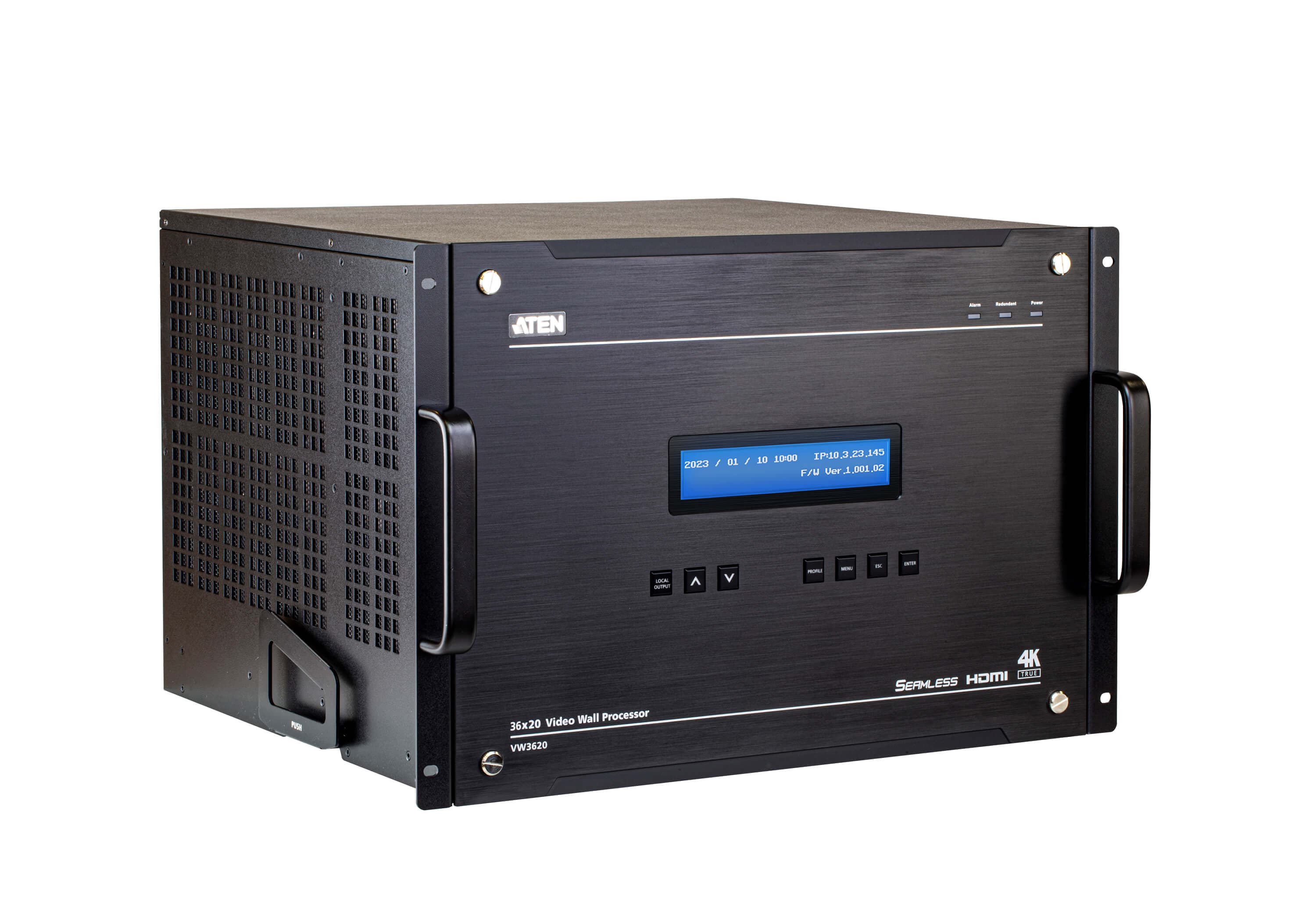

Модулен процесор за видеостени: обработва до 36 източника и управлява до 20 дисплея от едно 7U шаси; FPGA архитектура с True 4K@60 обработка и почти мигновено превключване на източниците.
Характеристики
- Processes up to 36 input sources and manages up to 20 displays in any sizes at varying resolutions from a single 7U chassis

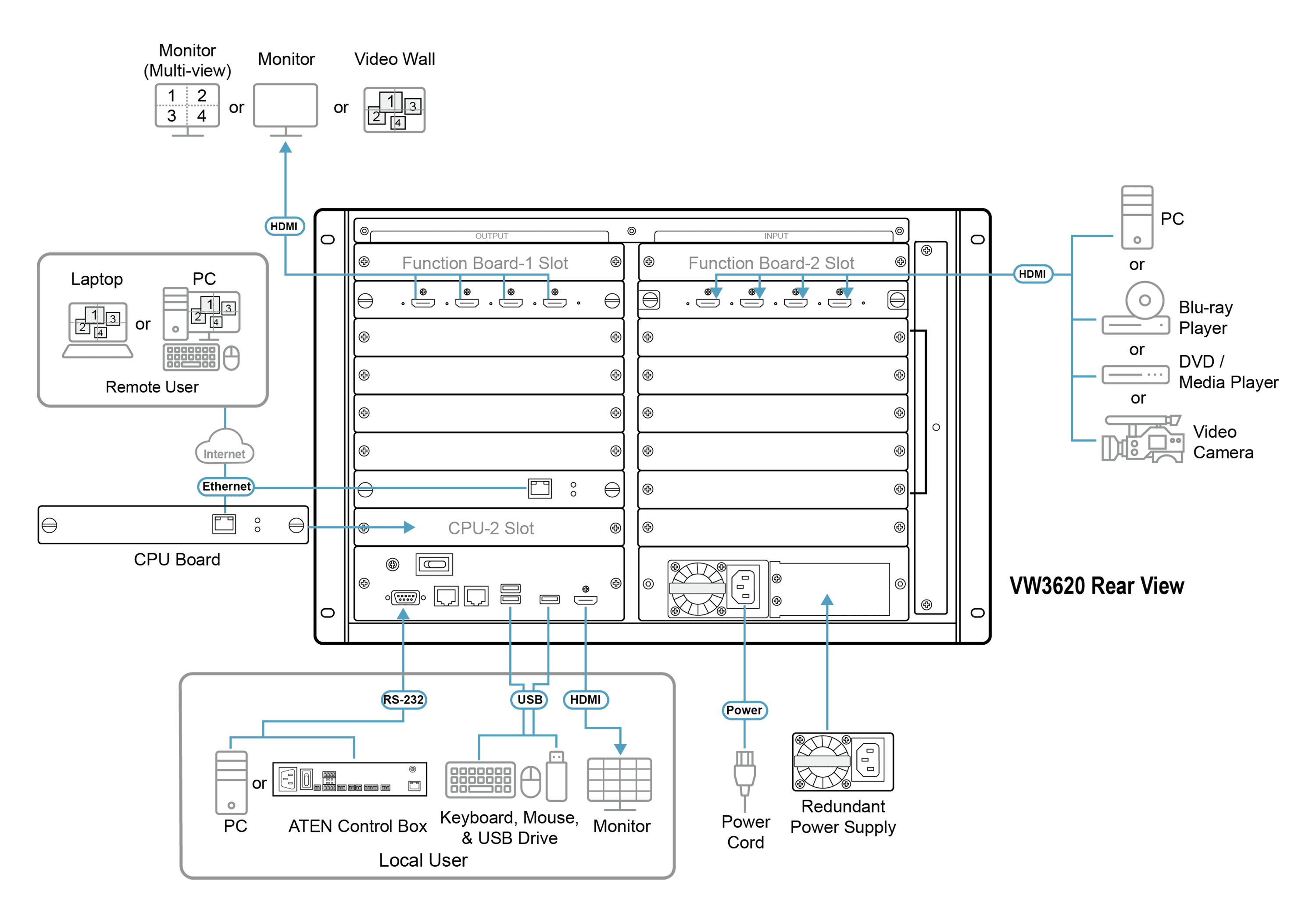

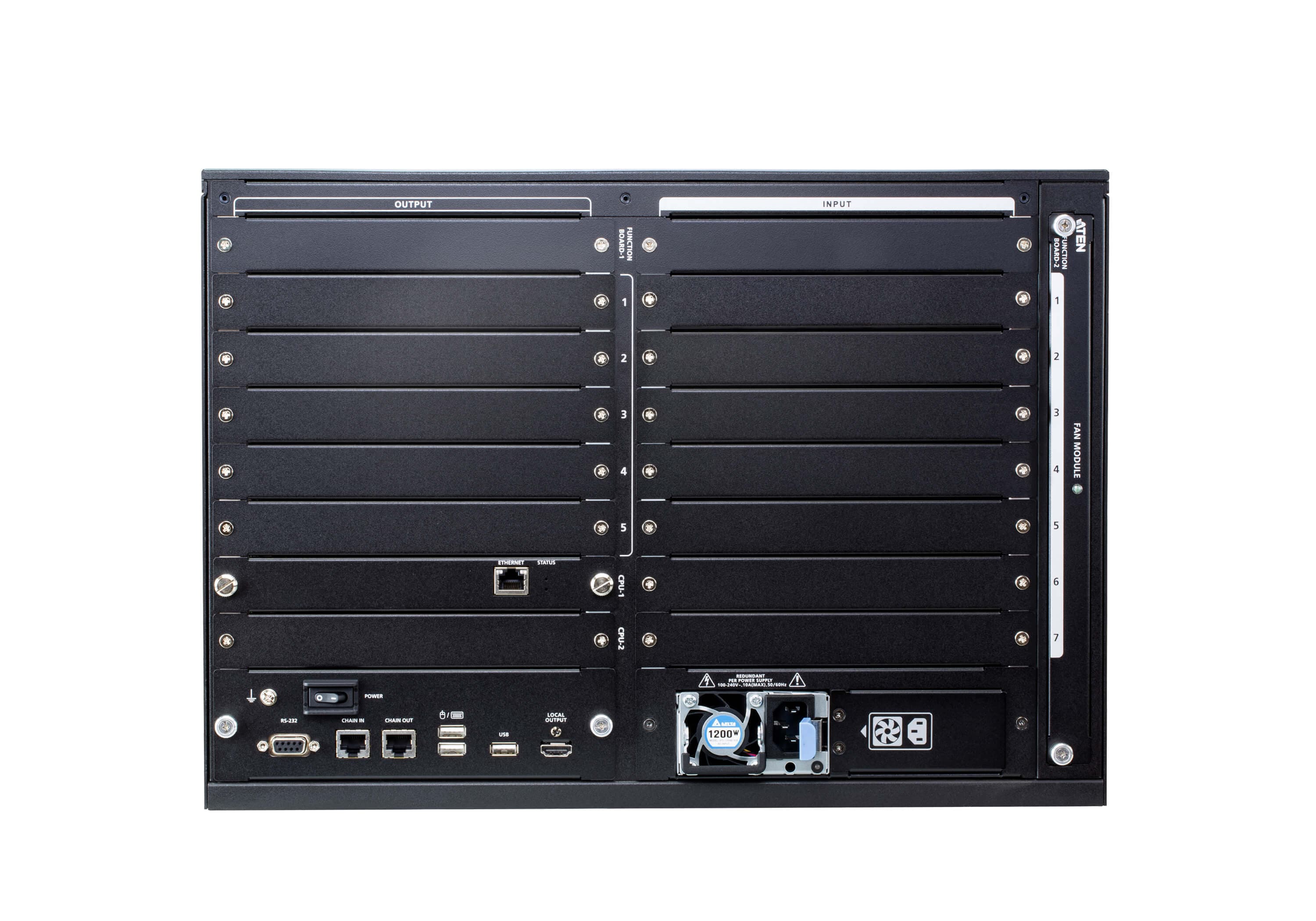

- Modular construction with 7 input slots, 5 output slots, and 2 function board slots, which also work as input board slots, to meet various expansion needs
- FPGA hardware architecture – handles True 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay
- True 4K@60 scalability with 4:4:4 signal processing – supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
- Backup Mode enabled with two VW3620s daisy-chained together – the secondary unit continuously mirrors all system settings and configurations from the primary one in real time and takes control automatically when any primary unit malfunctions occurs for uninterrupted display performance
- Expansion Mode enabled with up to three VW3620s daisy-chained together – supports up to 60 display outputs for larger video wall installation with centralized control being conducted by the primary unit while ensuring synchronized video output clocks across all units and consistent, frame-accurate playback without tearing
- Reliable 24/7 operation with hot-swappable, redundant CPU control board and dual power modules, and hotswappable input / output cards and cooling fan module
- HDMI (Deep Color, True 4K); HDCP 2.2 compliant
- Powerful windowing technology for nearly restriction-free content placement – outputs signals in real-time in customizable layouts, such as PiP, PbP, source cropping, overlapping, and spreading across multiple screens, and in any sizes based on the correct aspect ratio
- Supports Multiview – content source monitoring in 2x2 or 4x4 layouts from a single display
- Customizable elements to enhance organization identity and video wall presentation including logos, color schemes, calendar, clock, and scrolling text
- Direct control via RS-232 / Ethernet connection and the front panel buttons
- Remote control via intuitive Web GUI to preview input signals in real-time and control outputs including content placement and management of up to 4 canvases
- Local HDMI output – monitoring of video input signals and video wall layouts via Single / Array mode at up to 1080p in real-time from one display
- Integration with ATEN Control System and the 3rd party devices via RS‑232 / Ethernet / RESTful API
- Built-in USB Type-A ports – video wall background image change and firmware upgrade
- Supports FrameSync – avoids image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Supports SSH to strengthen data and information protection

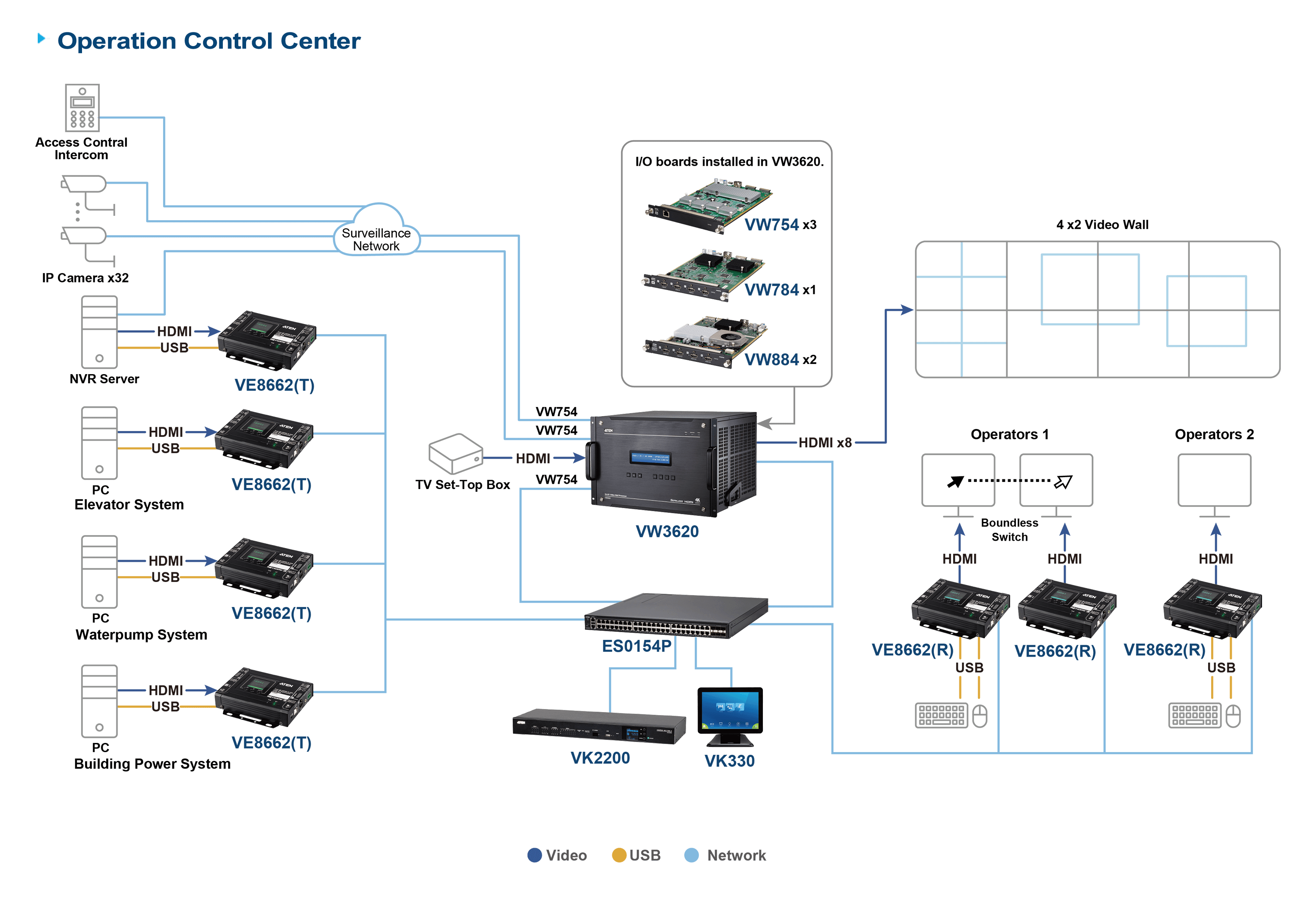

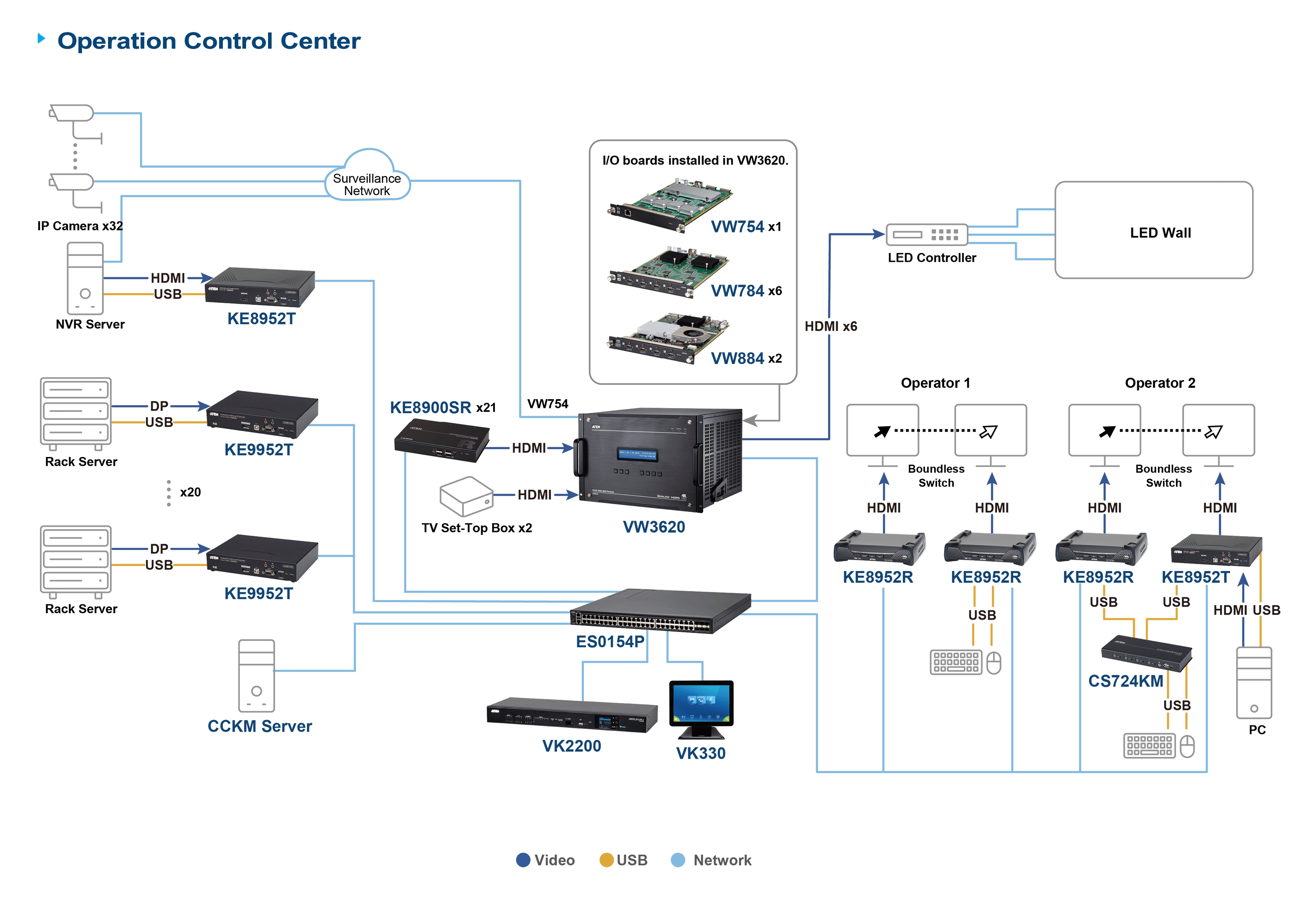

- Perfect for mission-critical video wall applications, including command centers, control rooms, public security organizations, governments, or other large-scale digital signage scenarios
Спецификация
- Входни платки
- 7 x Slot, up to 32 4K inputs
- Изходни платки
- 5 x Slot, up to 20 4K outputs
- Функция
- 2 x Slots for Function Board, can also used as Input Slot
Видео вход
- Интерфейси
- Depends on which I/O board is inserted
Видео изход
- Интерфейси
- Local Output: 1x HDMI Type A Female (Black)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
- Ethernet
- Connector: 1 x RJ-45 Female
- USB
- 3 x Keyboard (TBD) / Mouse(TBD) /FW upgrade & Storage
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Комуникация
- Daisy Chain портове
- RJ45 x2
Конектори
- Захранване
- 1 x 3-Prong AC Socket
- Захранване (опция)
- Redundancy, Optional Hot Swap PSU
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60Hz; 10A
- Консумация
- AC110V:1200W:2720BTU/h AC220V:1200W:2636BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Размери (Д x Ш x В)
- 48.20 x 45.80 x 30.98 cm (18.98 x 18.03 x 12.2 in.)
- Тегло
- 16.21 kg ( 35.7 lb )
- Височина (U)
- 7U
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
