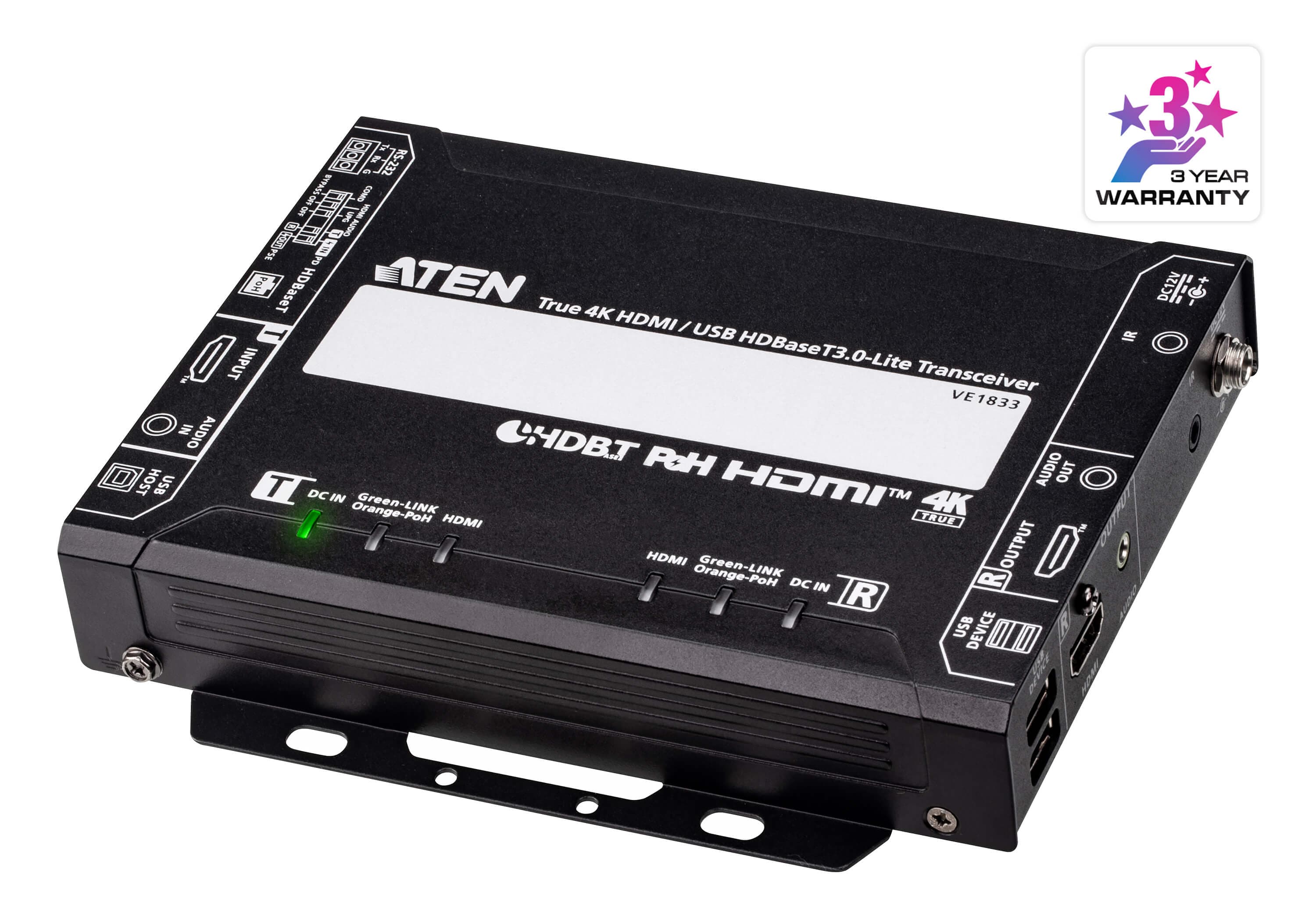

True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K@40 m)

Name: True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH (True 4K@40 m)
Brand: ATEN
SKU: VE1833

VE1833

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

HDBaseT 3.0 Lite трансивер: пренася некомпресирано True 4K HDMI видео, USB, аудио, IR и RS-232 до 40 m по един Cat 6a кабел. Едно устройство работи като предавател или приемник; поддържа PoH.

Характеристики

Extends uncompressed True 4K HDMI signals up to 40 m over a single Cat 6a cable
Compliant with HDBaseT 3.0 standards – transmits high-quality video, full range IR, bi-directional RS-232, independent stereo audio and USB 2.0 signals channel bypass
Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported
Supports HDMI audio embedding / de-embedding functions
Bi-directional PoH with power redundancy for continuous operation

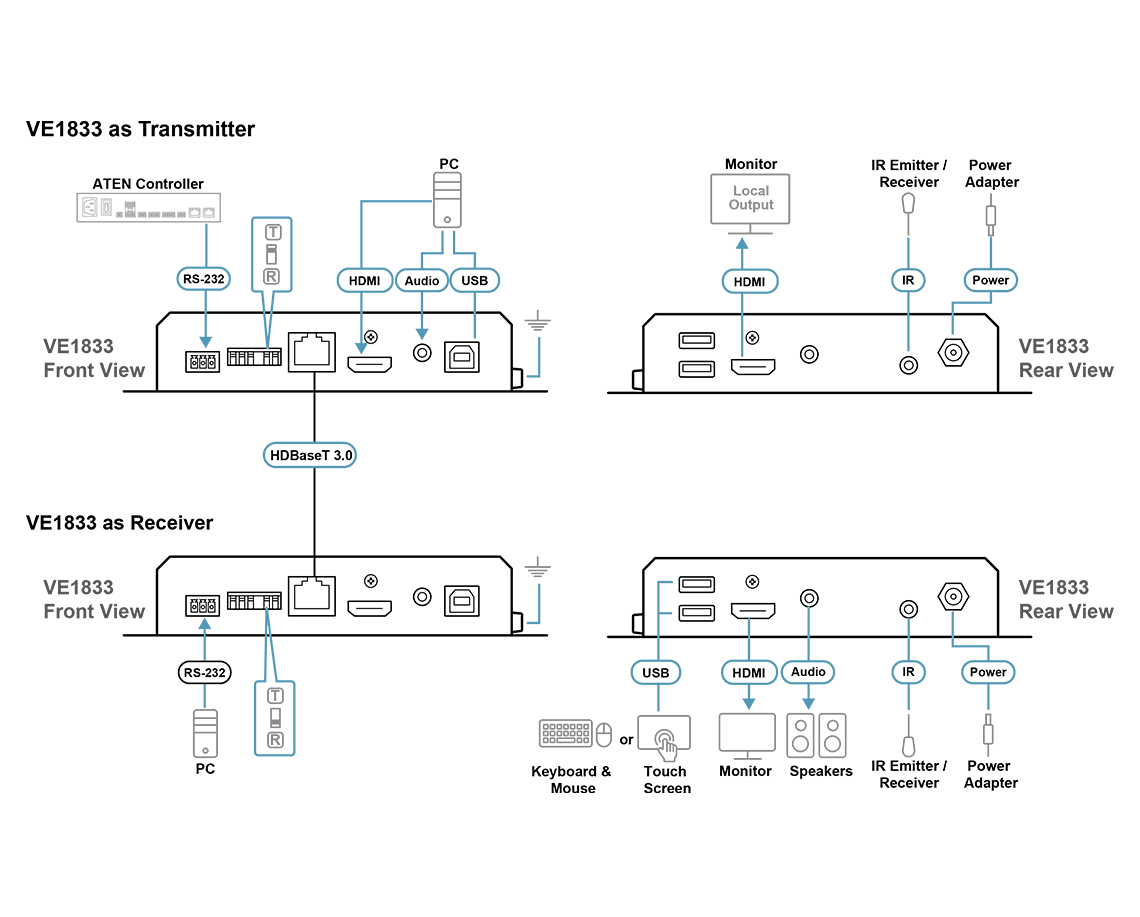

Flexible for deployment – can be configured as a transmitter or receiver depending on the AV solution
HDMI (3D, Deep Color, 4K/60Hz); HDCP2.2/2.3 compliant
Supports HDMI local output
Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility
LED indication of HDBaseT and HDMI signal status for easier recognition
Supports extremely high refresh rates up to 240Hz for the connected display
Firmware upgradable
Built-in 8KV / 15KV ESD protection
Plug-and-play
Rack-mountable

Видео вход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 5 m

Видео изход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 5 m

Видео

Макс. скорост на данните: 18Gbps (6Gbps per lane)
Макс. пикселна честота: 600 MHz
Съответствие: HDMI (3D, Deep Color, 4K/60Hz); 4K HDR HDCP2.2/2.3 Compatible Consumer Electronics Control (CEC)* *The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output.
Макс. резолюция: 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K x 2K @ 60Hz (4:4:4) @40m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable)

Аудио

Вход: 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green)

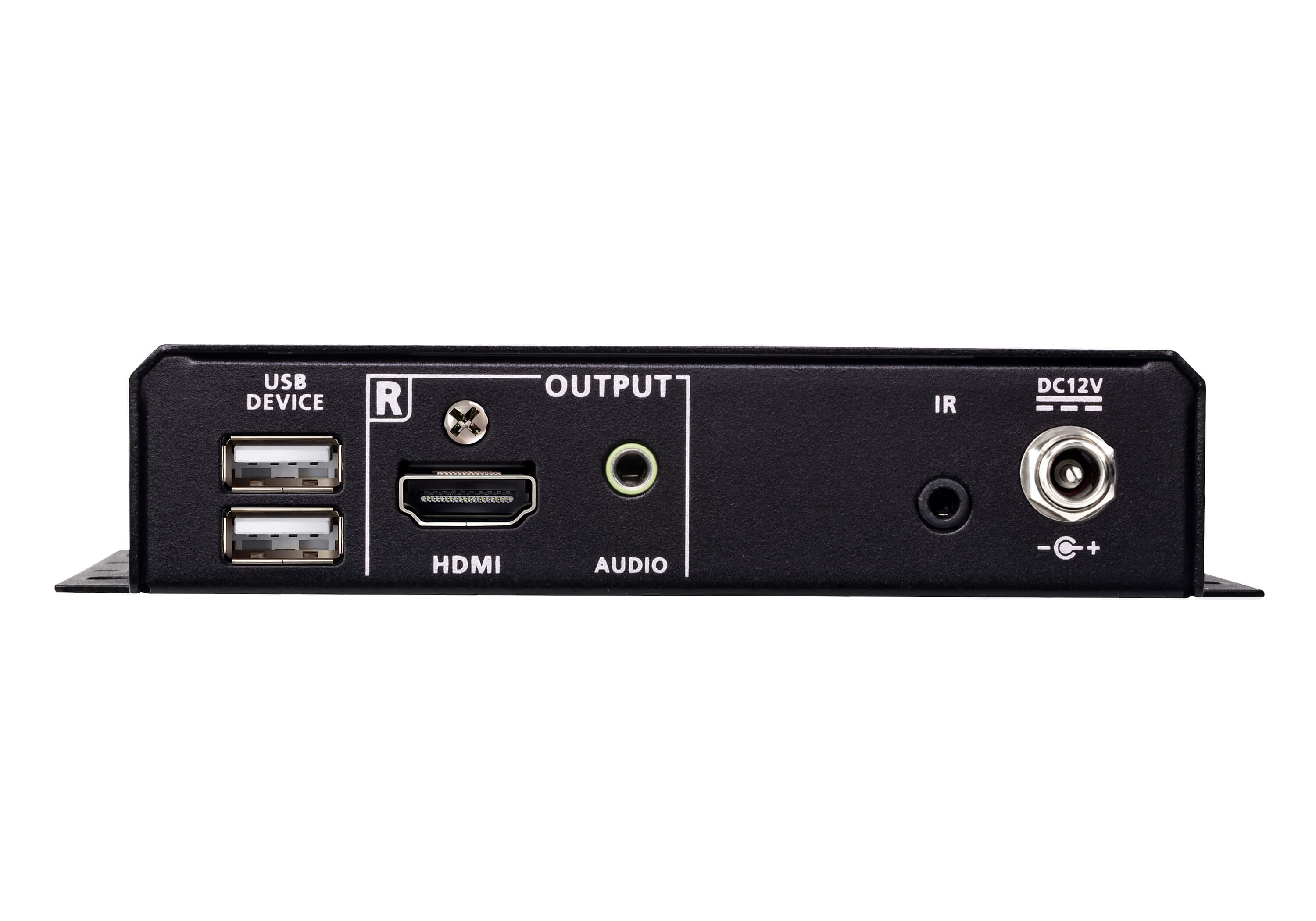

Изход: 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green)

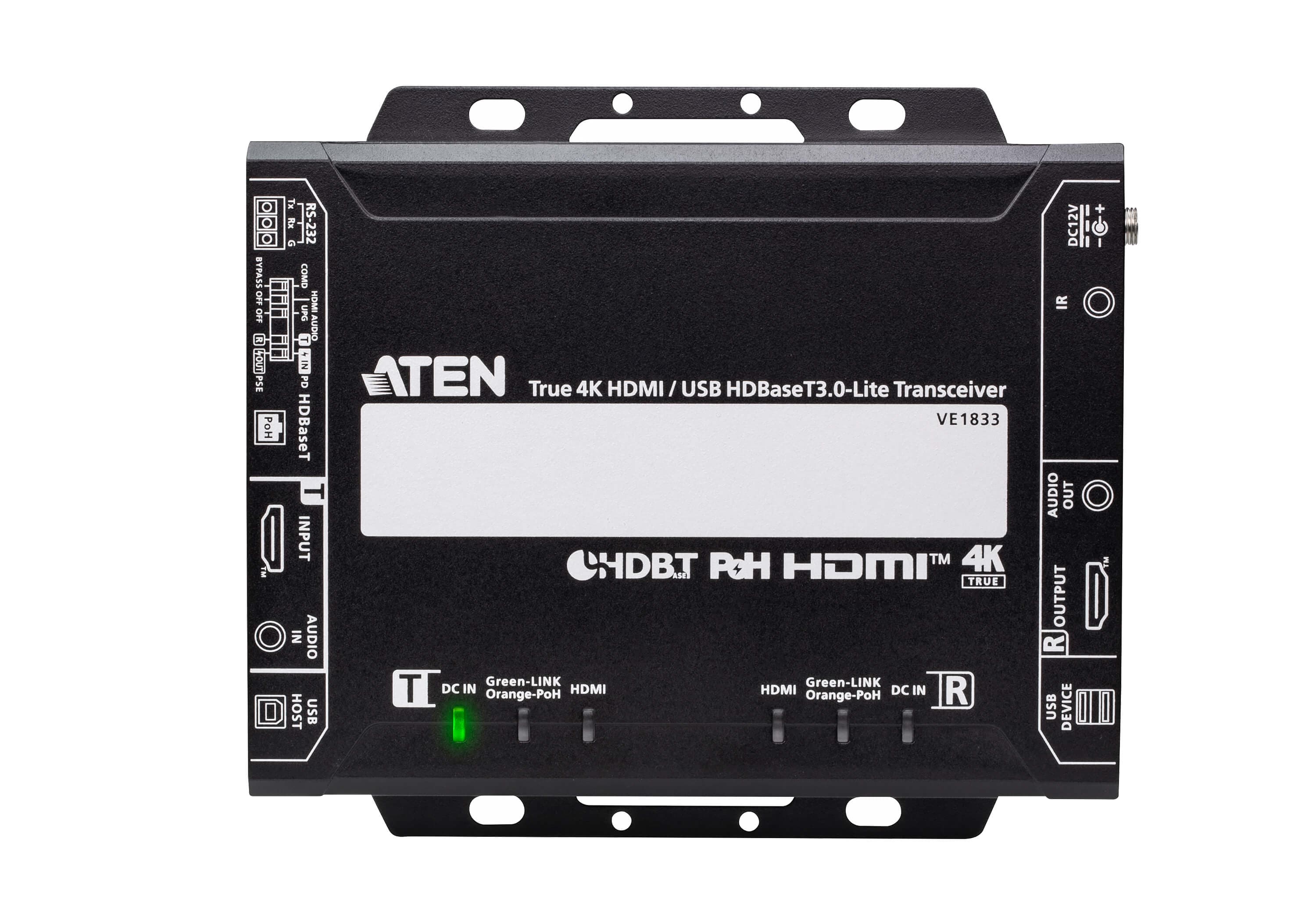

Конектори

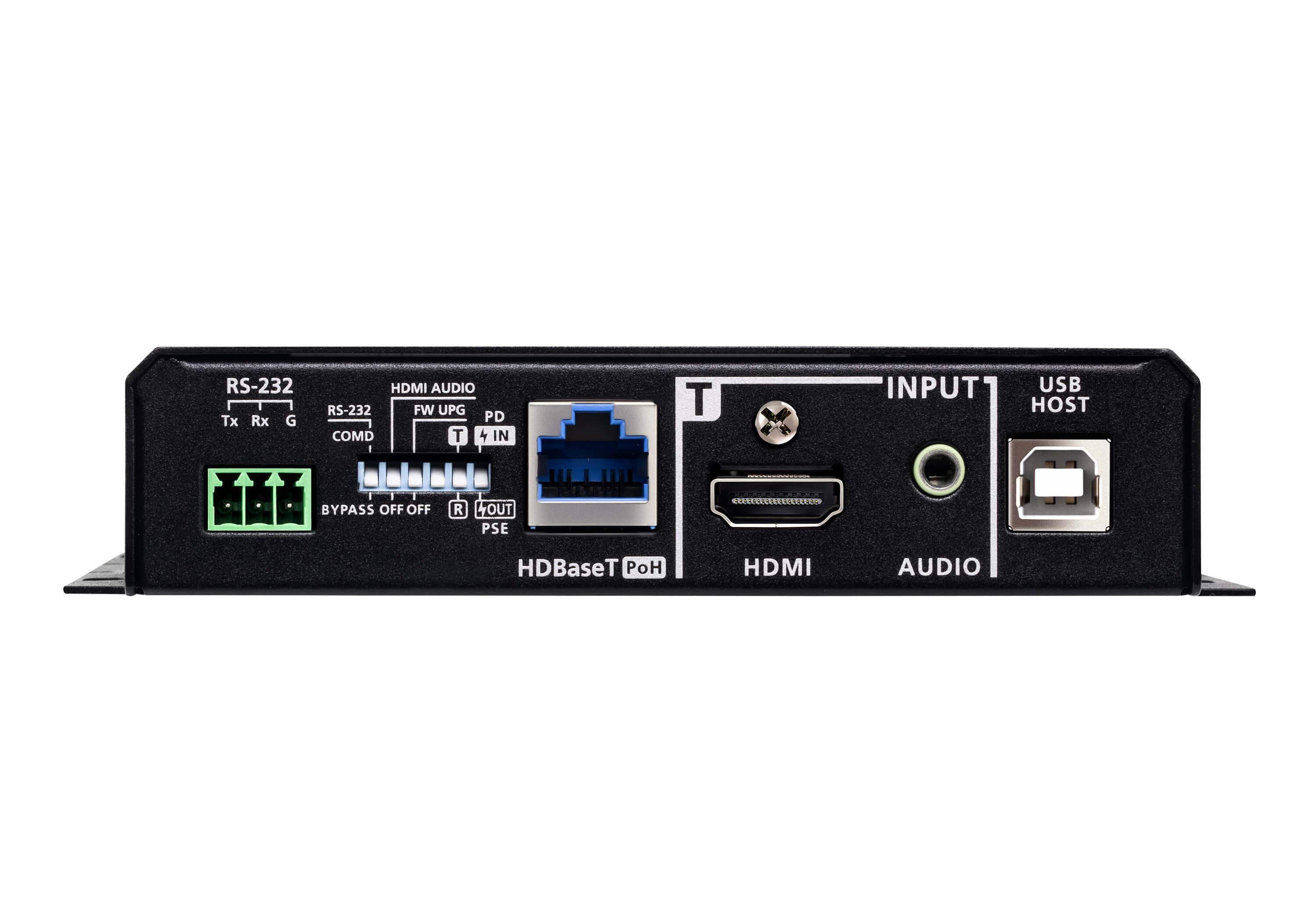

Между устройства: 1 x RJ-45 Female (HDBaseT)
Захранване: 1 x DC Jack (Black) with locking 1 x RJ-45 Female, POH PD & PSE supported

Управление

RS-232 канал: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR канал: 1 x Mini Stereo Jack Female, (Bi-directional, Black) 30K ~56KHz full range transmission
USB канал: 1 x USB2.0 Type B Female (White, Host) 2 x USB2.0 Type A Female (White, Device) Transmission data bandwidth: Up to 300Mbps
Консумация: DC12V:6.01W:92BTU/h (Tx) DC12V:7.09W:118BTU/h (Rx) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Бутони и превключватели

Избор: 1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection
Избор на режим: 1 x Slide Switch - HDMI Audio embed or De-embed ON/OFF selection 1 x Slide Switch - POH PD or PSE selection 1 x Slide Switch - RS232 Command or Bypass mode selection
Обновяване на фърмуера: 1 x Slide Switch - ON/OFF

Индикатори

Захранване: TX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange) RX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange) NOTE: The TX or RX LED lights to indicate which role the VE1833 is set to by DC Power or POH.
Връзка: 1 x TX Link status (Transmitter, Yellow Green) 1 x RX Link status (Receiver, Yellow Green)
Видео изход: 1 x RX HDMI OUT status (Receiver, Orange)
Видео вход: 1 x Tx HDMI IN status (Transmitter, Orange)

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.64 kg ( 1.41 lb )
Размери (Д x Ш x В) със скоба: 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
Входни резолюции: 4096 x 2160p 24 / 25 / 30 / 50 / 60 Hz
4096 x 2160p 50 / 60 Hz 4:2:0: 1080p 24 / 25 / 30 / 50 / 60 Hz
3840 x 2160p 24 / 25 / 30 / 50 / 60 Hz: 1080i 50 / 60 Hz
3840 x 2160p 50 / 60 Hz 4:2:0: 1024 x 768 @ 60 / 70 / 75 Hz
2560 x 1440 @ 144 Hz: 800 x 600 @ 56 / 60 / 72 / 75 Hz
1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking): 720p 50 / 60 Hz
1920 x 1080 @ 60 / 120 / 144 / 240 Hz: 720 x 400 @ 70 Hz
1680 x 1050 @ 60 Hz: 640 x 480 @ 60 / 67 / 72 / 75 Hz
1600 x 1200 @ 60 Hz: 640 x 480 @ 60 Hz (4:3)
1440 x 900 @ 60 Hz: 576p 50 Hz (4:3 / 16:9)
1400 x 1050 @ 60 Hz: 480p 60 Hz (4:3 / 16:9)
1280 x 1024 @ 60 / 75 Hz
