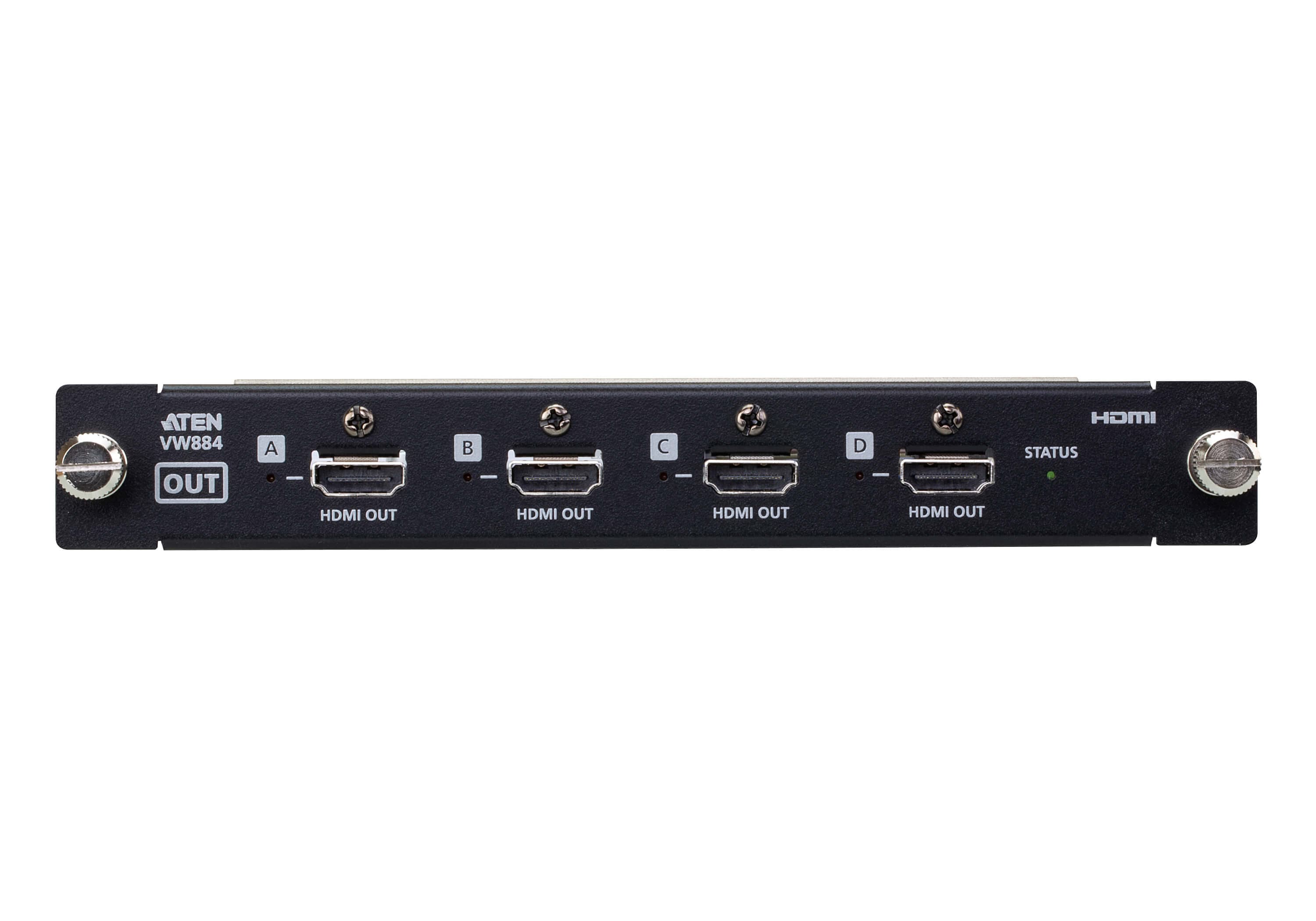

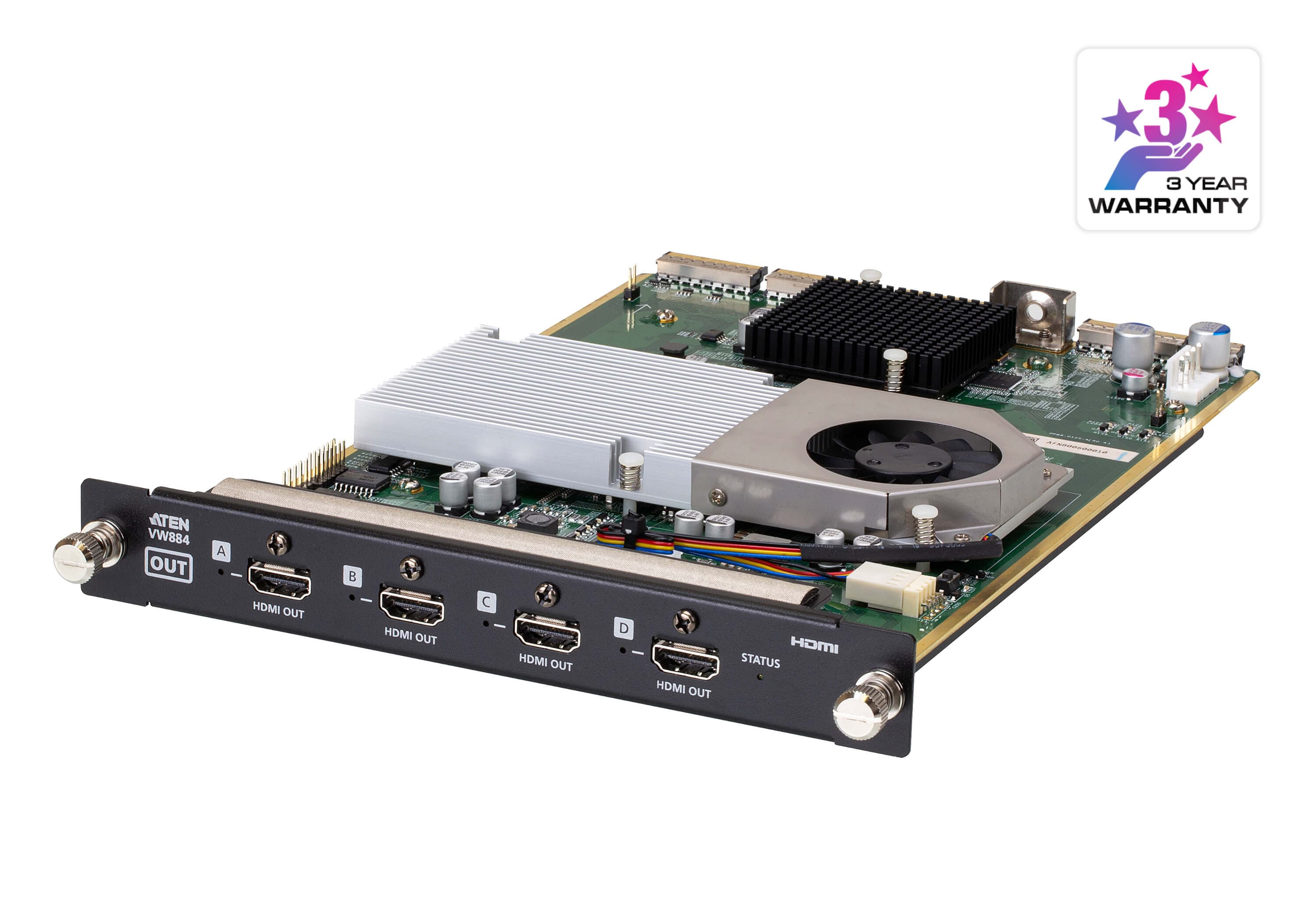

Изходна платка с 4 HDMI порта за видеостенни процесори от серията VW: насочва сигнали към 4 дисплея при до 4096 x 2160 @ 60Hz (4:4:4); поддържа HDR и Dolby Vision.
Характеристики
- Works with VW3620 to enable routing of 4 HDMI signals to 4 displays for optimum flexibility
- True 4K @ 60 Hz scalability – supports custom resolutions and enables upscaling of signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens
- Supports HDR, HDR+, and Dolby Vision
- Seamless Switch – unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (Deep Color, True 4K); HDCP 2.2 Compatible
- Supports hot-swappable installation for great system integration flexibility and maintenance efficiency
- Output rates matched to input rates to prevent lagging and freezing, ensuring stable, smooth video display
- Consumer Electronics Control (CEC)
Видео изход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Up to 5.0m
Видео
- Макс. скорост на данните
- 18.0 Gbps (6.0 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- 4096x2160/3840x2160@60Hz (4:4:4)
- Консумация
- 54.72W:257BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.92 kg ( 2.03 lb )
- Размери (Д x Ш x В)
- 19.30 x 27.10 x 2.74 cm (7.6 x 10.67 x 1.08 in.)
- Брой в кашон
- 4 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Избираеми резолюции на скалера
- 1280 x 720 @ 24/25/30/50/60 Hz
