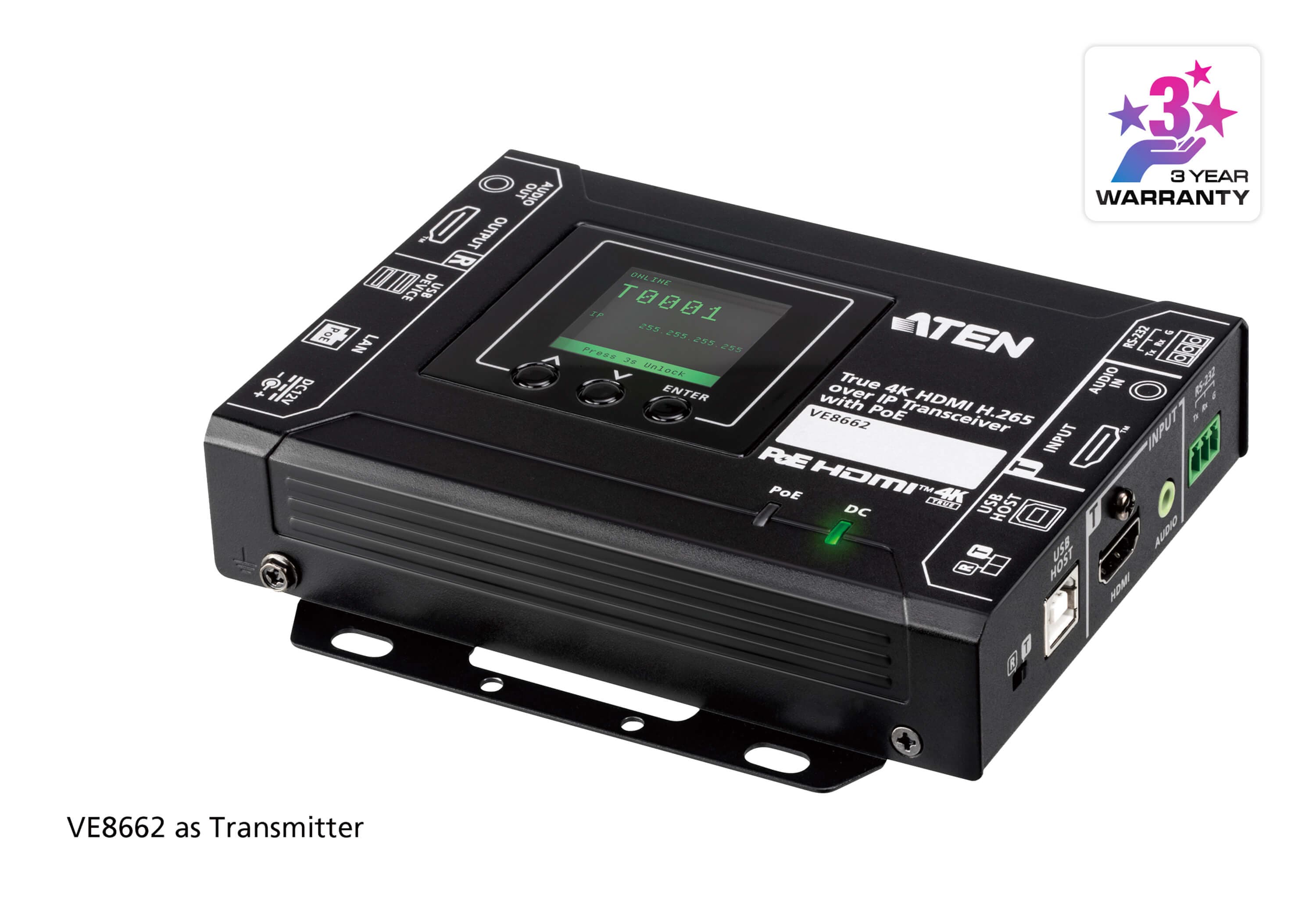

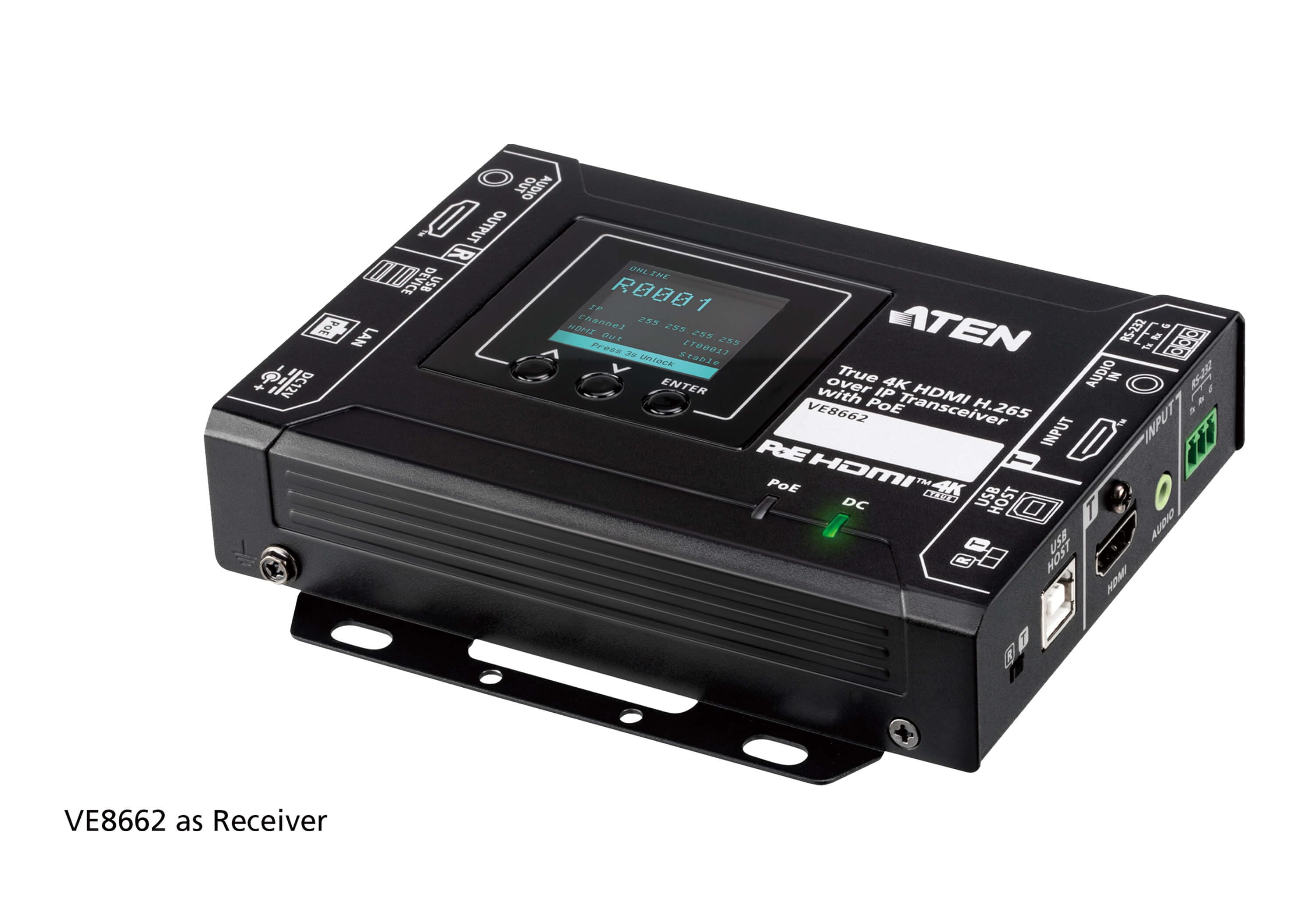

True 4K HDMI H.265 over IP Transceiver with PoE
VE8662
Приемо-предавател за HDMI Over-IP с H.265 компресия за ниско закъснение и малък мрежов трафик (средно 20–25 Mbps). Пренася видео до 3840x2160@60Hz (4:4:4); захранва се по PoE.
Характеристики
- Extends True 4K HDMI signals over IP with H.265 compression for low latency and improved bandwidth efficiency
- Delivers visually lossless high-quality video up to 3840 x 2160 @ 60 Hz (4:4:4)
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Supports HDR 10 with HDCP 2.3/2.2 compliant for content protection
- Supports individual stereo audio and HDMI audio format of PCM 2 channels
- Supports either PoE or DC-in; power redundancy when both are connected
- Supports H.265 / H.264 streams: – As a transmitter supports delivering H.265 streams to the ATEN VW754 Stream Decoder Input Card, H.265 Network Video Recorders (NVRs), and PC VLC players – As a receiver supports H.265 / H.264 streams from mainstream IP cameras compliant with ONVIF-S* and RTSP protocols Note: VE8662 supports only audio/video streaming and device discovery under ONVIF-S.

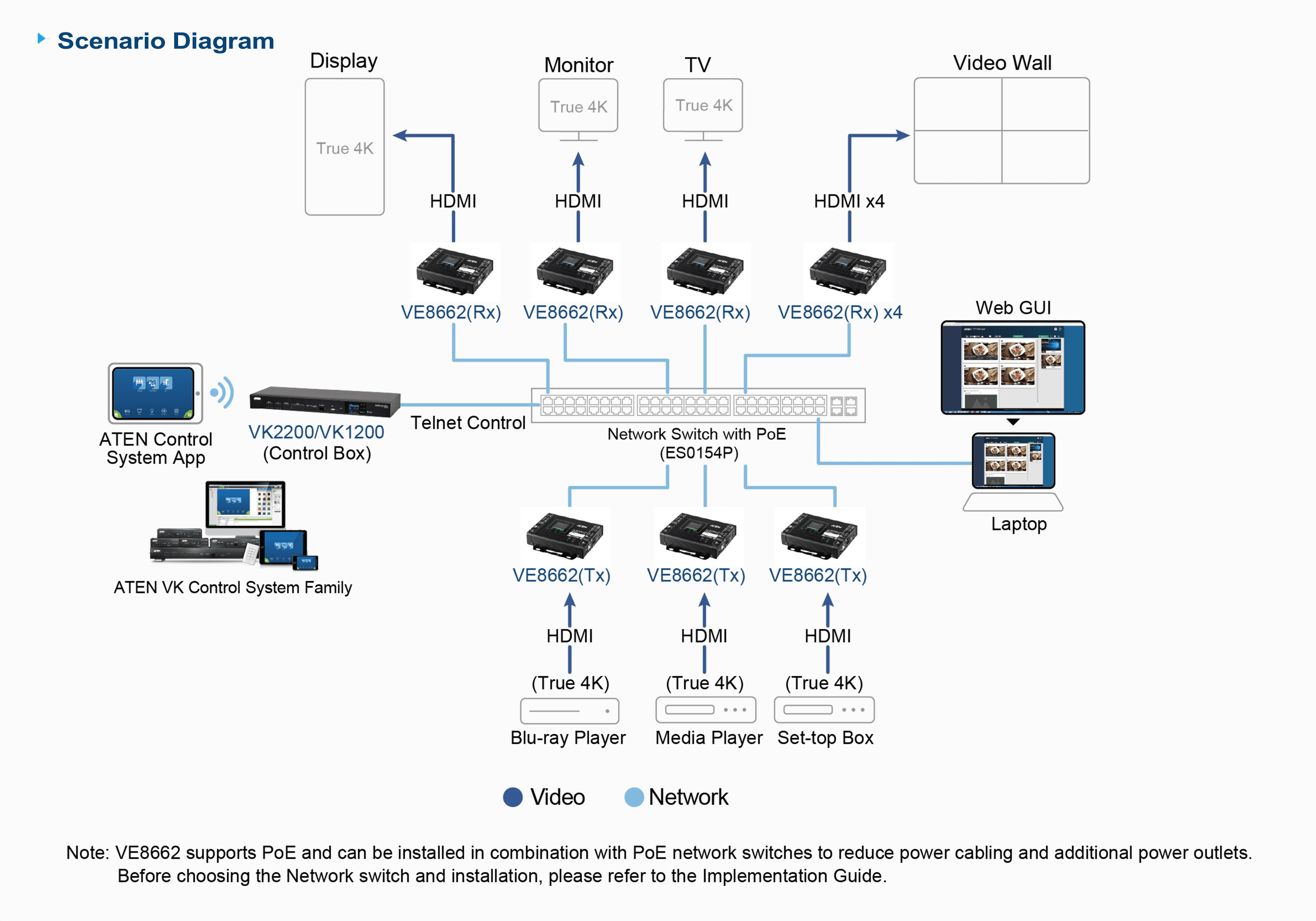

- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via up to 100 meters (point to point)
- Offers multiple functions for applications such as extenders, splitters, video walls, and matrix switches
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Integrated solution – compatible with ATEN Control System, allowing users to directly operate VE8662 via CLI Telnet, or RS-232 protocol
- Effortless operation – one click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
- Simple configuration with no extensive IT experience or extra learning required
- Assign ID numbers for fast installation, no complex IP settings required

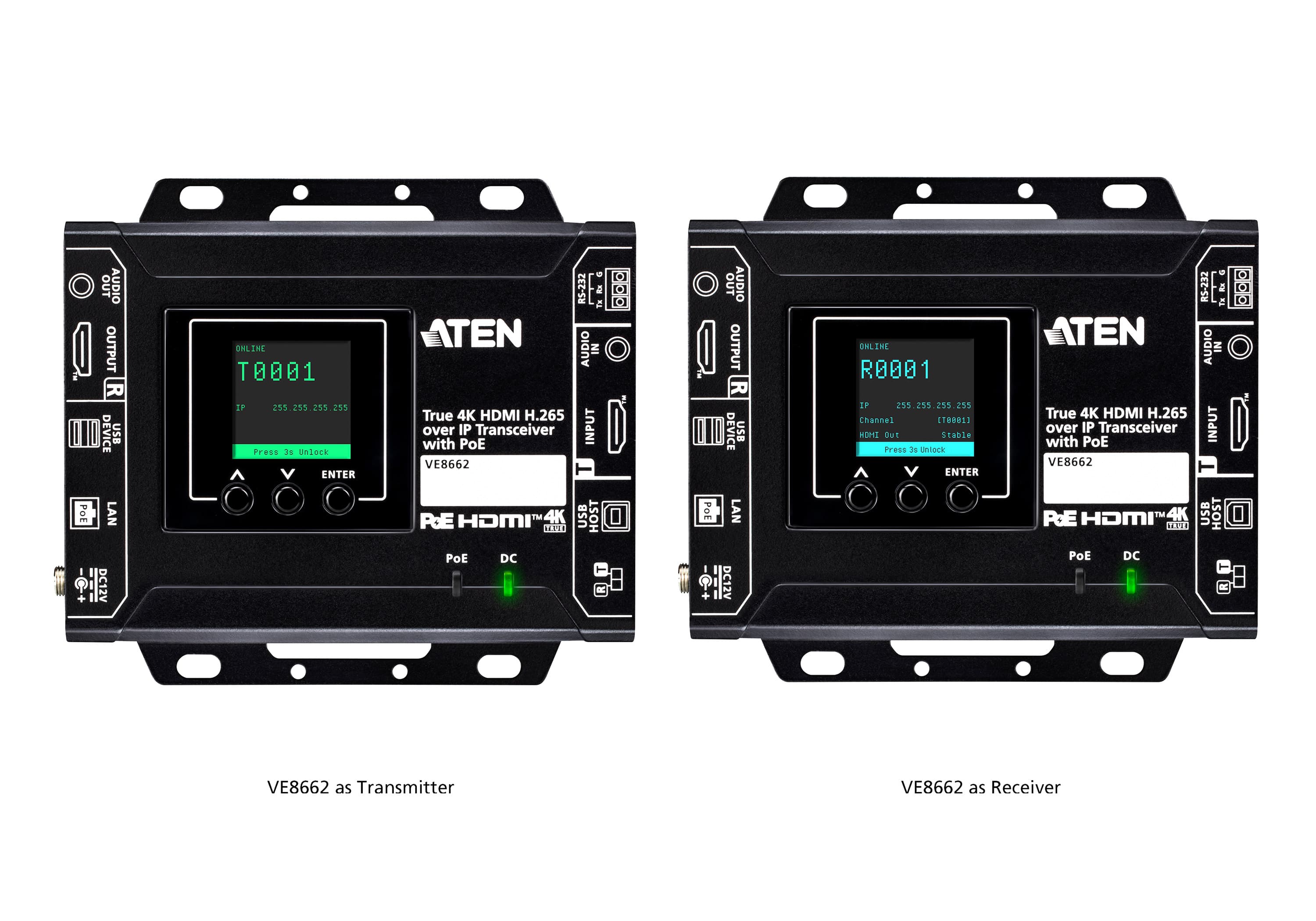

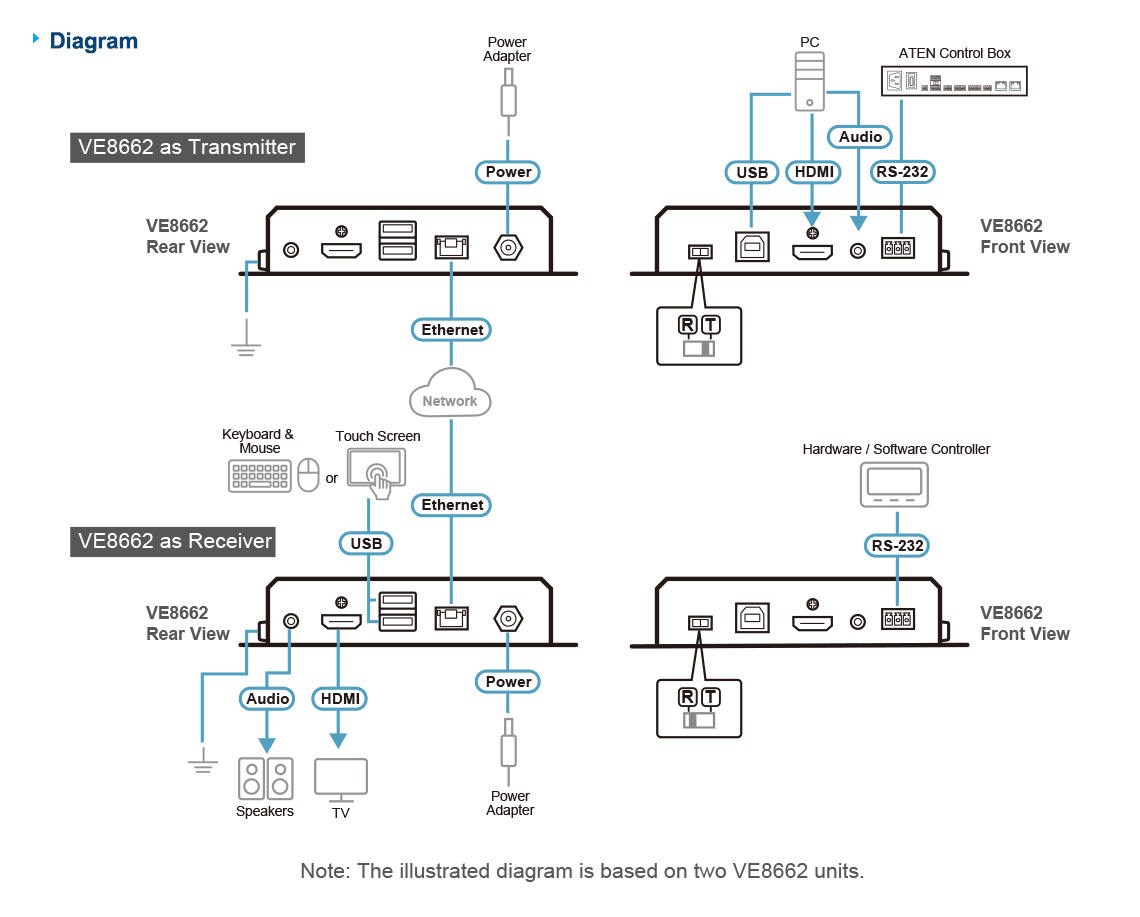

- Single DIP switch enables easy switching between transmitter / receiver, with 'T' or 'R' shown on the LCM and distinct backlighting for easy identification
- Effortless source switching via pushbuttons
- Drag-and-drop video sources, preview sources, and monitor displays via intuitive web GUI
- Contextualized web GUI with environmental pictures for intuitive control
- Fast switching enables real-time video streams and stable signal transmission
- User authority control for high-security applications
- Workstation supports quad-view* functionality with boundless switching via keyboard and mouse controls Note: Each of the four views supports 1080p resolution; the combined display of all four views supports up to 4K resolution.
- Real-time video display with "What You See Is What You Get" functionality
- Supports horizontal and vertical display orientations (including 90° and 270° rotations)
- ”Push” and “Pull” – shares content instantly to / from a single Rx or video wall by just one click
- Supports customized video wall layouts – users can “combine” multiple receiver screens into a single large display or “divide” them back into separate units, enabling flexible display configurations
- User-friendly scheduling management with minute-level event control
- Group VE8662 devices by receivers or video walls for content editing and playback
- Multiple profiles arranged to play in any order over a selected time period

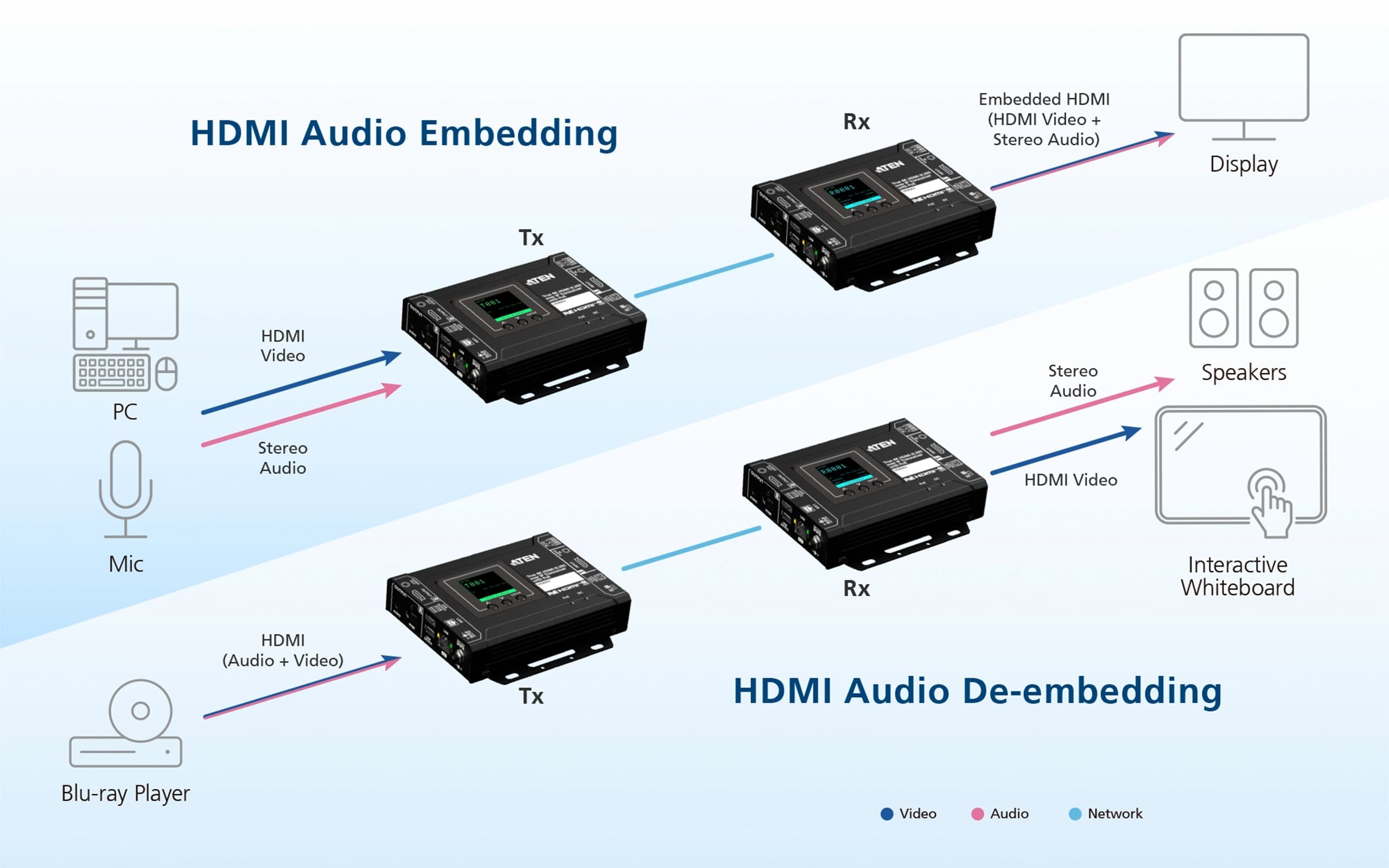

- Separates audio signal can be embedded into the HDMI stream
- Audio stream can be extracted from the HDMI stream and delivered as a separate audio signal
- Supports Audio Matrix – routes audio from selected transmitters to selected receivers, allowing flexible setup based on different unit requirements
- LCD screen – top-panel LCD screen and pushbuttons allow for switching input, monitoring the ID & IP address and status of the extender
- Intuitive web GUI – software independent, simple to operate it on any PC or Notebook
- USB Connectivity – USB 2.0 ports allow for connection of devices such as keyboard, mouse and USB touch panels
- RS-232 Channel – bi-directional RS-232 serial port allows for connection of peripherals such as touch screens and barcode scanners
- Supports CLI access via Telnet, SSH, or a direct RS-232 serial connection for remote control and management
- Remote KVM control – hotkey switching (double-click the Ctrl key), OSD switching on the receiver, and boundless mouse switching
- Supports dynamic UDP media multicast ports
- AES-128 encryption for AV streaming in SRTP (Secure Real-time Transport Protocol)
- HTTPS for secure communication
- WSS for encrypted real-time data communication Note: If you experience issues related to your network architecture, please refer to the ATEN HDMI over IP Video Extender System Implementation Guide or contact ATEN representatives for assistance.
Видео вход
- Макс. разстояние
- 5m
- Импеданс
- 100 Ω
- Интерфейси
- 1 x HDMI Type A Female (Black)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5m
Видео
- Макс. скорост на данните
- Average: 20 ~ 25Mbps
- Съответствие
- HDMI HDCP2.3 & HDCP2.2 Compatible
- Макс. резолюция / разстояние
- Up to True 4K@100m (Cat 5e/6, point to point) *True 4K supported: 3840 x 2160 @ 60Hz (4:4:4) only
- Видео компресия
- H.265 Codec Latency: 3~5 frames
Аудио
- Вход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)
- Изход
- 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

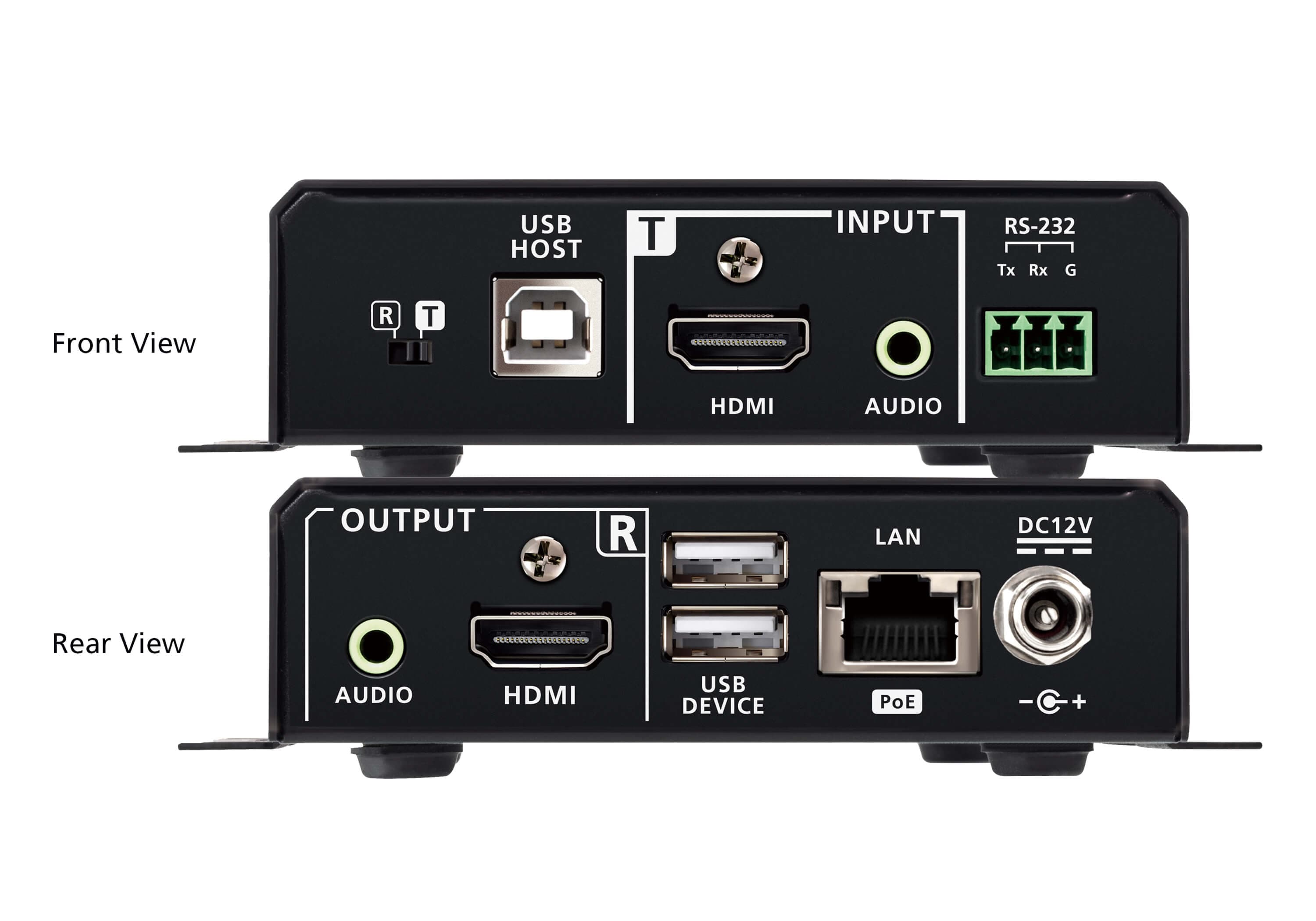

Конектори
- Между устройства
- 1 x RJ-45 Female ( with POE)
- Захранване
- 1 x DC Jack (Black) with locking or 1 x RJ-45 POE PD (Power Over Ethernet, Powered Device) port
Управление
- RS-232
- Connector: 1 x Terminal Block, 3 pole Baud Rate: 115200 (max.), Data Bits:8, Stop Bits:1, no parity and flow control
- USB канал
- 1 x USB Type B Female (Host) 2 x USB Type A Female (Device)
Бутони
- Избор на работен режим
- 3 x Push buttons for LCM operation
Бутони и превключватели
- Режим на избор
- 1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection
Индикатори
- Захранване
- 1 x DC IN LED (Green) 1 x POE LED (Green)
- Консумация
- DC12V:4.79W:22BTU/h (Tx) DC12V:4.98W:45BTU/h (Rx) Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Захранване
- Power over Ethernet (PoE)
- IEEE 802.af POE compliant 5.99W:28BTU/h (Tx) 6.23W:51BTU/h (Rx)
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.51 kg ( 1.12 lb )
- Размери (Д x Ш x В) със скоба
- 14.02 x 12.30 x 3.00 cm (5.52 x 4.84 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
- Входни резолюции
- 3840 x 2160p 24 / 25 / 30 / 60 Hz
- 2560 x 1440 @ 30 / 60 Hz
- 1080i 50 / 60 Hz
- 1920 x 1200 @ 60 Hz
- 1024 x 768 @ 60 / 70 / 75 Hz
- 1920 x 1080 @ 24 / 25 / 30 / 50 / 60 Hz
- 800 x 600 @ 56 / 60 / 72 / 75 Hz
- 1680 x 1050 @ 60 Hz
- 720 x 480 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 720 x 400 @ 70 Hz
- 1440 x 900 @ 60 Hz
- 720p 50 / 60 Hz
- 1400 x 1050 @ 60 Hz
- 640 x 480 @ 60 / 67 / 72 / 75 Hz
- 1280 x 1024 @ 60 / 75 Hz
- 640 x 480 @ 60 Hz (4:3)
- 1280 x 800 @ 60 Hz
- 576p 50 Hz (4:3 / 16:9)
- 1280 x 720 @ 25 / 30 / 50 / 60 Hz
- 480p 60 Hz (4:3 / 16:9)
