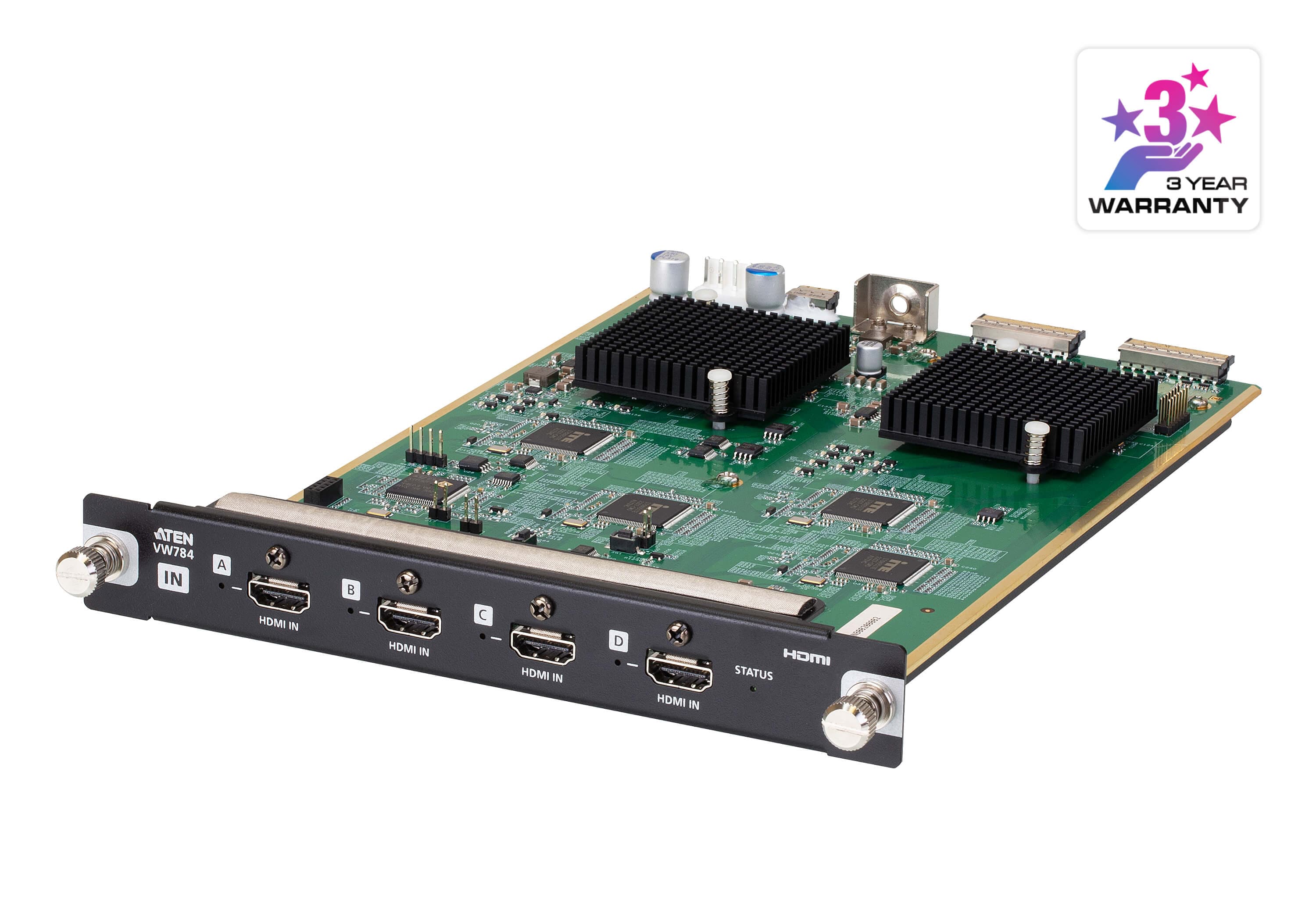

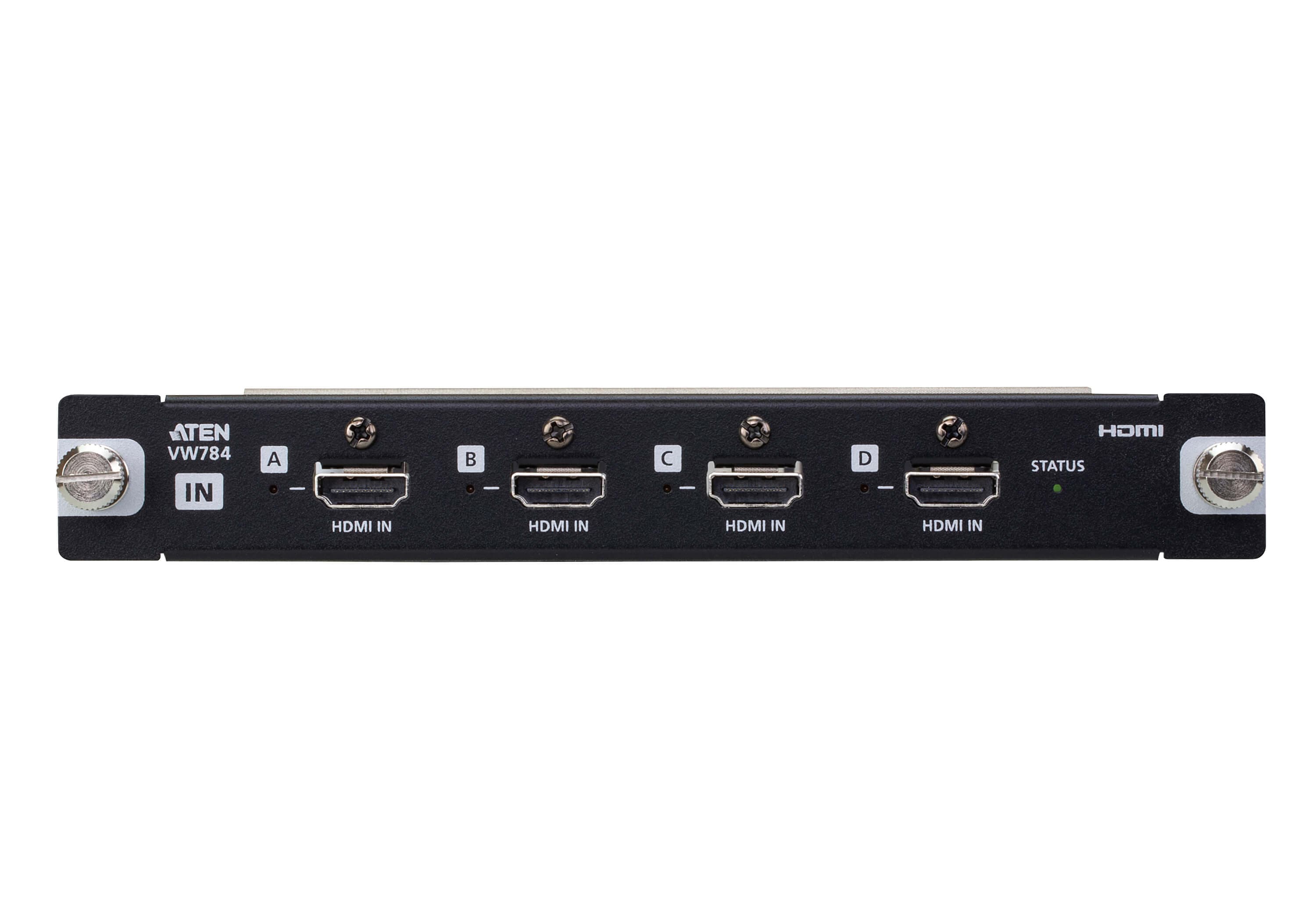

4-Port 4K HDMI Input Board for VW Series

Name: 4-Port 4K HDMI Input Board for VW Series
Brand: ATEN
SKU: VW784

VW784

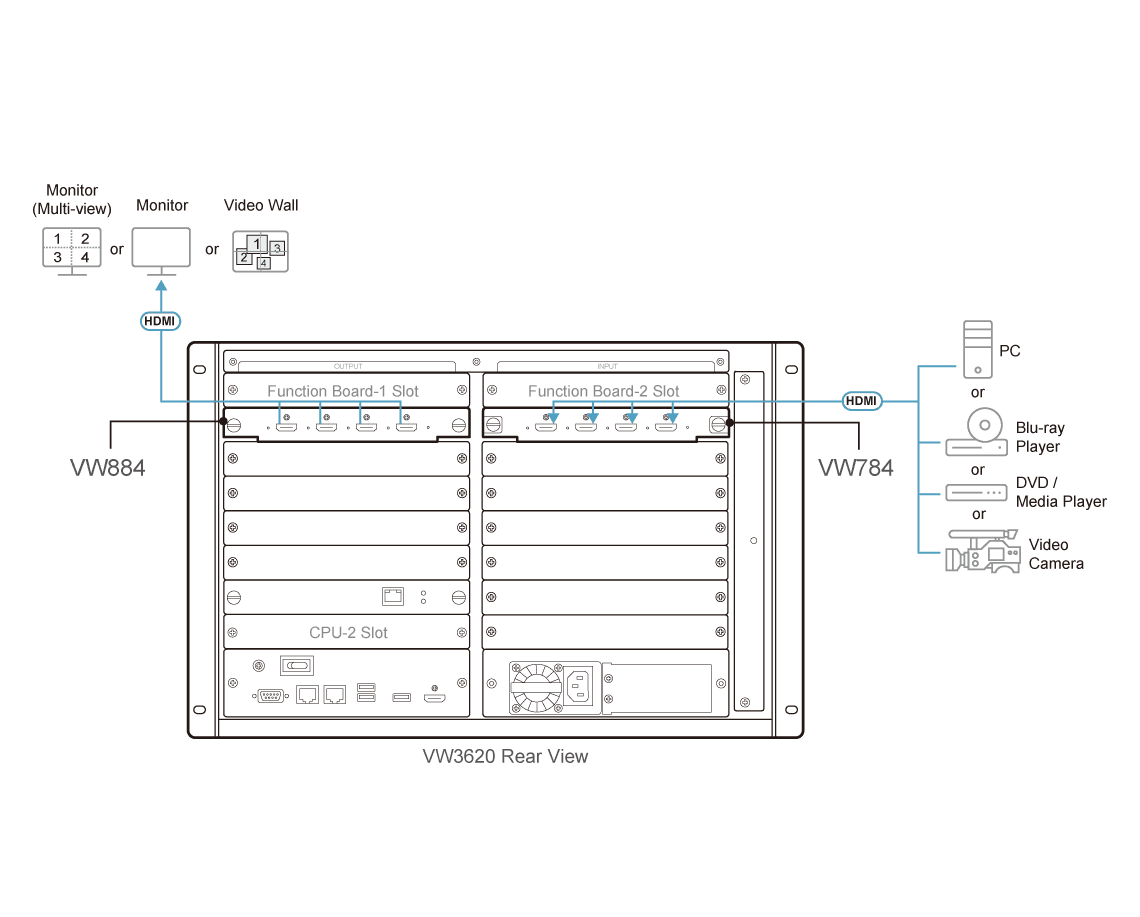

Входна платка с 4 HDMI порта за процесора за видеостени VW3620. Приема източници до True 4K (4096x2160@60Hz 4:4:4) с поддръжка на HDR и Dolby Vision.

Характеристики

Works with VW3620 to take 4 HDMI sources for optimum flexibility
Supports resolutions up to 4K for superior video quality
Supports HDR, HDR+, and Dolby Vision
Seamless Switch – unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
HDMI (Deep Color, 4K); HDCP 2.2 Compatible
Supports hot-swappable installation for great system integration flexibility and maintenance efficiency
Consumer Electronics Control (CEC)

Макс. скорост на данните: 18.0 Gbps (6 Gbps Per Lane)
Макс. пикселна честота: 600 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция: 4096x2160/3840x2160@60Hz (4:4:4)
Консумация: 17.71W:83BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.73 kg ( 1.61 lb )
Размери (Д x Ш x В): 19.30 x 27.10 x 2.74 cm (7.6 x 10.67 x 1.08 in.)
Брой в кашон: 4 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Входни резолюции: 640 x 480 @ 60/67/72/75 Hz
720 x 400 @ 70 Hz: 1080i 60 Hz
800 x 600 @ 56/60/72/75 Hz: 640 x 480 60Hz (4:3)
1024 x 768 @ 60/70/75 Hz: 576p 50 Hz (4:3)/(16:9)
1280 x 800 @ 60 Hz: 720p 50 Hz
1280 x 1024 @ 60/75 Hz: 1080i 50 Hz
1400 x 1050 @ 60 Hz: 1080p 50 Hz
1440 x 900 @ 60 Hz: 1080p 24/25/30 Hz
1600 x 1200 @ 60 Hz: 3840 x 2160p @ 24/25/30 Hz
1680 x 1050 @ 60 Hz: 4096 x 2160p @ 24/25/30 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
1920 x 1200 @ 60 Hz (Reduced Blanking)
1080p @ 60 Hz
480p @ 60 Hz (4:3)/(16:9)
