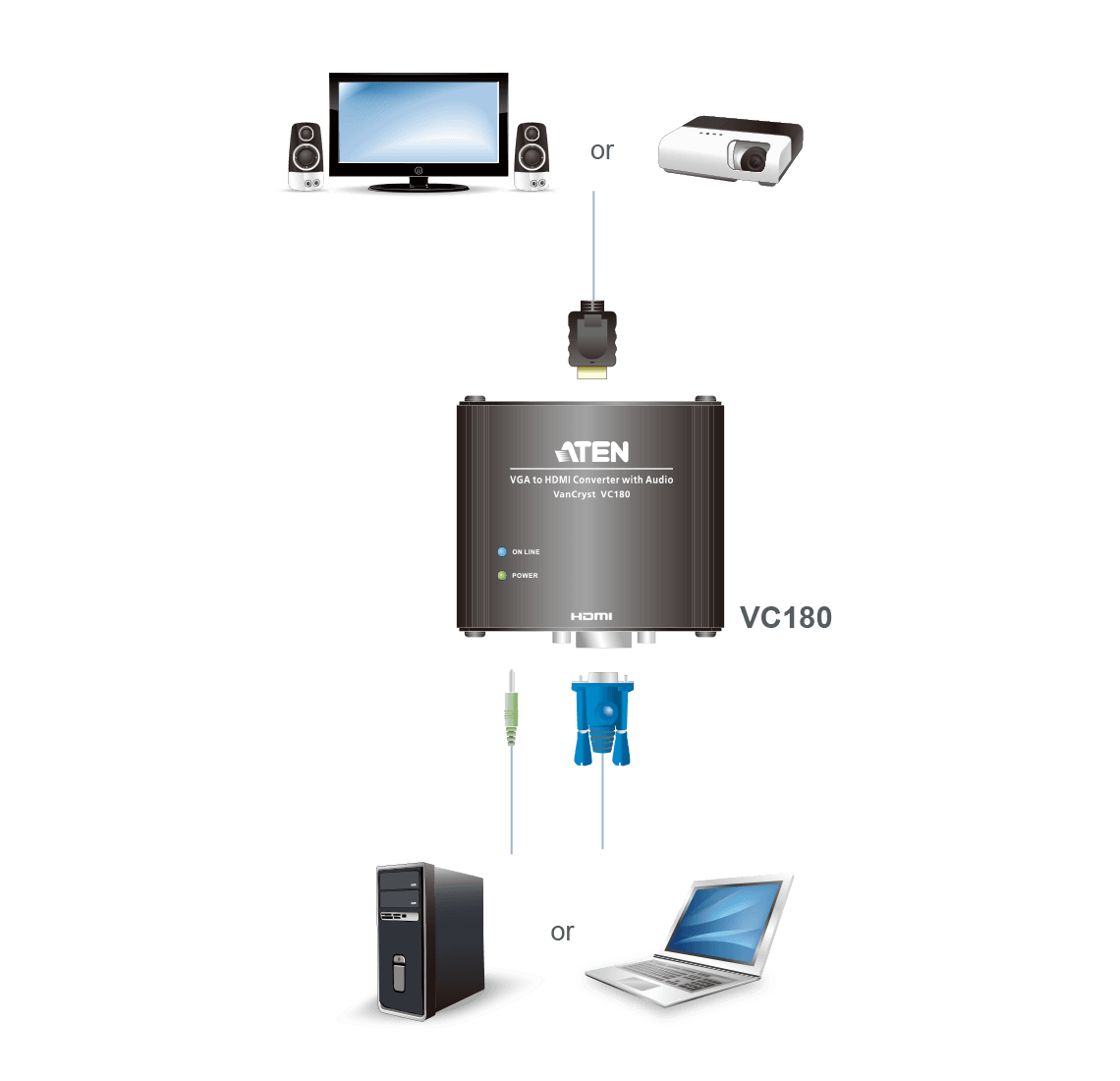

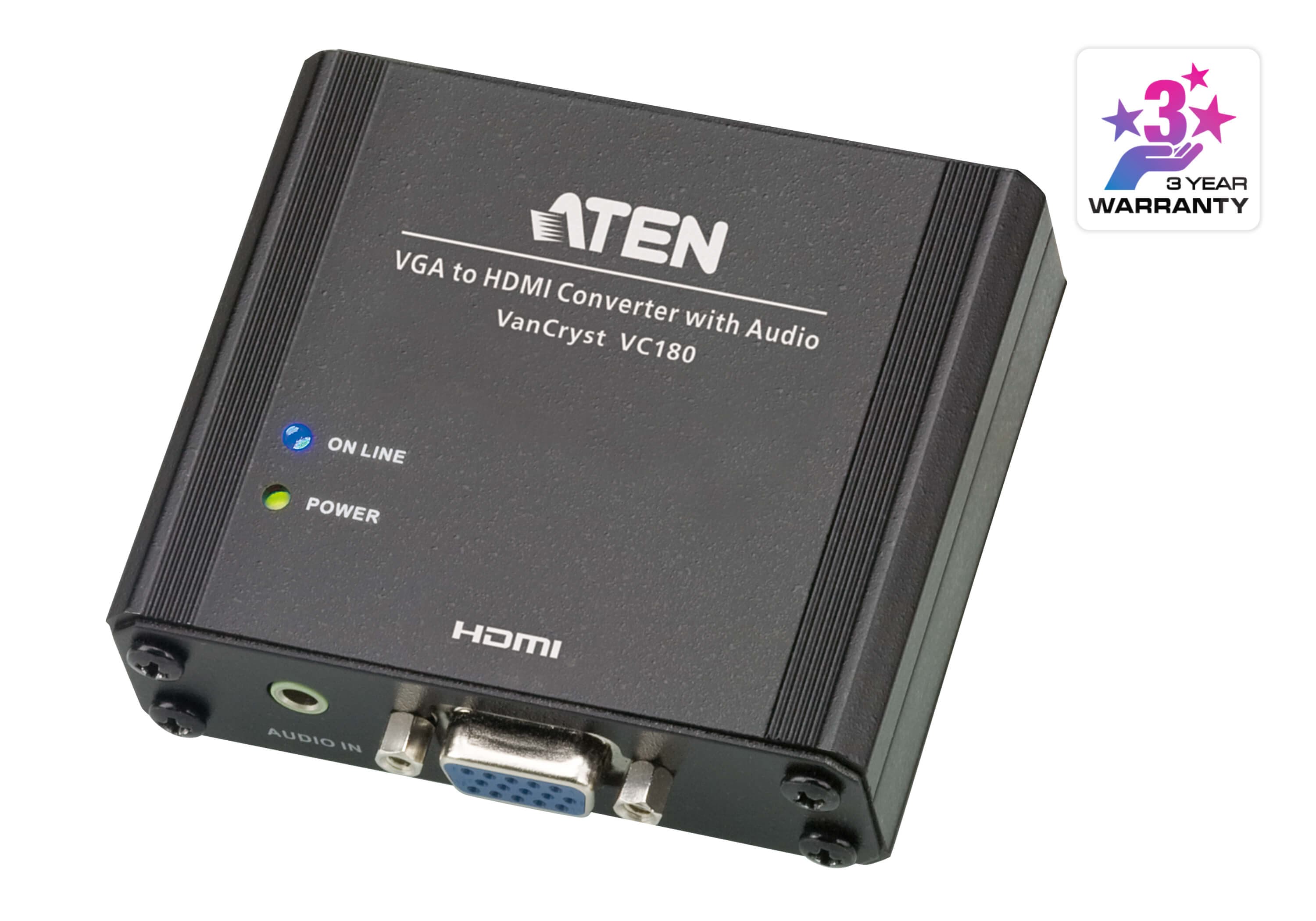

Конвертира VGA видео и стерео аудио в HDMI сигнал с резолюция до 1080p. Настройката на позицията на картината се запаметява за всяка изходна резолюция.
Характеристики
- Converts VGA signals to HDMI output
- Supports analog stereo audio input
- Superior video quality – up to 1080p, WUXGA
- Screen Position Button – screen position settings can be stored for each output resolution
- Multiplatform support – Windows and Mac
- Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Automatically detects video input signals
- LED indicator
- HDMI compatible
- Compact and lightweight
- No software required – eliminates incompatibility and installation issues

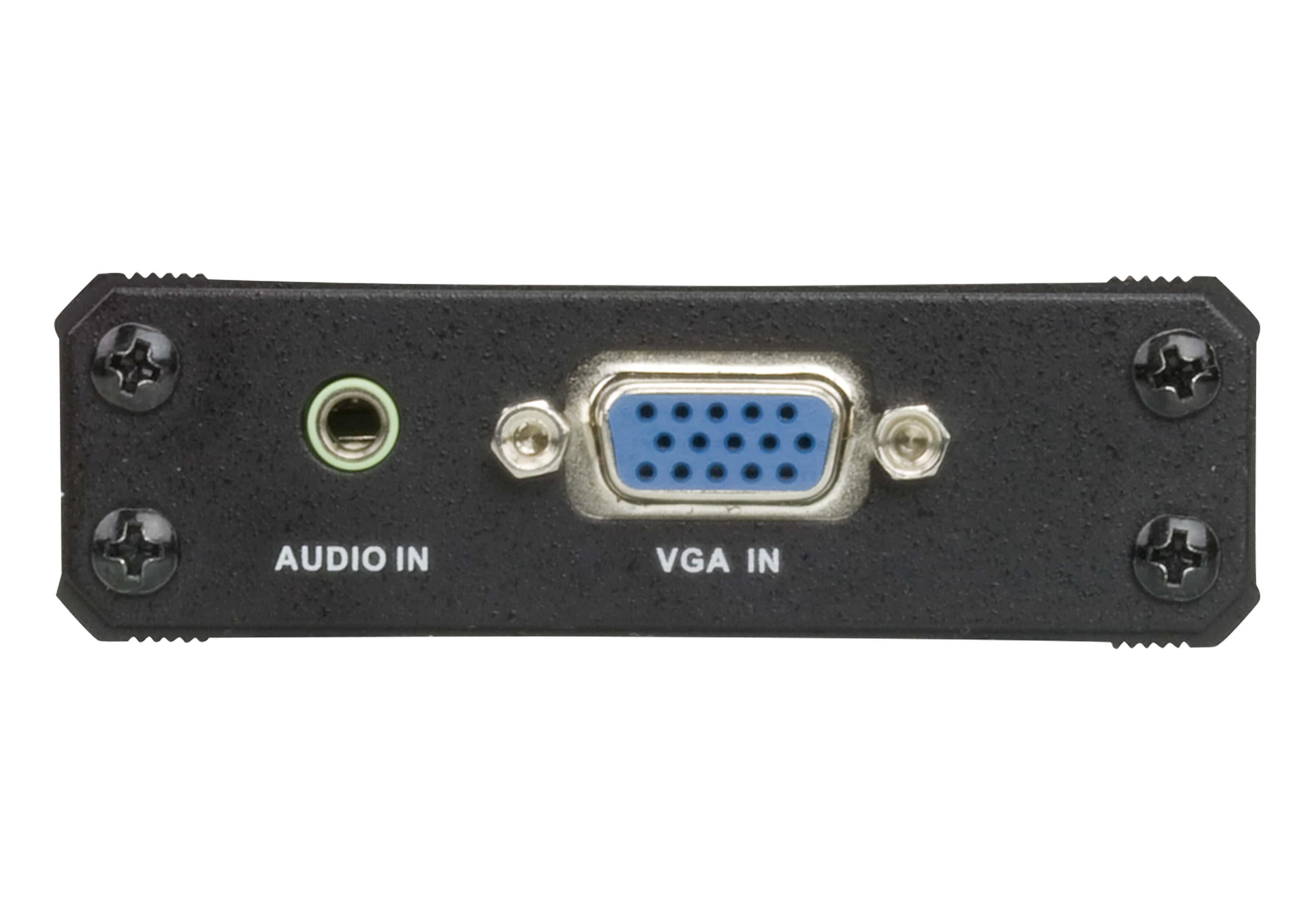

Видео вход
- Интерфейси
- 1 x HDB-15 Female (Blue)
- Импеданс
- 75 Ω

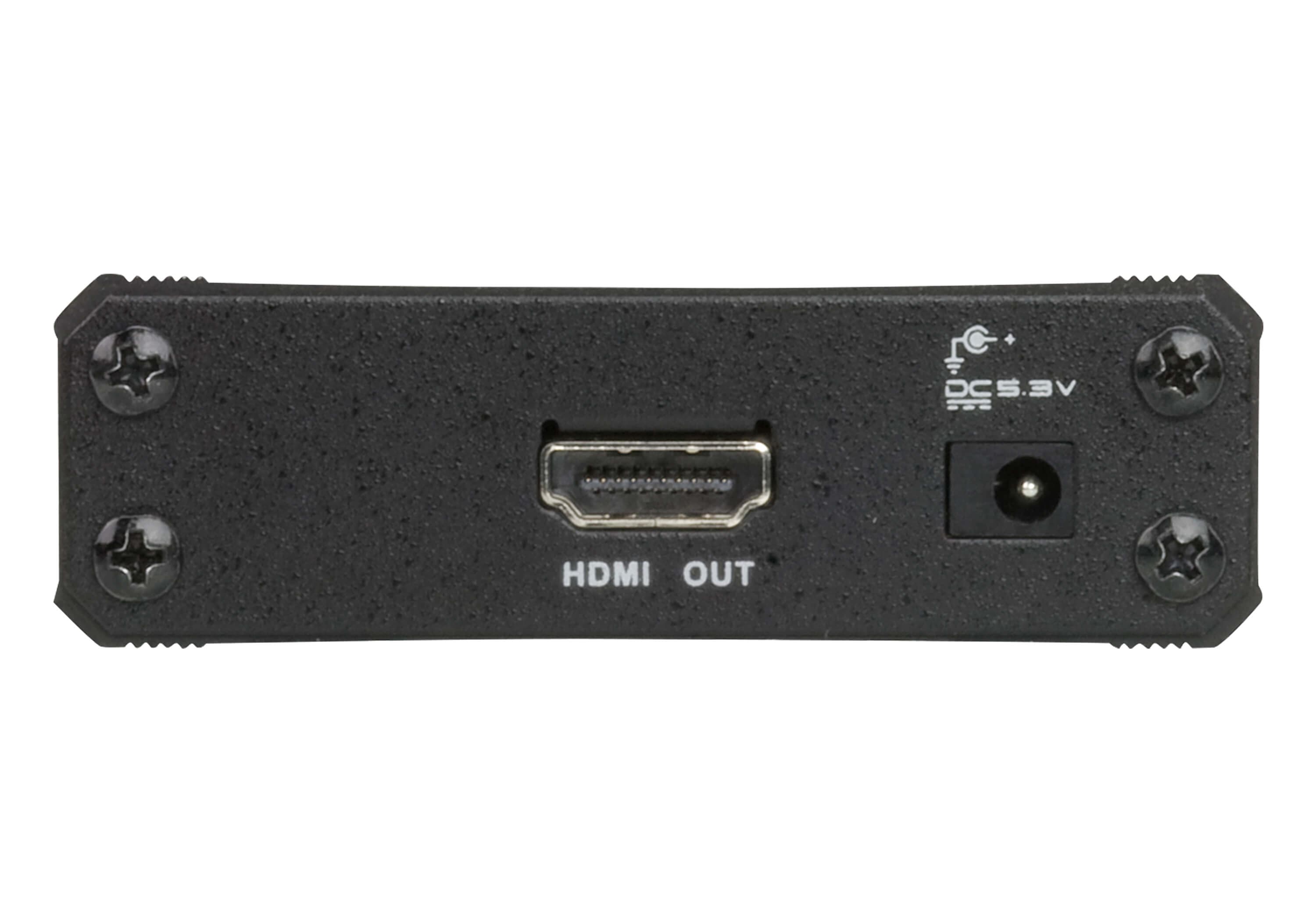

Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
Видео
- Макс. пикселна честота
- 165 MHz
- Макс. резолюция
- Up to 1080p
Аудио
- Вход
- 1 x Mini Stereo Jack Female (Green)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:2.62W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.16 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 7.90 x 7.81 x 2.44 cm (3.11 x 3.07 x 0.96 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
