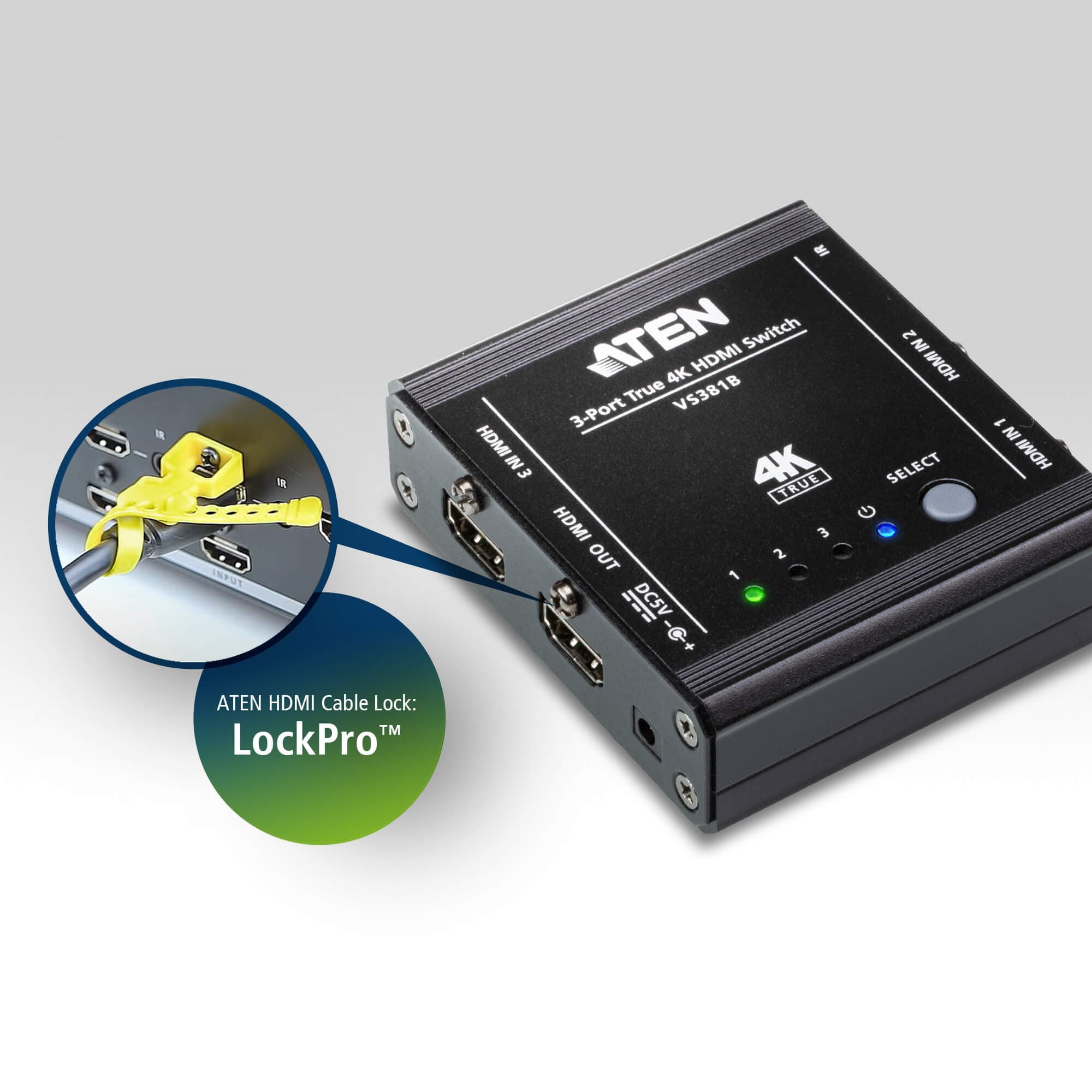

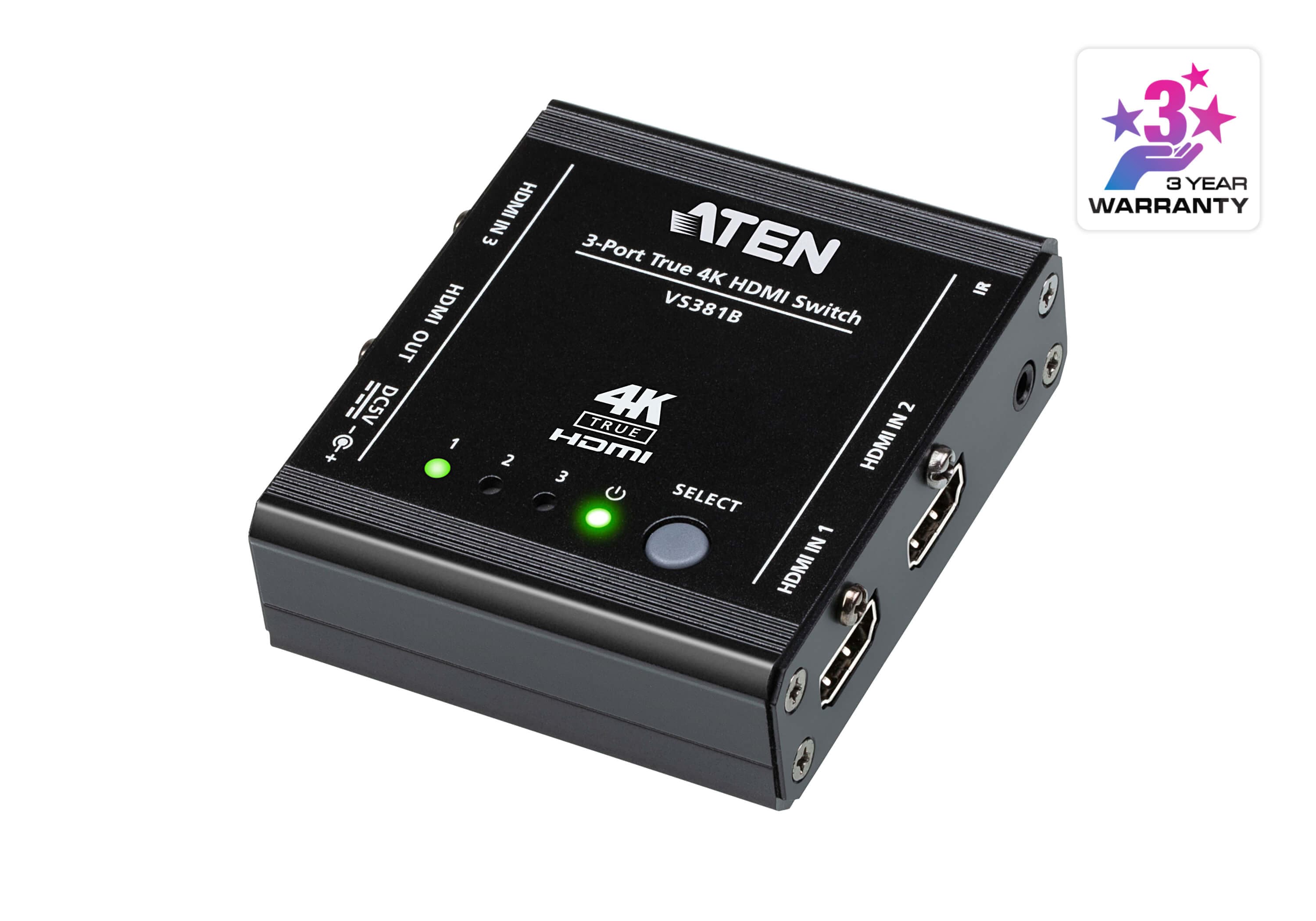

Превключвател за 3 HDMI източника към един дисплей с избор чрез бутон. True 4K до 4096x2160@60Hz (4:4:4); поддържа HDR10+ и Dolby Vision, HDCP 2.2.
Характеристики

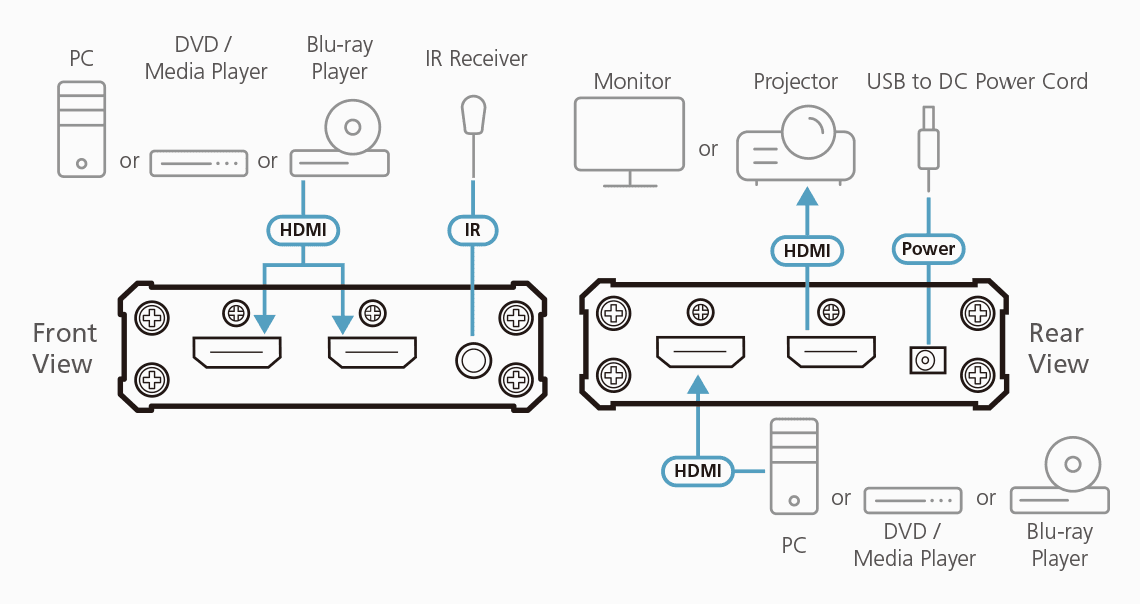

- Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
- Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
- HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)
- HDCP 2.2 compliant
- Auto switching mode for auto port selection
- Switching between HDMI input sources via front panel pushbuttons and IR remote control
- Supports IR extension
- Supports 7.1 channel audio output
- Clear LED indication of device status
- Plug-and-play – no software installation required
Индикатори
- Вход
- 3 x HDMI-In (Green)
- Захранване
- 1 x Power LED (Green)
Бутони
- Избор
- 1 x push button (input selection)
Аудио
- Вход
- 3 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
Видео вход
- Интерфейси
- 3 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision) HDCP 2.2
- Макс. резолюция
- 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

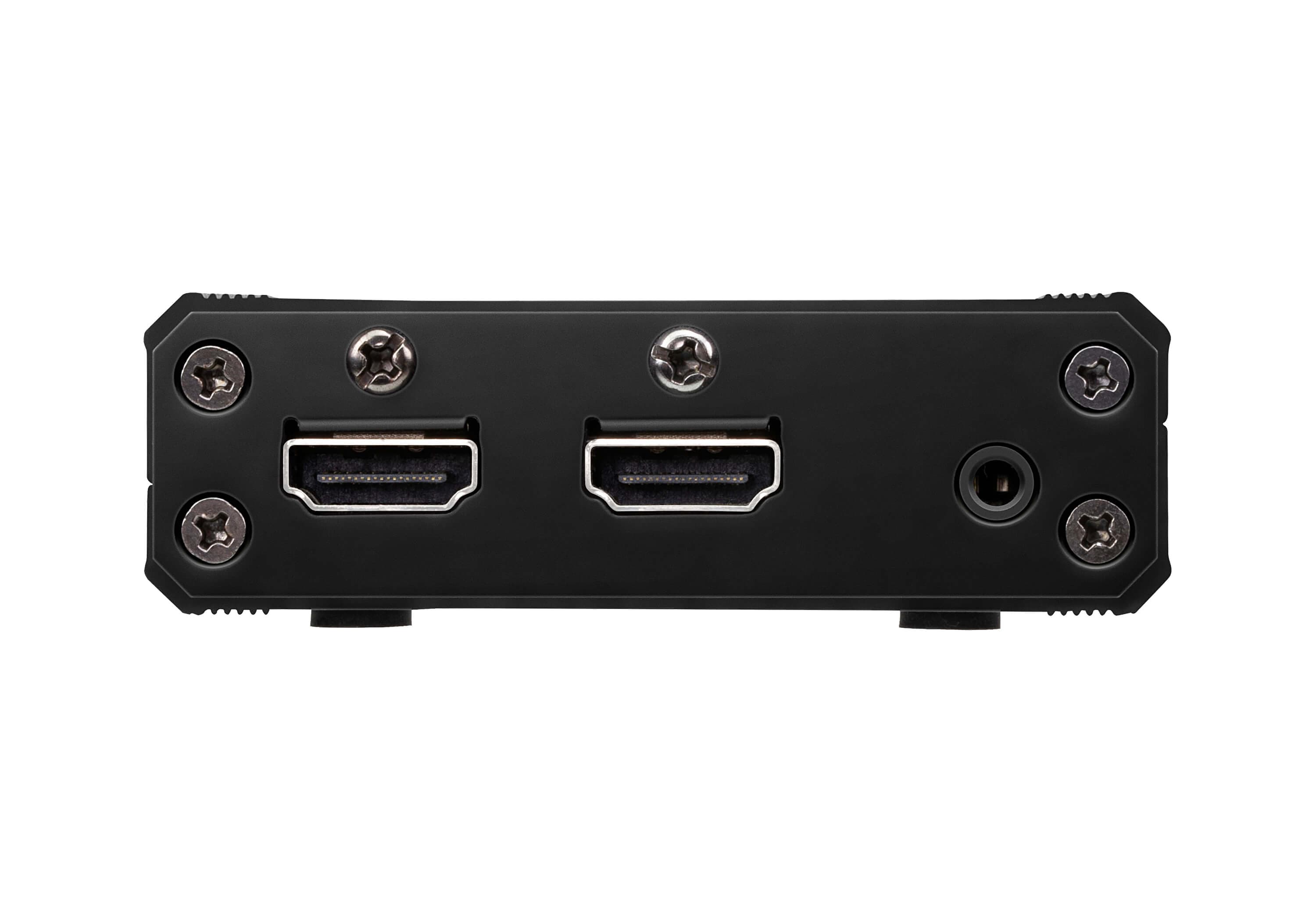

Управление
- IR
- 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m

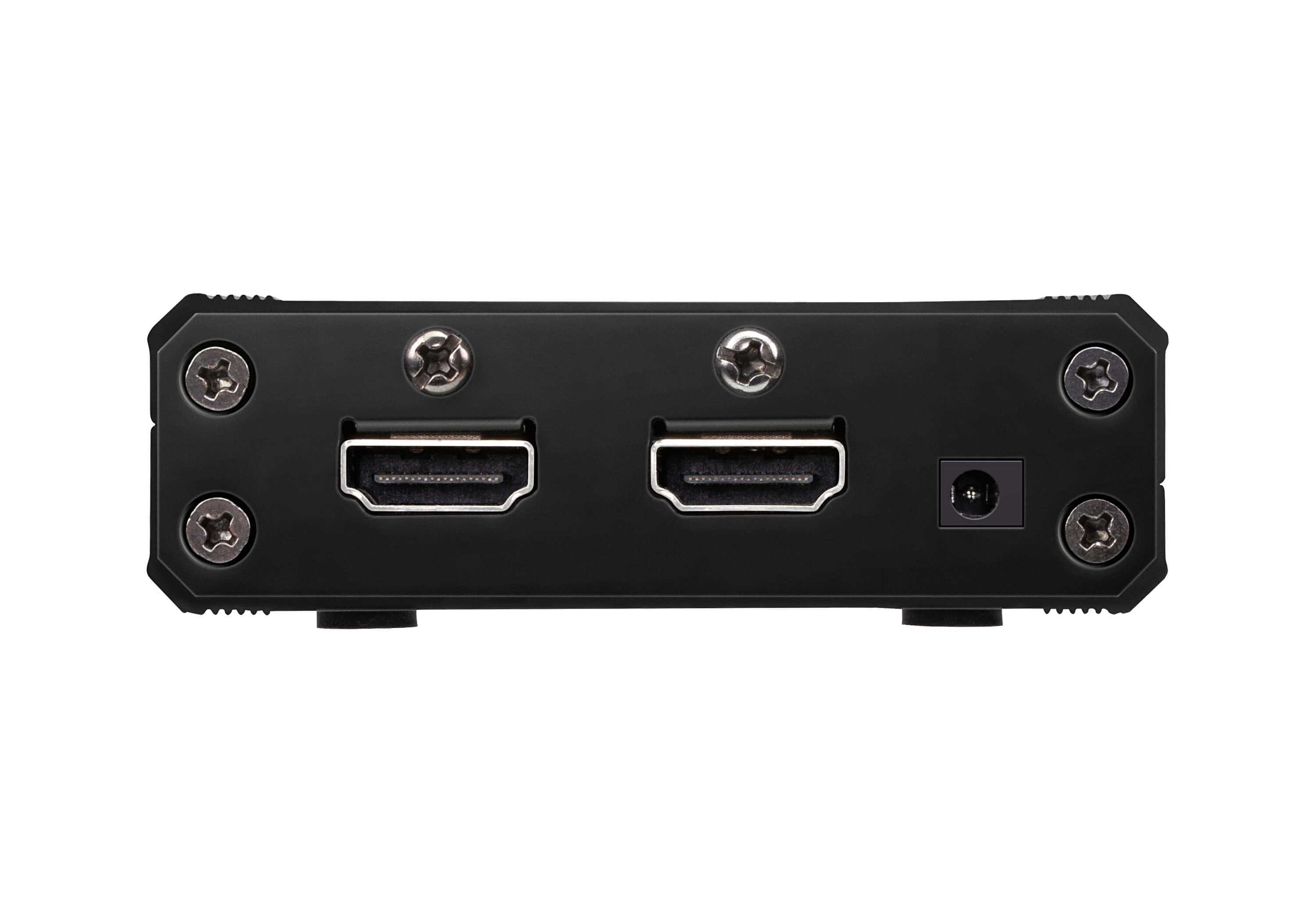

Конектори
- Захранване
- 1 x DC Jack Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.
- Консумация
- DC5V:1.46W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40 °C
- Температура на съхранение
- -20 - 60 °C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.15 kg ( 0.33 lb )
- Размери (Д x Ш x В)
- 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
