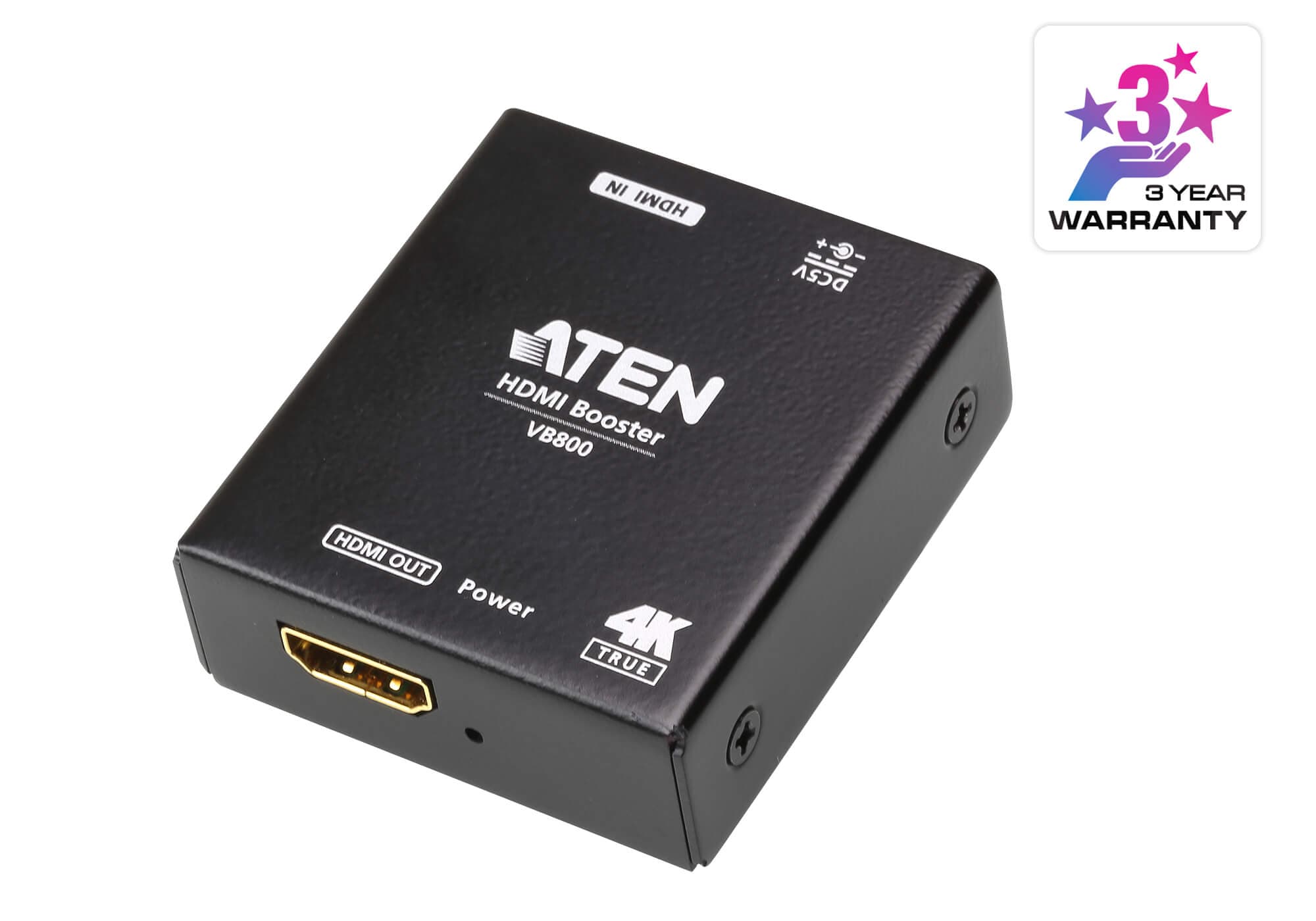

True 4K HDMI Booster (4K@10m)

Name: True 4K HDMI Booster (4K@10m)
Brand: ATEN
SKU: VB800

VB800

Усилвател на HDMI сигнал, който удължава връзката до 10 m при 4K @ 60 Hz (4:4:4) и до 20 m при 1080p. Пропуска до 18 Gbps и е съвместим с HDCP 2.2.

Характеристики

Superior video quality – True 4k resolutions of 4096 x 2160 @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
HDMI (3D, Deep Color, 4K)
Max. Data Rate 18 Gbps (6 Gbps Per Lane)
HDMI and HDCP 2.2 compatible

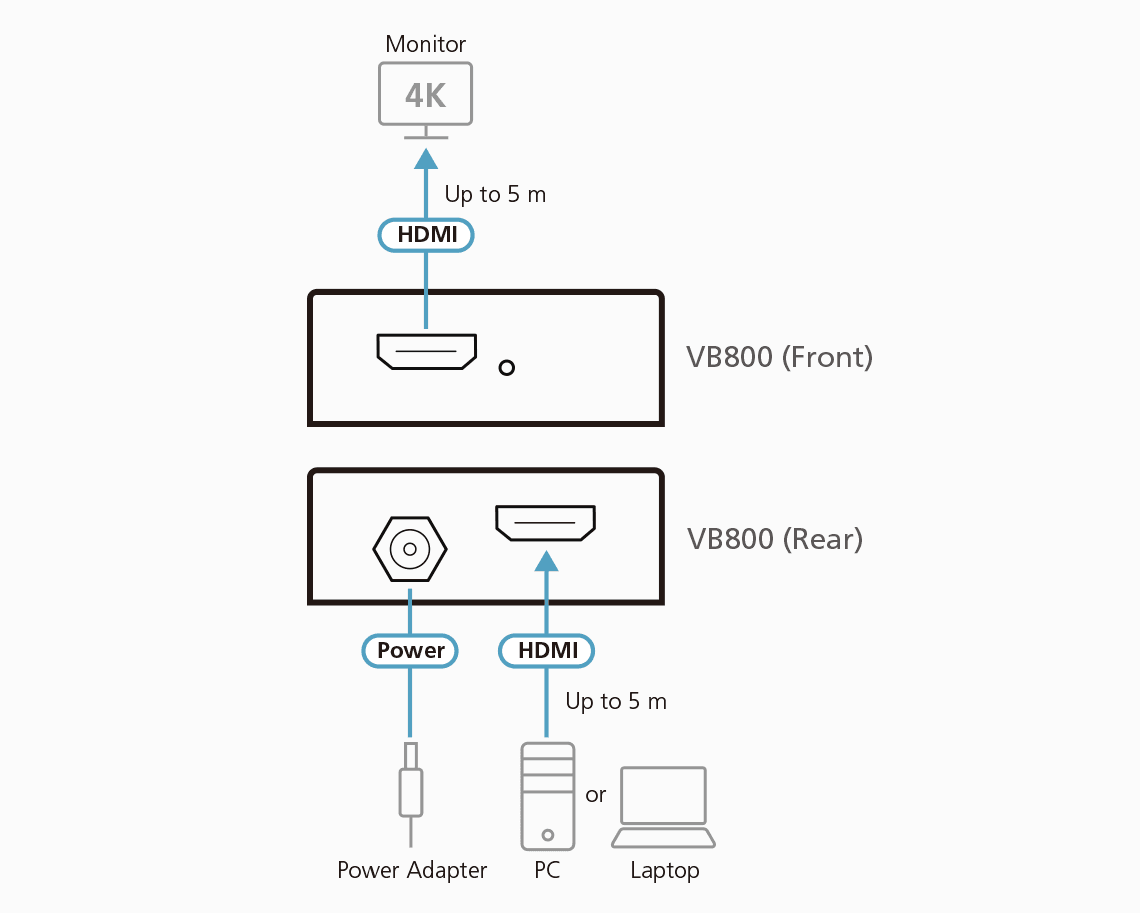

Supports up to True 4K resolutions when cascaded up to 10 levels - Up to 10 m True 4K transmission distance (max. 5 m on the input side and 5 m on the output side) - Up to 20 m 1080p transmission distance (max. 10 m on the input side and 10 m on the output side)
A single unit can be powered from the source device
Supports HDR10+
Plug-and-play – No software installation required
Rack mountable * Longer distance transmission is allowed with lower data rates and/or higher quality cable.

Макс. честотна лента: 600 MHz
Макс. резолюция / разстояние: Up to 10M at 4K@60 Hz (4:4:4); Up to 20M at 1080p@60Hz
Макс. скорост на данните: 18Gpbs(6 Gbps Per Lane)
Съответствие: HDMI, HDCP 2.2 Compatible

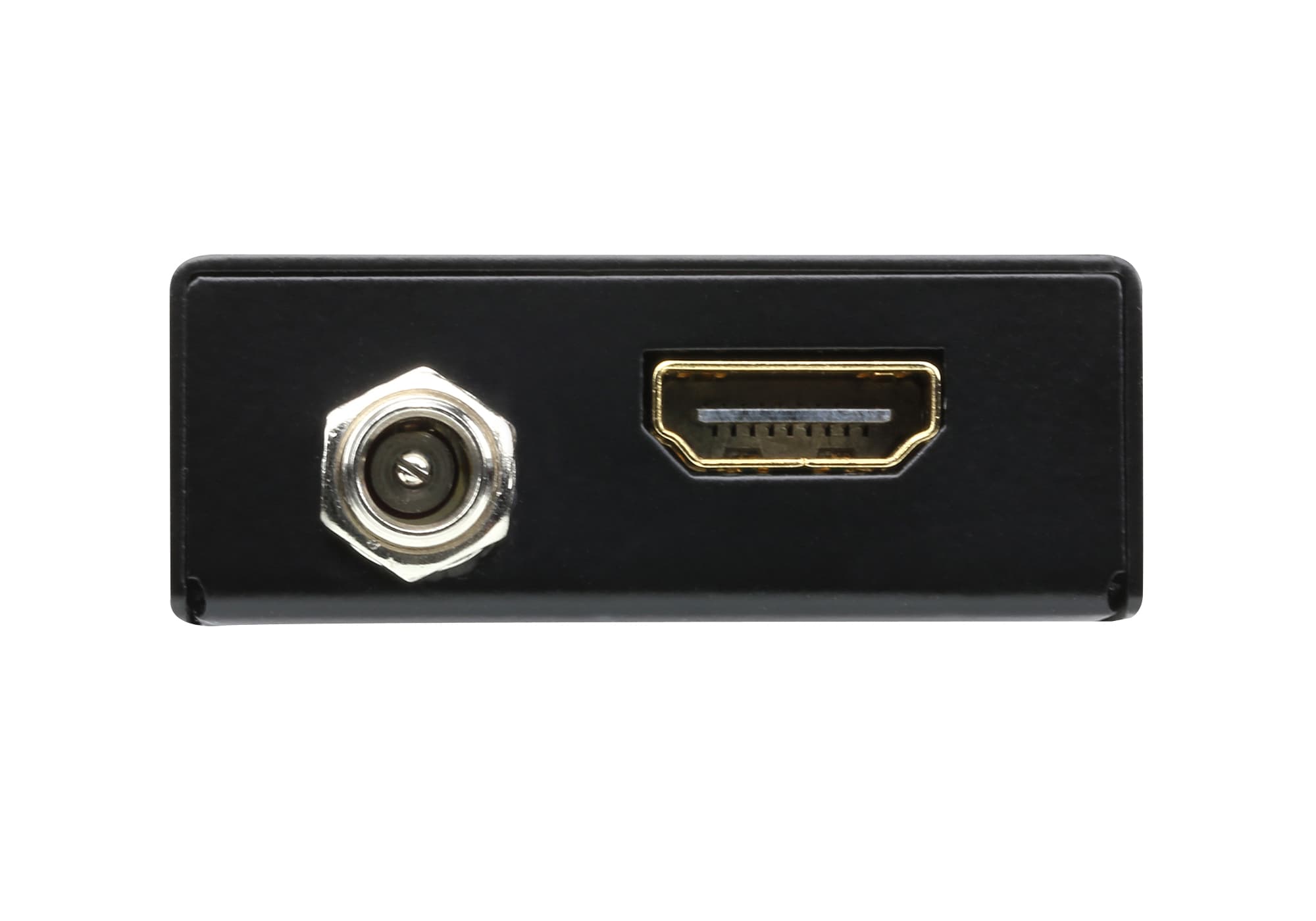

Захранване: 1 x DC Jack
Консумация: DC5V:0.99W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.09 kg ( 0.21 lb )
Размери (Д x Ш x В): 4.90 x 5.60 x 1.70 cm (1.93 x 2.2 x 0.67 in.)
Брой в кашон: 10 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
