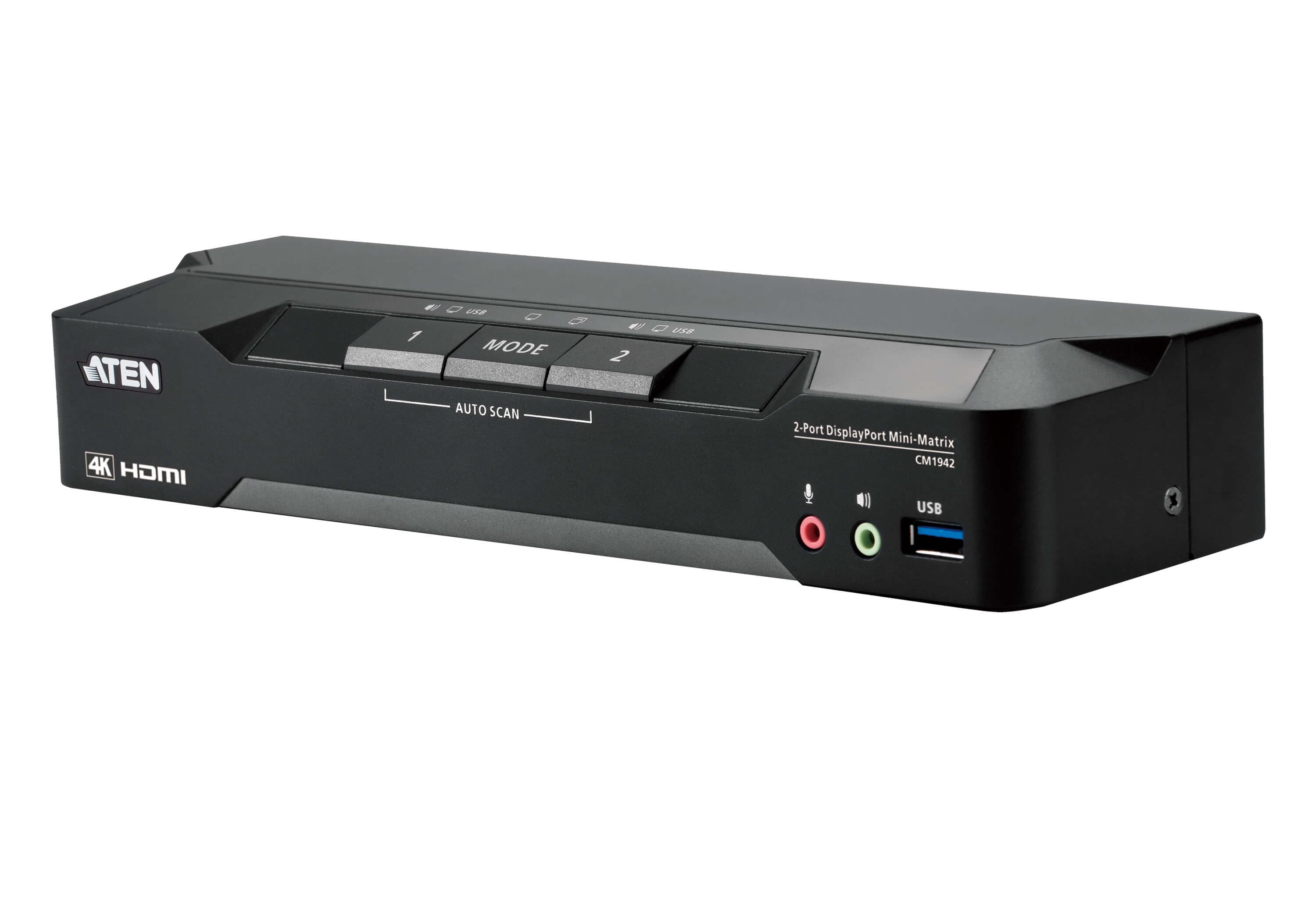

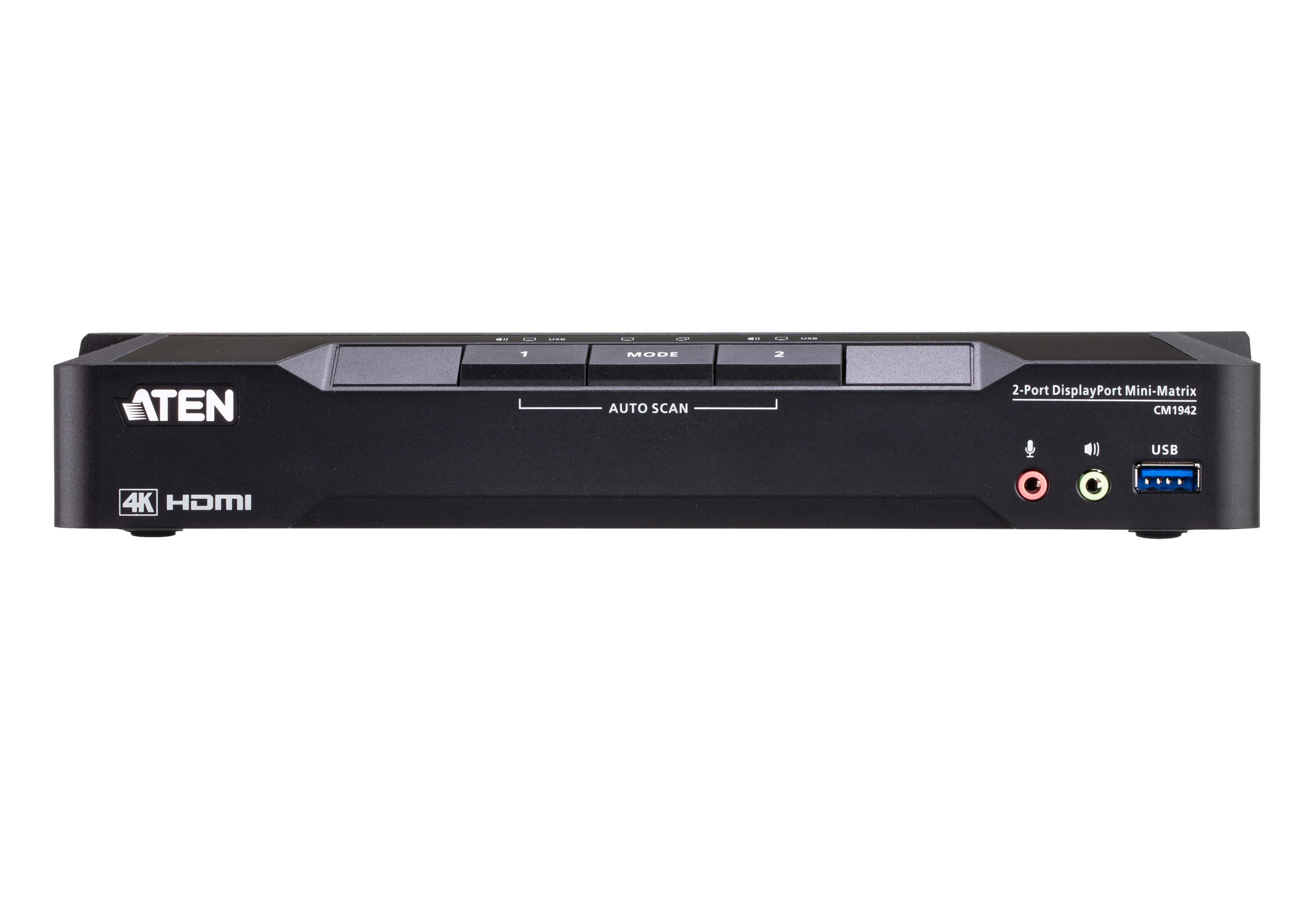

2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

Name: 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
Brand: ATEN
SKU: CM1942

CM1942

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Mini-Matrix KVM комутатор с два дисплея, при който една USB/HDMI конзола управлява 2 DisplayPort компютъра при до 4096 x 2160 @ 60 Hz. Портът се избира и с движение на курсора на мишката (Boundless).

Характеристики

One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
Two PC Operation Modes: - Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors - Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus
Computer selection via pushbuttons, hotkeys, mouse wheel, mouse cursor, and remote port selector

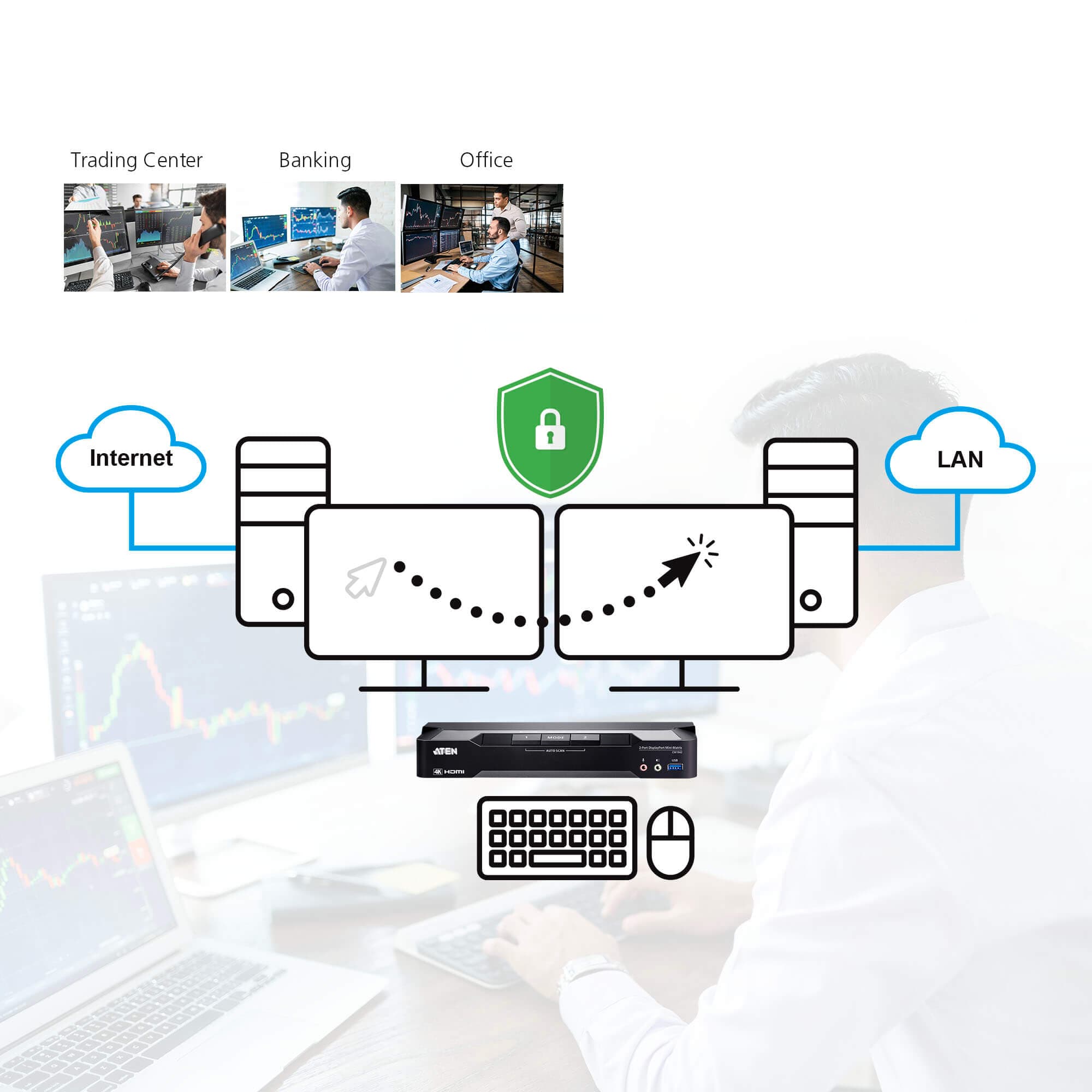

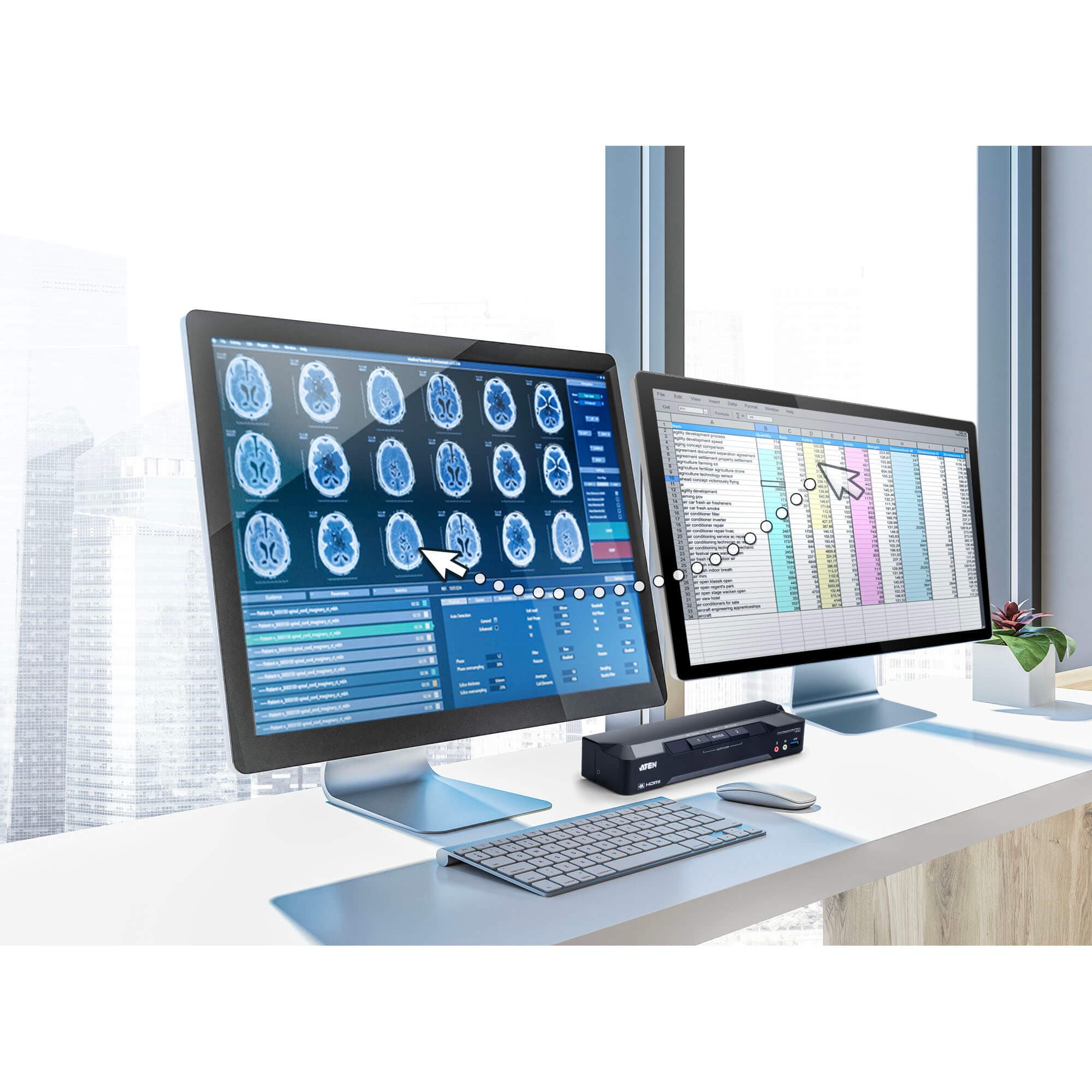

Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
Audio Mixer Mode – mixes up to two audio sources as one audio output
DisplayPort 1.2 , HDMI, and HDCP compliant
Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Power on detection
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Console keyboard emulation / bypass feature supports most multimedia keyboards
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards

Спецификация

Връзки към компютри: 2
Избор на порт: Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector

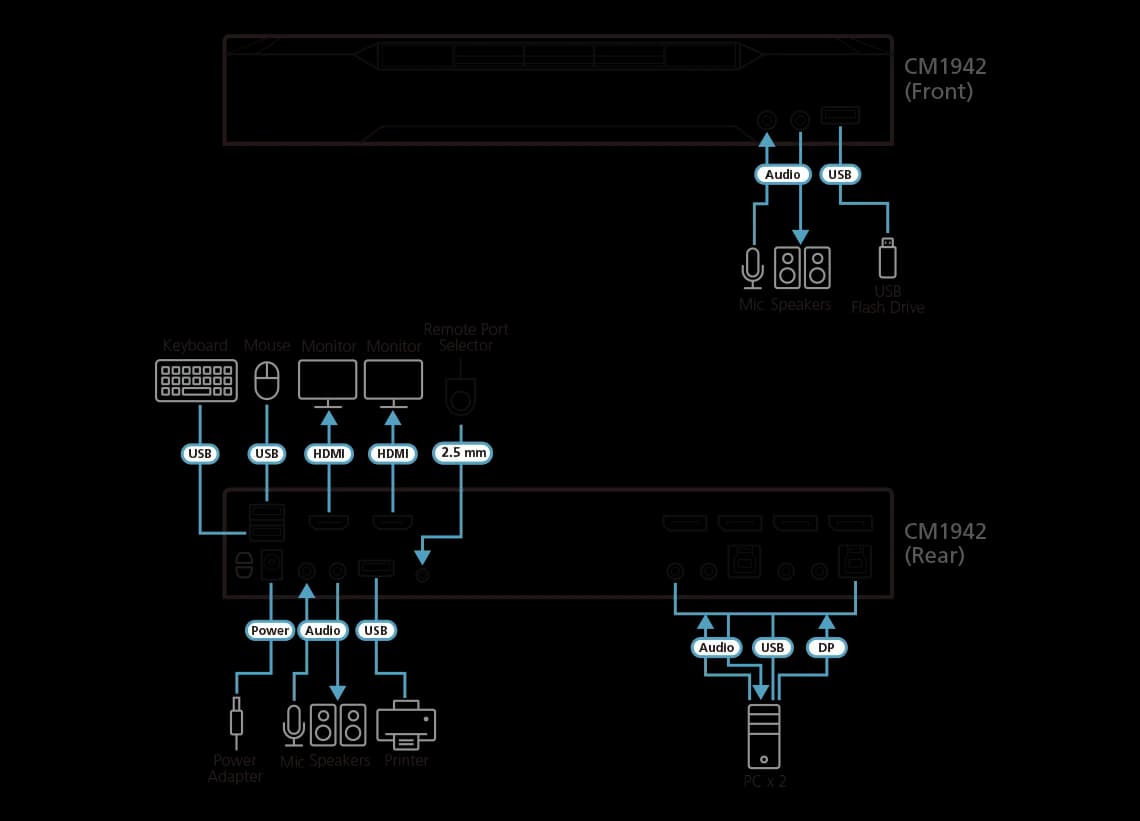

Конектори

Конзолни портове: 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

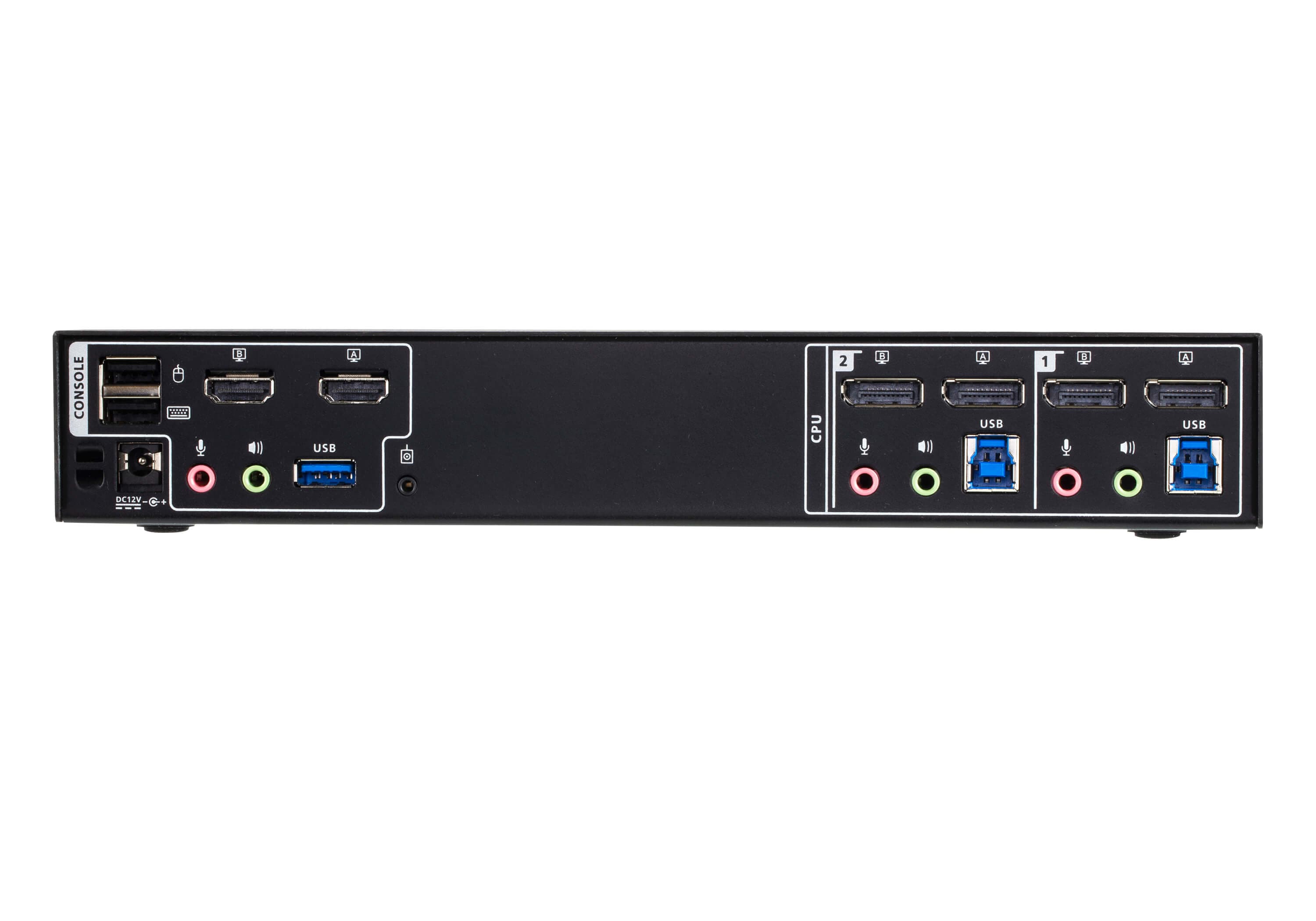

KVM портове (компютри): 2 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Дистанционен избор на порт: 1 x 2.5mm Audio Jack Female
Захранване: 1 x DC Jack
USB хъб: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Бутони и превключватели

Избран: 3 x Pushbutton

Индикатори

Аудио: 2 (Green)
KVM: 2 (Orange)
USB: 2 (Green)
Режим на работа: 2 (Orange)

Емулация

Клавиатура / мишка: USB
Видео: 4096 x 2160 @ 60Hz
Интервал на сканиране: 1-99 Seconds (Default: 5 sec.)
Консумация: DC12V:11.58W:97BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0-40°C
Температура на съхранение: -20-60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.64 kg ( 1.41 lb )
Размери (Д x Ш x В): 26.00 x 7.18 x 4.25 cm (10.24 x 2.83 x 1.67 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
