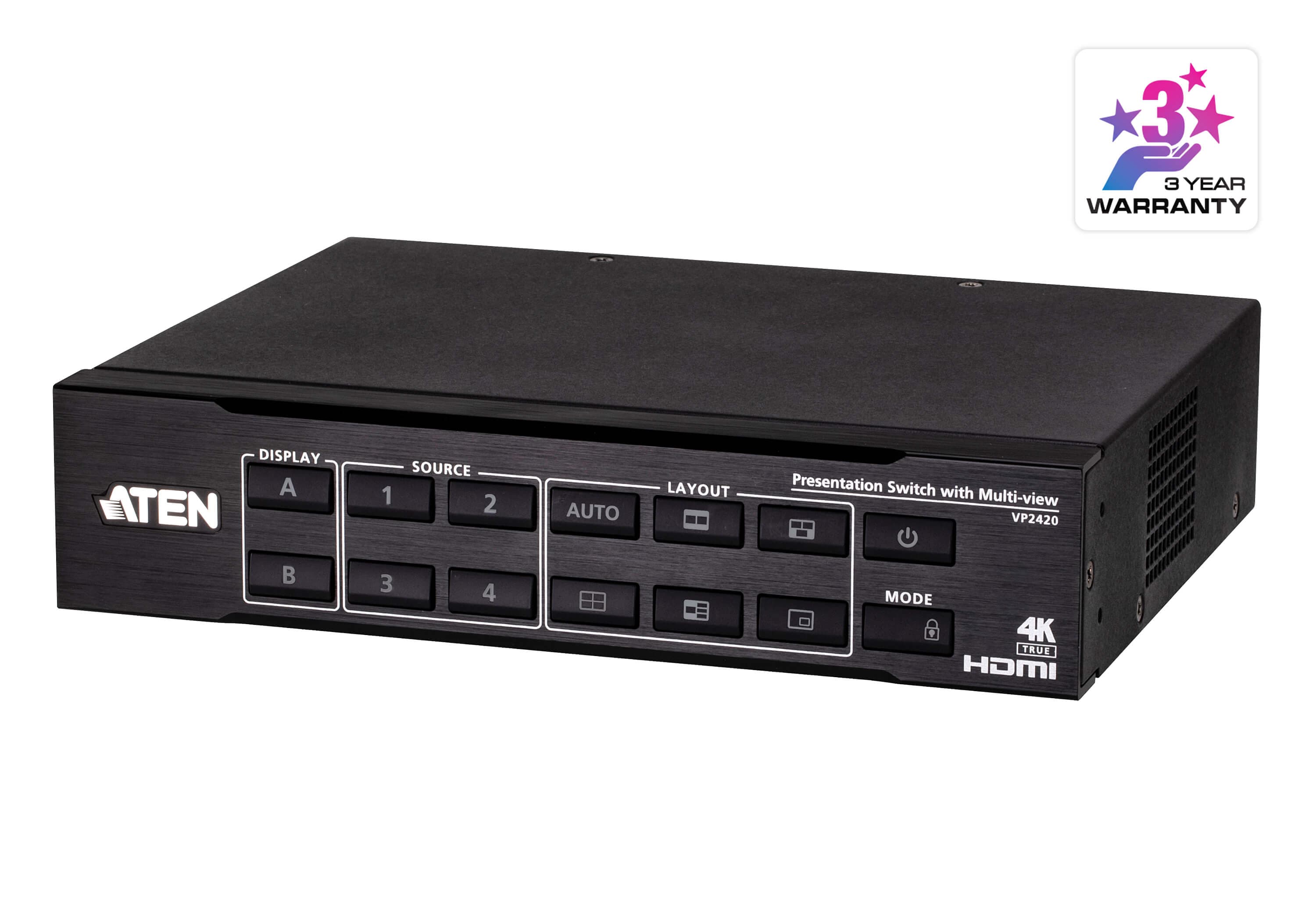

4 x 2 True 4K HDMI Presentation Switch with Multi View
VP2420

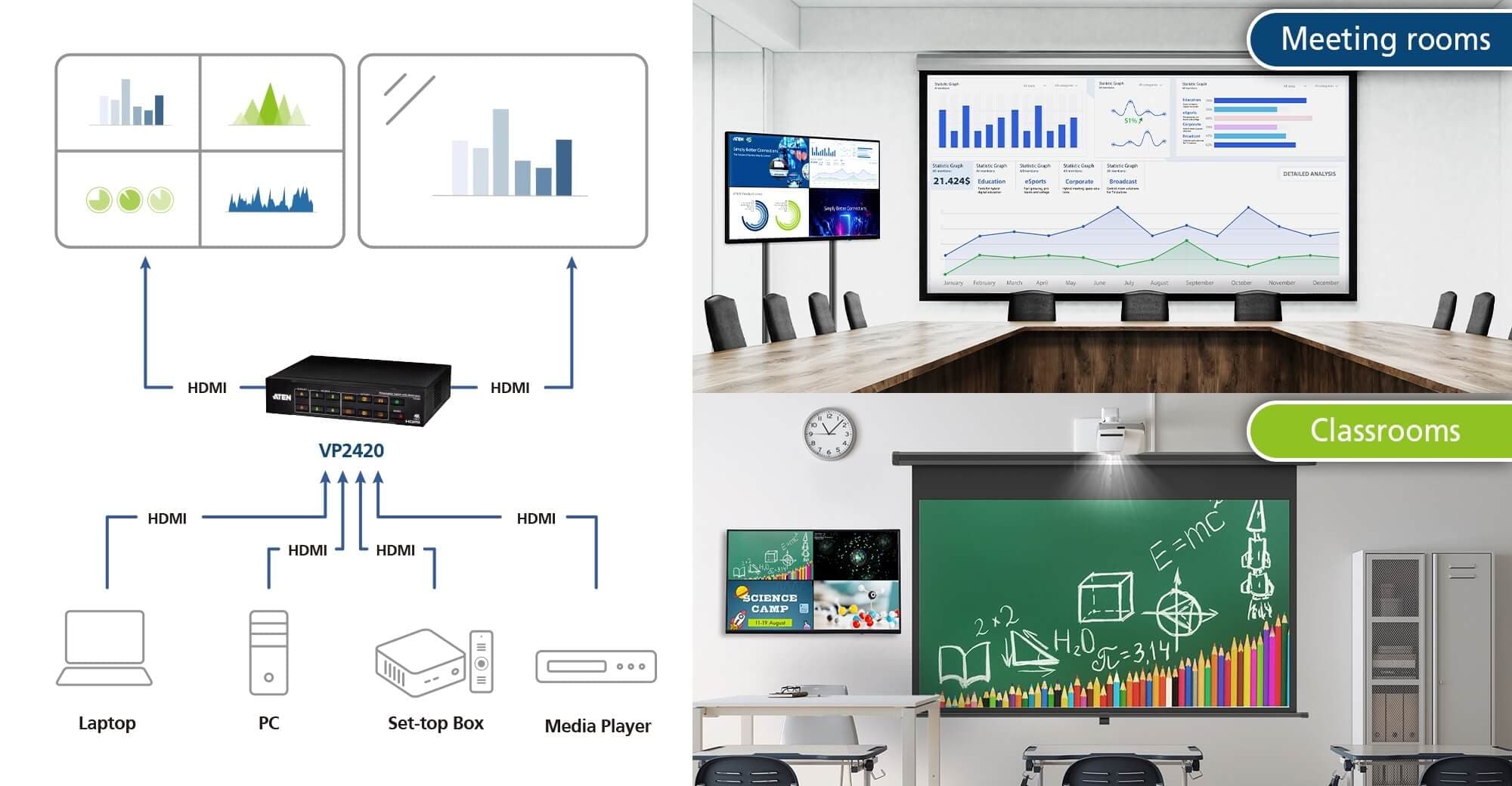

Презентационен превключвател с 4 HDMI входа и 2 изхода при True 4K до 4096 x 2160 @ 60Hz (4:4:4). Multi View режими — PiP, PbP, троен и четворен изглед — и превключване почти без прекъсване.
Характеристики
- Supports 4 × HDMI inputs and 2 × HDMI outputs

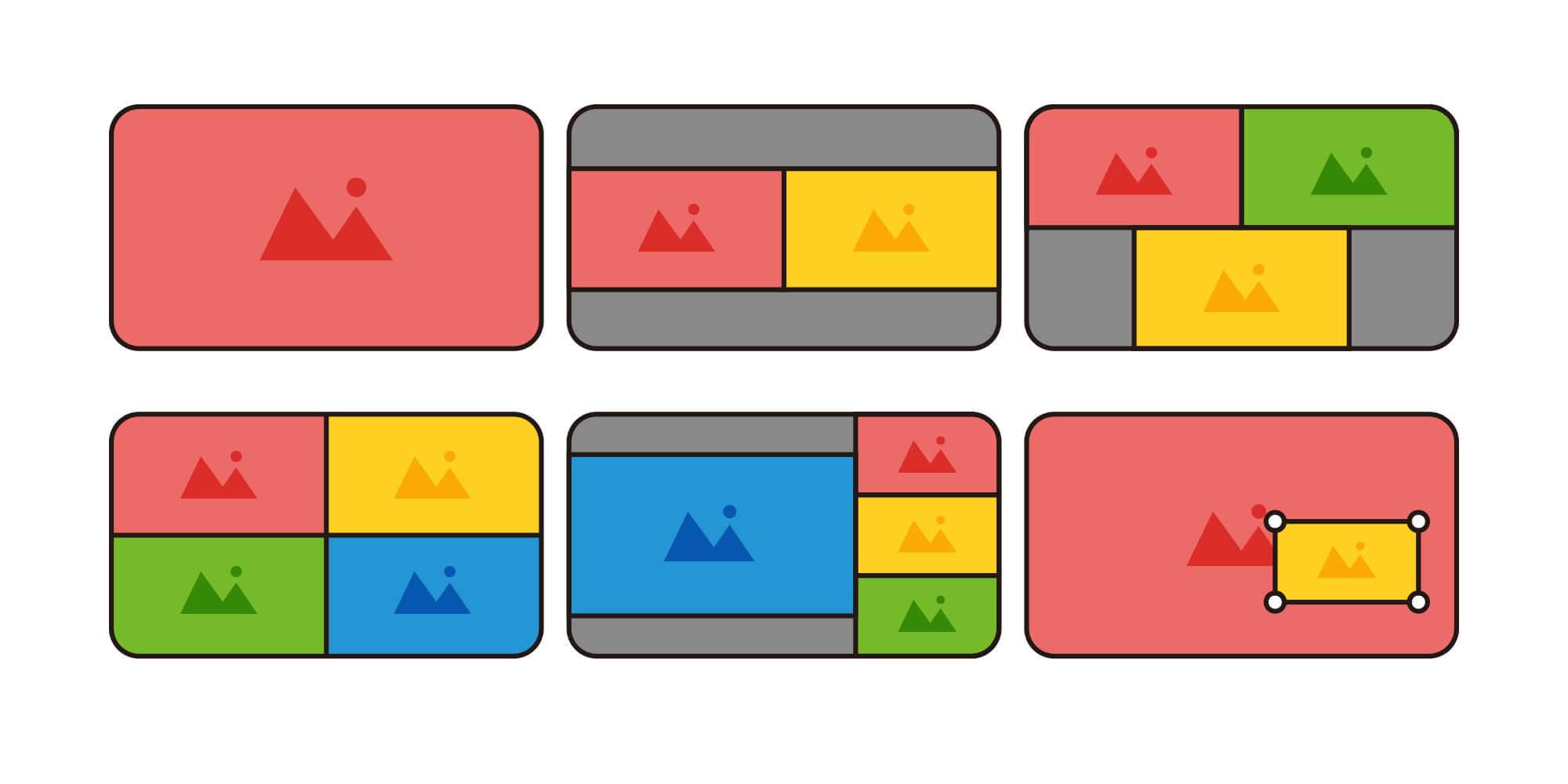

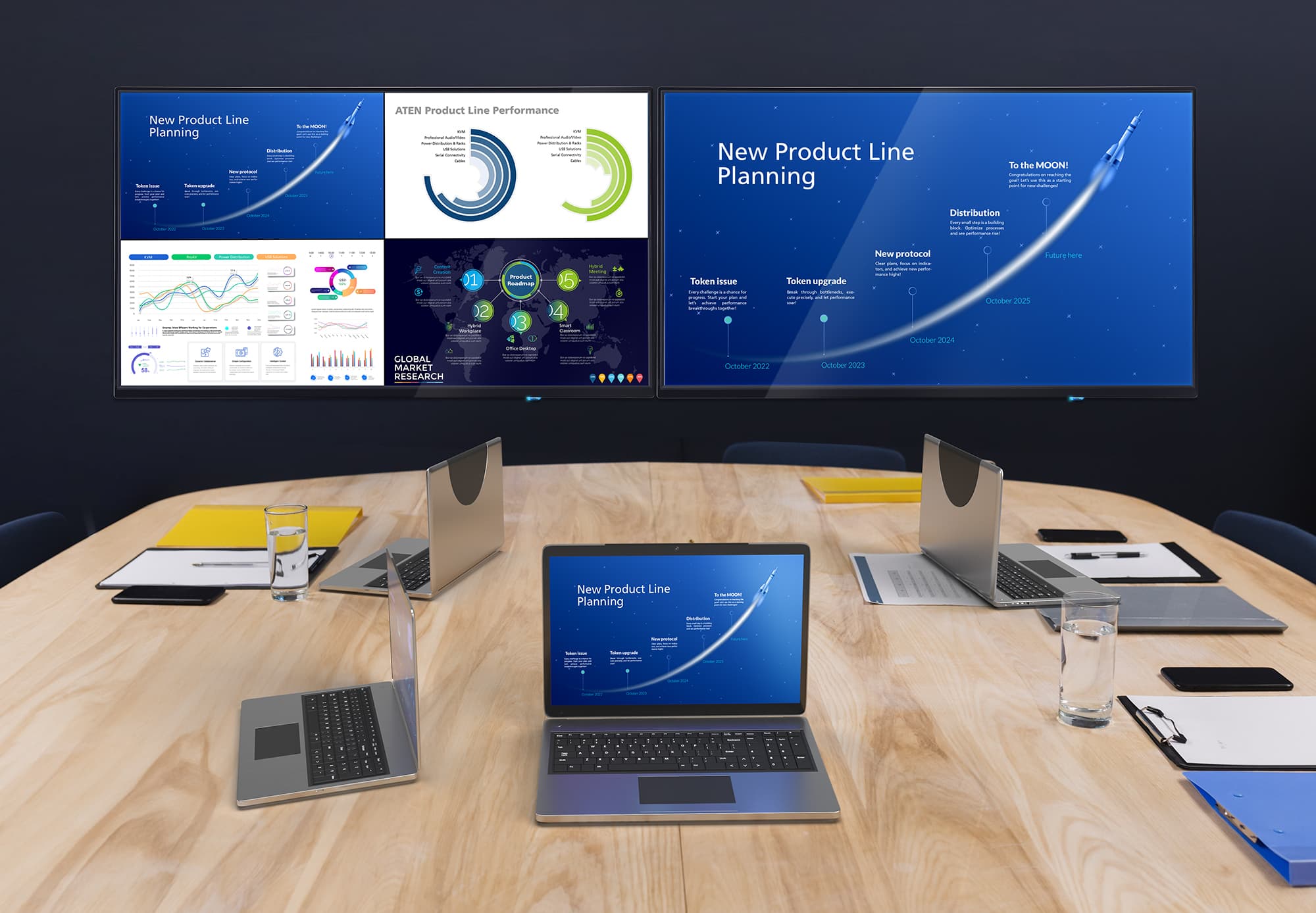

- Supports Multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, and Auto/Manual layout modes

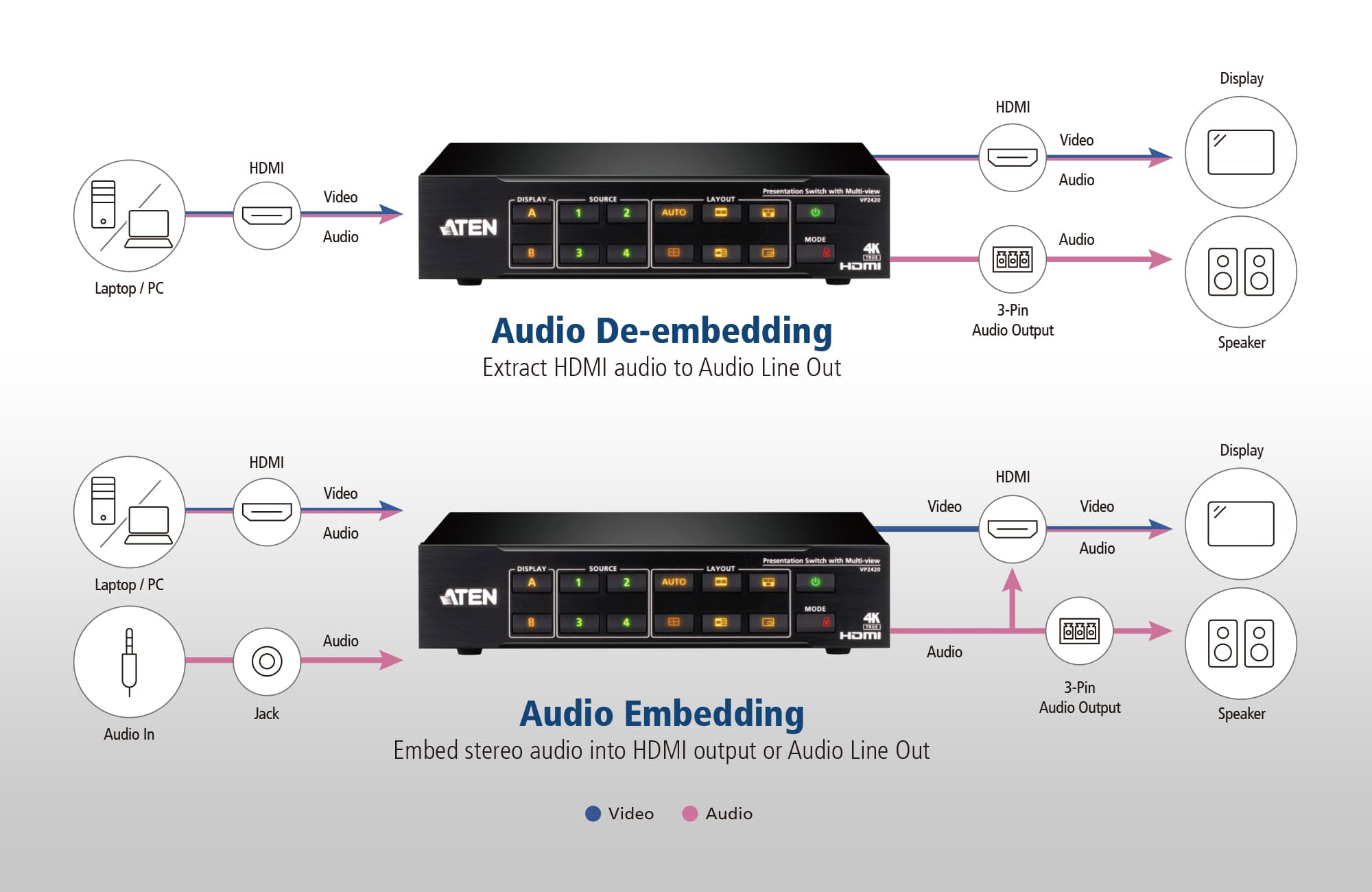

- Supports audio embedding and de-embedding
- Seamless switching* at near-zero-second speed
- Auto switching – automatically detects and switches to the latest active source connection
- Supports up to 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4) and 4K HDR
- Built-in True 4K scaler – supports video upscaling to True 4K
- EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (Deep Color, 4K); HDCP 2.2 compliant

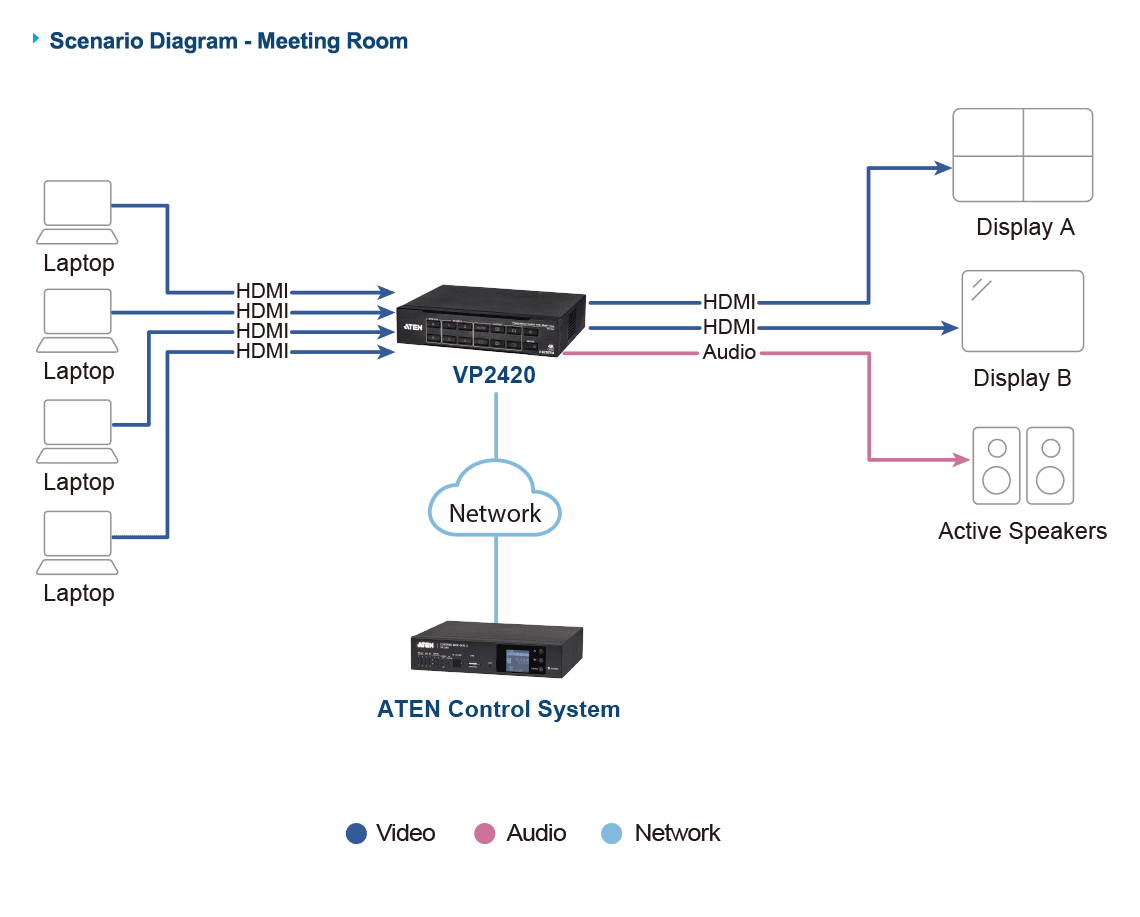

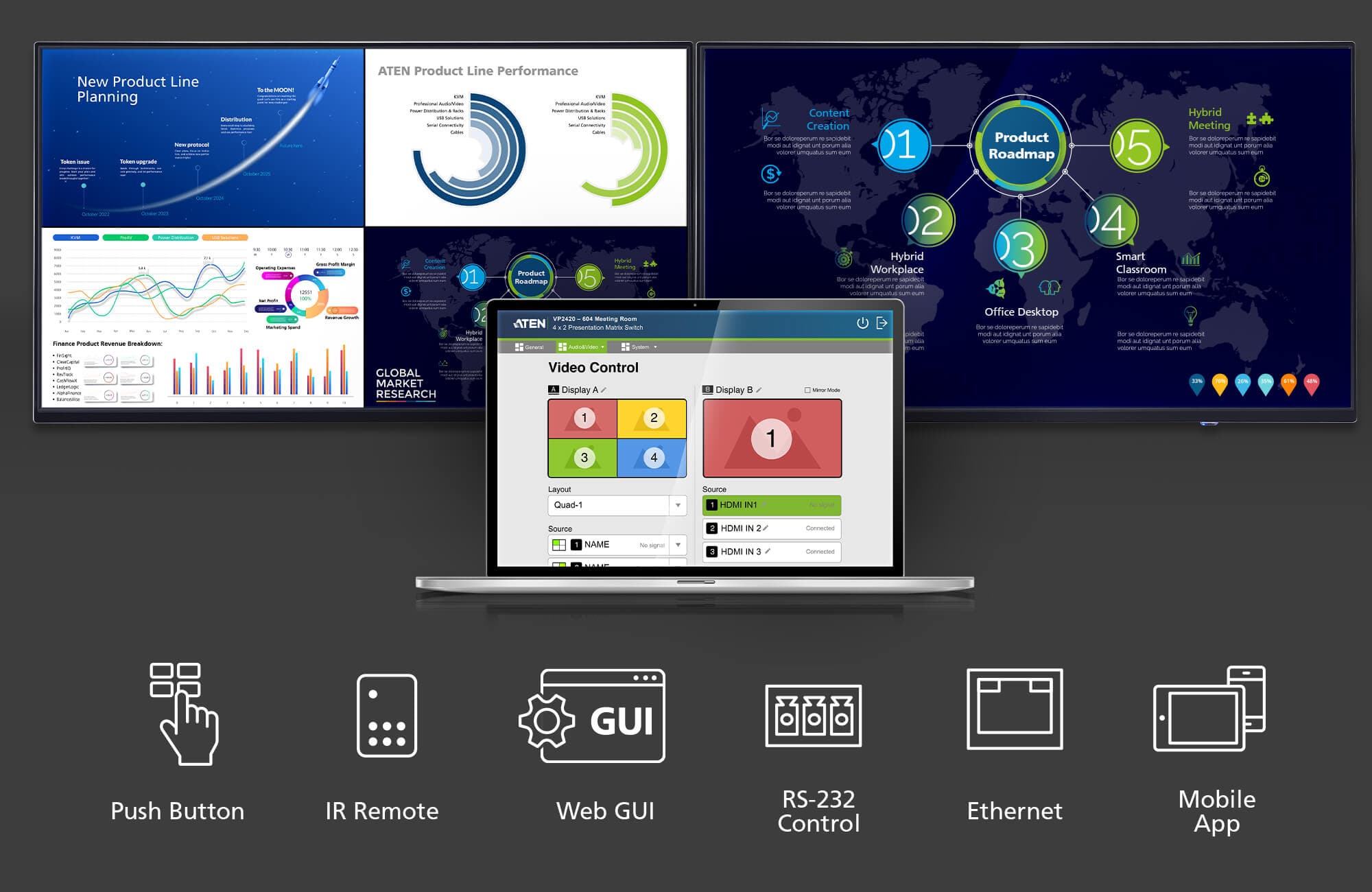

- Multiple control options – front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app
- Consumer Electronics Control (CEC)
- Can be cascaded up to 2 levels by connecting additional 4 VP2420 units to reach the maximum of 16 video sources being simultaneously displayed
- Long distance transmission – up to 5m via a High Speed HDMI cable
- Supports stand-by mode for power saving and fast waking up
- Rack-mountable
- All-metal casing enhances durability * Note: The function is only available on Display A and applicable to single port switching. Multiview layout switching is inapplicable.

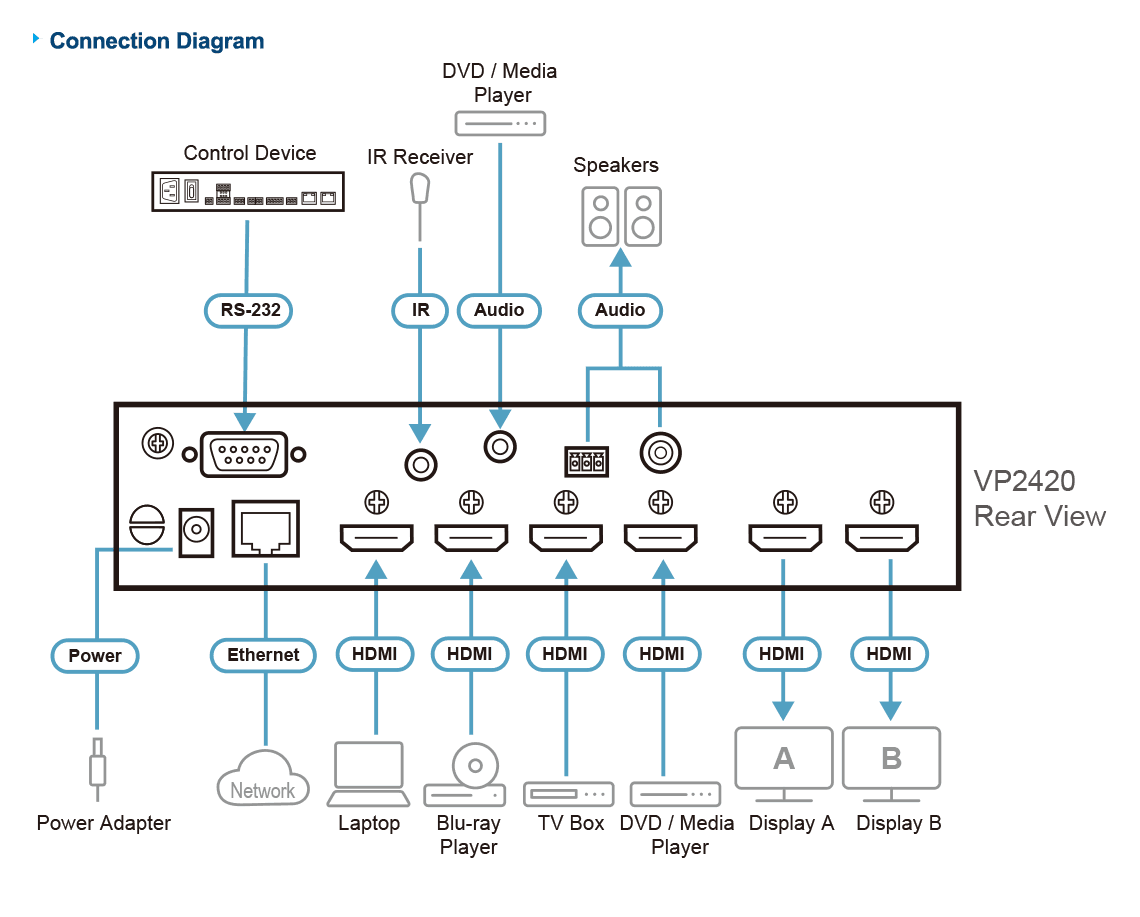

Видео вход
- Интерфейси
- 4 x HDMI Type A female (Black)
- Макс. разстояние
- HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Видео изход
- Интерфейси
- 2 x HDMI Type A female (Black)
- Макс. разстояние
- HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Видео
- Макс. резолюция
- HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Съответствие
- HDMI (Deep Color, 4K); 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Аудио
- Вход
- Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
- Изход
- Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole (PCM 2CH) Digital Audio: 1 x Coaxial (LPCM 2CH, Dolby Digital, DTS)
Управление
- RS-232
- 1x DB-9 Female (Black); VP device control & configuration
- IR
- 1 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female (Silver)

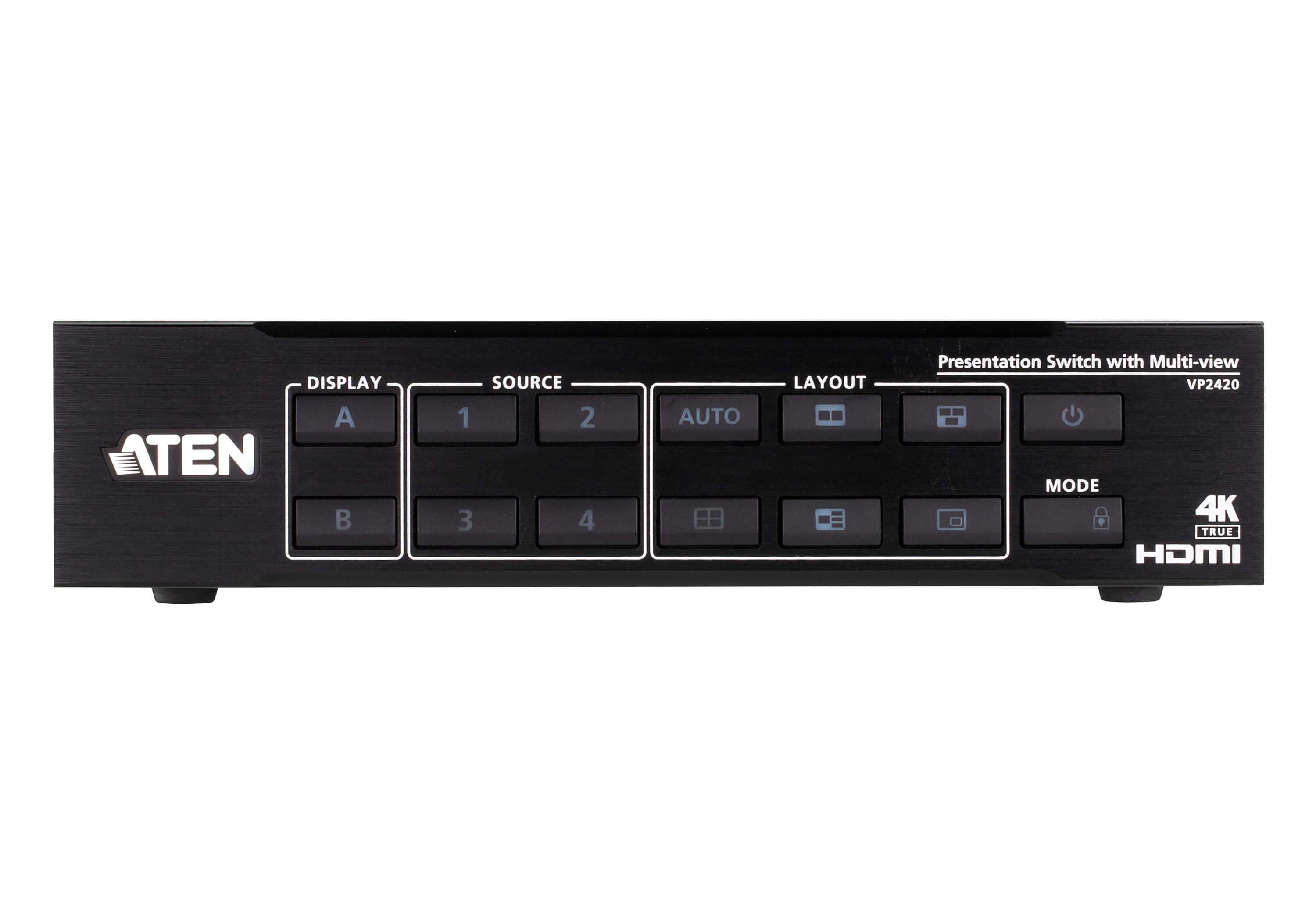

Бутони и превключватели
- Захранване
- 1 x Pushbutton (LED: Green / Orange)
- Избор на видео вход
- 4 x Pushbutton (LED: Green)
- Избор на видео изход
- 2 x Pushbutton (LED: Orange)
- Multi-View режим
- Layout: 6 x Pushbutton (Full Screen, PiP, PbP, Triple/ Quad multi-view)
- Избор
- Mute: 1 x Pushbutton Mode / Unlock: 1 x Pushbutton
- EDID настройки
- EDID Mode: ATEN Default / Display A / Remix

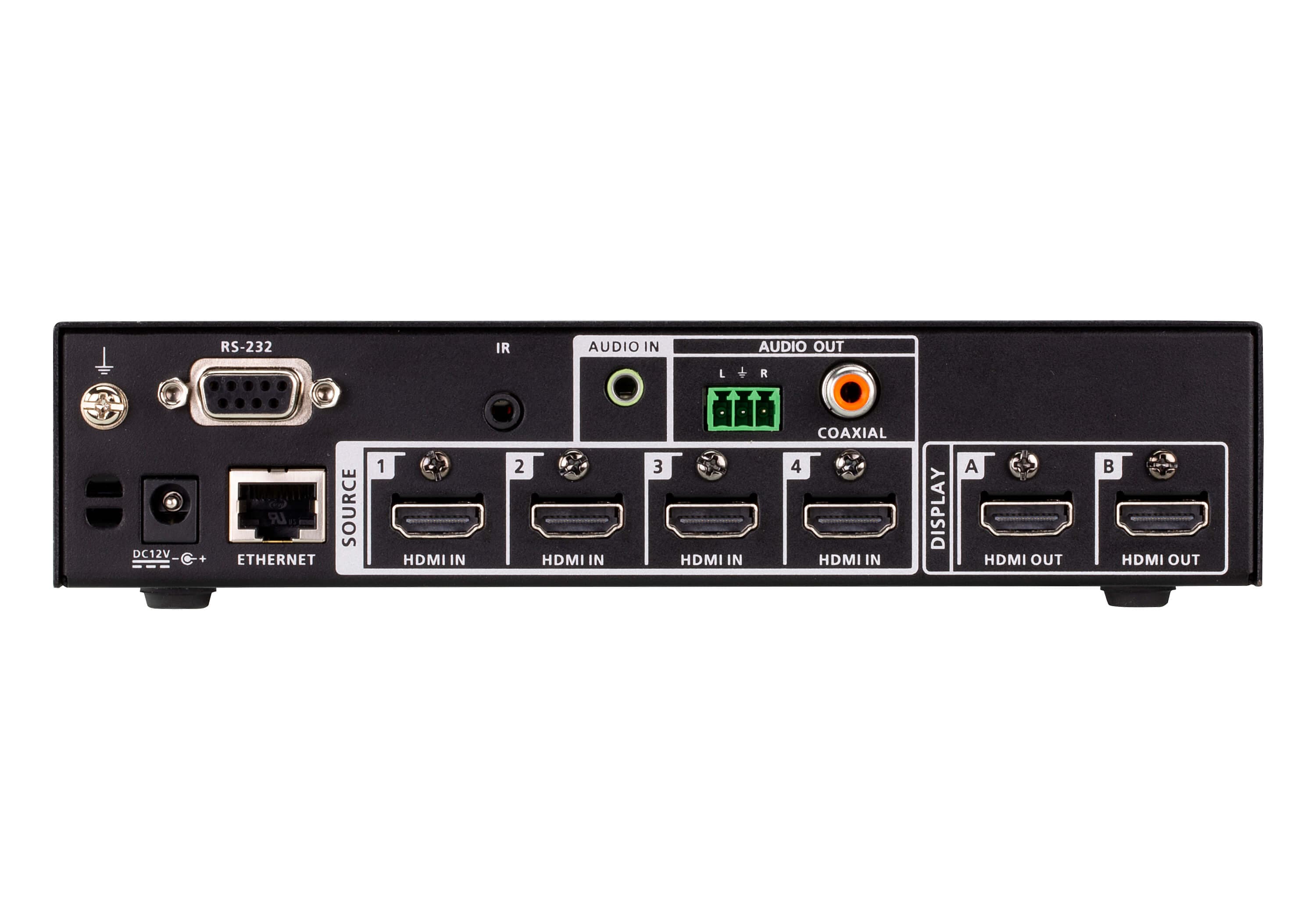

Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC12V:17.1W:80BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.05 kg ( 2.31 lb )
- Размери (Д x Ш x В)
- 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- Изходни резолюции на дисплей A (режим скалер)
- 640x480 @ 60 Hz
4096x2160 @ 50/60 Hz YUV420
- Входни/изходни резолюции на дисплей B (режим байпас)
- 640x480 @ 60/72/75 Hz
- 800x600 @ 56/60/72/75 Hz
- 480p60 (4:3) / (16:9)
- 1024x768 @ 60/70/75 Hz
- 576p50 (4:3) / (16:9)
- 1280x800 @ 60 Hz
- 640x480
- 1280x1024 @ 60/75 Hz
- 720p50/60
- 1400x1050 @ 60 Hz
- 1080p24/25/30/50
- 1440x900 @ 60 Hz
- 1080i50/60
- 1600x1200 @ 60 Hz
- 3840x2160p24/25/30/50/60
- 1680x1050 @ 60 Hz
- 4096x2160p24/25/30/50/60
- 1920x1080 @ 60/120 Hz
- 3840x2160p50/60 (4:2:0)
- 1920x1200 @ 60 Hz CVT(RB) / (RB)
- 4096x2160p50/60 (4:2:0)
