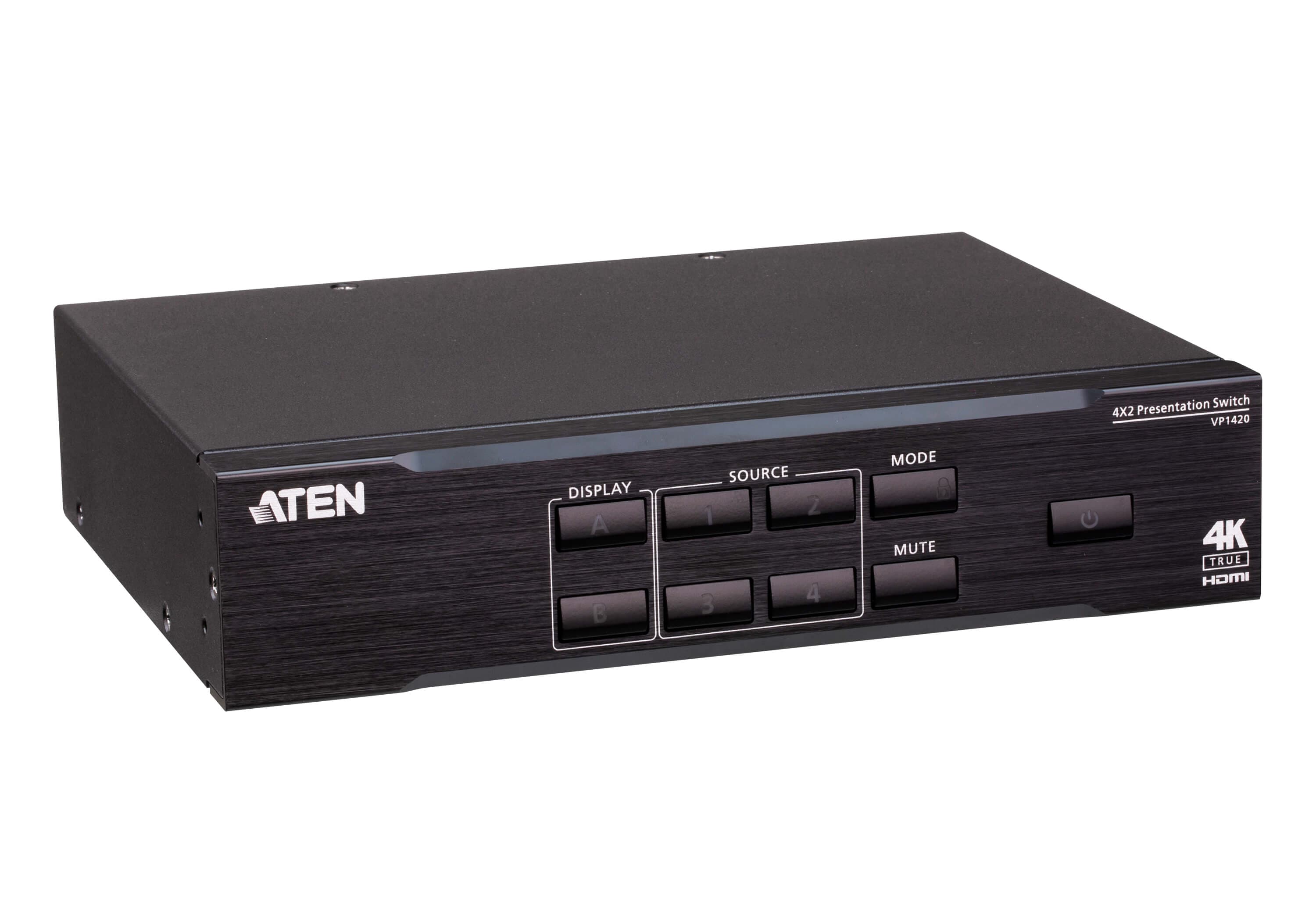

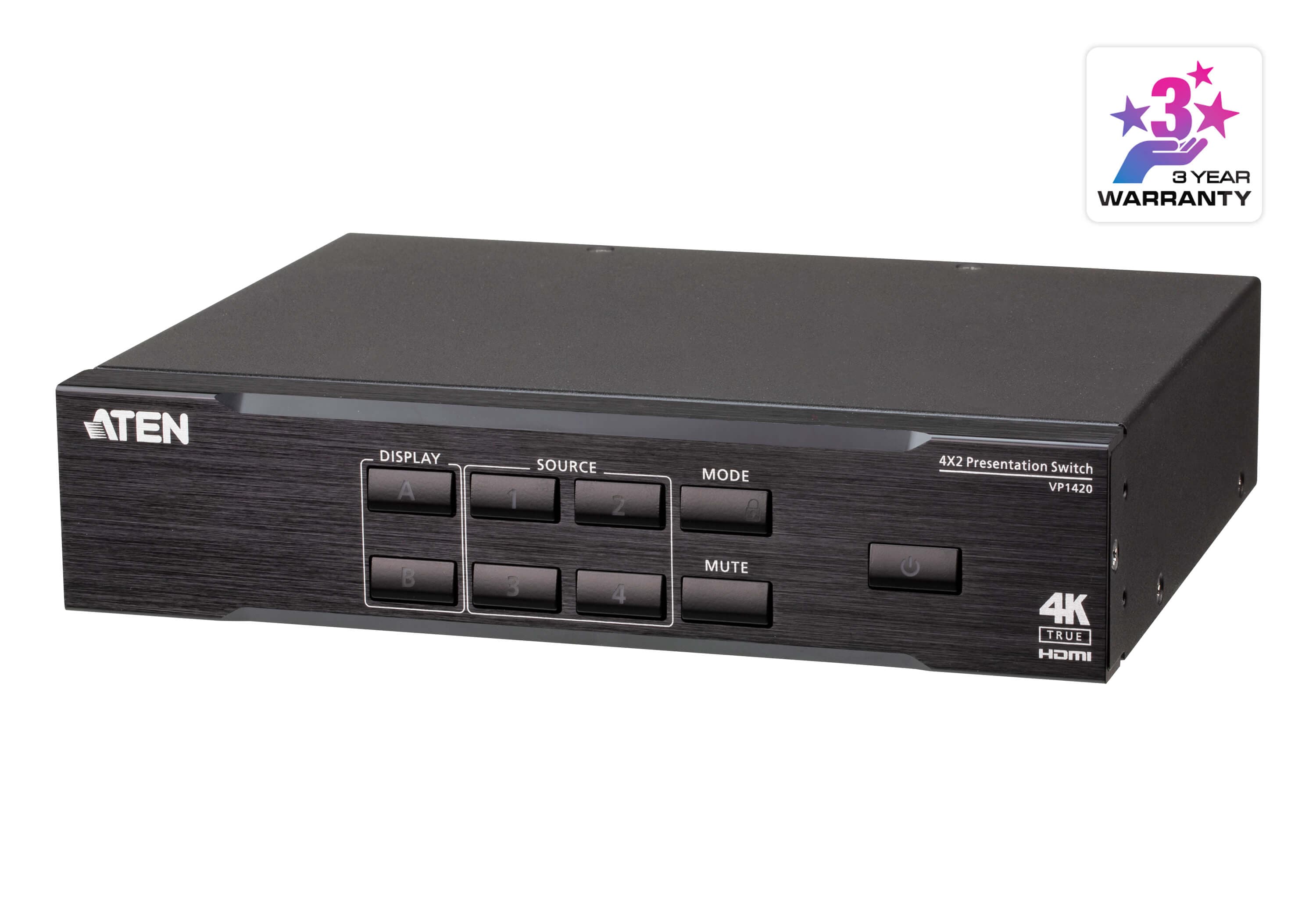

4 x 2 True 4K Presentation Matrix Switch
VP1420
Матричен превключвател за презентации: 4 входа (3 HDMI, 1 VGA) към 2 HDMI изхода при True 4K. Вгражда стерео аудио в HDMI потока или го извежда на отделен линеен изход.
Характеристики
- Supports multi-format 4 inputs – 3 HDMI and 1 VGA inputs
- 2 HDMI outputs
- Audio embedding – stereo audio can be embedded into HDMI output or separated to stereo line out
- Audio de-embedding – HDMI audio can be extracted to stereo line out
- Auto switching – automatically detects and switches to a new source as soon as it is connected
- Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI)
- Supports 4K HDR
- Scaler* – supports video upscaling to 4K for display A and downscaling to 1080p for display B
- EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant Note: The VP1420 scaler only supports upscaling 1080p to 4K for display A, and downscaling 4K to 1080p for display B. Other resolution scaling is inapplicable.
- Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
- View and control via ATEN Video Presentation Control App in a swift and agile way
- Supports stand-by mode for power saving and fast waking up
- Consumer Electronics Control (CEC) support
- Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad

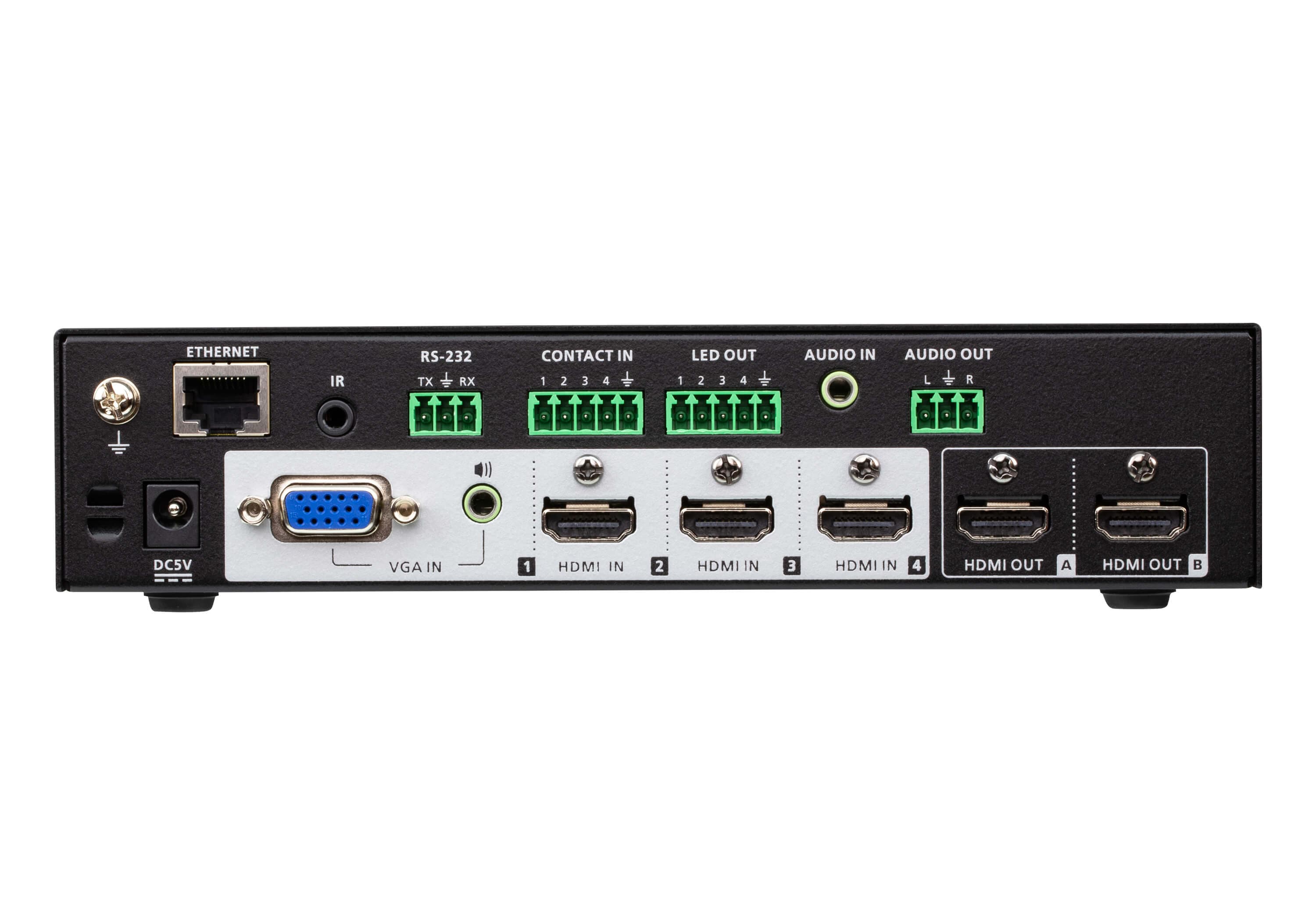

Видео вход
- Интерфейси
- 3 x HDMI Type A female (Black) 1 x VGA (HDB-15) Female (Blue)
- Макс. разстояние
- HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m VGA: 1080p@60Hz at 15m
Видео изход
- Интерфейси
- 2 x HDMI Type A female (Black)
- Макс. разстояние
- HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Видео
- Макс. резолюция
- HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) VGA: Up to 1080p@60Hz
- Съответствие
- HDMI (3D, Deep Color, 4K); 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Аудио
- Вход
- Stereo Audio (VGA): 1 x mini stereo Jack female (Green) Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
- Изход
- Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
Управление
- RS-232
- 1 x Captive Screw Connector, 3-pole
- IR
- 1 x Mini Stereo Jack Female (Black)
- Ethernet
- 1 x RJ-45 Female (Silver)
- Контактен вход
- 1 x Captive Screw Connector, 5-pole
- LED изход
- 1 x Captive Screw Connector, 5-pole LED out power: +5 VDC, 0.2 A

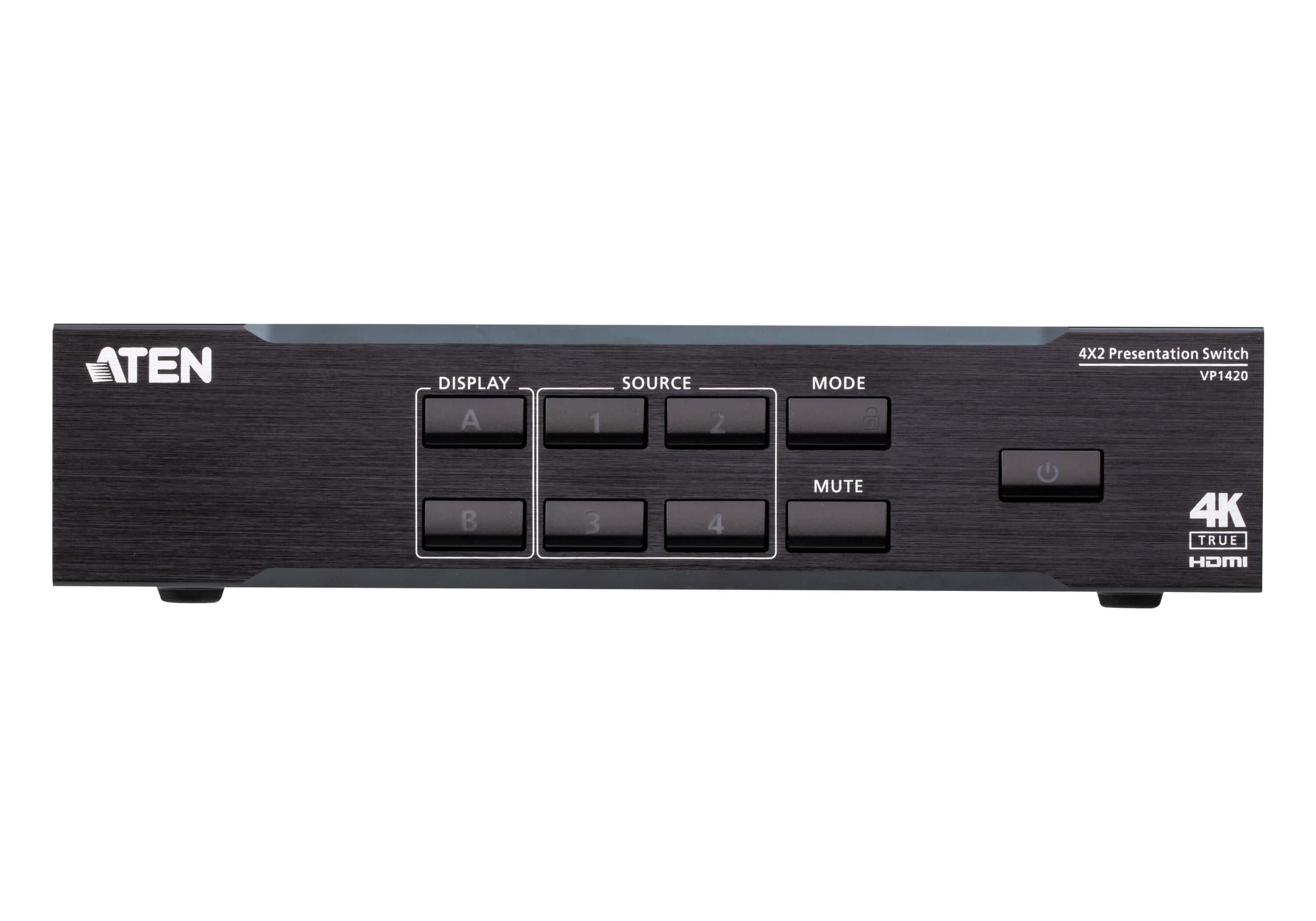

Бутони и превключватели
- Захранване
- 1 x Pushbutton (LED: Green / Orange)
- Избор на видео вход
- 4 x Pushbutton (LED: Green)
- Избор на видео изход
- 2 x Pushbutton (LED: Orange)
- Избор
- Mute: 1 x Pushbutton Mode / Unlock: 1 x Pushbutton
- EDID настройки
- EDID Mode: ATEN Default / Display A / Remix
Конектори
- Захранване
- 1 x DC Jack (Black)
- Консумация
- DC5V:7.21W:38BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.09 kg ( 2.4 lb )
- Размери (Д x Ш x В)
- 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
