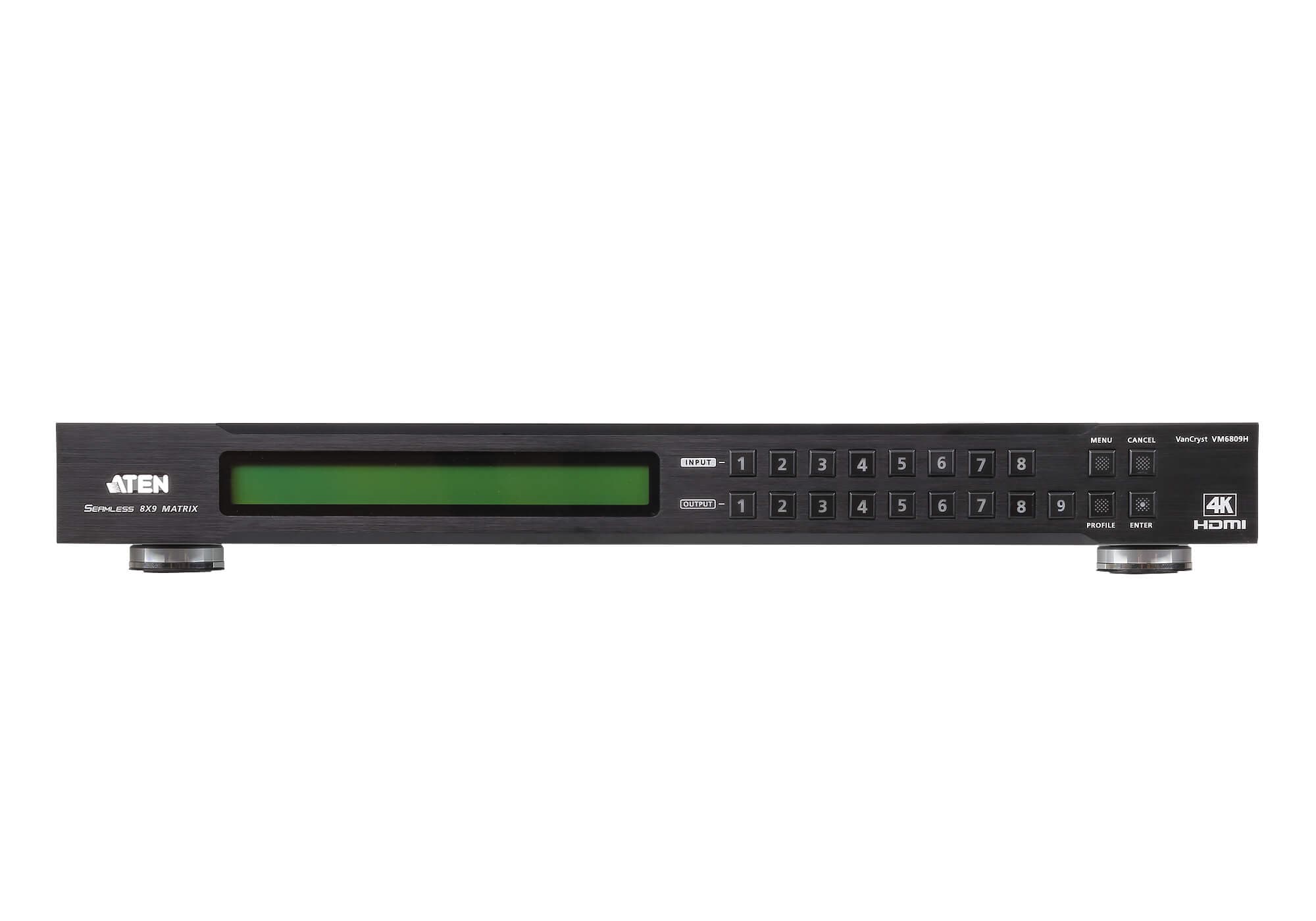

8 x 9 4K HDMI Matrix Switch with Scaler
VM6809H
HDMI матрица с 8 входа и 9 изхода и 4K скалер, който преобразува входния сигнал към родната резолюция на дисплея. Конфигурира се от предния панел, по RS-232 или Ethernet и през приложението на ATEN.
Характеристики
- 8 x 9 HDMI input/output connections
- Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web GUI or Telnet
- View and control via ATEN Video Matrix Control App in a swift and agile way
- 4K Scaler – features a 4K video scaling function to convert input resolutions to the display’s native resolutions
- Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
- EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- 4K Video Wall using Lower-Resolution Displays – split a 4K signal to four 1080p displays or nine 720p displays to form a 2x2 or 3x3 4K video wall
- FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
- Consumer Electronics Control (CEC) supported*
- Audio-enabled, HDMI audio can be extracted to stereo audio
- ESD protection for HDMI
- Rack-mountable (1U design) *Note: 1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™. 2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
Видео вход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 3.0 m
Видео изход
- Интерфейси
- 9 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15 m
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.40 Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Макс. разстояние
- Up to 15 m
Аудио
- Изход
- 1 x Mini Stereo Jack Female (Green)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black); Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
- Ethernet
- 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)
Конектори
- Захранване
- 1 x 3-prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC;50-60Hz;1.0A
- Консумация
- AC110V:79.5W:373BTU/h AC220V:78.1W:366BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 7.05 kg ( 15.53 lb )
- Размери (Д x Ш x В)
- 43.24 x 45.03 x 4.40 cm (17.02 x 17.73 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
