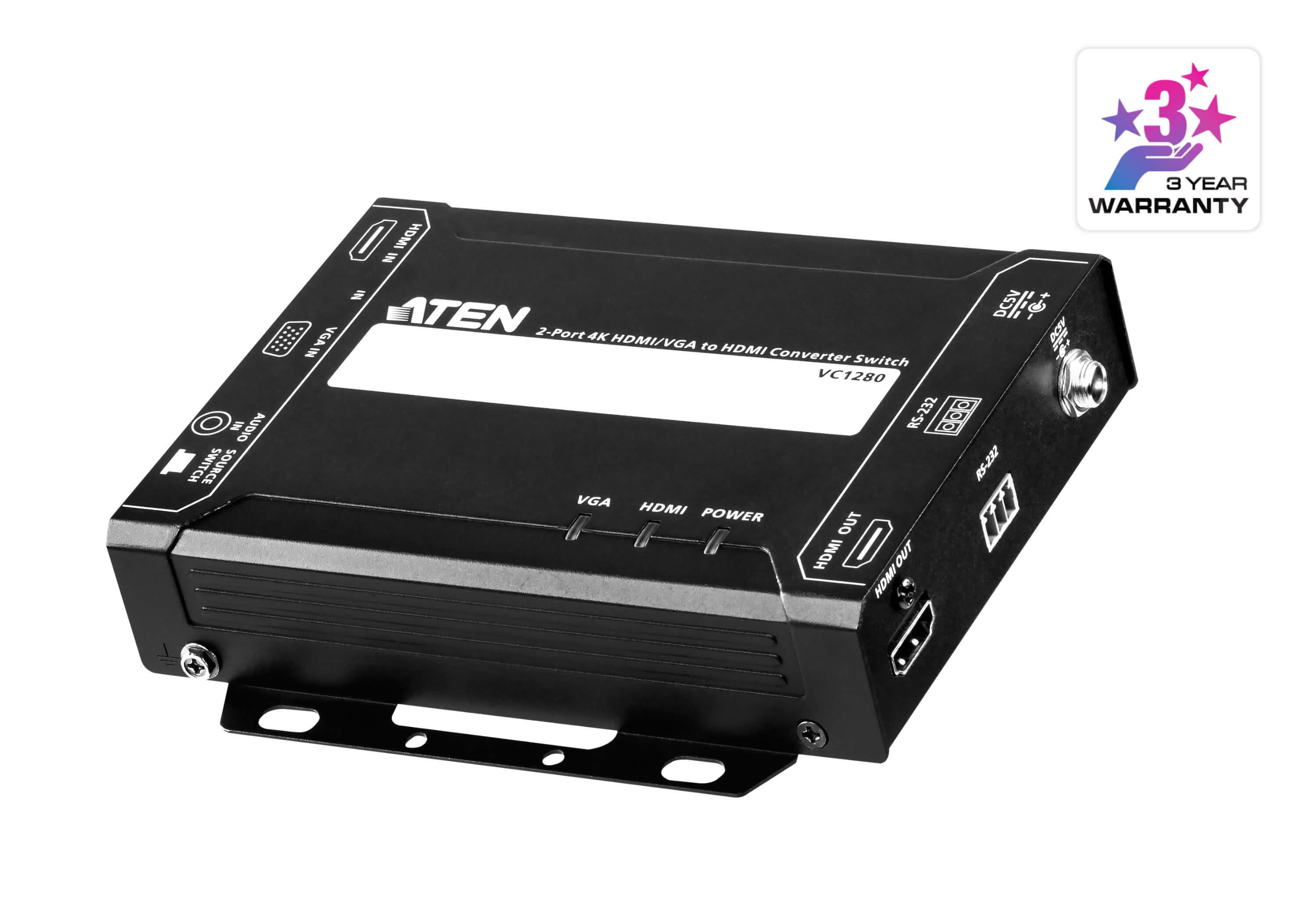

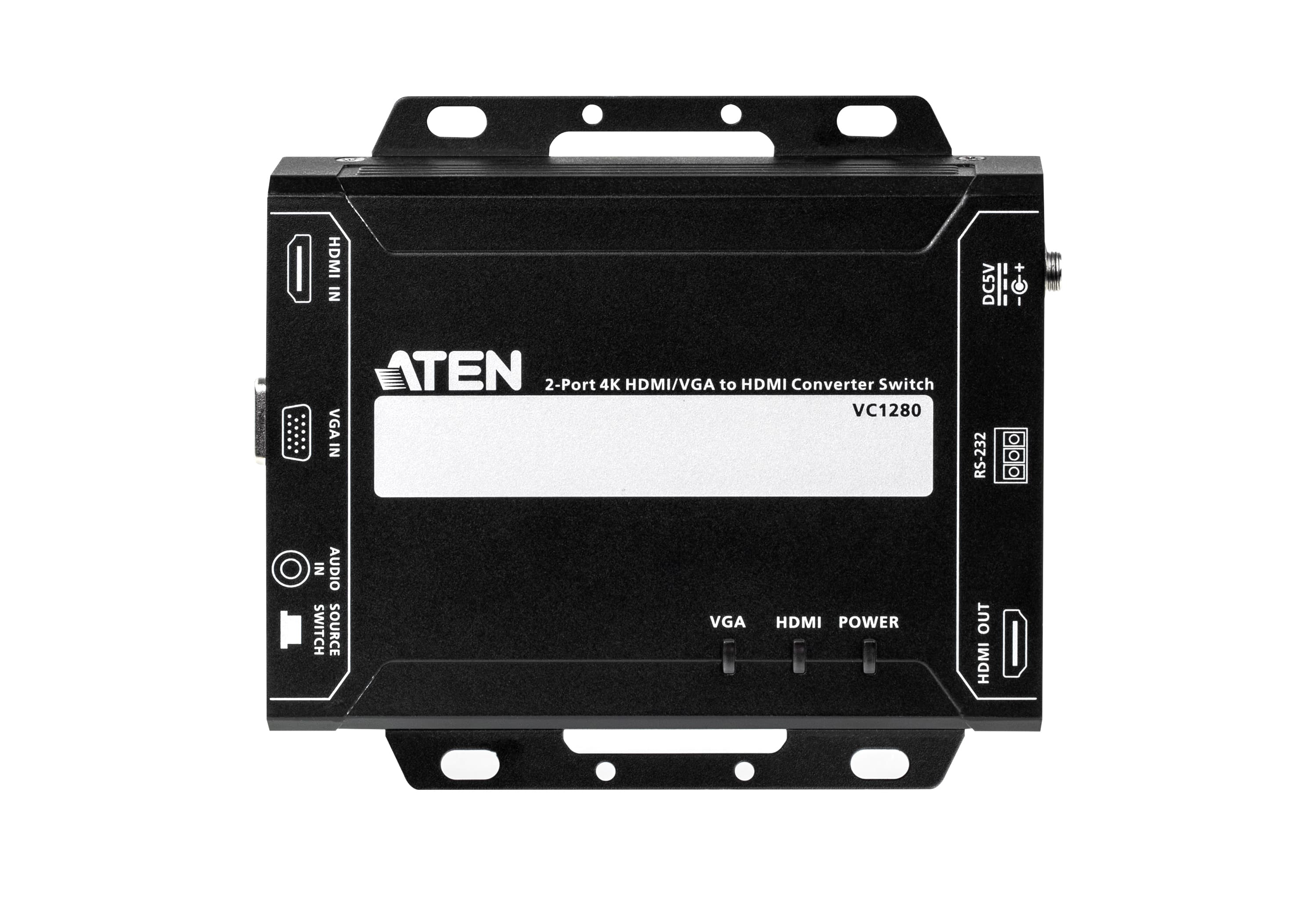

2-Port 4K HDMI/VGA to HDMI Converter Switch
VC1280
Свързва два източника – HDMI и VGA – към един HDMI дисплей, като преобразува VGA сигнала. Превключва с бутон между режими HDMI/VGA/AUTO и автоматично избира новозакачен източник; до 3840x2160@30Hz.
Характеристики
- Supports Auto Switch – the VC1280 automatically switches to a newly plugged-in source

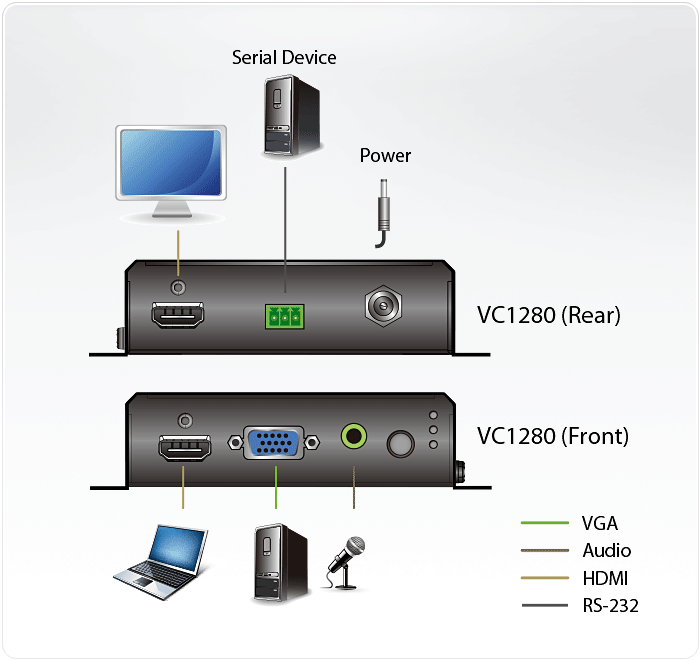

- Connects two sources (HDMI/VGA) to one HDMI display
- Converts VGA signals to HDMI output
- Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton
- HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compatible
- Superior video quality – up to 4K (3840 x 2160 @ 30Hz)
- RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices for firmware upgrade
- Supports Consumer Electronic Control (CEC)
- Plug-and-play; no software or driver installation required
- Quality and durable metal enclosure
Индикатори
- Състояние
- 3 x LED (Front - Source Switching: AUTO / HDMI / VGA) Color: Orange 3 x LED (Top - HDMI / VGA / POWER) Color: HDMI – Orange / VGA – Orange / Power - Green

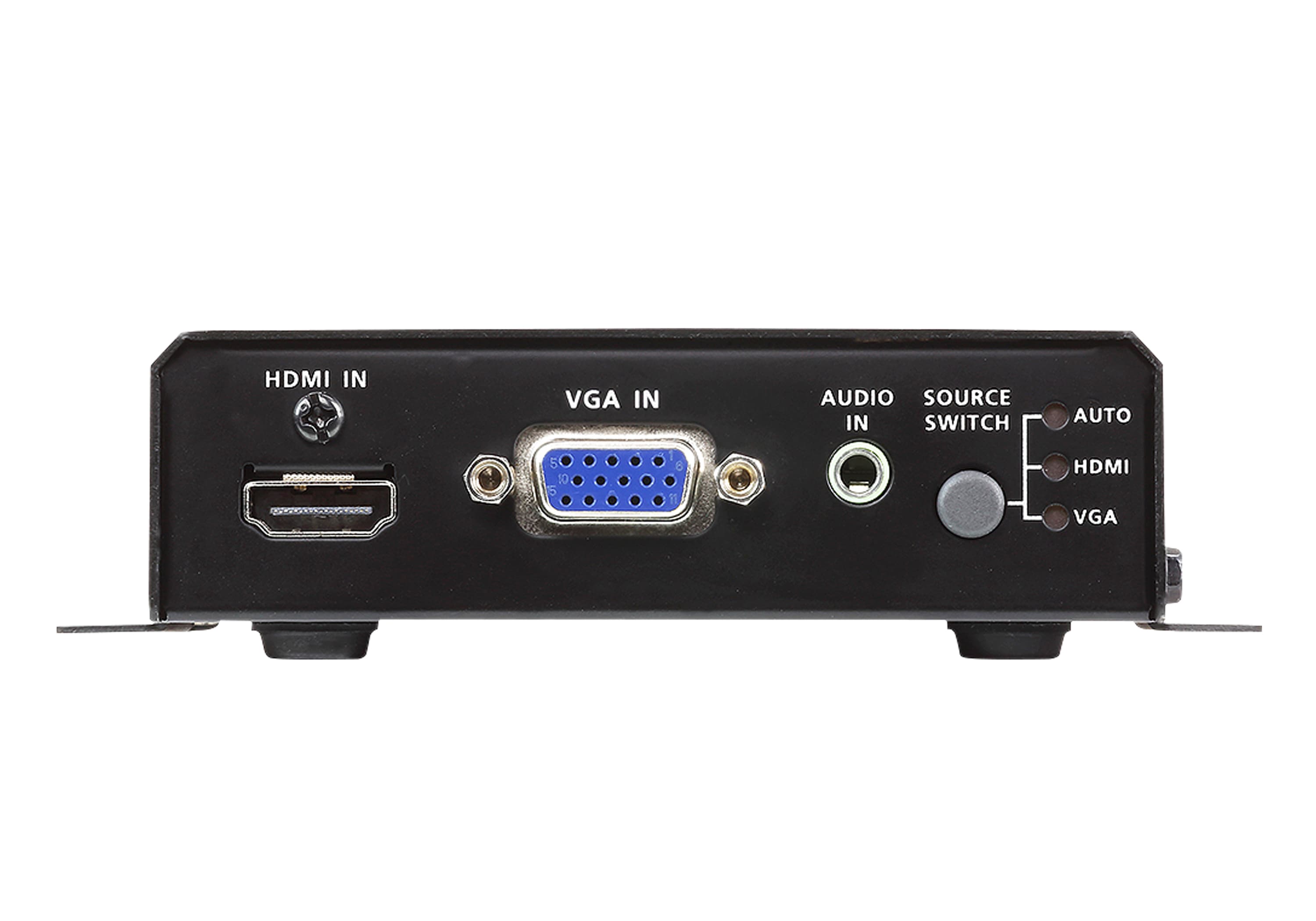

Видео вход
- Интерфейси
- 1 x HDMI (Type A Female, Black) 1 x VGA (HDB-15 VGA Female, Blue)
- Импеданс
- HDMI: 100 Ω VGA: 75 Ω
- Макс. разстояние
- 1.8 m - VGA (1920 x 1200) 3m - HDMI (3840 x 2160@30Hz)
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI 1.4 (3D, Deep Color, 4K) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Video Input 3m - HDMI (3840 x 2160 @30Hz) 1.8m - VGA (1920 x 1200) Video Output 15m - HDMI (3840 x 2160 @30Hz)
Аудио
- Вход
- 1 x HDMI (Type A Female, Black) 1 x 3.5mm Stereo audio Jack Female (Green)
Управление
- RS-232
- FW upgrade & control: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, no parity and flow control
Бутони и превключватели
- Избор на видео вход
- Source switching: HDMI / VGA / AUTO 1 x Push Button

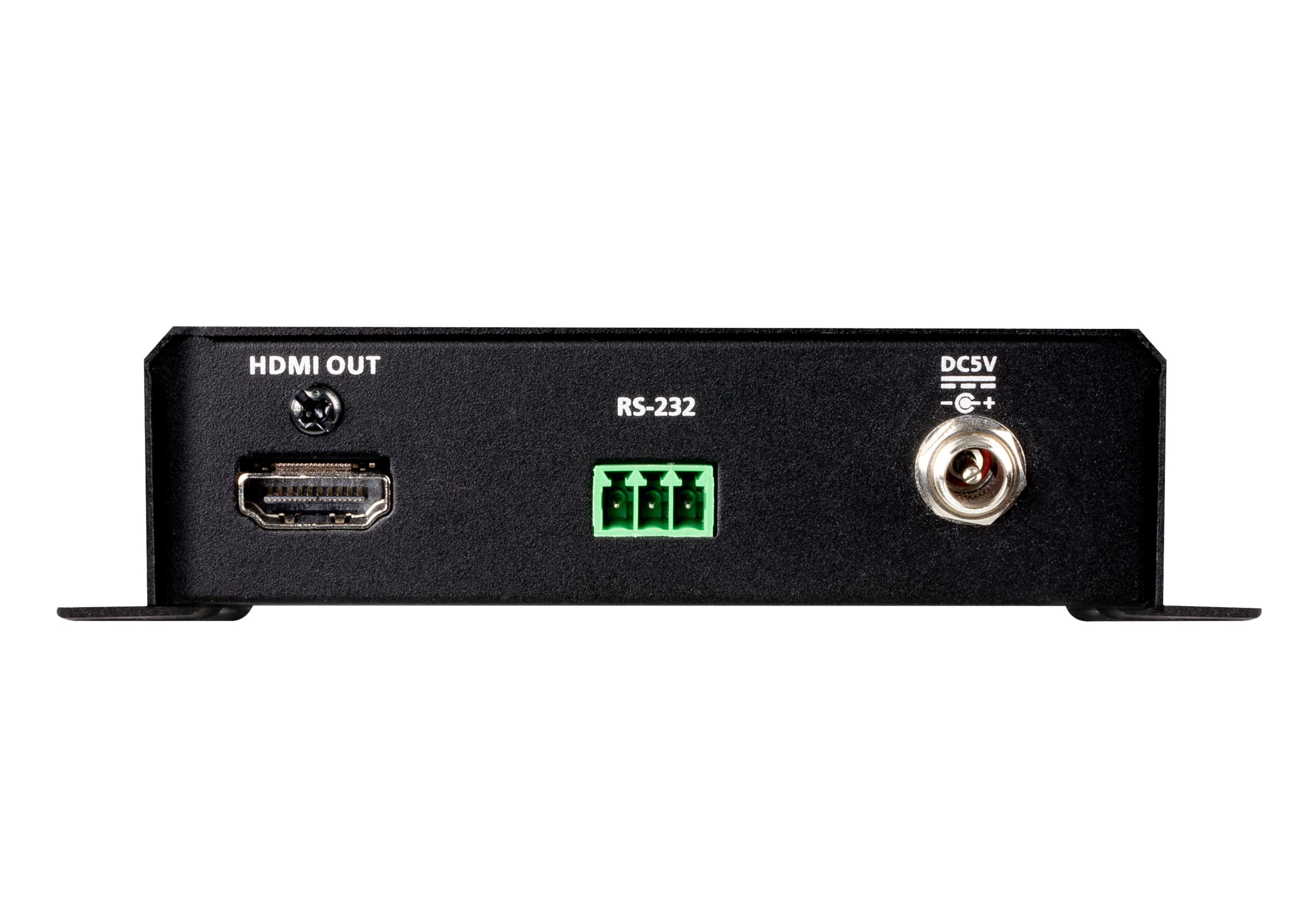

Конектори
- Захранване
- 1 x DC Jack (with locking, black)
- Консумация
- DC5V:1.8W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.43 kg ( 0.95 lb )
- Размери (Д x Ш x В) със скоба
- 14.32 x 12.30 x 3.00 cm (5.64 x 4.84 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
