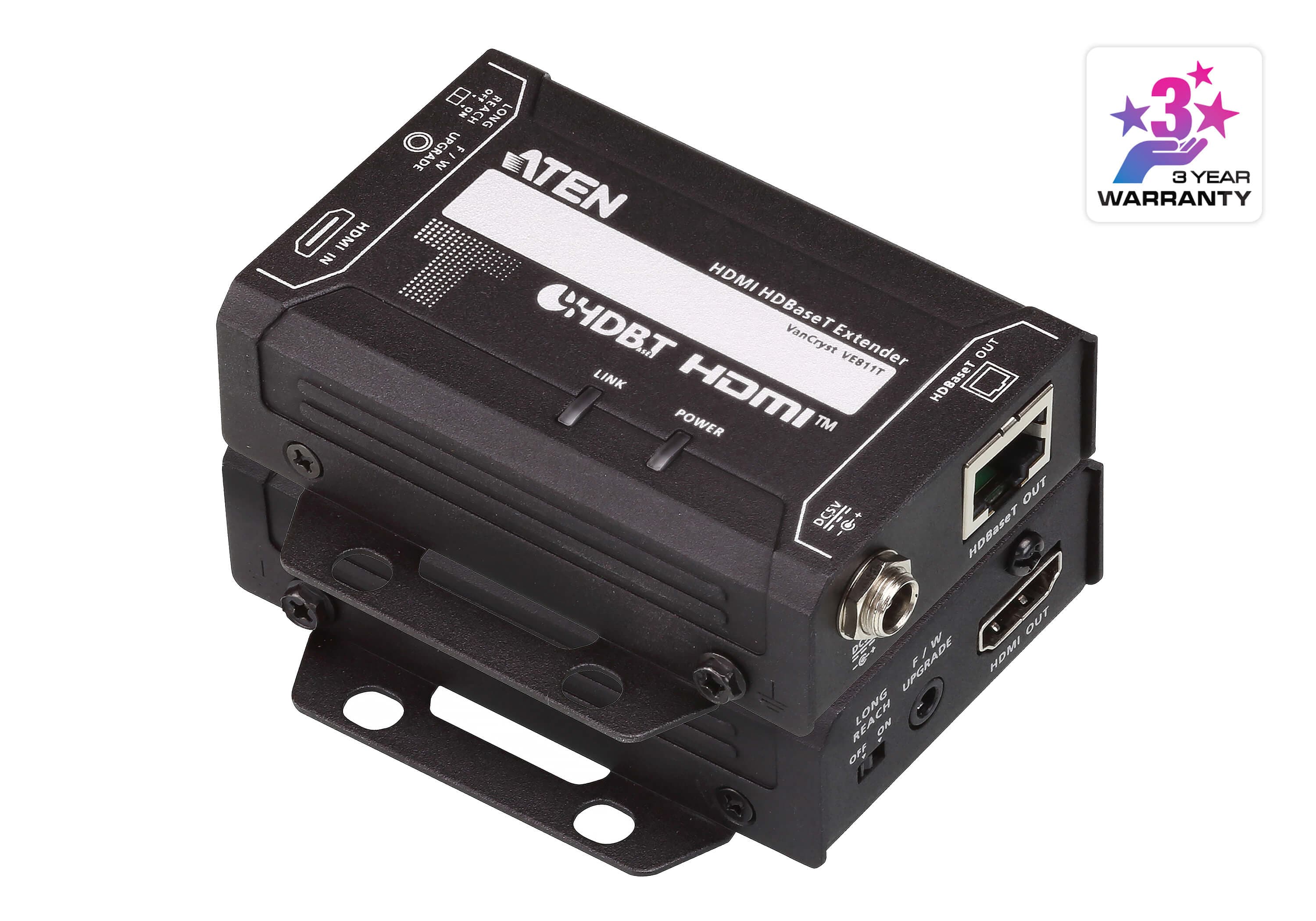

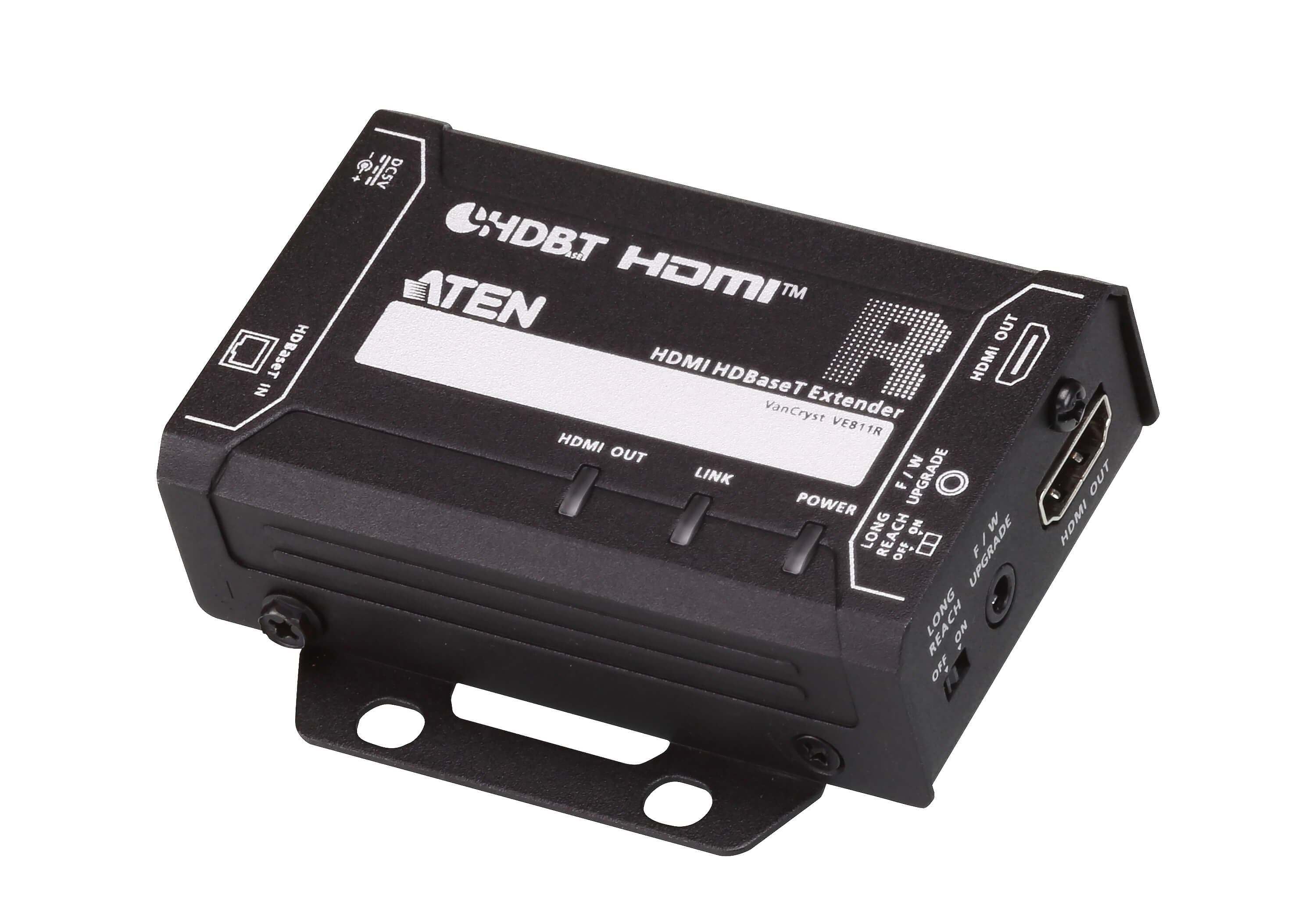

HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)

Name: HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
Brand: ATEN
SKU: VE811

VE811

Удължава HDMI сигнал до 4K на 100 m по един Cat 5e/6/6a кабел чрез HDBaseT, а в Long Reach режим достига 150 m при 1080p. Съвместим с HDCP 2.2.

Характеристики

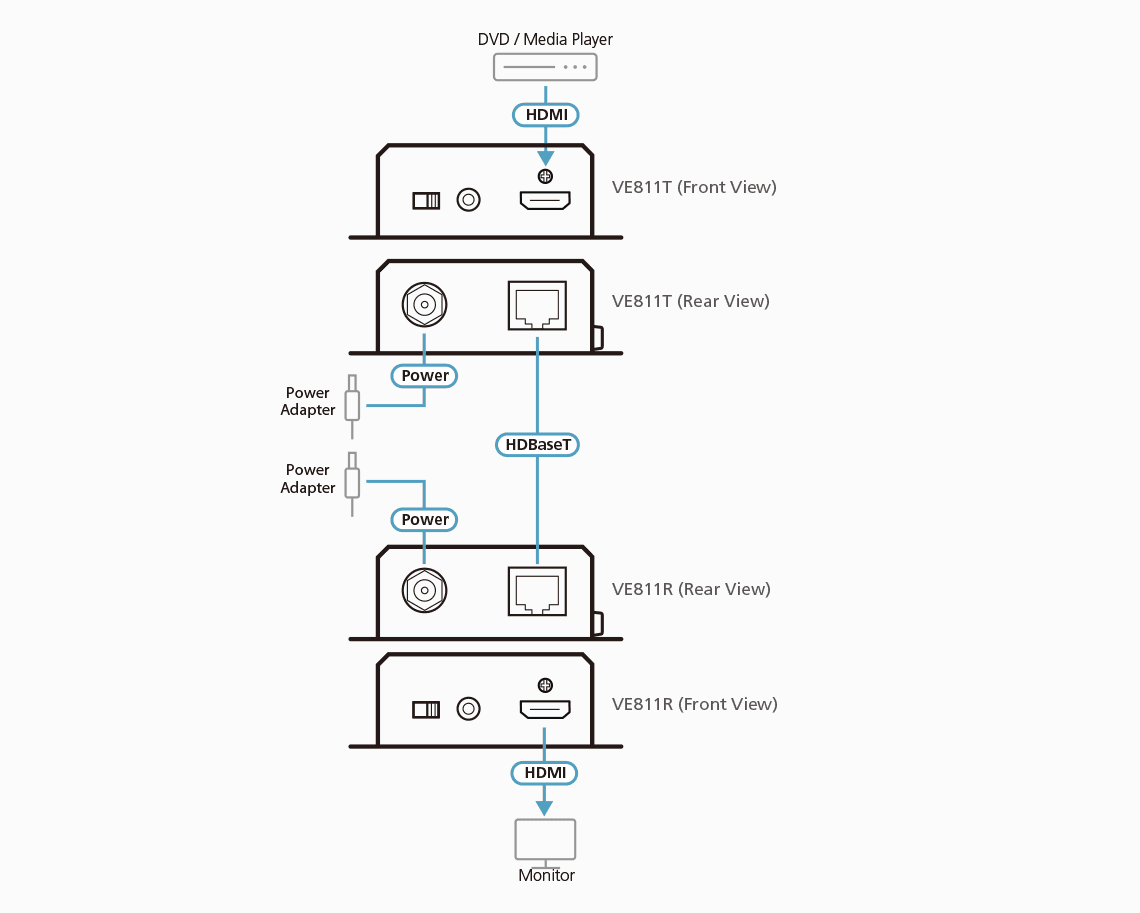

HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Supports resolutions of up to 4K and 1080p
Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
Supports wide screen format
Plug and play – no software required
Built-in 8 kV / 15 kV ESD protection
Rack mountable

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

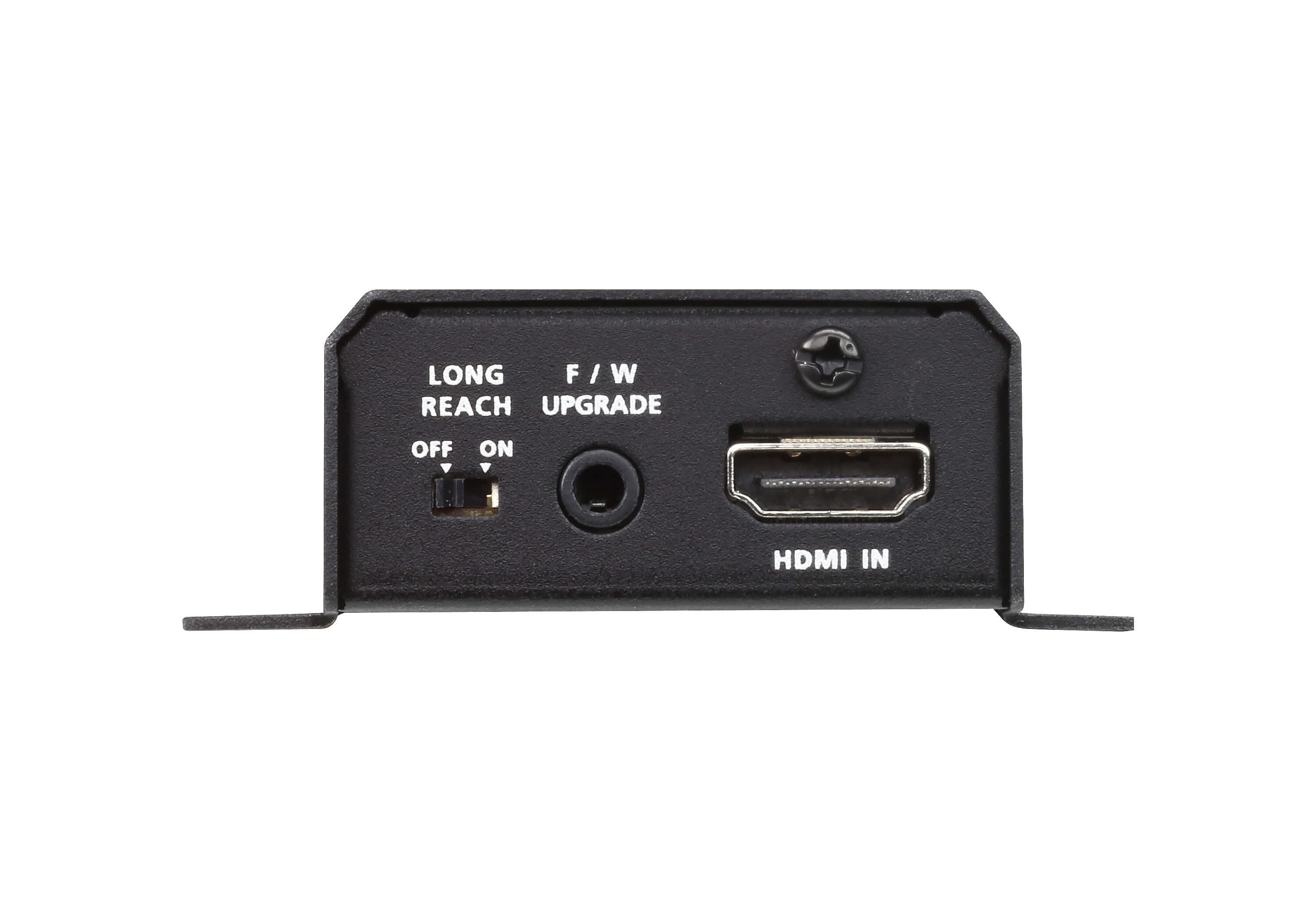

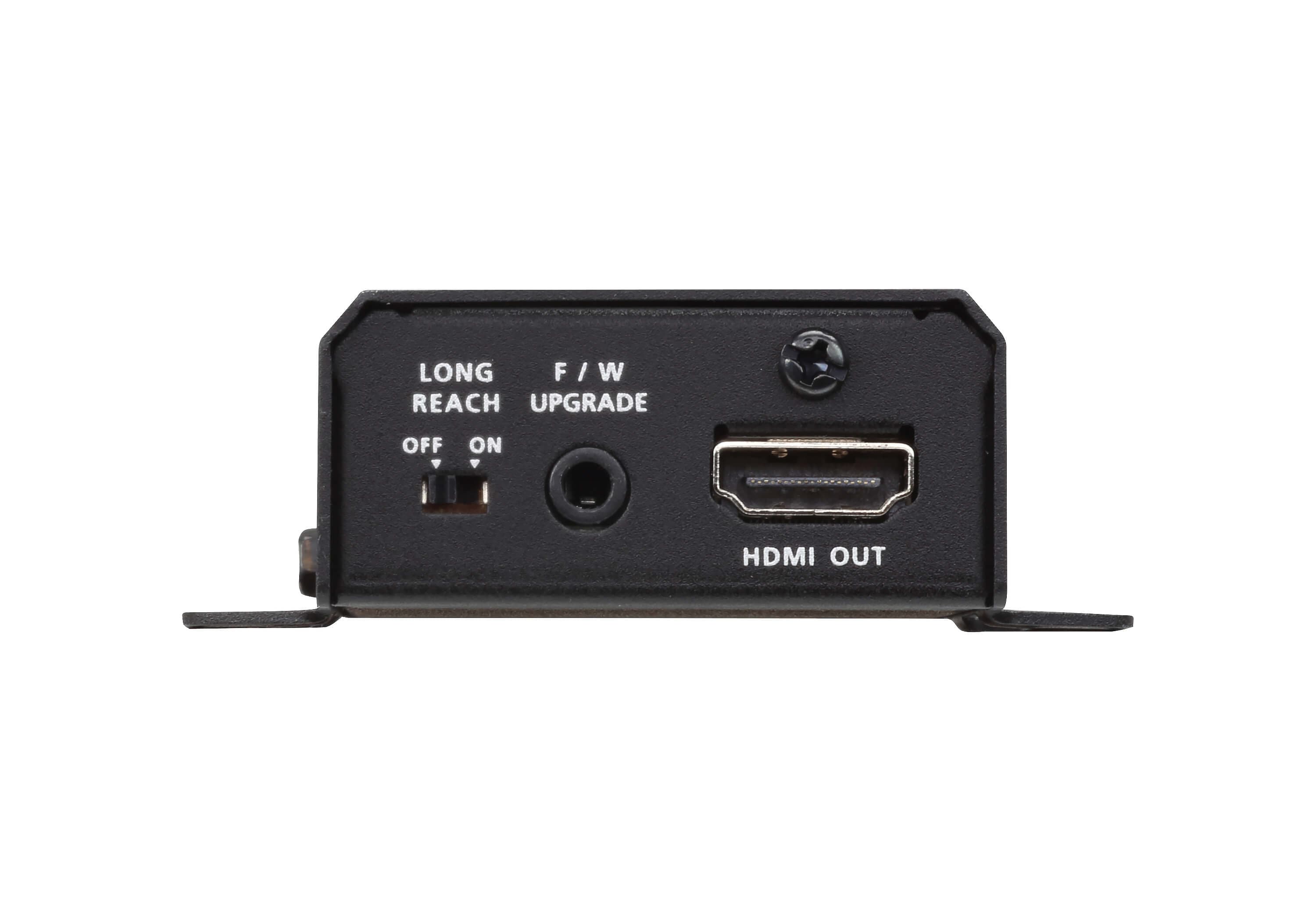

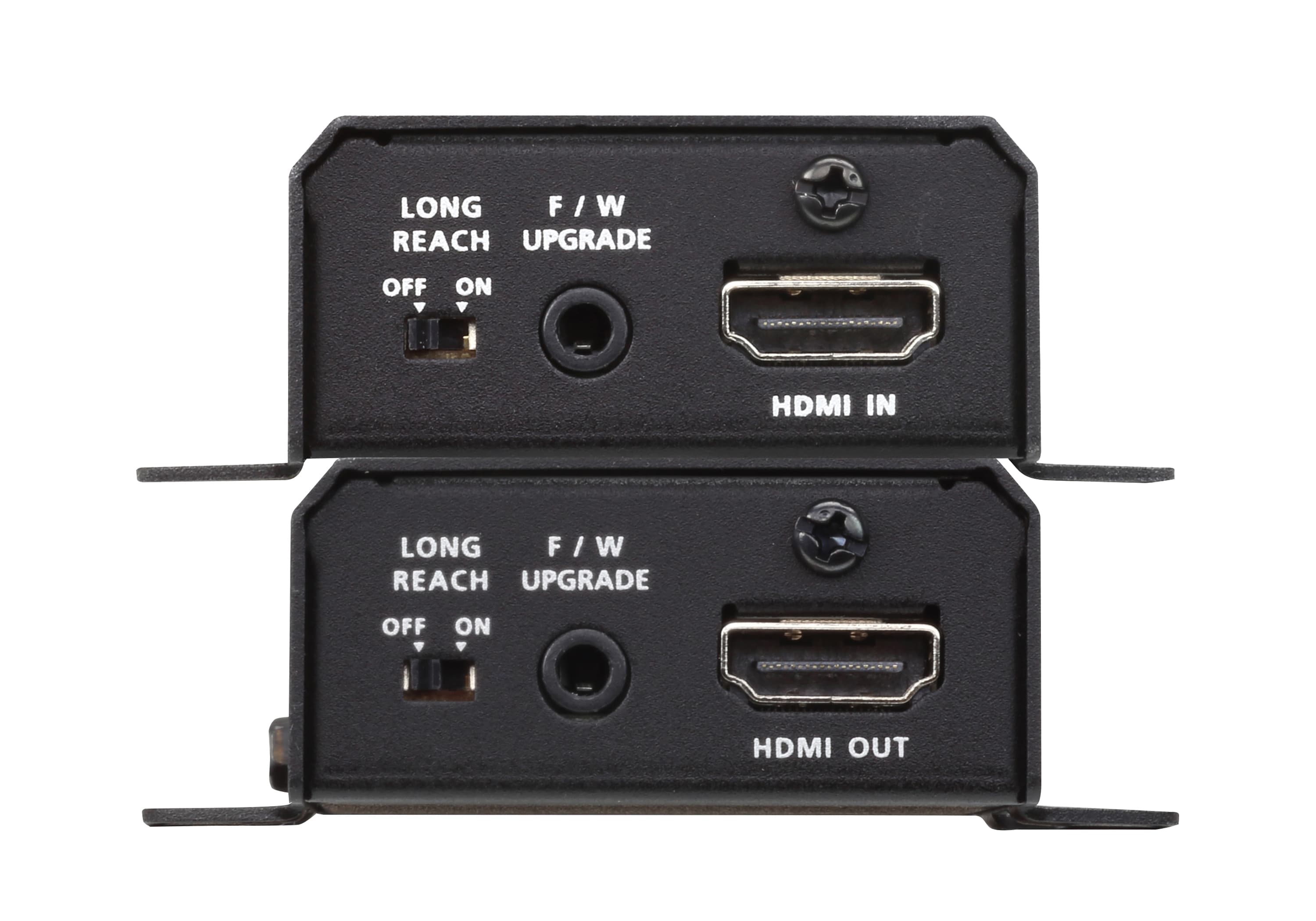

Превключвател Long Reach: 1 x Slide Switch - ON/OFF
Превключвател Long Reach: 1 x Slide Switch - ON/OFF
Консумация: DC5V:3.84W:18BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5V:3.77W:18BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.17 kg ( 0.37 lb )
Тегло: 0.16 kg ( 0.35 lb )
Размери (Д x Ш x В) със скоба: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
Размери (Д x Ш x В) със скоба: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.)
Размери (Д x Ш x В) без скоба: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)
Размери (Д x Ш x В) без скоба: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.)
Входни резолюции: 640 x 480 @ 60/67/72/75 Hz
Входни резолюции: 1920 x 1200 @ 60 Hz (Reduced Blanking)
640 x 480 @ 60Hz (4:3): 480p 60 Hz (4:3)/(16:9)
720 x 400 @ 70 Hz: 576p 50 Hz (4:3)/(16:9)
800 x 600 @ 56/60/72/75 Hz: 720p 50/60 Hz
1024 x 768 @ 60/70/75 Hz: 1080i 50/ 60 Hz
1280 x 800 @ 60 Hz: 1080p 24/25/30/50/60 Hz
1280 x 1024 @ 60/75 Hz: 3840 x 2160p 24/25/30 Hz
1400 x 1050 @ 60 Hz: 3840 x 2160p 50/60 Hz 4:2:0
1440 x 900 @ 60 Hz: 4096 x 2160p 24/25/30 Hz
1600 x 1200 @ 60 Hz: 4096 x 2160p 50/60 Hz 4:2:0
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 60 Hz
