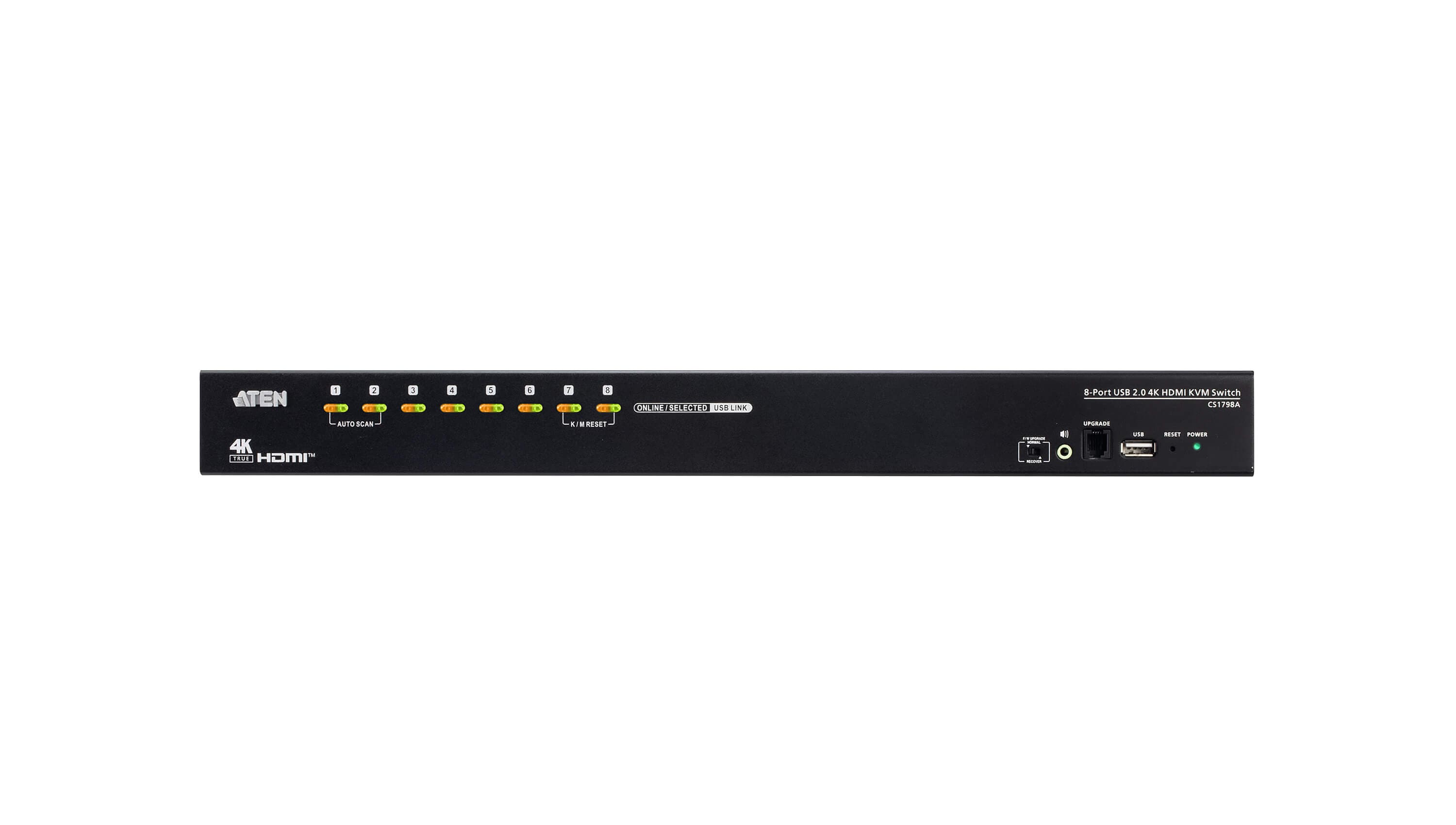

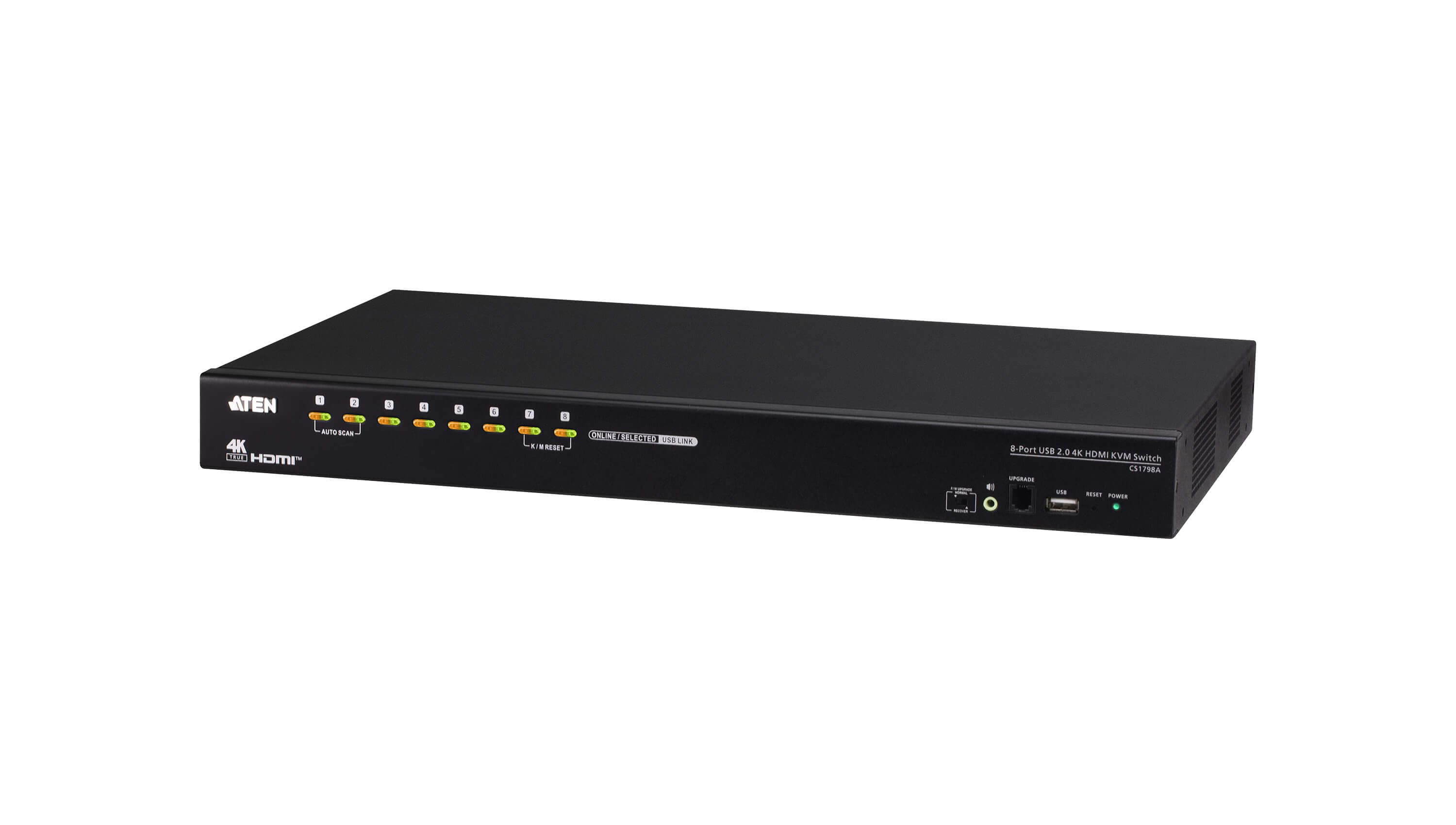

KVM комутатор, при който една USB конзола управлява 8 компютъра с HDMI при резолюция до 4096 x 2160 @ 60 Hz, с каскадиране до 512. Избор на порт чрез OSD, горещи клавиши или бутони.
Характеристики
- Superior video quality – supports up to 4096 x 2160 @ 60Hz1
- Video DynaSync ™ – eliminates boot-up display problems and optimizes resolution during switching
- HDCP 2.2 compliant

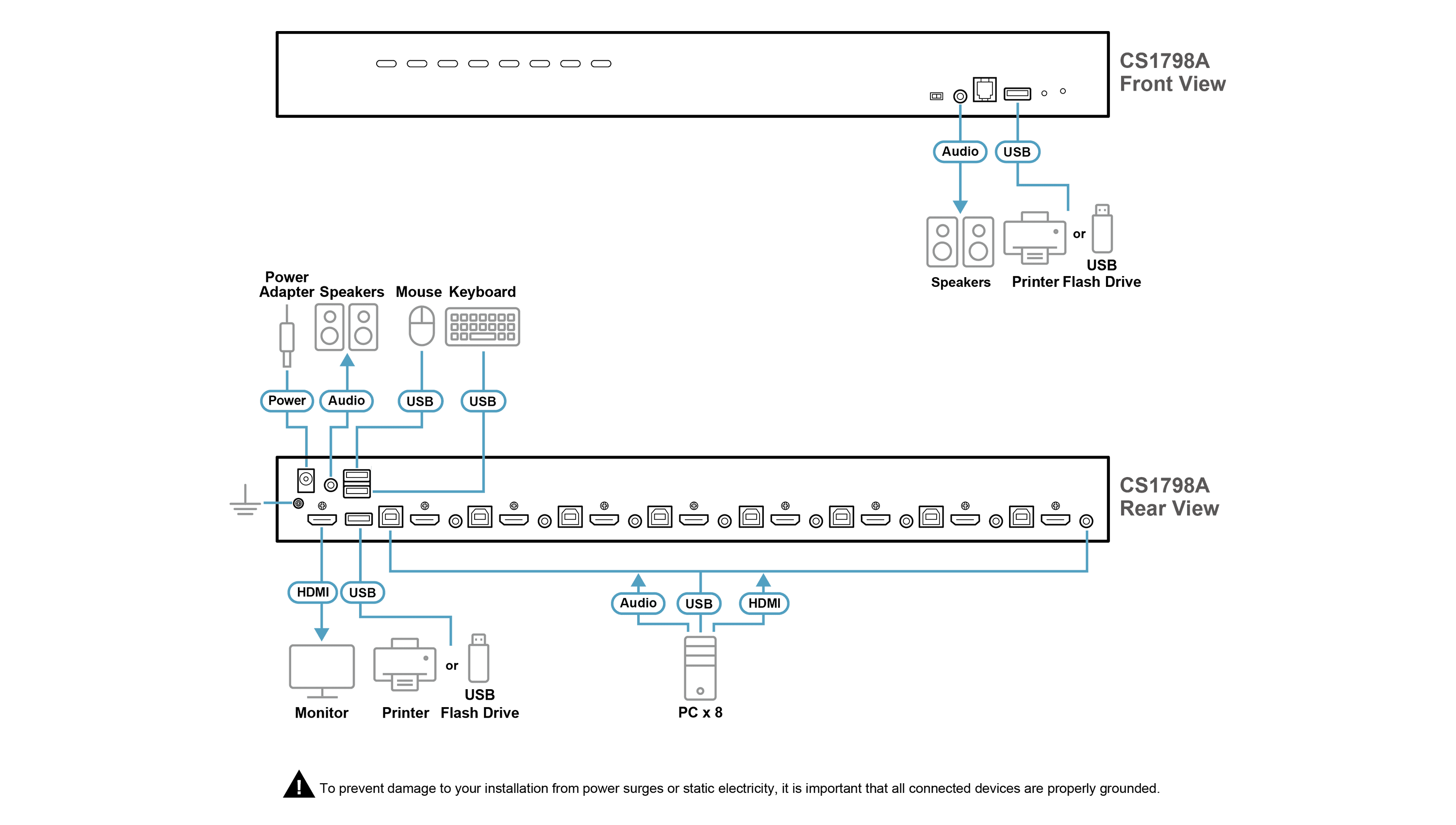

- One USB console controls up to 8 HDMI-interfaced computers and two additional USB 2.0 peripheral devices
- Cascadable to three levels – controls up to 512 computers
- Multi-Display feature – stacks up to 8 CS1798A units and displays video across up to 8 monitors (dual display / triple display / quad display / multi-display)
- Supports hot-plugging
- Computer selection via front panel pushbuttons, hotkeys, and multilingual OSD (On-Screen Display)
- Independent switching of KVM and USB peripheral focus
- Console mouse port emulation / bypass supports most mouse drivers and multifunction mice
- Complete keyboard emulation ensures error-free booting
- Auto Scan Mode for continuous monitoring of connected computers
- Broadcast mode – performs simultaneous operations across selected computers
- Built-in 2-port USB 2.0 hub2
- Audio enabled – full bass response for 2.1 channel surround sound systems
- Front panel console audio port for easy access
- OSD Backup / Restore feature – backs up the switch’s configuration and user profile information
- Firmware upgradable
- Multiplatform support – Windows, Linux, Mac, and Sun
- Mac / Sun keyboard support and emulation3
- Multilingual OSD supports multiple languages
- Multilingual keyboard mapping for diverse regional requirements Note : 1. The CS1798A supports the resolution up to 4096 x 2160 @ 60Hz. The resolution of the connected source should be 4096 x 2160 @ 60Hz or lower in order to ensure optimal compatibility and performance. 2. The USB 2.0 hub cannot be accessed through the switch by computers on the second or third level of a cascaded installation. 3. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.
Връзки към компютри
- Директно
- 8
- Максимум
- 512 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton
Конектори
- Конзолни портове
- 1 x HDMI Female (Black) 2 x USB Type A Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM портове

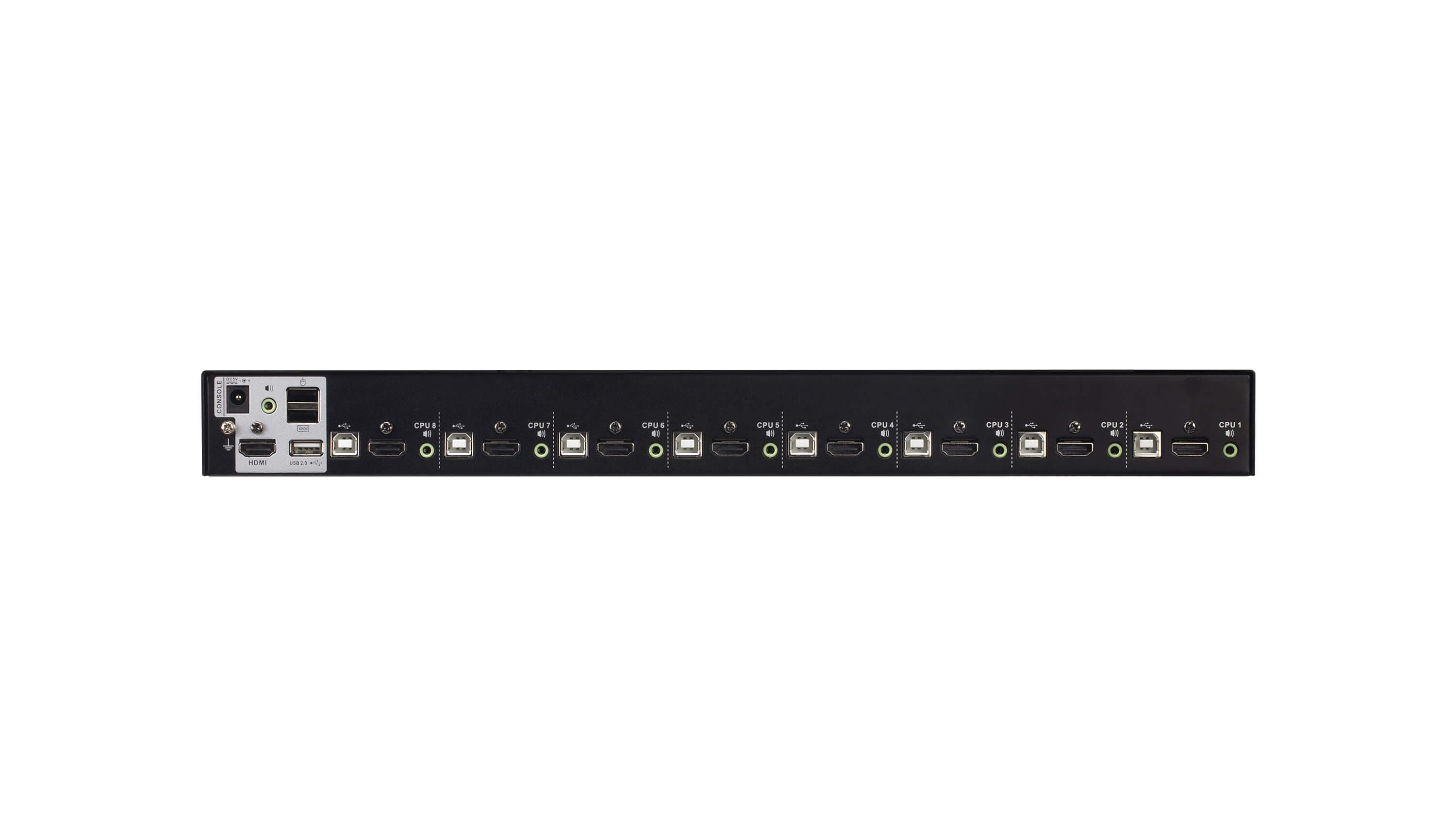

- 8 x HDMI Female (Black) 8 x USB Type B Female (White) 8 x 3.5mm Audio Jack Female (Green)
- Обновяване на фърмуера
- 1 x RJ11 Female (Black; 1 x front)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (White; 1 x front, 1 x rear)
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Възстановяване на фърмуера
- 1 x Slide Switch
Индикатори
- Онлайн / избран
- 8 (Orange)
- Захранване
- 1 (Dark Green)
- USB връзка
- 8 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 4096 x 2160 @ 60Hz
- Интервал на сканиране
- 1 – 255 seconds (default: 5 secs.)
- Консумация
- DC5V:6.43W:56BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- -20 – 60°C
- Влажност
- 0 – 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.50 kg ( 7.71 lb )
- Размери (Д x Ш x В)
- 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
