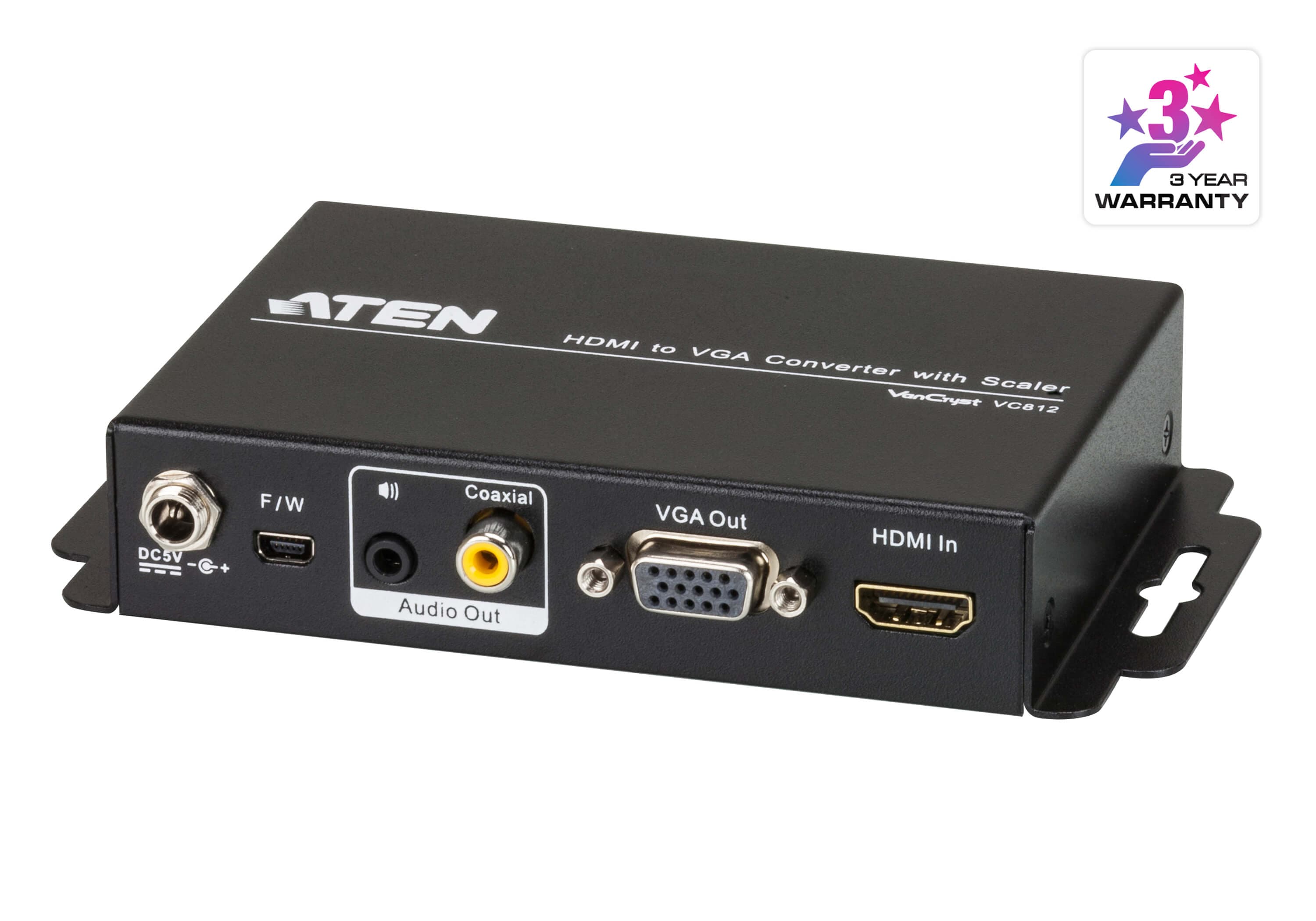

HDMI to VGA/Audio Converter with Scaler

Name: HDMI to VGA/Audio Converter with Scaler
Brand: ATEN
SKU: VC812

VC812

Конвертор с вграден скалер, който превръща HDMI сигнал в аналогов VGA изход с резолюция до 1080p / 1920 x 1200. Поддържа аналогово и цифрово аудио.

Характеристики

Converts HDMI signals to VGA output
Supports analog/digital audio
Superior video quality – up to 1080p; 1920 x 1200
Features a built in high-performance scaler function for best image quality
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings configuration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals

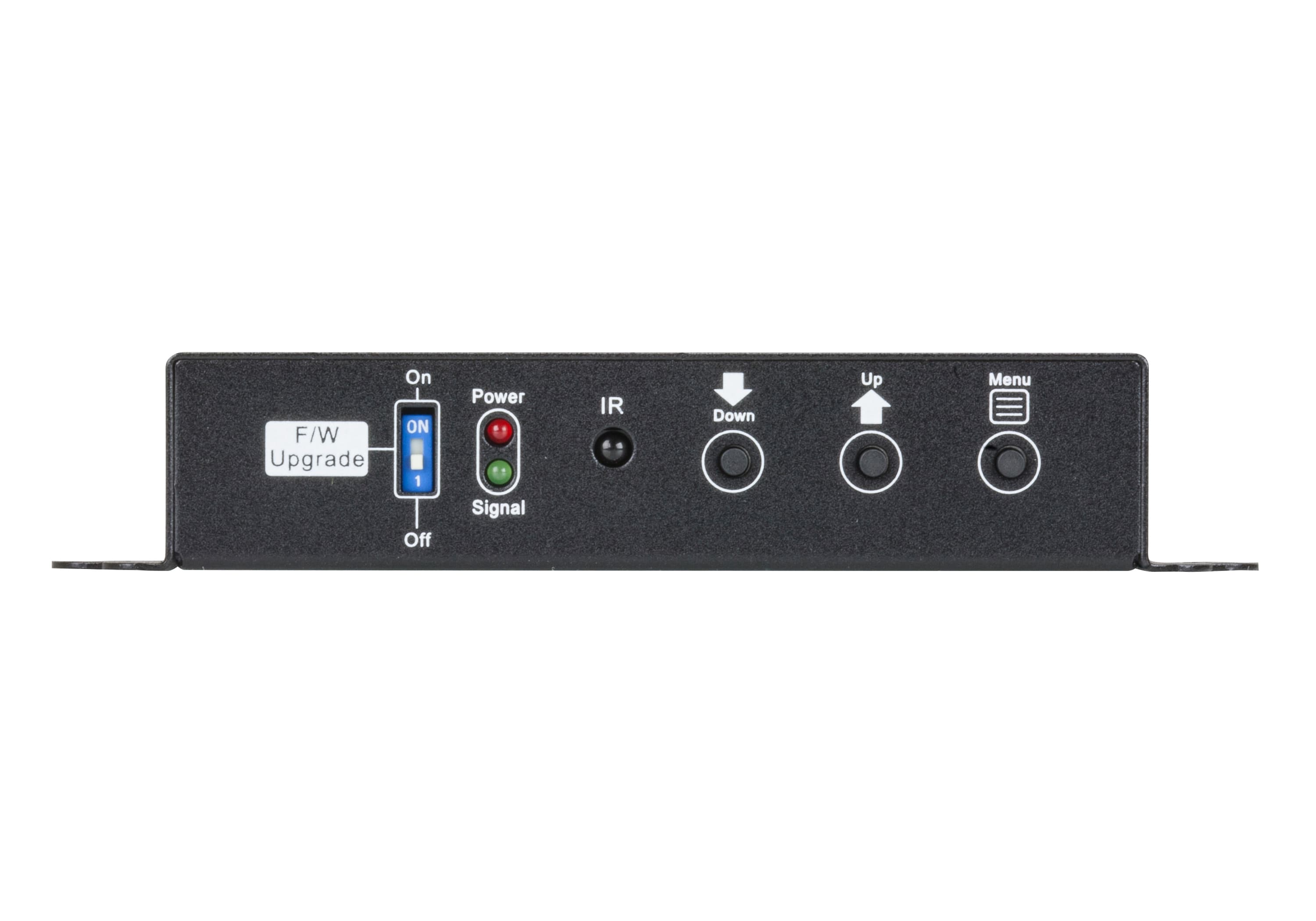

LED indication of power status and source device
No software required – eliminates incompatibility and installation issues Note: The VC812 does not support HDCP

Макс. пикселна честота: 165 MHz
Макс. резолюция: Up to 1920 x 1200
Резолюции на скалера: 480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200

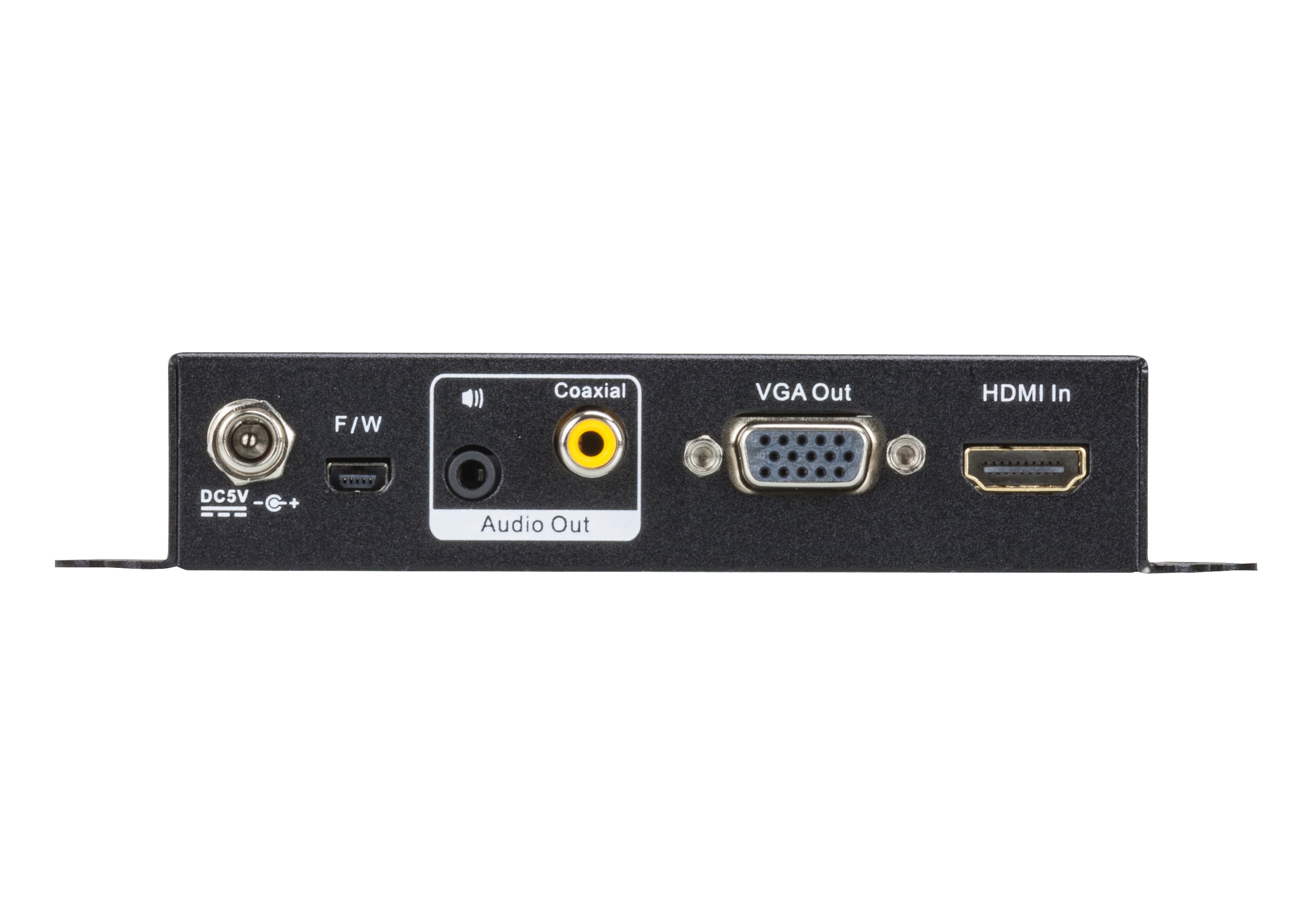

Изход: Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)

Захранване: 1 x DC Jack
Консумация: DC5V:2.125WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.29 kg ( 0.64 lb )
Размери (Д x Ш x В): 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Брой в кашон: 5 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
