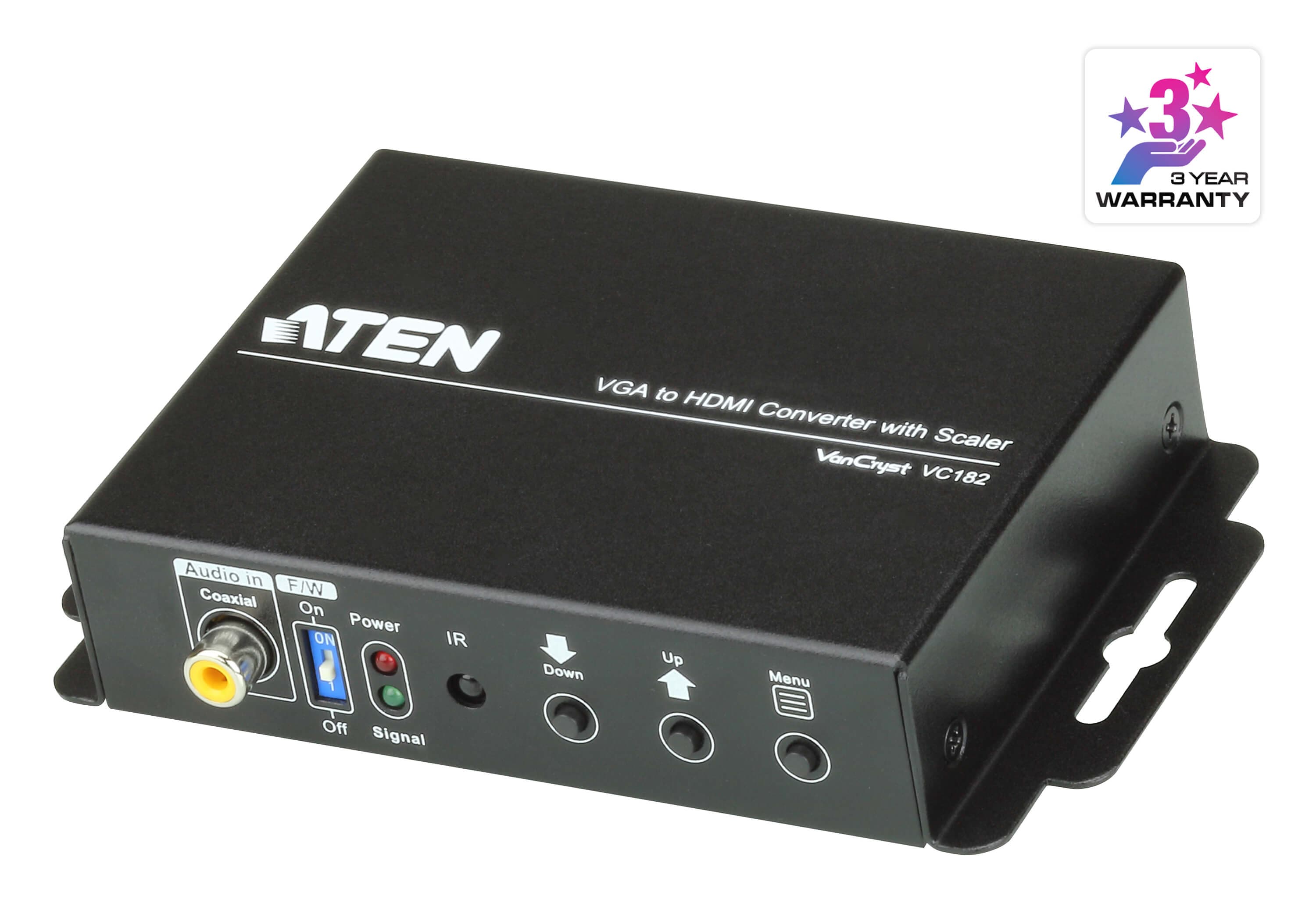

VGA/Audio to HDMI Converter with Scaler

Name: VGA/Audio to HDMI Converter with Scaler
Brand: ATEN
SKU: VC182

VC182

Конвертор с вграден скалер — преобразува VGA и аналогово или цифрово аудио в HDMI изход с резолюция до 1080p / 1920 x 1200.

Характеристики

Converts VGA signals to HDMI output
Supports analog / digital audio
Superior video quality – up to 1080p, 1920 x 1200
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a built in high-performance scaler function for best image quality
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings confi guration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals
LED indication of power status and source device
No software required – eliminates incompatibility and installation issues
Device configuration using a utility tool via mini USB port
Supports 16:9 and 4:3 video aspect ratios
Multiple selectable video resolutions

Макс. пикселна честота: 165 MHz
Макс. резолюция: Up to 1080p
Резолюции на скалера: 640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1400x1050; 1600x1200; 1440x900; 1680x1050; 1920x1080; 1920x1200; 720p; 1080p

Захранване: 1 x DC Jack
Консумация: DC5V:1.56WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Интерфейси: 1 x HDB-15 Female (Blue)
Импеданс: 75 Ω
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
