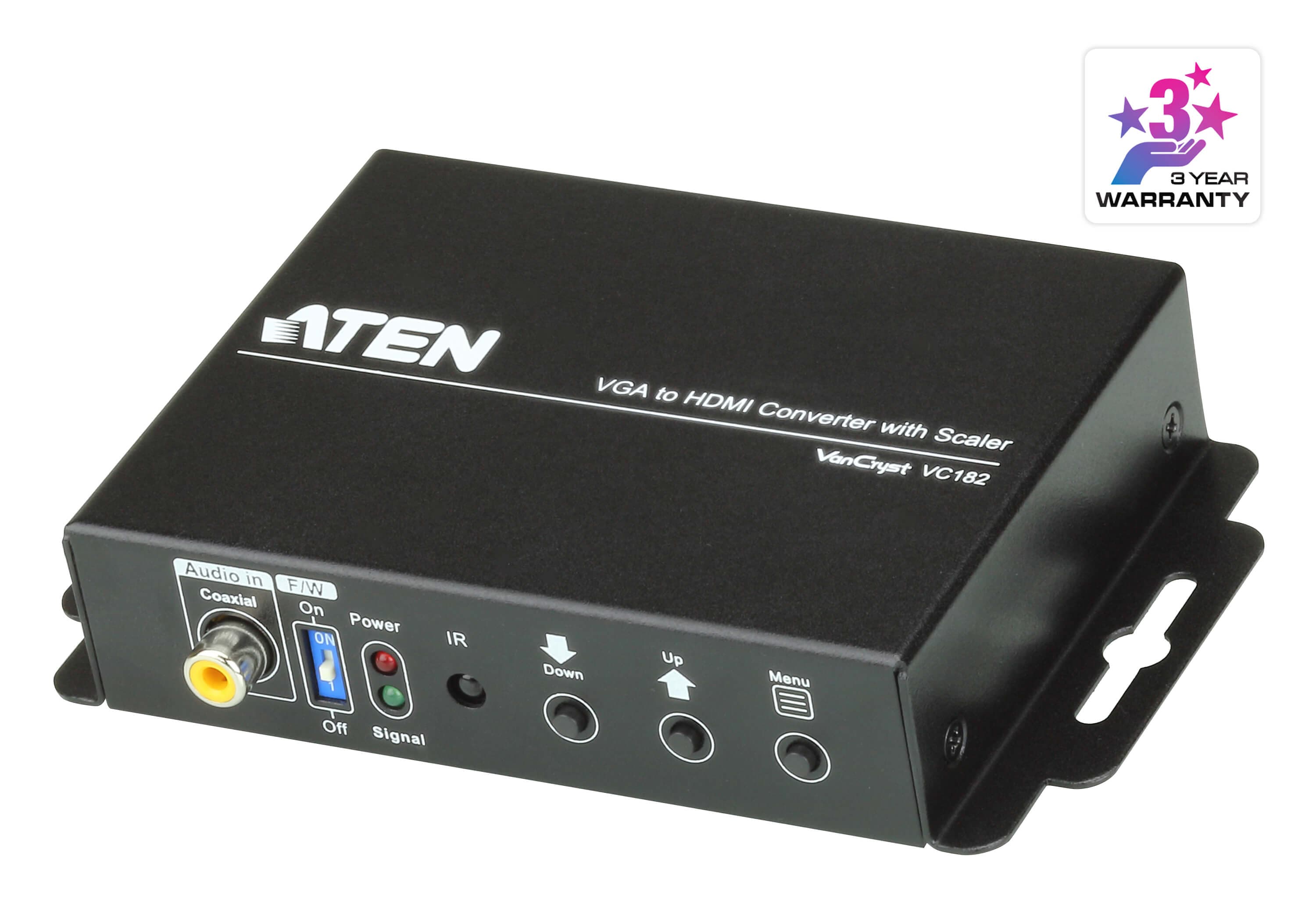

VGA/Audio to HDMI Converter with Scaler

Name: VGA/Audio to HDMI Converter with Scaler
Brand: ATEN
SKU: VC182

VC182

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

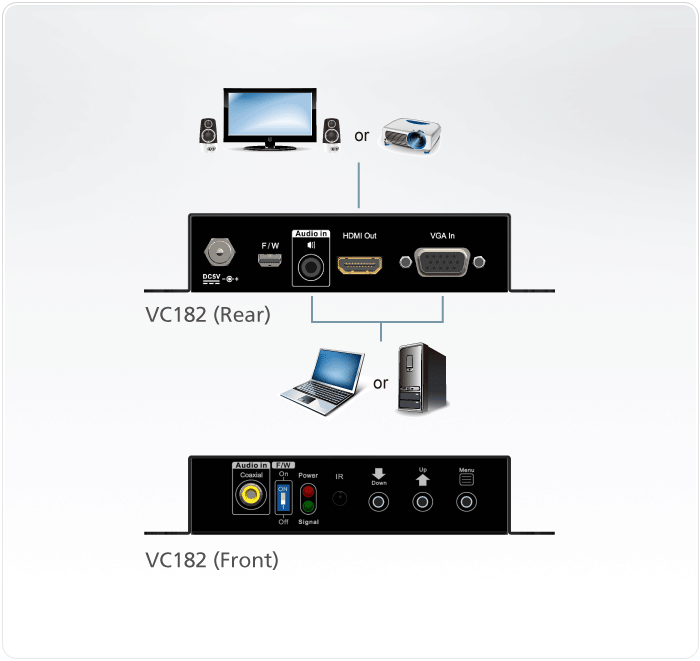

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine

Features

Converts VGA signals to HDMI output
Supports analog / digital audio
Superior video quality – up to 1080p, 1920 x 1200
Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
Features a built in high-performance scaler function for best image quality
Features a superior de-interlacer function for smooth video playback quality
Built-in OSD function for video and system settings confi guration
Integrated superior video noise reduction
Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
Automatically detects video input signals

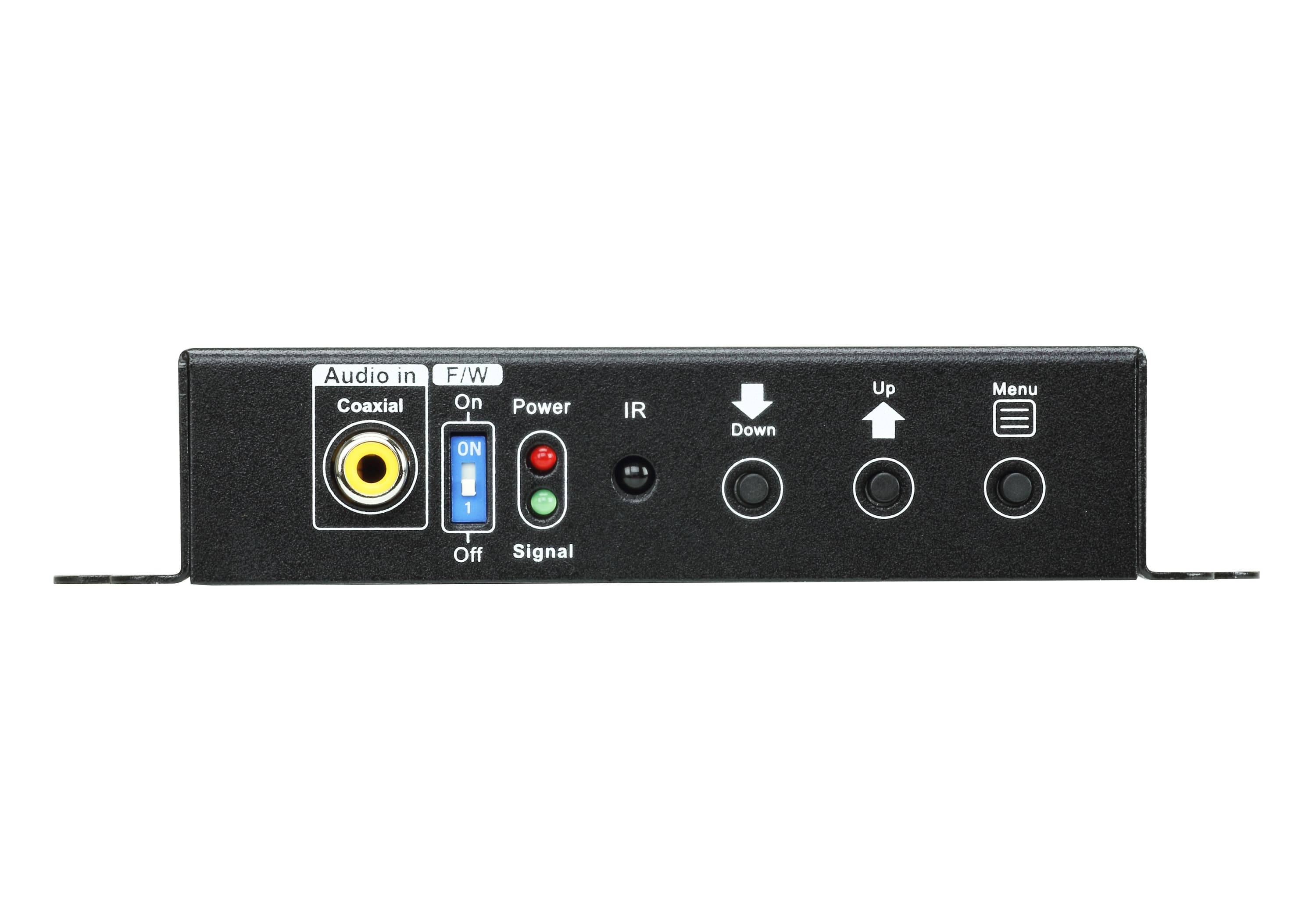

LED indication of power status and source device
No software required – eliminates incompatibility and installation issues
Device configuration using a utility tool via mini USB port
Supports 16:9 and 4:3 video aspect ratios
Multiple selectable video resolutions

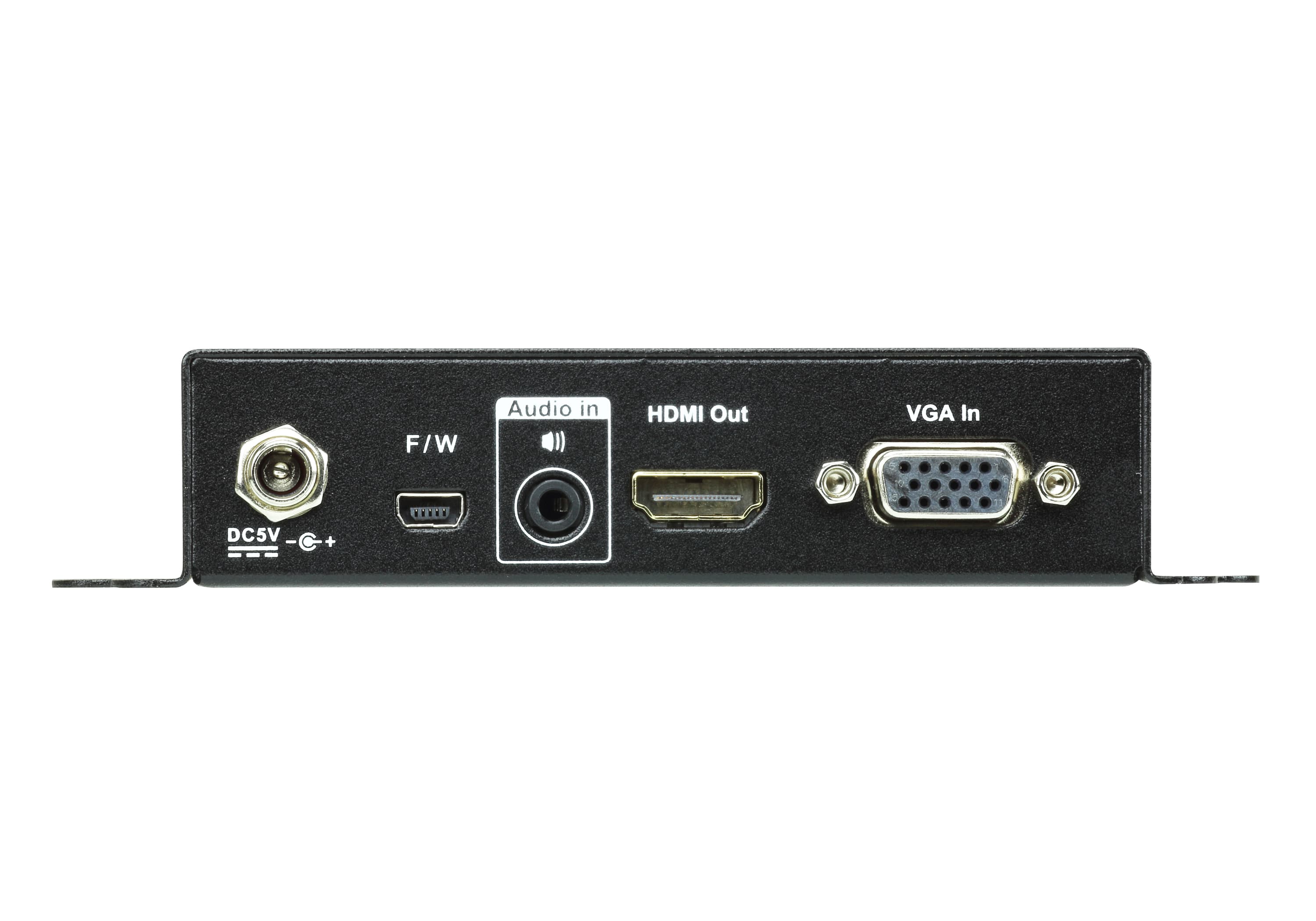

Video Output

Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω

Video

Max. Pixel Clock: 165 MHz
Max. Resolution: Up to 1080p
Scaler Resolutions: 640x480; 800x600; 1024x768; 1280x1024; 1360x768; 1400x1050; 1600x1200; 1440x900; 1680x1050; 1920x1080; 1920x1200; 720p; 1080p

Audio

Input: Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow)

Connectors

Power: 1 x DC Jack
Power Consumption: DC5V:1.56WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 40 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 20 - 90% RH, Non-Condensing

Physical Properties

Housing: Metal
Weight: 0.31 kg ( 0.68 lb )
Dimensions (L x W x H): 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.)
Carton Lot: 5 pcs

Video Input

Interfaces: 1 x HDB-15 Female (Blue)
Impedance: 75 Ω
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
