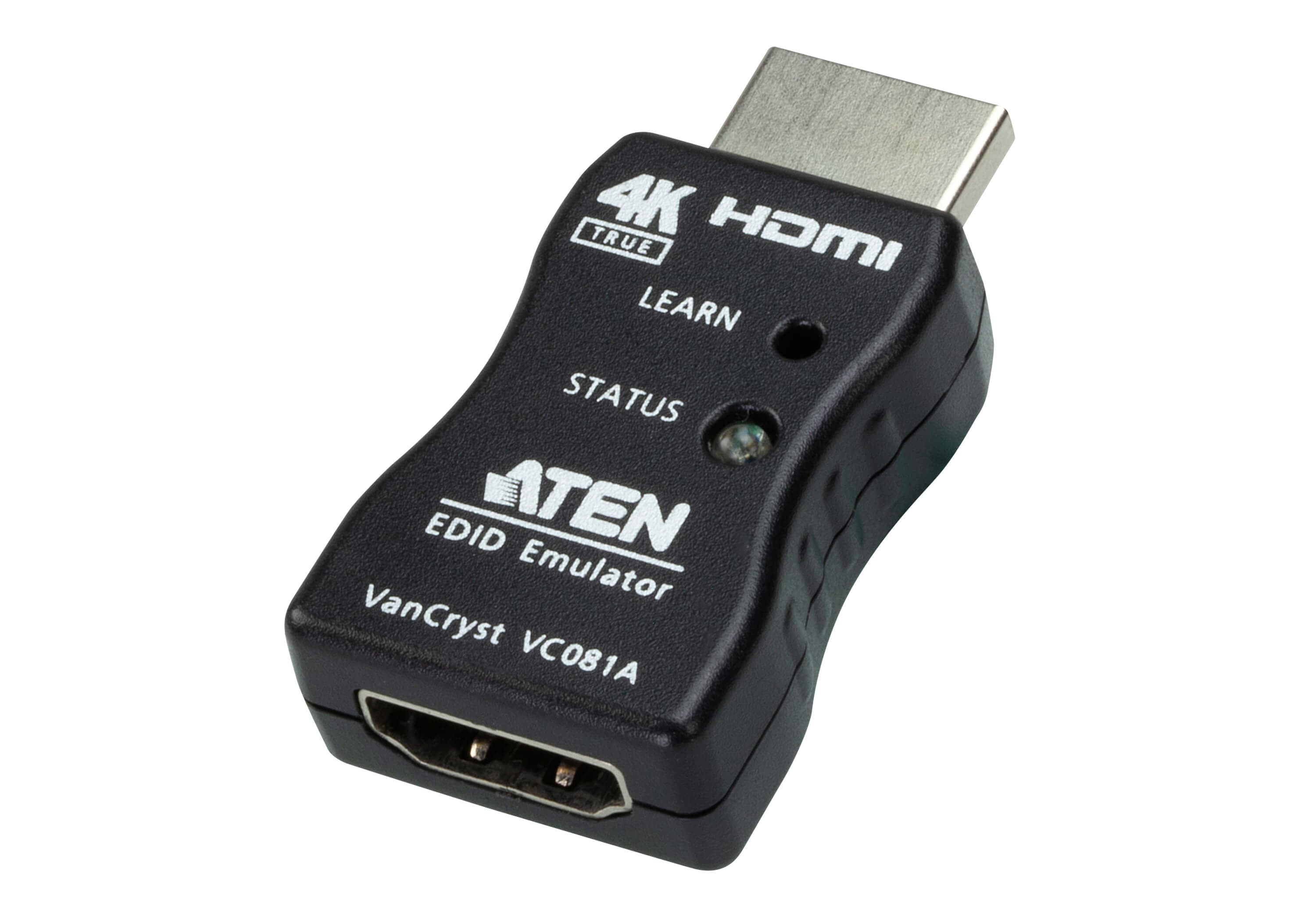

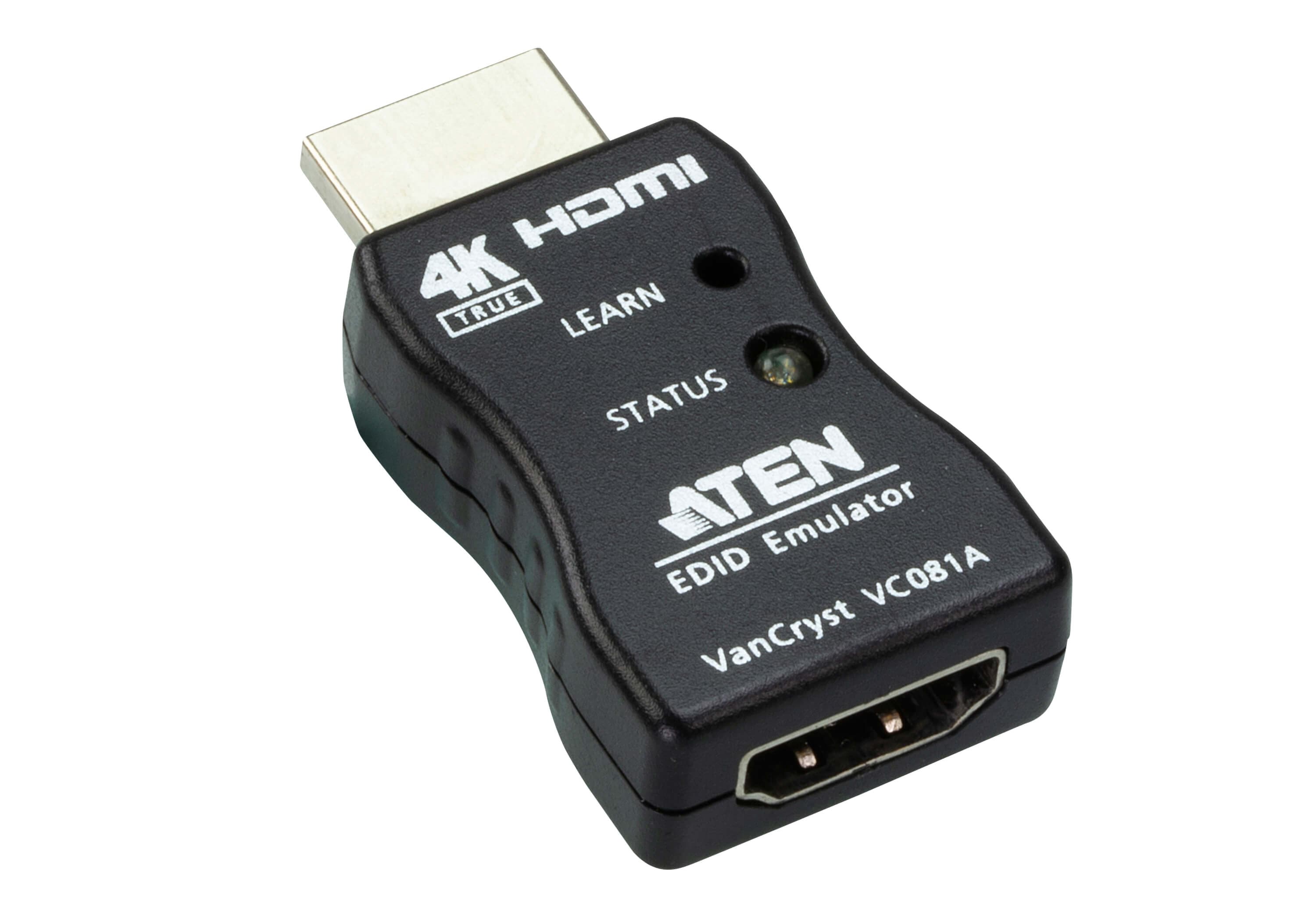

Адаптер за управление на EDID по HDMI: с един бутон запаметява EDID от свързания дисплей и го подава постоянно към видеоизточника. В режим Learning поддържа до 4096x2160@60Hz (4:4:4); HDCP 2.2.
Характеристики
- Manages EDID communication between connected devices
- Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Supports superior video quality up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) via EDID Learning Mode
- LED indicators to show learning status
- Powered by HDMI source
- Compact and lightweight design
Видео вход
- Интерфейси
- 1 x HDMI Type A Male (Black)
- Импеданс
- 100 Ω
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
Видео
- Съответствие
- HDMI (3D, Deep Color, True 4K) HDCP 2.2 Compatible Consumer Electronic Control (CEC)
- Макс. резолюция
- Default: 1080P@60Hz Learning: 3840x2160@60Hz 4:4:4 & 4096x2160@60Hz 4:4:4
- EDID настройки
- EDID Mode: Default / Learning
Конектори
- Захранване
- Bus-powered (5V DC from source device)
Бутони и превключватели
- Превключвател на режим
- EDID Learning
Индикатори
- Състояние
- Learning (Blue x 1)
- Консумация
- DC5V:0.1WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.08 kg ( 0.18 lb )
- Размери (Д x Ш x В)
- 4.40 x 2.40 x 1.18 cm (1.73 x 0.94 x 0.46 in.)
- Брой в кашон
- 20 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
