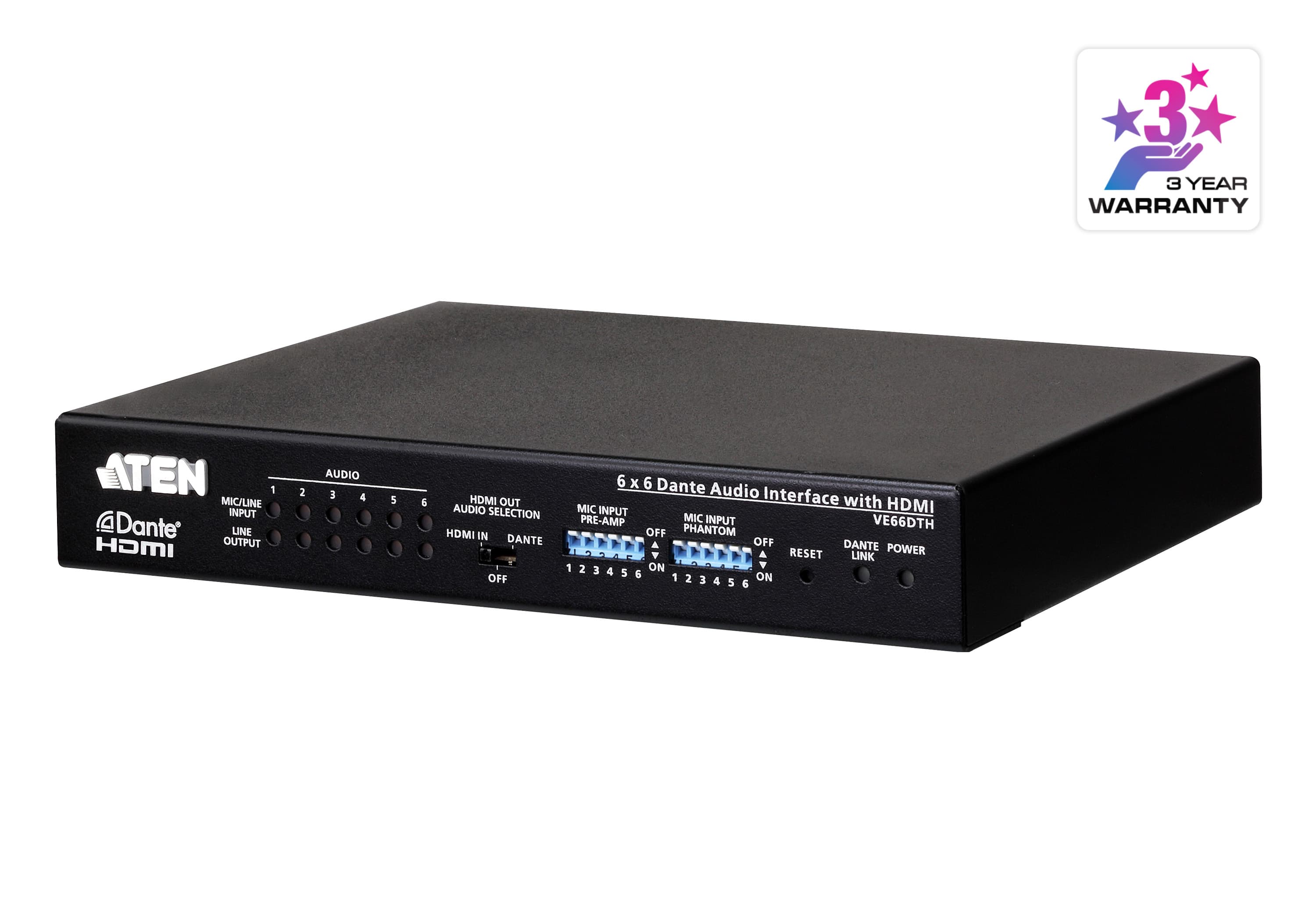

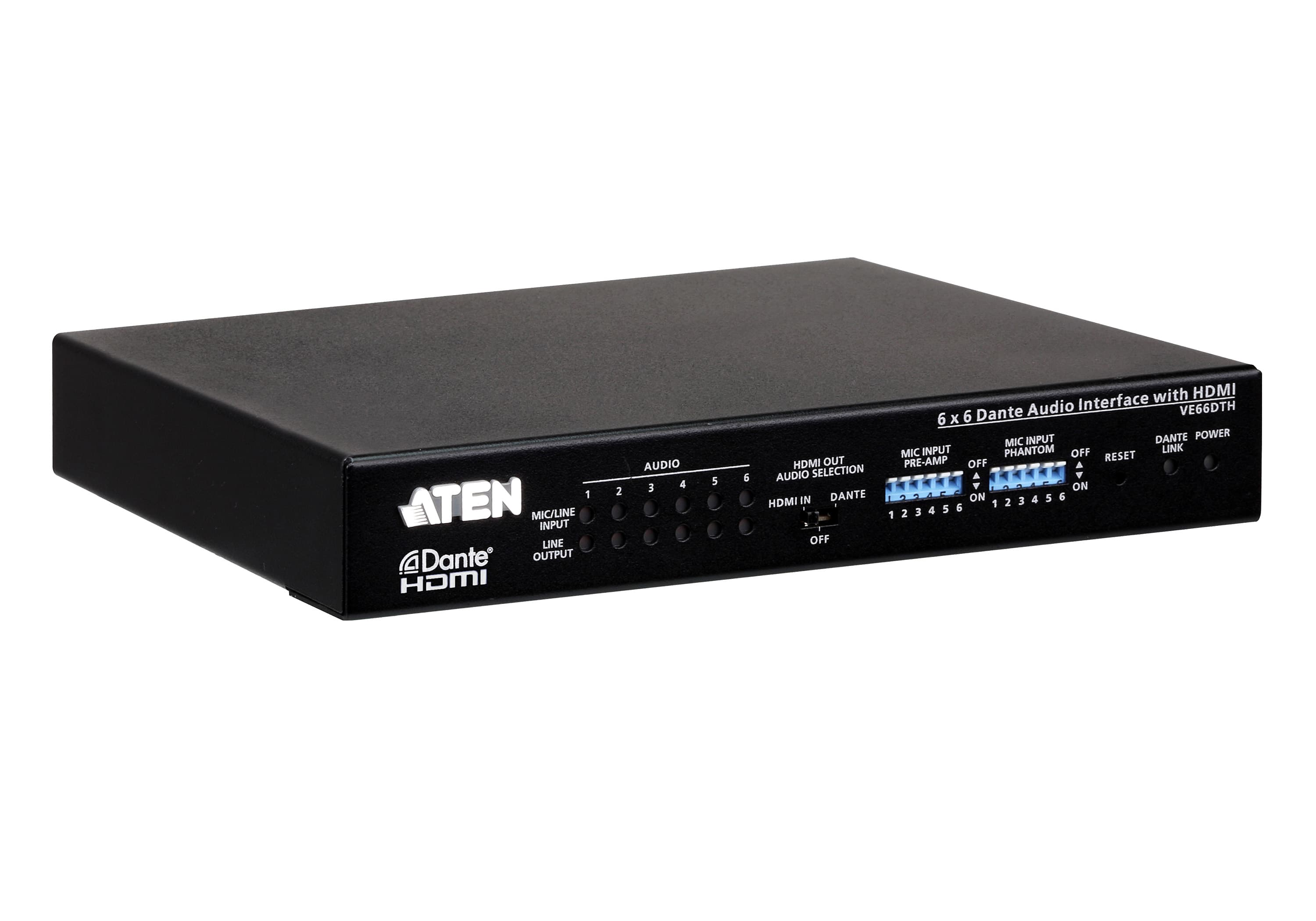

6 x 6 Dante Audio Interface with HDMI
VE66DTH
Dante аудио интерфейс с 6 балансирани Mic/Line входа и 6 изхода плюс вграждане на HDMI аудио. Осигурява 48V фантомно захранване за кондензаторни микрофони; поддържа AES67.
Характеристики
- Features Dante networked audio interface – a complete audio networking solution that distributes, multi-channel audio transmission via standard Ethernet networks, with near-zero latency and perfect synchronization
- Integrates up to 6-channel balanced mono audio Mic/Line input signals onto a Dante-enabled audio system and supports both dynamic and condenser microphones
- Provides 48V Phantom power supply to condenser microphones
- AES67 support
- Easy to use and set up – User can use ”Dante Controller” for the simple setup
- Delivers up to 6-channel balanced mono audio Line outputs from the Dante network to the audio system
- Supports HDMI input with HDCP 2.2 compliant – the HDMI input can de-embed HDMI stereo audio to the Dante network
- Supports HDMI local output – the VE66DTH can embed the Dante audio into HDMI output
- Supports PoE – power can be supplied by a compatible PSE device through Ethernet cable

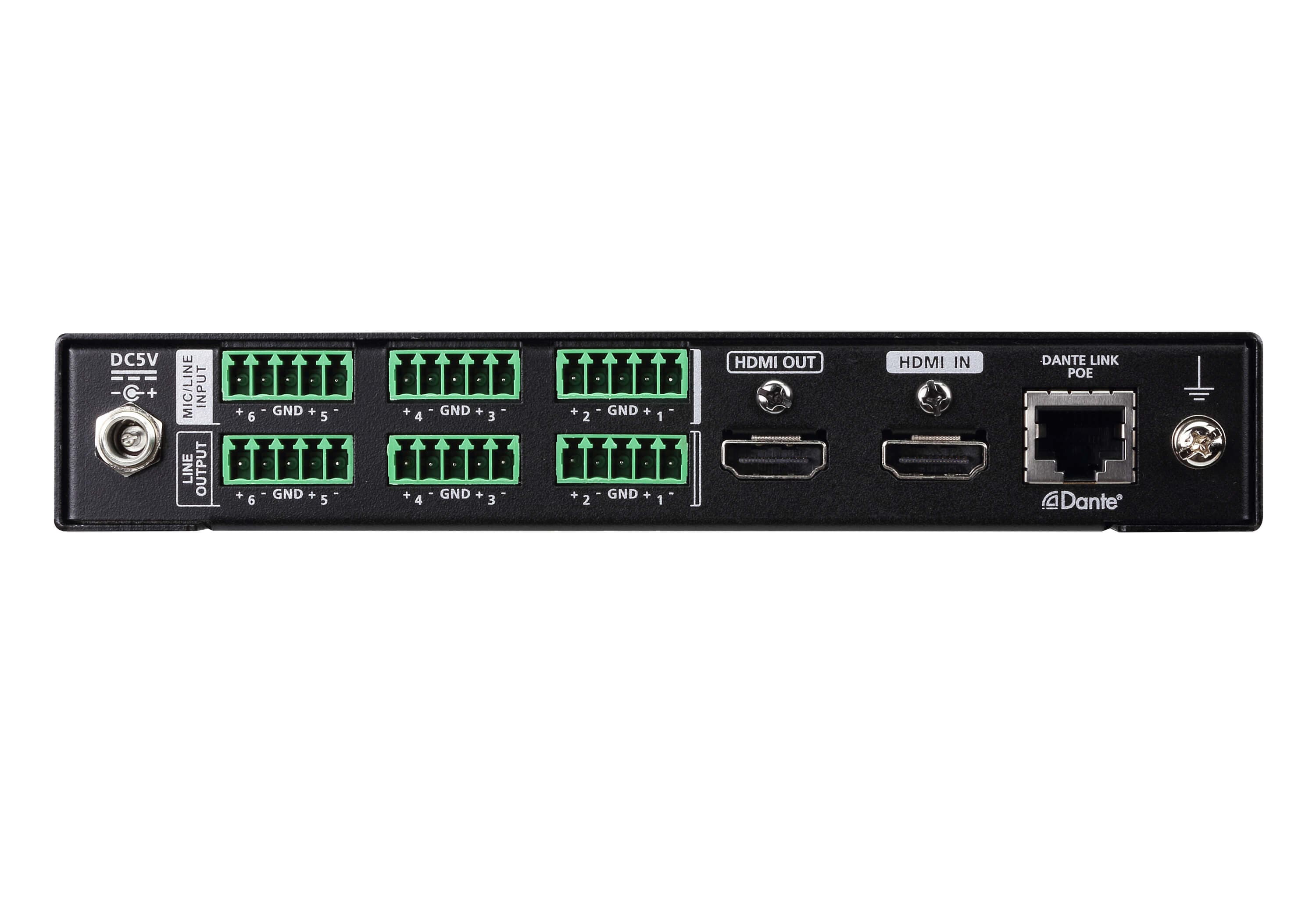

Аудио входове
- Интерфейси
- Line/Mic Input: 3 x 3.5 mm captive screw connector, 5 pole; Analog mono, balanced Impedance: >6.8k ohms unbalanced; >13.6k ohms balanced Maximum level: 0dBV (1Vrms) Mic Pre-amp: +40 dB, balanced Phantom Power: +48V,10mA HDMI Input: HDMI Stereo Audio
Аудио изходи
- Интерфейси
- Line Output: 3 x 3.5 mm captive screw connector, 5 pole; Analog mono, balanced Impedance: 50 ohms unbalanced, 100 ohms balanced Maximum level: 0dBV (1Vrms) HDMI Output: HDMI Stereo Audio
Аудио
- Формат
- Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz Latency: Deterministic, based on user selection: 1.0 ms (default) Frequency response: 20Hz~20KHz, +/- 0.3dB THD + Noise: < -65dB (0.1%) (1KHz,1Vrms @ 0dBV) S/N: > 80dB (1KHz,1Vrms @ 0dBV) Cross Talk: < -50dB (15KHz,1Vrms @ 0dBV)
- Вход
- 8 audio channels ( 6 x Analog Input & 1 x HDMI Stereo Audio )
- Изход
- 8 audio channels ( 6 x Analog output & 1 x HDMI Stereo Audio Embedded from HDMI/Dante )
Видео вход
- Интерфейси
- 1 x HDMI Type A female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 1.8m
Видео изход
- Интерфейси
- 1 x HDMI Type A female (Black)
- Импеданс
- 100 Ω
Видео
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Съответствие
- HDMI (3D, Deep Color, 4K); 4K HDR HDCP 2.2 Compatible;
Управление
- Ethernet
- 1 x RJ-45 Female (Silver) through Dante

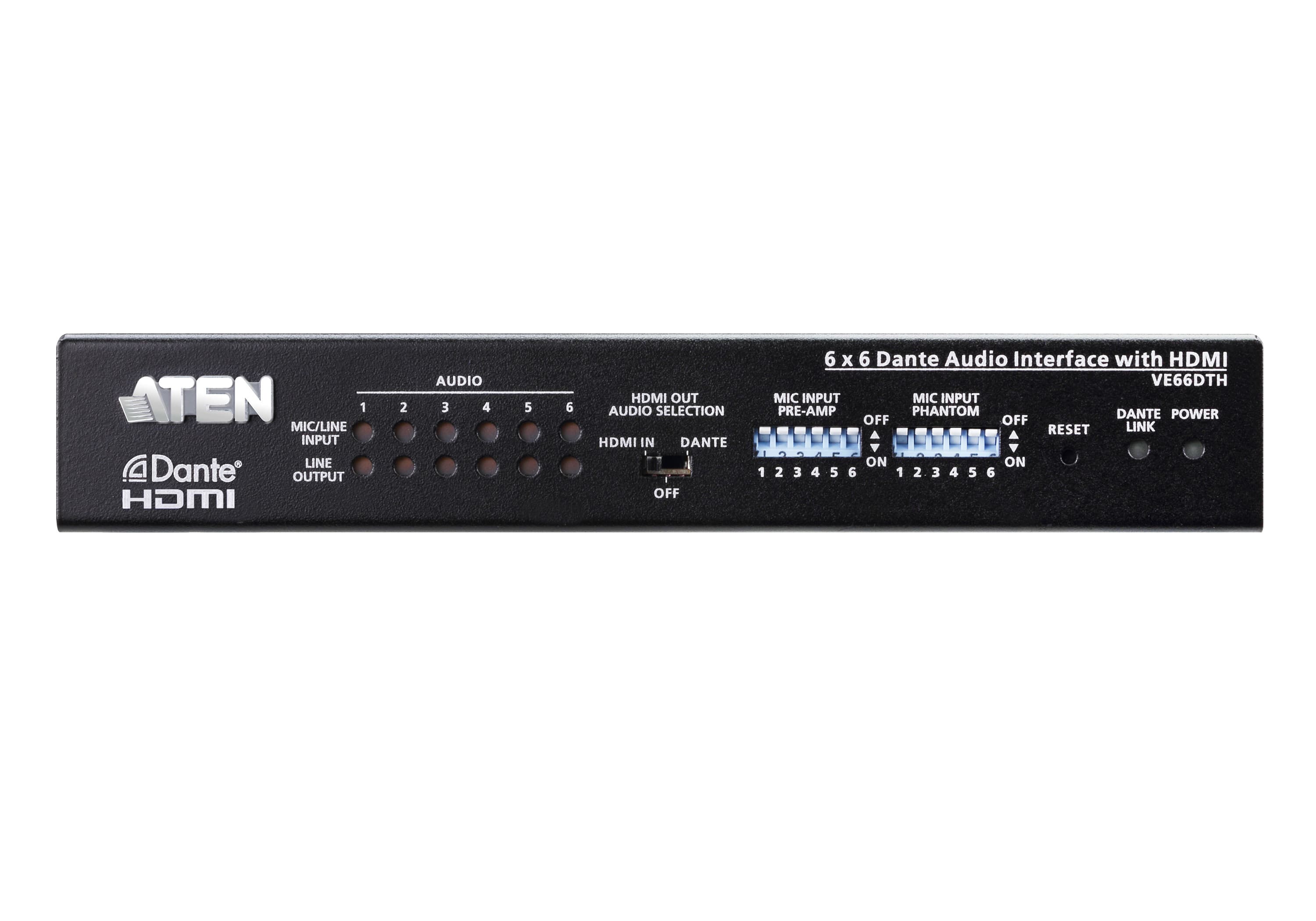

Бутони и превключватели
- Избор на видео изход
- 1 x Slide Switch - HDMI Output Audio Selection (From HDMI in / Dante / Off)
- Избор
- 6 x Slide Switch - Mic Input Pre-Amp ON/OFF
- Фантомно захранване
- 6 x Slide Switch - Mic Input Phantom Power ON/OFF
- Нулиране
- 1 x push button
Конектори
- Захранване
- 1 x DC Jack (Black) or 1 x RJ-45 Female (Silver) POE
- Между устройства
- 1 x RJ-45 Female through Dante
- Консумация
- DC5V:8.9W:41BTU/h POE:11.1W:52BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.85 kg ( 1.87 lb )
- Размери (Д x Ш x В)
- 17.42 x 15.49 x 2.88 cm (6.86 x 6.1 x 1.13 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
