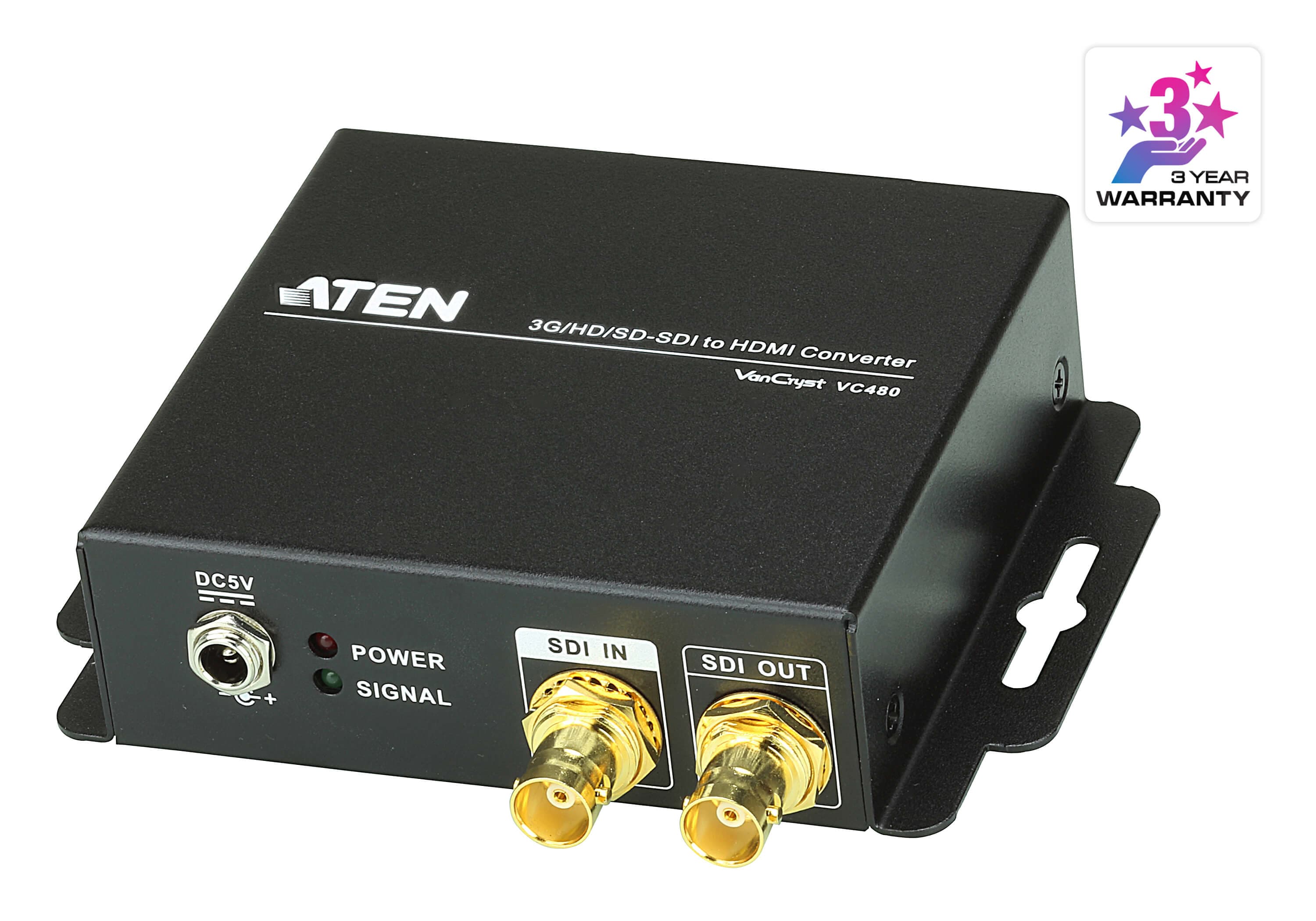

Конвертор от 3G/HD/SD-SDI към HDMI в реално време, с допълнителен аналогов стерео и коаксиален цифров аудио изход. Пренос на данни до 2.97 Gbps.
Характеристики
- Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- HDMI (Deep Color)
- LED indication of power and signal status
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
- Supported SDI formats: • SD-SDI (SMPTE 259M, up to 270Mbps) • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps) • 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
- Video support: [email protected], 625i@50 [email protected]/24/25/29.94/30/50/59.94/60 1080i@50/59.94/60 [email protected]/24/25/29.97/30/50/59.94/60

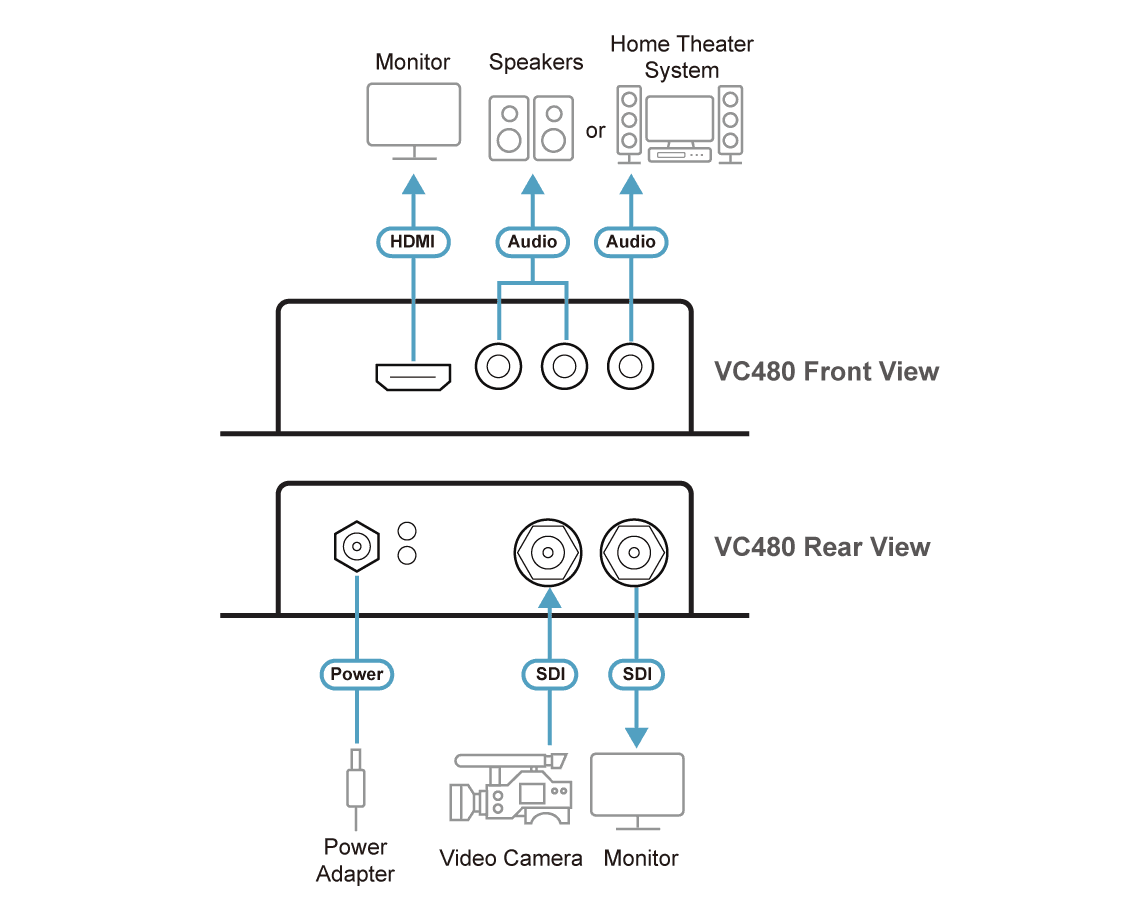

- Buffered loop-through output provides extended monitoring
- Supports PCM 8 audio channels @48kHz rate
- Features automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading and thus longer transmission
- Locking power connector for secure communications
Видео вход
- Интерфейси

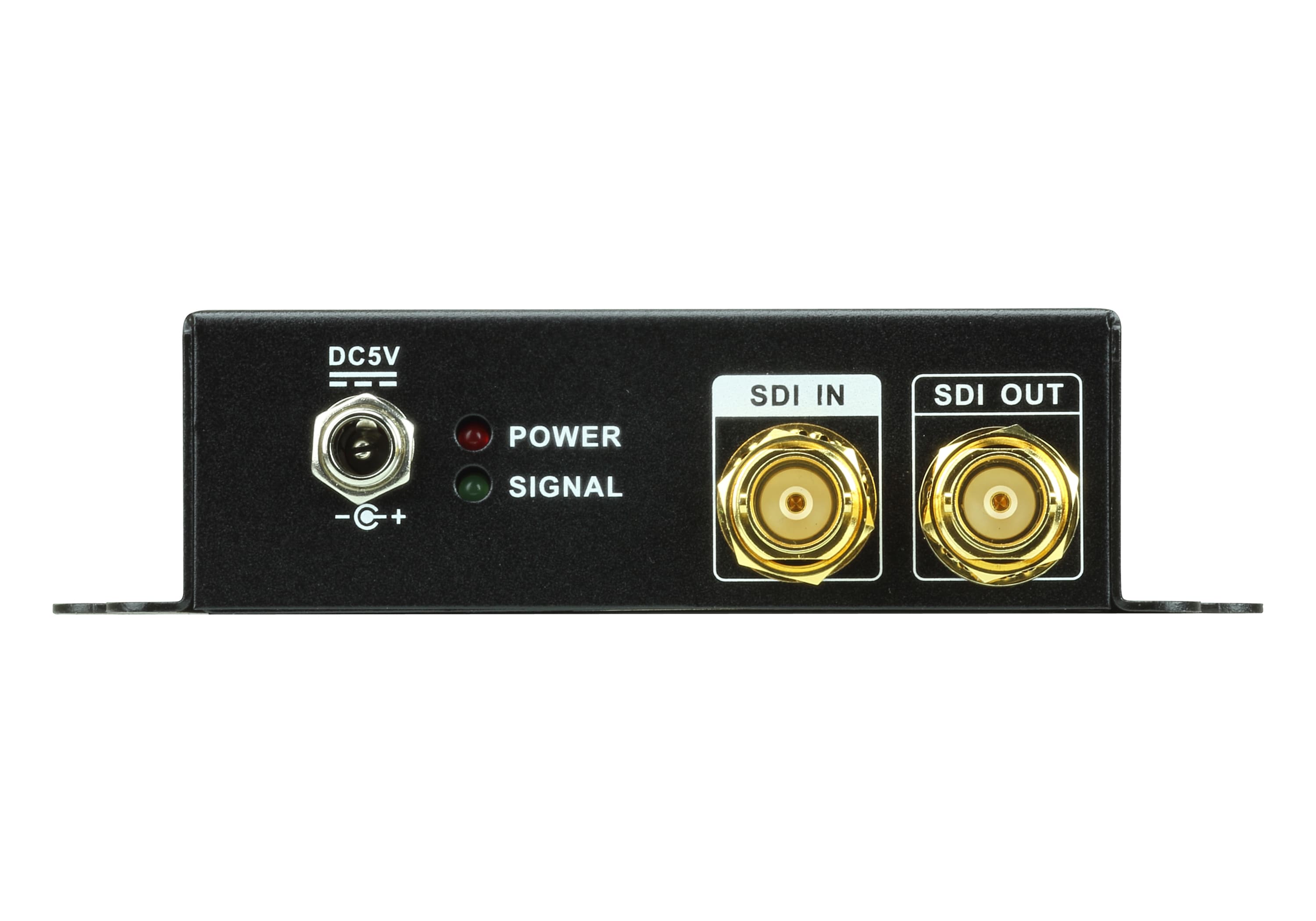

- 1 x BNC (Gold)
- Импеданс
- 75 Ω
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black); 1 x BNC (Gold)
- Импеданс
- 100 Ω
- Макс. разстояние
- 15m at 1920*1080@60 (4:4:4) - HDMI
Видео
- Макс. скорост на данните
- 2.97 Gbps
- Макс. пикселна честота
- 148.5 MHz
- Поддържани резолюции
- [email protected], PAL@50 Hz; 720p@50/59.94/60 Hz; 1080i@50/59.94/60 Hz; [email protected]/24/25/29.97/30/50/59.94/60 Hz
- Макс. разстояние
- 90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
- SDI формати
- SD-SDI (SMPTE 259M, up to 270 Mbps) HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
Аудио
- Изход

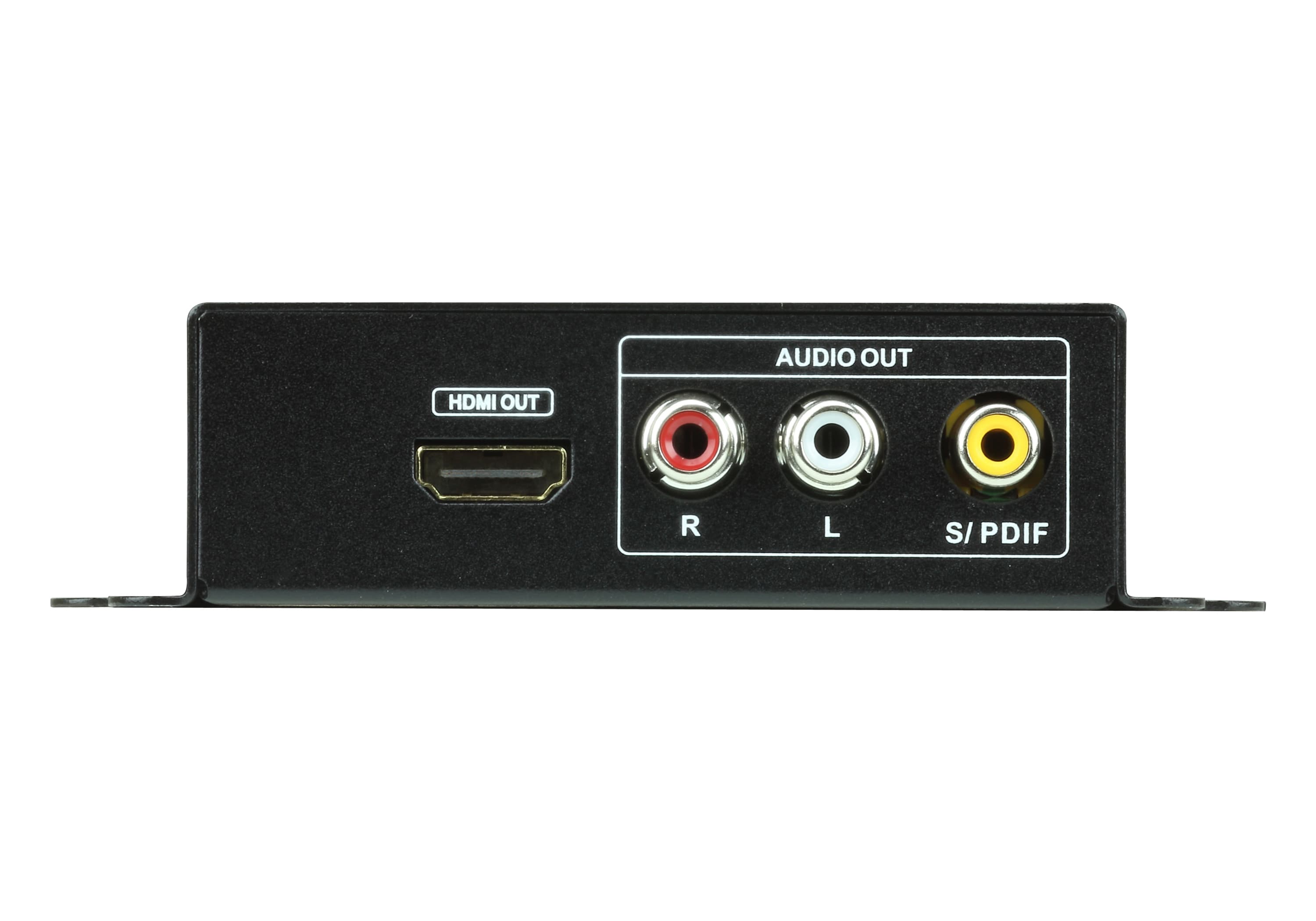

- Analog: 2 x RCA (Red/White) Digital: 1 x RCA (Yellow)
- Формат
- Input: PCM 2/5.1/7.1 Channel @48kHz sampling rate Output: PCM 2 Channel (Analog/Digital)
Конектори
- Захранване
- 1 x DC Jack
- Консумация
- DC5V:3.635WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 20 - 90% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.29 kg ( 0.64 lb )
- Размери (Д x Ш x В)
- 12.30 x 10.87 x 3.05 cm (4.84 x 4.28 x 1.2 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
