True 4K DisplayPort to HDMI Active Adapter

Name: True 4K DisplayPort to HDMI Active Adapter
Brand: ATEN
SKU: VC986B

VC986B

Active adapter converting a DisplayPort output to HDMI at up to 4096 x 2160 @ 60 Hz. DP 1.2a and HDMI 2.0 compliant; supports AMD Eyefinity multi-screen setups.

Features

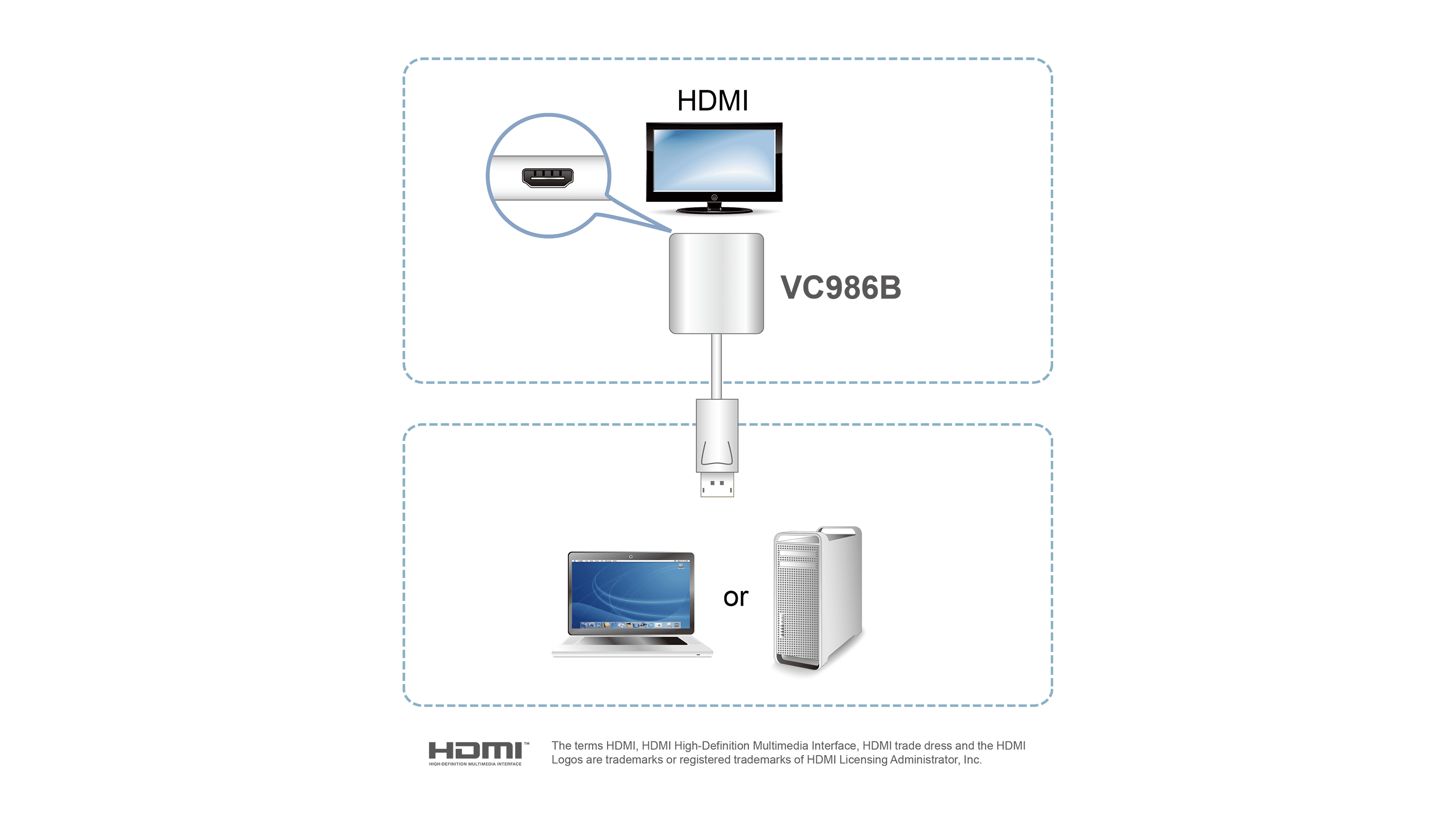

Converts DisplayPort signals to HDMI output
Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K

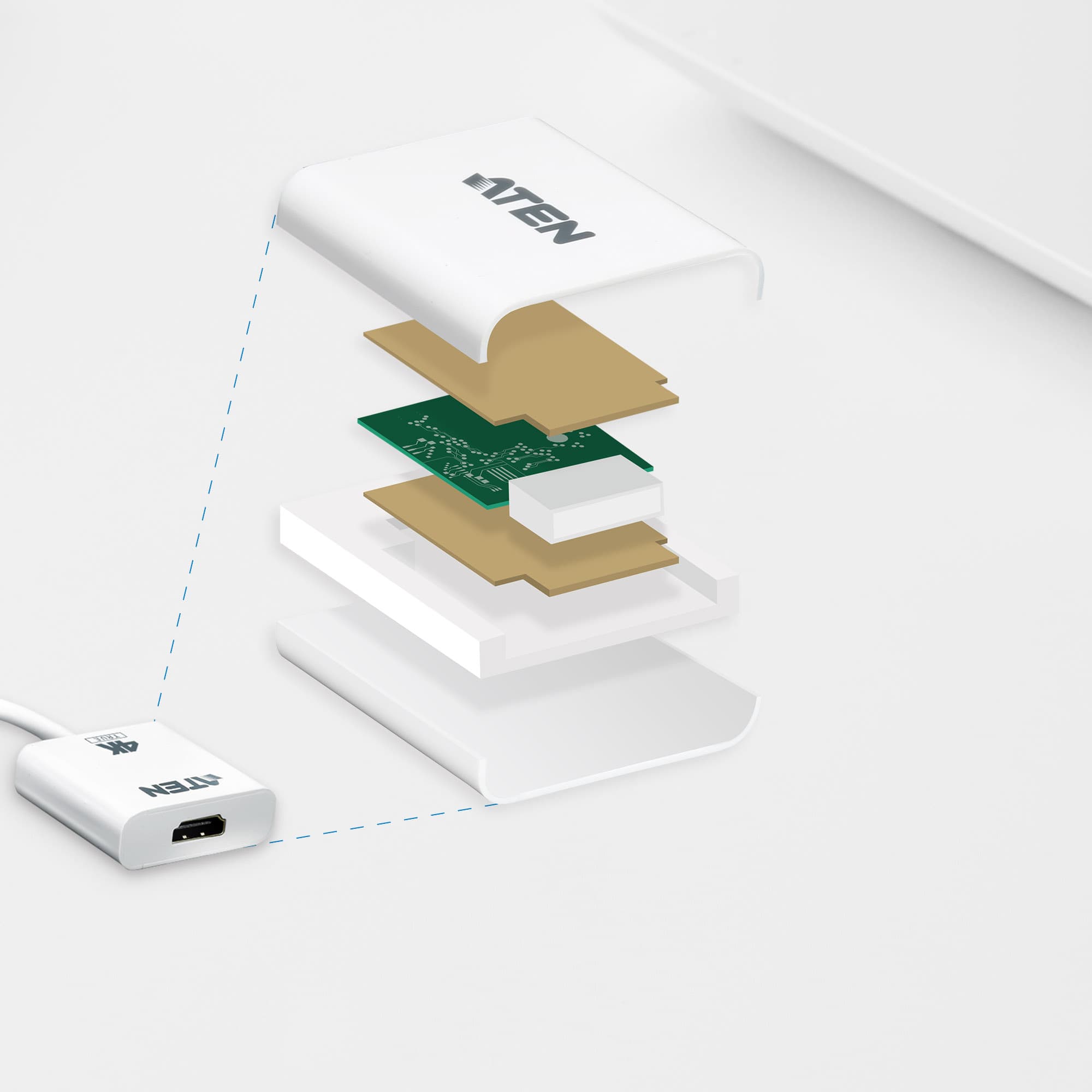

Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)

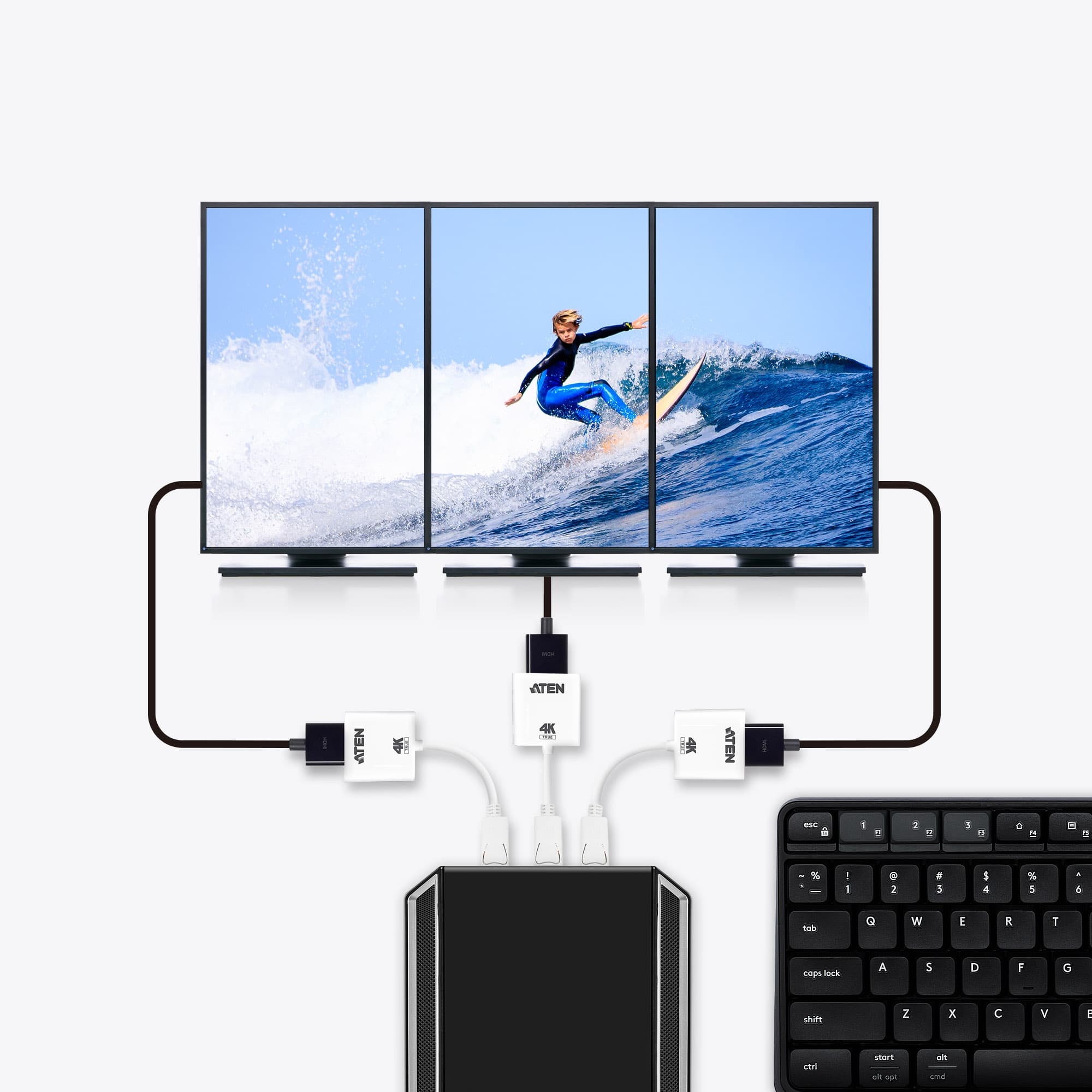

Supports AMD Eyefinity™ Technology (multi-screen setups)
Audio supported
No software or driver installation required
DisplayPort 1.2 compliant

Video Input

Interfaces: 1 x DisplayPort Male (White)

Video Output

Interfaces: 1 x HDMI Type A Female (Black)

Video

Max. Pixel Clock: 600 MHz
Max. Resolution: 4096x2160@60Hz / 3840x2160@60Hz
Compliance: DP1.2a / HDMI 2.0 / HDCP 2.2
Max. Data Rate: 18 Gbps (6 Gbps Per Lane)

Audio

Output: 1 x HDMI Type A Female (Black)

Environmental

Operating Temperature: 0 - 50 ºC
Storage Temperature: -20–60 ºC
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Plastic
Weight: 0.04 kg ( 0.09 lb )
Dimensions (L x W x H): 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.)
Carton Lot: 40 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
