2-Port 4K DisplayPort USB-C KVM Switch with Power Pass-through|Duo Flex (8K, USB 3.2 / 4.0, Thunderbolt 4 Compatible)

Name: 2-Port 4K DisplayPort USB-C KVM Switch with Power Pass-through|Duo Flex (8K, USB 3.2 / 4.0, Thunderbolt 4 Compatible)
Brand: ATEN
SKU: US3311

US3311

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

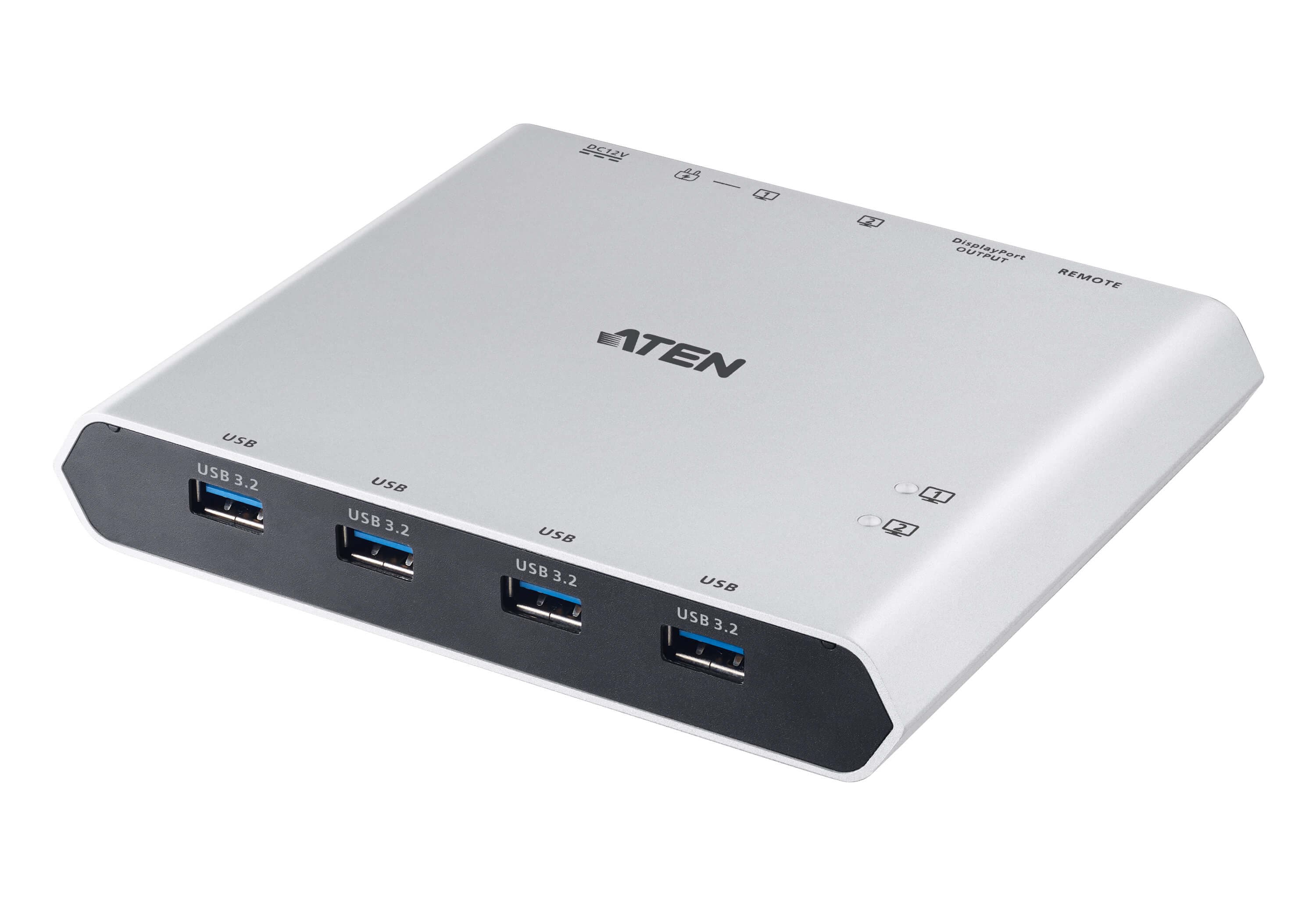

KVM комутатор за 2 USB-C компютъра към един DisplayPort монитор, с 4 USB 3.2 Gen 1 порта за периферия. Поддържа до 8K или 4K@144Hz и зареждане на лаптоп през USB-C PD.

Характеристики

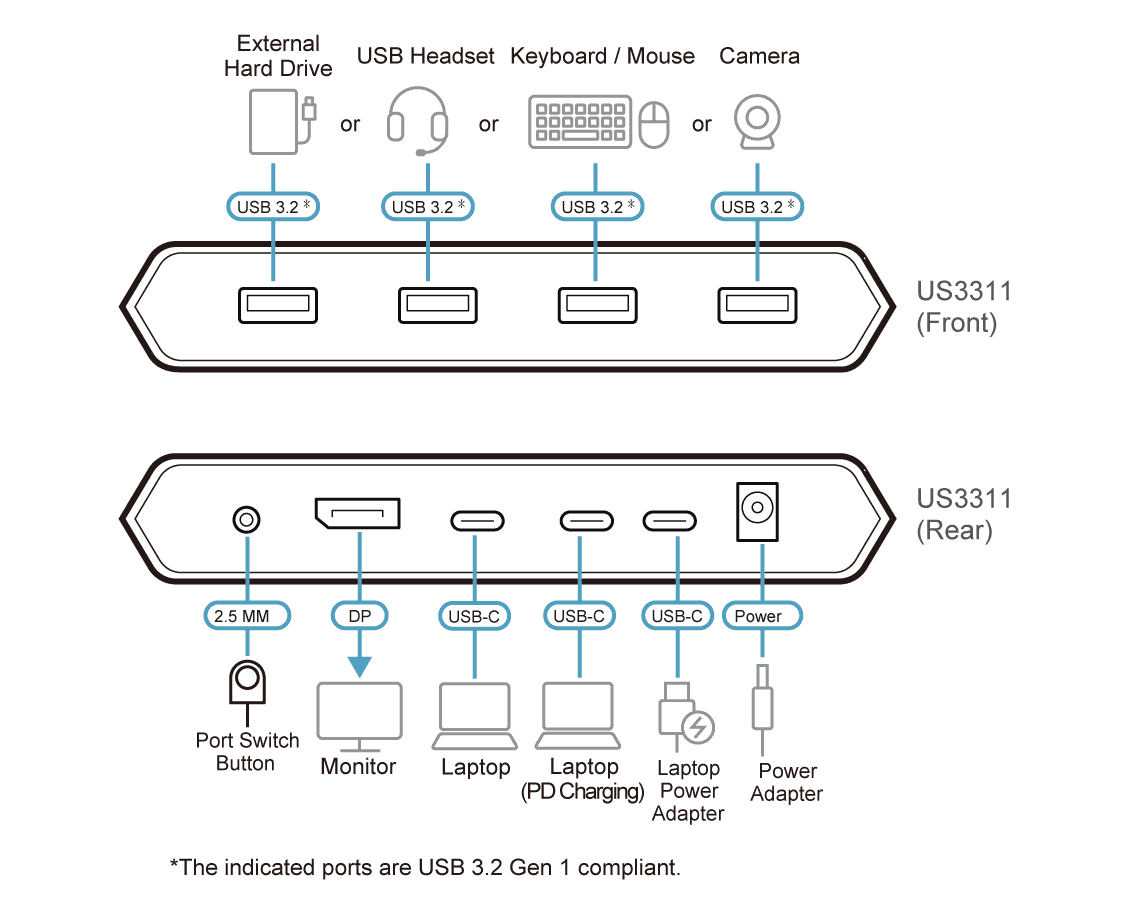

2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
Supports DP 1.4 Alt Mode
Superior video quality – up to 8K 7680 × 4320, 4K 3840 x 2160 @ 144 / 120 / 60 Hz*
USB 3.2 Gen 1 compliant
Up to 5 Gbps data transfer rates
Supports PD 3.0 up to 100 W USB PD charging – allows your laptop to obtain the maximum power via your USB-C power adapter
Host devices can be selected with the included port switch button or the hotkeys set via ATEN KVM Utility app
Plug-and-Play – no drivers needed Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.

Спецификация

Връзки към компютри: 2

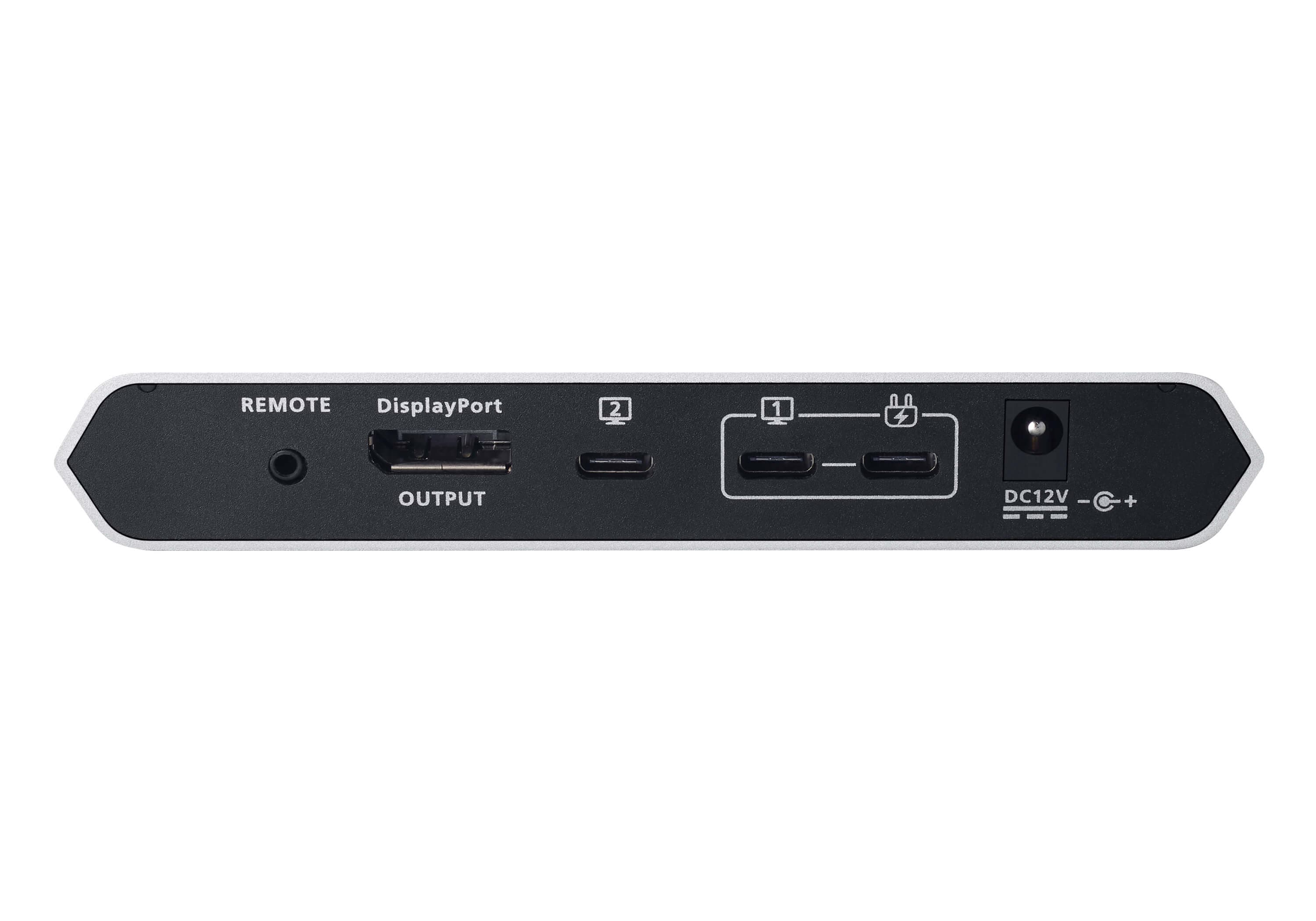

Конектори

Компютър: CPU1: 1 x USB Type C Female CPU2: 1 x USB Type C Female

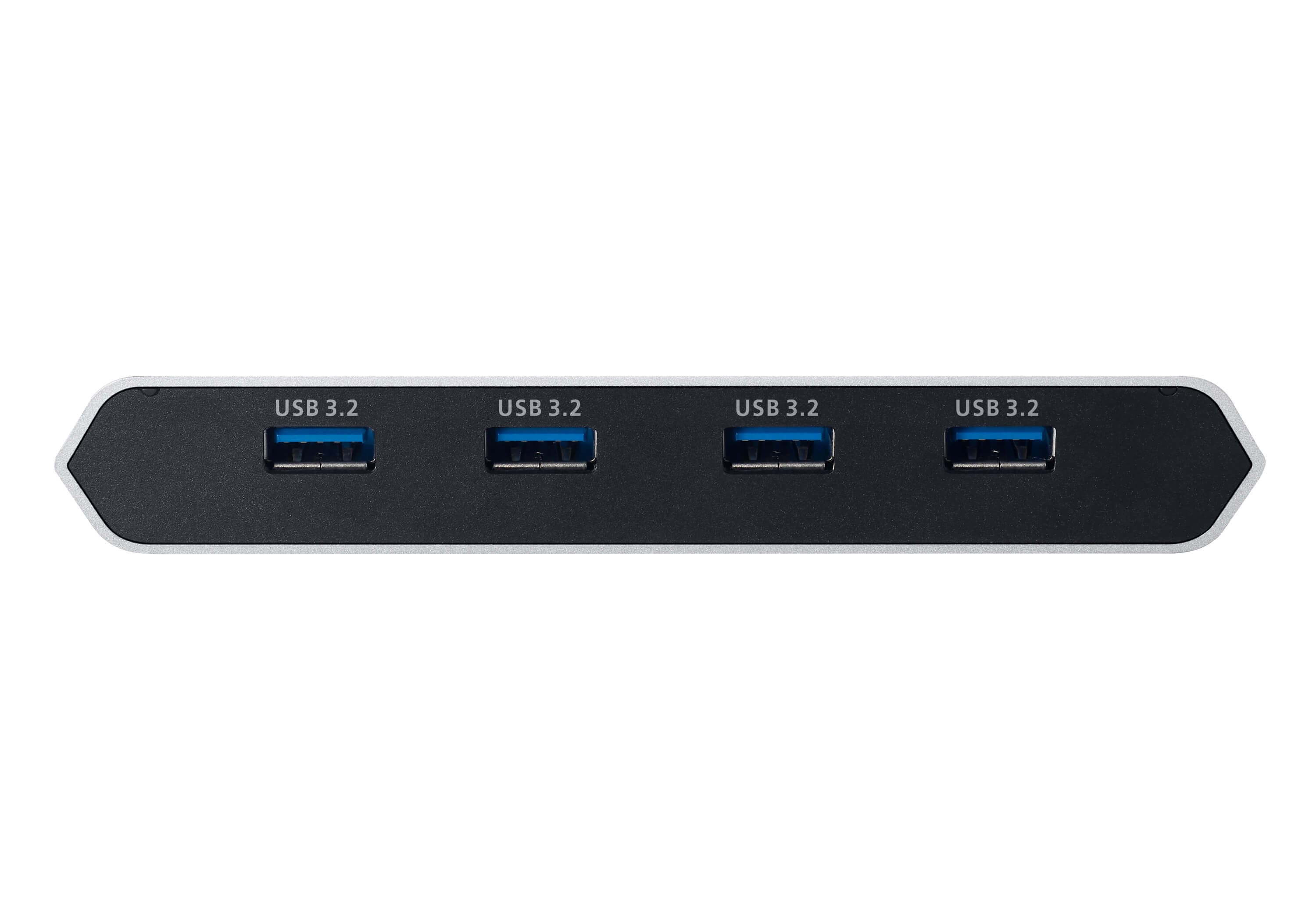

Устройство: 4 x USB 3.2 Gen 1 Type-A Female
Видео изход: 1 x DisplayPort Female
Захранване: 1 x DC jack for 12V 3.3A 1 x USB-C Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output Port 2 : Supports max. 5V, 3A output *Supports maximum 100W USB-C PD power adapter input.

Избор на порт

Вход: Port Switch Button
Видео резолюция: 3840 x 2160@60 3840 x 2160@120 3840 x 2160@144 7680 x 4320 Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.
Системни изисквания: Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and later, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311's user manual. iPadOS 13.1 and later, iPad Pro (USB-C)* *Support video output in mirror mode iOS 17.1 and later* *Compatible with the Apple iPhone 15 Pro series.

Захранване

Макс. входна мощност: DC12V, 3.3A
Консумация: DC12V:1.68W:117BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Индикатори

Избран: 2 (White)

Работна среда

Работна температура: 0–40°C
Температура на съхранение: -20–60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Aluminum
Тегло: 0.35 kg ( 0.77 lb )
Размери (Д x Ш x В): 14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
