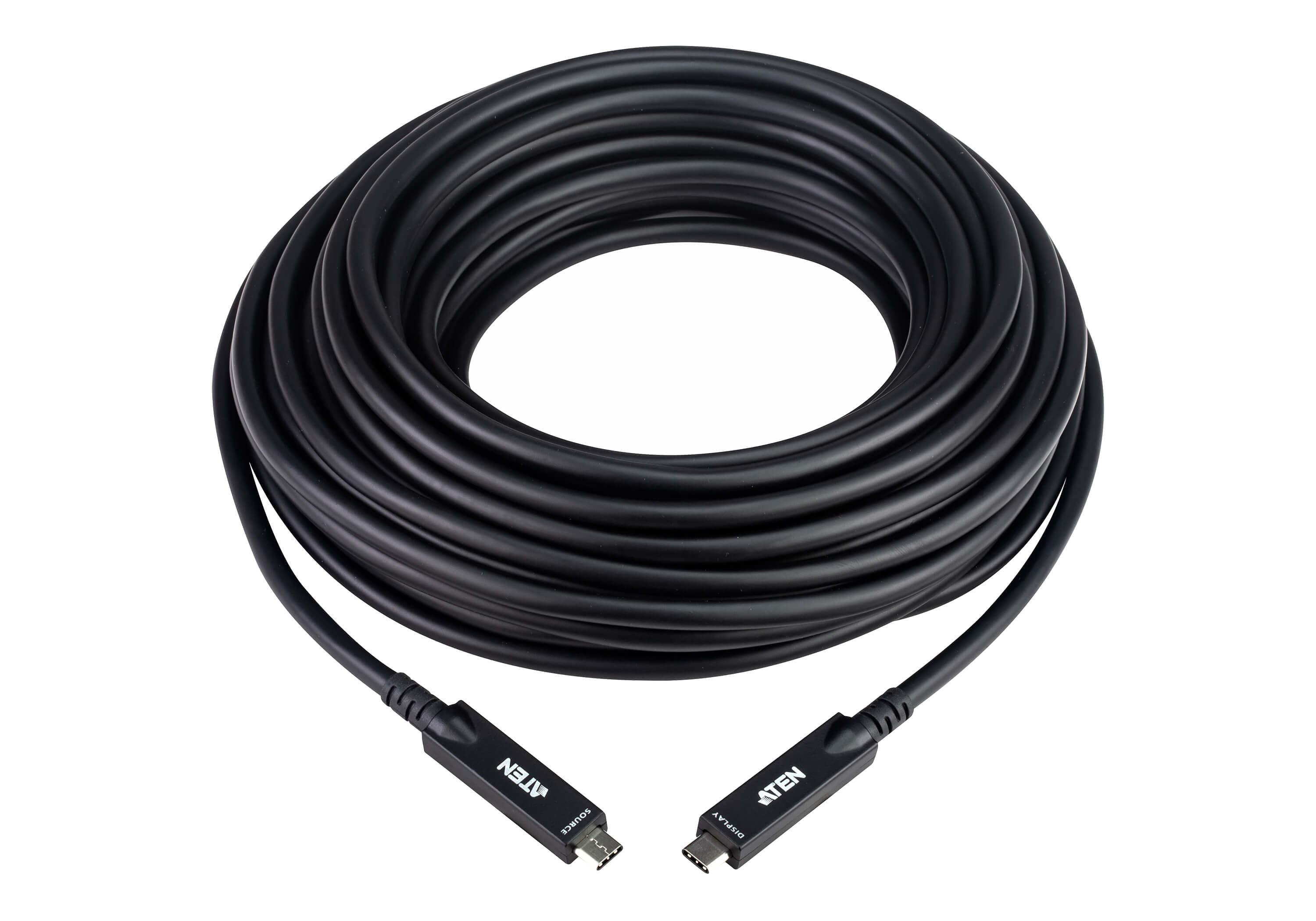

15 m Ultra HD USB-C Active Optical Cable

Name: 15 m Ultra HD USB-C Active Optical Cable
Brand: ATEN
SKU: UE3415F

UE3415F

Активен оптичен USB-C кабел 15 m за видео до 4K@60Hz и данни до 10 Gbps, с поддръжка на 60W Power Delivery. Свързва компютъра с отдалечена USB-C периферия или дисплей.

Характеристики

Extends distance between PCs and USB-C peripherals up to 15 m
Supports 60W Power Delivery
Supports either 4-lane DP2.1 UHBR10 + USB 2.0 (480 Mbps) or 2-lane DP 1.4 + USB 3.2 Gen 2 (10 Gbps) depending on the requirements of the connected device
Supports resolutions up to 4K@60Hz (without HDR or DSC)
Backward compatible with USB 2.0 / 1.1
Highly resistant to EMI and RFI due to high quality material construction
Plug-and-play

Конектори

USB порт: 1 x USB-C Male
Downstream: 1 x USB-C Male
Тип кабел: Hybrid type with optical fiber and copper wire
Дължина на кабела: 15 m
Скорост на данните: Up to 10 Gbps
Консумация: DC5V:2WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0–40°C
Температура на съхранение: -20–60°C
Влажност: 10-80% RH

Обвивка

Материал: PVC
Цвят: Black

Физически характеристики

Корпус: Connector Case: Zinc-Alloy
Тегло: 1.10 kg ( 2.42 lb )
Забележка: 1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device. 2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed. 3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care. 4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop. 5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute.
