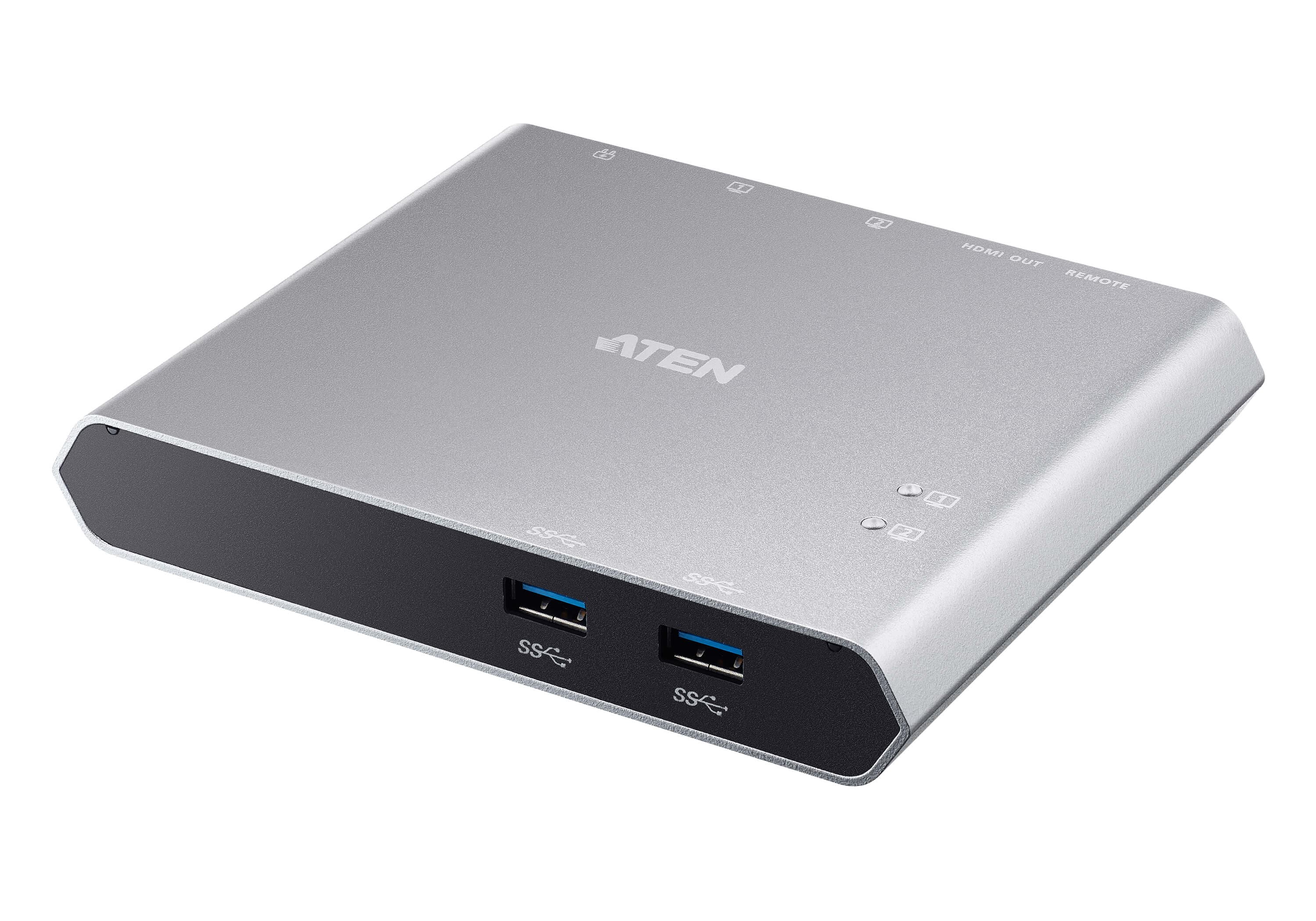

2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-through

Name: 2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-through
Brand: ATEN
SKU: US3310

US3310

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM докинг комутатор, чрез който USB-C лаптоп и Android смартфон споделят един HDMI монитор и USB периферията. Видео до 4K@30Hz, зареждане на лаптопа до 85W, поддръжка на Samsung DeX и Huawei Desktop.

Характеристики

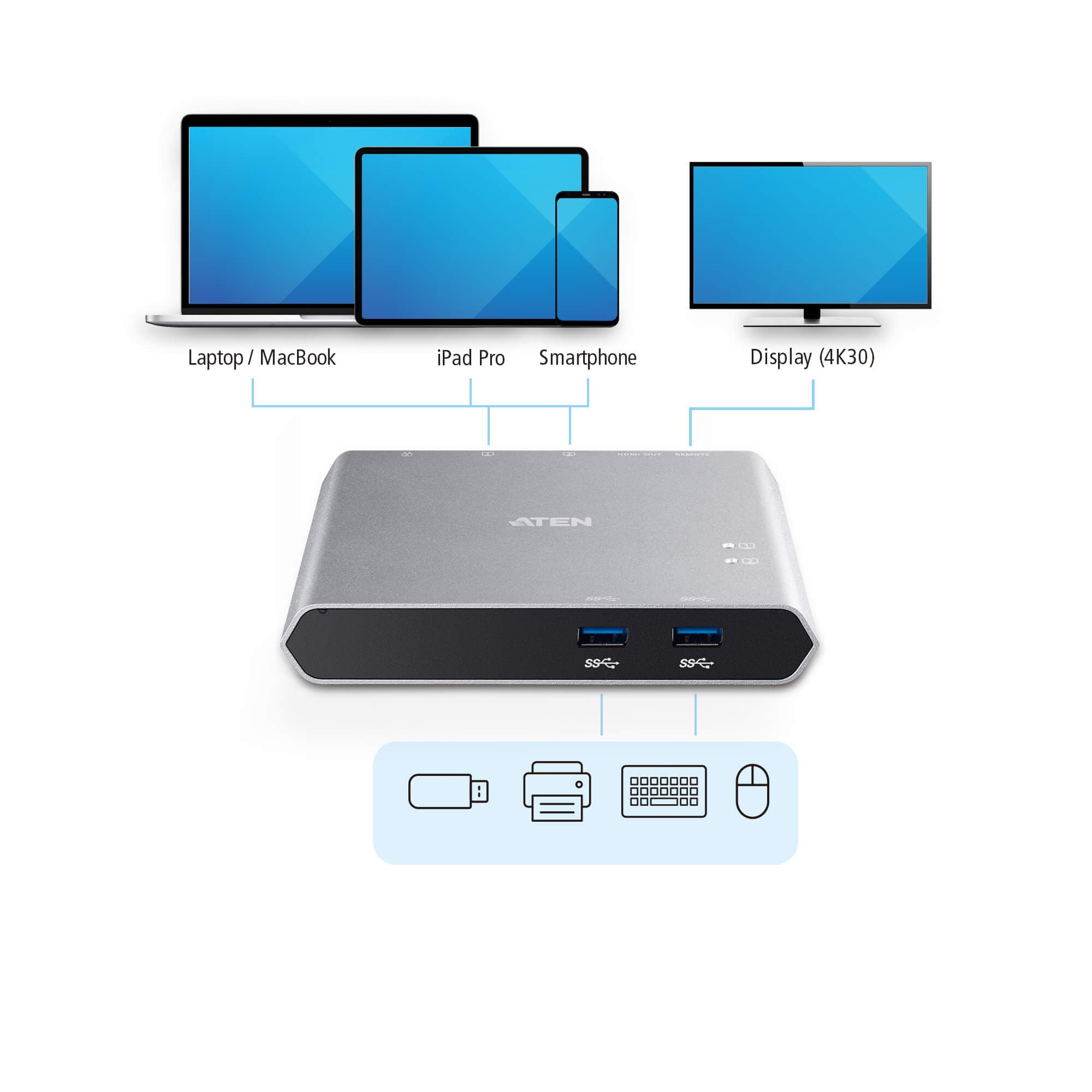

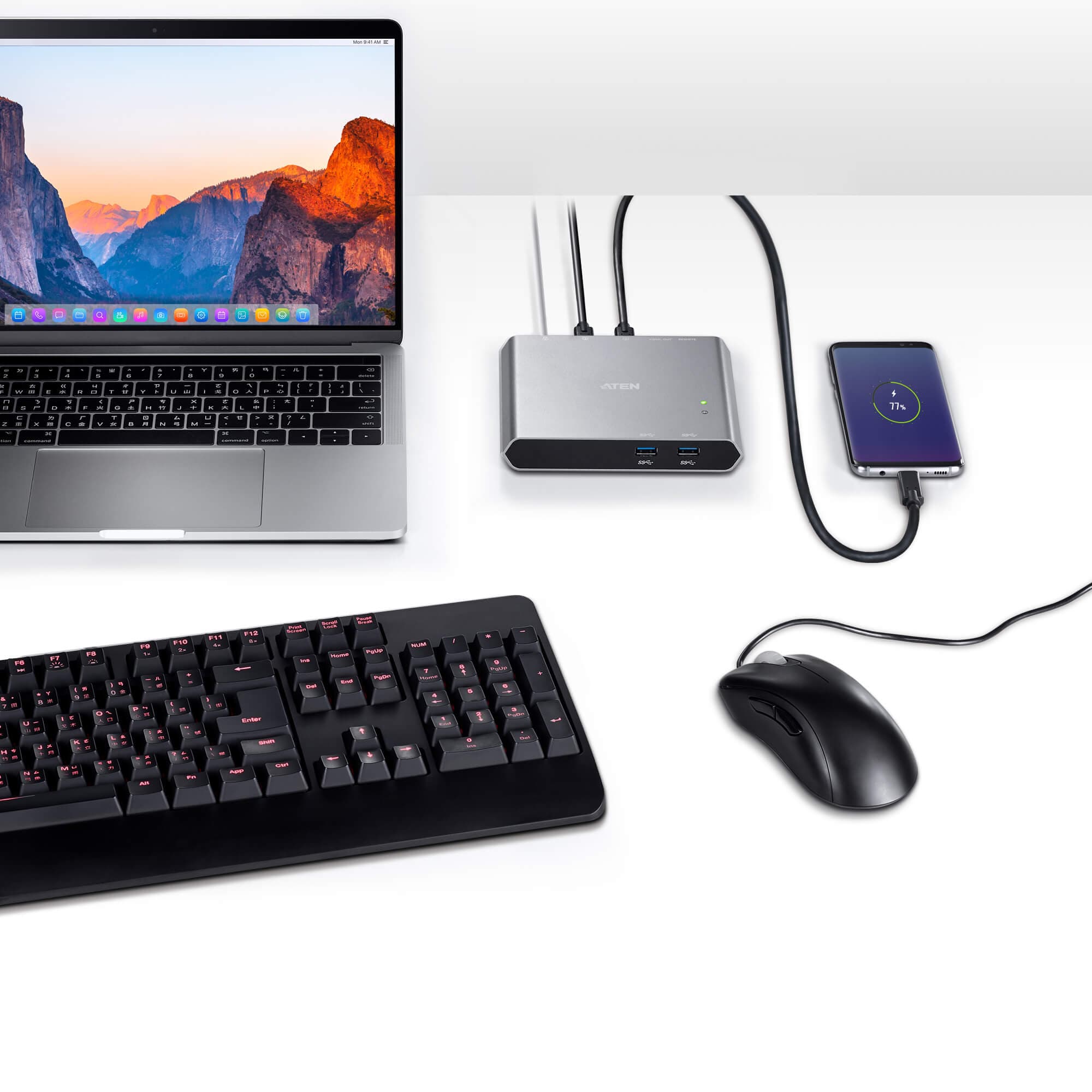

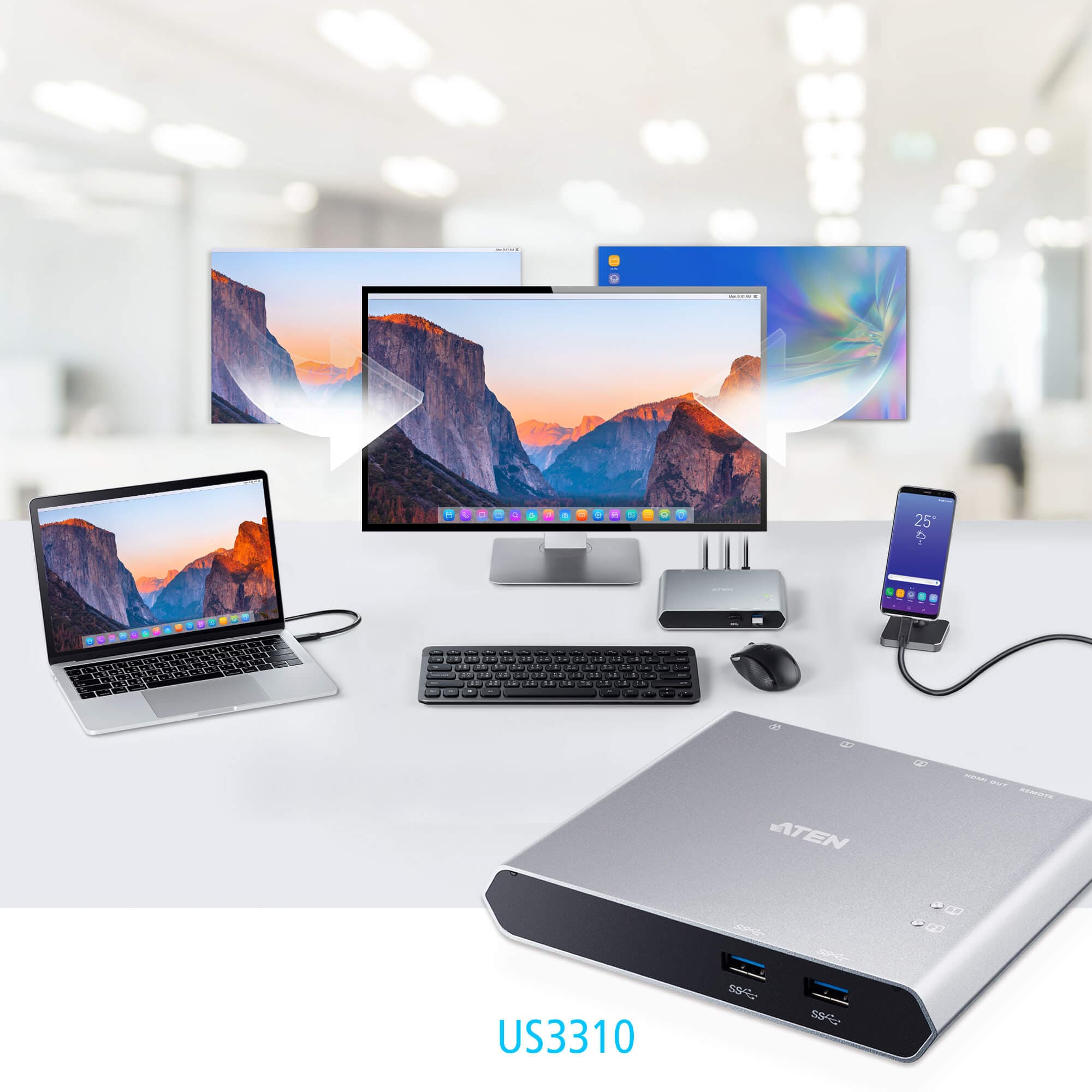

Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals*
Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter is needed)**
Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
Supports Samsung DeX mode or Huawei Desktop mode***
Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
Switches devices via remote port selector by pressing a button
Plug and play – no drivers needed
Multiplatform support – Windows 10 or above, macOS X 10.12, Android™ 8.0 or later, and iPadOS 13 or later
Apple M1 / M2 chip compatible *For video output to work through a USB-C port, it must support DP Alt Mode. **For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A. ***Compatible with smartphones launched in 2018 or later that feature video output DP Alt Mode over USB-C. For a list of supporting mobile device, refer to US3310's user manual

Спецификация

Връзки към компютри: 2

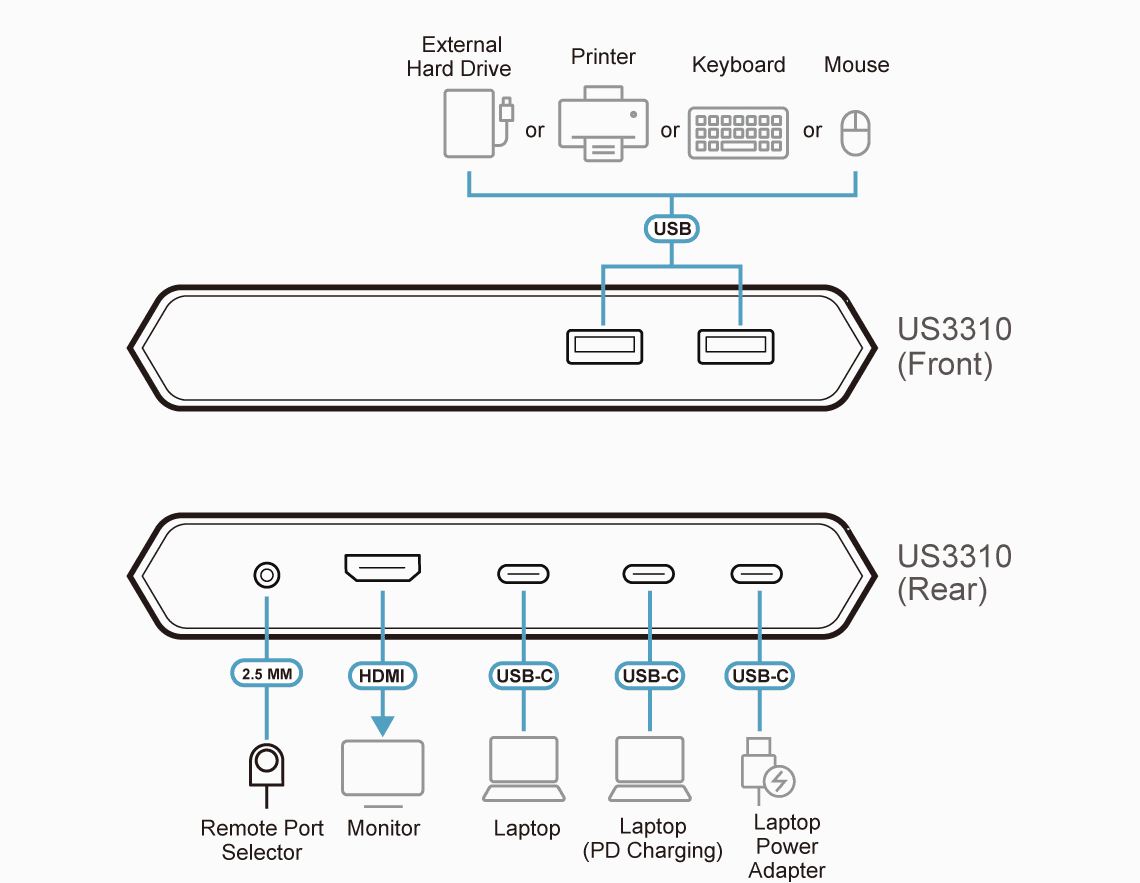

Конектори

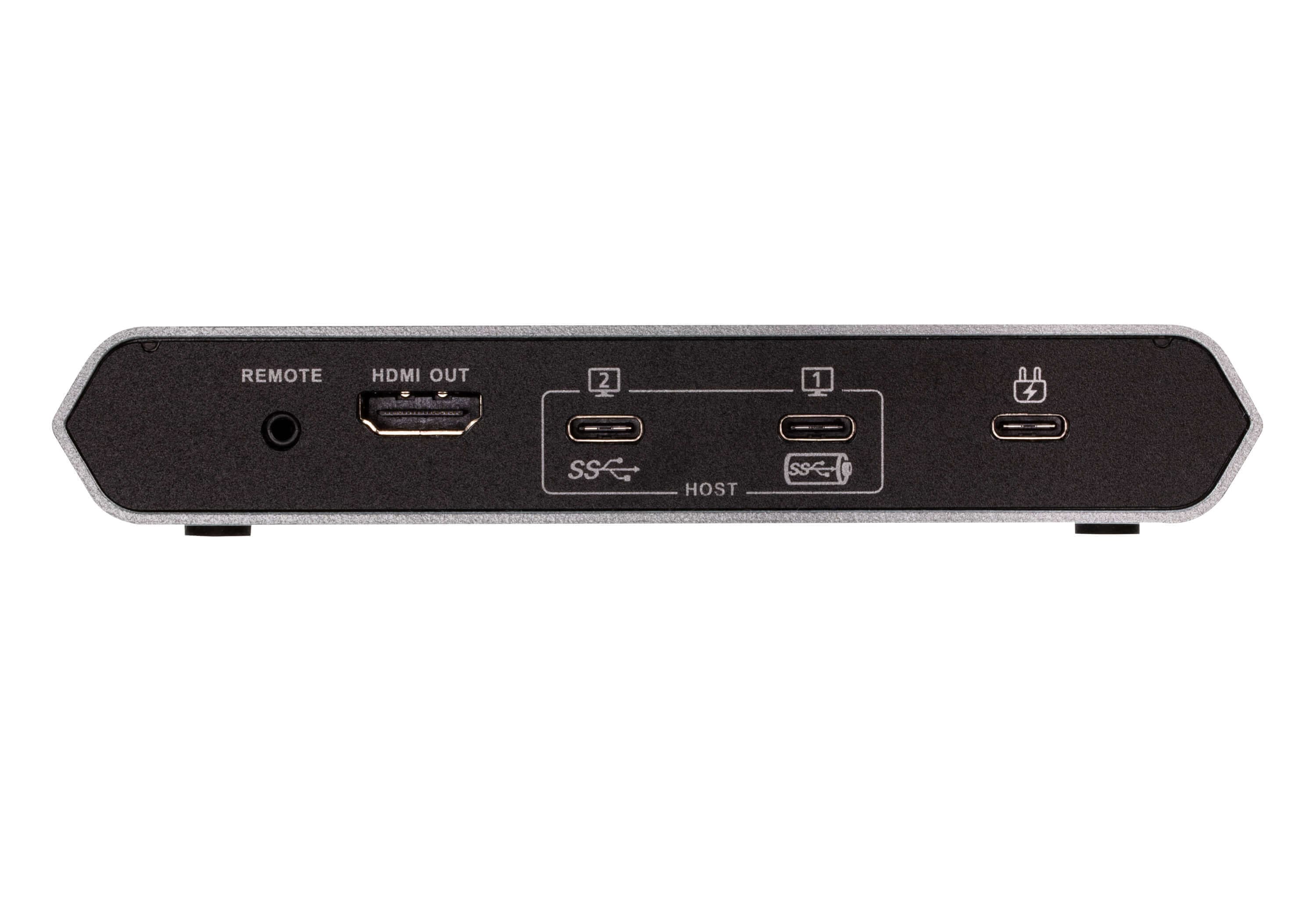

Компютър: USB 3.2 Gen 1 Type-C Port 1 (Laptop) USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode)

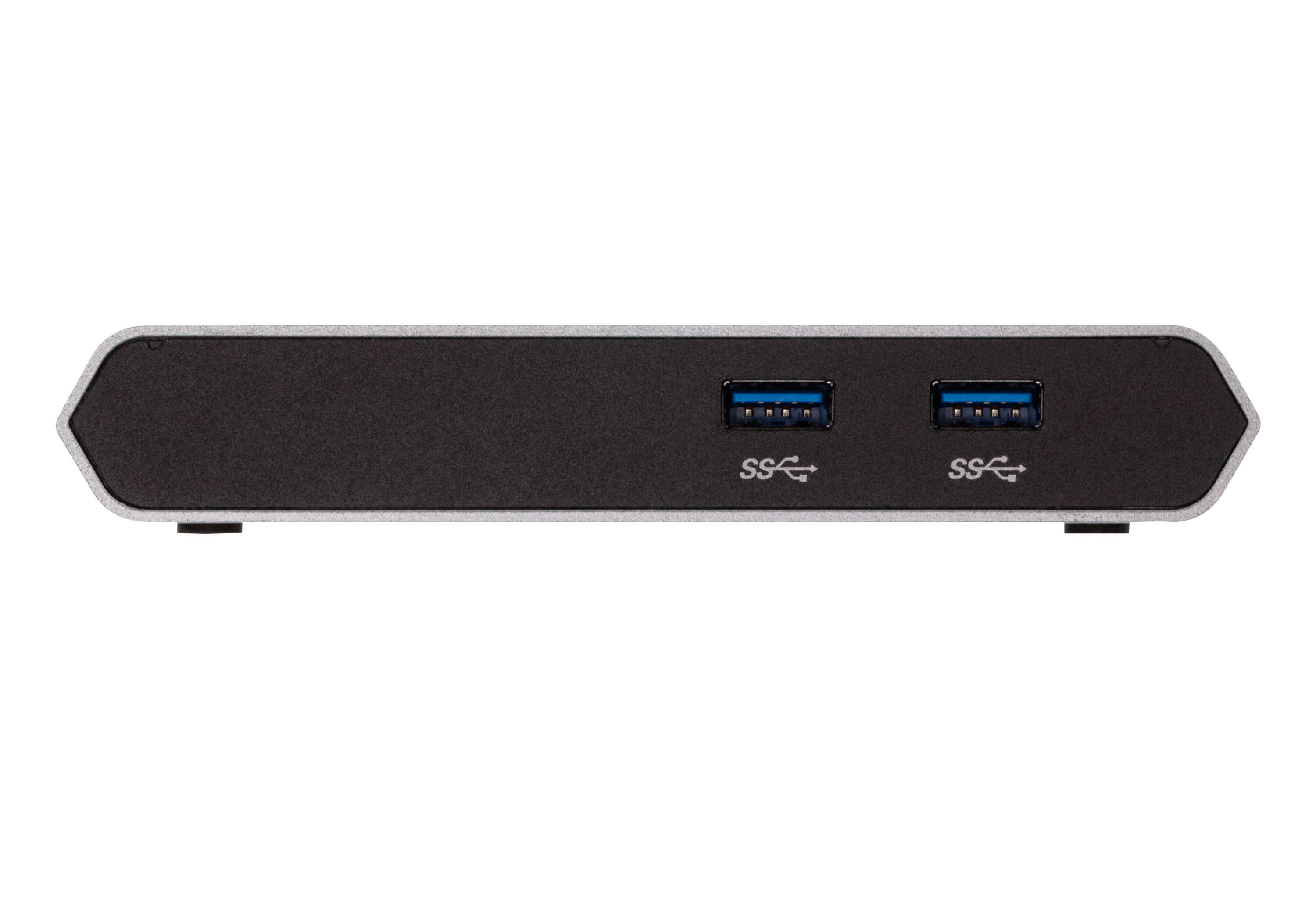

Устройство: 2 x USB 3.2 Gen 1 Type-A Female
Видео изход: 1 x HDMI Female
Захранване: 1 x USB-C DC-in Female* Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output* Port 2 : Supports max. 5V, 2A output *Supports maximum 100W USB-C PD power adapter input. *For device charging, a Limited Power Source (LPS) certiﬁed USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A. *The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1.

Избор на порт

Вход: Remote port selector
Видео резолюция: Up to 3840 x 2160@30hz
Системни изисквания: Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode** **Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual. iOS 12.1 and above, iPad Pro 3rd generation (2018)*** *** For better HID experience, iPad OS 13 and above is recommended.
Консумация: DC5V:1.24W:406BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Индикатори

Избран: 2 (White)

Работна среда

Работна температура: 0–40°C
Температура на съхранение: -20–60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Aluminum
Тегло: 0.33 kg ( 0.73 lb )
Размери (Д x Ш x В): 14.30 x 11.90 x 2.38 cm (5.63 x 4.69 x 0.94 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
