100W 4-Port Smart Display Charger

UP5100

Зарядно устройство 100W с GaN технология и 4 порта — три USB-C и един USB-A — за до четири устройства едновременно. Вграденият дисплей с три теми показва изходната мощност в реално време.

Характеристики

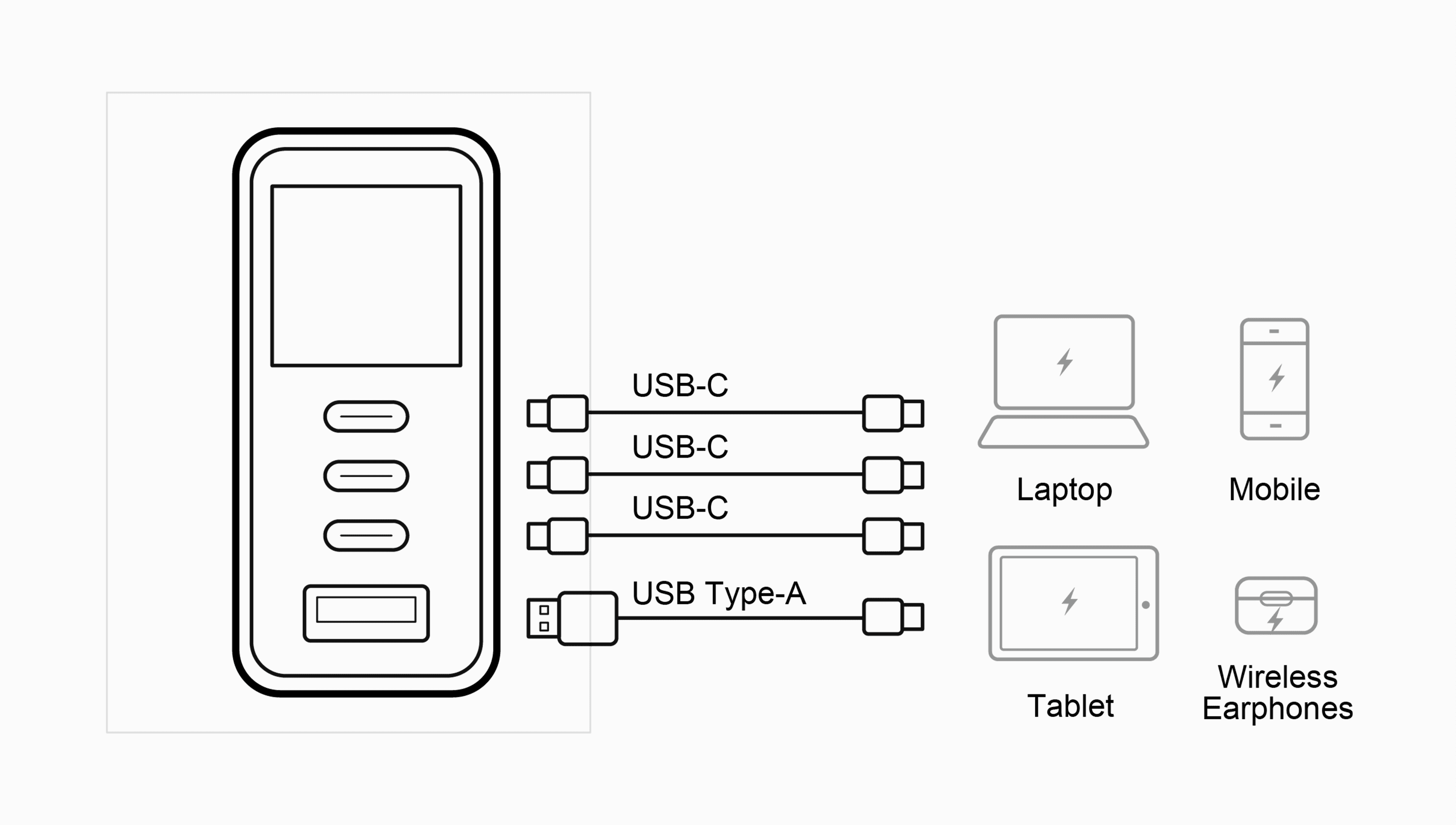

  • Contains an USB Type-A connector and three USB-C connectors to enable charging of up to four devices simultaneously at the highest possible speed with 100W of total power, and meanwhile, keeping your desktop organized and clean.

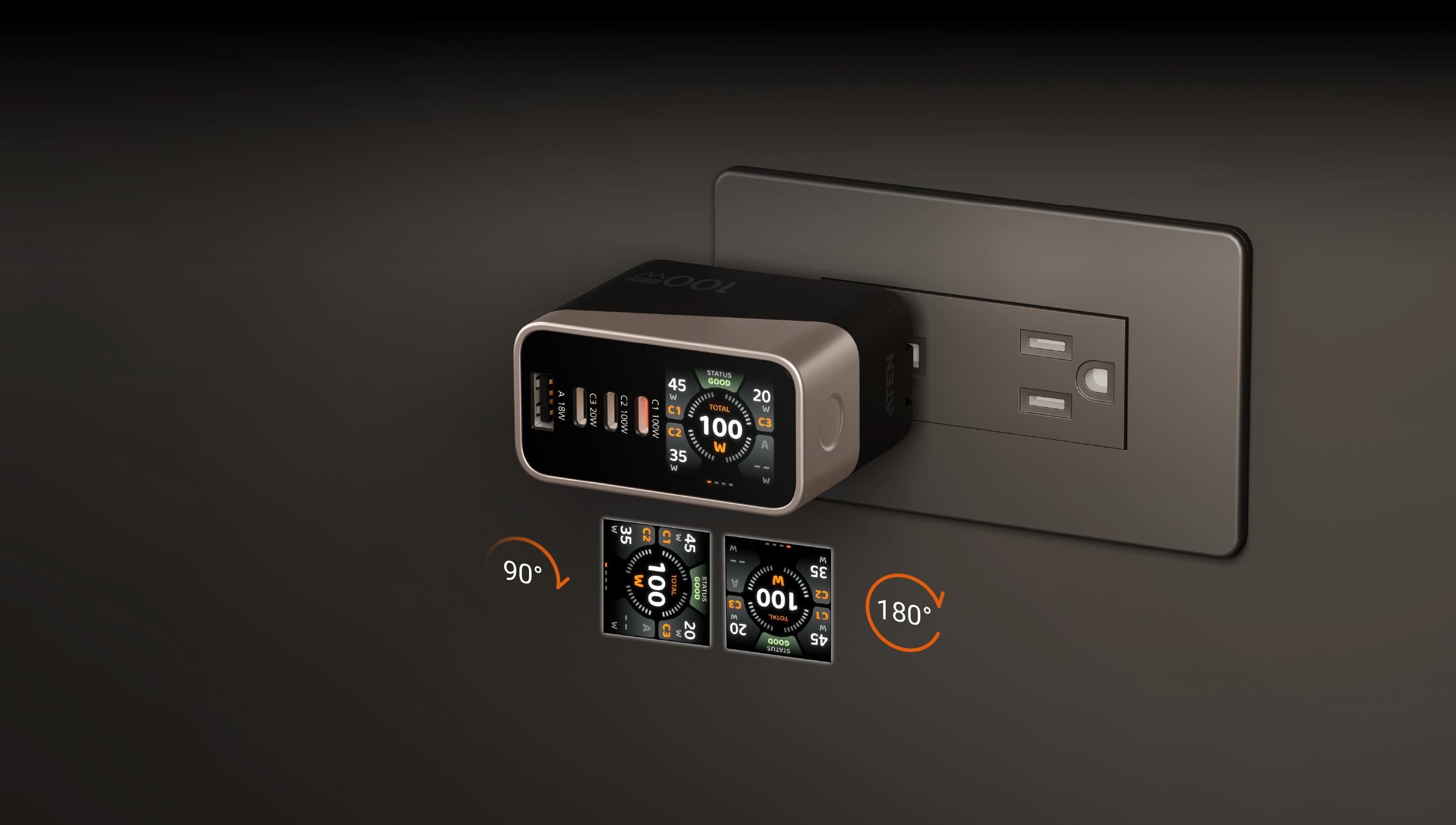

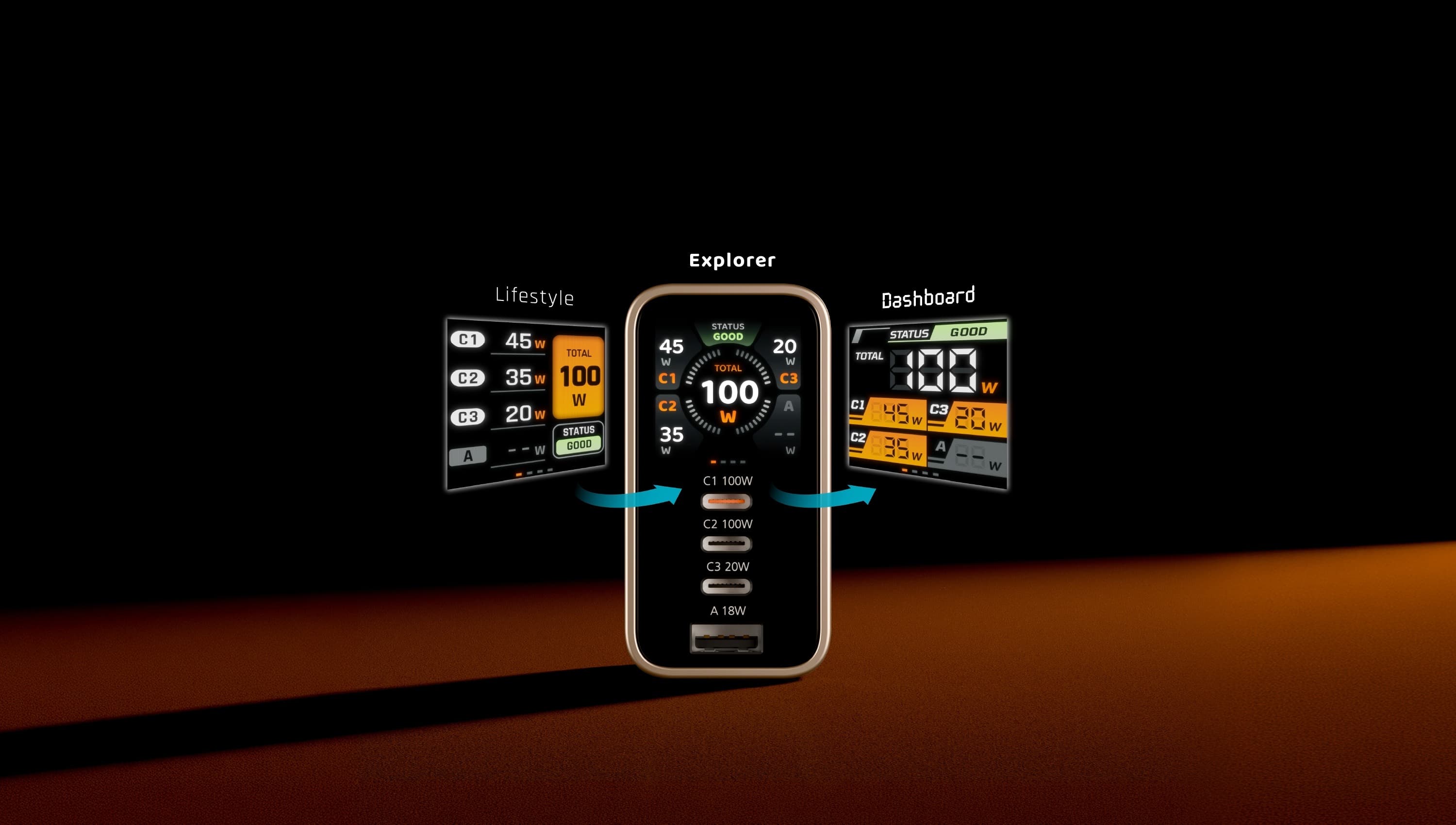

  • With three display themes to choose from, you get to see the real-time operation status, such as wattage output readouts and thermal condition, at a glance on the screen that matches your style.
  • Once the charger’s temperature exceeds safe threshold, it will automatically adjust the output power to simultaneously maximize charging speed and preserve device longevity.
  • Engineered with GaN technology to significantly reduce heat loss without compromising charging speed or safety in a compact form factor.
  • Integrated with ATEN CoreShield™ system, the charger features multi-layer defense against overvoltage, short-circuit, over temperature, overcurrent, surge, static, and EMI. Meanwhile, the charger is built with fire-resistant materials to minimize fire risks.
  • With the charging brick so compact and the plug foldable, the charger boasts a travel-friendly design to easily slide into your pocket. The foldable plug avoids scratching your tech gear screens and other belongings.
  • Firmly secures the charging by preventing accidental separation between the plug and the outlet.

Захранващ щепсел

Модел
UP5100-USUP5100-EUUP5100-KR
Тип щепсел
US Plug - FoldableEU Plug - FoldableKR Plug - Foldable
Размери (Ш x Д x В)
35.6 x 58.9 x 72.2mm35.6 x 70 x 70.2mm35.6 x 70 x 70.2mm
Тегло
190g200g200g

Вход

Диапазон на входното напрежение
100Vac - 240Vac
Диапазон на входната честота
50Hz / 60Hz
Номинален входен ток
1.5A max.

Изход

Мощност
USB-C1: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) USB-C2: 100W max. (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A) USB-C3: 20W max. (5V⎓3A, 9V⎓2.22A, 12V⎓1.67A) USB-A: 18W max. (5V⎓3A, 9V⎓2A, 12V⎓1.5A) USB-C1+C2: 65W+35W max. USB-C1/C2+C3: 65W+20W max. USB-C1/C2+A: 65W+18W max. USB-C3+A: 15W max. (5V⎓3A) USB-C1+C2+C3: 45W+35W+20W max. USB-C1+C2+A: 45W+35W+18W max. USB-C1/C2+(C3+A): 65W+15W max. USB-C1+C2+(C3+A): 45W+35W+15W max. Total outputs: 100W max.

Физически характеристики

Тип изход
3x USB-C 1x USB Type-A
Индикатор за захранване
1x TFT Smart Display

Работна среда

Работна температура
0 - 35℃
Работна влажност
5 - 90 % RH, Non-Condensing
