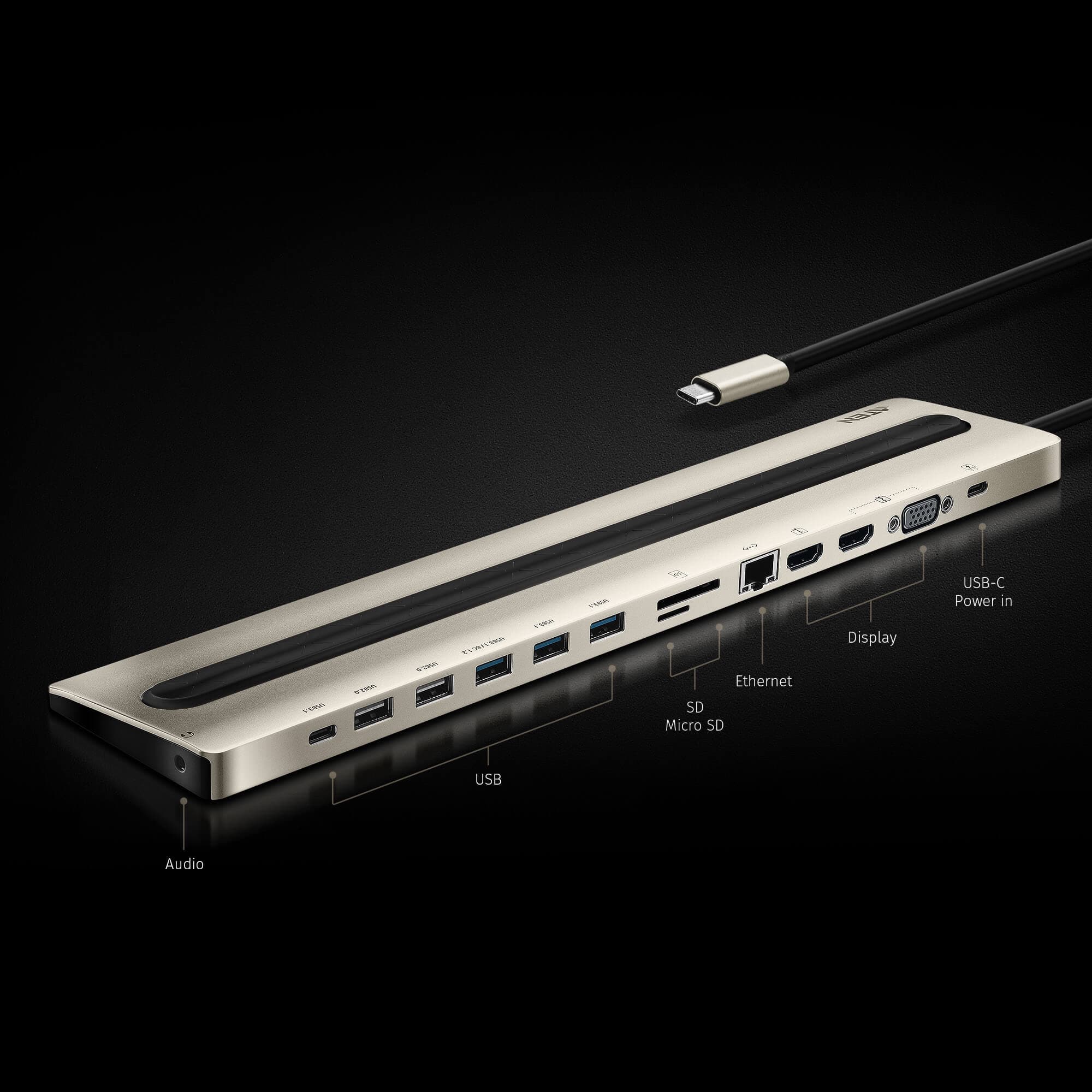

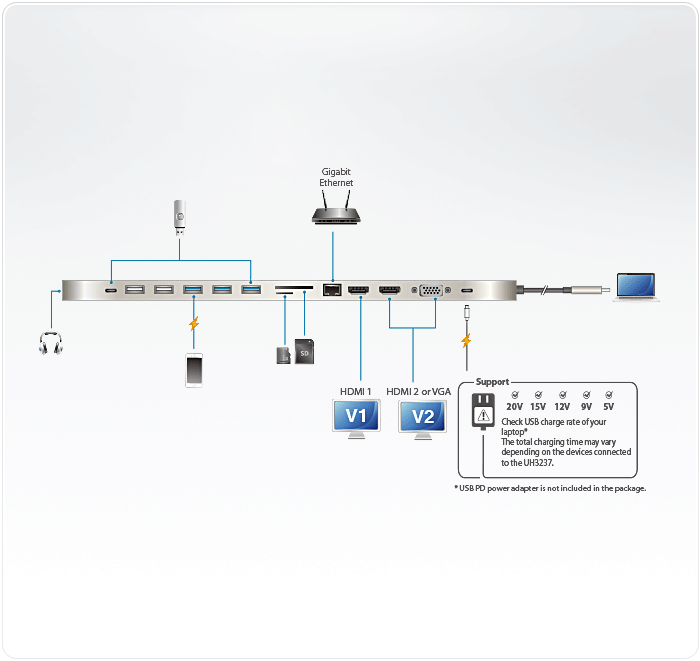

Докинг станция, която през един USB-C кабел добавя до 13 устройства: 2 HDMI, VGA, Gigabit LAN, USB портове и аудио. Видео до 4K@30Hz на един дисплей и зареждане на лаптопа до 85W.
Характеристики
- Expands up to 13 devices instantly through a USB-C cable
- Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via USB-C PD power adapter – power profiles include 5V, 9V, 12V, 15V, 20V
- Supports single display output resolution up to 4K@30 (3840x2160@30Hz) on a single HDMI or dual display output at 1080p (1920 x 1080 @ 60Hz)
- 1 x USB 3.2 Gen 1 Type-A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for fast-charging device
- 1 x USB 3.2 Gen 1 Type-C data port for latest USB-C device
- Stylish and ultra slim design allows user to place a 15” laptop directly on the top of the docking station and save more desk space*
- Enhanced EMI protection by increasing the cable braid density and adding conductive foam
- Built-in memory card readers (SD/MMC/Micro SD)
- Works with all major operating systems: Windows®, OS X®, and iPad Pro
- Compatible with Thunderbolt 3 (USB-C)
- 3.5mm Stereo 4-Pole Audio Jack with Microphone
- Gigabit Ethernet
- Apple M1 chip compatible *Fits 13”~15” laptop with a USB-C port on the left side.
Спецификация
- Връзки към компютри
- 1
Конектори
- Компютър
- 30 cm USB 3.1 Gen1 Type-C tethered cable
- Устройство
- 2 x USB 2.0 Type-A Female (Black)* 3 x USB 3.2 Gen 1 Type-A Female (Blue)* 1 x USB 3.2 Gen 1 Type-C Female (Data Only)* *The total output of 6 USB Ports is max. 5V, 10W.
- Видео изход
- 2 x HDMI Female 1 x VGA Female
- LAN портове
- 1 x Gigabit Ethernet Female (Black)
- Аудио
- 1 x 3.5mm stereo 4-pole microphone and headphone jack
- Захранване
- 1 x USB Type-C Female* * Supports USB Power Delivery 3.0 for charging up to 85W, power profiles includes 5V, 9V, 12V, and 20V. * For device charging, a Limited Power Source (LPS) certified single port USB-C PD power adapter over 65 Watt is recommended. * The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W.
Производителност
- Flash памет
- 1 x SD Card Slot (SD/SDHC/SDXC) 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G)
- Видео резолюция
- Single View: HDMI - 3840x 2160@30hz or VGA -1920 x 1080@60hz Dual View*: 2 x HDMI – 1920 x 1080@60hz 1 x HDMI+1 x VGA- 1920 x 1080@60hz * For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
- Консумация
- DC5V:15W:66BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Системни изисквания
- Windows 10 and above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html Mac OS X 10.12 and above, USB-C enabled computer iPadOS 13.1 and above, iPad Pro (USB-C)* *iPad Pro only supports single view in mirror mode
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Top Cover – Aluminum Bottom Panel - Plastic
- Тегло
- 0.37 kg ( 0.81 lb )
- Размери (Д x Ш x В)
- 35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
