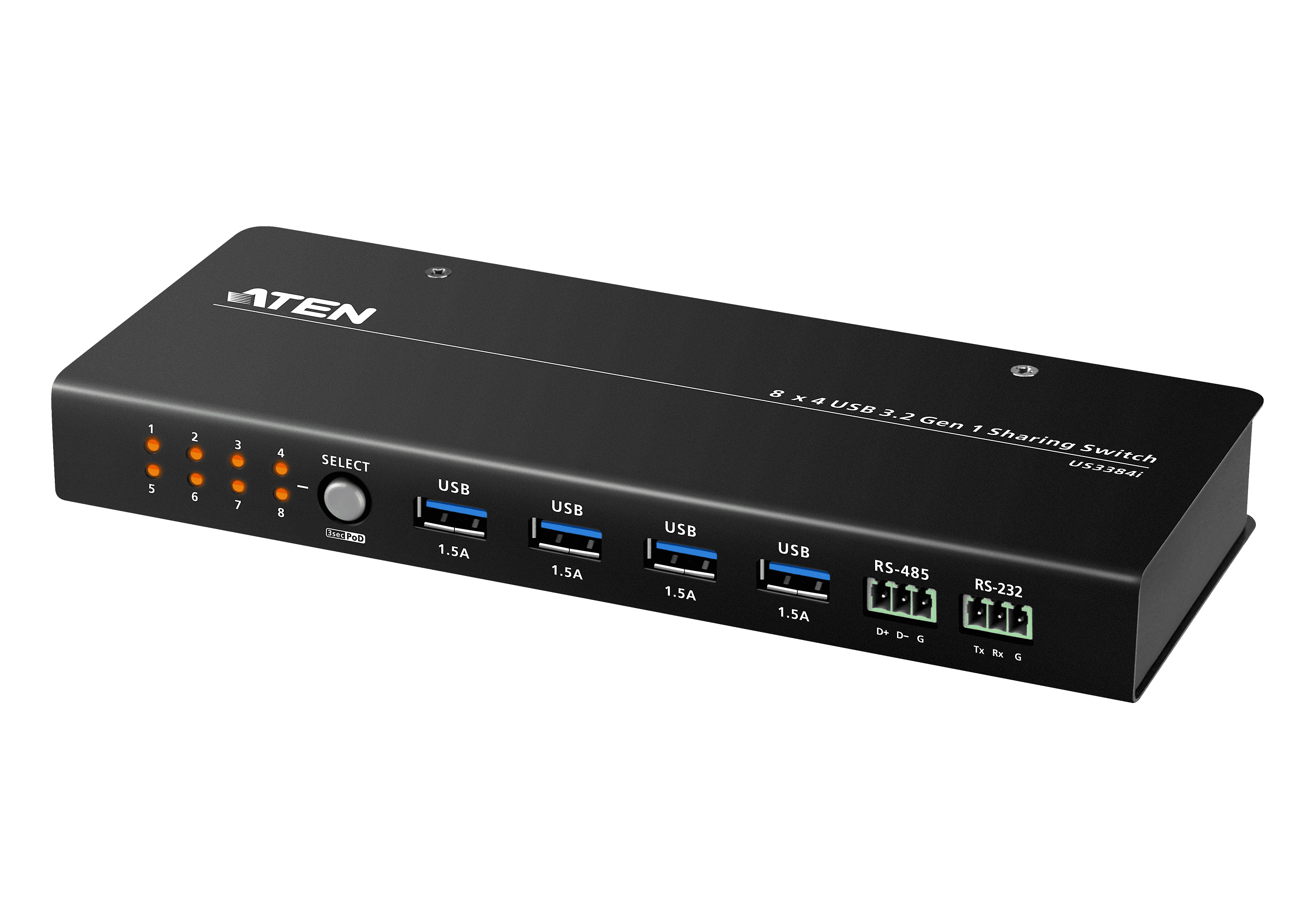

8 x 4 USB 3.2 Gen 1 Industrial Sharing Switch
US3384I
Свързва 8 компютъра към 4 USB устройства и превключва кой от тях ги ползва. Индустриално изпълнение за производствени линии, където няколко станции делят принтер, скенер или измервателен уред.
Характеристики
- Allows sharing of up to 4 USB 3.2 devices among 8 PCs

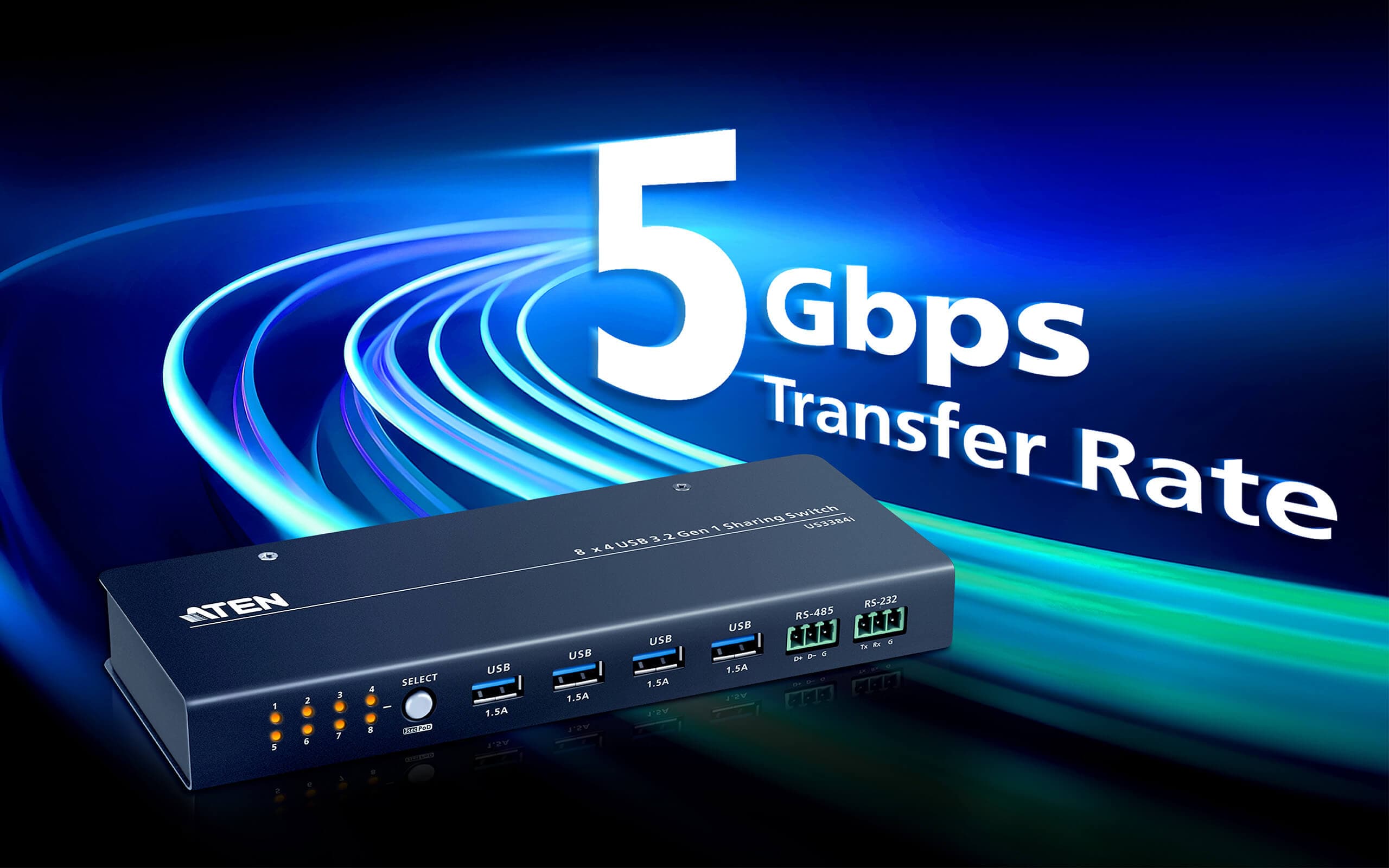

- Bandwidth speed of 5 Gbps and backward compatibility with USB 2.0/1.1 to ensure swift data transmission
- Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector1
- Power on Detection – Automatically switches the PC focus to the last plugged-in/powered-on host device – Configurable priority port preference – allows the focus to switch to a secondary USB host when the primary one is lost

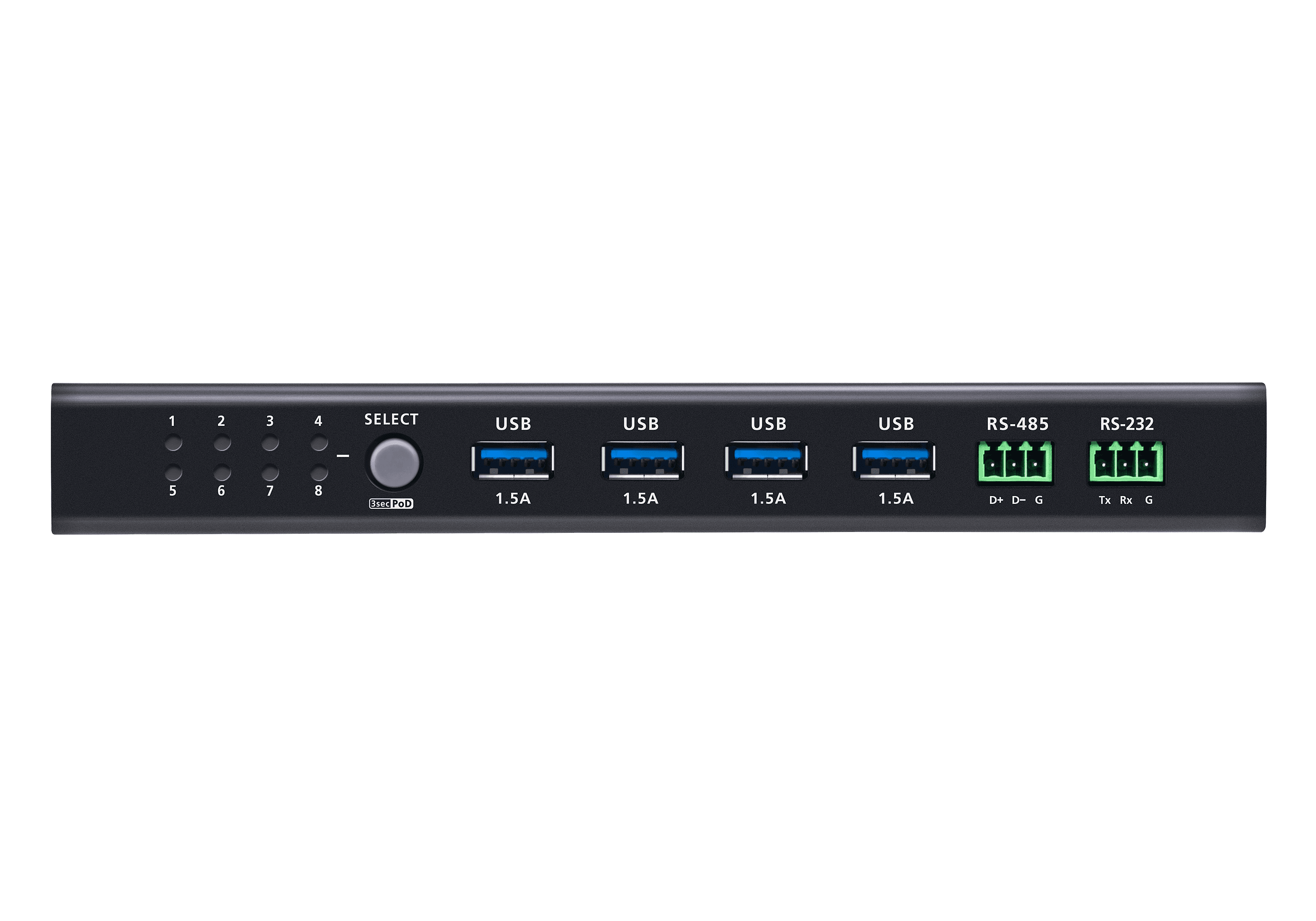

- Front panel port status LEDs – indicate which one of the PCs connected to the US3384i is having the focus at a glance
- Supports USB BC 1.2 to ensure sufficient power for downstream USB devices
- Overvoltage protection circuit – extends device lifespan and minimizes risks of electrical hazards/explosions led by voltage spikes surpassing safe operating limits
- Supports DC 9 – 24V power input through terminal block2
- Plug-and-play on Windows and macOS operating systems – no drivers are needed
- Hot-pluggable – users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch
- Wall-mountable case constructed with premium metal for enhanced durability Note: 1. The remote port selector is sold separately, please contact your ATEN dealer for product information. 2. Supports either of the following power supplies: (1) DC terminal block (2) DC power jack (The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.)
Спецификация

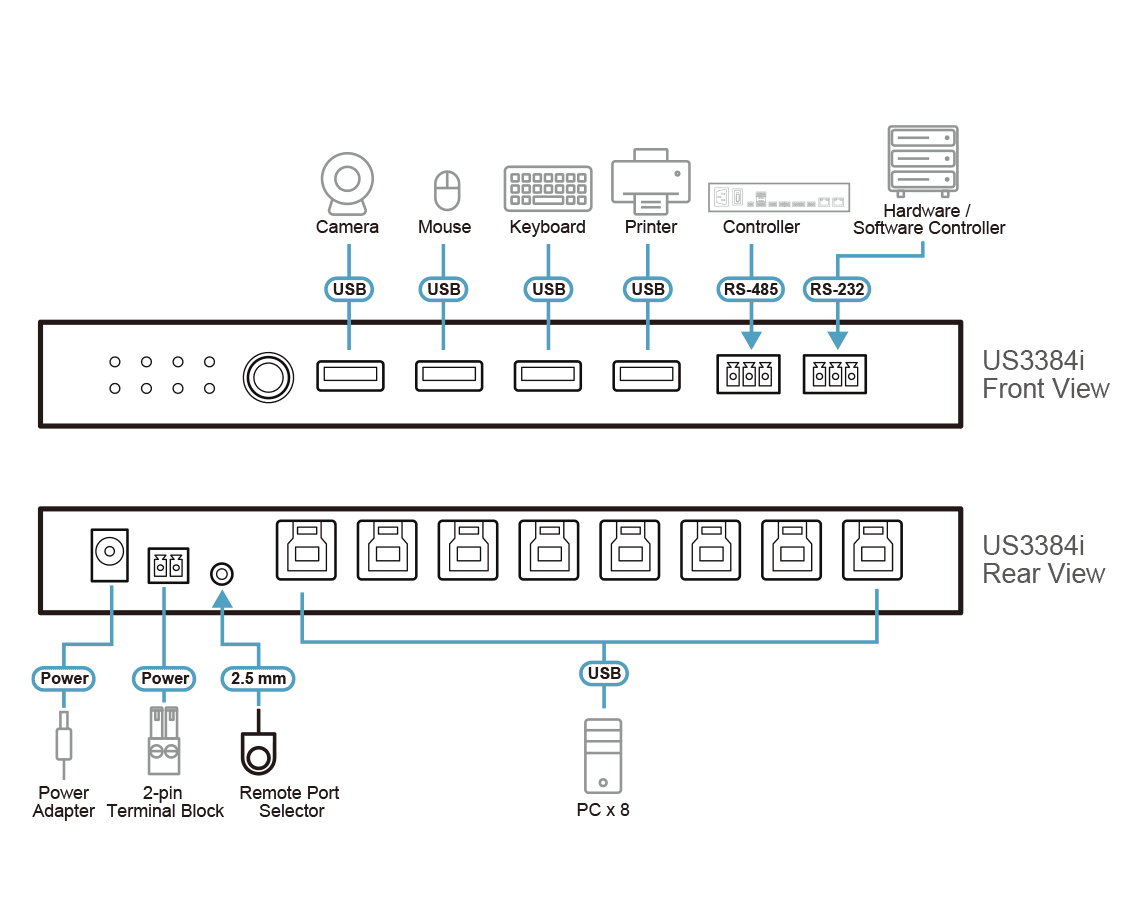

- Връзки към компютри
- 8
Конектори

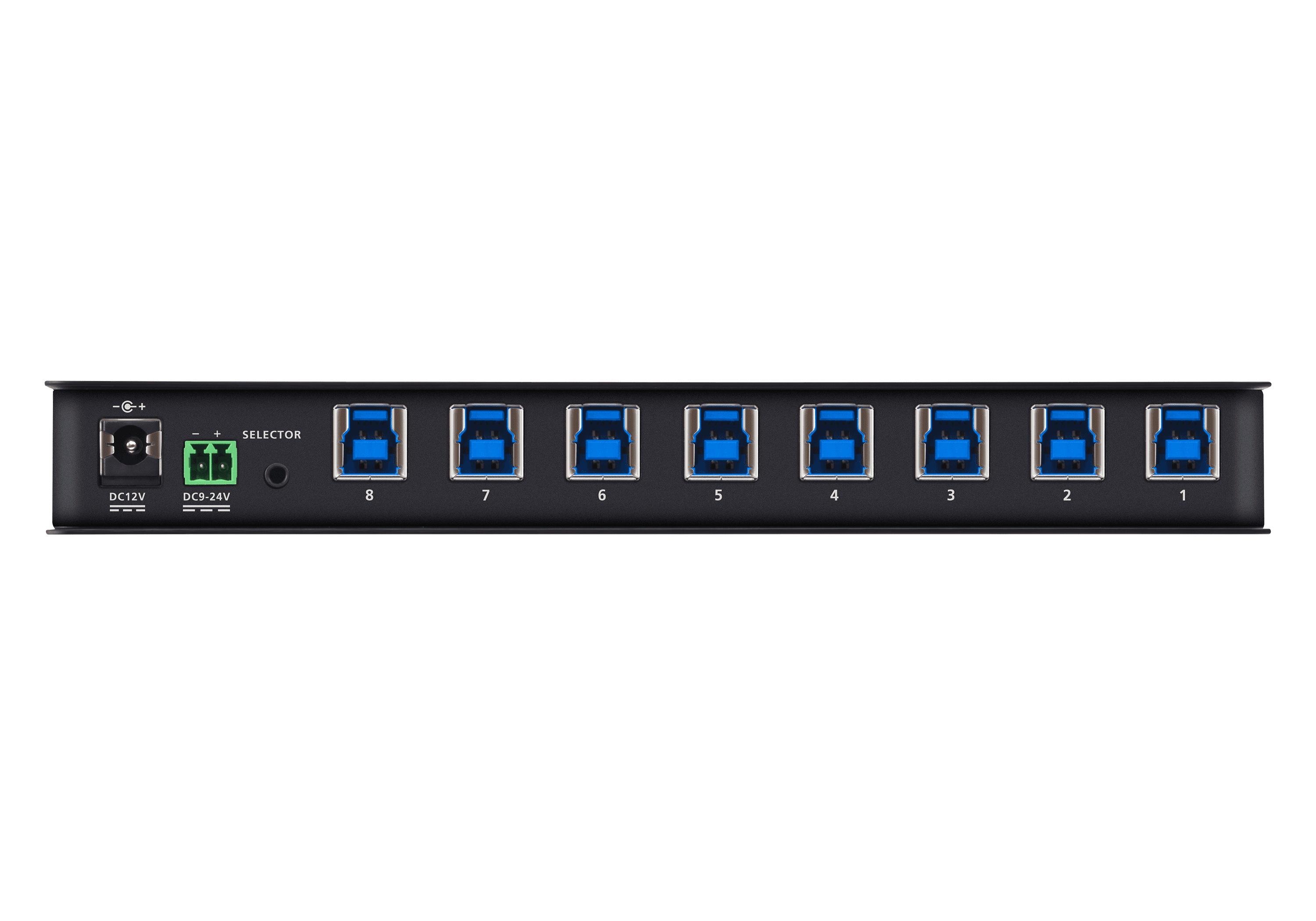

- Компютър
- 8 x USB 3.2 Gen 1 Type-B Female (Blue)
- Устройство
- 4 x USB 3.2 Gen 1 Type-A Female (Blue)
- Сериен
- 2 x 3-pin Terminal Block (Green)
- Захранване
- 1 x 2-pin 9-24V Terminal Block (Green)
- Захранване (опция)
- 1 x 12V DC Jack Female (Black)
- Консумация
- DC12V:0.52W:130BTU/h DC24V:0.53W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Режим на захранване
- Terminal Block / DC Jack Power Adapter* *The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.
- Избор на порт
- Pushbutton / Remote Port Selector* / Serial Command *The remote port selector (2XRT-0016G) is sold separately, please contact your ATEN dealer for product information.
Индикатори
- Избран
- 8 (Orange)
Дължина на кабела
- USB кабел
- 8 x USB 3.2 Gen 1 Type-A to Type-B Cables 1.2m
Работна среда
- Влажност
- 0-80% RH, Non-condensing
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.50 kg ( 1.1 lb )
- Размери (Д x Ш x В)
- 20.00 x 8.06 x 2.50 cm (7.87 x 3.17 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
