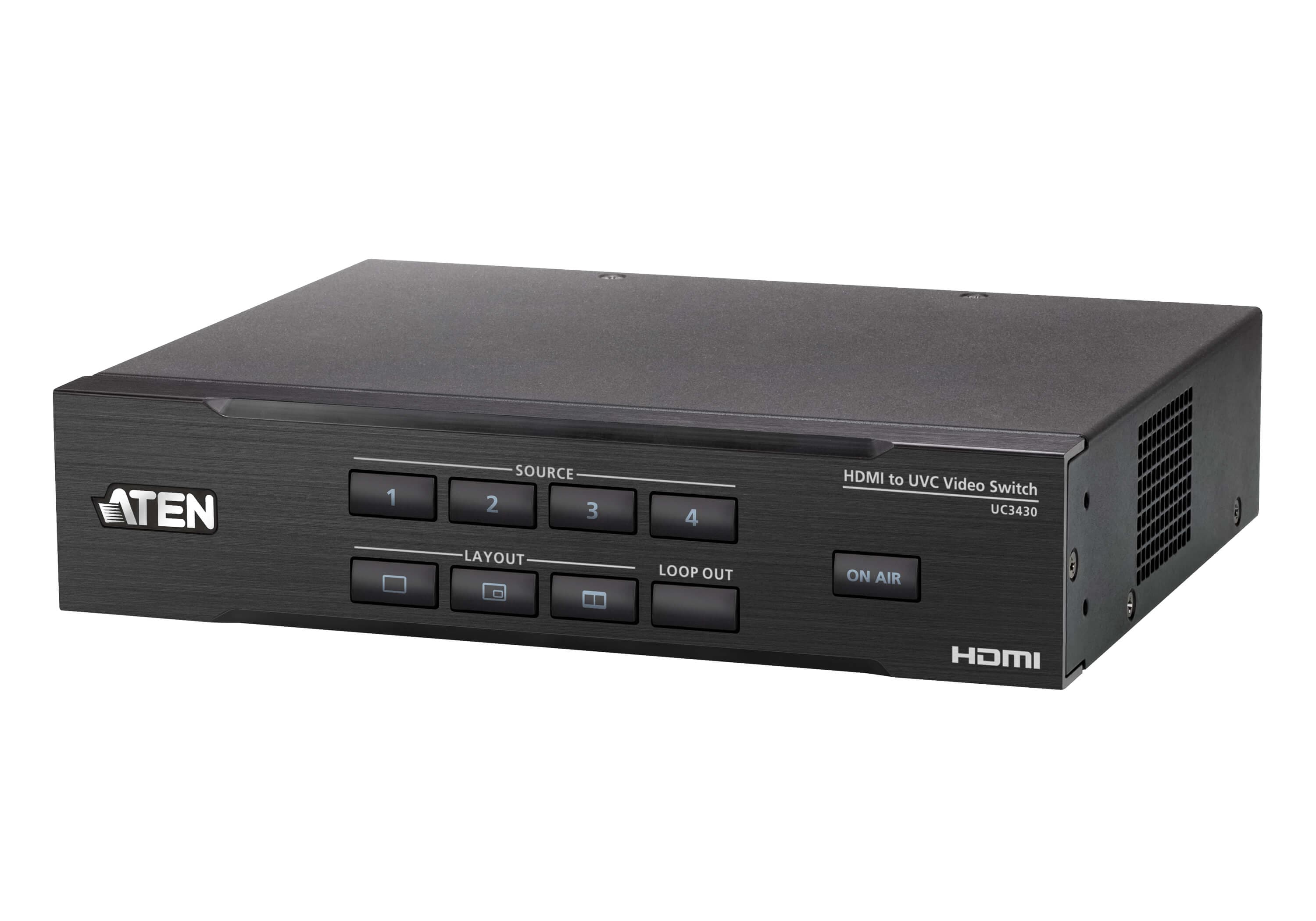

CAMLIVE™ PRO 4K 4-Input HDMI to USB Video Switcher
UC3430
Видеомиксер с 4 HDMI входа до 4K@60 — превключва източниците без прекъсване и извежда сигнала по USB-C (4K@30) за стрийминг и по HDMI за мониторинг. С вграден аудио миксер за HDMI звук и линеен вход.
Характеристики
- Captures 4 channels of 4K @ 60 HDMI, mixes and switches the streams while providing audio mixer functionalities and seamless transition for pro-level broadcasting
- Multiple output options: – HDMI PGM / Loop-through at 4K @ 60 for preview and monitoring purposes – USB-C output 4K @ 30 for live broadcast on the Internet
- Built-in audio mixer – mixes up to 4 HDMI audios and 1 line-level audio for adding live narration / music to the content

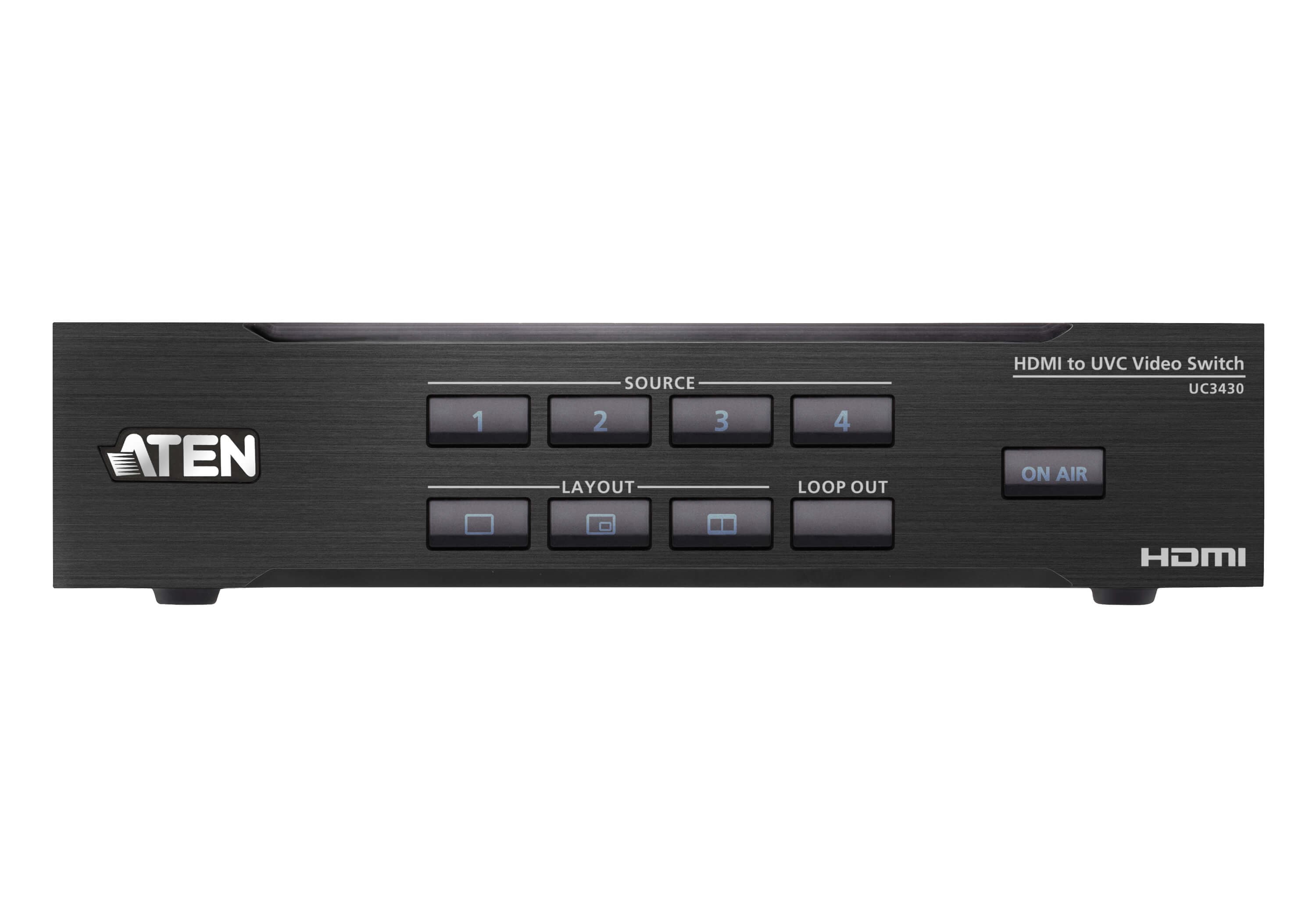

- Versatile control methods via the front panel pushbuttons, RJ-45 port for serial control via ATEN VK Control System, and ATEN OnAir Lite app

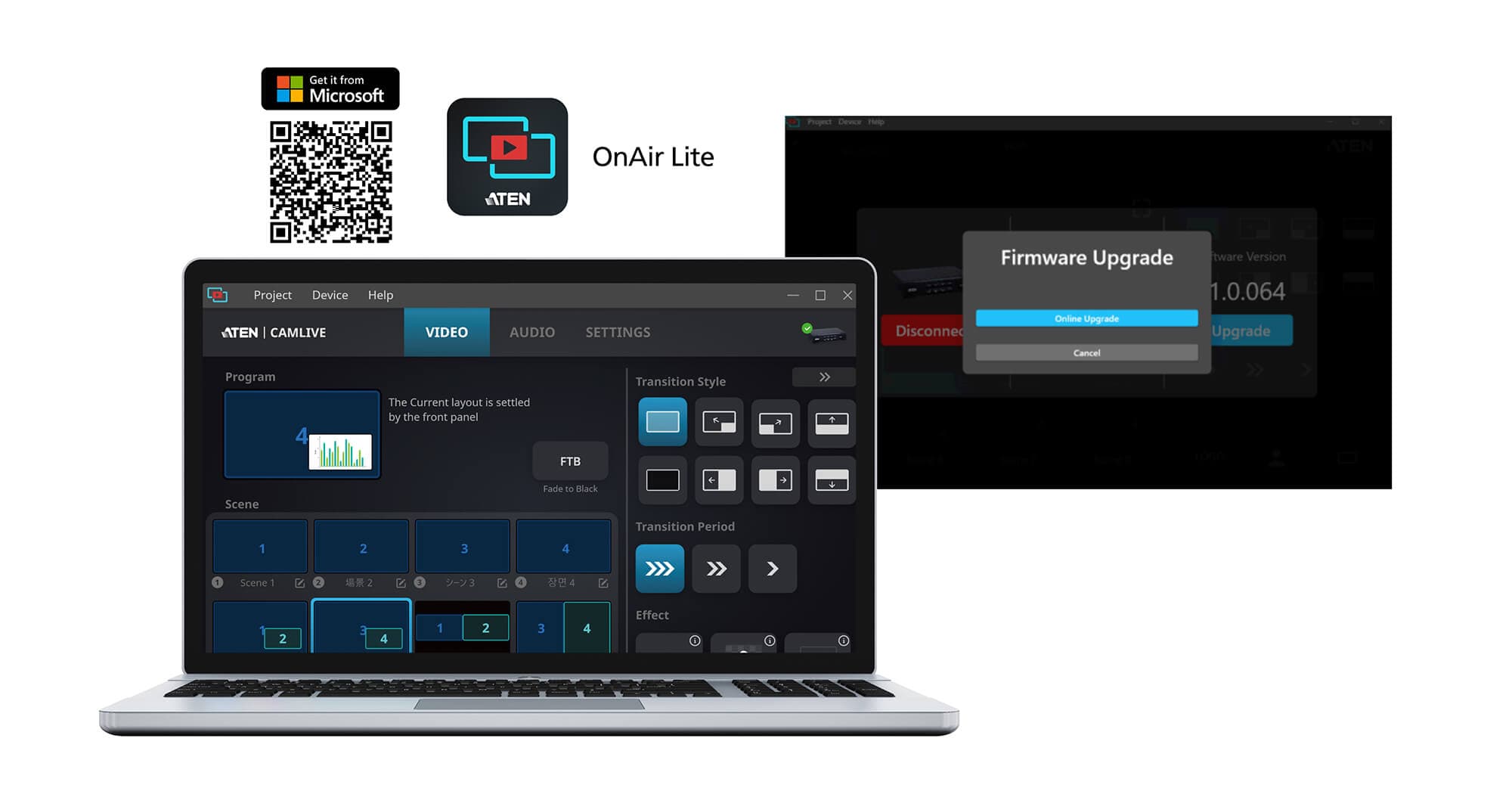

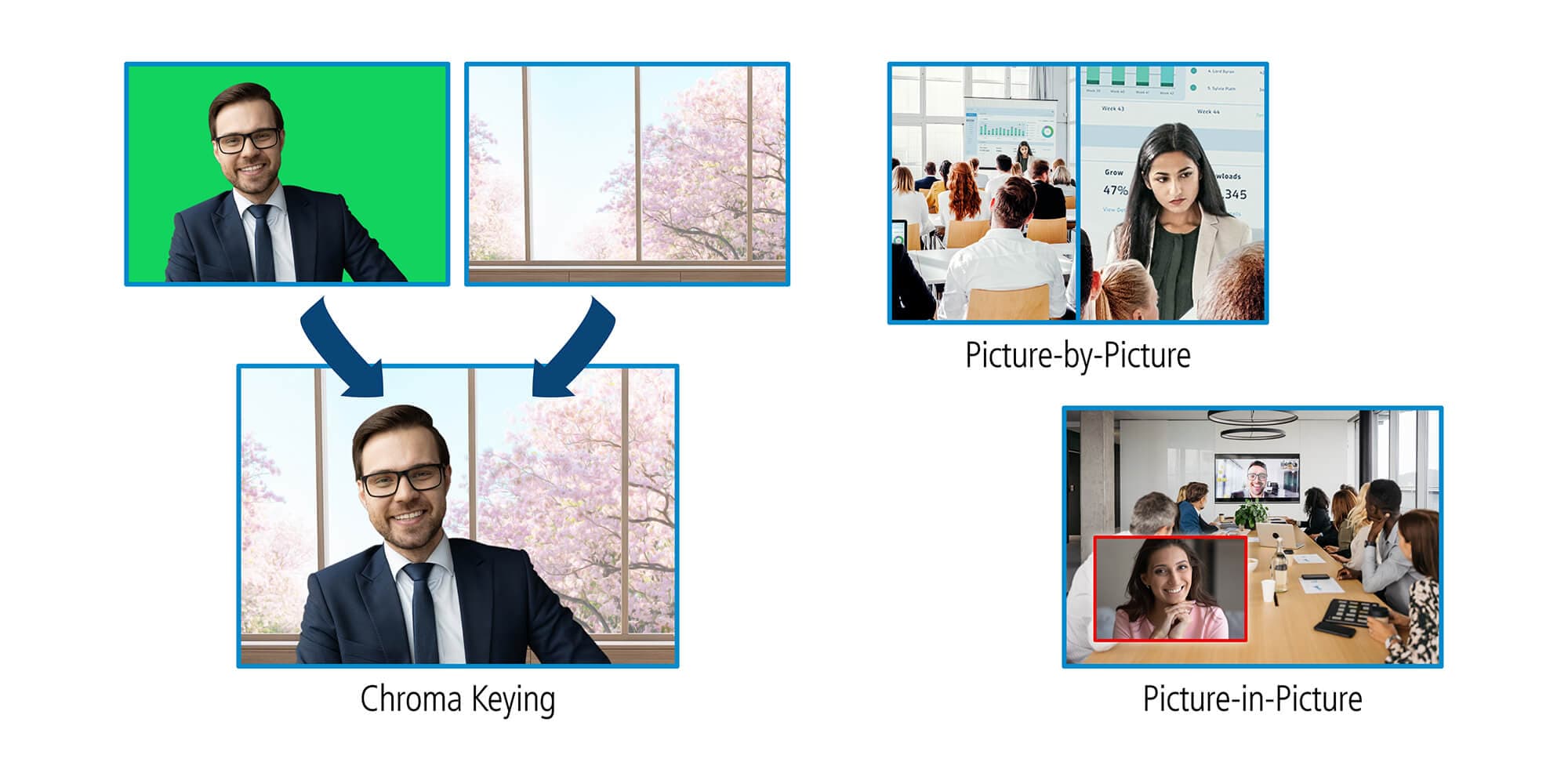

- ATEN OnAir Lite app – users can remotely control device settings in real-time, including multiple AV source switching / mixing, content cropping / resizing, layout options (full screen / PiP / PbP / PoP), transitions, Chroma Key, and logo adding
- Compatible with popular streaming software including Zoom, Microsoft Teams, Youtube, Facebook, GoToWebinar, Open Broadcaster, XSplit Broadcaster, and Twitch
- Supports UVC / UAC v1.1
- Plug-and-Play functionality with USB-C 3.2 Gen 1 compliance
- Works with major operating systems: Windows® and Mac OS X®

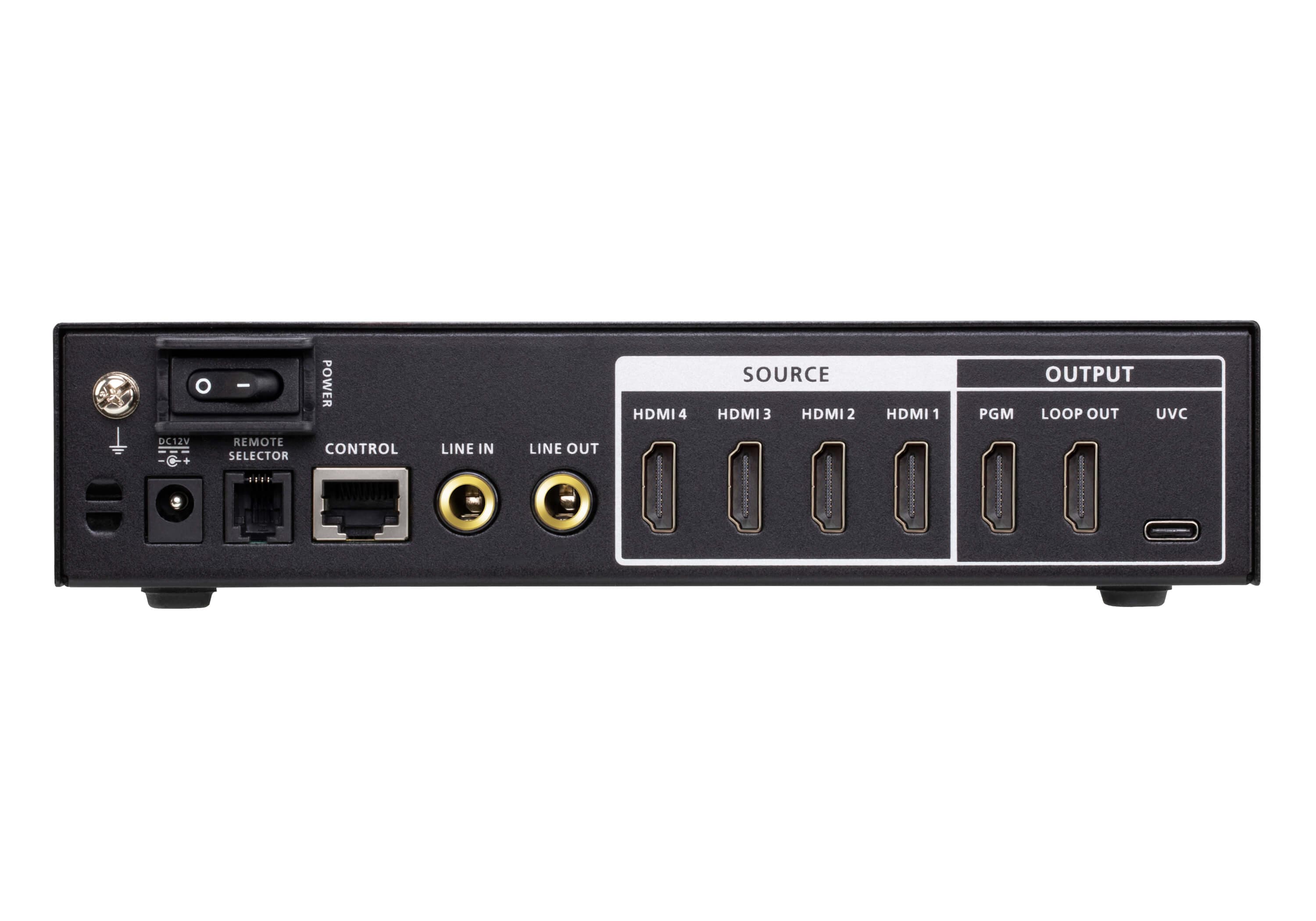

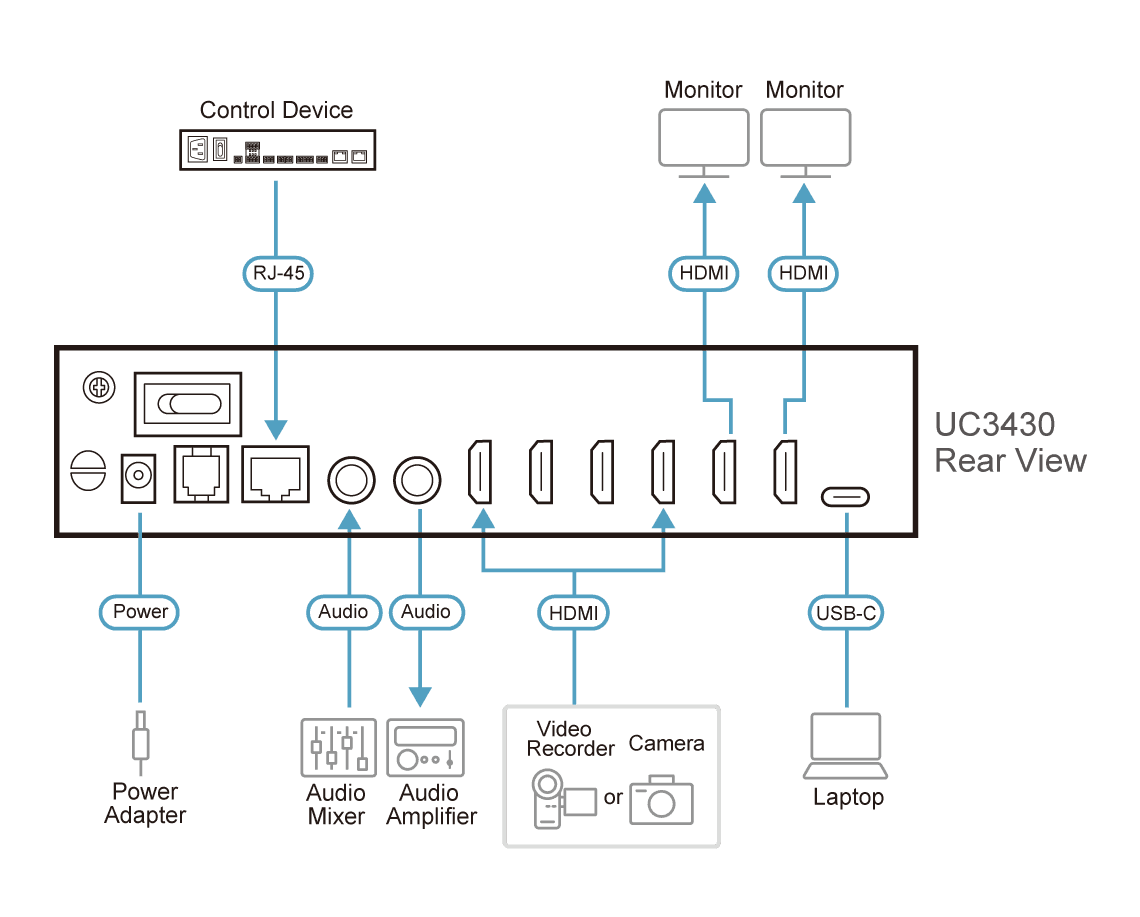

Конектори
- Видео вход
- 4 x HDMI Type A Female (Black) (HDMI TMDS compatible and without the support of FRL/VRR/ALLM/eARC. Max. input video resolution up to 3840 x 2160p60 including stereo audio signals only)
- USB порт
- USB 3.2 Gen1 Type-C Male (Black) (USB-C to USB-C and USB-C to USB-A cable package included)
- Видео изход
- 1 x HDMI Type A Female (PGM Video, Black) 1 x HDMI Type A Female (Loop-Thru Video, Black)
- Аудио входове
- 1x unbalanced audio via 6.35mm TRS connectors (Black)
- Аудио изходи
- 1x unbalanced audio via 6.35mm TRS connectors (Black)
- Видео резолюция
- Video input: 720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60 4096 x 2160 25p/30p/60p, 3840 x 2160 25p/30p/60p , HDMI unencrypted
- Аудио дискретизация
- 16‐bit PCM encoded audio at 44.1KHz and 48KHz sampling rates
- Изход
- PGM HDMI video out: 720p: 1280 x 720 25p/30p/50p/60p 1080p:1920 x 1080 24p/25p/30p/50p/60p 2160p: 3840 x 2160 24p/25p/30p/50p/60p, HDMI unencrypted Uncompressed USB video (UVC) stream with audio(UAC) 720p: 1280 x 720 25p/30p/50p/60p 1080p:1920 x 1080 24p/25p/30p/50p/60p 2160p: 3840 x 2160 24p/25p/30p (Uncompressed video stream is only available on USB3.1 connection)
- Минимални хардуерни изисквания
- PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface
Управление
- Контактен вход
- RS-232 connection via RJ45 interface
- RS-232
- Flow Control: RTS/CTS, XON/XOFF FIFO: 64 bytes Baud rate: 50bps ~921.6Kbps Stop bit: 2 stop bits (9600 8N2) OR 1 stop bit (1,1.5, 2) Parity: no parity Signal: TxD, RxD, RTS, CTS, DTR, DSR, GND
- USB
- Support ATEN OnAir Lite App, App downloadable from Microsoft Store
- Системни изисквания
- Windows 10 and above with UVC/UAC v1.1 support Mac OS X 10.13 and above with UVC/UAC support
- Поддържани ОС
- OnAir Lite App for Windows10 and above only
- Консумация
- DC12V:20.49W:100BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Влажност
- 0 - 80% RH, Non-Condensing
- Температура на съхранение
- -20 – 60 ºC
- Работна температура
- 0 - 40 ºC
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.03 kg ( 2.27 lb )
- Размери (Д x Ш x В)
- 20.00 x 16.46 x 4.40 cm (7.87 x 6.48 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
