3-Port USB-C DisplayPort Hybrid KVMP™ Switch
CS1953
Хибриден KVMP комутатор за 3 компютъра (два с DisplayPort, един през USB-C), управлявани от една конзола при до 4096 x 2160 @ 60 Hz. Зарежда USB-C устройството с Power Delivery 3.0 до 45W.
Характеристики

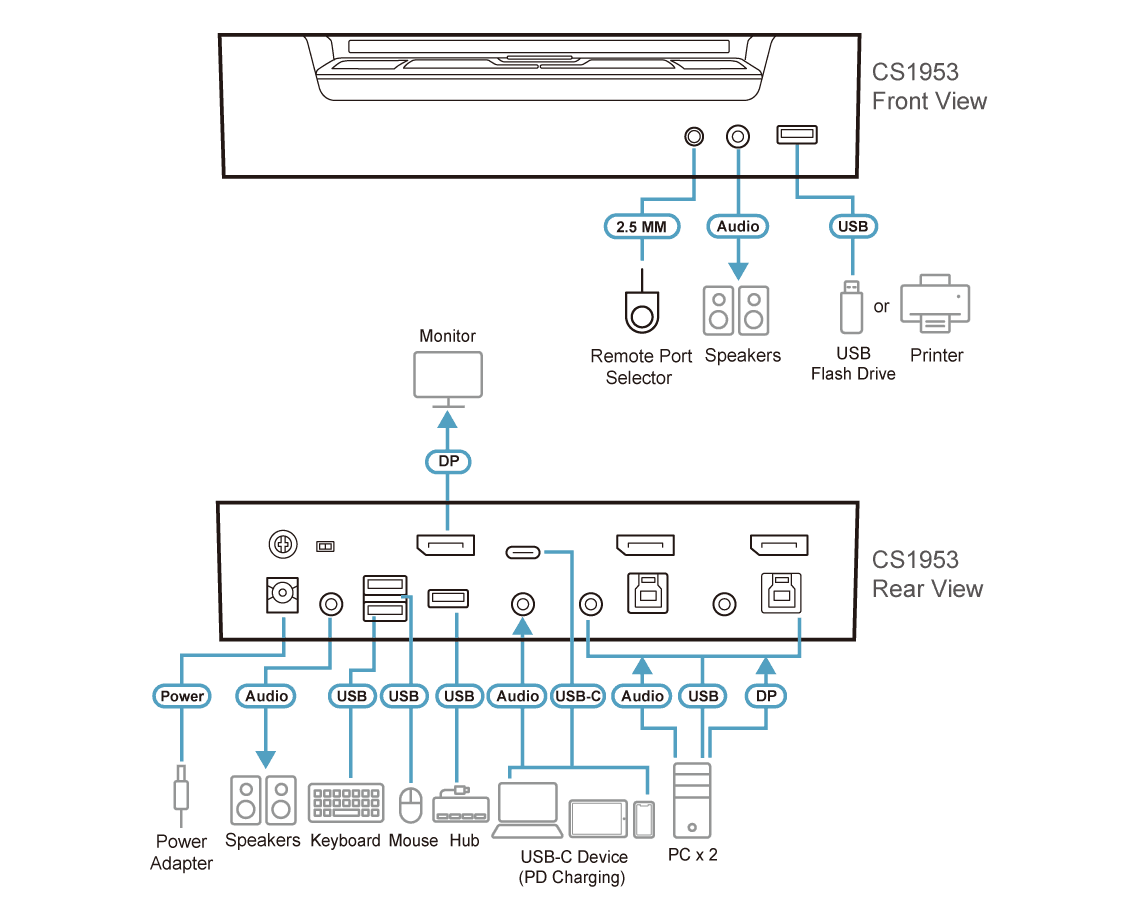

- One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
- Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1
- Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
- DisplayPort 1.2 compliant; HDCP 1.4 compliant3
- Independent switching of KVM, USB peripheral, and audio focus4
- Supports HD Audio4
- Supports DisplayPort Dual-Mode technology (DP++)5
- Firmware upgradeable
- Bus-powered6 Note: 1. An additional power adapter is needed on the CS1953 for USB-C device charging to work. 2. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel. 3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 4. HD audio through DisplayPort channel cannot be switched independently. 5. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP++ compatibility. 6. The unit can be bus-powered by the connected KVM sources via USB ports.
Спецификация
- Връзки към компютри
- 3
- Избор на порт
- Hotkey, Pushbutton, Mouse, Remote Port Selector

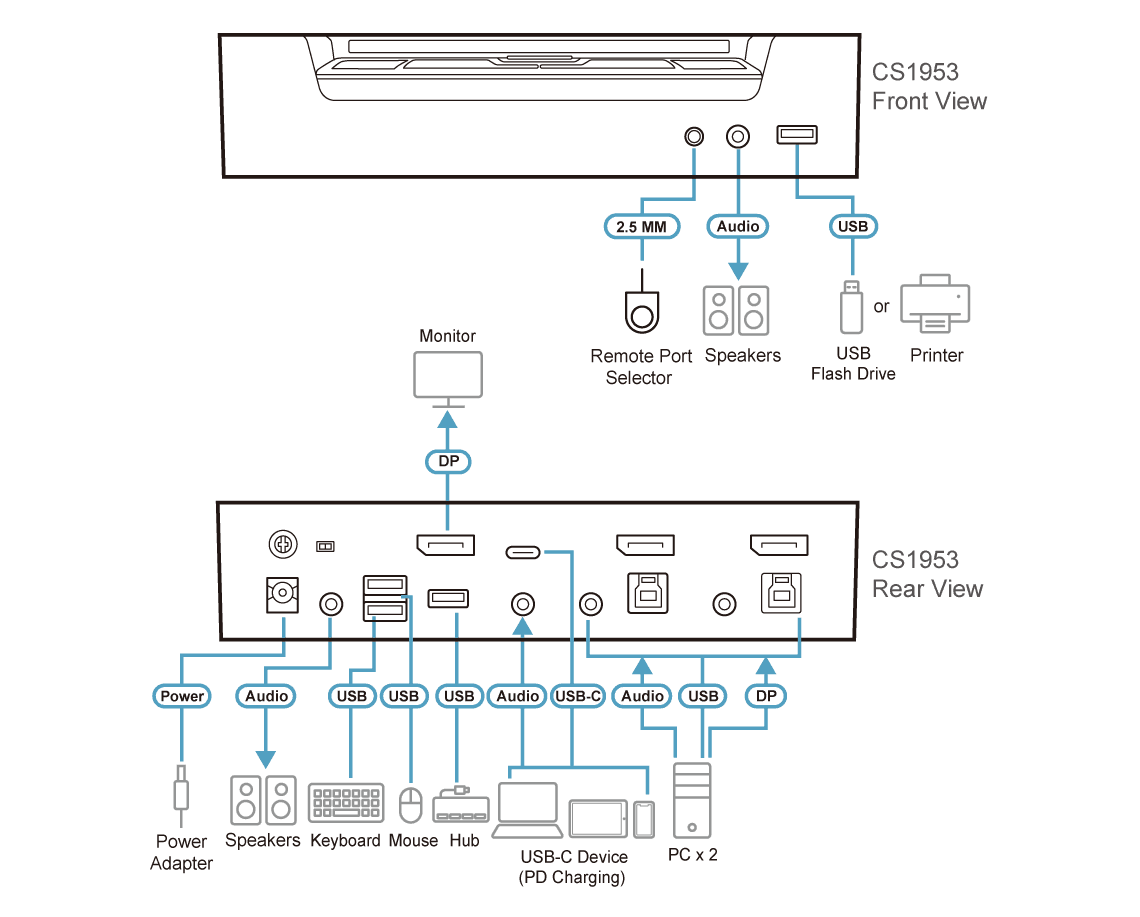

Конектори
- Конзолни портове
- 2 x USB Type A Female 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

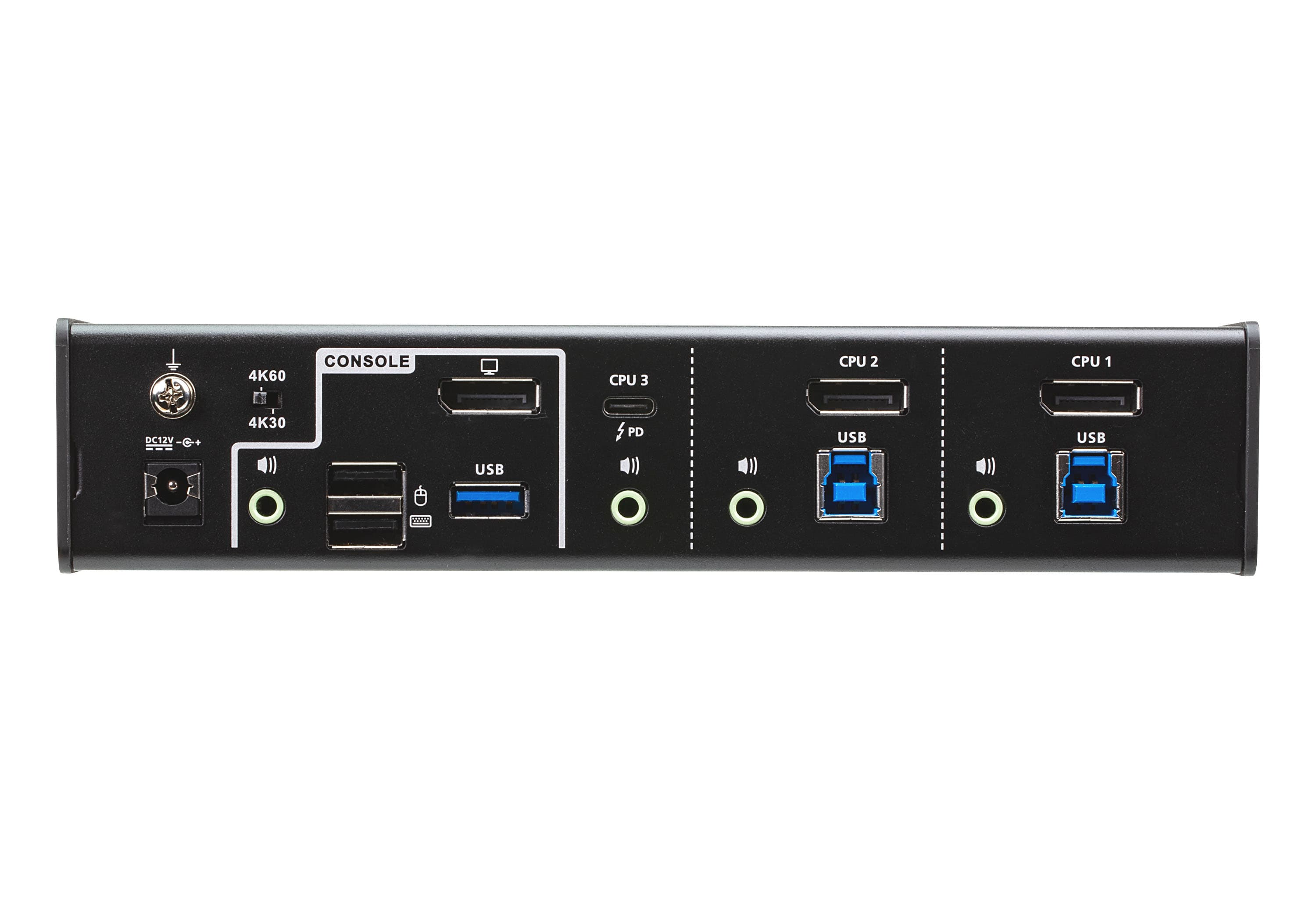

- KVM портове (компютри)
- CPU1 and CPU2: 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) CPU3: 1 x USB Type-C Female (Black) 1 x 3.5mm Audio Jack Female (Green)
- Дистанционен избор на порт
- 1 x 2.5mm Audio Jack Female (Black)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear)
Бутони и превключватели
- Избран
- 3 x Pushbutton
- Превключвател на режим
- 1 x Slide Switch
Индикатори
- Аудио
- 3 (Green)
- KVM
- 3 (Orange)
- USB
- 3 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Интервал на сканиране
- 1-99 Seconds (Default: 5 sec.)
- Консумация
- DC12V:5.78W:269BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.50 kg ( 1.1 lb )
- Размери (Д x Ш x В)
- 20.63 x 7.54 x 4.40 cm (8.12 x 2.97 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
