Конзолна станция, която замества компютъра при достъп до KVM over IP комутатори от сериите KG и CN. Извежда 4K видео на четири дисплея (2 x DisplayPort, 2 x HDMI); два LAN порта до 2.5G.
Характеристики
- A high-performance, all-digital standalone console that replaces a PC or laptop
- Delivers crystal-clear 4K video from KG / CN series all-digital KVM over IP switches without any smearing or color bleeding for users to remotely access, monitor and control all servers connected to KVM over IP switches
- Impenetrable security against virus threats and impervious data protection
- Single sign-on to consolidate the management of multiple KG / CN series KVM over IP switch
- Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout which is variable as needed (up to 8 x 8 per screen.)
- Features both a Control Mode and an Array Monitoring for each screen, giving users intuitive and flexible options to meet their requirements for specific applications
- In Array Monitoring, the KA8585 supports Panel Array Mode™ Live+, enabling administrators to view up to 64 servers per screen – or 256 servers across four displays – in real time
- Each source appears as a small window within the Control Mode layout, which can be resized and displayed in PoP or PbP mode, or automatically arranged by pressing the auto layout icon
- 2 HDMI and 2 DisplayPort video outputs – enables users to multitask across four 4K displays with a single keyboard and mouse
- Supports Boundless Switching – allows users to control up to 4 screens by using one set of keyboard & mouse
- Extended desktop – supports extended display for remotely connected PCs on the four screens of KA8585
- GUI with multi-language interface

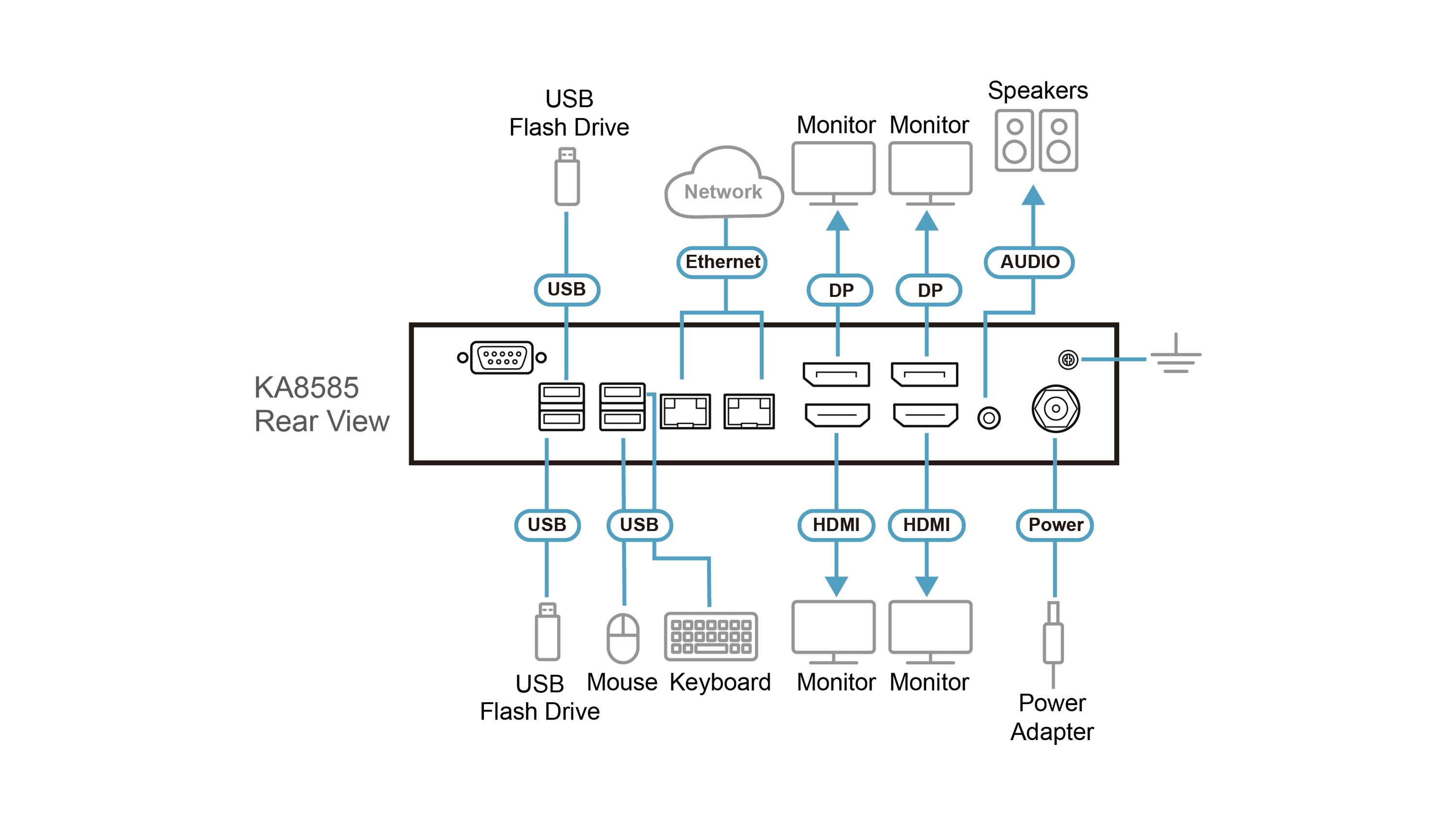

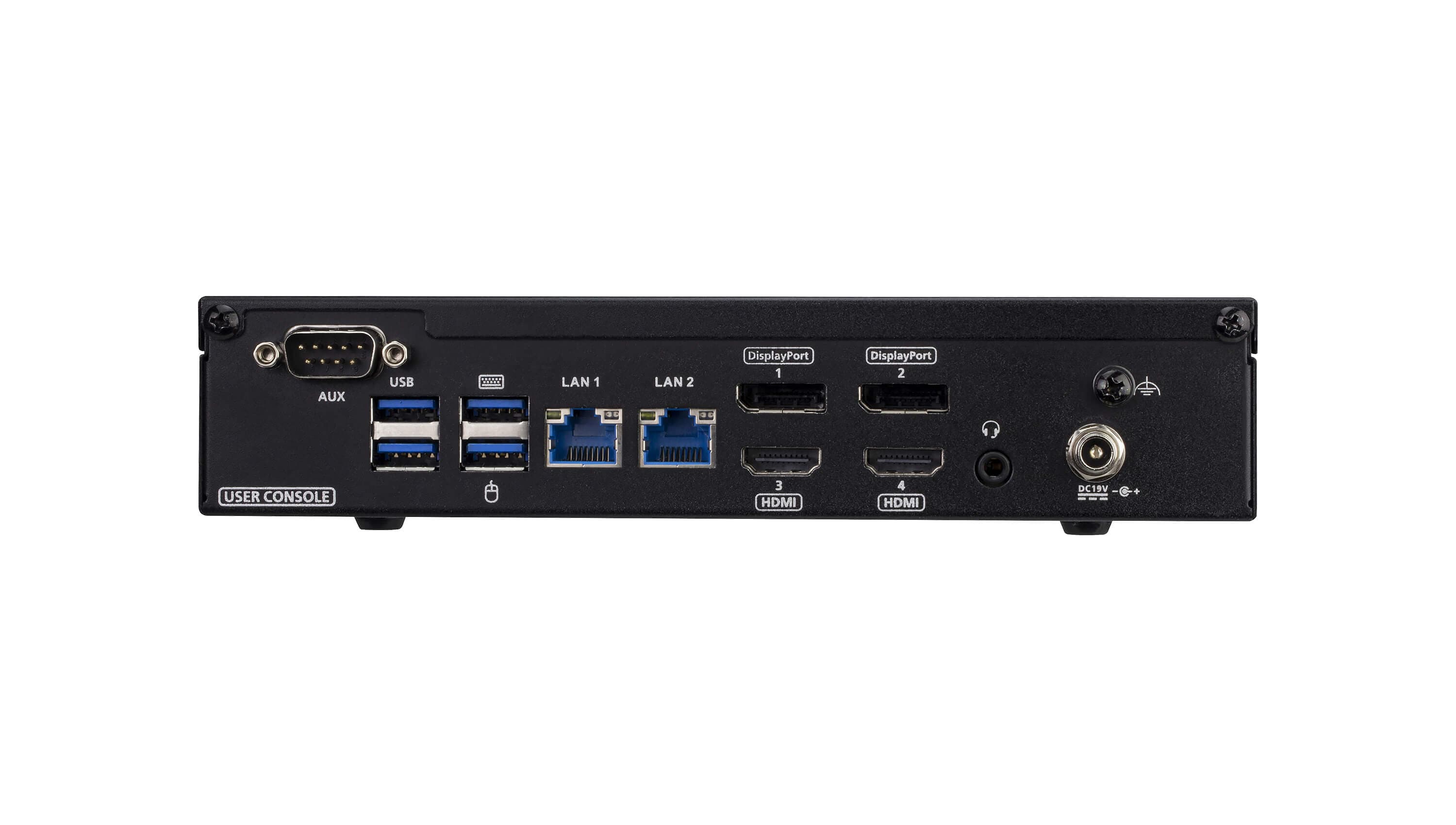

Конектори
- Конзолни портове
- 4 x USB Type A Female (Blue) 2 x DisplayPort Female (Black) 2 x HDMI Female (Black) 1 x Audio line out Jack (Black) 1 x DB-9 Male (Black)
- Захранване
- 1 x Lockable DC Jack (Black)
- LAN портове
- 2 x RJ-45 (Blue) up to 2.5G
Бутони
- Бутони
- 1 x Power (Black) 1 x Reset (Black)
Индикатори
- Захранване
- 1 (Blue)
- Съхранение
- 1 (Orange)
- Консумация
- DC19V:33W:420BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео резолюция
- Up to 4 * 4096 x 2160 @ 60Hz
- Закъснение
- < 50ms
Работна среда
- Работна температура
- -10–50°C
- Температура на съхранение
- -40–85°C
- Влажност
- 10–90% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 1.34 kg ( 2.95 lb )
- Размери (Д x Ш x В)
- 20.00 x 19.00 x 4.18 cm (7.87 x 7.48 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
