2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector

Name: 2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector
Brand: ATEN
SKU: US3312

US3312

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Кабелен KVM комутатор, с който един комплект клавиатура, мишка и DisplayPort монитор управлява 2 USB-C компютъра. Видео до 4096x2160@60Hz; превключването става с дистанционен селектор с 1.8 m кабел.

Характеристики

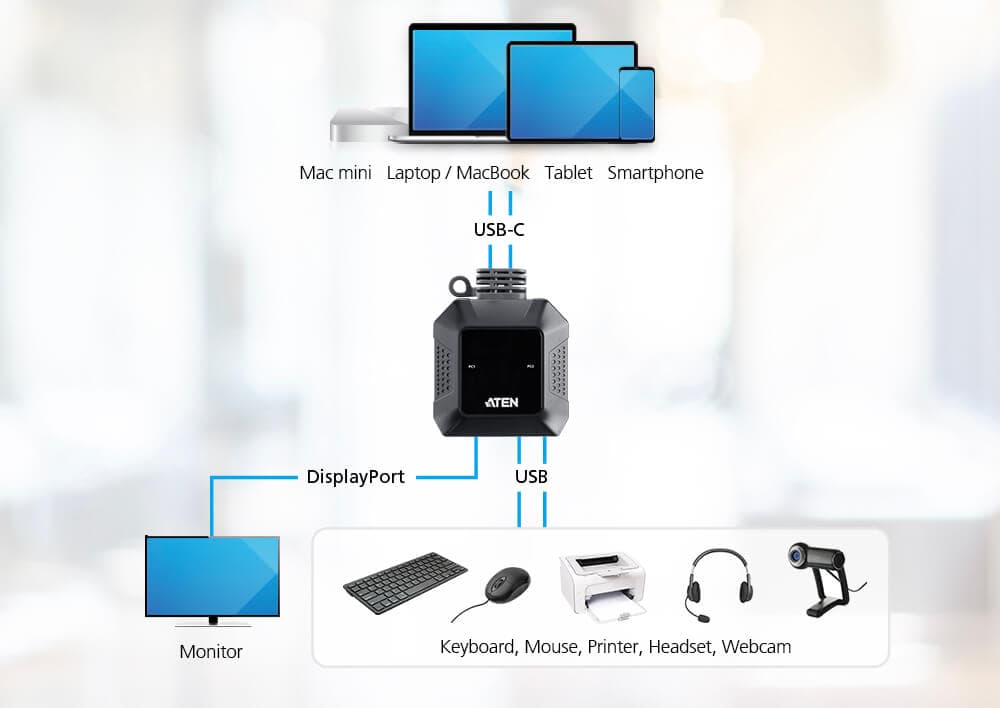

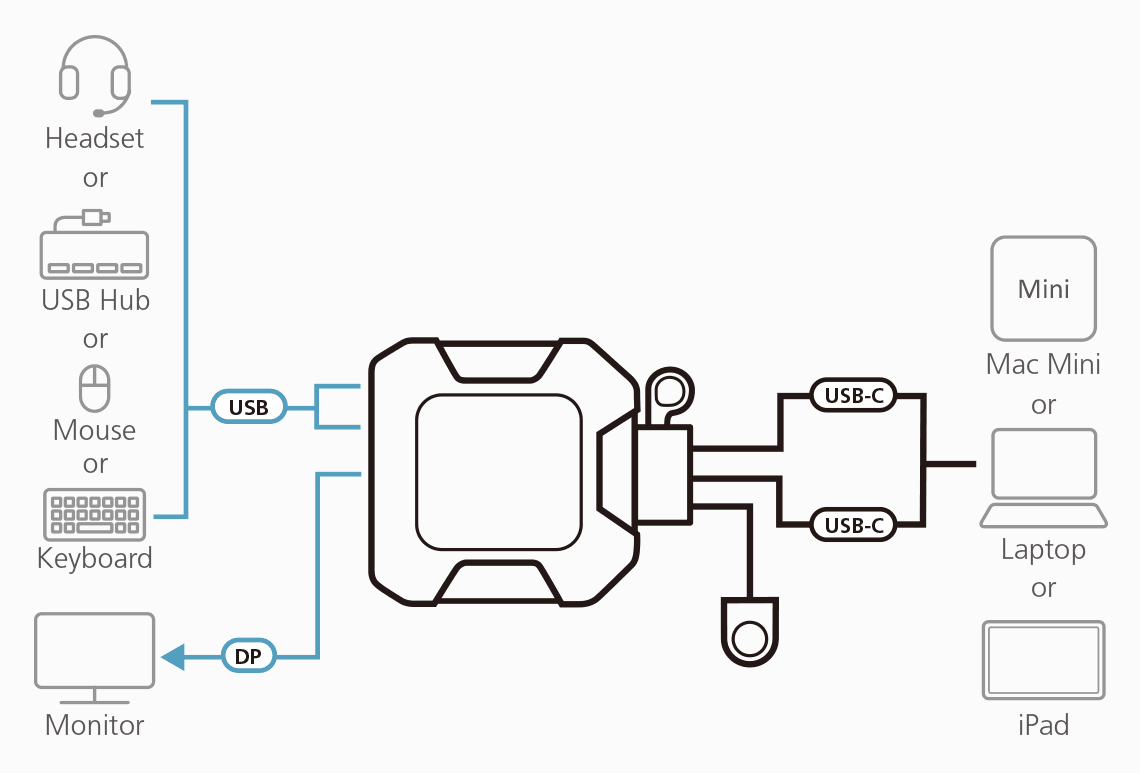

One KVM switch allows for easy control and fast switch between two USB-C devices from a single set of keyboard, mouse, and monitor
Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4)
Instant computer selection via remote port selector
LED indicators will light to display port focus
Supports two USB and one DisplayPort downstream ports for USB peripheral sharing
DisplayPort 1.2 compliant
Bus-powered – no external power adapter or driver needed
Supports USB hot-plugging
Compact enclosure with hook design for space-saving and organized workstation Note：For DisplayPort 1.4 compliant display devices, please make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issues.

Спецификация

Връзки към компютри: 2
Избор на порт: Remote Port Selector

Конектори

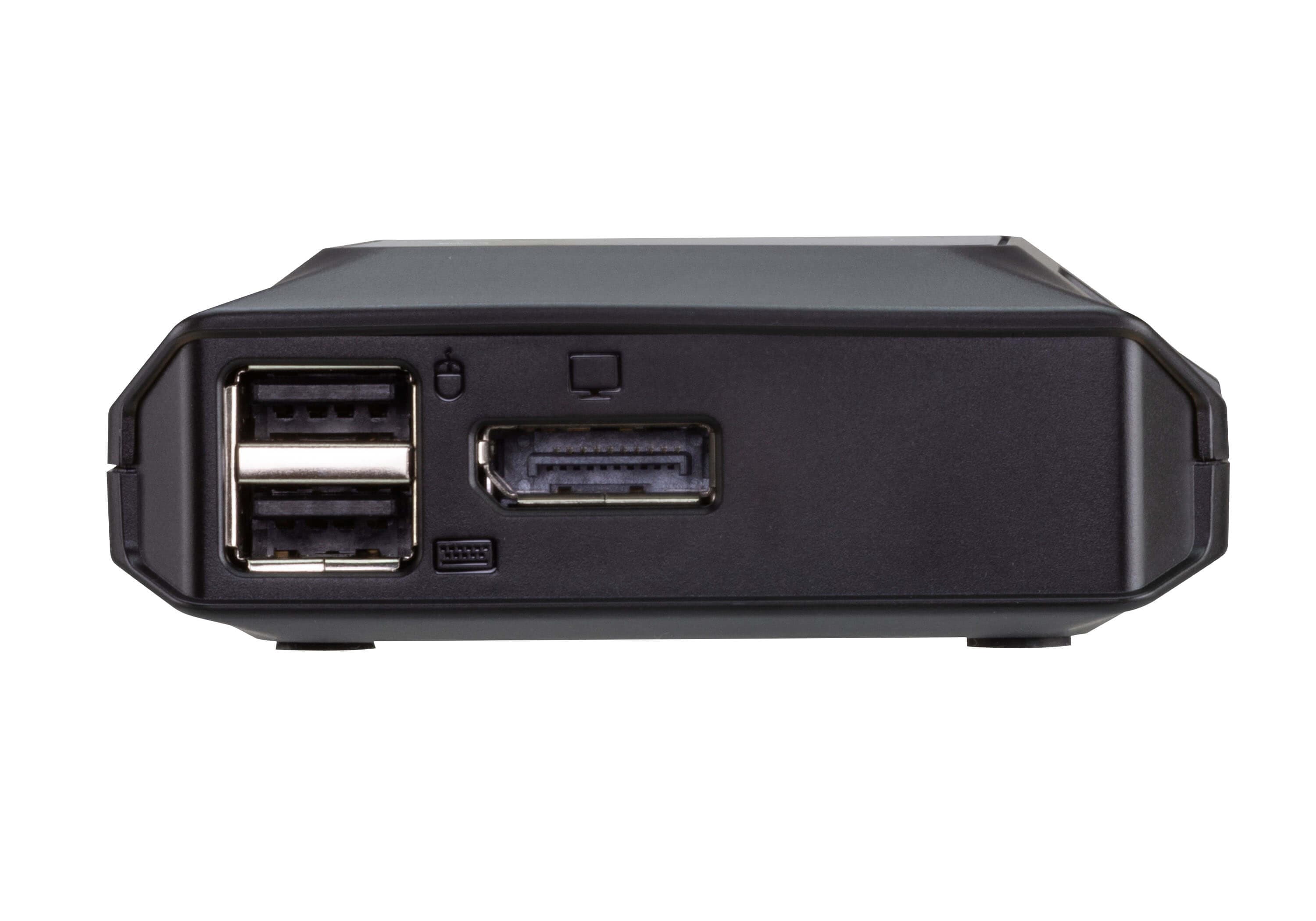

Конзолни портове: 1 x DisplayPort Female 2 x USB Type A Female
KVM портове (компютри): CPU1: 1 x USB Type C Male CPU2: 1 x USB Type C Male

Индикатори

KVM порт (онлайн / избран): 2 (White)

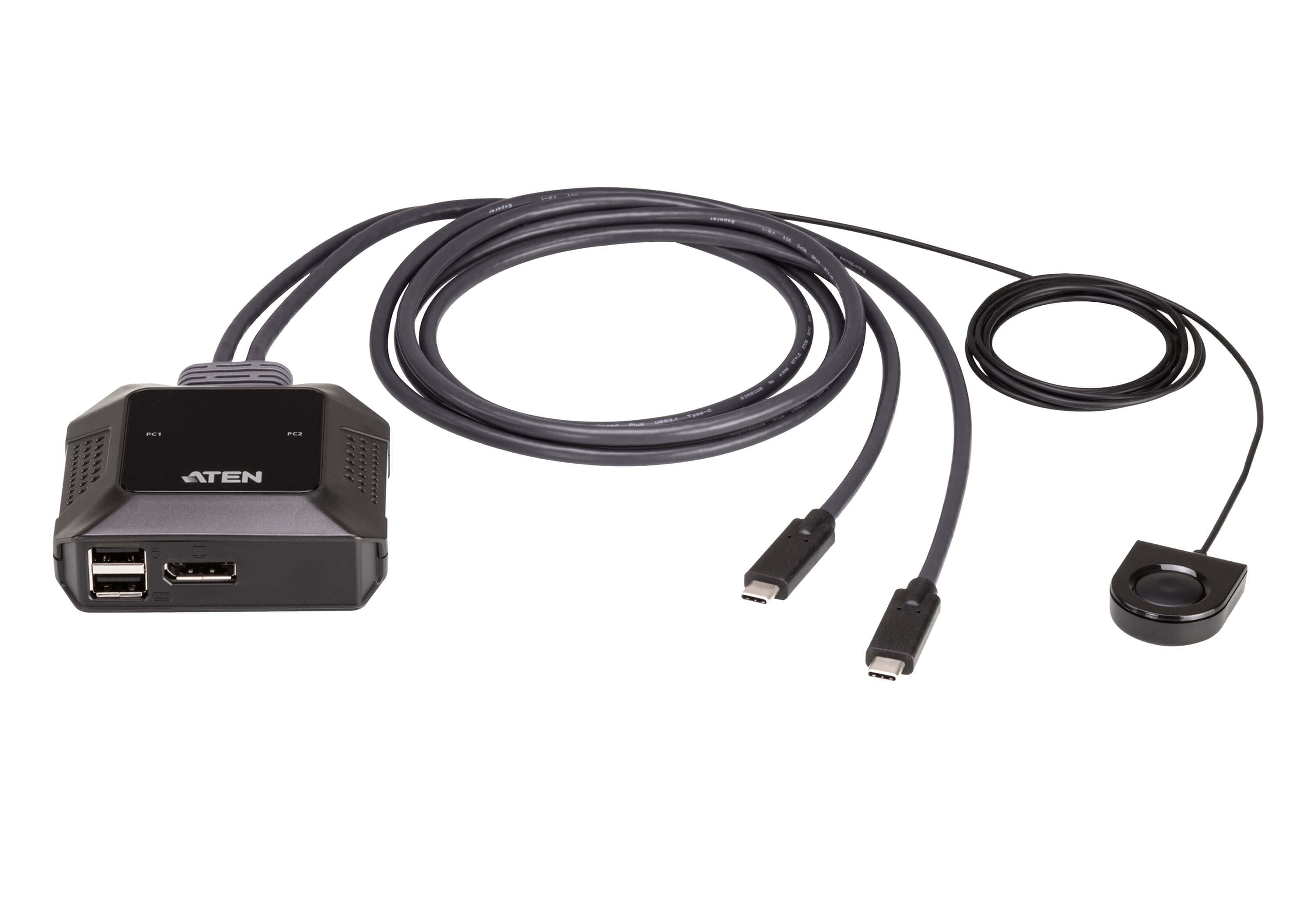

Дължина на кабела

KVM: 2 x 1.2 m
Дистанционен избор на порт: 1.8 m

Емулация

Клавиатура / мишка: N/A
Видео: 4096 x 2160 @ 60Hz
Системни изисквания: Windows USB-C enabled computer: - Windows® 10 (32-bit / 64-bit) and above - With Intel 7th-Generation Core Processor (Kaby -Lake with HD 6XX series integrated graphics) and above. - For video output to work through a USB-C port, it must support DP Alt Mode. - Thunderbolt™ 3 Compatible Mac USB-C enabled computer: - MacBook 2015 and later - MacBook Pro 2016 and later - Mac OS X 10.12 and above USB-C enabled Smartphone / Tablet: - Android 8.0 and later / iPadOS 13.1 - For video output to work through a USB-C port, it must support DP Alt Mode.
Консумация: DC5V:0.74W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C
Температура на съхранение: -20 - 60°C
Влажност: 0-80% RH, Non-condensing

Физически характеристики

Корпус: Plastic
Тегло: 0.19 kg ( 0.42 lb )
Размери (Д x Ш x В): 8.34 x 8.42 x 2.99 cm (3.28 x 3.31 x 1.18 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
