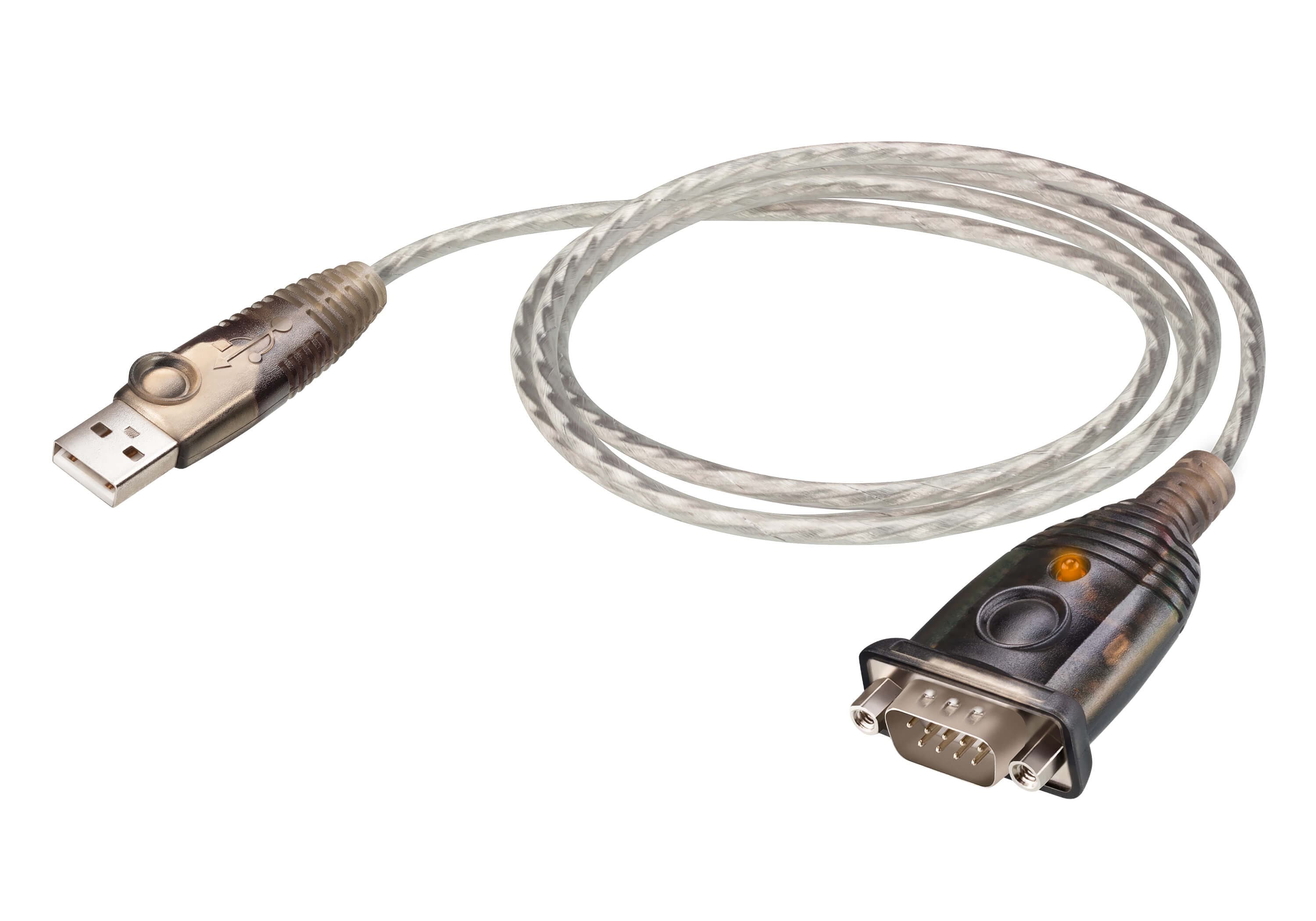

1 m bus-powered adapter adding an RS-232 serial DB-9 port to a USB Type-A computer, with data transfer rates up to 921.6 Kbps.
Features
- Supports RS-232 serial interface
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- Full compliance with USB specifications
- Up to 921.6 Kbps data transfer rate

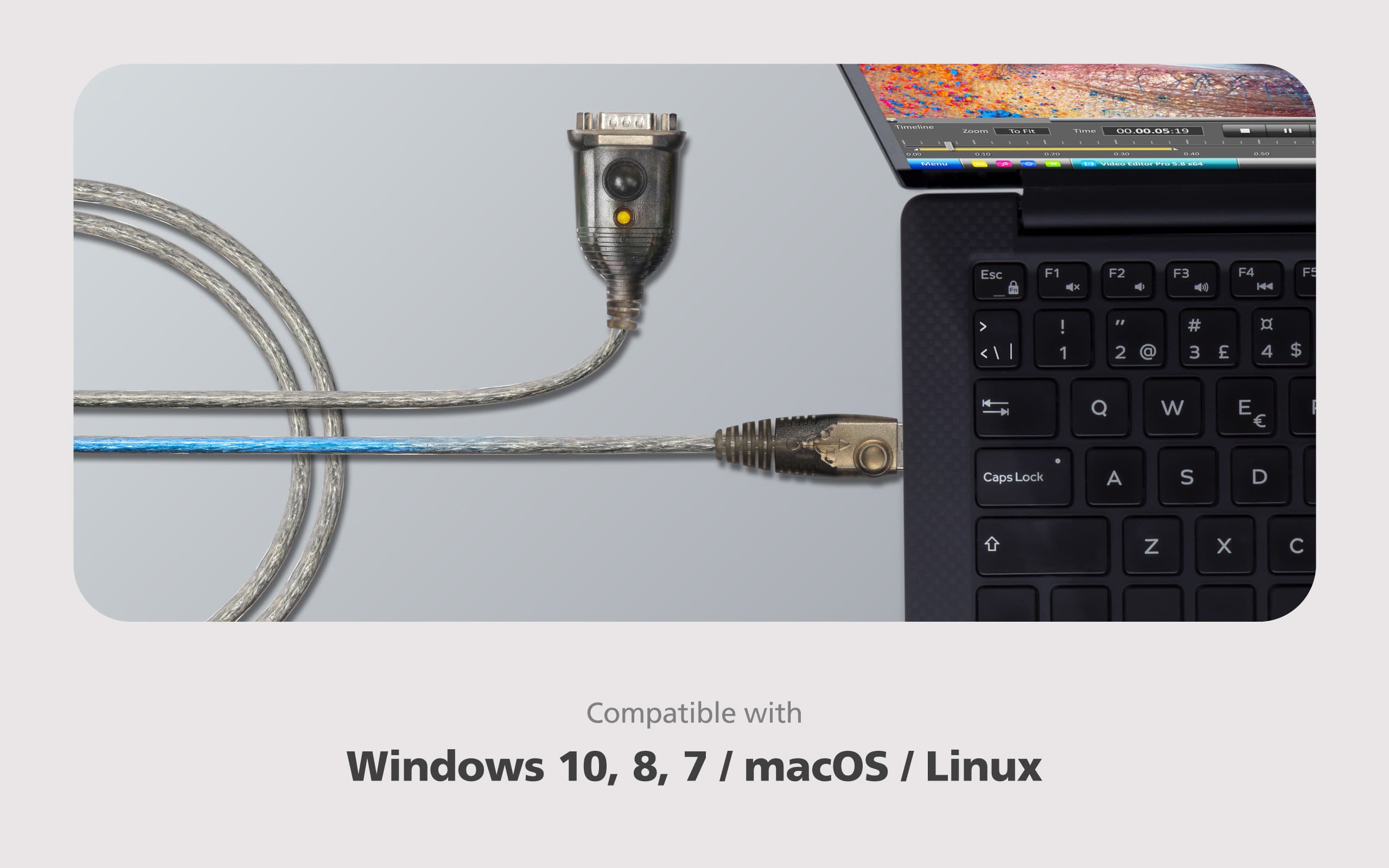

- OS Compatibility: Windows, Mac, and Linux
- Works with cellular phones, PDAs, digital cameras, modems, and ISDN terminal adapters
- A trustworthy connectivity solution recommended and adopted by leading enterprises worldwide
Connectors
- USB Port
- 1 x USB Type A Male (White)
- Serial
- 1 x DB-9 Male (Silver)
- Data Rate
- Up to 921.6 Kbps
- Cable Length
- 1m
- LEDs
- Power (Orange)
- Power Mode
- Bus Powered
- USB Specification
- USB compliant
Environmental
- Operating Temperature
- 0–40˚C
- Storage Temperature
- -20–60˚C
- Humidity
- 0–80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.06 kg ( 0.13 lb )
- Dimensions (L x W x H)
- 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.)
- Power Consumption
- DC5V:0.155W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
