Удължител, който пренася USB 2.0 сигнали през Gigabit Ethernet LAN мрежа до отдалечен модул с 4 USB порта. ExtremeUSB работи plug-and-play без драйвери; модулите са фабрично сдвоени по MAC адрес и поддържат DHCP.
Характеристики
- Extends USB transmission over a Gigabit Ethernet Local Area Network (LAN)
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Pre-paired networked configuration through MAC Address for simple installation. No pairing action required
- Supports automatic connection link between Local and Remote units through DHCP

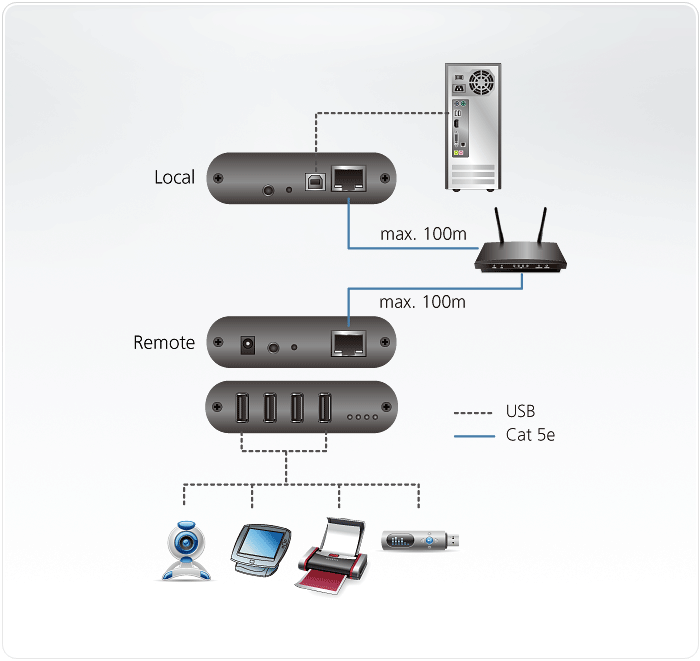

- Up to 100m between extender and switch and between switches over CAT 5e/6/7 cables
- Operates with all USB peripherals - flash drives, keyboards, mice, webcams, interactive whiteboards, and more
- Works with all major operating systems: Windows®, OS X®, and Linux®

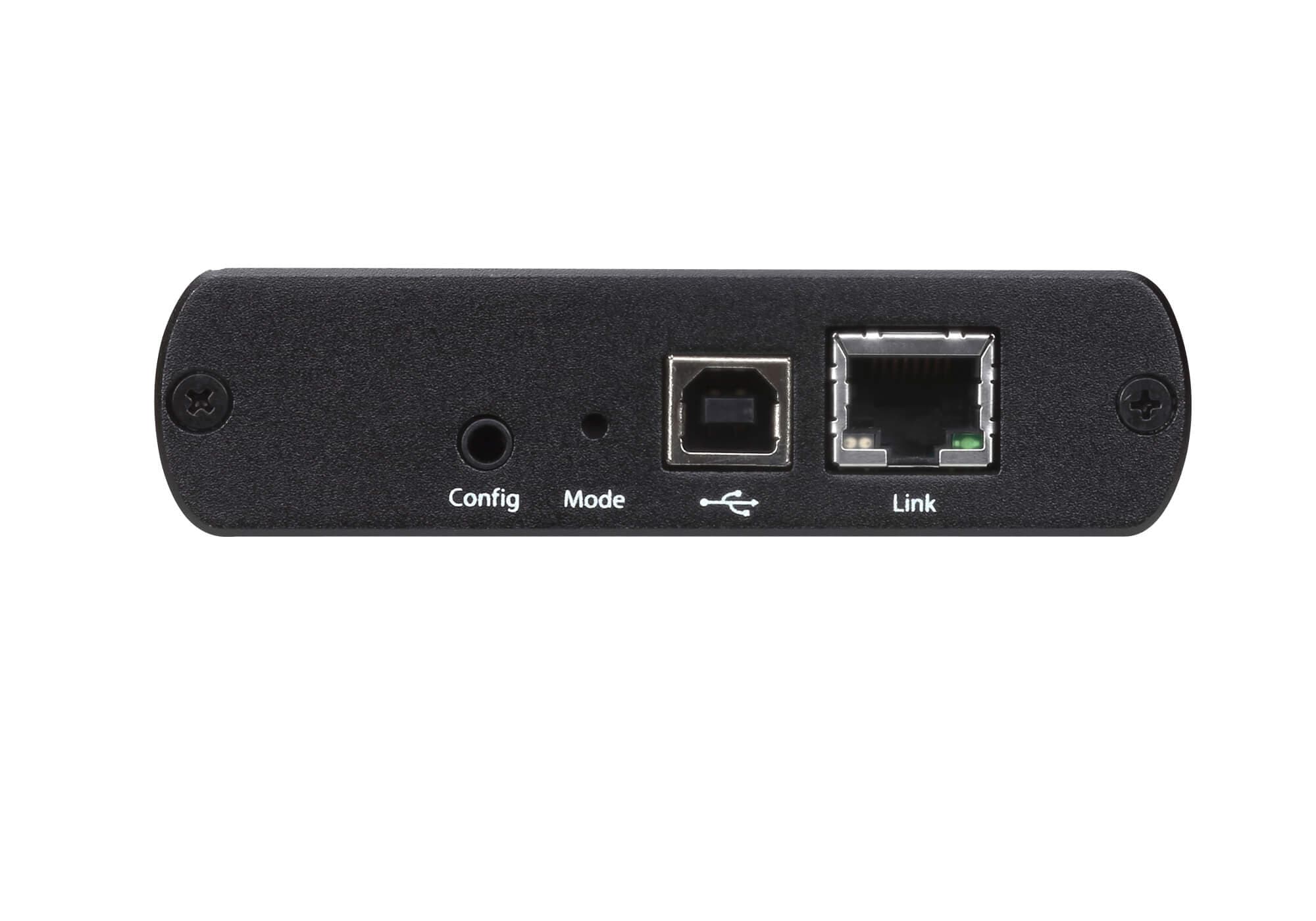

Конектори
- USB порт
- 1 x USB Type B Female

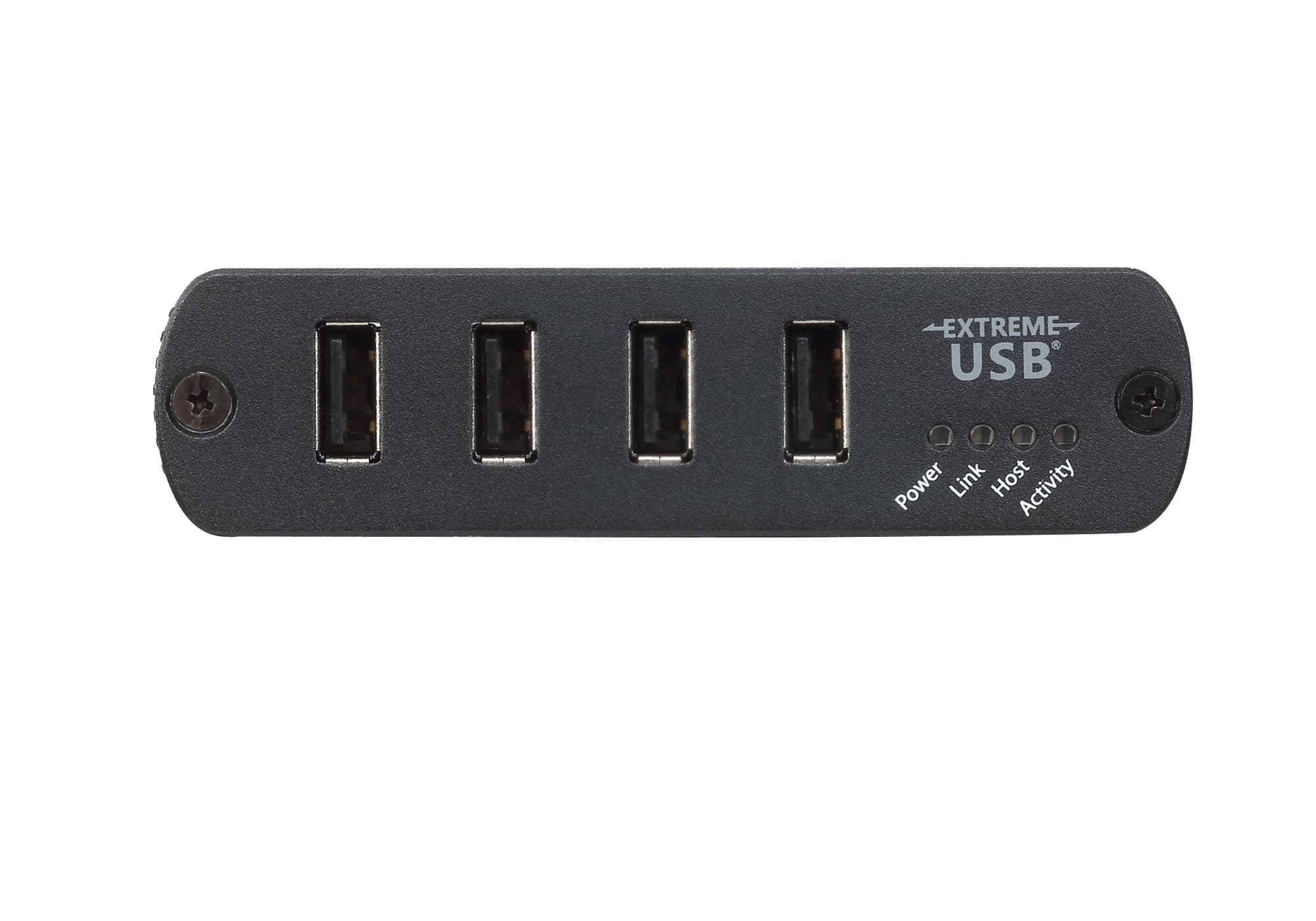

- USB порт
- 4 x USB Type A Female
- Връзка
- 1 x Gigabit Ethernet Female
- Връзка
- 1 x Gigabit Ethernet Female
- Захранване
- N/A

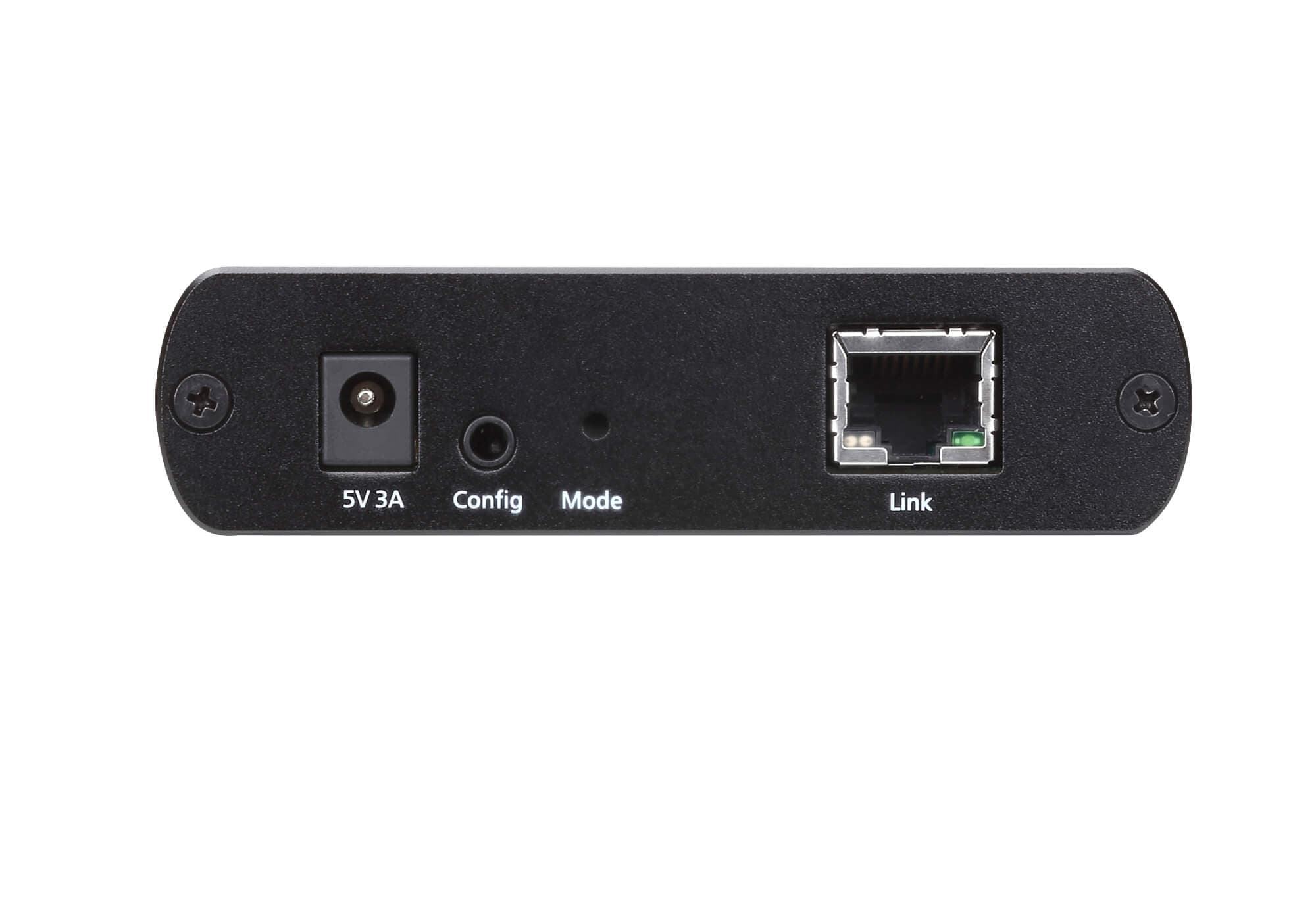

- Захранване
- 1 x DC Power Jack
- USB спецификация
- USB 2.0 High/Full/Low Speed
- USB спецификация
- USB 2.0 High/Full/Low Speed
- Поддържани USB устройства
- N/A
- Поддържани USB устройства
- 4 USB Devices
- Консумация
- BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:15WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Мрежов протокол
- 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance)
- Мрежов протокол
- 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance)
Работна среда
- Температура на съхранение
- -20° - 70°C
- Температура на съхранение
- -20° - 70°C
- Влажност
- 0 - 80% RH, Non-condensing
- Влажност
- 0 - 80% RH, Non-condensing
- Работна температура
- 0° - 50° C
- Работна температура
- 0° - 50° C
Физически характеристики
- Тегло
- 0.17 kg ( 0.39 lb )
- Тегло
- 0.19 kg ( 0.42 lb )
- Корпус
- Metal
- Корпус
- Metal
- Размери (Д x Ш x В)
- 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
- Размери (Д x Ш x В)
- 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
