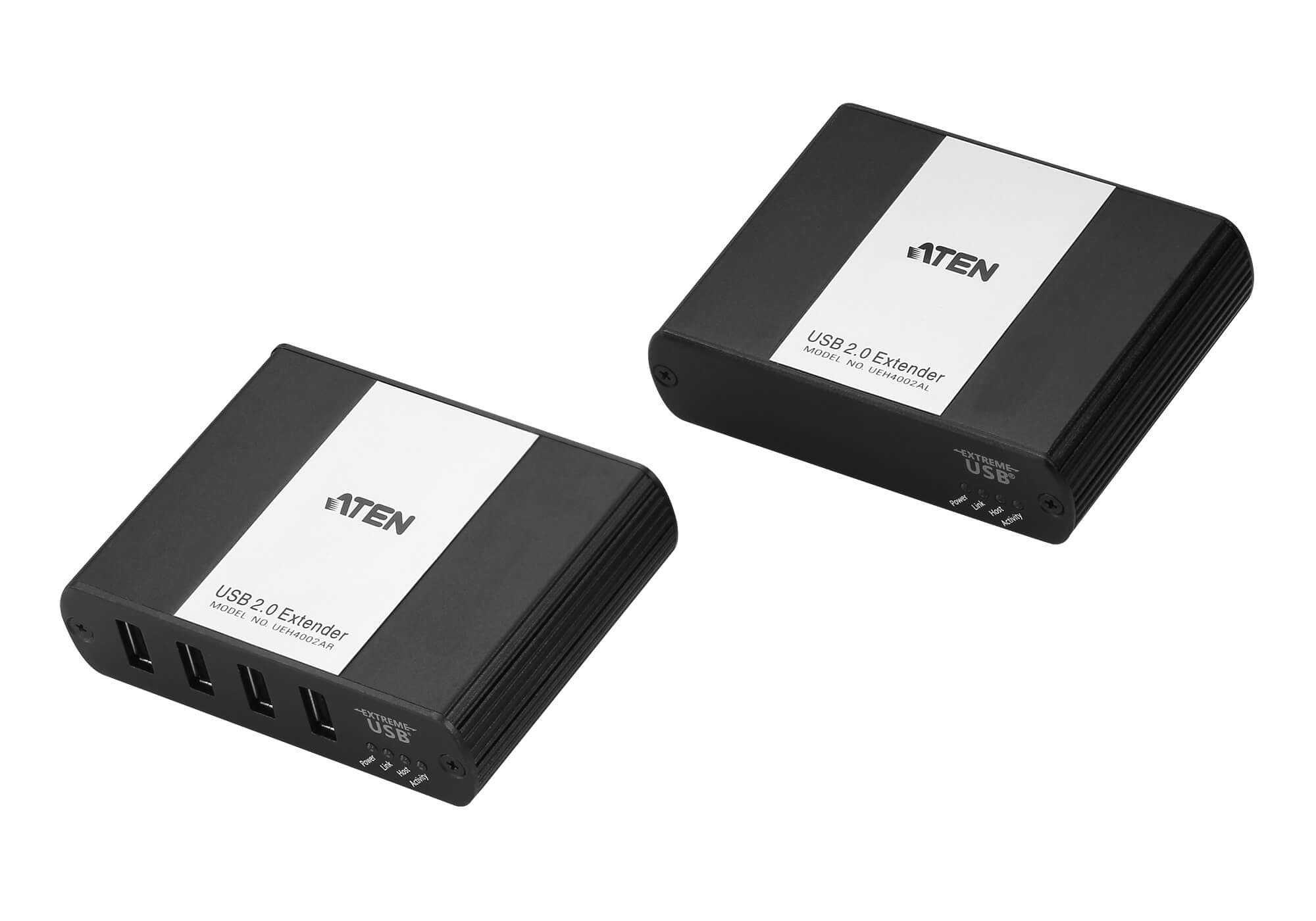

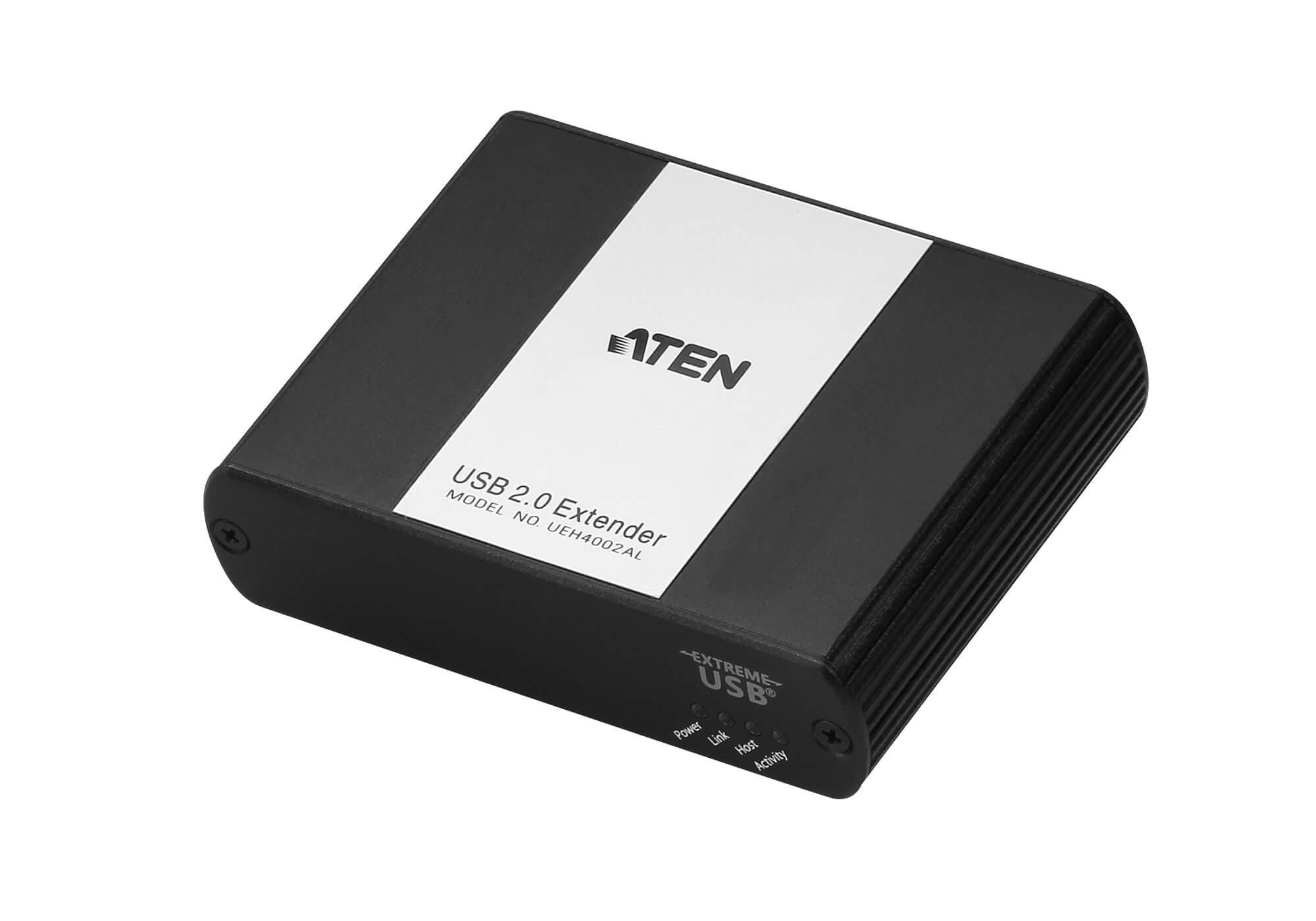

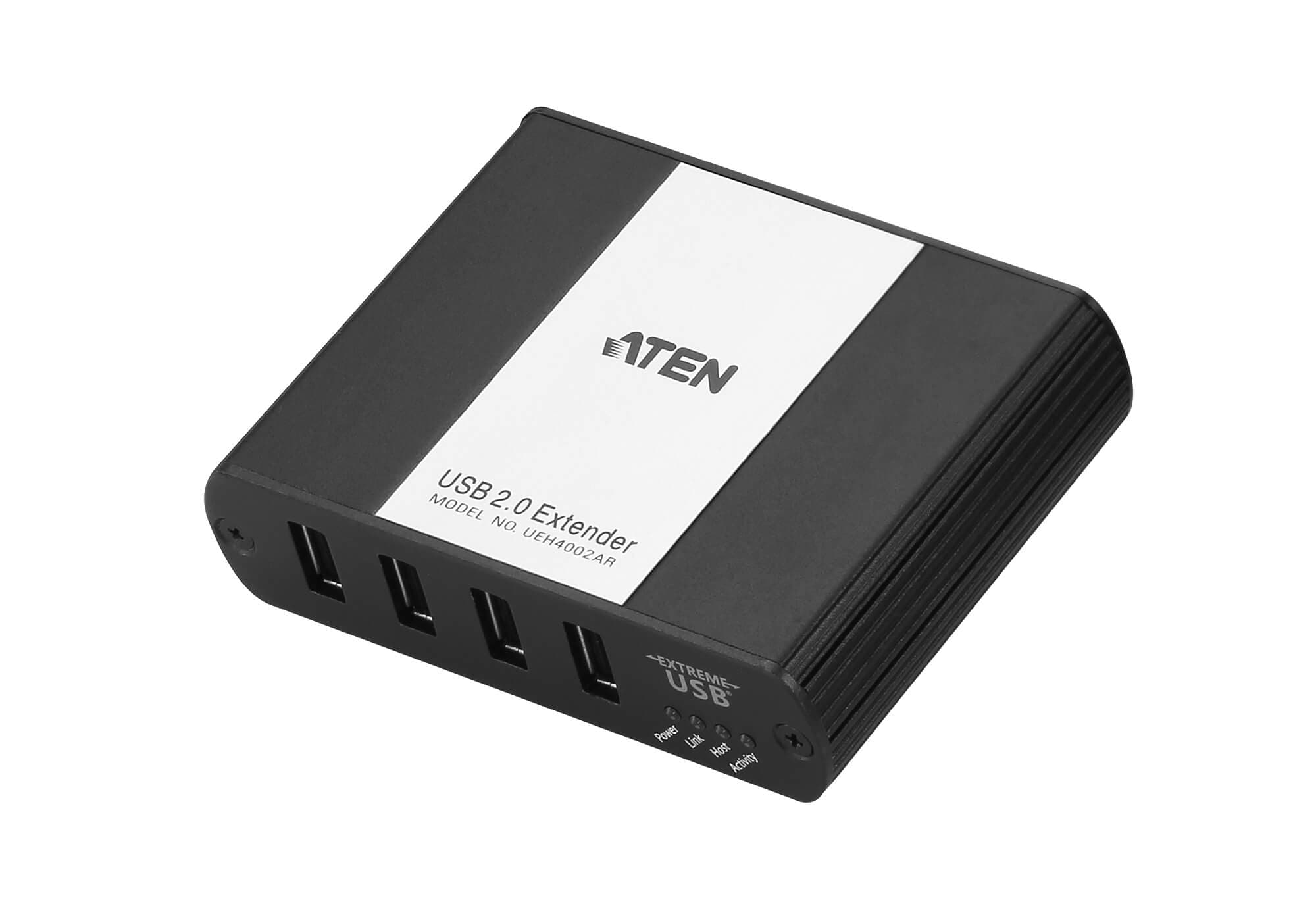

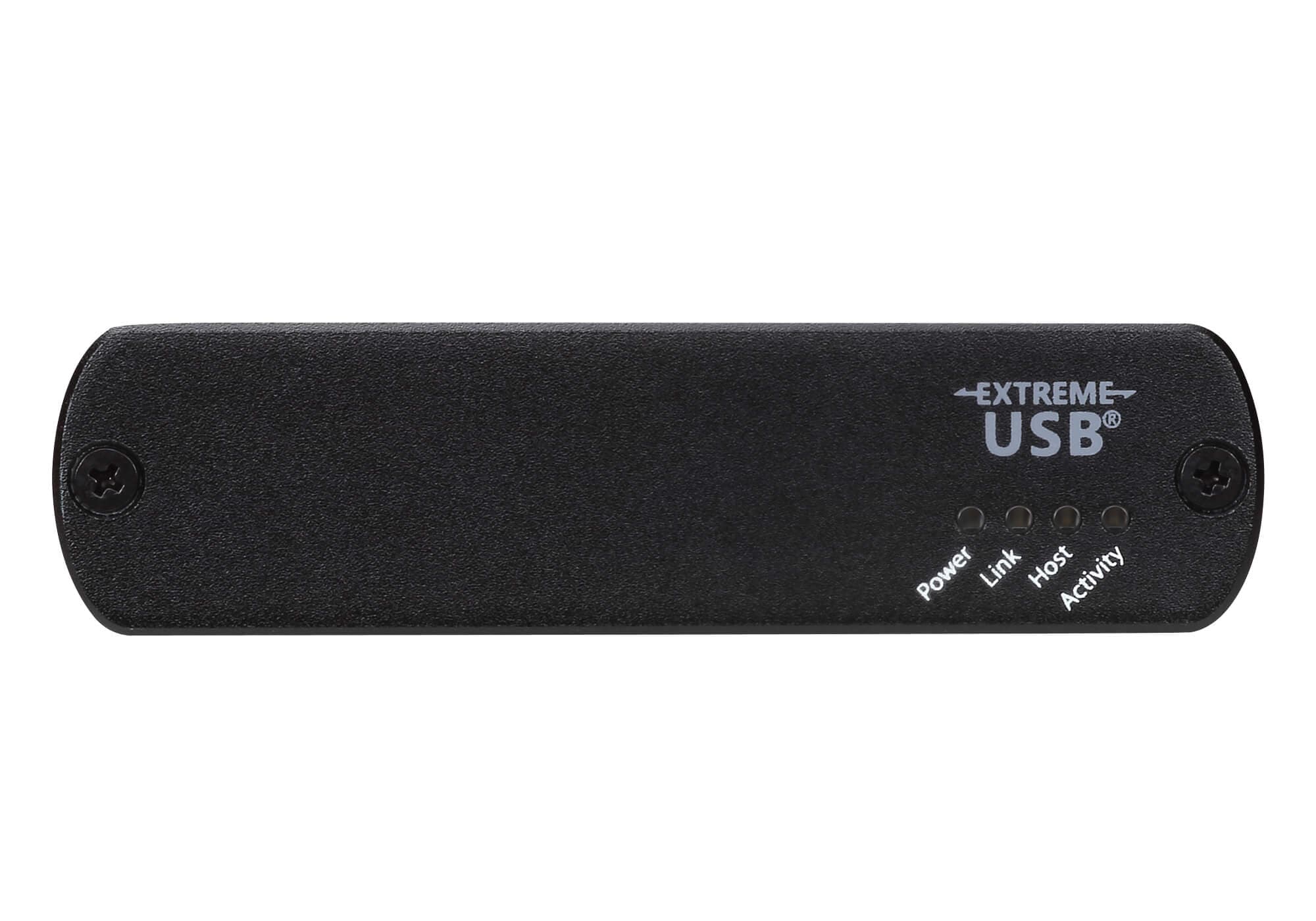

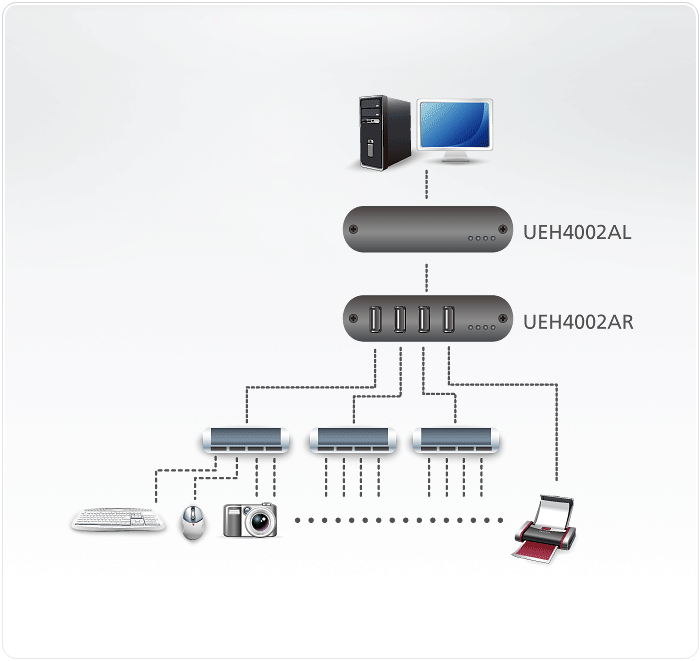

Удължава USB 2.0 сигнали до 100 m по Cat 5 кабел към отдалечен модул с 4 USB порта. ExtremeUSB осигурява прозрачна plug-and-play работа без софтуер и драйвери при до 480 Mbps.
Характеристики
- Extends USB transmission distance up to 100 m
- Supports all USB 2.0 devices up to 480 Mbps
- ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Fully compliant with USB Electrical and Timing
- Works with all major operating systems: Windows®, OS X®, and Linux®
Конектори

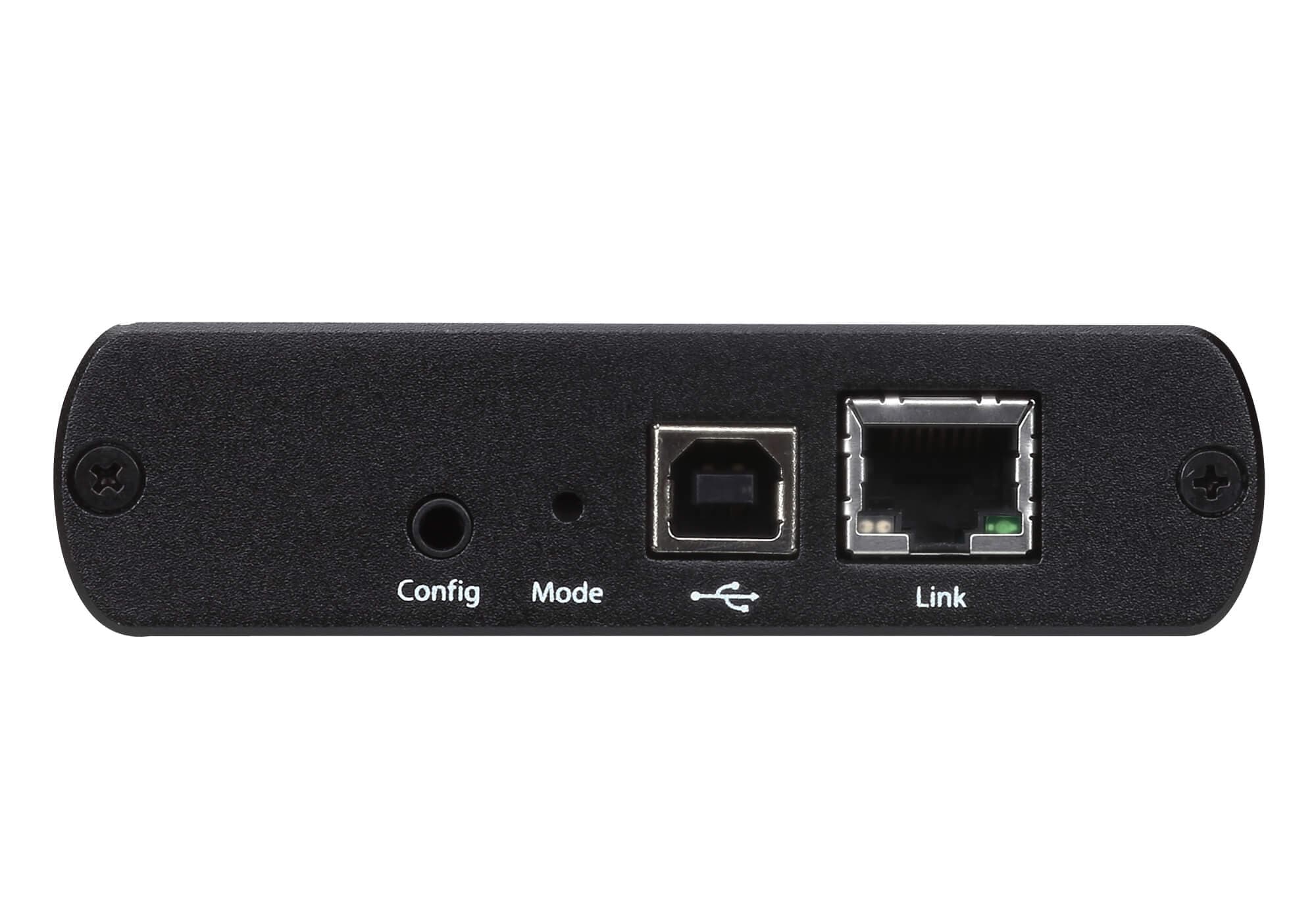

- USB порт
- 1 x USB Type B Female

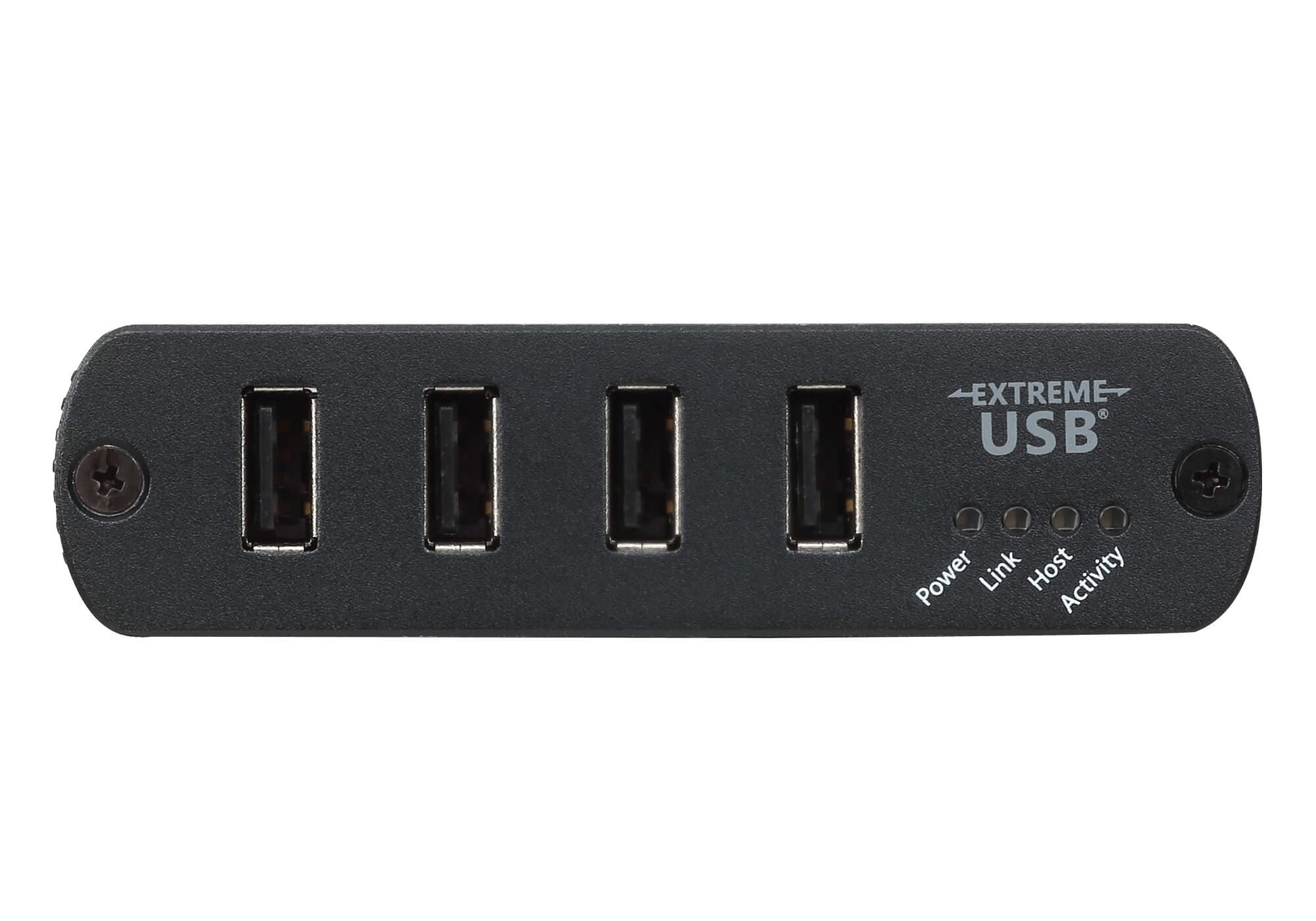

- USB порт
- 4 x USB Type A Female
- Връзка
- 1 x RJ45 Female
- Връзка
- 1 x RJ-45 Female

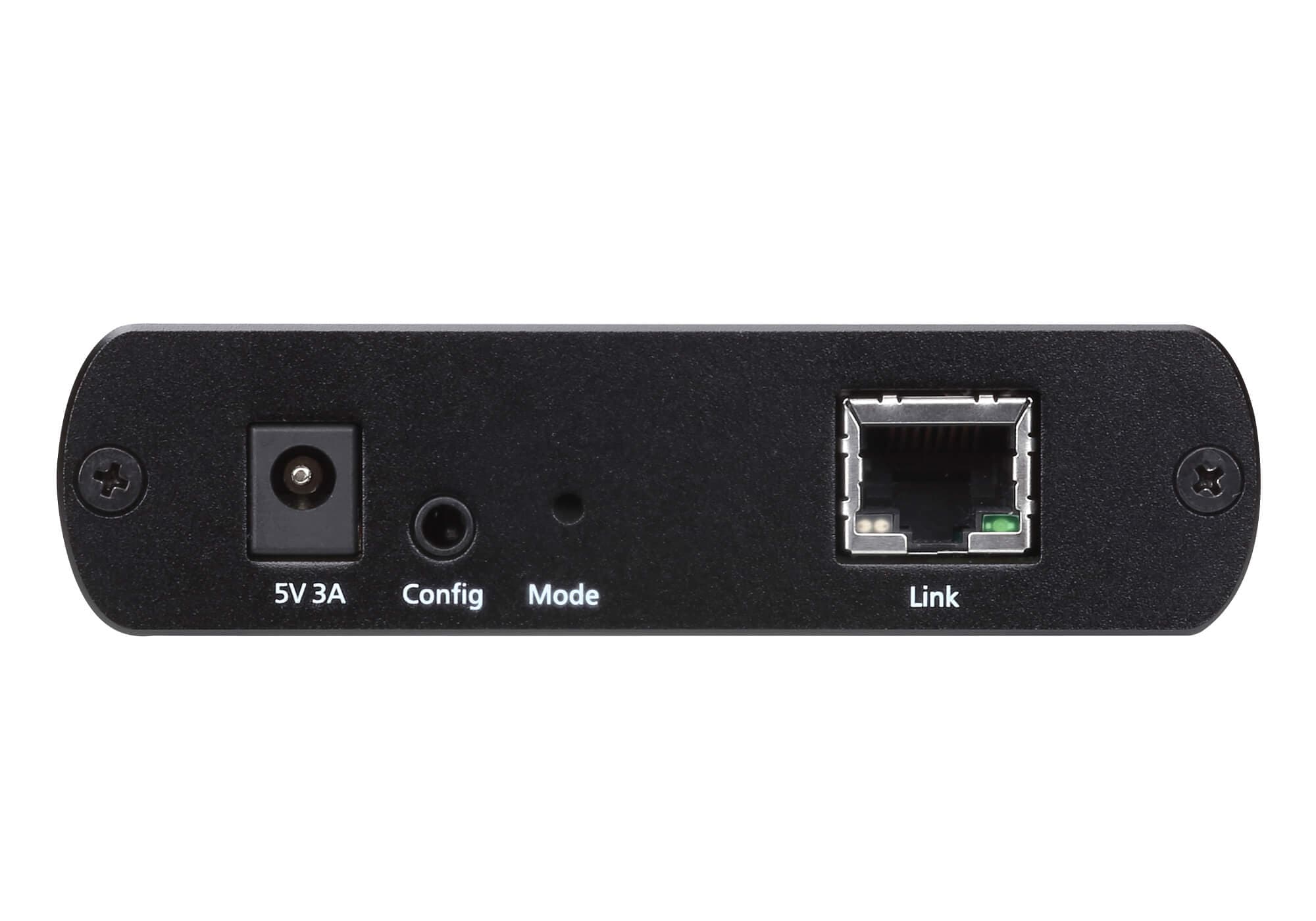

- Захранване
- N/A
- Захранване
- 1 x DC Power Jack
- USB спецификация
- USB 2.0 High/Full/Low Speed
- USB спецификация
- USB 2.0 High/Full/Low Speed
- Поддържани USB устройства
- N/A
- Поддържани USB устройства
- 4 USB Devices
- Консумация
- DC5V:2.5W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:15W:66BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Температура на съхранение
- -20°C to 70°C
- Температура на съхранение
- -20°C to 70°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
- Работна температура
- 0°C to 50°
- Работна температура
- 0°C to 50°
Физически характеристики
- Тегло
- 0.17 kg ( 0.39 lb )
- Тегло
- 0.19 kg ( 0.42 lb )
- Корпус
- Metal
- Корпус
- Metal
- Размери (Д x Ш x В)
- 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
- Размери (Д x Ш x В)
- 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
