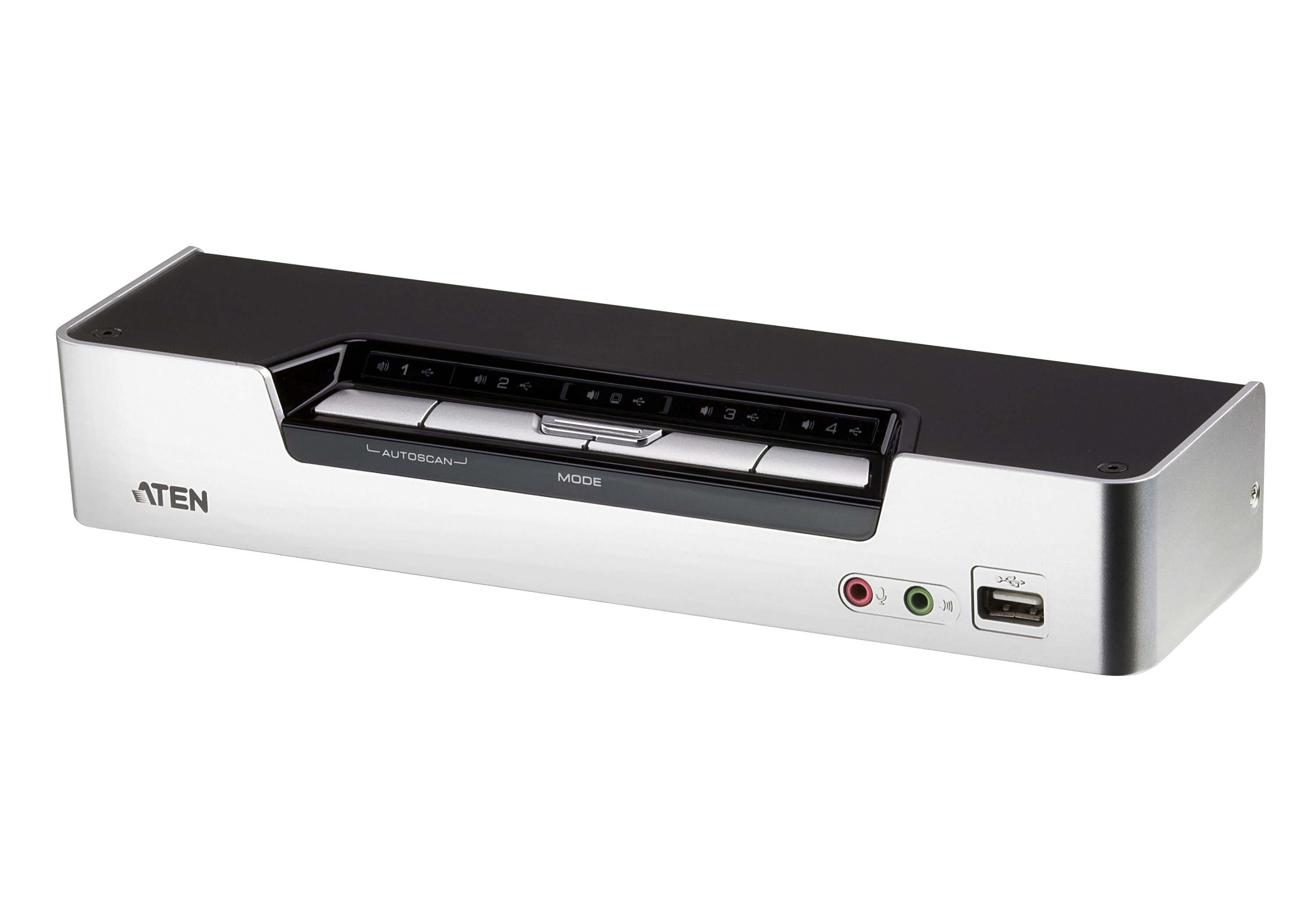

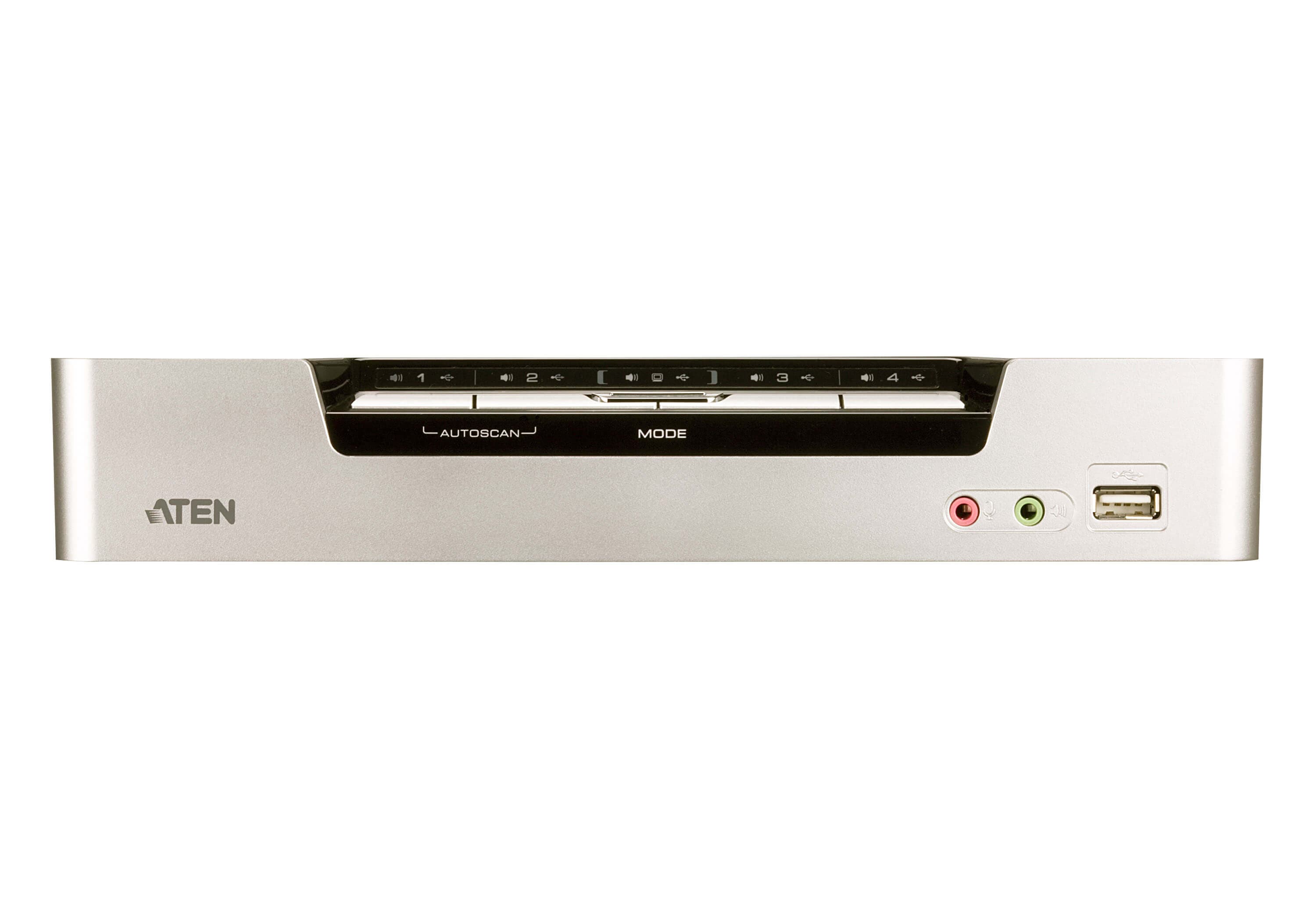

HDMI KVMP превключвател — една USB конзола управлява 4 компютъра и две допълнителни USB устройства. Вграден 2-портов USB 2.0 хъб и аудио.
Характеристики
- 4-port HDMI USB 2.0 KVMP™ Switch
- One USB console controls four HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable * 1. PC keyboard combinations emulate Mac Keyboards 2. Mac keyboards only work with their own computers
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton

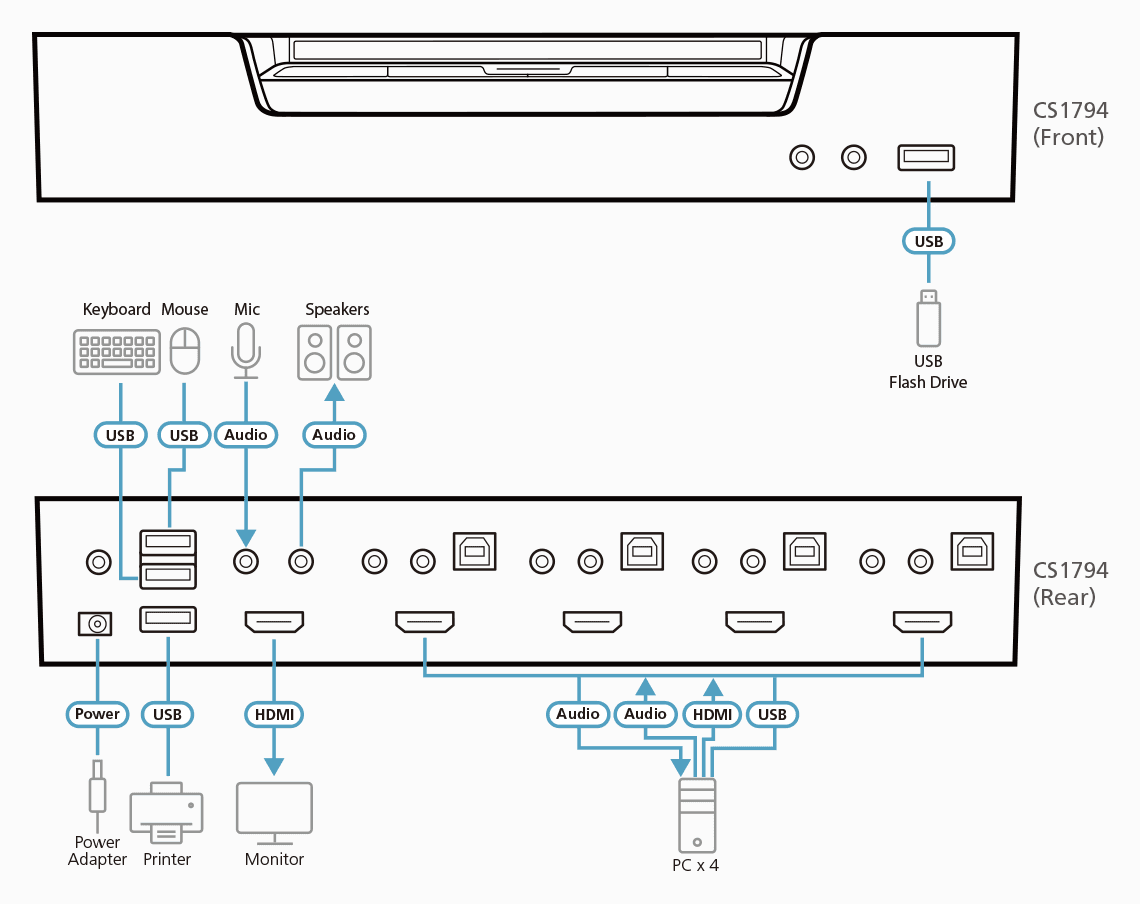

Конектори
- Конзолни портове
- 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)

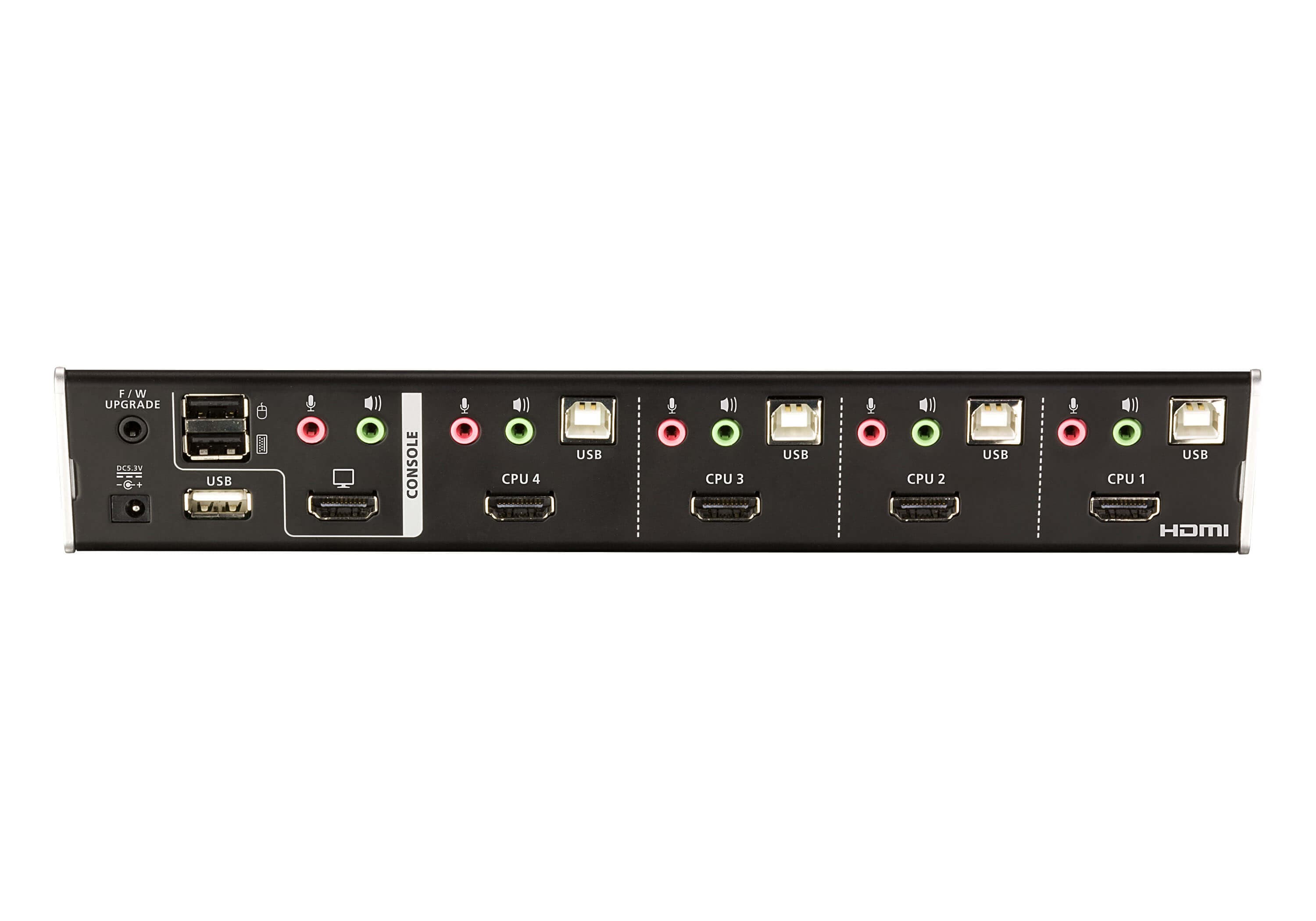

- KVM портове
- 4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink)
- Обновяване на фърмуера
- 1 x 3.5 mm Audio Jack Female (Black)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (1 x front panel; 1 x rear panel)
Бутони и превключватели
- Избран
- 5 x Pushbutton
Индикатори
- Аудио
- 5 (Green)
- KVM
- 5 (Orange)
- USB
- 5 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
- Интервал на сканиране
- 1-99 seconds (default: 5 sec.)
- Консумация
- DC5.3V:4.88W:38BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal, Plastic
- Тегло
- 0.53 kg ( 1.17 lb )
- Размери (Д x Ш x В)
- 26.23 x 7.24 x 4.40 cm (10.33 x 2.85 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
